FormNo.3433-937RevC
Sulky
Mid-SizeMowers
ModelNo.44401—SerialNo.400000000andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3433-937*C

WARNING
CALIFORNIA
Proposition65Warning
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.Toro.comforproductsafetyandoperation
trainingmaterials,accessoryinformation,helpnding
adealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineT oroparts,or
additionalinformation,contactanAuthorizedService
DealerorT oroCustomerServiceandhavethemodel
andserialnumbersofyourproductready.Figure1
identiesthelocationofthemodelandserialnumbers
ontheproduct.Writethenumbersinthespace
provided.
Important:Withyourmobiledevice,youcan
scantheQRcodeontheserialnumberdecal(if
equipped)toaccesswarranty,parts,andother
productinformation.
g294869
Figure1
1.Modelandserialnumberlocation
Writetheproductmodelandserialnumbersinthe
spacebelow:
ModelNo.
SerialNo.
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanical
informationandNoteemphasizesgeneralinformation
worthyofspecialattention.
Contents
Safety.......................................................................3
SafetyandInstructionalDecals..........................4
Setup........................................................................5
1PreparingtheMachine.....................................5
2InstallingtheSulky...........................................5
Operation..................................................................7
UsingtheSulky...................................................7
UsingtheTransportPosition...............................7
Maintenance.............................................................8
GreasingtheSulky.............................................8
©2020—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA
AllRightsReserved

Safety
•Ensurethatthesulkyisproperlyattachedtothe
machineandisingoodworkingorderpriortouse.
•Donottrytostabilizethemachinebyputting
yourfootontheground.Ifyoulosecontrolofthe
machine,stepoffthesulkyplatformandaway
fromthemachine.
•Donotplaceyourfeetunderthesulky.
•Whileusingthesulky,donotmovethemachine
unlessyouarestandingwithbothfeetonthe
platformandyourhandsareholdingontothe
referencebars.
•Donotoperatethemachineinreversewhile
standingontheplatform.Stepofftheplatformand
allowthesulkytorotate180degreesaroundwhile
movingthemachineinreverse.
•Lookbehindanddownbeforebackingupto
ensurethatthepathisclear.
•Allowonlythemachineoperatorontheplatform.
•Donotallowuntrainedoperatorstousethesulky.
•Dismountandlatchthesulkyinthetransport
positionwhenloadingandunloadingthemachine
andoperatingonhillsides.
•Slowdownbeforeturning.Sharpturnsonany
terrainmaycauselossofcontrol.
•Donotusethesulkyonroughanduneventerrain.
•Ensurethatyouoperatethesulkyinareaswhere
therearenoobstaclesnearby.Failuretomaintain
adequatedistancefromtrees,walls,andother
barriersmayresultininjuryasthesulkybacks
uporturnsduringoperationiftheoperatorisnot
attentivetothesurroundings.Operatethesulky
onlyinareaswherethereissufcientclearance
foryoutosafelymaneuverthesulky.
•Beforeperforminganyservice,repairs,
maintenance,oradjustments,dothefollowing:
–Parkthemachineonalevelsurface.
–Disengagethepowertakeoff.
–Engagetheparkingbrake.
–Shutofftheengineandremovethekey.
•Keepnutsandboltstight.Keepequipmentclean
andingoodcondition.
•Useonlygenuinereplacementparts.
•Donotmodifythesulkyoruseitonnon-approved
machines.
3

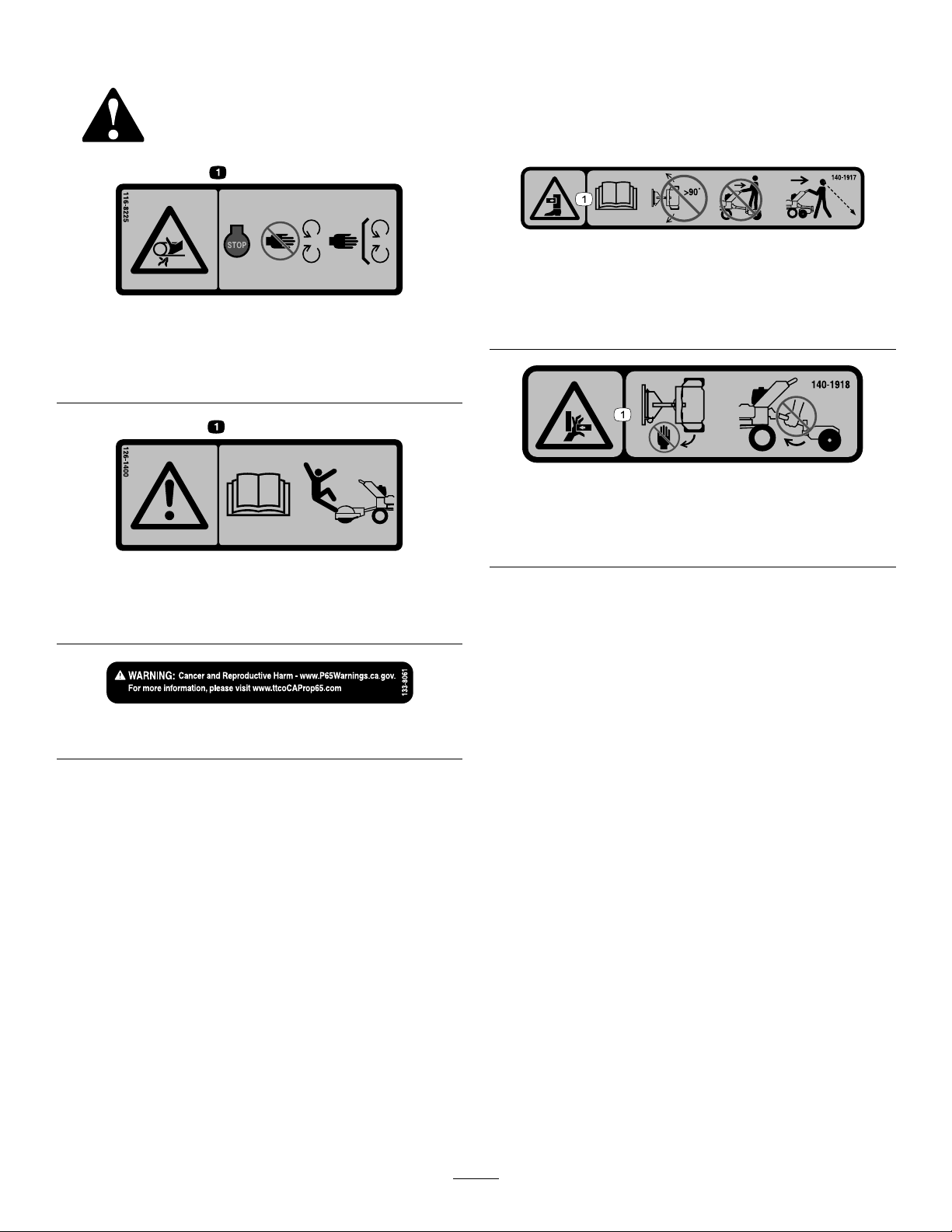

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal116-8225
116-8225
1.Entanglementhazard-Stoptheenginebeforereaching
underneath;stayawayfrommovingparts;keepallguards
inplace.
decal126-1400
126-1400
1.Warning—readtheOperator’sManualforinformationabout
attachments;certainattachmentscancauseyoutofall.
decal133-8061
133-8061
decal140-1917
140-1917
1.Crushinghazardoflegs—readtheOperator’sManual;do
notturnmorethan90°;donotstandontheattachment
whilemovinginreverse;lookbehindyouwhenmovingin
reverse.
decal140-1918
140-1918
1.Crushinghazardofhands—donotinserthandsbetween
theattachmentandthemachine;donotholdontothe
attachmentrod.
4

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Nopartsrequired–Preparethemachine.
Mountplate1
Bolt4
Nut4
Pivotpin1
Hairpincotter1
Transportpin1
2
Sulky1
Installthesulky.
Important:AWeightKitisrequiredfor91cm(36inch)machinesandisoptionalforothersizes.
ContactyourAuthorizedServiceDealertoobtainthekit,andinstallitbeforeinstallingthesulky.
1
PreparingtheMachine
NoPartsRequired
Procedure
1.Parkthemachineonalevelsurface.
2.DisengagethePTOandengagetheparking
brake.
3.Shutofftheengineandremovethekey.
2
InstallingtheSulky
Partsneededforthisprocedure:
1Mountplate
4Bolt
4Nut
1Pivotpin
1Hairpincotter
1Transportpin
1Sulky
Procedure
1.Installthebackplatetothelowerrearframeof
themachineusing4boltsand4nuts(Figure2).
Note:Usethelowerholesinthebracketfor
36-inchmachines.Usetheupperholesforall
othermachines.
5

g315914
Figure2
2.Attachthesulkytothebracketusingthepivot
pinandhairpincotter(Figure3).
Note:EnsuretheJendofthepinrestsontop
oftheplate(Figure4).
g315915
Figure3
1.Pivotpin3.Hairpincotter
2.Sulky
g295053
Figure4
3.Storethetransportpininthepinplateshown
inFigure5.
Important:Donotstorethetransportpin
inthedrawbartubewhileoperatingthe
machine.
g294868
Figure5
1.Transportpin2.Pinplate
6

Operation
WARNING
Youcouldfallofftheplatformandbeseriously
injuredduringoperation.
Donotmovethemachineforwardunlessyou
arestandingwithbothfeetontheplatform
andyourhandsareholdingontothereference
bars.Stepofftheplatformwhenmovingthe
machineinreverse.
UsingtheSulky
Stepontothesulkyplatformbeforestartingthe
machine.Usethereferencebarsonthemachineto
stabilizeyourselfwhileridingontheplatform.
Fullystopthemachineandstepofftheplatform
beforemovingthemachineinreverse.Thesulkywill
rotateforward,underthedrawbar,whenyoumovethe
machineinreverseandrotatebacktotheoperating
positionwhenyoumovethemachineforward.
UsingtheTransport
Position
1.Parkthemachineonalevelsurface,disengage
thePTO,engagetheparkingbrake,and
movethemotion-controlleversoutwardtothe
NEUTRAL-LOCKposition.
2.Shutofftheengineandremovethekey.
3.Removethetransportpin.
4.Rotatetheplatformforwardandsecureitusing
thetransportpin(Figure6).
Note:Youcanalsomovethemachinein
reversetorotatetheplatform.
g315917
Figure6
1.Transportpin
5.Grabthehandleandraisethesulkyuntilit
latchesonthebracket(Figure6).
g315916
Figure7
1.Latch2.Handle
6.Tolowerthesulky,pushthesulkyforward,pull
backonthelatch,andusethehandletolower
thesulky.Removethetransportpinandstoreit
inthepinplate(Figure5).
7

Maintenance
GreasingtheSulky
ServiceInterval:Beforeeachuseordaily—Inspect
thegreasettings.
Every40hours—Greasetheplatform(grease
immediatelyaftereachwashing).
Greasetype:General-purposegrease
1.Parkthemachineonalevelsurface,disengage
thePTO,andengagetheparkingbrake.
2.Shutofftheengineandremovethekey.
3.Cleanthegreasettingswitharag.
Note:Makesuretoscrapeanypaintoffthe
frontofthetting(s).
4.Connectagreaseguntothetting.
5.Pumpgreaseintothettingsuntilgreasebegins
tooozeoutofthebearings.
6.Wipeupanyexcessgrease.
g295121
Figure8
8
