FormNo.3381-315RevA
53cmRecycler®LawnMower
ModelNo.20999—SerialNo.314000001andUp
Operator'sManual
Introduction
Thisrotary-blade,walk-behindlawnmowerisintended
tobeusedbyresidentialhomeowners.Itisdesigned
primarilyforcuttinggrassonwell-maintainedlawns
onresidentialproperties.Itisnotdesignedforcutting
brushorforagriculturaluses.
Readthisinformationcarefullytolearnhowtooperateand
maintainyourmachineproperlyandtoavoidinjuryand
equipmentdamage.Youareresponsibleforoperatingthe
machineproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comforproduct
andaccessoryinformation,helpndingadealer,ortoregister
yourproduct.
Wheneveryouneedservice,genuineToroparts,oradditional
information,contactanAuthorizedServiceDealerorToro
CustomerServiceandhavethemodelandserialnumbersof
yourmachineready.Figure1identiesthelocationofthe
modelandserialnumbersontheproduct.
Figure1
1.Modelandserialnumberlocation
Writetheproductmodelandserialnumbersinthefollowing
space:
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhassafety
messagesidentiedbythesafetyalertsymbol(Figure2),
whichsignalsahazardthatmaycauseseriousinjuryordeath
ifyoudonotfollowtherecommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2wordstohighlightinformation.
Importantcallsattentiontospecialmechanicalinformation
andNoteemphasizesgeneralinformationworthyofspecial
attention.
ThisproductcomplieswithallrelevantEuropeandirectives.
Fordetails,seetheseparateproduct-specicDeclarationof
Conformity(DOC)sheet.
Formodelswithstatedenginehorsepower,thegross
horsepoweroftheenginewaslaboratoryratedbytheengine
manufacturerinaccordancewithSAEJ1940.Ascongured
tomeetsafety,emission,andoperatingrequirements,the
actualenginehorsepoweronthisclassoflawnmowerwill
besignicantlylower.
Donottamperwiththeenginecontrolsoralterthegovernor
speed;doingsomaycreateanunsafeconditionresultingin
personalinjury.
Contents
Introduction..................................................................1
GeneralLawnMowerSafety.....................................2
SoundPressure......................................................3
SoundPower..........................................................3
Hand/ArmVibration..............................................3
SafetyandInstructionalDecals.................................4
Setup............................................................................5
1UnfoldingtheHandle............................................5
2InstallingtheRecoil-starterRopeintheRope
Guide.................................................................5
3FillingtheEnginewithOil......................................6
4InstalltheMulchPlugortheGrassBag....................6
ProductOverview..........................................................8
Specications.........................................................8
Operation.....................................................................8
FillingtheFuelTank................................................8
CheckingtheEngineOilLevel..................................9
AdjustingtheCuttingHeight....................................9
AdjustingtheUpperHandleHeight..........................10
StartingtheEngine.................................................11
UsingtheSelf-propelDrive......................................11
StoppingtheEngine...............................................11
©2013—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3381-315*A

RecyclingtheClippings...........................................12
BaggingtheClippings.............................................12
Side-dischargingtheClippings..................................13
OperatingTips......................................................14
Maintenance.................................................................14
RecommendedMaintenanceSchedule(s)......................14
PreparingforMaintenance.......................................15
ReplacingtheAirCleaner........................................15
ChangingtheEngineOil.........................................15
LubricatingtheWheelGears....................................16
LubricatingtheUpperHandle..................................16
AdjustingtheSelf-propelDriveCable........................17
ReplacingtheBlade................................................17
CleaningtheUndersideoftheMachine
Housing............................................................18
Storage........................................................................19
PreparingtheMachineforStorage............................19
FoldingtheHandle.................................................19
RemovingtheMachinefromStorage.........................19
TestingtheMachineSafetySystem............................20
Safety
Improperlyusingormaintainingthismowercanresult
ininjury.Toreducethepotentialforinjury,complywith
thesesafetyinstructions.
Torodesignedandtestedthismachineforreasonablysafe
service;however,failuretocomplywiththefollowing
instructionsmayresultinpersonalinjury.
Toensuremaximumsafety,bestperformance,and
togainknowledgeoftheproduct,itisessentialthat
youandanyotheroperatorofthemowerreadand
understandthecontentsofthismanualbeforethe
engineiseverstarted.Payparticularattentiontothe
safetyalertsymbol(Figure2),whichmeansCaution,
Warning,orDanger—“personalsafetyinstruction.”
Readandunderstandtheinstructionbecauseithasto
dowithsafety.Failuretocomplywiththeinstruction
mayresultinpersonalinjury.
GeneralLawnMowerSafety
ThefollowinginstructionshavebeenadaptedfromEN836.
Thiscuttingmachineiscapableofamputatinghandsandfeet
andofthrowingobjects.Failuretoobservethefollowing
safetyinstructionscouldresultinseriousinjuryordeath.
Training
•Readtheinstructionscarefully.Befamiliarwiththe
controlsandtheproperuseoftheequipment.
•Neverallowchildrenorpeopleunfamiliarwiththese
instructionstousethemower.Localregulationscan
restricttheageoftheoperator.
•Keepinmindthattheoperatororuserisresponsiblefor
accidentsorhazardsoccurringtootherpeopleortheir
property.
•Understandexplanationsforallpictogramsusedonthe
mowerorintheinstructions.
Gasoline
WARNING-Gasolineishighlyammable.Takethe
followingprecautions.
•Storefuelincontainersspecicallydesignedforthis
purpose.
•Refueloutdoorsonlyanddonotsmokewhilerefueling.
•Addfuelbeforestartingtheengine.Neverremovethe
capofthefueltankoraddgasolinewhiletheengineis
runningorwhentheengineishot.
•Ifgasolineisspilled,donotattempttostarttheengine
butmovethemowerawayfromtheareaofspillageand
avoidcreatinganysourceofignitionuntilgasolinevapors
havedissipated.
•Replaceallfueltankandcontainercapssecurely.
Preparation
•Whilemowing,alwayswearsubstantialfootwearandlong
trousers.Donotoperatetheequipmentwhenbarefoot
orwearingopensandals.
•Thoroughlyinspecttheareawheretheequipmentisto
beusedandremoveallstones,sticks,wires,bonesand
otherforeignobjects.
•Beforeusing,alwaysvisuallyinspecttoseethatguards,
andsafetydevices,suchasdeectorsand/orgrass
catchers,areinplaceandworkingcorrectly.
•Beforeusing,alwaysvisuallyinspecttoseethattheblades,
bladeboltsandcutterassemblyarenotwornordamaged.
Replacewornordamagedbladesandboltsinsetsto
preservebalance.
Starting
•Donottiltthemowerwhenstartingtheengineunlessthe
mowerhastobetiltedforstarting.Inthiscase,donot
tiltitmorethanabsolutelynecessaryandliftonlythepart
whichisawayfromtheoperator.
•Starttheenginecarefullyaccordingtoinstructionsand
withfeetwellawayfromtheblade(s)andnotinfrontof
thedischargechute.
Operation
•Nevermowwhilepeople,especiallychildren,orpetsare
nearby.
•Mowonlyindaylightoringoodarticiallight.
•Stayalertforholesintheterrainandotherhiddenhazards.
•Donotputhandsorfeetnearorunderrotatingparts.
Keepclearofthedischargeopeningatalltimes.
2

•Neverpickuporcarryalawnmowerwhiletheengineis
running.
•Useextremecautionwhenreversingorpullinga
pedestriancontrolledlawnmowertowardsyou.
•Walk,neverrun.
•Slopes:
–Donotmowexcessivelysteepslopes.
–Exerciseextremecautionwhenonslopes.
–Mowacrossthefaceofslopes,neverupanddown,
andexerciseextremecautionwhenchangingdirection
onslopes.
–Alwaysbesureofyourfootingonslopes.
•Reducespeedonslopesandinsharpturnstoprevent
overturningorlossofcontrol.
•Stopthebladeifthelawnmowerhastobetiltedfor
transportationwhencrossingsurfacesotherthangrass
andwhentransportingthelawnmowertoandfromthe
areatobemowed.
•Donotoperatetheengineinaconnedspacewhere
dangerouscarbonmonoxidefumescancollect.
•Stoptheengine
–wheneveryouleavethelawnmower.
–beforerefueling.
–beforeremovingthegrasscatcher.
–beforemakingheightadjustmentunlessadjustment
canbemadefromtheoperator'sposition.
•Stoptheengineanddisconnectthespark-plugwire.
–beforeclearingblockagesoruncloggingchute.
–beforechecking,cleaningorworkingonthelawn
mower.
–afterstrikingaforeignobject,inspectthelawnmower
fordamageandmakerepairsbeforerestartingand
operatingthelawnmower.
–iflawnmowerstartstovibrateabnormally(check
immediately).
•Lightningcancausesevereinjuryordeath.Ifyousee
lightningorhearthunderinthearea,donotoperatethe
machine;seekshelter.
•Watchoutfortrafcwhencrossingornearroadways.
MaintenanceandStorage
•Keepallnuts,bolts,andscrewstighttobesurethe
equipmentisinsafeworkingcondition.
•Donotusepressure-cleaningequipmentonmachine.
•Neverstoretheequipmentwithgasolineinthetankand
insideabuildingwherefumescanreachanopename
orspark.
•Allowtheenginetocoolbeforestoringinanyenclosure.
•Toreducetherehazard,keeptheengine,silencer,
batterycompartmentandgasolinestorageareafreeof
grass,leaves,orexcessivegrease.
•Checkgrasscatchercomponentsandthedischargeguard
frequentlyandreplacewithmanufacturer'srecommended
parts,whennecessary.
•Replacewornordamagedpartsforsafety.
•Replacefaultysilencers.
•Ifthefueltankhastobedrained,dothisoutdoors.
•Donotchangetheenginegovernorsettingsoroverspeed
theengine.Operatinganengineatexcessivespeedcan
increasethehazardofpersonalinjury.
•Becarefulduringadjustmentofthelawnmowerto
prevententrapmentofthengersbetweenmovingblades
andxedpartsofthelawnmower.
•Toensurethebestperformanceandsafety,
purchaseonlygenuineTororeplacementpartsand
accessories.Donotuse will t partsandaccessories;
theymaycauseasafetyhazard.
SoundPressure
Thisunithasasoundpressurelevelattheoperator’searof89
dBA,whichincludesanUncertaintyValue(K)of1dBA.
Thesoundpressurelevelwasdeterminedaccordingtothe
proceduresoutlinedinEN836.
SoundPower
Thisunithasaguaranteedsoundpowerlevelof98dBA,
whichincludesanUncertaintyValue(K)of1dBA.
Thesoundpowerlevelwasdeterminedaccordingtothe
proceduresoutlinedinISO11094.
Hand/ArmVibration
Measuredvibrationlevelforrighthand=6.6m/s2
Measuredvibrationlevelforlefthand=7.9m/s2
UncertaintyValue(K)=3.1m/s2
Measuredvaluesweredeterminedaccordingtotheprocedures
outlinedinEN836.
3

SafetyandInstructionalDecals
Important:Safetyandinstructiondecalsarelocatednearareasofpotentialdanger.Replacedamageddecals.
Manufacturer'sMark
1.Indicatesthebladeisidentiedasapartfromtheoriginal
machinemanufacturer.
108-7450
1.Heightofcut
108-7451
1.Heightofcut
110-9457
1.EngineswitchOff3.Unlocked
2.EngineswitchOn4.Locked
112-8760
1.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
2.Cutting/dismembermentofhandorfoot—stayawayfrom
movingparts.
114-7982
1.Warning—readtheOperator'sManual.
2.Thrownobjecthazard—keepbystandersasafedistance
fromthemachine.
3.Cutting/dismembermenthazardofhandorfoot,mower
blade—disconnectthesparkplugwireandreadthe
instructionsbeforeservicingorperformingmaintenance.
4.Cutting/dismembermenthazardofhandorfoot,mower
blade—stayawayfrommovingparts.
5.Cutting/dismembermenthazardofhandorfoot,mower
blade—donotoperateupanddownslopes;operatesideto
sideonslopes;stoptheenginebeforeleavingtheoperating
position;andlookbehindyouwhenbackingup.
4

121–2370
1.Handleinraisedposition3.Footpedallocation
2.Handleinloweredposition
Setup
Important:Removeanddiscardtheprotectiveplastic
sheetthatcoverstheengine.
1
UnfoldingtheHandle
NoPartsRequired
Procedure
1.UnfoldthehandleasillustratedinFigure3.
G020797
Figure3
2.Tightenallhandleknobs.
3.Movetheupperhandletothedesiredpositionand
tightentheupperhandleknobrmly(Figure4).
G020798
Figure4
5

2
InstallingtheRecoil-starter
RopeintheRopeGuide
NoPartsRequired
Procedure
Important:Youmustinstalltherecoil-starterropein
theropeguide.
Holdtheblade-controlbartotheupperhandleandpullthe
recoil-starterropethroughtheropeguideonthehandle
(Figure5).
Figure5
1.Recoil-starterrope2.Ropeguide
3
FillingtheEnginewithOil
NoPartsRequired
Procedure
Important:Thismachinedoesnotcomewithoilinthe
engine.Beforestartingtheengine,lltheenginewith
oil.
Important:Changetheengineoilaftertherst5
operatinghours;changeityearlythereafter.Referto
ChangingtheEngineOil(page15).
1.Movethemachinetoalevelsurface.
2.Removethedipstick(Figure6)andpourabout3/4of
thecrankcasecapacityofoilintotheoil-lltube.
Note:Max.ll:0.59l(20oz.),type:SAE30detergent
oilwithanAPIserviceclassicationofSF,SG,SH,
SJ,SL,orhigher.
Figure6
3.Wipeoffthedipstickendwithacleancloth.
4.Insertthedipstickintotheoil-lltube,andscrewit
inuntilitstops.
5.Removethedipstickandreadtheoillevelonthe
dipstick;refertoFigure6.
•Iftheoillevelistoolow,addasmallamountof
oilslowlytotheoil-lltube,andthenrepeatsteps
3through5untiltheoilleveliscorrectasshown
inFigure6.
•Iftheoillevelistoohigh,draintheexcessoiluntil
youobtainthecorrectoillevelonthedipstick.To
draintheexcessoil,refertoChangingtheEngine
Oil(page15).
Important:Iftheoillevelinthecrankcaseistoo
lowortoohighandyouruntheengine,youmay
damagetheengine.
6.Installthedipsticksecurelybyhand.
4
InstalltheMulchPlugorthe
GrassBag
NoPartsRequired
Procedure
Important:Youmustcorrectlyinstallthemulchplug
(formulchingorside-discharging)orthegrassbag(for
bagging);otherwise,theenginewillnotstart.
Themachinehasasafetyswitch,locatedatthebottomofthe
channelatthetop,rightrearofthemachine,thatprevents
themachinefromoperatingwithoutamulchplugoragrass
bag.Thispreventsthemachinefromthrowingdebrisatthe
operatorthroughtherearchute.
6

Fortheswitchtodetectthepresenceofthemulchplug,the
topofthemulchpluglevermustliefullyinthebottom
ofthechannel(Figure7).
Figure7
1.Topofmulchplugleverinchannelbottom
1.Insertthemulchplugintothemachineifitisn'talready
installed(Figure8).
Figure8
2.Squeezethebuttonontheleverwithyourthumb,and
fullyinsertthemulchplugintotheopening(Figure9).
Figure9
3.Releasethebuttonontheleverandensurethatthetop
oftheleverliesfullyintheswitchchannel(Figure10).
Ifthetopoftheleverisnotintheswitchchannel,
yourmachinewillnotstart.
Figure10
Note:Iftheleverdoesnotlatchproperly,disconnect
thewirefromthesparkplugandcheckforandremove
anydebrisbuildupinthetunnel.
7

ProductOverview
G020796
10
Figure11
1.Cutting-heightlever(4)6.Upperhandle
2.Sparkplug7.Upper-handleknob
3.Oilll/Dipstick(notshown)8.Fuel-tankcap
4.Recoil-starthandle9.Footpedal
5.Blade-controlbar10.Airlter
Figure12
1.Grassbag3.Recycleplug(installed)
2.Side-dischargechute
Specications
ModelWeightLengthWidthHeight
2099938kg
(84lb)
157cm
(62in)
56cm
(22in)
112cm
(44in)
Operation
FillingtheFuelTank
RecommendedFuel:
•Forbestresults,useonlyclean,fresh(lessthan30days
old),unleadedgasolinewithanoctaneratingof87or
higher((R+M)/2ratingmethod).
•Ethanol:Gasolinewithupto10%ethanol(gasohol)
or15%MTBE(methyltertiarybutylether)byvolume
isacceptable.EthanolandMTBEarenotthesame.
Gasolinewith15%ethanol(E15)byvolumeisnot
approvedforuse.Neverusegasolinethatcontains
morethan10%ethanolbyvolume,suchasE15
(contains15%ethanol),E20(contains20%ethanol),or
E85(containsupto85%ethanol).Usingunapproved
gasolinemaycauseperformanceproblemsand/orengine
damagewhichmaynotbecoveredunderwarranty.
•Donotusegasolinecontainingmethanol.
•Donotstorefueleitherinthefueltankorfuelcontainers
overthewinterunlessafuelstabilizerisused.
•Donotaddoiltogasoline.
Important:Toreducestartingproblems,addfuel
stabilizertothefuelallseason,mixingitwithgasoline
lessthan30daysold;runthemachinedrybeforestoring
itformorethan30days.
Donotusefueladditivesotherthanafuel
stabilizer/conditioner.Donotusefuelstabilizers
withanalcoholbasesuchasethanol,methanol,or
isopropanol.
DANGER
Gasolineisextremelyammableandexplosive.A
reorexplosionfromgasolinecanburnyouand
others.
•Topreventastaticchargefromignitingthe
gasoline,placethecontainerand/ormachine
directlyonthegroundbeforelling,notina
vehicleoronanobject.
•Fillthetankoutdoorswhentheengineiscold.
Wipeupspills.
•Donothandlegasolinewhensmokingoraround
anopenameorsparks.
•Storegasolineinanapprovedfuelcontainer,out
ofthereachofchildren.
1.Cleanaroundthefuel-tankcap,andremovethecap
fromthetank(Figure13).
8

Figure13
2.Fillthefueltank,leavingatleast1cm(1/2inch)from
thebottomoftheneckemptytoallowthegasoline
roomtoexpand.
3.Installthefueltankcapandtightenitsecurelybyhand.
CheckingtheEngineOilLevel
ServiceInterval:Beforeeachuseordaily
Max.ll:0.59l(20oz.),type:SAE30detergentoilwithan
APIserviceclassicationofSF,SG,SH,SJ,SL,orhigher.
1.Movethemachinetoalevelsurface.
2.Removethedipstick(Figure14).
Figure14
3.Wipeoffthedipstickendwithacleancloth.
4.Insertthedipstickintotheoil-lltubeandscrewitin
untilitstops.
5.Removethedipstickandreadtheoillevel;referto
Figure14.
•Iftheoillevelistoolow ,addasmallamountofoil
slowlytotheoil-lltube,andthenrepeatsteps3
through5untiltheoilleveliscorrectasshownin
Figure14.
•Iftheoillevelistoohigh,draintheexcessoiluntil
youobtainthecorrectoillevelonthedipstick.To
draintheexcessoil,refertoChangingtheEngine
Oil(page15).
Important:Iftheoillevelinthecrankcaseis
toolowortoohighandyouruntheengine,
youmaydamagetheengine.
6.Installthedipsticksecurelybyhand.
AdjustingtheCuttingHeight
WARNING
Adjustingthecuttingheightmaybringyouinto
contactwiththemovingblade,causingserious
injury.
•Stoptheengineandwaitforallmovingparts
tostop.
•Donotputyourngersunderthehousingwhen
adjustingthecuttingheight.
9

CAUTION
Iftheenginehasbeenrunning,themuferwillbe
hotandcanseverelyburnyou.Keepawayfromthe
hotmufer.
Adjustthecuttingheightasdesired.Setallfourwheelsto
thesameheight.
Note:Toraisethemachine,moveall4cuttingheightlevers
forward;tolowerthemachine,movethemallrearward
(Figure15).
Figure15
Note:Thecuttingheightsettingsare25mm(1in);38mm
(1-1/2in);51mm(2in);64mm(2-1/2in);76mm(3in);89
mm(3-1/2in);102mm(4in);and114mm(4-1/2in).
AdjustingtheUpperHandle
Height
Youmayraiseorlowertheupperhandletoaposition
comfortableforyou.
Note:Youcannotraisetheupperhandlehigherthanthe
angleofthelowerhandle.
1.Loosentheupper-handleknob(Figure16).
Figure16
2.Movetheupperhandletothedesiredposition(Figure
17).
Figure17
3.Tightentheupper-handleknobrmly(Figure19).
Figure18
10

StartingtheEngine
Important:Themachinehasasafetysystemthat
preventsyoufromstartingthemachineunlessyourst
installthemulchplugorthegrassbagsecurelyonthe
machine.
1.Installthemulchplug(Figure19)orthegrassbag
(Figure20)onthemachine.
Figure19
Figure20
2.Holdtheblade-controlbaragainstthehandleandpull
therecoilstarter(Figure21).
Figure21
1.Blade-controlbar
Note:Ifthemachinestilldoesnotstart,contactan
AuthorizedServiceDealer.
3.Testthemachinesafetysystem;refertoTestingthe
MachineSafetySysteminStorage.
UsingtheSelf-propelDrive
Tooperatetheself-propeldrive,simplywalkwithyourhands
ontheupperhandleandyourelbowsatyoursides,andthe
machinewillautomaticallykeeppacewithyou(Figure22and
Figure23).
Figure22
Figure23
Note:Ifthemachinedoesnotfreelyrollbackwardafter
self-propelling,stopwalking,holdyourhandsinplace,and
allowthemachinetorollacoupleofinches(centimeters)
forwardtodisengagethewheeldrive.Youcanalsotry
reachingjustunderthepersonalpacehandletothemetal
handleandpushthemachineforwardacoupleofinches
(centimeters).Ifthemachinestilldoesnotrollbackward
easily,contactanAuthorizedServiceDealer.
StoppingtheEngine
ServiceInterval:Beforeeachuseordaily—Ensurethat
theenginestopswithin3secondsafter
releasingtheblade-controlbar.
Tostoptheengine,releasetheblade-controlbar.
Important:Whenyoureleasetheblade-controlbar,
boththeengineandbladeshouldstopwithin3seconds.
Iftheydonotstopproperly,stopusingyourmachine
immediatelyandcontactanAuthorizedServiceDealer.
11

RecyclingtheClippings
Yourmachinecomesfromthefactoryreadytorecyclethe
grassandleafclippingsbackintothelawn.
Ifthegrassbagisonthemachine,removeit;referto
RemovingtheGrassBag(page13)beforerecyclingthe
clippings.Iftheside-dischargechuteisonthemachine,
removeitandlocktheside-dischargedoor;refertoRemoving
theSide-dischargeChute(page14)beforerecyclingthe
clippings.
Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunlessyourst
installtherecycleplugsecurelyonthemachine(Figure
24).
Figure24
1.Topofrecycleplugleverinchannelbottom
BaggingtheClippings
Usethegrassbagwhenyouwanttocollectgrassandleaf
clippingsfromthelawn.
Iftheside-dischargechuteisonthemachine,removeit
andlocktheside-dischargedoor;refertoRemovingthe
Side-dischargeChute(page14)beforebaggingtheclippings.
WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Stoptheengineandwaitforallmovingpartstostop
beforeleavingtheoperatingposition.
InstallingtheGrassBag

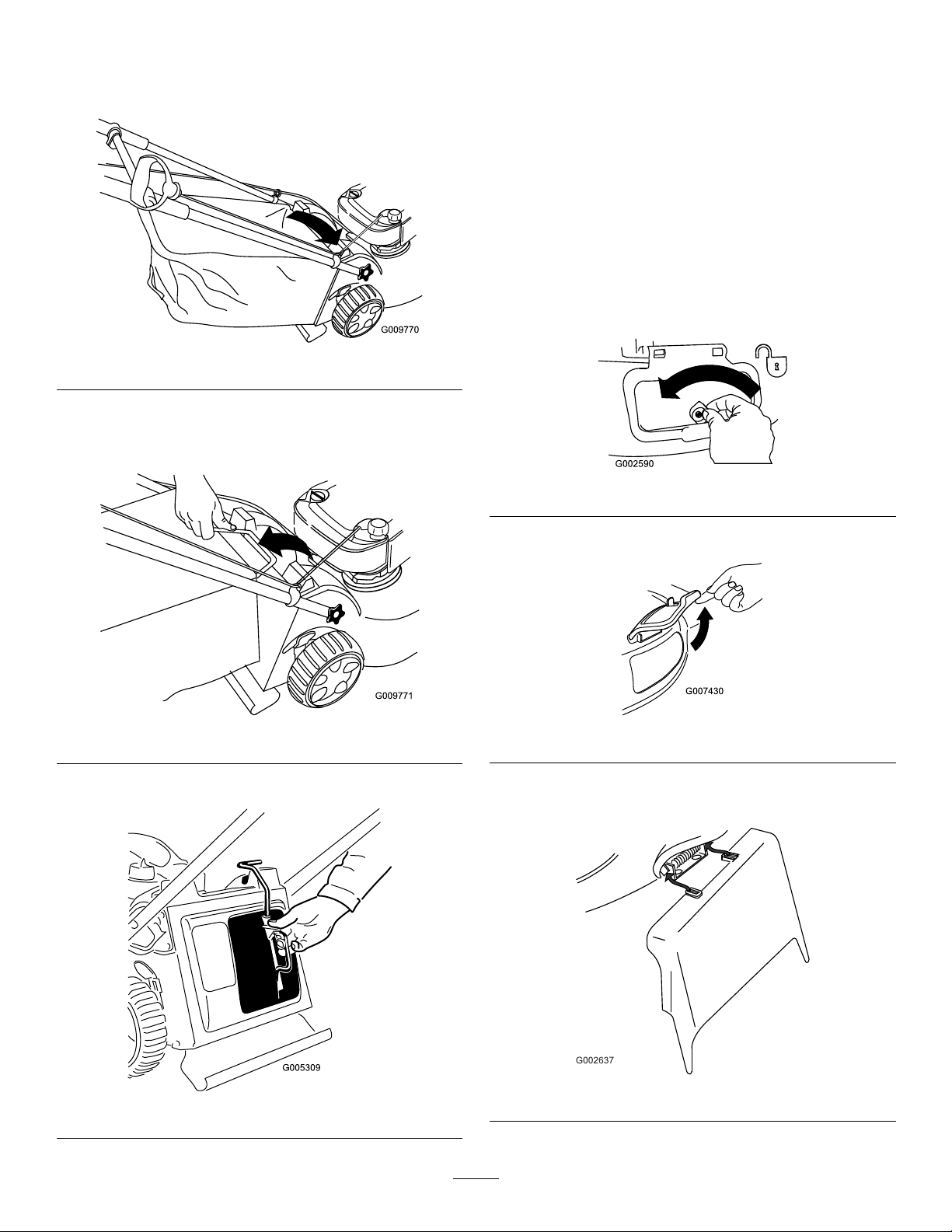

1.Removetherecycleplug(Figure25).
Figure25
2.Routethestarterropearoundthelower-ropeguide
(Figure26).
Figure26
Note:Thelower-ropeguidereleasesthestarterrope
whenyoupulltherecoil-starthandle.
3.Insertthegrass-baghandleintothegroovesatthetop
ofthemachine(Figure27).
Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunlessyou
rstinstallthegrassbagsecurelyonthemachine.
Figure27
12

RemovingtheGrassBag
1.Routethestarterropearoundthelower-ropeguide
(Figure28).
Figure28
2.Liftthegrass-baghandleoutfromthegroovesatthe
topofthemachineandremovethebagfromthe
machine(Figure29).
Figure29
3.Insertthemulchplug(Figure30).
Figure30
Side-dischargingtheClippings
Usethesidedischargeforcuttingverytallgrass.
Ifthebagisonthemachine,removeitandinserttherecycle
plug;refertoRemovingtheGrassBag(page13)before
side-dischargingtheclippings.
Important:Themachinehasasafetyswitchthat
preventsyoufromstartingthemachineunlessyourst
installtherecycleplugsecurelyonthemachine;referto
RecyclingtheClippings(page12).
InstallingtheSide-dischargeChute
1.Unlocktheside-dischargedoor(Figure31).
Figure31
2.Liftopentheside-dischargedoor(Figure32).
Figure32
3.Installtheside-dischargechuteandclosethedooronto
thechute(Figure33).
Figure33
13

RemovingtheSide-dischargeChute
Toremovethesidedischargechute,reversethestepsabove.
Important:Locktheside-dischargedoorafteryouclose
it(Figure34).
Figure34
OperatingTips
GeneralMowingTips
•Cleartheareaofsticks,stones,wire,branches,andother
debristhatthebladecouldhit.
•Avoidstrikingsolidobjectswiththeblade.Never
deliberatelymowoveranyobject.
•Ifthemachinestrikesanobjectorstartstovibrate,
immediatelystoptheengine,disconnectthewirefrom
thesparkplug,andexaminethemachinefordamage.
•Forbestperformance,installanewbladebeforethe
cuttingseasonbegins.
•ReplacethebladewhennecessarywithaToro
replacementblade.
CuttingGrass
•Cutonlyaboutathirdofthegrassbladeatatime.Do
notcutbelowthe51mm(2in)settingunlessthegrassis
sparseoritislatefallwhengrassgrowthbeginstoslow
down.RefertoAdjustingtheCuttingHeight(page9).
•Whencuttinggrassover15cm(6in)tall,mowatthe
highestcutting-heightsettingandwalkslower;thenmow
againatalowersettingforthebestlawnappearance.If
thegrassistoolong,themachinemayplugandcause
theenginetostall.
•Mowonlydrygrassorleaves.Wetgrassandleavestend
toclumpontheyardandcancausethemachinetoplug
ortheenginetostall.
WARNING
Wetgrassorleavescancauseseriousinjuryif
youslipandcontacttheblade.Mowonlyindry
conditions.
•Alternatethemowingdirection.Thishelpsdispersethe
clippingsoverthelawnforevenfertilization.
•Ifthenishedlawnappearanceisunsatisfactory,tryone
ormoreofthefollowing:
–Replacethebladeorhaveitsharpened.
–Walkataslowerpacewhilemowing.
–Raisethecuttingheightonyourmachine.
–Cutthegrassmorefrequently.
–Overlapcuttingswathsinsteadofcuttingafullswath
witheachpass.
–Setthecuttingheightonthefrontwheels1notch
lowerthantherearwheels.Forexample,setthefront
wheelsat51mm(2in)andtherearwheelsat64mm
(2-1/2in).
CuttingLeaves
•Aftercuttingthelawn,ensurethathalfofthelawnshows
throughthecutleafcover.Youmayneedtomakemore
thanasinglepassovertheleaves.
•Iftherearemorethan13cm(5in)ofleavesonthelawn,
setthefrontcuttingheight1or2notcheshigherthan
therearcuttingheight.
•Slowdownyourmowingspeedifthemachinedoesnot
cuttheleavesnelyenough.
Maintenance
Note:Determinetheleftandrightsidesofthemachinefromthenormaloperatingposition.
RecommendedMaintenanceSchedule(s)
MaintenanceService
IntervalMaintenanceProcedure
Aftertherst5hours•Changetheengineoil.
Beforeeachuseordaily
•Checktheengineoillevel.
•Ensurethattheenginestopswithin3secondsafterreleasingtheblade-controlbar.
•Cleantheundersideofthemachinehousing.
14

MaintenanceService
IntervalMaintenanceProcedure
Every25hours•Replacetheairlteryearly;replaceitmorefrequentlyindustyoperatingconditions.
Every50hours•Changetheengineoil;changeitmorefrequentlyindustyoperatingconditions.
Yearly•Lubricatethewheelgears.
•Lubricatetheupperhandle.
Yearlyorbeforestorage•Changetheengineoil;changeitmorefrequentlyindustyoperatingconditions.
•Replacetheblade.
Important:RefertoyourEngineOperator'sManualforadditionalmaintenanceprocedures.
PreparingforMaintenance
1.Stoptheengineandwaitforallmovingpartstostop.
2.Disconnectthespark-plugwirefromthesparkplug
(Figure35)beforeperforminganymaintenance
procedure.
Figure35
3.Afterperformingthemaintenanceprocedure(s),
connectthespark-plugwiretothesparkplug.
Important:Beforetippingthemachinetochange
theoilorreplacetheblade,allowthefueltankto
rundrythroughnormalusage.Ifyoumusttip
themachinepriortorunningoutoffuel,usea
handfuelpumptoremovethefuel.Alwaystipthe
machineontoitssidewiththedipstickdown.
WARNING
Tippingthemachinemaycausethefuelto
leak.Gasolineisammable,explosiveand
cancausepersonalinjury.
Runtheenginedryorremovethegasoline
withahandpump;neversiphon.
ReplacingtheAirCleaner
ServiceInterval:Every25hours
1.Unscrewtheknobandopenthecover(Figure36).
G020262
1
2
3
Figure36
1.Cover3.Aircleanerelement
2.Knob
2.Replacetheaircleanerelement(Figure36).
3.Installthecover.
ChangingtheEngineOil
ServiceInterval:Aftertherst5hours
Every50hours
Yearlyorbeforestorage
Note:Max.ll:0.59l(20oz),type:SAE30detergentoil
withanAPIserviceclassicationofSF,SG,SH,SJ,SL,or
higher.
1.Movethemachinetoalevelsurface.
2.Ensurethatthefueltankcontainslittleornofuelso
thatfueldoesnotleakoutwhenyoutipthemachine
ontoitsside.
3.Runtheengineafewminutesbeforechangingtheoil
towarmit.
Note:Warmoilowsbetterandcarriesmore
contaminants.
4.Disconnectthewirefromthesparkplug;referto
PreparingforMaintenance(page15).
15

5.Setanoil-drainpanbesidethemachineonthesideof
thedipstick.
6.Removethedipstickfromtheoil-lltube(Figure37).
Figure37
7.Tipthemachineontoitsside,withtheoil-lltube
down,todraintheusedoiloutthroughtheoil-lltube
intotheoil-drainpan(Figure38).
Figure38
8.Afterdrainingtheusedoil,returnthemachinetothe
operatingposition.
9.Pourabout3/4ofthecrankcasecapacityofoilinto
theoil-lltube.
Note:Max.ll:0.59l(20oz),type:SAE30detergent
oilwithanAPIserviceclassicationofSF,SG,SH,
SJ,SL,orhigher.
10.Wipeoffthedipstickendwithacleancloth.
11.Insertthedipstickintotheoil-lltubeandscrewitin
untilitstops.
12.Removethedipstickandreadtheoillevel;referto
Figure37.
•Iftheoillevelistoolow ,addasmallamountofoil
slowlytotheoil-lltube,andthenrepeatsteps10
through12untiltheoilleveliscorrectasshownin
Figure37.
•Iftheoillevelistoohigh,draintheexcessoiluntil
youobtainthecorrectoillevelonthedipstick.
Important:Iftheoillevelinthecrankcaseis
toolowortoohighandyouruntheengine,
youmaydamagetheengine.
13.Installthedipsticksecurelybyhand.
14.Recycletheusedoilatalocalrecyclingcenter.
LubricatingtheWheelGears
ServiceInterval:Yearly
1.Removethewheelboltinthecenterofeachrearwheel
andremovetherearwheels.
2.Applyalubricatingoiltotheinnerandoutersidesof
thegearasshowninFigure39.
Figure39
3.Installtherearwheels.
LubricatingtheUpperHandle
ServiceInterval:Yearly
Lubricatetheleftandrightsidesoftheupperhandlewitha
low-viscositysiliconespraylubricantyearlyorasneeded.
1.Spraytheouterplasticendoftheinnerhandle(Figure
40).
Figure40
Note:Usethestrawthatcomeswiththespraycanto
directthespray.
2.Pushtheupperhandlefullydownandspraytheinner
plasticsurfaceoftheouterhandle(Figure41).
16

Figure41

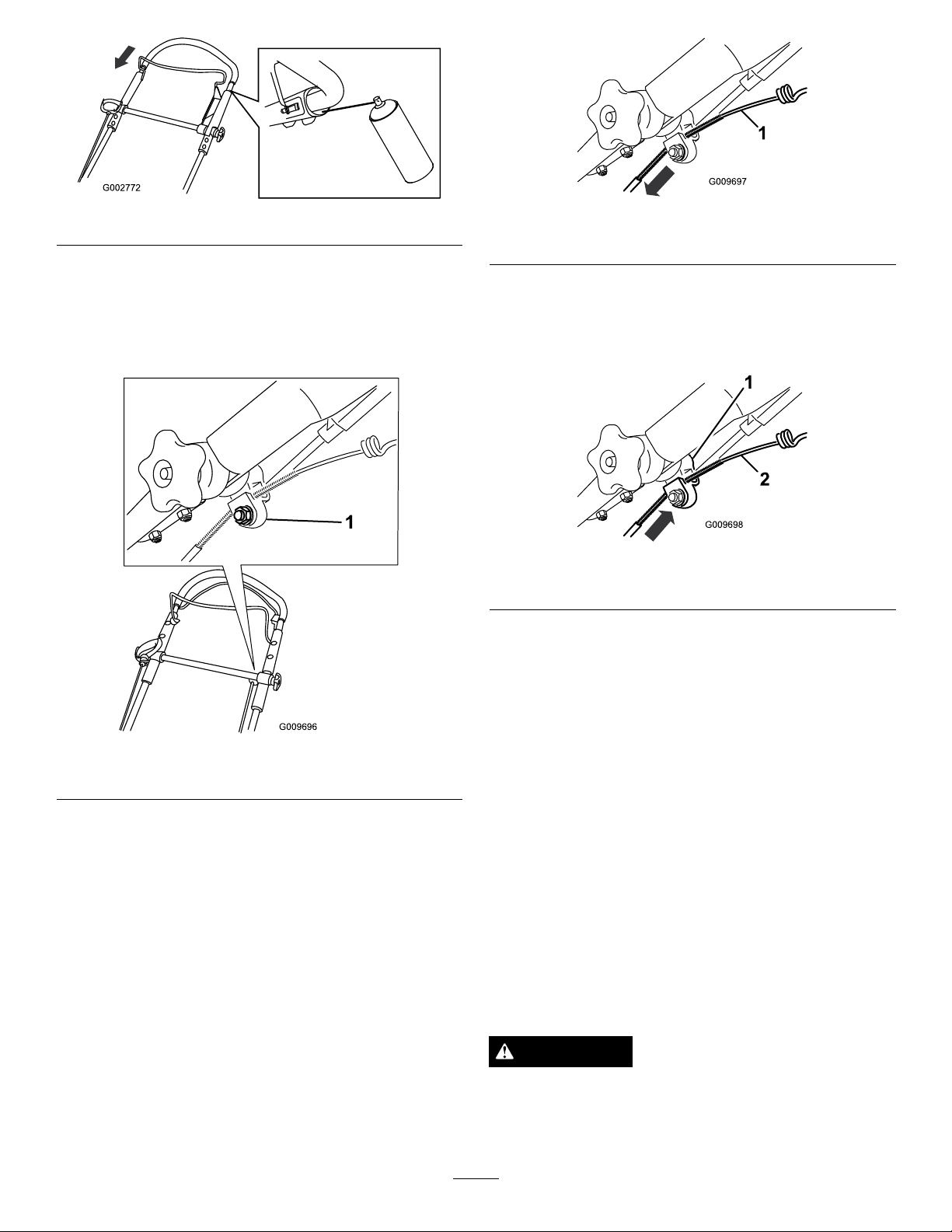

AdjustingtheSelf-propelDrive
Cable
1.Loosenthenutonthecablemount(Figure42).
G009696
1
Figure42
1.Cablemount
2.Pulltheupperhandlebackfullyrearward.
Note:Ifthehandledoesnotmovesmoothly,referto
LubricatingtheUpperHandle(page16).
3.Pullthecablejacketdownwarduntilyouremovethe
slackintheexposedcable(Figure43).
Figure43
1.Exposedcable
4.Pushthecablejacketupward1/8inch(3mm).
Note:Youcanplacearuleragainsttheuppersideof
theblackcablemountandmeasurehowfartheupper
endofthecablejacketmoves(Figure44).
Figure44
1.Cablemount2.Cablejacket
Note:Movingthecablejacketupwarddecreasesthe
groundspeed;movingthejacketdownwardincreases
thegroundspeed.
5.Tightenthenutrmly.
6.Startthemachineandchecktheadjustment.
Note:Iftheself-propeldriveisnotproperlyadjusted,
repeatthisprocedure.
ReplacingtheBlade
ServiceInterval:Yearlyorbeforestorage
Important: Y ou will need a torque wr ench to install the
blade pr oper l y . Ifyoudonothaveatorquewrenchorare
uncomfortableperformingthisprocedure,contactan
AuthorizedServiceDealer.
Examinethebladewheneveryourunoutofgasoline.Ifthe
bladeisdamagedorcracked,replaceitimmediately.Ifthe
bladeedgeisdullornicked,haveitsharpenedorreplaceit.
WARNING
Thebladeissharp;contactingthebladecanresult
inseriouspersonalinjury.
Weargloveswhenservicingtheblade.
17

1.Disconnectthespark-plugwirefromthesparkplug;
refertoPreparingforMaintenance(page15).
2.Tipthemachineontothesidewiththedipstickdown.
3.Useablockofwoodtoholdthebladesteady(Figure
45).
Figure45
4.Removetheblade,savingallmountinghardware
(Figure45).
5.Installthenewbladeandallmountinghardware
(Figure45).
Important:Positionthecurvedendsoftheblade
topointtowardthemachinehousing.
6.Useatorquewrenchtotightenthebladeboltto82
N-m(60ft-lb).
Important:Abolttorquedto82N-m(60ft-lb)is
verytight.Whileholdingthebladewithablock
ofwood,putyourweightbehindtheratchetor
wrenchandtightentheboltsecurely.Thisboltis
verydifculttoovertighten.
CleaningtheUndersideofthe
MachineHousing
ServiceInterval:Beforeeachuseordaily
WARNING
Themachinemaydislodgematerialfromunderthe
machinehousing.
•Weareyeprotection.
•Stayintheoperatingposition(behindthe
handle).
•Donotallowbystandersinthearea.
1.Withtheenginerunningonaatpavedsurface,spraya
streamofwaterinfrontoftherightrearwheel(Figure
46).
Note:Thewaterwillsplashintothepathoftheblade,
cleaningouttheclippings.
Figure46
2.Whennomoreclippingscomeout,stopthewaterand
movethemachinetoadryarea.
3.Runtheengineforafewminutestodrythehousing
topreventitfromrusting.
18

Storage
PreparingtheMachinefor
Storage
WARNING
Gasolinevaporscanexplode.
•Donotstoregasolinemorethan30days.
•Donotstorethemachineinanenclosurenear
anopename.
•Allowtheenginetocoolbeforestoringit.
1.Onthelastrefuelingoftheyear,addfuelstabilizerto
thefuelasdirectedbytheenginemanufacturer.
2.Runthemachineuntiltheenginestopsfromrunning
outoffuel.
3.Primetheengineandstartitagain.
4.Allowtheenginetorununtilitstops.Whenyoucan
nolongerstarttheengine,itissufcientlydry.
5.Disconnectthewirefromthesparkplug.
6.Removethesparkplug,add30ml(1oz)ofoilthrough
thesparkplughole,andpullthestarterropeslowly
severaltimestodistributeoilthroughoutthecylinder
topreventcylindercorrosionduringtheoff-season.
7.Looselyinstallthesparkplug.
8.Tightenallnuts,bolts,andscrews.
FoldingtheHandle
UprightPosition
1.Steponthefootpedalandholditdown(Figure47).
Figure47
2.Movethehandletotheuprightposition(Figure48).
Figure48
ForwardPosition
1.Withthehandleintheuprightposition,steponthe
footpedalandholditdown.
2.Movethehandleallthewayforwardandloosenthe
upperhandleknob(Figure49).
Figure49
3.Tounfoldthehandle,referto1UnfoldingtheHandle
(page5).
RemovingtheMachinefrom
Storage
1.Removethesparkplugandspintheenginerapidly
usingthestartertoblowtheexcessoilfromthe
cylinder.
2.Installthesparkplugandtightenitwithatorque
wrenchto20N-m(15ft-lb).
3.Connectthewiretothesparkplug.
4.Testthemachinesafetysystem;refertoTestingthe
MachineSafetySystem(page20).
19

TestingtheMachineSafety
System
1.Movethemachinetoalevelsurface.
2.Stoptheengineandwaitforallmovingpartstostop.
3.Ifthegrassbagisnotattachedtothemachine,remove
thedischargeplugandinstallthegrassbag.
4.Starttheengine.
5.Whiletheengineisrunning,liftuptheupperrightrear
cornerofthegrassbaguntilthewire-bagframeatthe
upperrightfrontofthegrassbagiscompletelyoutof
theright-handslot(Figure50).Theengineshould
stop.
Note:Theright-handslothousesasafetyinterlock
switch.
Important:Donotstepoutsidetheoperating
positionwhileperformingthisstep.
Figure50
1.Grassbag3.Wire-bagframe
2.Rightsideofhandle
partiallyremovedfor
clarity
4.Slot
6.Iftheenginedoesnotstopwhenyouperformthis
test,releasethecontrolbaronthehandletostopthe
engine,waitforallmovingpartstostop,andtakeyour
machinetoanAuthorizedToroDealertohavethe
safetysystemproperlyrepaired.
20
