Wheel Horse
44” Snowthrower
for
5xi Lawn and Garden Tractors
Model No. 79366 – 9900001 & Up

Printed in USA
Introduction
We want you to be completely satisfied with your
new product, so feel free to contact your local
Authorized Service Dealer for help with service,
genuine replacement parts, or other information you
may require.
Whenever you contact your Authorized Service
Dealer or the factory, always know the model and
serial numbers of your product. These numbers will
help the Service Dealer or Service Representative
provide exact information about your specific
product. You will find the model and serial number
plate located in a unique place on the product as
shown below.
m–3732
1
Figure 1
1. Modeland Serial Number Plate
For your convenience, write the product model and
serial numbers in the space below.
Model No:
Serial No.
The warning system in this manual identifies
potential hazards and has special safety messages that
help you and others avoid personal injury, even death.
DANGER, WARNING and CAUTION are signal
words used to identify the level of hazard. However,
regardless of the hazard, be extremely careful.
DANGER signals an extreme hazard that will cause
serious injury or death if the recommended
precautions are not followed.
WARNING signals a hazard that may cause serious
injury or death if the recommended precautions are
not followed.
CAUTION signals a hazard that may cause minor or
moderate injury if the recommended precautions are
not followed.
Two other words are also used to highlight
information. “Important” calls attention to special
mechanical information and “Note” emphasizes
general information worthy of special attention.
The left and right side of the machine is determined
by sitting on the seat in the normal operator’s
position.

1
Contents
Page
Safety and Instruction Decals 2. . . . . . . . . . . . . .
Installation 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loose Parts 3. . . . . . . . . . . . . . . . . . . . . . . . .
Assembling the Snowthrower 5. . . . . . . . . .
Setting Up the Tractor 7. . . . . . . . . . . . . . . .
Installing the Snowthrower on the Tractor 7.
Removing the Snowthrower 12. . . . . . . . . . . .
Operation 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating the Power Take Off (PTO) 16. . . .
Operating the Attachment Lift Lever 17. . . . .
Adjusting The Discharge Chute 18. . . . . . . . .
Tips for Throwing Snow 18. . . . . . . . . . . . . .
Page
Maintenance 20. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Interval Chart 20. . . . . . . . . . . . . . . .
Greasing and Lubrication 20. . . . . . . . . . . . . .
Replacing the Snowthrower Belt 22. . . . . . . .
Adjusting the Skids 24. . . . . . . . . . . . . . . . . .
Replacing the Scraper Blade 25. . . . . . . . . . .
Adjusting Drive Chain Tension 25. . . . . . . . .
Storage 26. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Safety
2

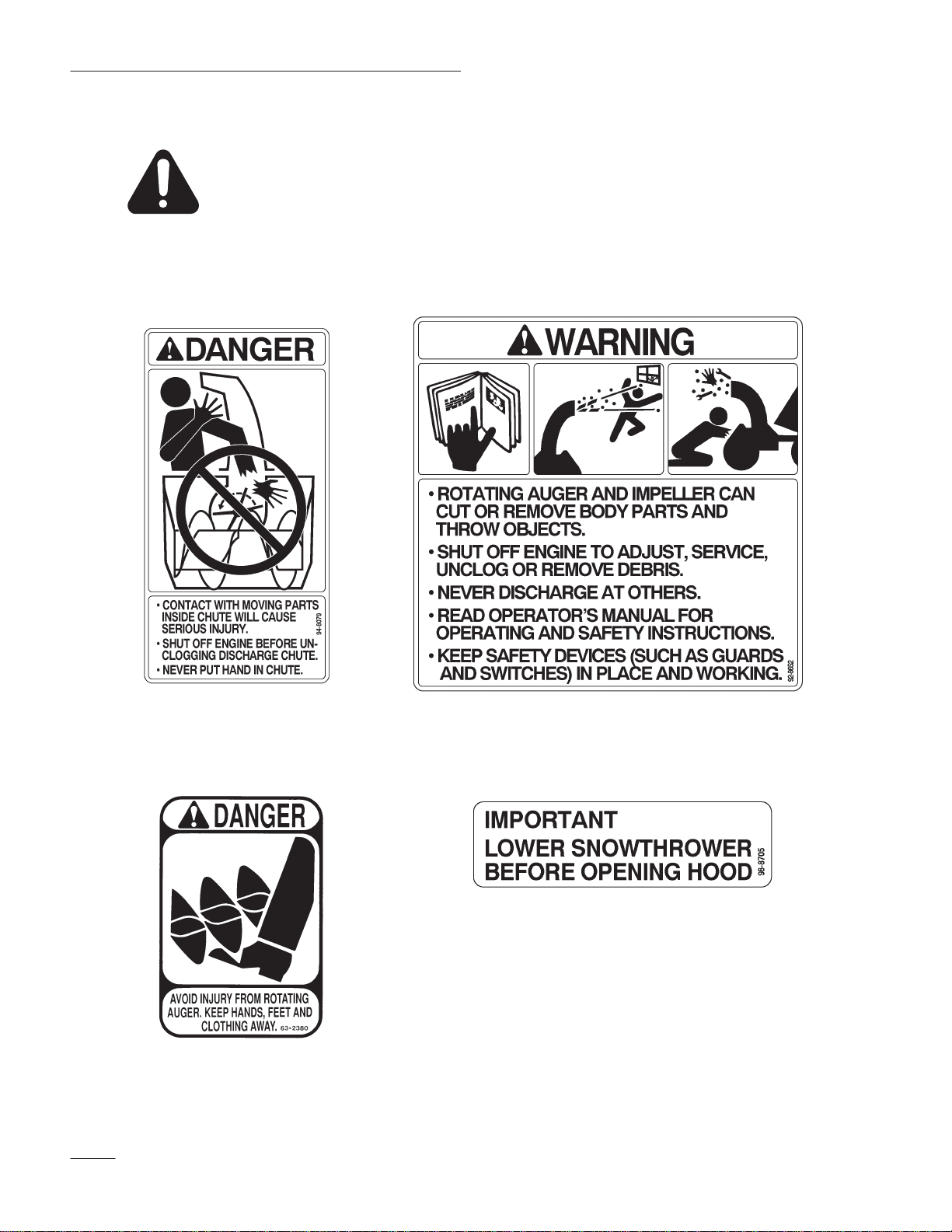

Safety and Instruction Decals
Safety decals and instructions are easily visible to the operator and are located near
any area of potential danger. Replace any decal that is damaged or lost.
ON TOP OF HOUSING
(Part No. 92–8652)
(2) ON TOP OF HOUSING
(Part No. 63–2380)
ON UPPER DISCHARGE
CHUTE
(Part No. 94–8079)
ON TOP OF PULLEY COVER
(Part No. 98–8705)

3
Installation
Loose Parts
Note: A rear–mount Attach-A-Matichitch, rear wheel weights (and/or rear weight box**) and chains, all of
which must be purchased separately, are required to operate the tractor equipped with this snowthrower.
Use the chart below to identify parts used for assembly.
**Rear wheel weights may not provide adequate traction under some conditions or on inclines. If these
conditions exist, a rear weight box is recommended.
DESCRIPTION QTY. USE
Snowthrower frame assembly
Lift tube
Clevis pin 1/2” x 2 5/8” (67 mm)
Clevis clip
1
1
1
1
Attach lift tube
Discharge chute assembly
Washer 5/16” (8 mm)
Locknut 5/16”
Carriage bolt 5/16–18 x 3/4” (19 mm)
1
3
3
3
Assemble discharge chute
Clevis pin 3/8” x 1” (25 mm)
Hairpin cotter—small
2
2Prepare tractor attachment lift
Pulley box
Belt
1
1Install pulley box

Installation
4
DESCRIPTION USEQTY.
Clevis pin 1/2” x 1” (25 mm)
Clevis clip
Spring tension link
Support rod link
Support brace
Washer 13/16” (21 mm)
Hairpin cotter—large
Washer 15/16” (24 mm)
Crank support
Locking pin
Chute control rod
Hairpin cotter—small
Hairpin cotter–medium
Pulley cover
Screw #10 x 1/2” (13 mm)
Rod Assembly
Spacer washer 1” (25 mm)
“C” shaped pin
1
1
1
1
2
2
4
2
1
1
1
3
1
1
4
1
2
2
Mount snowthrower to tractor
Operator’s Manual 1Read before operating

Installation
5

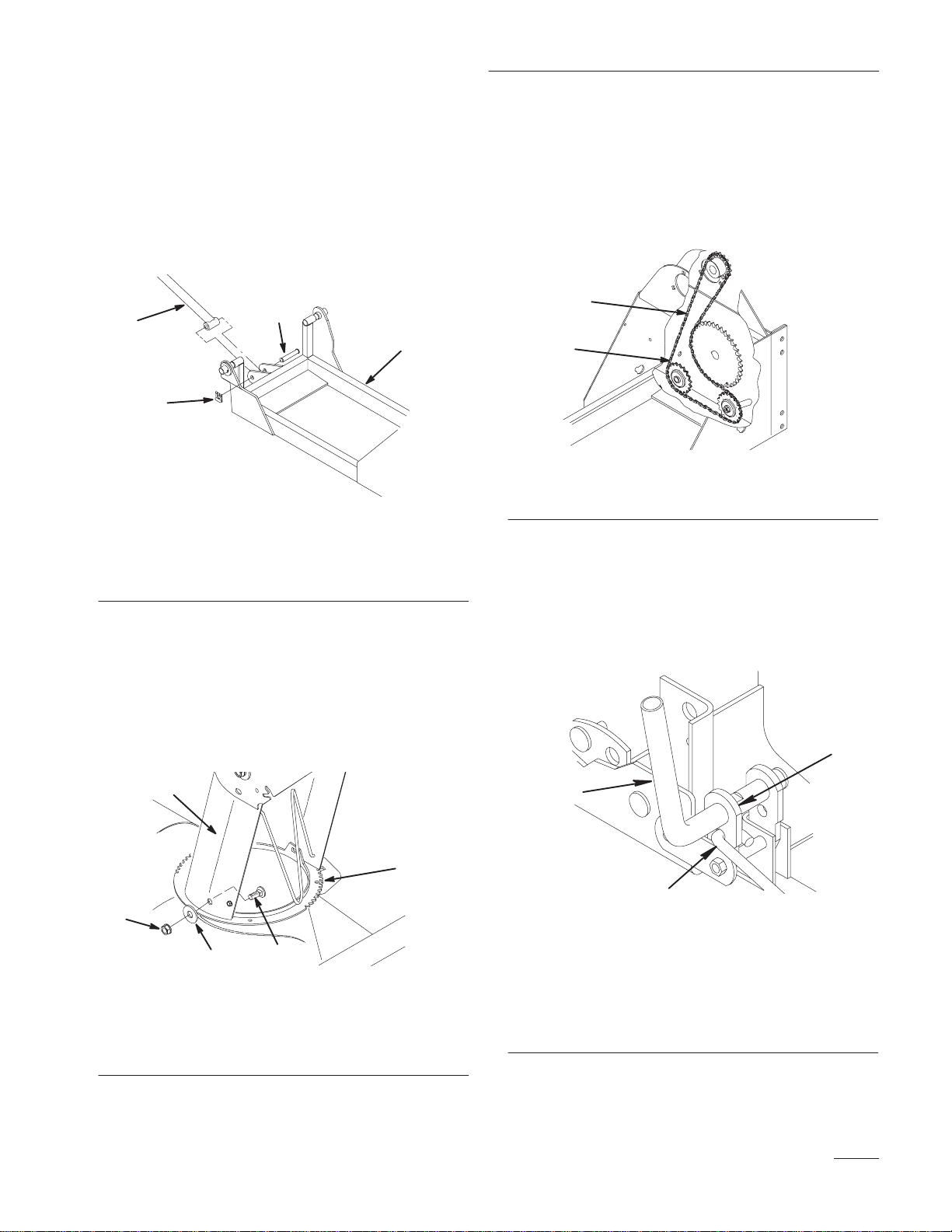

Assembling the Snowthrower
Attach Lift Tube
Connect the lift tube to the snowthrower frame
assembly with the 2 5/8” (67 mm) clevis pin and
clip (Fig. 1)
m–3668d
13
4
2
Figure 1
1. Lift tube
2. Snowthrower frame
assembly
3. Clevis pin 2 5/8” (67 mm)
4. Clevis clip
Assemble the Discharge Chute
Install the discharge chute assembly onto the
chute ring with (3) 5/16 x 3/4” (19 mm) carriage
bolts (heads to the inside), (3) 5/16” (8 mm)
washers and (3) 5/16” locknuts (Fig. 2).
m–3719
1
2
3
4
5
Figure 2
1. Discharge chute assembly
2. Carriage bolt 5/16 x 3/4”
(19 mm)
3. Washer 5/16” (8 mm)
4. Locknut 5/16”
5. Chute ring
Verify the Drive Chain Tension
Verify that the drive chain has between 1/8” and 1/2”
deflection in the area shown in Figure 3. If the chain
is too tight or too loose, adjust it; refer to Adjusting
Drive Chain Tension, page 25.
m–3795
1
2
Figure 3
1. Drive chain 2. Check deflection here
Assemble Spring Tension Link
Insert the hooked end of the spring tension link
into the open hole in the outer leg of the spring
tension lever (Fig. 4).
m–4087
1
2
3
Figure 4
1. Springtension lever
2. Hooked end of spring
tension link
3. Outer leg

Installation
6

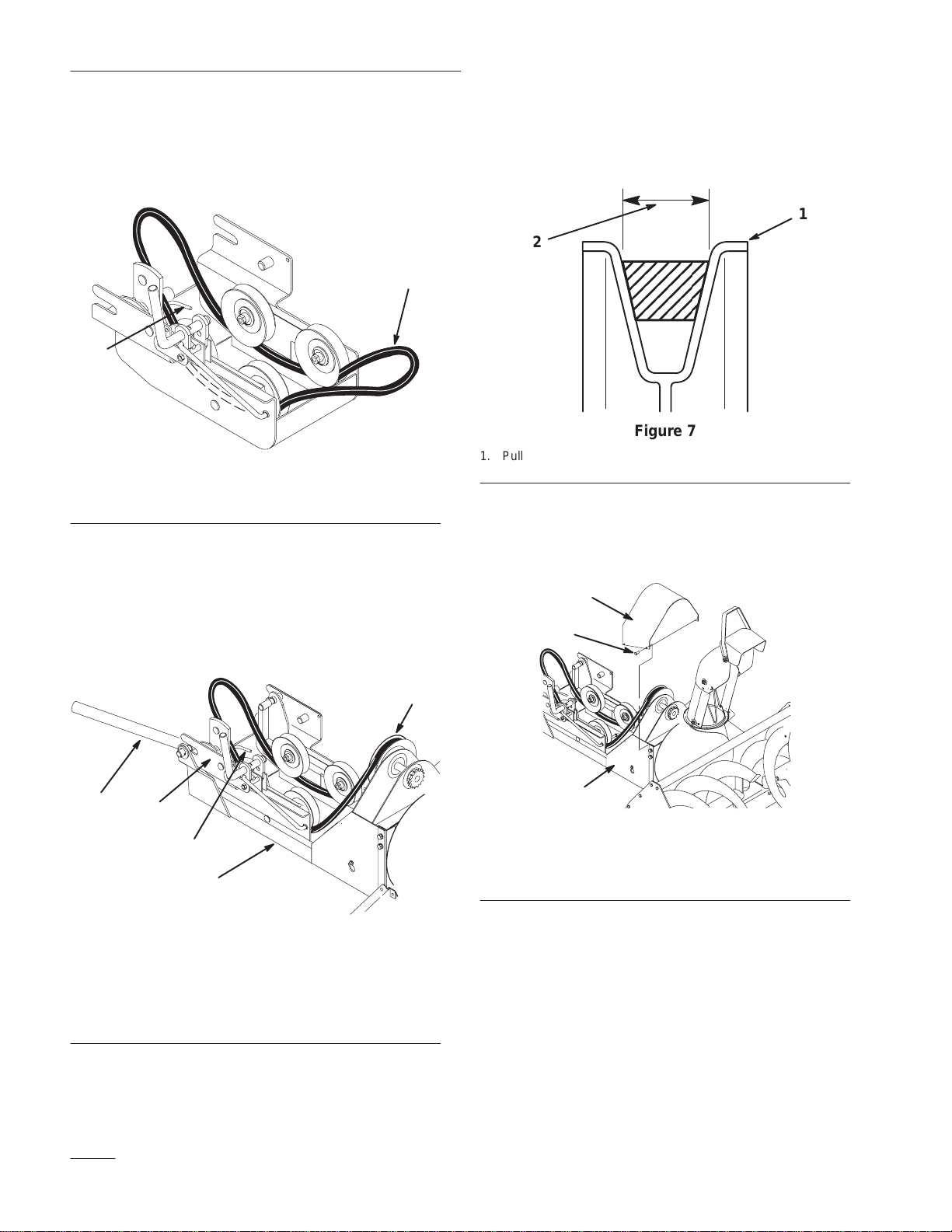

Install Drive Belt and Pulley Cover
1. Route the belt under the four (4) pulleys and
inside the belt guide in the pulley box (Fig. 5).
m–4348
2
1
Figure 5
1. Snowthrowerbelt 2. Belt guide
2. Slide the pulley box into the snowthrower frame
(Fig. 6).
3. Route the belt over the snowthrower pulley
(Fig. 6).
m–4342
1
2
3
4
5
Figure 6
1. Snowthrowerframe
2. Snowthrower pulley
3. Pulley box
4. Lift tube
5. Belt guide
4. Make certain that the wide side of the PTO drive
belt is toward the outside diameter of all the
pulleys (Fig. 7).
m–4230
ÉÉÉÉ
ÉÉÉÉ
ÉÉÉÉ
ÉÉÉÉ
2
1
Figure 7
1. Pulley outside diameter 2. Wide side of belt
5. Attach the pulley cover to the snowthrower
frame assembly with (4) #10 x 1/2” (13 mm)
screws (Fig. 8).
m–4343
1
2
3
Figure 8
1. Pulley cover
2. Screw #10 x 1/2” (13 mm) 3. Snowthrower frame
assembly

Installation
7
Setting Up the Tractor
Install Rear Wheel Weights and Chains
Install the rear wheel weights and chains. Refer to
Attachment Installation Instructions supplied with the
attachment.
Note: Rear wheel weights may not provide
adequate traction under some
conditions or on inclines. If these
conditions exist, a rear weight box is
recommended.
Install the Rear Attach-A-MaticHitch
Install the rear Attach-A-Matichitch to the tractor;
refer to the Installation Instructions that come with
the Attach-A-Matichitch.
Prepare the Tractor’s Attachment Lift
1. Start the engine.
2. Raise the attachment lift.
3. Set the parking brake and turn the ignition key to
“STOP” to stop the engine. Remove the ignition
key.
4. The two lift arms are attached to the tractor
frame, just ahead of the rear wheels. Secure the
lift arms to the tractor frame with 3/8” x 1”
(25 mm) clevis pins and small hairpin cotters
(Fig. 9).
3
1
m–3433
2
Figure 9
Right side of tractor shown
1. Lift arm
2. Clevis pin 3/8” x 1”
(25 mm)
3. Hairpin cotter–small
These pins must be installed when operating with a
blade, snowthrower, or the tiller attachment.
Note: Remove the pins when attaching a
mower.
Installing the Snowthrower on
the Tractor
1. Position the snowthrower frame assembly and its
attachment parts on a level surface with enough
space behind them to accommodate the tractor.
2. Park the tractor behind the snowthrower with the
front wheels lined up to straddle the snowtrower
frame and lift rod (Fig. 10). Lower the
attachment lift and turn the ignition key to
“STOP” to stop the engine. Remove the ignition
key.

Installation
8
m–3446
Figure 10
3. With the High–Low range selector in neutral
“N,” pull the tractor forward toward the
snowthrower until the end of the snowthrower
frame is just underneath the tractor’s front
Attach-A-Matichitch (Fig. 11).
4. Ensure the latches on the tractor’s front
Attach-A-Maticare open. Then slide the
pulley box completely into the Attach-A-Matic
hitch. Close the latches by rotating them down
(Fig. 11).
m–4344
1
2
Figure 11
1. Attach–A–Matichitch
latches 2. Pulley box
5. Install (2) “C” shaped pins into the locking holes
of the pulley box. Secure them with (2) small
hairpin cotters on the inside (Fig. 12).
m–4345
1
2
3
4
Figure 12
1. Pulley box
2. “C” shaped pin 3. Attach–A–Maticlatch 4. Hairpin cotter–small
6. Now connect the snowthrower frame to the mid
Attach-A-Matichitch. You will need the crank
support to help with this.
A. Continue pulling the tractor toward the
snowthrower until the snowthrower frame
connecting pins are directly below the mid
Attach–A–Matichitch (Fig. 13)

Installation
9
m–4401
3
2
1
Figure 13
Right side of tractor shown
1. Mid Attach–A–Matic
hitch
2. Snowthrower connecting
pins (right side shown)
3. Snowthrower frame
B. Make sure the mid Attach-A-Matichitch
latches are open.
C. Slide the round end of the crank support
under the notch in the snowthrower frame
(Fig. 14).
m–3679
1
2
Figure 14
Right side of tractor shown
1. Crank Support 2. Notch in snowthrower
frame
D. Use the crank support as a lever to lift the
snowthrower frame until its connecting pins
are completely inside the notches in the mid
Attach-A-Matichitch (Fig. 15).
POTENTIAL HAZARD
•The snowthrower frame assembly is heavy.
WHAT CAN HAPPEN
•Hands and feet can be injured by the
weight of the snowthrower coming down on
them.
HOW TO AVOID THE HAZARD
•Keep hands and feet away from the
underside of the snowthrower frame.
E. Turn the mid Attach-A-Matichitch lever
counterclockwise to lock the snowthrower
in place (Fig. 15).
IMPORTANT: Make sure the snowthrower
frame is locked in place. You should hear a
distinct click if the snowthrower is correctly
mounted.
m–3707
1
2
Figure 15
Right side of tractor shown
1. Snowthrowerframe 2. Mid Attach-A-Matic
hitch lever
F. Set the parking brake.

Installation
10
7. Add (2) 1” (25 mm) washers onto the end of the
rod assembly, then slide it into the lift tube
(Fig. 16).
m–3450
12
3
Figure 16
1. Rod assembly
2. Lift tube 3. Washers 1” (25 mm)
Note: A washer may need to be removed
from the rod assembly for the holes to
line up with the attachment lift plate.
8. From beneath the tractor, connect the
snowthrower rod assembly to the middle hole in
the attachment lift plate (lift plate goes between
the rod assembly plates) with the 1” (25 mm)
clevis pin and clip (Fig. 17).
m–3661
3
42
1
End view
2
5
Figure 17
Right side of tractor shown
1. Middlehole in attachment
lift plate
2. Snowthrower rod
assembly
3. Clevis pin 1/2” x 1”
(25 mm)
4. Clevis clip
5. Attachment lift plate
9. Now install the snowthrower belt to the engine
PTO pulley:
A. Open the hood of the tractor
B. Remove the right–hand side panel.
POTENTIAL HAZARD
•Components under the hood will be hot if
the tractor has been running.
WHAT CAN HAPPEN
•Touching hot components can cause burns.
HOW TO AVOID THE HAZARD
•Allow the tractor to cool before performing
maintenance or touching components
under the hood.
C. Route the snowthrower belt around the
engine PTO pulley (Fig. 18).
Note: Lifting up on the spring–loaded pulley
will ease installation of the belt.
m–3696d
1
3
2
4
Figure 18
1. EnginePTO pulley
2. Snowthrower pulley 3. Belt 4. Spring –loaded pulley
10. Make certain that the wide side of the PTO drive
belt is toward the outside diameter of all (six)
pulleys (Fig. 19).

Installation
11
m–4230
ÉÉÉÉ
ÉÉÉÉ
ÉÉÉÉ
ÉÉÉÉ
2
1

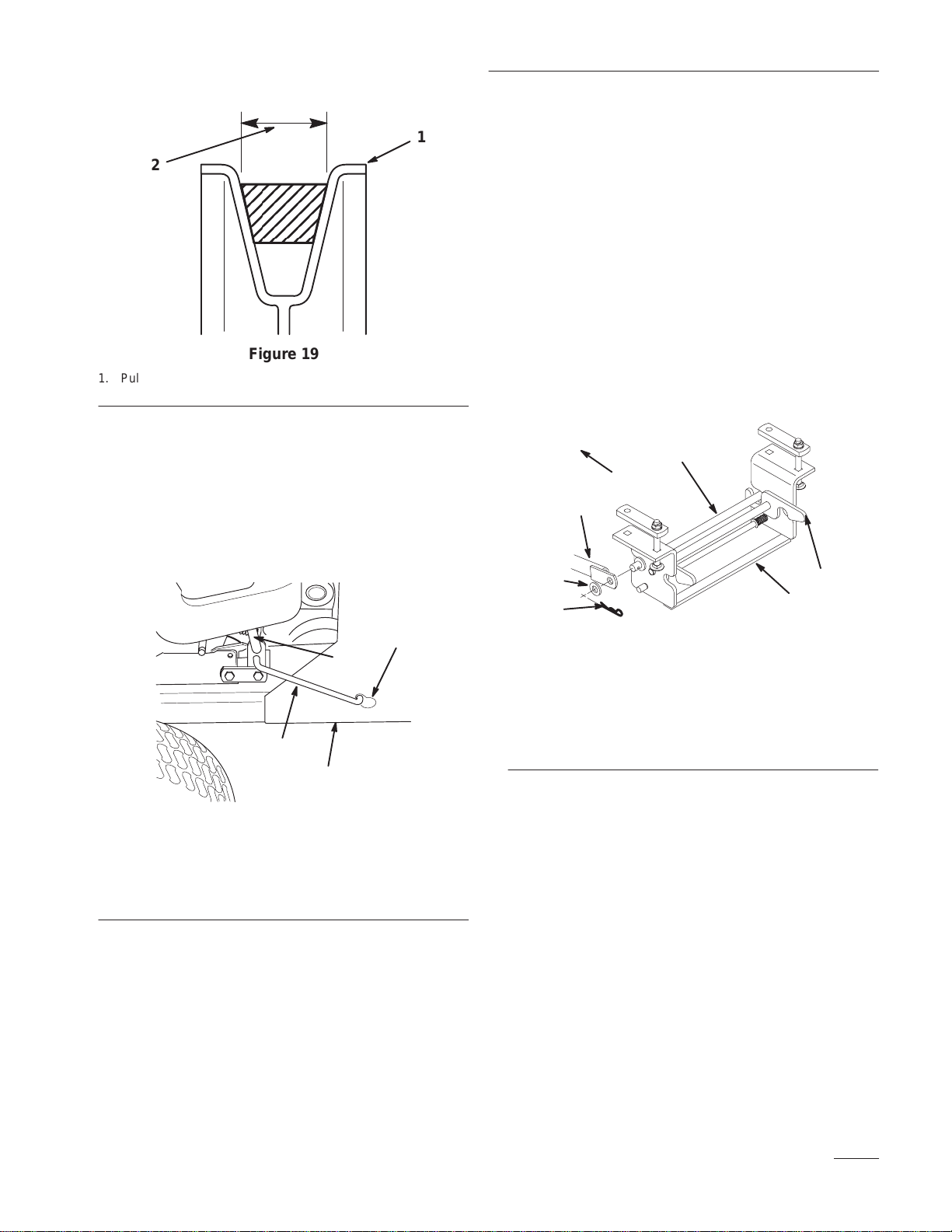

Figure 19
1. Pulley outside diameter 2. Wide side of belt
A. Replace the right side panel and close the
hood.
11. On the right side of the tractor, pull forward on
the spring tension lever and connect the spring
tension link to the keyhole slot in the
snowthrower frame (Fig. 20).
m–4346
1
2
3
4
Figure 20
Right side of tractor shown
1. Springtension link
2. Spring tension lever 3. Snowthrower frame 4. Keyhole slot
12. Open the latches on the rear Attach-A-Matic
hitch. Put the support rod link into the front
notches on the rear Attach-A-Matichitch and
close the latches to secure it in place (Fig. 21).
13. Slide the non adjusting ends of the two support
braces onto the support rod link that is now in
the rear Attach-A-Matichitch mount.
•Make sure the rod of each brace faces
inward.
•Secure the braces to the rod with a 13/16”
(21 mm) washer and a large hairpin cotter
(Fig. 21).
m–3724
1
2
3
4
5
6
7
Figure 21
1. Supportrod link
2. Rear Attach–A–Matic
hitch
3. Front of tractor
4. Rear Attach–A–Matic
hitch latch
5. Support brace
6. Washer 13/16” (21 mm)
7. Hairpin cotter–large
14. Secure the other ends of the support braces to the
frame rods protruding from the mid
Attach-A-Matichitch with a 15/16” (24 mm)
washer and a large hairpin cotter (Fig. 22). You
may need to turn the adjuster of each brace
before the holes in the adjuster align with the
frame rod.

Installation
12
m–3681
1
23
4

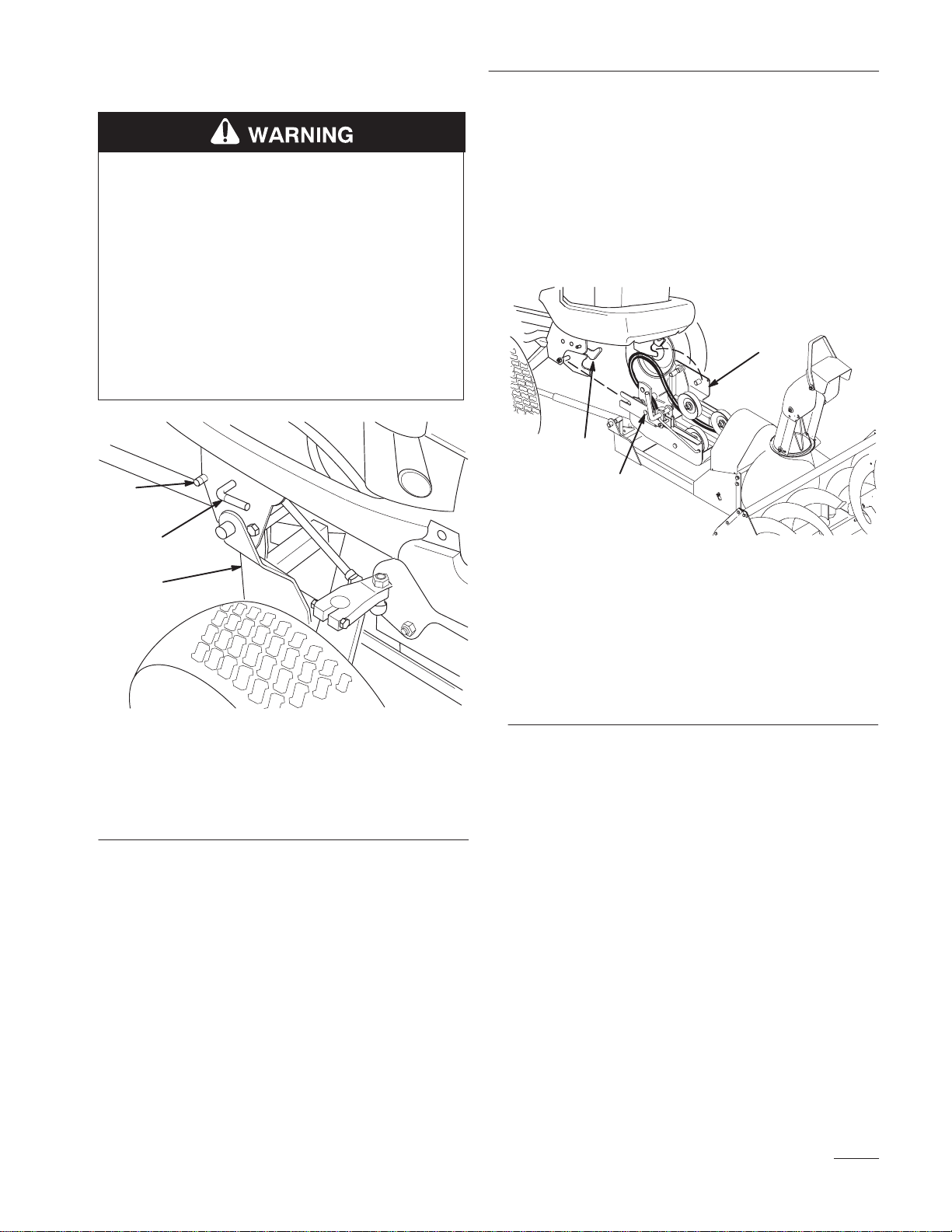

Figure 22
Left side of tractor shown
1. Supportbrace
2. Washer, 15/16” (24mm)
3. Hairpin cotter–large
4. Mounting post for crank
support
15. Slide the crank support onto the mounting post
on the left–hand side of the tractor (Fig. 22).
Secure it in position with a locking pin and small
hairpin cotter (Fig. 23).
m–4347
1
2
3
Figure 23
Left side of tractor shown
1. Crank support
2. Locking pin 3. Hairpin cotter–small
16. Slide the chute control rod through the hole in
the end of the crank support and connect the end
of the chute control rod to the universal joint on
the snowthrower with a medium hairpin cotter
(Fig. 24).
m–4349
2
1
4
3
Figure 24
1. Chute control rod
2. Crank support 3. Universal joint 4. Hairpin cotter–medium
Removing the Snowthrower
1. Park the tractor on a level surface, lower the
attachment lift, disengage the power take off
(PTO), set the parking brake and turn the
ignition key to “STOP” to stop the engine.
Remove the ignition key.
2. Relieve the snowthrower belt tension by pulling
the spring tension lever forward until you have
enough slack to disconnect the link from the
keyhole slot (Fig. 25).

Installation
13
m–4346
1
2
3
4
Figure 25
Right side of tractor shown
1. Springtension link
2. Spring tension lever 3. Snowthrower frame 4. Keyhole slot
3. Remove the snowthrower belt from the engine
PTO pulley:
A. Open the hood of the tractor
B. Remove the right–hand side panel.
POTENTIAL HAZARD
•Components under the hood will be hot if
the tractor has been running.
WHAT CAN HAPPEN
•Touching hot components can cause burns.
HOW TO AVOID THE HAZARD
•Allow the tractor to cool before performing
maintenance or touching components
under the hood.
C. Remove the snowthrower belt from around
the engine PTO pulley (Fig. 26).
Note: Lifting up on the spring–loaded pulley
will ease removal of the belt.
m–3696d
3
1
4
2

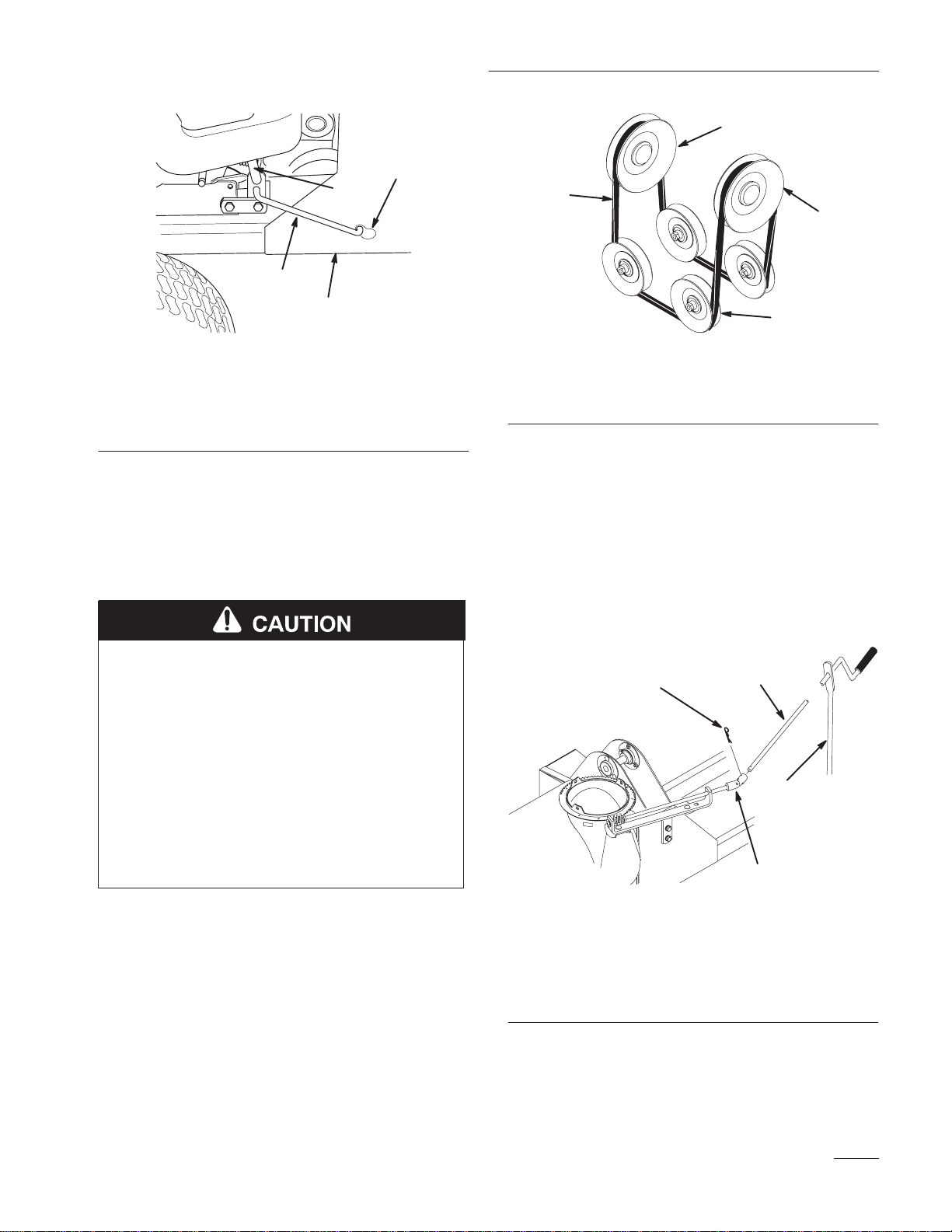

Figure 26
1. EnginePTO pulley
2. Snowthrower pulley 3. Belt 4. Spring–loaded pulley
D. Replace the right side panel and close the
hood.
4. Remove the chute control rod by removing the
hairpin cotter connecting it to the universal joint
(Fig. 27). Slide the chute control rod out of the
end of the crank support.
m–4349
2
1
4
3
Figure 27
1. Chute control rod
2. Crank support 3. Universal joint 4. Hairpin cotter–medium
5. Remove the crank support by removing the
hairpin cotter and clevis pin at its base (Fig. 28),
then lifting the support from its mounting post.

Installation
14
6. Remove the support braces from the frame rods
protruding from the mid Attach-A-Matichitch
by removing the hairpin cotters and washers
(Fig. 28).
m–3681
1
23
4
Figure 28
Left side of tractor shown
1. Supportbrace assembly
2. Washer, 15/16” (24mm)
3. Hairpin cotter–large
4. Mounting post for crank
support
7. Remove the other ends of the two support braces
from the rear Attach-A-Matichitch mount by
removing the hairpin cotters and washers
(Fig. 29).
8. Release the latches on the rear Attach-A-Matic
hitch and remove the support rod link (Fig. 29).
m–3724
1
2
3
4
5
6
7
Figure 29
1. Supportrod link
2. Rear Attach–A–Matic
hitch
3. Front of tractor
4. Rear Attach–A–Matic
hitch latch
5. Support brace
6. Washer 13/16” (21 mm)
7. Hairpin cotter–large
9. Disconnect the snowthrower lift rod from the
attachment lift plate by removing the clevis clip
and clevis pin (Fig. 30).
m–3661
3
42
12
5
Figure 30
Right side of tractor shown
1. Middlehole in attachment
lift plate
2. Snowthrower lift rod
3. Clevis pin 1/2” x 1”
(25 mm)
4. Clevis clip
5. Attachment lift plate
10. Press the button of the mid Attach-A-Matic
hitch and carefully turn the lever clockwise to
release the snowthrower (Fig. 31). Please use
CAUTION during this step! The snowthrower
frame will drop to the ground.

Installation
15
POTENTIAL HAZARD
•The snowthrower frame assembly is heavy.
WHAT CAN HAPPEN
•Hands and feet can be injured by the
weight of the snowthrower coming down on
them.
HOW TO AVOID THE HAZARD
•Keep hands and feet away from the
underside of the snowthrower frame.
m–3707
1
2
3
Figure 31
Right side of tractor shown
1. Snowthrowerframe
2. Mid Attach-A-Matichitch
lever
3. Mid Attach-A-Matic
hitch button
11. Put the tractor’s High–Low range lever in neutral
“N” and release the parking brake.
12. Push the tractor back, away from the
snowthrower until there is sufficient space to
remove the pulley box.
13. Remove the “C” shaped pins from the pulley
box locking holes (Fig. 32). Open the latches of
the front Attach-A-Matichitch, remove the
pulley box, and slide it into snowthrower frame.
14. Install the “C” shaped pins into the locking holes
of the pulley box for storage. Retain with the
hairpin cotters.
m–4344
1
2
3
Figure 32
1. Attach–A–Matichitch
latches 2. Pulley box
3. Locking holes
15. Push the tractor back, away from the
snowthrower frame. Set the parking brake.

16
Operation
POTENTIAL HAZARD
•When the snowthrower is attached to the
tractor, without additional weight, the
tractor may become unstable.
WHAT CAN HAPPEN
•Loss of traction and stability may cause
loss of tractor control.
HOW TO AVOID THE HAZARD
•NEVER operate the tractor equipped with
the snowthrower, unless rear weights are
installed.
POTENTIAL HAZARD
•Rotating auger can cut off fingers, hands or
other body parts and throw objects.
WHAT CAN HAPPEN
•Contact with rotating auger and thrown
debris can cause severe injury or death.
HOW TO AVOID THE HAZARD
•Stay away from the discharge and auger
openings while operating the snowthrower.
•Keep your hands, feet, and any other part
of your body or clothing away from
concealed, moving or rotating parts.
•Use a stick, not your hand, to remove
obstructions from the discharge chute or
auger housing.
•Before adjusting, cleaning, repairing and
inspecting the snowthrower and before
unclogging the discharge chute, shut off the
engine and wait for all moving parts to
stop. Move the power take off (PTO) to
“OFF” and rotate the ignition key to
“OFF.” Remove the key.
Operating the Power Take Off
(PTO)
The power take–off (PTO) switch engages and
disengages power to the electric clutch.
If the ignition key is in the RUN or LIGHTS position
and the power take off (PTO) is engaged, the PTO
indicator light will be on. When this light is on, it is a
reminder: the implement is being powered and the
starter will not crank while the PTO is engaged.
Always turn off the PTO before getting off the seat.
Engaging the Power Take Off (PTO)
1. Depress the brake pedal to stop the machine.
2. Move the throttle lever to FAST.
IMPORTANT: For best performance, always
use full throttle when the power take off
(PTO) switch is ON.
3. Pull the power take off (PTO) switch to ON (Fig.
33).
m–3264
12

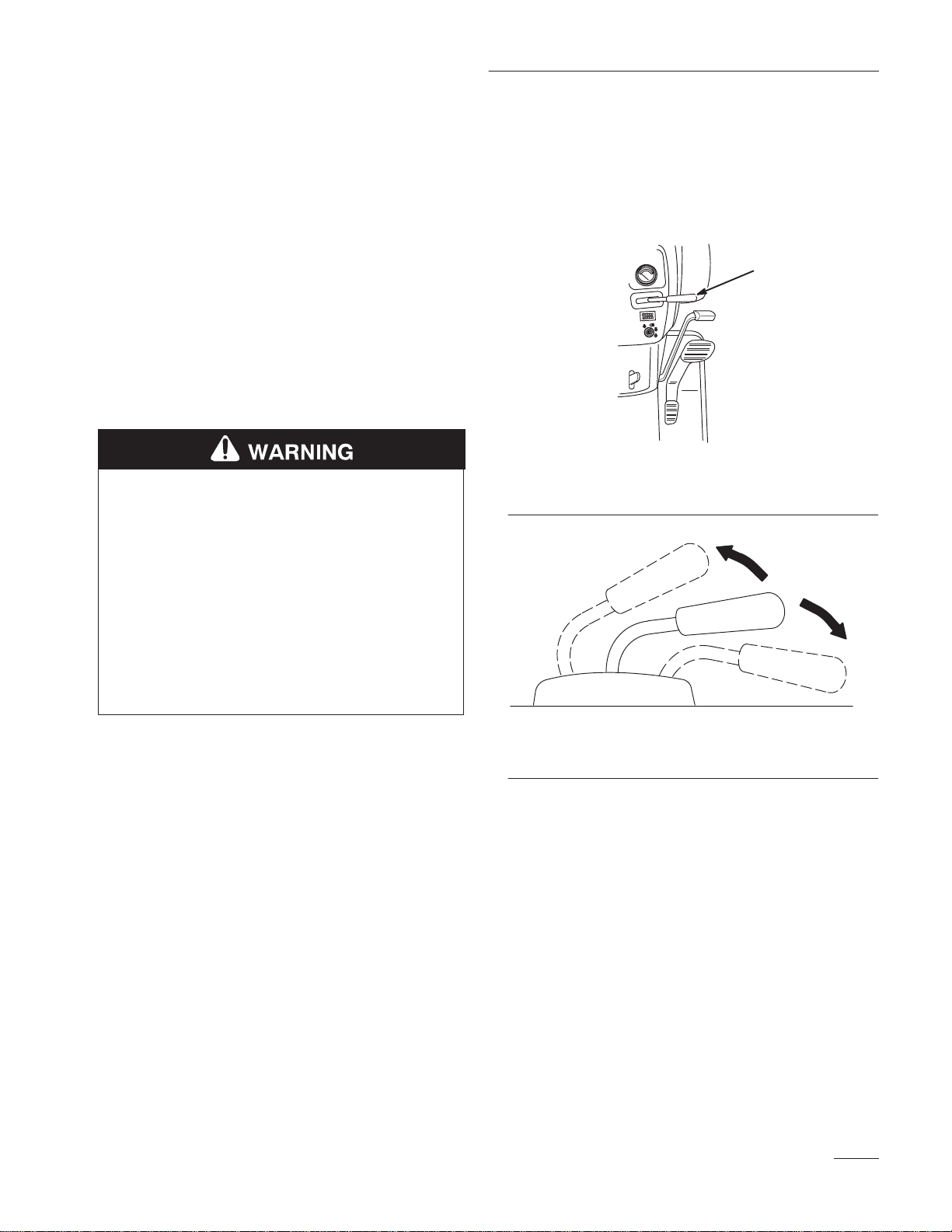

Figure 33
1. Push (off-disengaged) 2. Pull (on-engaged)
Disengaging the Power Take Off (PTO)
1. Push the power take off (PTO) switch to OFF.

Operation
17
Operating the Attachment Lift
Lever
The attachment lift lever (Fig. 34 & 35) is used to
raise and lower various attachments.
Raising Attachments
1. Start the tractor.
2. Pull the attachment lift lever upward until the
latch locks. In this position, the lift will hold the
attachment in the up, or raised position.
POTENTIAL HAZARD
•When the engine is off, attachments in the
raised position can gradually lower.
WHAT CAN HAPPEN
•Someone nearby may be pinned or injured
by the attachment as it lowers.
HOW TO AVOID THE HAZARD
•Always lower the attachment lift each time
you shut off the tractor.
IMPORTANT: The tractor hood must be
closed before the snowthrower is raised.
Lowering Attachments
1. Start the tractor.
2. Push the attachment lift lever downward to
lower the attachment.
m–3258
1
Figure 34
1. Attachmentlift lever
m–3315
1
2
Figure 35
1. Raise attachment 2. Lower attachment

Operation
18
Adjusting The Discharge Chute
POTENTIAL HAZARD
•The rotating auger can cut off fingers,
hands or other body parts and throw
objects.
WHAT CAN HAPPEN
•Contact with the rotating auger and thrown
debris can cause sever injury or even death.
HOW TO AVOID THE HAZARD
•Stay away from the discharge and auger
openings while operating the snowthrower.
•Keep your hands, feet, and any other parts
of your body or clothing away from
concealed, moving or rotating parts.
•Use a stick, not you hand, to remove
obstructions from the discharge chute or
auger housing.
•Before adjusting, cleaning, repairing and
inspecting the snowthrower and before
unclogging the discharge chute, shut off the
engine and wait for all moving parts to
stop. Move the power take off (PTO) to
“OFF” and rotate the ignition key to
“OFF.” Remove the key.
The discharge chute can be rotated 180°side to side.
The direction is controlled by turning the crank
handle (Fig. 36).
The chute deflector, on top of the discharge chute, can
be moved up and down to control the height and
distance snow is thrown (Fig. 36).
m–1290a
m–3445
1
3
2
Figure 36
1. Dischargechute
2. Crank handle 3. Chute deflector
Tips for Throwing Snow
Remove snow as soon as possible after it falls. This
produces best snow removal results.
Adjust the skids to match the type of surface being
cleaned; refer to Adjusting the Skids, page 24.
The snowthrower is designed to clean snow down to
the contact surface, but there are times when the front
of the snowthrower may tend to ride up. If this
happens, reduce forward speed.
Discharge snow downwind whenever possible, and
overlap each pass to ensure complete snow removal.
If the wheels slip, shift into the High–Low range
lever to Low “L” to reduce forward speed.
Run the snowthrower for a few minutes after clearing
snow so moving parts do not freeze. Engage the
power take off (PTO) to clear any remaining snow
from the inside housing.
Do not overload the snowthrower by clearing snow at
too fast a rate. If the engine slows down, reduce
forward speed.
Always use full throttle (maximum engine speed)
when throwing snow.
