Torque Fitness F7 Fold Away Strength Trainer Quick guide

Part #: 5174901-BVersion: F7-01-001
Assembly and Maintenance Guide
Fold Away Strength Trainer TM

Page 2
Important Safety Instructions …………………………………………………..3
Important Safety Instructions for Using the Equipment ………………...3
Important Safety Instructions for Assembling the Equipment ………….3
Obtaining Service ................................................................………….3
General Notes………………………………………………………………………4
Unpacking the Equipment………………………………………………….4
Tools Required………………………………………………………………4
Optional Equipment…………………………………………………………4
Assembly Tips……………………………………………………………….4
Parts List…………………………………………………………………………….5-6
Assembly Instructions……………………………………………………………6-42
Adjustments and Maintenance………………………………………………….40,42
Cable Adjustments……………………………………………………….….40
Attachment and Adjustment Instructions………………...…………………41
Maintenance…………………………………………………………………42
Assembly Checklist……………………………………………………………….43
Warranty Statement……………………………………………………………….45-46
Warranty Registration…………………………………………………………….47-48
TABLE OF CONTENTS

Page 3
Name:____________________________________
Address:__________________________________
Tele:_________ Contact Person:_______________
There is a risk assumed by individuals who use this type of equipment. To minimize risk, you must follow these precautions:
1. READ ALL INSTRUCTIONS AND WARNING LABELS COMPLETELYPRIOR TO ANY USE OR ASSEMBLY. Failure to read and follow the safety instructions and warnings
within the Assembly and Maintenance Guide may result in possible serious injury or death. Use this product only for the intended uses described in the Assembly and
Maintenance Guide and exercise chart. DO NOT modify equipment in any way. Any use other than as intended or modification of product will void any and all product
warranties.
2. Consult your physician before starting any exercise program. Warm up properly before engaging in resistance training. Stop exercising and consult a physician immedi-
ately if you experience dizziness, nausea, faintness, chest pain, shortness of breath or any other abnormal symptoms during use of this equipment.
3. Certain exercise programs and/or equipment may not be suitable or appropriate for pregnant women, people with heart conditions, balance impairments or other pre-
existing health problems. Persons with disabilities should consult a physician and obtain medical approval prior to using this product and should only use this product
under close supervision. Failure to comply with these instructions will void any and all product warranties.
4. Carefully inspect equipment before each use. Replace all parts at the first sign of wear or damage. Tighten all loose connections. Pay special attention to cable ends and
connections. Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO
NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and
all product warranties.
5. Keep body and clothing clear of all moving parts. Do not put any foreign objects on or near this product when in use. Wear comfortable clothing which does not impair
freedom of movement. Do not wear clothing which is too loose and could get caught in moving parts.
6. Make sure all adjustment spring pins are fully engaged after making an adjustment and before using the product.
7. Make sure weight stack selector is completely inserted into the weight stack before beginning any exercise.
8. Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy.
9. If unsure of the proper use of this product, contact your authorized Torque Fitness dealer or Torque Fitness Customer Service at 1-877-TORQUE5 (1-877-867-7835) or
outside the U.S. [phone].
Important Safety Instructions for Assembling Equipment
1. It is strongly recommended that a qualified, authorized Torque Fitness dealer assemble the equipment. Assistance is required. Torque Fitness recommends
using more than one person to assemble this equipment.
2. This product must be assembled on a flat, level surface to assure its proper function. Locate the unit a few inches from walls or furniture to allow easy access during
assembly and use.
3. Read each numbered step in the Assembly and Maintenance Guide and follow the steps in sequence. Skipping ahead may result in damage to the equipment and
may require components to be disassembled.
4. Wear proper attire during the assembly process. Do not wear clothing which is too loose or open toed shoes.
Important Safety Instructions for Using the Equipment
Model number: _________________________________
Serial number(s): _______________________________
Dealer information:______________________________
Date of purchase:______________________
Dealer Service Contract:_________________
Dealer Service Phone:___________________
Refer to the Adjustments and Maintenance section at the back of this manual and the included Exercise Chart for information on product operation and service.
For further information, contact an authorized Torque Fitness dealer or visit our web site at www.torquefitness.com
If you call or email Customer Service, have the model number and serial number(s) available. The locations of the model and serial numbers are indicated in the back of this
manual. For future reference, write the model and serial number(s) in the space provided below.
Obtaining Service
Do not attempt to service the equipment yourself except for the maintenance tasks described in this manual.

Page 4
GENERAL NOTES
CAUTION: More than one person is required to
assemble this unit. Do not attempt to assemble by
yourself.
Torque Fitness strongly recommends having a
qualified, authorized Torque Fitness Dealer
assemble the equipment.
Unpacking the Equipment
This product is packaged and shipped in multiple
boxes. Parts from all of the boxes are required for
various steps during the assembly process.
Carefully open each box and arrange all parts near
area where assembly is to take place.
CAUTION: Use extreme care when cutting plastic tie
wraps and package banding. Awire cutter works
best for protecting yourself and the parts.
CAUTION: Some of the internal boxes may contain
upholstery. Do not use a utility knife to open any
boxes or the pads may be damaged.
The hardware is packed in separate bags sorted by
step. Carefully open each bag and keep sorted.
Before starting assembly, identify each part and
hardware item as listed in the parts list. If any items
are missing, contact the dealer whom you pur-
chased the unit from or call Torque Fitness Cus-
tomer Service.
Note: Some items listed in the parts list may already
be pre-installed on the parts.
§Read all caution notes on each page before
beginning that step.
§Some of the items shown in the assembly
steps may already be pre-installed.
§Note: Some pre-installed parts may need
to be temporarily disassembled in order to
complete a step. Follow the instructions or
damage to the unit could occur.
§Some parts may have extra holes that you
will not use. Use only the holes depicted in
the instructions.
§Certain parts make reference to the right
and left side of the machine. In order to
remain consistent, determine the left and
right side of the machine by sitting with your
back to the rear of the machine.
§Provide ample space around the machine
in order to ease assembly.
§DO NOT fully tighten any connections until
instructed to do so. This will help ensure
that alignment of all of the parts will be
correct.
§Insert all bolts in the direction indicated by
the illustrations. Failure to do so may result
in clearance issues and will degrade the
aesthetics of your unit.
§Carefully follow instructions for all pivot
points. In general, primary rotating parts
have connections that should be securely
tightened, while secondary connections
need to be loosened ¼ turn
Tools Required
§Rubber mallet or hammer
§ 3/4” wrench or adjustable wrench
§Ratchet with 9/16” socket
§9/16” box wrench
§4mm Allen wrench (included)
§5mm Allen wrench (included)
§6mm Allen wrench (included)
§6mm Long Allen wrench (included)
§7/16” wrench or socket
§Wire tie cutter (cuts plastic tie wraps)
§Scissors or utility knife (cuts hardware
bags)
§Step stool
§Measuring tape
Optional Equipment
Optional equipment may be available for this
equipment.
Follow the instructions in the optional equipment
instructions for the sequence step to assemble it to
the base unit.
Assembly Tips
§In a continual effort to improve our products,
specifications are subject to change.

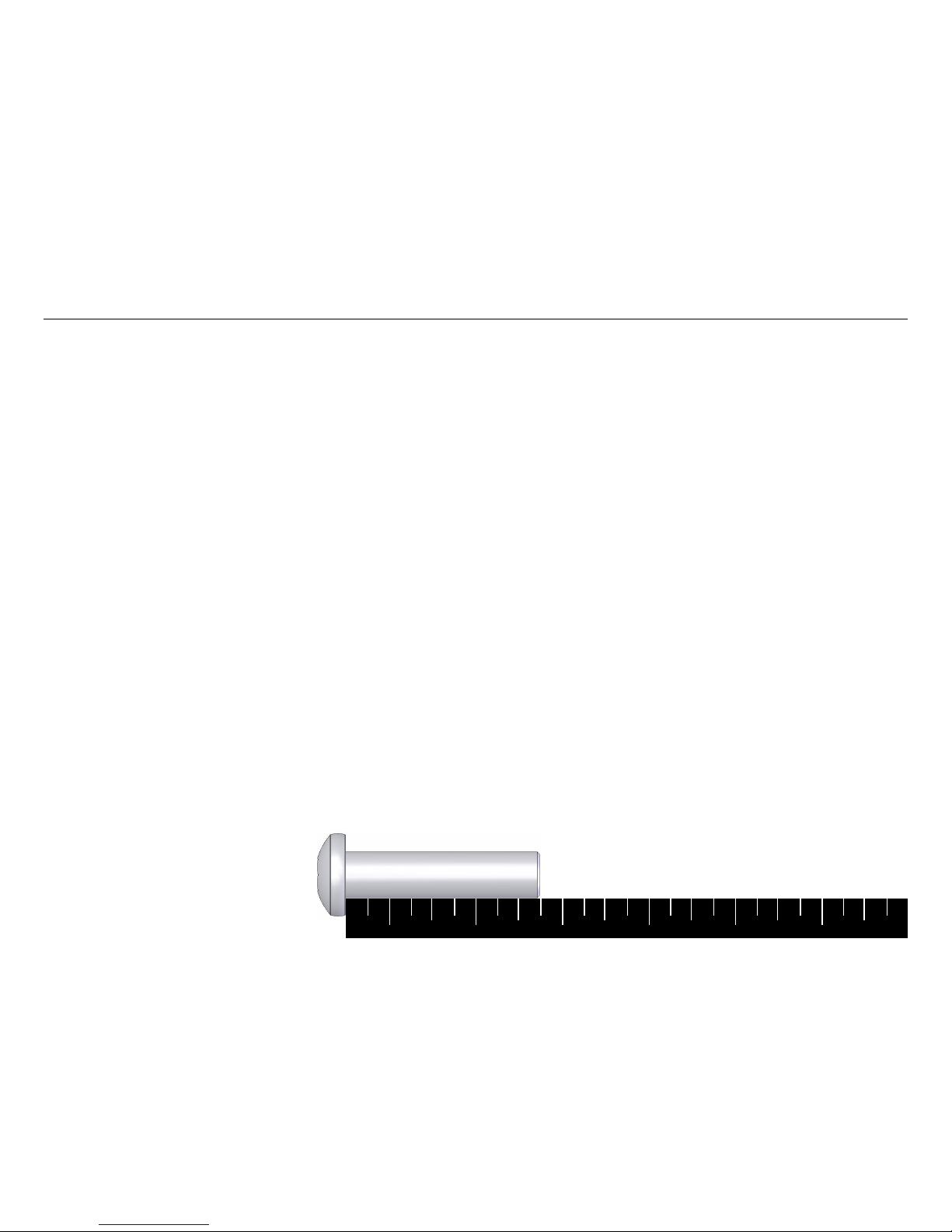

§A 6-inch scale is provided at the bottom of
every assembly instruction page. The head
of the bolt should not be used when
measuring the length of the bolt as depicted
in the illustration below.
123456

Page 5
PartsList
QTY
1
1
1
1
2
1
1
1
1
2
2
2
8
2
1
2
4
2
2
4
1
2
2
1
1
2
1
1
1
1
4
1
1
1
DESCRIPTION
ACCESSORY HOLDER
TOUCH-UP GRAPHITE
TOUCH-UP SILVER
TORQUE CLIPBOARD
CARRIAGE UPRIGHT
RIGHT CARRIAGE
LEFT CARRIAGE
"F7" BADGE STAND OFF
"T" BADGE STAND OFF
F SERIES CENTER SHROUD
SHORT SHROUD WITHOUT HOLES
SHORT SHROUD WITH HOLES
HOLE CAP
WHEEL ADJUST
UNIVERSAL (FLAT) STRAP
F7 BASE END CAP
GUIDE ROD
SWIVEL PULLEY CABLE
GUIDE ROD SUPPORT
SPACER
BASE CONNECTOR
FRONT DOOR TUBE
TOP DOOR TUBE
LEFT DOOR PIVOT
LEFT SIDE
BASE DOOR TUBE
RIGHT DOOR PIVOT
RIGHT SIDE
FRONT TOP BOOM
REAR TOP BOOM
1/2” X 15MM SHOULDER BOLT
SQUATHARNESS ATTACHMENT
STRAIGHT BAR ATTACHMENT
LEG BOOT ATTACHMENT
#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
PARTNO.
5190801
5190501
5190401
5190001
5185501
51853PA
51843PA
5183501
5183401
51829PA
5182801
5182701
5179601
5175601
5175501
5175301
5175101
5174701
51730PA
5172701
5171701
51695PA
5169001
51684PA
51682PA
5167201
51669PA
51660PA
51646PA
51640PA
5153001
5129401
51290PA
5128901
QTY
2
2
4
2
4
4
8
6
2
2
2
2
2
2
4
8
6
2
2
32
4
28
46
28
4
18
4
2
2
14
2
2
DESCRIPTION
WEIGHT STEM BRKT
WHEEL SUPPORT
3/8” X 10MM FLANGE SPACER
GUIDE ROD LUBE PACKET
WEIGHT STACK CUSHION
SHAFT COLLAR
3/8” X 15MM FLANGER SPACER
4-1/2” PULLEY
3-1/2” PULLEY
WEIGHT STACK LABEL
UNIVERSALADAPTER
SNAP HOOK
SHORT STRAP HANDLE
HEAD PLATE PULLEY
2" OD WASHER
3/8 X 1-1/2" BUTTON HEAD BOLTW/NP
3/8 X 3/4" BUTTON HEAD BOLTW/NP
1/2” JAM NUT
3/8” JAM NUT
1/4” WASHER
1/4 X 1/4" BUTTON HEAD BOLT
1/4 X 1/2" BUTTON HEAD BOLT
3/8” FLATWASHER
3/8” LOCK NUT
3/8 X 2-3/4" BUTTON HEAD BOLT
3/8 X 2-1/2" BUTTON HEAD BOLT
3/8 X 2-1/4" BUTTON HEAD BOLT
3/8 X 1-3/4" BUTTON HEAD BOLT
HEAD PLATE
WEIGHT PLATE
TORQUE FORK
TM
CABLE COUPLER
#
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
PARTNO.
5118101
51148PA
5110201
5101501
5098201
5095301
5094801
5094501
5094401
5093101
5091901
5091801
5044101
50099PA
20050
2004004
2004001
2002601
2002301
2002101
2001912
2001901
2001101
2001201
2001009
2001008
2001007
2001005
5050401
5050901
5051201
5078401

Page 6

Page 7
123456

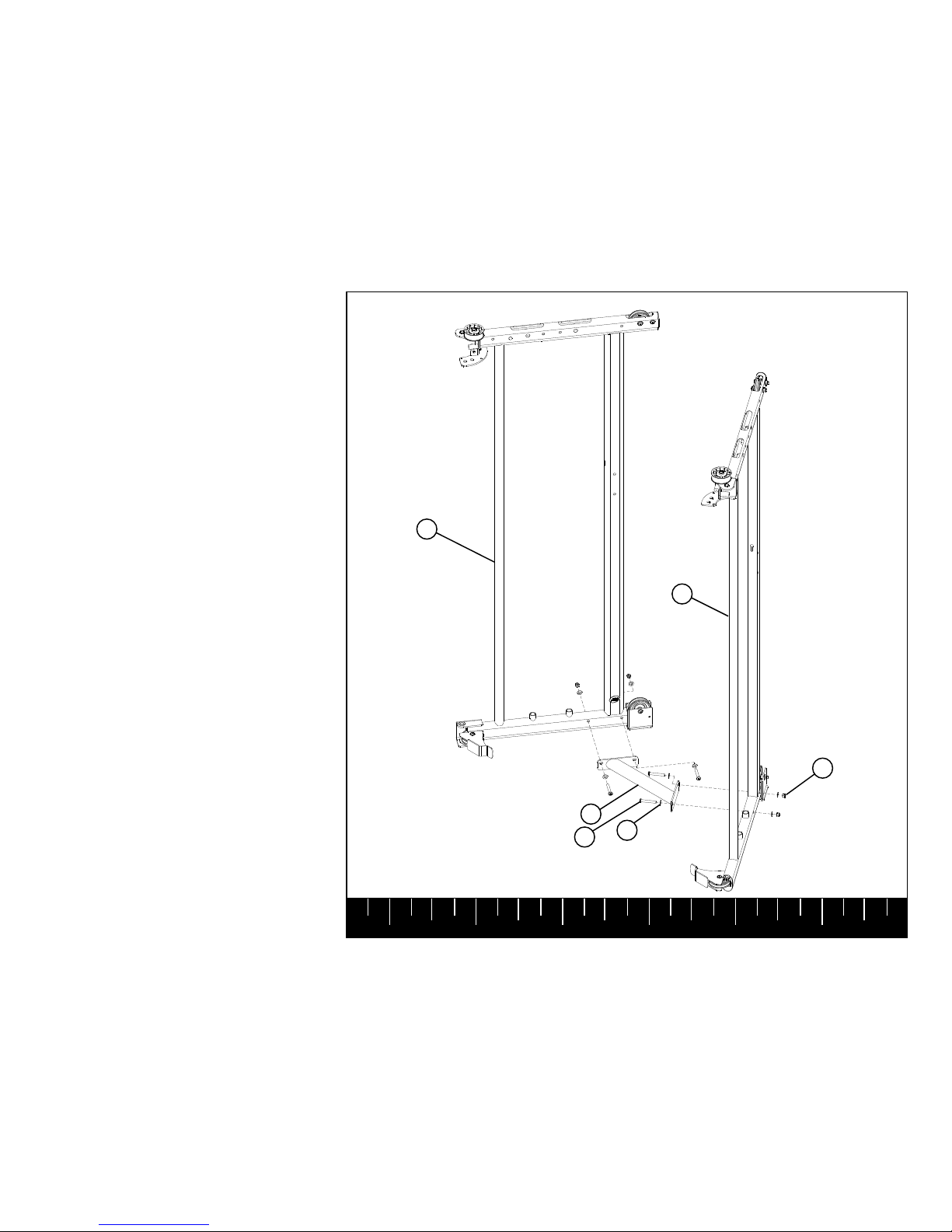

STEP 1
LOOSELYassemble the LEFT and RIGHT
SIDES (25 & 28) to the BASE CONNECTOR
(21) as shown using:
Four 3/8 X 2-1/2” BOLTS (60)
Eight 3/8” WASHERS (57)
Four 3/8” LOCK NUTS (58)
57
58
21
28
3/8 X 2-1/2” 60
25

Page 8
123456

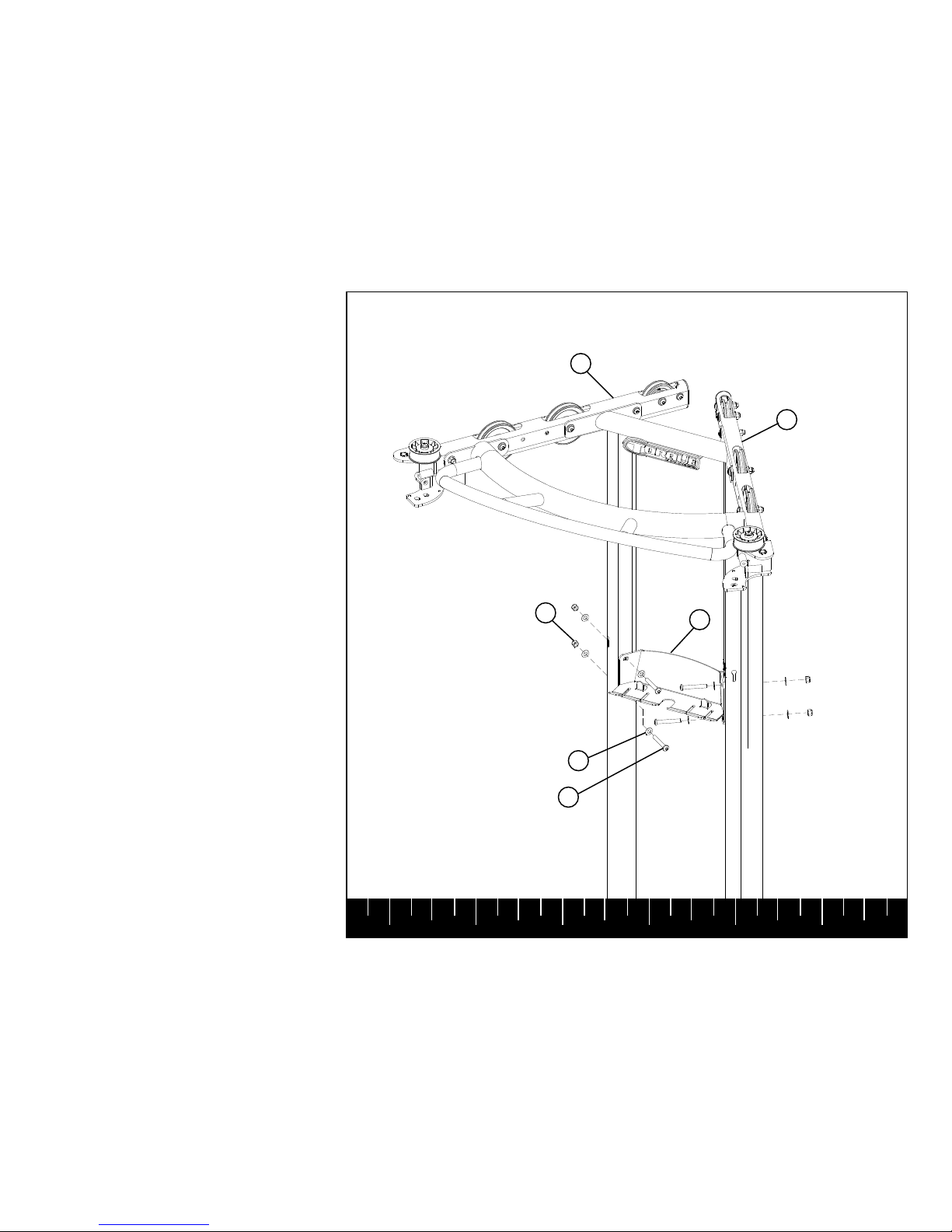

STEP 2
LOOSELYassemble the REAR TOP BOOM
(30) between the LEFT and RIGHT SIDES (25 &
28) as shown using:
Two 3/8 X 2-1/2” BOLTS (60)
Four 3/8” WASHERS (57)
Two 3/8” LOCK NUTS (58)
LOOSELYassemble two 4-1/2” PULLEYS (42)
to the LEFT and RIGHT SIDES (25 & 28) as
shown using:
Two 3/8 X 2-1/2” BOLTS (60)
Two 3/8 X 15MM FLANGE SPACERS (41)
Two 3/8 X 10MM FLANGE SPACERS (37)
Two 3/8” LOCK NUTS (58)
25
15MM 41
42
58
28
30
58
57
60 3/8X2-1/2”
3/8 X 2-1/2” 60
10MM 37

Page 9
123456

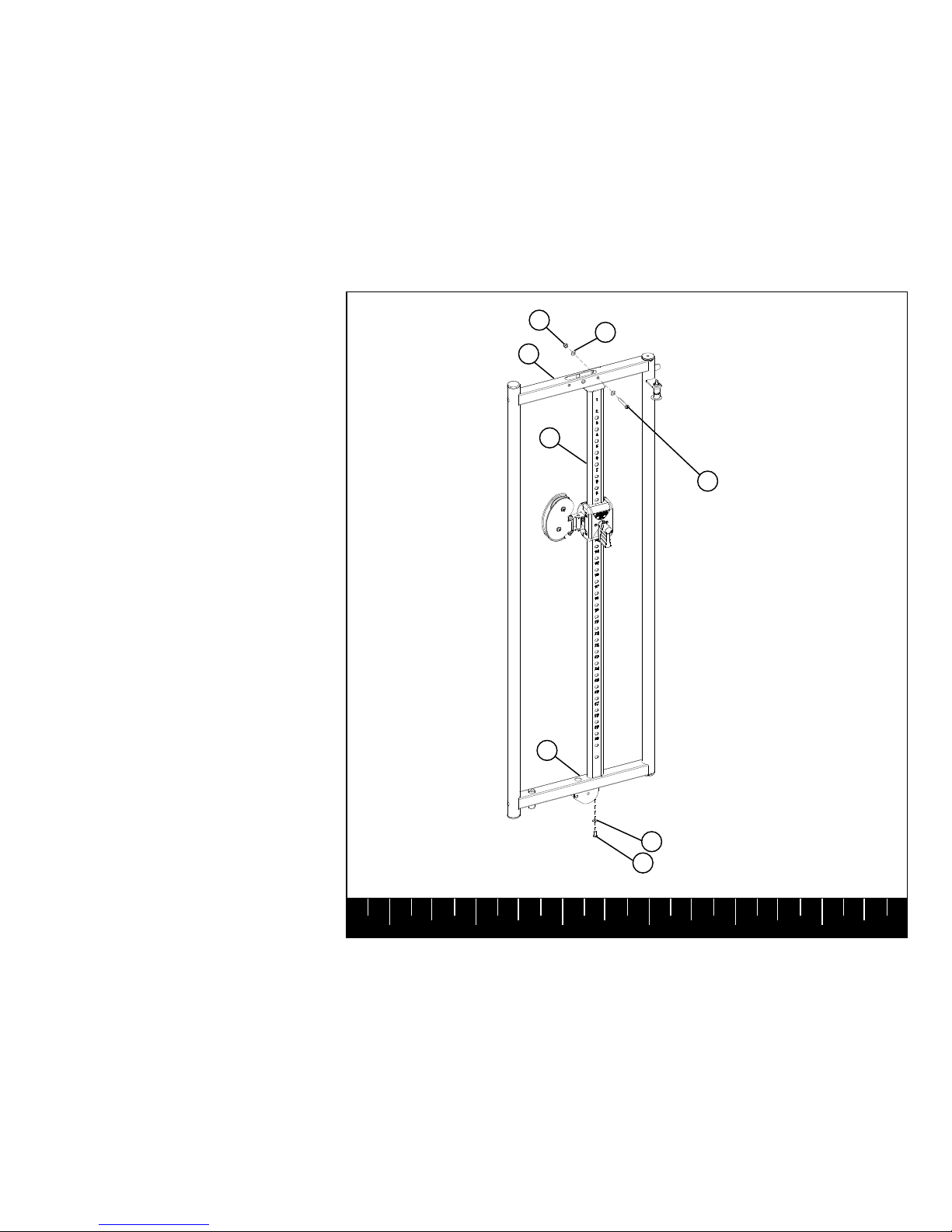

STEP 3
LOOSELY assemble the FRONT TOP BOOM
(29) between the LEFT and RIGHT SIDES (25 &
28) as shown using:
Two 3/8 X 2-1/2” BOLTS (60)
Four 3/8” WASHERS (57)
Two 3/8” LOCK NUTS (58)
NOTICE: TO ENSURE THE FRONT TOP
BOOM (29) IS ASSEMBLED CORRECTLY,
MATCH THE RED DOT ON THE FRONT TOP
BOOM (29) WITH THE RED DOT ON THE
RIGHT SIDE (28) as shown in inset.
LOOSELYassemble two 4-1/2” PULLEYS (42)
to the LEFT and RIGHT SIDES (25 & 28) and
the FRONT TOP BOOM (29) as shown using:
Two 3/8 X 2-1/2” BOLTS (60)
Two 3/8 X 15MM FLANGE SPACERS (41)
Two 3/8 X 10MM FLANGE SPACERS (37)
Two 3/8” LOCK NUTS (58)
3/8 X 2-1/2” 60
25
42
58
28
29 58
57
3/8 X 2-1/2” 60
28
29
RED DOT
RED DOT
41
15MM
10MM 37

Page 10
123456
STEP 4
LOOSELYassemble the ACCESSORY
HOLDER (1) between the LEFT and RIGHT
SIDES (25 & 28) as shown using:
Four 3/8 X 2-1/2" BOLTS (60)
Eight 3/8" WASHERS (57)
Four 3/8” LOCK NUTS (58)
SECURELYTIGHTEN THE LOOSE FRAME
CONNECTIONS MADE TO THIS POINT.
(CAUTION: DO NOT OVER TIGHTEN
BOLTS. OVER TIGHTEN THE BOLTS MAY
EFFECT THE FUNCTION OF THE MACHINE)
57
25
1
58
3/8 X 2-1/2” 60
28

Page 11
123456
STEP 5

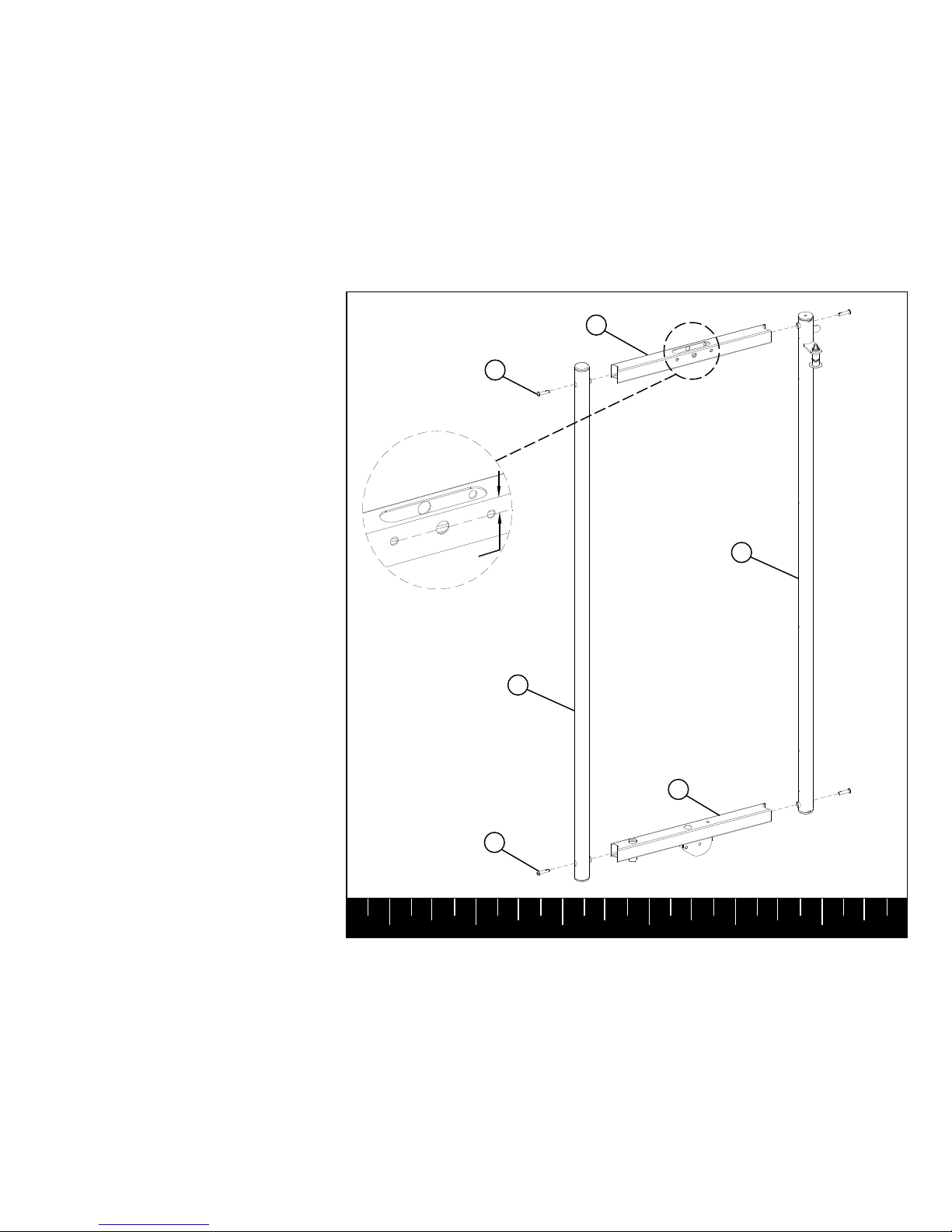

LOOSELY assemble the BASE DOOR TUBE
(26) and TOP DOOR TUBE (23) to the RIGHT
DOOR PIVOT (27) as shown using:
Two 3/8 X 1-1/2" BOLTS W/NP (50)
NOTICE: FOLLOW DIAGRAM EXACTLYTO
ENSURE THAT THE BASE DOOR TUBE (26)
AND TOP DOOR TUBE (23) ARE COR-
RECTLY ASSEMBLED TO THE RIGHT
DOOR PIVOT (27)
LOOSELYassemble the FRONT DOOR TUBE
(22) to the BASE DOOR TUBE (26) and the
TOP DOOR TUBE (23) as shown using:
Two 3/8 X 1-1/2" BOLTS W/NP (50)
23
22
26
3/8 X 1-1/2” 50
W/NP
27
3/8 X 1-1/2” 50
W/NP
11/16”

Page 12
123456
STEP 6
Rotate the ORANGE PADDLE HANDLE on the
RIGHT CARRIAGE (6) from vertical to horizontal
and CAREFULLYslide it over one of the CAR-
RIAGE UPRIGHTS (5) as shown. Release the
PADDLE HANDLE and allow SPRING PIN to
engage one of the holes in the CARRIAGE
UPRIGHT (5)
NOTICE: FOLLOW DIAGRAM EXACTLYTO
ENSURE THAT THE RIGHT CARRIAGE (6)
IS CORRECTLY ASSEMBLED TO THE CAR-
RIAGE UPRIGHT (5)
SECURELYassemble two SPACERS (20) to
the CARRIAGE UPRIGHT (5) as shown using:
Two 3/8 X 3/4" BOLTS W/NP (51)
6
5
20
3/8 X 3/4” 51
W/NP
20
3/8 X 3/4” 51
W/NP

Page 13
123456
STEP 7
LOOSELYassemble the CARRIAGE UPRIGHT
(5) between the BASE DOOR TUBE (26) and
the TOP DOOR TUBE (23) as shown using:
One 3/8 X 2-3/4" BOLT(59)
One 3/8 X 3/4" BOLTW/NP (51)
Three 3/8" WASHERS (57)
One 3/8" LOCK NUT (58)
SECURELYTIGHTEN THE LOOSE DOOR
FRAME CONNECTIONS MADE TO THIS
POINT. (CAUTION: DO NOT OVER TIGHTEN
BOLTS. OVER TIGHTEN THE BOLTS MAY
EFECT THE FUNCTION OF THE MACHINE)
57
5
23
57
58
59 3/8X2-3/4”
51 3/8 X 3/4”
W/NP
26

Page 14
123456

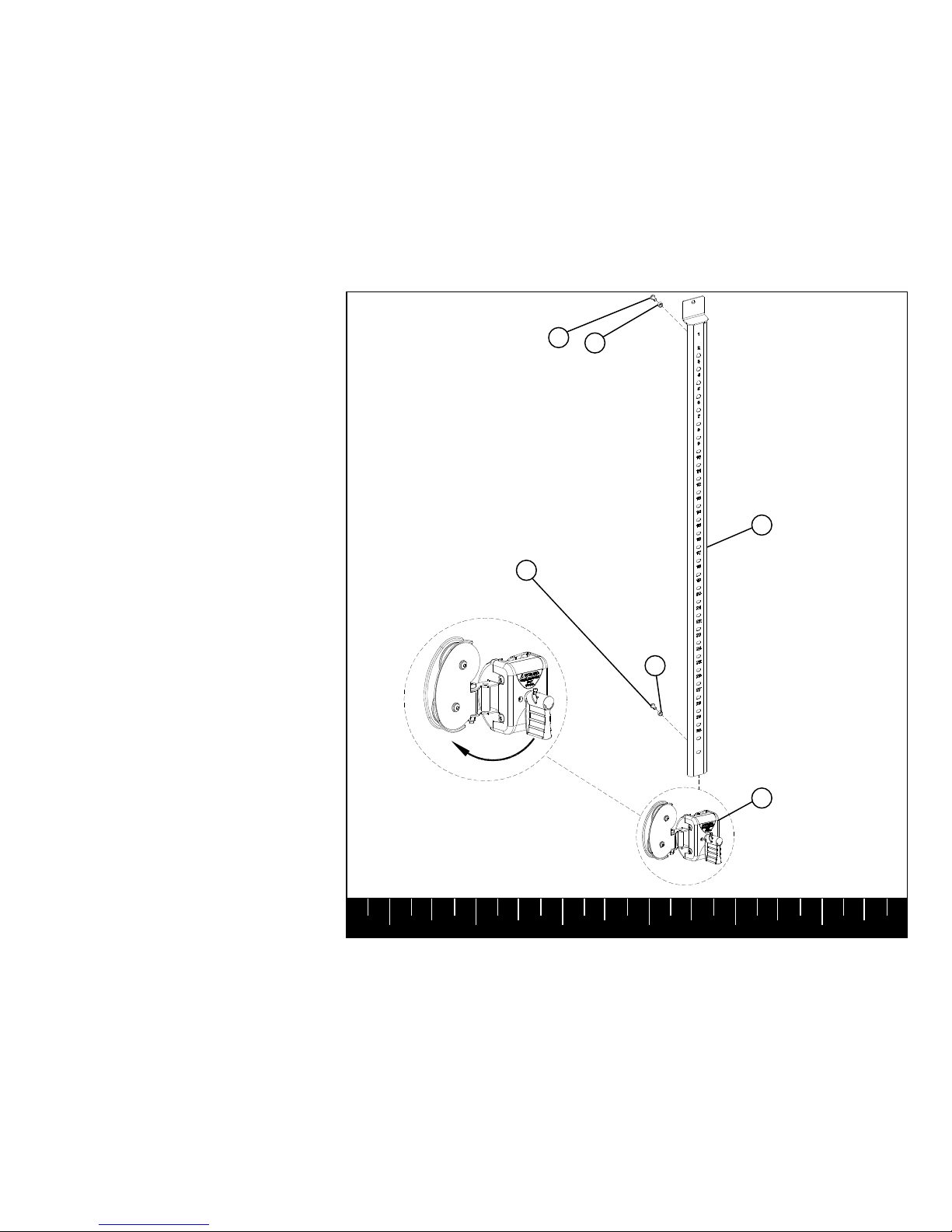

STEP 8

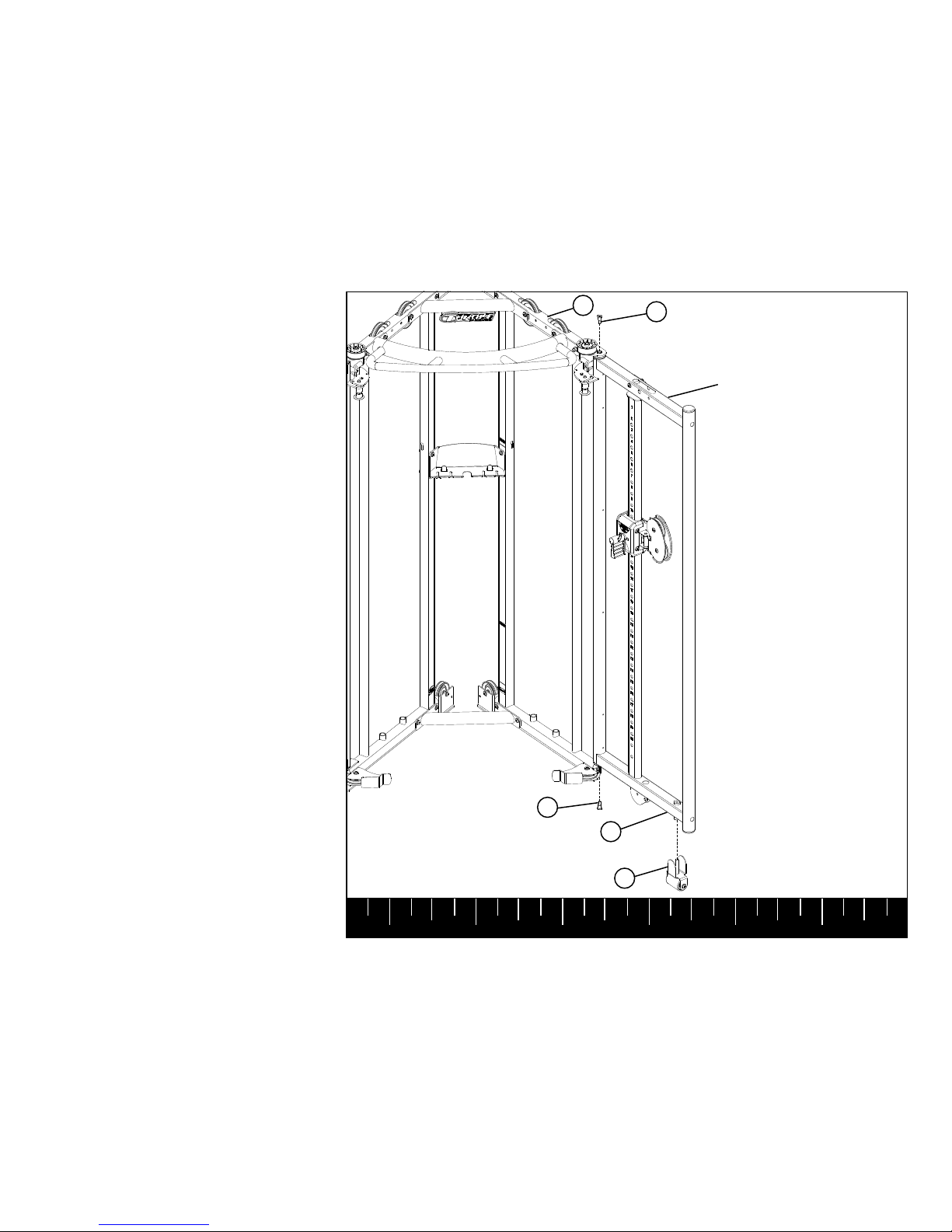

Insert one WHEEL SUPPORT (36) into the
BUSHING of the BASE DOOR TUBE (26) as
shown.
SECURELYassemble the RIGHT DOOR
FRAME to the RIGHT SIDE (28) as shown using:
Two 1/2 X 15MM SHOULDER BOLTS (31)
RIGHT DOOR FRAME
31 1/2” X 15MM
1/2” X 15MM 31
26
36
28

Page 15
123456
STEP 9
LOOSELYassemble the BASE DOOR TUBE
(26) and TOP DOOR TUBE (23) to the LEFT
DOOR PIVOT (24) as shown using:
Two 3/8 X 1-1/2" BOLTS W/NP (50)
NOTICE: FOLLOW DIAGRAM EXACTLYTO
ENSURE THAT THE BASE DOOR TUBE (26)
AND TOP DOOR TUBE (23) ARE COR-
RECTLY ASSEMBLED TO THE LEFT DOOR
PIVOT (24)
LOOSELYassemble the FRONT DOOR TUBE
(22) to the BASE DOOR TUBE (26) and the
TOP DOOR TUBE (23) as shown using:
Two 3/8 X 1-1/2" BOLTS W/NP (50)
50 3/8 X 1-1/2” W/NP
26
23
24
22
50 3/8 X 1-1/2” W/NP
11/16”

Page 16
123456
STEP 10
Rotate the ORANGE PADDLE HANDLE on the
LEFT CARRIAGE (7) form vertical to horizontal
and CAREFULLYslide it over the other CAR-
RIAGE UPRIGHT (5) as shown. Release the
PADDLE HANDLE and allow SPRING PIN to
engage one of the holes in the CARRIAGE
UPRIGHT (5)
NOTICE: FOLLOW DIAGRAM EXACTLYTO
ENSURE THAT THE LEFT CARRIAGE (7) IS
CORRECTLY ASSEMBLED TO THE CAR-
RIAGE UPRIGHT (5)
SECURELYassemble two SPACERS (20) to
the CARRIAGE UPRIGHT (5) as shown using:
Two 3/8 X 3/4" BOLTS W/NP (51)
7
5
20 51 3/8 X 3/4”
W/NP
20 51 3/8 X 3/4”
W/NP

Page 17
STEP 11
LOOSELYassemble the CARRIAGE UPRIGHT
(5) between the BASE DOOR TUBE (26) and
the TOP DOOR TUBE (23) as shown using:
One 3/8 X 2-3/4" BOLT(59)
One 3/8 X 3/4" BOLTW/NP (51)
Three 3/8" WASHERS (57)
One 3/8" LOCK NUT (58)
SECURELYTIGHTEN THE LOOSE DOOR
FRAME CONNECTIONS MADE TO THIS
POINT. (CAUTION: DO NOT OVER TIGHTEN
BOLTS. OVER TIGHTEN THE BOLTS MAY
EFECT THE FUNCTION OF THE MACHINE)
123456
3/8 X 3/4” 51
W/NP
3/8 X 2-3/4” 59
57
26
5
58
57
23

Page 18
123456
STEP 12
Insert one WHEEL SUPPORT (36) into the
BUSHING of the BASE DOOR TUBE (26) as
shown.
SECURELYassemble the LEFT DOOR
FRAME to the LEFT SIDE (25) as shown using:
Two 1/2 X 15MM SHOULDER BOLTS (31)
LEFT DOOR FRAME
31 1/2” X 15MM
1/2” X 15MM 31
25
26
36

Page 19
123456
STEP 13
Thread one WHEEL ADJUST (14) and one 3/8"
JAM NUT (53) into the BUSHING on the BASE
DOOR TUBE (26) of the RIGHT DOOR FRAME
as shown.
Using a screwdriver turn the WHEELADJUST
(14) clockwise until it makes contact with the top
of the WHEEL SUPPORT (36). Thread the JAM
NUT (53) down to the BUSHING and tighten
SECURELY.
NOTICE: DO NOT OVER TIGHTEN THE
WHEEL ADJUST (14). OVER TIGHTENING
THE WHEEL ADJUST WILL MAKE THE
DOOR DIFFICULT TO ROTATE IN AND OUT.
Repeat the above steps for the LEFT DOOR
FRAME.
26
36
26
14
36
53
53
14
RIGHT DOOR
FRAME
LEFT DOOR
FRAME

Page 20
123456
STEP 14
Insert eight HOLE CAPS (13) into the top and
bottom holes of the LEFT and RIGHT DOOR
PIVOTS (24 & 27) and both FRONT DOOR
TUBES (22) as shown.
DOOR ADJUSTMENT
Close both doors by pulling on the spring pins
that are located at the top. Push doors closed
until both spring pins engage in closed position.
(Springs will force the doors out slightly) If the
doors are not aligned from top to bottom, loosen
the bolts on the FRAME CONNECTOR (21) and
do the following:
•If the doors are wider at the bottom than
at the top, Pull FRAME CONNECTOR
towards the front of machine and re-
tighten bolts once the doors are aligned.
•If the doors are wider at the top than the
bottom, Push FRAME CONNECTOR
towards the rear of the machine and
retighten bolts once the doors are
aligned.
13
27
22
13
24 22
DOOR
ADJUSTMENT
21
