Torque XCREATE-CCHWM User manual

4 FT (1.2 M) CABLE COMPONENT LIGHT WALL MOUNT
4 FT (1.2 M) CABLE COMPONENT HEAVY WALL MOUNT
ASSEMBLY INSTRUCTIONS
PART # 5701001-A VERSION: XCREATE-CCLWM & CCHWM

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
ITEM PART NUMBER DESCRIPTION QTY
1 56641PA PTD ASSY, LOWER WALL MOUNT 1
2 5642701 WLDMT, WEIGHT STACK BASE 1
3 2001301 WASHER, FLAT 1/2 SAE ST ZN 4
4 2006803 BOLT, 1/2-13 X 1" (25mm) SOCKET HEAD W/NP 4
5 2001101 WASHER, FLAT 3/8 SAE ST ZN 11
6 5643201 GUIDE ROD, 19 DIA X 1912 2
7 5513601 CUSHION, WEIGHT STACK 2
8 56350PA PTD ASSY, 15 LB WEIGHT PLATE 10
9 56349PA PTD ASSY, 10 LB WEIGHT PLATE 5
10 56351PA PTD ASSY, 20 LB WEIGHT PLATE 15
11 56435PA PTD ASSY, HEAD PLATE 1
12 5095301 SHAFT COLLAR, GUIDE ROD 2
13 5667301 BUSHING, GUIDE ROD RETAINER 2
14 5644001 TUBE, SLIDE UPRIGHT 1
15 5661701 ASSY, CARRIAGE 1
16 5672101 BUMPER, CARRIAGE STOP 1
17 2008409 BOLT, 3/8-16 X 2-1/2" (64mm) ST HT SOCKET HEAD 2
18 2001201 NUT, 3/8-16 LK ST ZN 3
19 5664401 WLDMT, UPPER WALL MOUNT 1
20 56445PA PTD ASSY, TOP BOOM 1
21 2009418 BOLT, 3/8-16 X 4-3/4" (121mm) ST HT SOCKET HEAD W/NP 2
22 5094501 PULLEY, 4-1/2 OD X 25 1
23 5669001 COVER, 4.5 PULLEY 1
24 2008407 BOLT, 3/8-16 X 2" (51mm) ST HT SOCKET HEAD 1
25 5645001 CABLE ASSY, XCREATE CABLE COMPONENT 1
26 5508801 HOUSING, CABLE COUPLER 2
27 5508901 GROMMET, RUBBER CABLE 2
28 5509001 CORE, CABLE COUPLER 2
29 2003201 CAP SCREW, M5 X 0.8 X 6MM SOCKET HEAD 4
30 5675401 LABEL, WEIGHT STACK 10-110 LB (4.9-49.9 KG) 1
31 5675501 LABEL, WEIGHT STACK 10-160 LB (4.5-72.6 KG) 1
32 5662501 WLDMT, LEFT SHROUD BASE 1
33 2009402 BOLT, 3/8-16 X 3/4" (19mm) ST HT SOCKET HEAD W/NP 4
34 5662901 WLDMT, RIGHT SHROUD BASE 1
35 5645101 SHROUD, XCREATE CABLE STATION 2
36 5664701 SHROUD, TOP CAP 1
37 2002101 WASHER, FLAT 1/4 SAE ST ZN 8
38 2006502 BOLT, 1/4-20 X 1/2" (13mm) SOCKET HEAD W/NP 6
ITEM PART NUMBER DESCRIPTION QTY
39 5676101 PLACARD, XCREATE-CC-101 1
40 5581301 COVER, FRONT BASE 1
41 2005509 BOLT, 1/4-20 X 3/8" (9mm) SOCKET HEAD 2
42 5659601 WLDMT, ACCESSORY HOLDER 4
43 5091801 SNAP HOOK, 8MM DIA X 80MM 2
44 5324701-A ASSY, SHORT STRAP HANDLE 2
45 5324601-A ASSY, LEG BOOT D-RING 1
46 5676401 ROPE, SINGLE HAND TRICEPS 2
NOTE:
Anchoring hardware is dictated by the wall construction that the station
is being attached to. See pages 4 and 14 for the requirements.
If multiple stations are going to be attached to the same wall, a minimum
of 4' (2.4 M) center to center is recommended between stations.
For assistance, contact [email protected] or call
[phone]; Toll free in USA [phone].
TOOLS FOR ASSEMBLY:
3/8" ALLEN WRENCH •
5/16" ALLEN WRENCH •
3/16" ALLEN WRENCH •
3/4" WRENCH OR SOCKET •
9/16" WRENCH OR SOCKET •
1/2" WRENCH OR SOCKET •
RUBBER MALLET •
2

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200

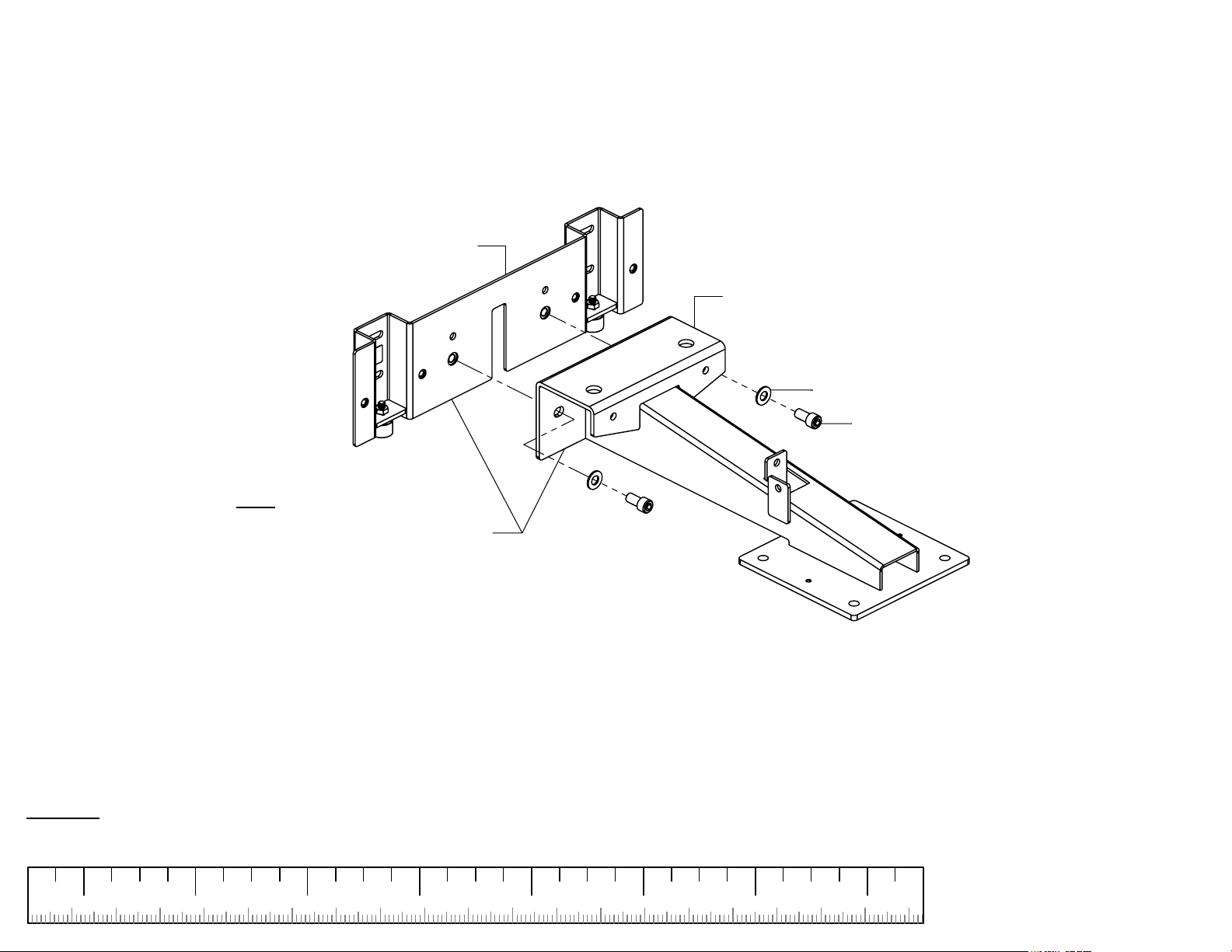

WEIGHT STACK BASE
LOWER WALL MOUNT
1/2 X 1" BOLT (2)
1/2" FLAT WASHER (2)
NOTE:
BEFORE TIGHTENING BOLTS, MAKE SURE
THAT THESE TWO SURFACES ARE FLUSH
3
STEP 1
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200

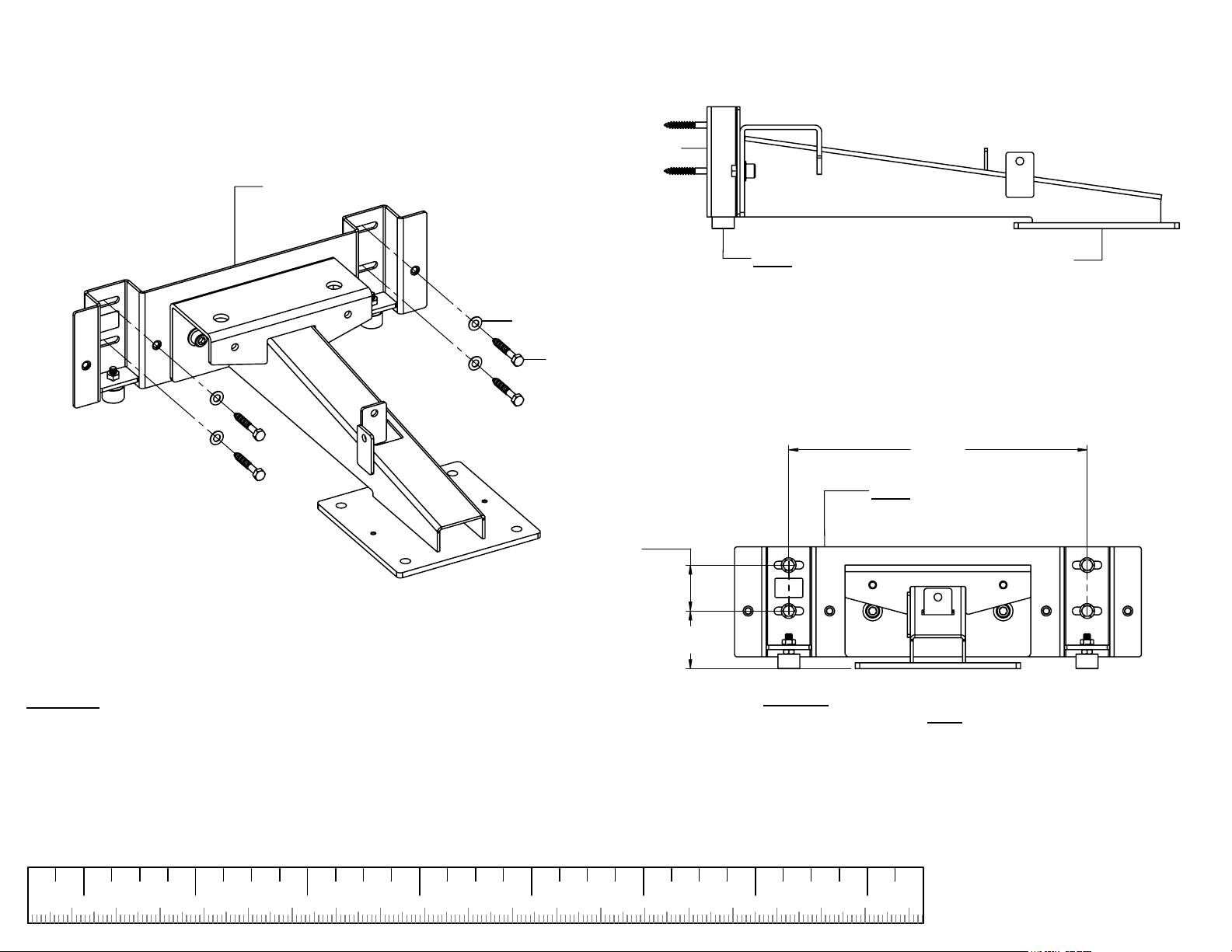

3/8" LAG BOLT (4)
(TYPICAL FOR
WOOD STUDS)
3/8" FLAT WASHER (4)
LOWER WALL MOUNT
2-1/2"
(6.4 CM)
3-1/16"
(7.8 CM)
16"
(40.6 CM)
WARNING:
THE LOWER WALL MOUNT MUST BE ANCHORED TO THE
WALL USING FOUR WALL ANCHORS SUITABLE FOR THAT
PATICULAR WALL CONSTRUCTION.
NOTE:
MAKE SURE THE LOWER
WALL MOUNT IS LEVEL
WALL
NOTE:
BEFORE ANCHORING LOWER WALL
MOUNT TO THE WALL, ADJUST
LEVELERS (2) SO THAT THE BASE
PLATE IS LEVEL WITH THE FLOOR.
BASE PLATE
STEP 2
4
NOTES:
The images shown above is the anchoring hardware used for attaching
to typical walls with wood studs spaced 16" on center. The anchors
used will depend on the wall construction. In all cases, all four
anchoring locations must be used. The pull-out strength of the
anchoring bolts used must be greater than or equal to 200lbs. (91kg)
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
3/8 X 4-3/4" BOLT (2)
3/8" WASHER (2)
WEIGHT STACK BASE
5
STEP 3
NOTES:
SECURELY tighten all bolt connections made to this point.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
LOWER WALL MOUNT

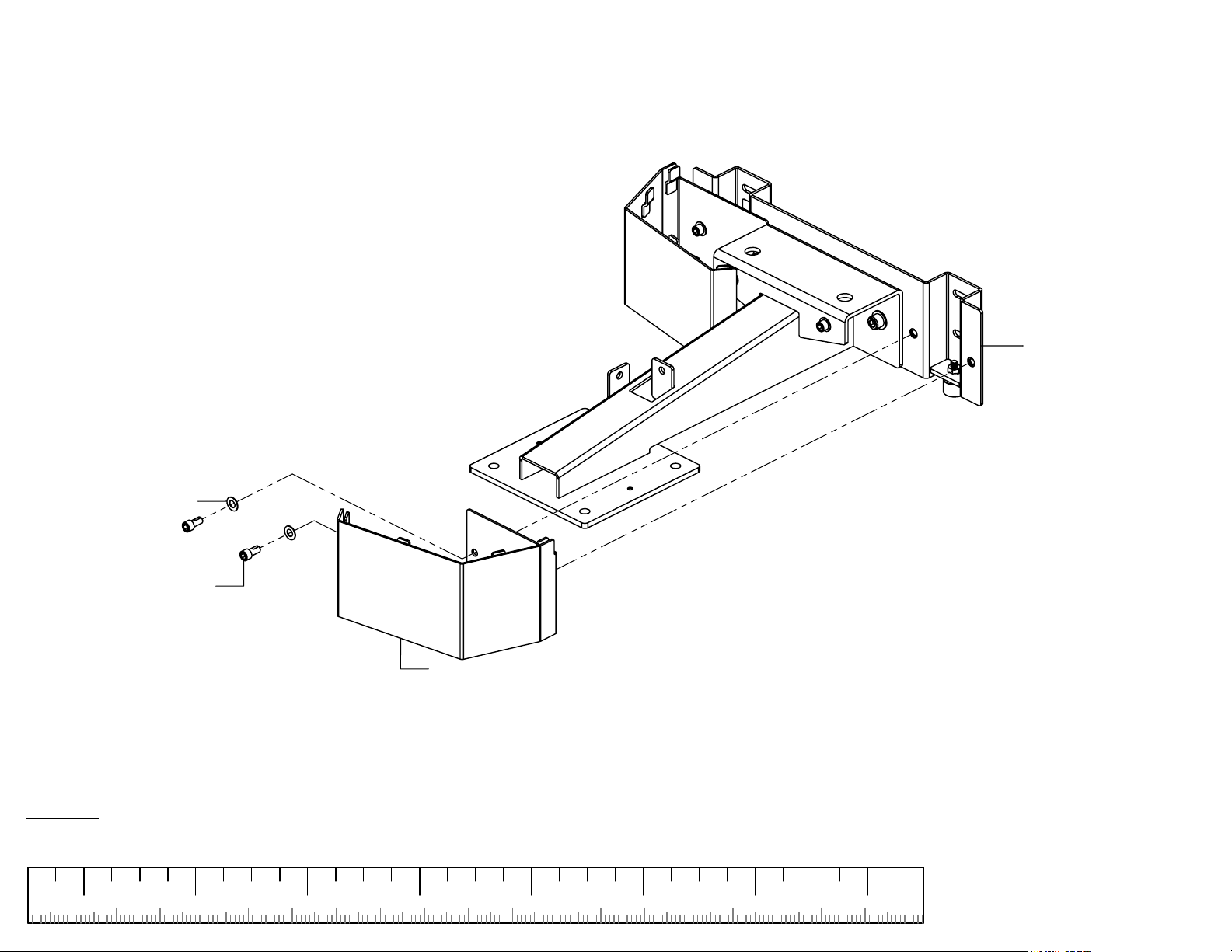

LEFT SHROUD BASE
3/8" FLAT WASHER (2)
3/8 X 3/4" BOLT (2)
6
STEP 4
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
3/8 X 3/4" BOLT (2)
3/8" FLAT WASHER (2)
RIGHT SHROUD BASE
LOWER WALL MOUNT
7
STEP 5
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
WEIGHT STACK BASE
WEIGHT STACK CUSHION (2)
15 LB WEIGHT PLATE (10)
10 LB WEIGHT PLATE (5)
HEAD PLATE
GUIDE ROD (2)
SHAFT COLLAR (2)
GUIDE ROD RETAINER (2)
NOTE:
INSERT GUIDE RODS THROUGH THE WEIGHT
STACK BASE AND DOWN TO TOP OF BOLTS
8
STEP 6a (LIGHT STACK)

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
WEIGHT STACK BASE
WEIGHT STACK CUSHION (2)
20 LB WEIGHT PLATE (15)
HEAD PLATE
GUIDE ROD (2)
SHAFT COLLAR (2)
GUIDE ROD RETAINER (2)
NOTE:
INSERT GUIDE RODS THROUGH THE WEIGHT
STACK BASE AND DOWN TO TOP OF BOLTS
9
STEP 6b (HEAVY STACK)

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
SLIDE UPRIGHT TUBE
CARRIAGE
NOTE:
PULL SPRING PIN OUT
AND CAREFULLY SLIDE
CARRIAGE OVER TUBE
STEP 7
10

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200

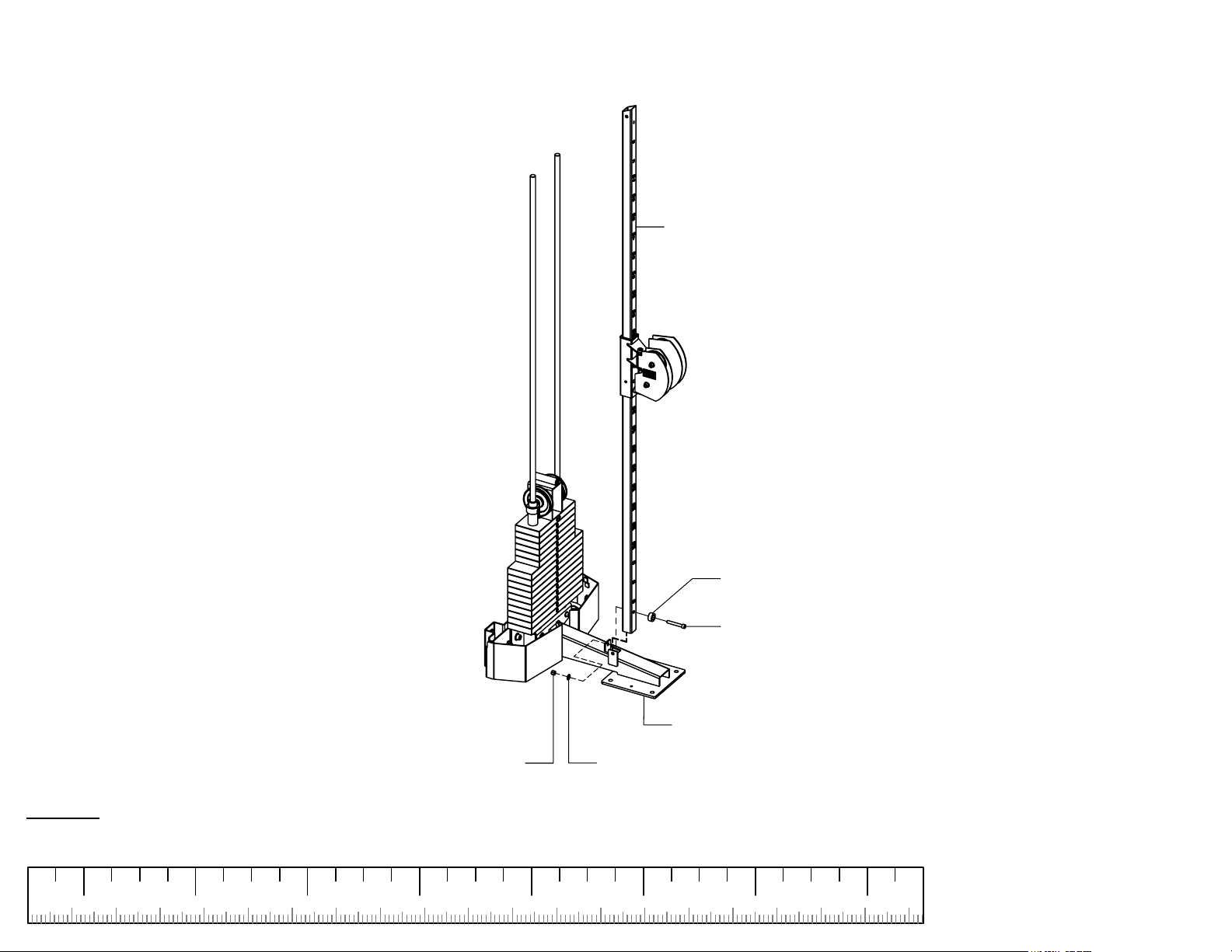

WEIGHT STACK BASE
SLIDE UPRIGHT TUBE
CARRIAGE STOP
BUMPER
3/8 X 2-1/2" BOLT
3/8" FLAT WASHER
3/8" LOCK NUT
11
STEP 8
NOTES:
LOOSELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
UPPER WALL MOUNT
TOP BOOM
1/2" FLAT WASHER (2)
1/2 X 1" BOLT (2)
NOTE:
BEFORE TIGHTENING BOLTS,
MAKE SURE THAT THESE TWO
SURFACES ARE PARALLEL
12
STEP 9
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
3/8 X 2-1/2" BOLT
3/8" FLAT WASHER (2)
3/8" LOCK NUT
TOP BOOM
SLIDE
UPRIGHT
TUBE
13
STEP 10
NOTES:
LOOSELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
UPPER WALL MOUNT
3/8" FLAT WASHER (4)
3/8" LAG BOLT (4)
(TYPICAL FOR
WOOD STUDS)
16"
(40.6 CM)
80"
(203.2 CM)
2-1/2"
(6.4 CM)
NOTE:
MAKE SURE THE UPPER
WALL MOUNT IS LEVEL
WARNING:
THE UPPER WALL MOUNT MUST BE
ANCHORED TO THE WALL USING FOUR
WALL ANCHORS SUITABLE FOR THAT
PATICULAR WALL CONSTRUCTION
14
STEP 11
NOTES:
The images shown above is the anchoring hardware used for attaching
to typical walls with wood studs spaced 16" on center. The anchors
used will depend on the wall construction. In all cases, all four
anchoring locations must be used. The pull-out strength of the
anchoring bolts used must be greater than or equal to 200lbs. (91kg)
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
NOTE:
SLIDE THE GUIDE ROD RETAINERS UP INSIDE THE
TOP BOOM. SLIDE THE SHAFT COLLARS UP INSIDE
OF THE GUIDE ROD RETAINERS AND SECURELY
TIGHTEN THE SET SCREWS OF THE SHAFT COLLARS

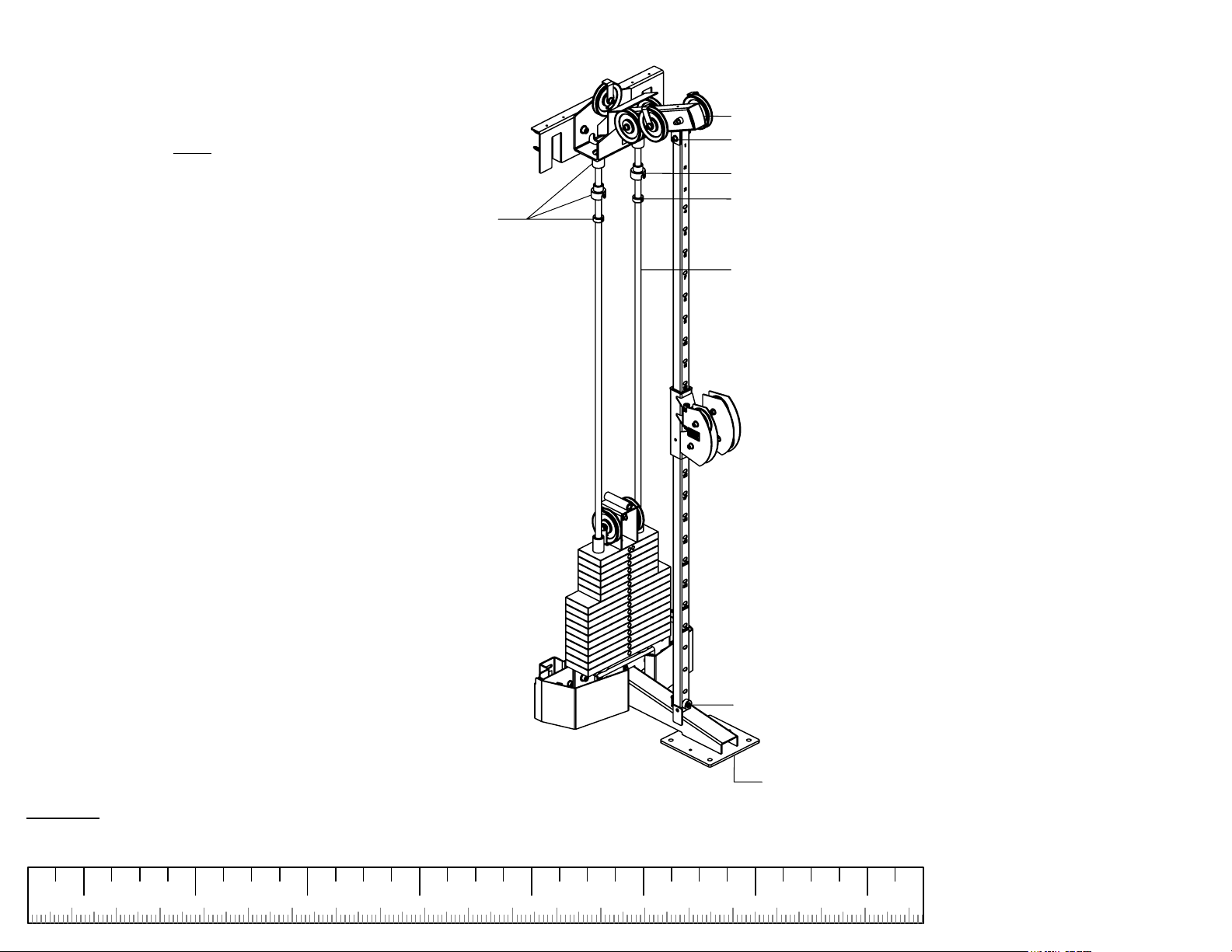

TOP BOOM
GUIDE ROD (2)
GUIDE ROD RETAINER (2)
SHAFT COLLAR (2)
SECURELY TIGHTEN THIS BOLT CONNECTION
SECURELY TIGHTEN THIS BOLT CONNECTION
WEIGHT STACK BASE
15
STEP 12
NOTES:
SECURELY tighten all bolt connections made to this point.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
WEIGHT STACK BASE
4-1/2" PULLEY
PULLEY COVER
3/8 X 2" BOLT
3/8" LOCK NUT
3/8" FLAT WASHER (2)
NOTE:
MAKE SURE TAB OF
PULLEY COVER IS
VERTICAL AS SHOWN
16
STEP 13
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
NOTE:
BEFORE BEGINNING CABLE ASSEMBLY,
LIFT HEAD PLATE UP AND INSERT THE
WEIGHT STACK PIN INTO THE 5TH HOLE
OF STEM AND SET IT BACK DOWN ON
TOP OF FIRST PLATE
CARRIAGE
WEIGHT STACK BASE
TOP BOOM
HEAD
PLATE
CABLE
ROUTE CABLE IN
DIRECTION OF ARROWS
1) ROUTE CABLE OVER
THE BOTTOM PULLEY
2) ROUTE CABLE UNDER
THE TAB OF PULLEY COVER
3) ROUTE CABLE UNDER
THE CABLE RETAINING CLIP
4) ROUTE CABLE UNDER
THE CABLE RETAINING CLIP
5) ROUTE CABLE UNDER
THE CABLE RETAINING CLIP
NOTE:
MAKE SURE CABLE
IS ROUTED THROUGH
SLOT OF TOP BOOM
LEFT SIDE
17

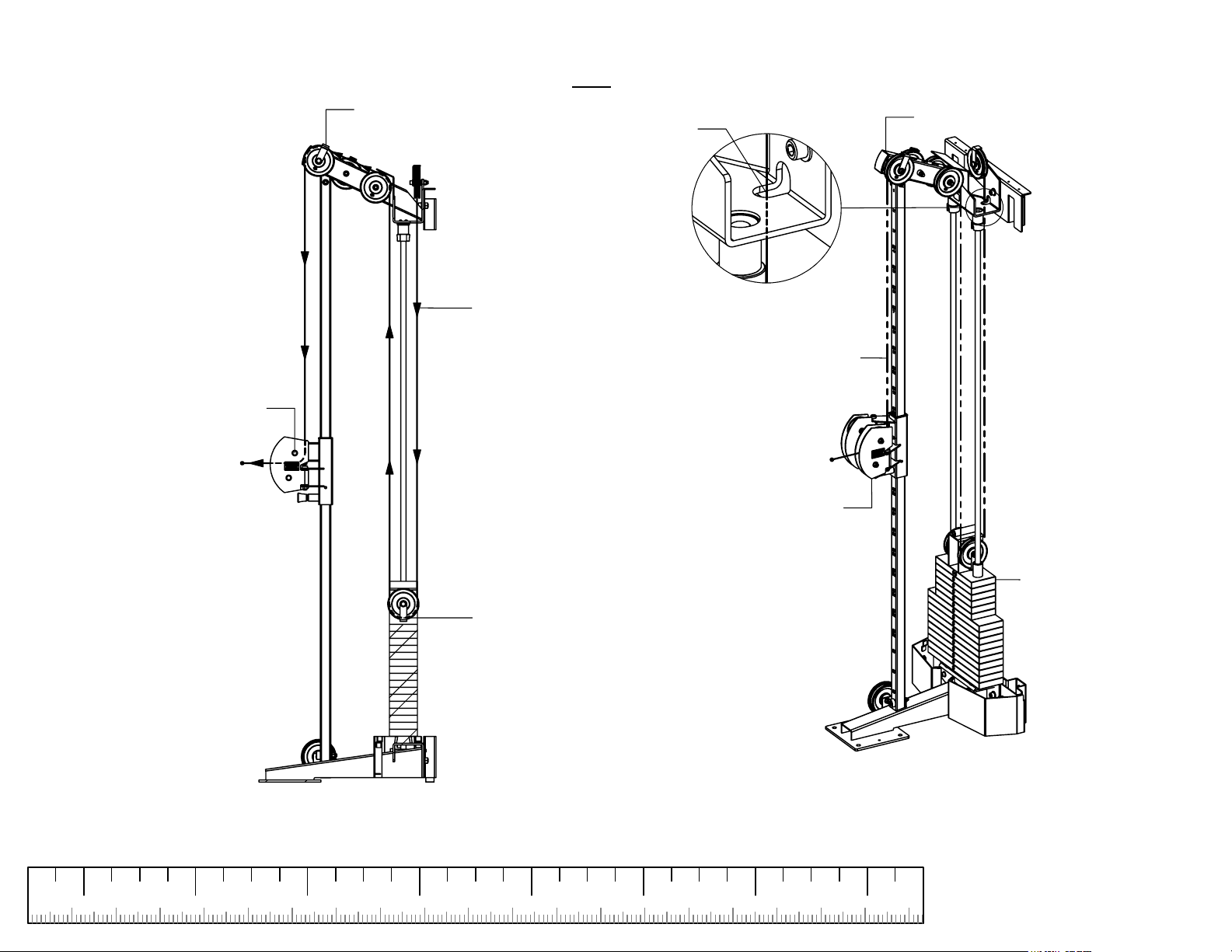

STEP 14a
CABLE ROUTING

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
TOP BOOM
HEAD
PLATE
CARRIAGE
CABLE
6) ROUTE CABLE UNDER
THE CABLE RETAINING CLIP
7) ROUTE CABLE UNDER
THE CABLE RETAINING CLIP
8) ROUTE CABLE
UNDER THE TOP PULLEY
ROUTE CABLE IN
DIRECTION OF ARROWS
NOTE:
MAKE SURE CABLE
IS ROUTED THROUGH
SLOT OF TOP BOOM
RIGHT SIDE
18

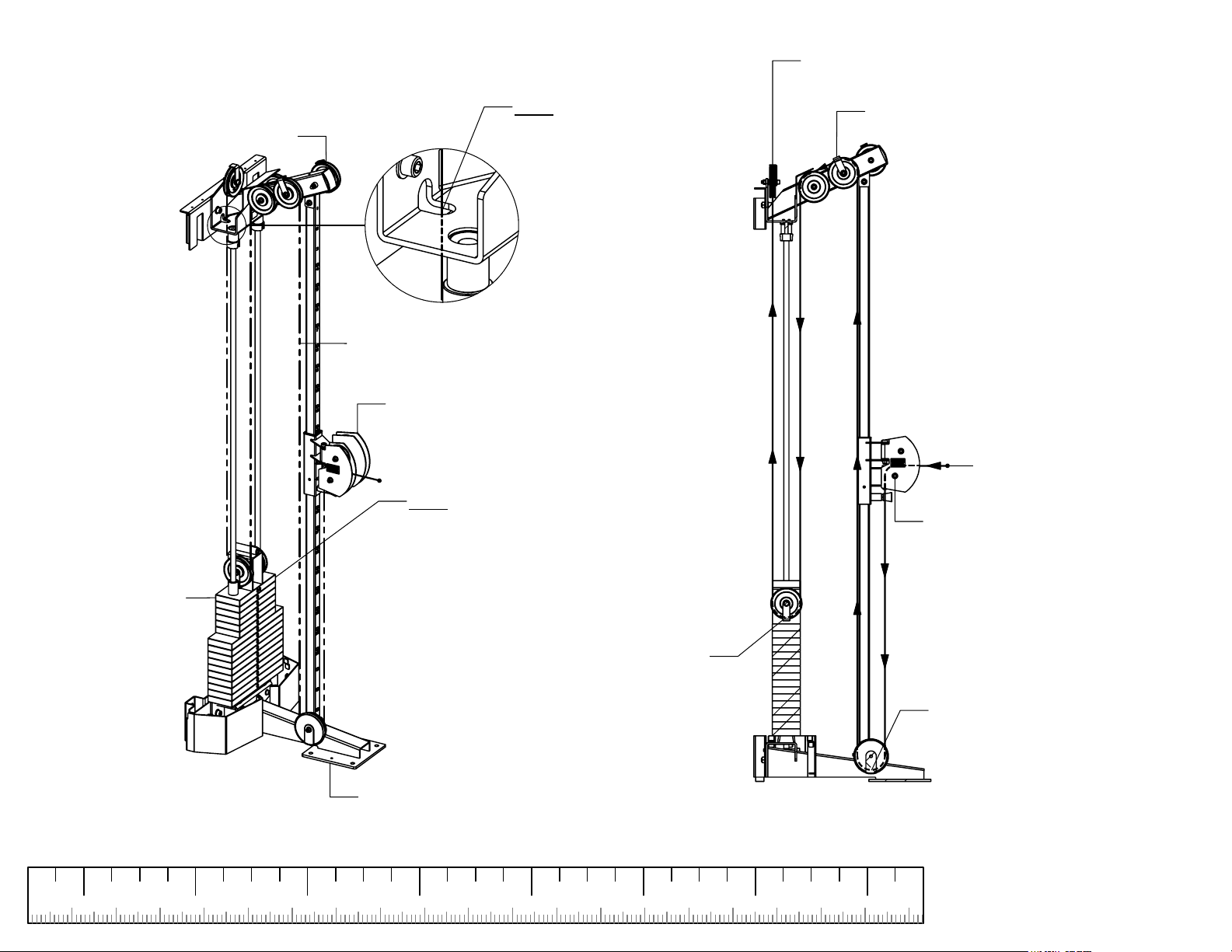

STEP 14b
CABLE ROUTING

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200

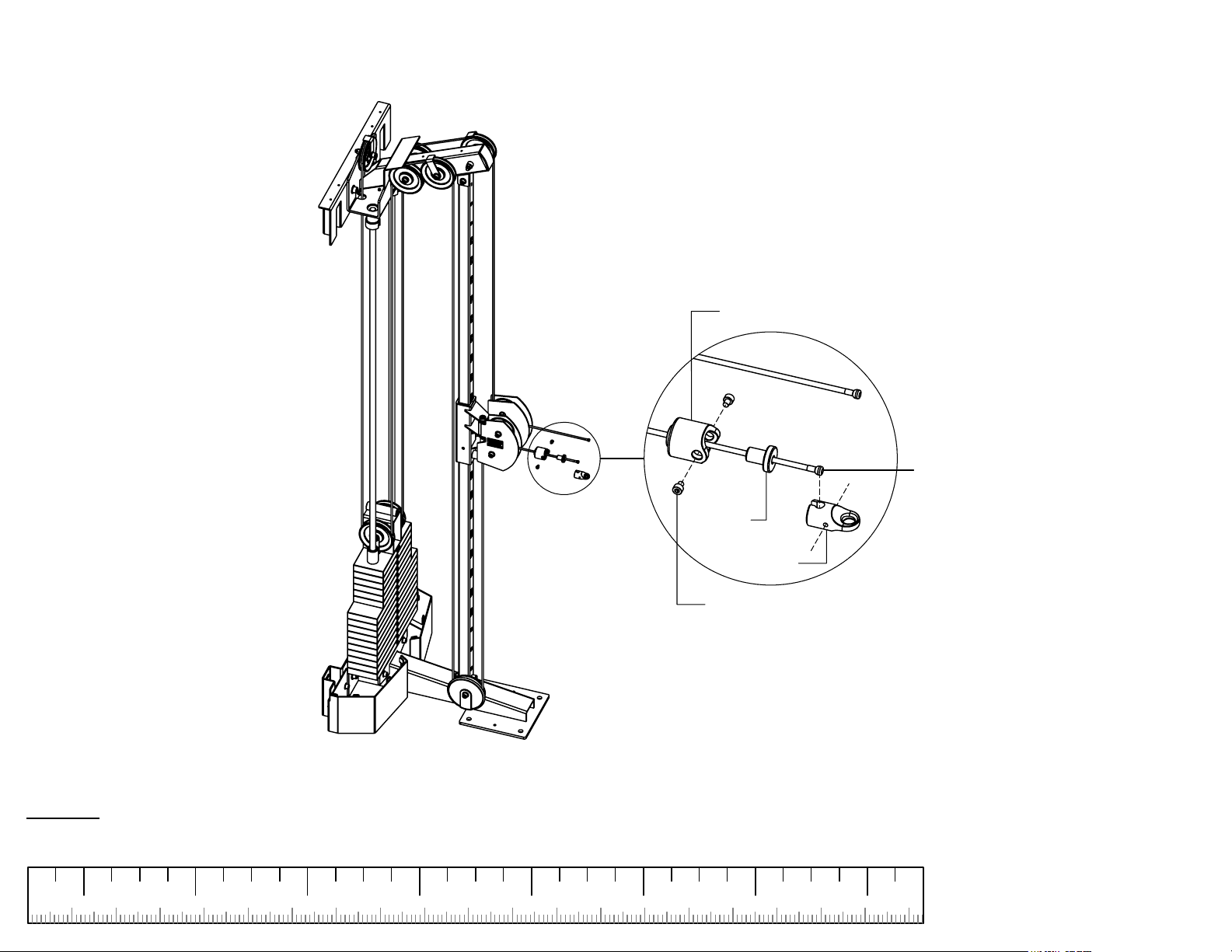

CABLE END
CORE
GROMMET
HOUSING
M5 X 6MM SOCKET
HEAD SCREW (2)
19
STEP 15a
NOTES:
SECURELY tighten bolt connections in this step.

50 180
3
190150 170160
6
130 14012090 110100403010 706020 80
1 2 4 5 7
200
CORE
CABLE END
HOUSING
GROMMET
M5 X 6MM SOCKET
HEAD SCREW (2)
20
STEP 15b
NOTES:
SECURELY tighten bolt connections in this step.
