MAXXUS 6.1
Rowing Machine
INSTALLATION & OPERATING MANUAL

2
Index
Index 2
Safety Instructions 3
Overview of the Device 4
Fixing Material 5
Scope of Delivery 6
Assembly 7 – 11
Folding Mechanism 12
Cockpit Position 13
Adjustment of the Resistance 13
Care, Cleaning & Maintenance 14
Cockpit 15
Training Instructions 16
Training Recommendations 17 – 18
FAQ 19
Recommended Accessories 20
Technical Details 21
Disposal 21
Exploded Drawing 22 – 23
Parts List 24 – 25
Warranty* 26
Repairs Contract / Notication of Damage Claim 27
This publication may not be reproduced, stored in retrieval system, or transmitted in whole or in part, in any form or by any means, electronic,
mechanical, photocopying, recording, or otherwise, without the prior written permission of Maxxus Group GmbH & Co. KG.
Duplication, including electronic form, is only permitted with prior written permission directly from MAXXUS Group GmbH & Co. KG.
Errors, colour and technical modication are subject to change

3
ENG
Safety Instructions
Please read and observe all sections of this Operating Manual before you start with training. Thorough
attention should be paid to the safety, cleaning and maintenance instructions and the training informa-
tion. Please also make sure that anyone using this device is familiar with all this information.
It is very important to adhere strictly to the safety and maintenance instructions contained in this Manual.
This training device is only to be used for its intended purpose. If this equipment is used for any other purposes
than intended, there is a possible risk of accident, damage to health or damage to the training device for which
the Distributor cannot be held responsible.
Training Environment
−Select a suitable space for your training device to provide an optimum amount of free space and highest
level of safety. You should leave a free space of at least 200 cm long and 100 cm wide behind the training
device. A minimum of 100 cm free space to each side and in front of the training device should be allowed
for.
−Make sure that the area is well ventilated and that an optimum amount of oxygen is available during train-
ing. Avoid draughts.
−Your training device is not suitable for outside use and so storage and training can only take place in a
temperate, clean dry room.
−Do not operate or store your training device in wet areas such as in swimming pools, saunas etc.
− Make sure that your training device is kept on at, hard, clean ground both in operation and at rest. Any
uneven surfaces must be removed or made good.
− It is recommended that a oor covering (carpet, mat, etc.) should be placed under the device to protect
damageable oors such as wood, laminates, oor tiles etc. Please ensure that this underlay cannot slip or
slide.
−Do not put this training device on pale or white coloured carpets or rugs as the feet of the device may leave
marks.
−Make sure that your training device and mains cable are kept out of contact with hot surfaces and are kept
at a safe distance from any sources of heat e.g. central heating, hot stoves, furnaces, ovens or open res.
Personal Safety Instructions for Training
−Remove the batteries when the training device is not in use to avoid inappropriate or uncontrolled use by
any other third party, e.g. children.
−You should have a health check carried out by your doctor before you start any training
− Stop training immediately if you feel physically unwell or are experiencing any breathing di󰀩culties.
−Always start your training session at a low workload increasing it slowly but steadily throughout. Reduce
the workload again towards the end of your training session.
−Suitable sports shoes and clothes should always be worn during training sessions. Make sure that loose
clothes do not get caught up in the treadmill belt or rollers.
−Your training device is only to be used by one person at a time.
−Check each time before a training session to see if your device is in perfect condition. Never use your
training device if it is faulty or defective.
−You are only permitted to carry out repairs to the device yourself after having contacted our Service Depart-
ment and on receipt of explicit permission to do so. Only original spare parts may be used at any time.
−Your training device must be cleaned after each use. Remove all dirt including body sweat or any other
liquids.
− Always make sure that liquids (drinks, body sweat, etc.) do not get onto the vibrating plate or into the cock-
pit as this can cause damage to the mechanical and electronic components.
−Your training device is not suitable for use by children.
−Third parties, especially children and animals, must be kept at an appropriate safety distance during train-
ing.
−Check if there are any items underneath the training device before each training session and remove them
without fail. Never use the training device when items are underneath it.
−Do not allow children to use your training device as a toy or climbing frame at any time.
−Ensure that no body parts of your own or of third parties ever come in contact with any of the moving
mechanisms.
The construction of this training device is based on state-of-the-art technology and highest modern technical
safety standards. This training device is to be used by adults only! Extreme misuse and/or unplanned training
can cause damage to your health!

4
Overview of the Device
10 level resistance adjustment
Cockpit
Rowing handle
Pedal
Seat
Sliding Rail
Folding Mechanism
Stabilizer
Stabilizer

5
ENG

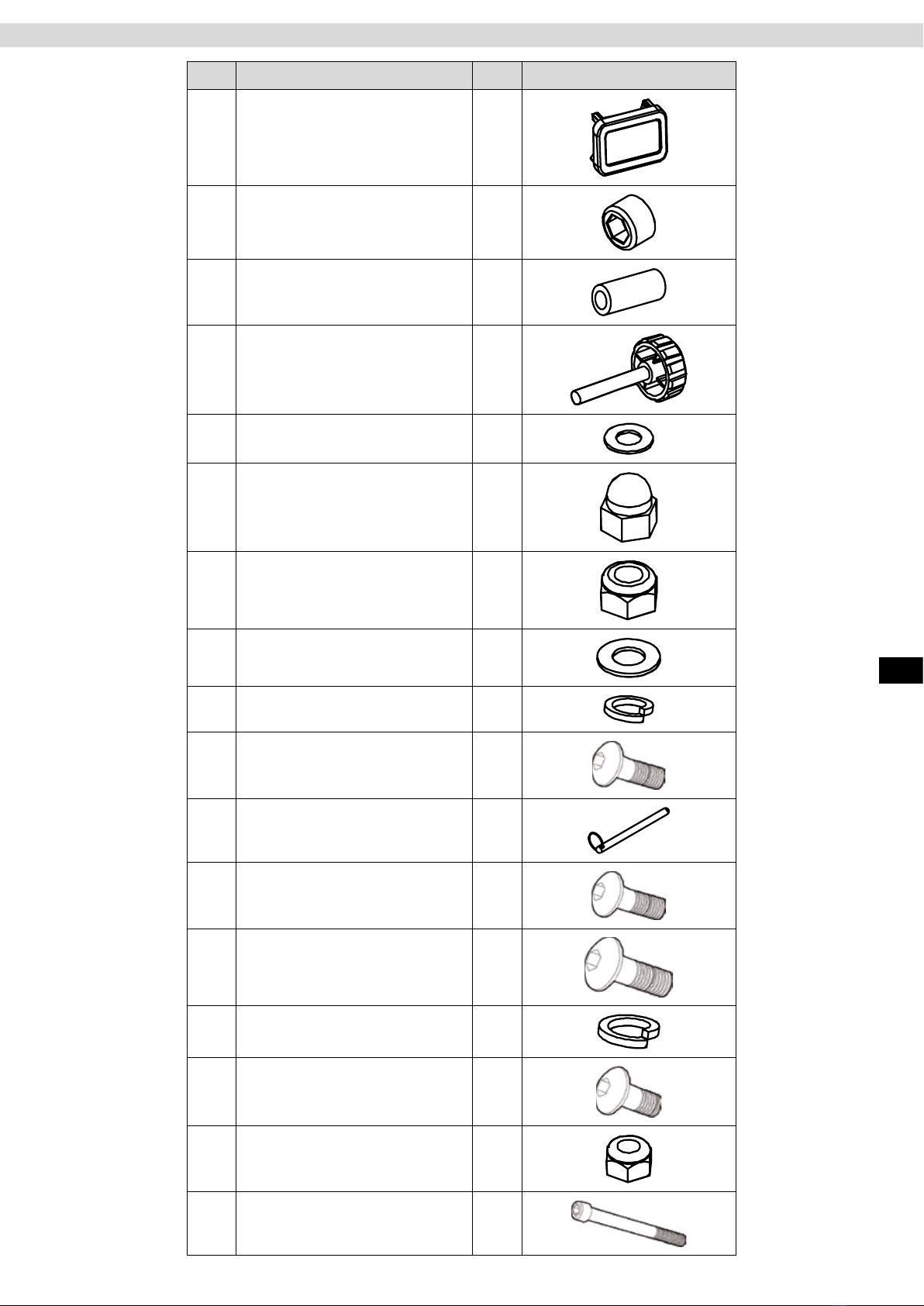

Part Desrcription Qty
21 Rear Decoration 1
22 Seat Carriage Stopper, 2
23 Iron Bush 1
24 Knob 1
26 Washer M8 6
29 Cap Nut M10 4
76 Nylon Nut M10 6
77 Washer M10 12
104 Spring Washer M8 4
107 Allen Head Bolt M10x20 2
109 Pin 1
110 Allen Head Bolt M8x25 2
111 Allen Head Bolt M10x25 6
114 Spring Washer M10 12
117 Allen Head Bolt M8x15 4
122 Nut M8 1
123 Allen Head Bolt M8x85 1
Fixing Material

6
Scope of Delivery
Main Frame
Part 1
U Bracket
Part 2
Main Rowing Rail
Part 4
Rear Stabilizer
Part 5
Pedal, left
Part 12L
Pedal, right
Part 12R
Cockpit
Part 84
Cockpit Holder
Part 150
Front Stabilizer
Part 6
Slide Joining
Part 8
Seat
Part 13

77
1
114
29
107
107
6
114
77
2
136
77
114
76
7
ENG
Assemble the parts carefully as any damages or defects occurring due to mistakes made at the time
of assembly are not covered by the warranty or guarantee. Therefore, read through the assembly
instructions carefully before you start assembling, follow each assembly step exactly as described
and keep to the correct sequence of assembly as instructed.
Assembly of the training device must be carried out thoroughly by adults only. Assemble the training
device in a location which is level, clean and clear of obstructions. Two people are required to carry
out the assembly. Training can only start when the training device has been fully assembled.

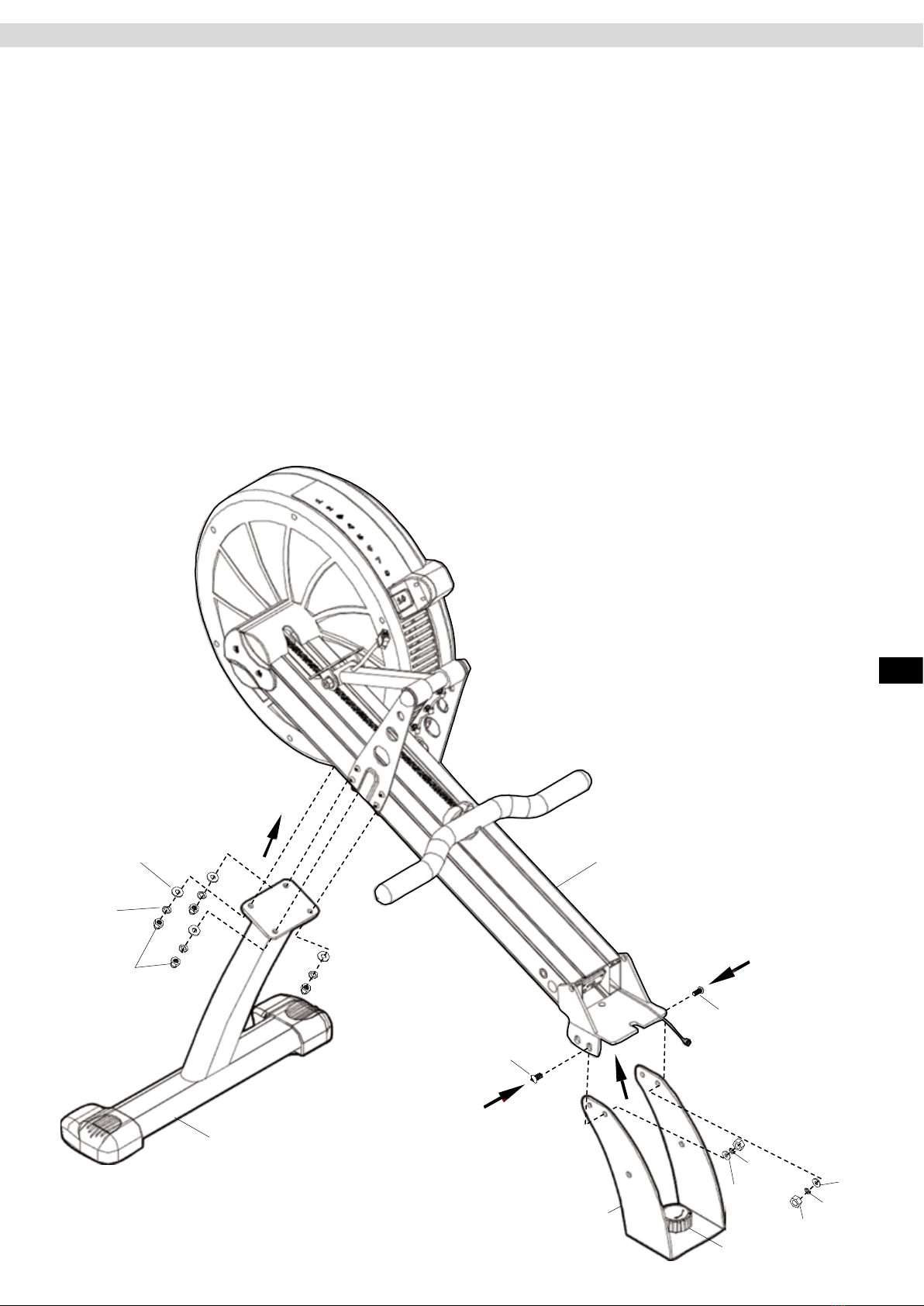

Step 1: Assembly of the Front Stabilizer
Place the front stabilizer (6) onto the main frame (1) and x it with four at washers M10 (77), four
spring washers (114) and four cap nuts (29).
Then place the U bracket (2) to the bottom end of the main frame (1) and x it using one Allen head
bolt M10x20 (107), a at washer M10 (77) a spring washer M10 (114) and a nylon nut (76) on each
side. Make sure to use the front borehole of the two holes on the left and right of the end of the main
frame.
Make sure the device is standing level on the oor by adjusting the knob (136).
Assembly

122
22
4
22
123
13
8
21
4
26
104
5
117
26
104
117
20
149
8
Assembly

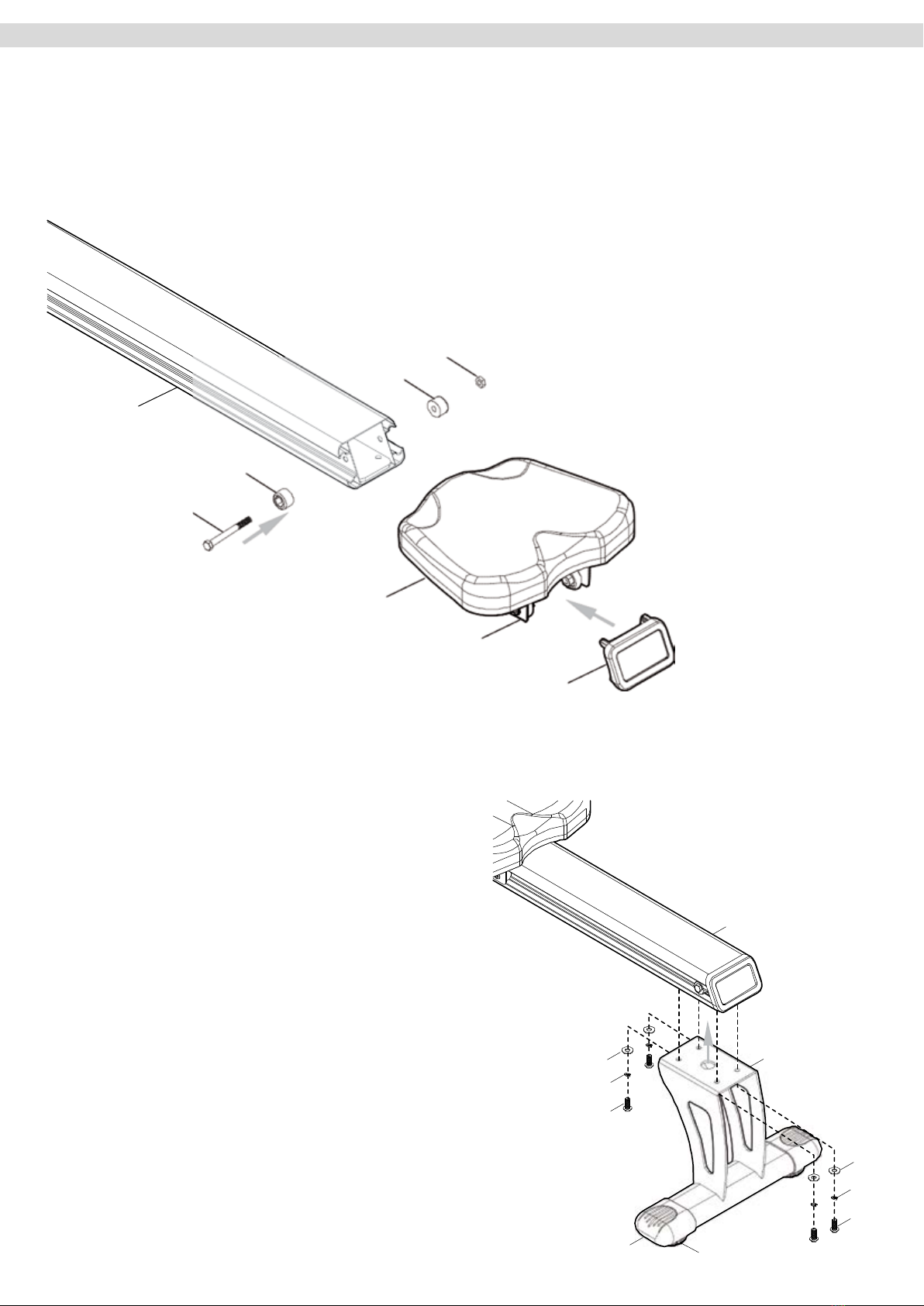

Step 2: Assembly of the Seat
From the rear, slide the joining (8) pre-assembled to the underside of the seat (13) onto the main
rowing rail (4). Make certain that the seat (13) is facing the right way. Then x the one seat carriage
stopper (22) to the rear left and right sides the main rowing rail (4). Using a hexagon head bolt
M8x85 (123) and a nut M8 (122) on each side.
Now place the rear decoration (21) to cover the opening in the main rowing rail (4).
Step 3: Assembly of the Rear Stabilizer
Fix the rear stabilizer (5) to the rear of the main rowing rail (4) using four Allen head bolts M8x15
(117), four spring washers M8 (104) and four washers M8 (26).

114
77
1
111
77
114
12R
111
12L 2
76
76
114
114
77
77
9
ENG

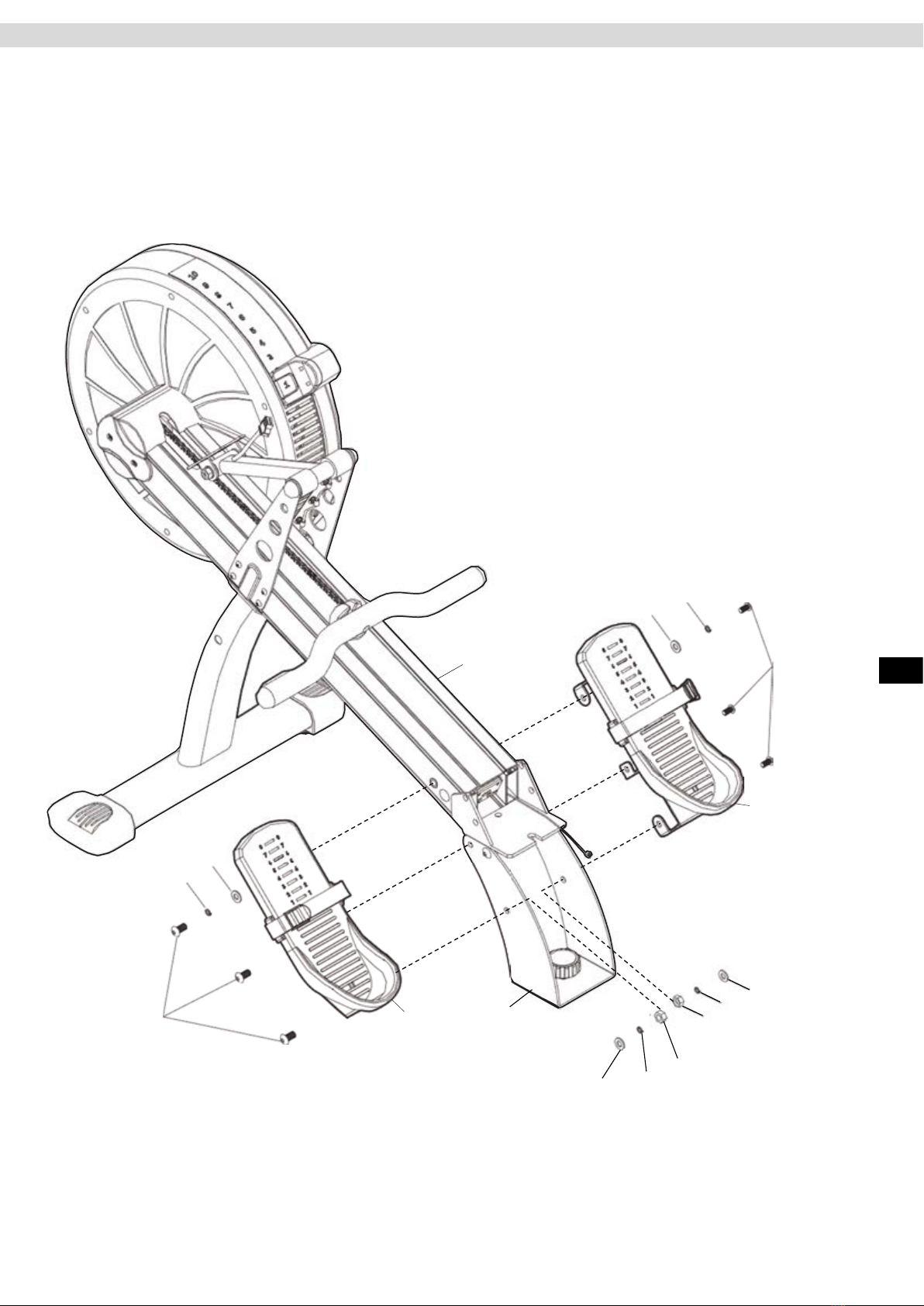

Step 4: Assembly of the Pedals
Fix the right pedal (12R) to the right side of the main frame using three Allen head bolts (111), three
at washers M10 (77) three spring washers M10 (114) and three nylon nuts M10 (76). Repeat this
procedure to assemble the left pedal (12L).
Assembly

110
26
6
120
1
109
4
26
110
24
129
23
10
Step 5: Assembly of the Main Rowing Rail
Connect the monitor cable (130) protruding out of the front end of the main rowing rail (4) with the
monitor cable (129) coming out of the main frame (1).
Now t the main rowing rail (4) into the main frame (1) and x it right and left with an Allen head bolt
M8x25 (110) and a spring washer M8 (26) on each side.
CAUTION: Make sure that the monitor cables (130 & 129) do not get damaged or jammed when
tting or xing the main rowing rail onto the main frame.
Slide the iron bushing (23) onto the knob (24). Then put the knob from below into the main rowing
rail (4) and tighten it rmly.
Then, as shown in the diagram, place the pin (109) into the slot on the front stabilizer (6) for safe
keeping.
Assembly

152
11
150
10 130 128
127
84
150
151
11
ENG
Step 6: Assembly of the Cockpit Holder and Cockpit
Loosen and remove the two countersunk screws M5x20 (151) and the four round head screws
M5x20 (152) on the back of the cockpit (84).
Feed the cockpit cable from the front through the square opening in the cockpit holder (150) – see
Fig. A. Fix the cockpit holder (150) to the cockpit (84) using by replacing the two countersunk screws
M5x20 (151).
Now connect plug (128) on the cockpit cable (127) to plug (130) on the sensor cable which is pro-
truding out of the cockpit frame (10) of the base frame (1).
Then x cockpit (84) to the cockpit holder (150) on the cockpit frame (10) with the four round head
screws M5x20 (152) previously removed.
Push the rest of the cable back into the cockpit support frame (10).
Assembly
Putting in the Batteries
Remove the top of the battery compartment on the
cockpit and put in two AA batteries (not included in
delivery).
Make sure that you put the batteries the right way
around as indicated in battery compartment.
Fig. A

13
4
109
24
12
Folding up the Main Rowing Rail
Step 1:
Push the seat completely forward and fold back the cockpit frame.
Step 2:
Loosen knob (24) enough so you can pull it down and fold up the main rowing rail (4).
Step 3:
Secure the main rowing rail with the pin (109).
Herunterklappen der Gleitschiene
Step 1:
Firmly hold onto the main rowing rail and remove the pin (109).
Step 2:
Carefully fold down the main rowing rail (4) and then tighten the knob (24).
Put pin (109) back into the slot on the front stabilizer for safe keeping.
Folding Mechanism

13
ENG
To optimise readability of the cockpit on the rowing machine, or to adjust it according to user height,
the cockpit arm is innitely adjustable and allows the cockpit to be positioned to suit easily per hand.
Alongside the natural resistance it is also possible to make additional adjustments to the resistance
in 10 di󰀨erent levels. Simply set the lever to the resistance you require.
Cockpit Position
Adjustment of the Resistance

14
CAUTION:
Before you perform any care, cleaning, maintenance, repair or similar work on your training
device, turn o󰀨 your exerciser and remove the power cord. Check before starting the planned
work that your exerciser is completely disconnected and switched o󰀨. Only when all work
is fully completed, and the device is completely re-assembled, may the training device to be
reconnected to the mains and turned on.
Before rst use or after a long break from training
Check that the rowing machine is standing safely on the ground. There must be no objects on or
under the device. Check that all screws and bolts are tightened up and that the seat is not blocked
anywhere along the main rowing rail. Also check that the rowing rail is clean and free from any
foreign objects.
Maintenance & Cleaning Intervals:
After each workout, clean the rowing machine with a damp cloth to remove possible perspira-
tion and / or other liquid residues. Under no circumstances use solvents for this purpose. Dry the
cleaned areas thoroughly. Always clean the aluminium slide rails regularly to ensure the seat slides
optimally and smoothly.
Damage caused by neglect or lack of maintenance and care are excluded from the Warranty
and Guarantee.
Costs for the repair of a non-maintained training device can therefore quickly amount to several
hundred Euros. A high price that can be avoided by regular care and maintenance
Care, Cleaning & Maintenance

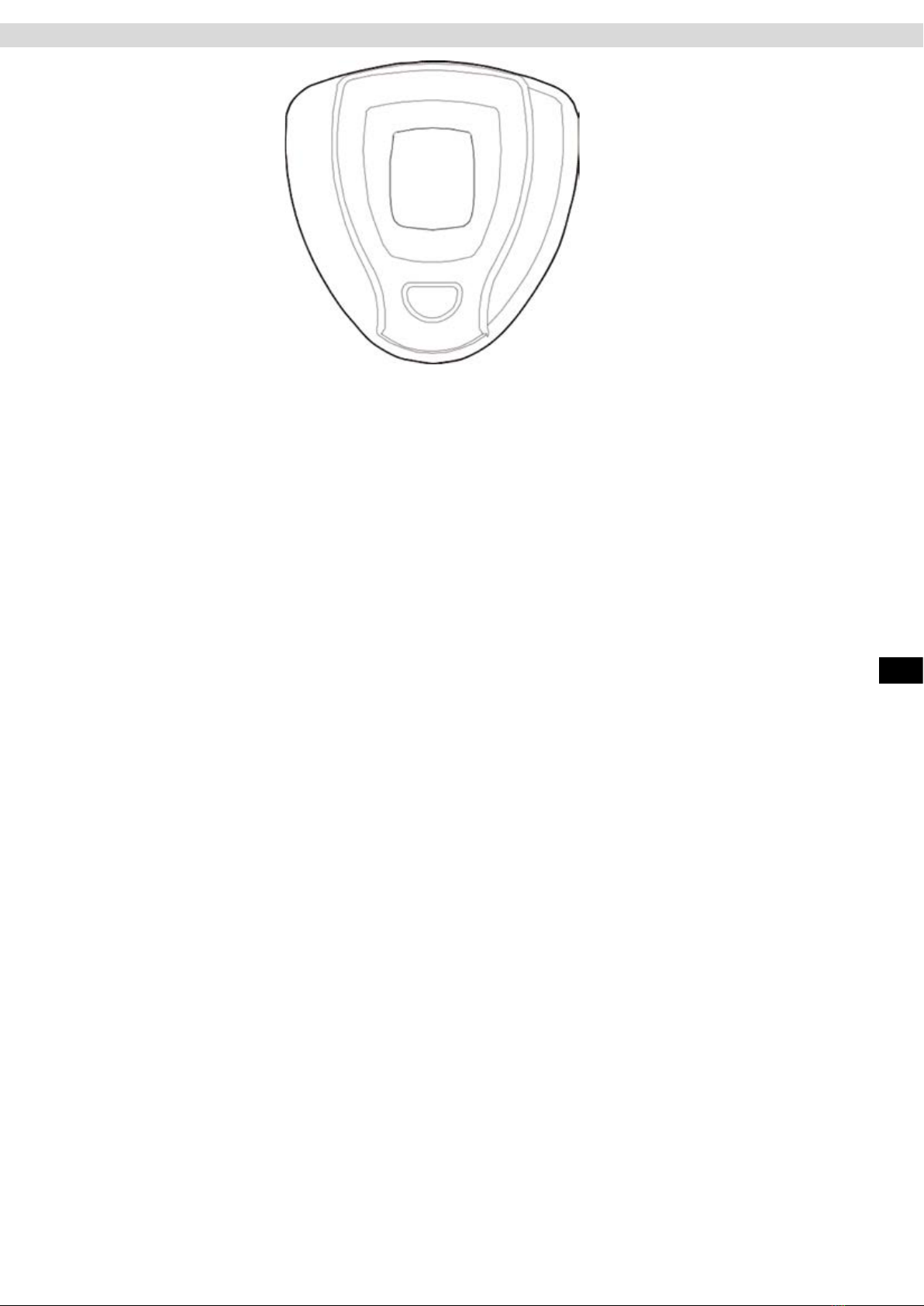

15
ENG
Distance
Shows the current training distance from 0 ~ 999 km.
Rowing Strokes Per Minute (SPM)
Shows the current speed in rowing strokes per minute. This value is updated permanently.
Total Rowing Strokes (Counter)
Shows the number of rowing strokes for the current training session from 0 ~ 9.000.
Speed
Shows the current speed from 0.00 bis 99.9 km/h.
Calorie Consumption* (Calories)
Shows the current calorie consumption from 0.00 ~ 999.9 Kcal.
Training Time (Timer)
Shows the current training time from 0.00 ~ 99.59 minutes.
* Note on Calorie Consumption Measurement
Calorie consumption is calculated by means of a general formula. It is not possible to calculate the exact calorie consumption for
each individual person as this would require a signicant amount of personal data.
The cockpit alternately displays two windows:
Window 1: Rowing Strokes per Minute / Distance / Time
Window 2: Total Rowing Strokes / Speed / Calorie Consumption
The display can be changed by quickly pressing the cockpit key.
To reset all values back to zero, press the key for a longer time.
On completion of training and after approximately 3 minutes the cockpit will change automatically
into stand-by-mode.
Cockpit

16
In the following you will nd instructions and tips to help you to do the rowing movements correctly.

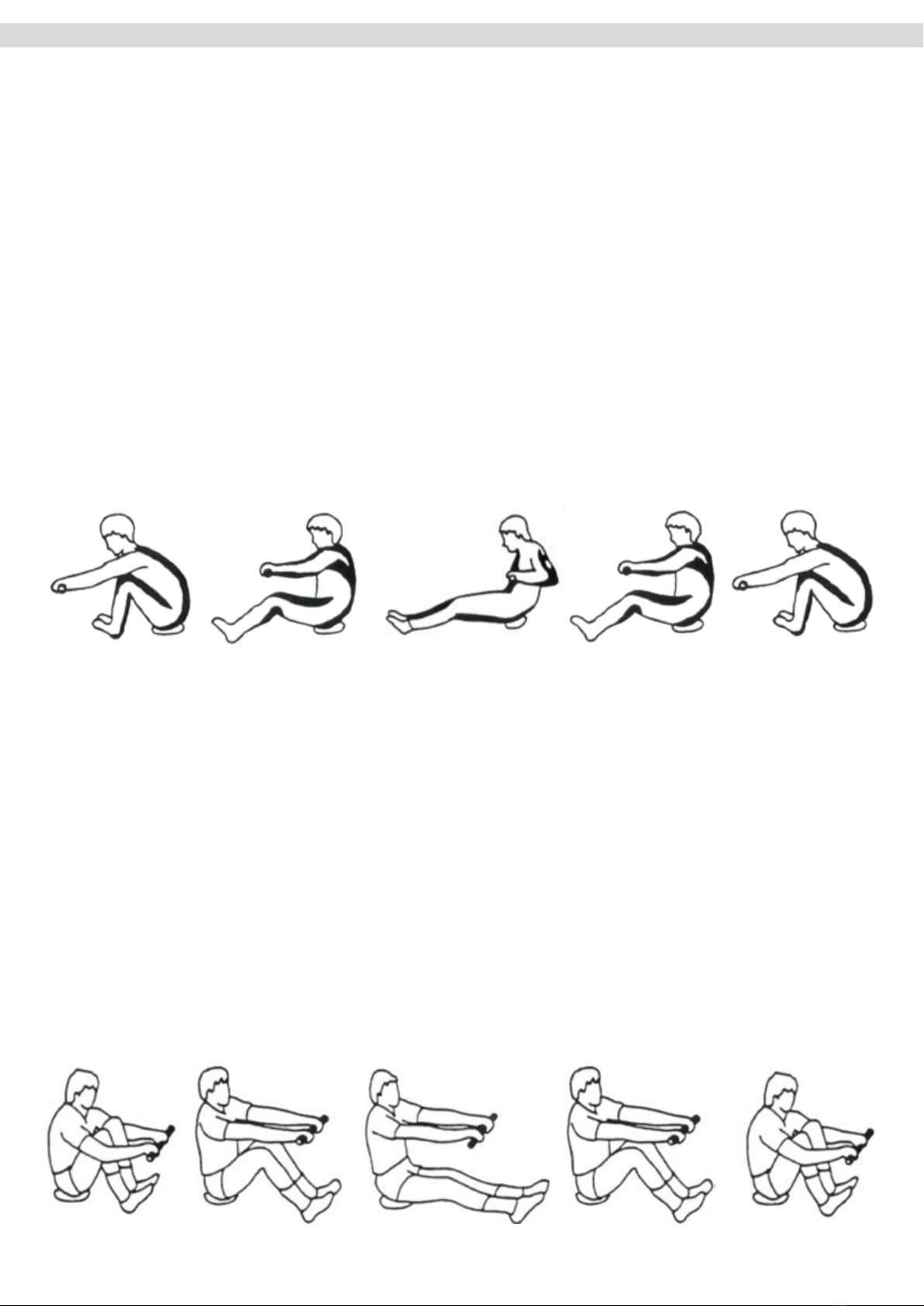

Rowing Motion – complete body
Step 1: Preparation
Make sure that your feet are in positioned correctly on the pedals and that they are adjusted correct-
ly to t your shoe size with the straps rmly around your feet. Grasp the rowing handle from above
with both hands. Your hands should be approximately 20 cm apart.
Step 2: Starting Position
Lean forward with your upper body as far as possible with your knees bent.
Step 3:
Now use your feet to push yourself backwards.
Step 4: End Position
Push yourself far enough back with your feet so your knees are only slightly bent. CAUTION: Never
completely straighten your knees!
At the same time pull your arms towards you until your hands lightly touch your body just below your
ribcage in the region of your solar plexus. Straighten your body far enough for your back to be pulled
straight and pull your shoulders slightly back. CAUTION: Never bend your back too far backwards!
Step 5: Return to the Starting Position
Pull yourself forwards again with your feet and lean forwards with your upper body with your arms
stretched out in front of you.
Rowing Movement – Legs Only
Step 1: Preparation
Make sure that your feet are in positioned correctly on the pedals and that they are adjusted correct-
ly to t your shoe size with the straps rmly around your feet. Grasp the rowing handle from above
with both hands. Your hands should be approximately 20 cm apart.
Step 2: Starting Position
Lean forward with your upper body as far as possible with your knees bent.
Step 3:
Now use your feet to push yourself backwards.
Step 4: End Position
Push yourself far enough back with your feet so your knees are only slightly bent.
CAUTION: Never completely straighten your knees!
Step 5: Return to the Starting Position
Pull yourself forwards again with your feet.
Training Instructions

17
ENG
Training Recommendations
Preparation Before Training
Before you start training make sure that not only your training device is in perfect condition, your body must also
be prepared for training. Therefore, if you have not done any endurance training for some time, you should con-
sult your GP and undergo a tness check-up. Also discuss your training target; they will certainly be able to give
you valuable advice and information. This applies to people who are over 35, have problems with overweight,
heart or circulatory system problems.
Training Plan
Essential to e󰀨ective, target orientated, and motivating training is to have a forward-looking trainings plan.
Plan your tness training as an integral part of your daily routine. If you don’t have a xed plan, training can
easily interfere with regular commitments or continually be put o󰀨 to another unspecied time.
If possible, create a long term monthly plan and not just from day to day or week to week. A training plan should
also include su󰀩cient motivation and distraction during training sessions. An ideal distraction is to watch TV
during training as this diverts your attention both visually and acoustically. Make sure that you reward yourself
and set realistic targets such as to losing 1 or 2kgs in four weeks or to increase your training time by 10 minutes
within two weeks for example. If you reach your targets, then reward yourself with a favourite meal which you
have not allowed yourself till then.
Warm-Up Before Training
Warm-up on your training device for 3-5 minutes at minimum resistance. This will best prepare your body for the
up-coming exertion in training.
Cool-Down After Training
Do not just get o󰀨 your training device immediately the training session is nished. Like with the warm-up stage
you should continue for 3-5 minutes at minimum resistance to cool down. After training you should stretch your
muscles thoroughly.
Front Thigh Muscles
Support yourself with your right hand against the wall or on your training device. Bend
your knee and raise your left foot backwards so you can hold it with your left hand. Your
knee should be pointing straight down to the oor. Pull your leg backwards until you feel
a light pulling in your thigh muscles. Hold this position for 10 to 15 seconds. Let your foot
go and stand it back on the oor. Repeat the exercise with your right leg.
Inner Thigh Muscles
Sit on the oor. Pull the soles of your feet together in front of you raising your knees
slightly. Grasp the upper sides of your feet and place your elbows on your thighs. Press
your thighs down towards the oor with your arms until you feel a light pulling in your
thigh muscles. Hold this position for 10 to 15 seconds. Make sure to keep your upper
body straight throughout the exercise. Release the pressure from your thighs and slowly
stretch out your legs to the front. Stand up slowly steadily.
Legs, Calves and Buttocks
Sit on the oor. Stretch out your right leg and bend your left leg to place the sole of your
foot on your right thigh. Bend your top body over so you can stretch out your right hand
to touch your right toes. Hold this position for 10 to 15 seconds. Let go of your toes and
sit slowly and steadily up straight again. Repeat this exercise with your left leg.
Leg and Lower Back Muscles
Sit on the oor with your legs stretched out. Stretch forward with your hands and try to
grasp the tips of your toes with both hands. Hold this position for 10 to 15 seconds. Let
go of your toes and slowly and steadily sit back up straight again.

18
Hydration
Adequate hydration is essential before and during exercise. During a training session of 30 minutes it is possible
to lose up to 1 litre of liquid. To compensate for this uid loss apple spritzer mixed in the ratio of one-third apple
juice to two-thirds mineral water is ideal since it contains electrolytes and minerals to replace those that the body
loses through sweat. You should drink about 330 ml 30 minutes before the beginning of your training session.
Take care to maintain balanced hydration during the workou.
Training Frequency
Experts recommend that you do endurance training 3-4 days a week to keep the cardiovascular system t. Of
course, the more you train, the faster you will achieve your set training goal. Note however,that you should plan
su󰀩cient training breaks during your workout plan, to give your body enough time for rest and regeneration.
After each training session you should take at least one day o󰀨. Also for that tness and endurance training:
Less is more!
Exercise Intensity
In addition to the mistake of exercising too often, mistakes are made in the intensity of the training. If your
training goal is to train for a triathlon or marathon, your training intensity will certainly be be high. But since most
people have training goals such as weight reduction, cardiac / exercise training, improvement of physical con-
dition, stress reduction, etc.to strive for, training intensity to meet these goals should be be adjusted. It makes
most sense to work with the appropriate heart rate for the respective training goal. The information on the heart
rate and the corresponding table in this manual will help you further.
Duration of the individual training session
For optimal endurance or weight reduction training, the duration of the individual training session should be be-
tween 25 and 60 minutes. Beginners and returnees should start with a low training period of 10 minutes or less
in the rst week and then slowly increase week by week.
Training Documentation
In order to design and evaluate your training e󰀨ectively, you should prepare yourself a training plan in written
form or as a computer table before starting your training
Here you should document training session. Data, such as distance, training time, brake force setting and pulse
values should be recorded as well as personal data, e.g. body weight, blood pressure, resting heart rate (meas-
ured morning immediately after waking up) and personal well-being during exercise.
Enclosed you will nd a recommendation for a weekly plan.
Calendar Week:_____ Year: 20____
Date Day
Exercise
duration
Exercise
distance
Calorie con-
sumption Ø Heart rate Comments
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Week Result:
Training Recommendations

19
ENG
My training device makes noises during training – is this normal?
In addition to the air resistance braking system which creates construction and the air ow noises
when in use, noises also occur from the chain pulley. Your MAXXUS® training device is tted with
extremely high-quality components which ensure that all operating, air ow and chain noises are
greatly reduced.
However, it is possible and normal that slight mechanical noises can be heard during training. These
mechanical noises, which can occur either continually or at intervals, are created by the sometimes
very high speed of the sliding seat during training. Also, the moving parts can generate noise during
training due to the hollow metal tubes which act as a resonator and amplify the sound.
It is completely normal for the operating noise to get louder during training. This can be explained
by an increase in training speed. The components can also expand with the heat generated during
training.
The cockpit does not show anything in the display when I turn it on.
Check if the battery is charged and change them if necessary. Check if the control cable has been
pinched or jammed during assembly and / or if the connector has come loose.
The values for rowing strokes/minute and distance are at “0” during training
Check if the control cable has been pinched or jammed during assembly and / or if the connector
has come loose.
My training device makes creaking noises during training.
Check if the training device is standing rmly and evenly on the ground. If necessary re-adjust the
stabilizers.
My feet fall asleep during training.
The reason for this is often that training shoes are done up too tightly. Your feet will expand when
you are under exertion and so you should do up your shoes more loosely. You can also get advice
regarding this from sports shops or specialist running shoe shops.
FAQ

20
Recommended Accessories
These accessories are best suited for use with your training device. All products are
available from our online shop at www.maxxus.de or direct from our showroom.
MAXXUS® Floor Protection Mats
Due to its extreme density and material thickness of 0,5cm, this mat provides perfect
protection for oors and oor coverings against damaging, scratches and soiling through
body sweat. Noise caused by running and movement is signicantly reduced.
Available in the following sizes:
−160 x 90 cm
− 210 x 100 cm – suitable for treadmills
MAXXUS® Degreaser Spray - Optimum cleaner for cleaning o󰀨 dirt and maintaining the
guide pipes and roller surfaces.
MAXXUS® Lubricating Spray – Optimum lubrication for guide pipes.
MAXXUS® Anti-Static Spray – E󰀨ective against the static charges created in frames,
clothing and training computers. Devices which are located on carpets or synthetic oors
will become statically charged. MAXXUS ® Anti-Static Spray will deter this.
Synthetic surfaces treated with MAXXUS® Anti-Static Spray do not attract dust as quick-
ly and will remain clean for longer.
MAXXUS® Special Foam Cleaner – Use for regular cleaning of your training device.
Plastic covers and metal frames can be easily cleaned and perfectly maintained with
MAXXUS ® Special Foam Cleaner. It is also suitable for cleaning pulse belts and other
training accessories.
