TORSIONX HEXPRO User manual

http://www.TorsionX.com
Low Profile Wrenches
Operation and Maintenance Manual

TorsionX® Low Profile Wrenches (Updated 1/27/15) 2
Use the HEXPRO Series Low Profile Wrenches Model 2HP 4HP 8HP 14HP 30HP to install
and remove large bolts that have minimal wrench clearance. These wrenches provide
precision high torque during bolt makeup and maximum torque for bolt breakout.
Read and understand this Operation and Maintenance Manual prior to using the
HEXPRO Series Low Profile Wrenches. Use only genuine TorsionX replacement parts. Use
of other parts may result in safety hazards, decreased tool performance, increased
maintenance and may invalidate warranty.
Table of Contents
Important Safety Instructions ............................................................................................. 2
Warnings and Cautions: Safety First! .................................................................................. 3
Other Safety Notes.............................................................................................................. 4
Proper Protective Equipment (PPE) .................................................................................... 4
Operation ............................................................................................................................ 5
Operating the HexPro Series Low Profile Wrench .............................................................. 9
Maintenance ..................................................................................................................... 11
HexPro Series Low Profile ................................................................................................. 12
Torque Wrench Cheat Sheet ............................................................................................. 12
Trouble-shooting Chart ..................................................................................................... 13
Accessories........................................................................................................................ 14
Appendix ........................................................................................................................... 15
Important Safety Instructions
Upon Receipt of this tool, inspect the package for damage.
Carefully inspect all components for damage incurred during shipping. If any shipping
damage is found, notify the carrier at once. Shipping damage is NOT covered by
warranty. The carrier is responsible for all repair or replacement costs resulting from
damage in shipment.
The hydraulic torque wrench is a power tool. Read all instructions, warnings and
precautions before every operation. Comply with the safety precautions to avoid
personal injury or equipment damage while operating this tool.
Neither TorsionX, nor its distributors are responsible for damage caused by unsafe
and/or faulty operations. If a problem arises during use, shut off the power immediately
and consult your IBT distributor.
ALL OF OUR PRODUCTS MAY HAVE UPGRADES AND MODIFICATIONS WITHOUT NOTICE.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 3
Warnings and Cautions: Safety First!
▲WARNING
Never use a hydraulic torque wrench without a
hydraulic gauge to indicate the working pressure.
▲WARNING
To avoid personal injuries and/or equipment damage,
be sure that all hydraulic components are rated for
10,000PSI (700bar) operating pressure.
▲Warning
DO NOT exceed the allowable maximum torque of the
hydraulic torque wrench.
▲WARNING
Immediately replace any worn or damaged parts with genuine TorsionX replacement
parts.
▲WARNING
To avoid personal injuries, equipment damage and/or warranty invalidation:
DO NOT Remove the shroud from the hydraulic torque wrench.
DO NOT Modify any component of the hydraulic torque wrench.
DO NOT Adjust the hydraulic torque wrench safety relief valve located inside the swivel
couplings.
▲CAUTION
Keep all hydraulic torque wrench components away from excessive heat, flame, moving
machine parts, sharp edges and chemicals.
▲CAUTION
Avoid sharp bends and kinks when routing the hydraulic hose assembly. A bent or kinked
hydraulic hose assembly will cause severe back-pressure. They will also damage the
internal lining of the hose leading to premature failure. Replace a kinked or damaged
hydraulic hose assembly immediately.
▲CAUTION
DO NOT drive over, crush or drop heavy objects onto the hydraulic hose assembly. Crush
forces may damage hose wire strands and applying pressure to a damaged hose
assembly may cause it to rupture. Replace all crushed hydraulic hose assemblies
immediately.
▲CAUTION
Do NOT expose the hydraulic hose assembly to high temperatures.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 4
Other Safety Notes
•Loose or dirty couplers will cause tool not to operate properly.
•To avoid personal injuries and/or equipment damage, be sure that all hydraulic
components are rated for 10,000PSI (700bar) operating pressure.
•Always inspect the hydraulic hose assembly for damage and wear before using it.
•Make sure the hydraulic torque wrench swivel couplings, hose couplings and
hydraulic power pack couplings are clean and free of debris prior to connecting
the hydraulic torque wrench and hydraulic hose assembly to the assembled
power pack.
Proper Protective Equipment (PPE)
When operating hydraulic equipment, use proper safety equipment and clothing.
Consult with your company’s safety representative for this information.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 5
Operation
Reference the Operation and Maintenance Manual of the electric hydraulic power pack
before beginning use.
Preparation
Prior to use determine:
•Nut or bolt head size
•Material and strength grade
•Determine the desired torque

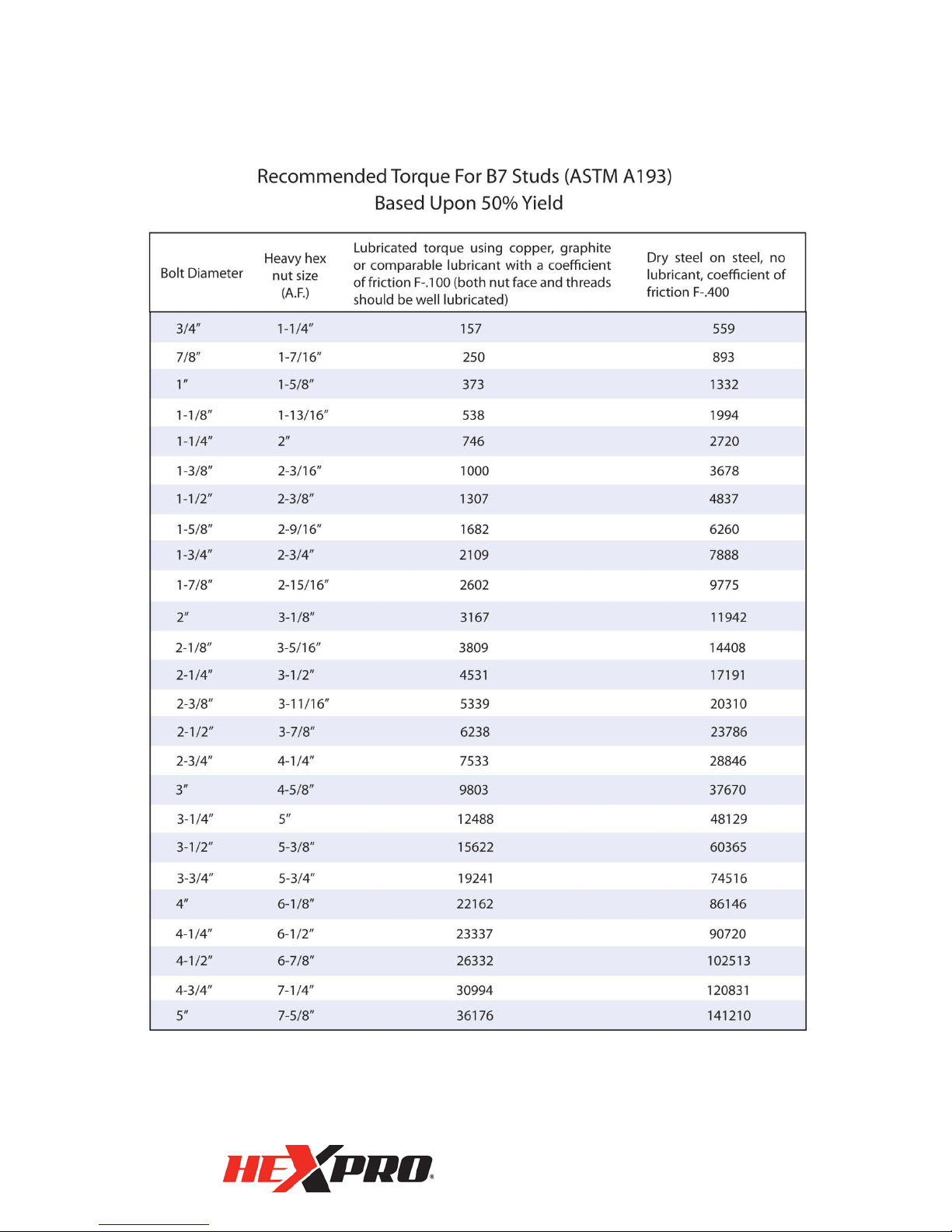

Appendix I, presented for reference only, gives typical torque values specified for the
most commonly encountered fasteners. You should always abide by established
procedures for the job site. Torque sequence may vary from manufacturer to
manufacturer and even on job sites depending on the gasket material etc. Refer to your
company’s engineering department for this information.
Torque value
Determine the corresponding pressure of the hydraulic power pack to achieve the
required torque value.
You can find this information in the Pressure -Torque Conversion Chart provided with the
hydraulic torque wrench. You may also find this chart on the web @
http://www.TorsionX.com/
Hydraulic Wrench Set Up
1. Inspect the components of the hydraulic torque wrench set. If everything
appears clean and clear of damage, begin assembling the components.
2. Connect the hydraulic torque wrench, hydraulic hose assembly and the hydraulic
power pack to a hydraulic circuit.
3. Ensure all hydraulic connections are securely connected.
4. Verify that the hydraulic hose assembly is not kinked, crushed or damaged.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 6

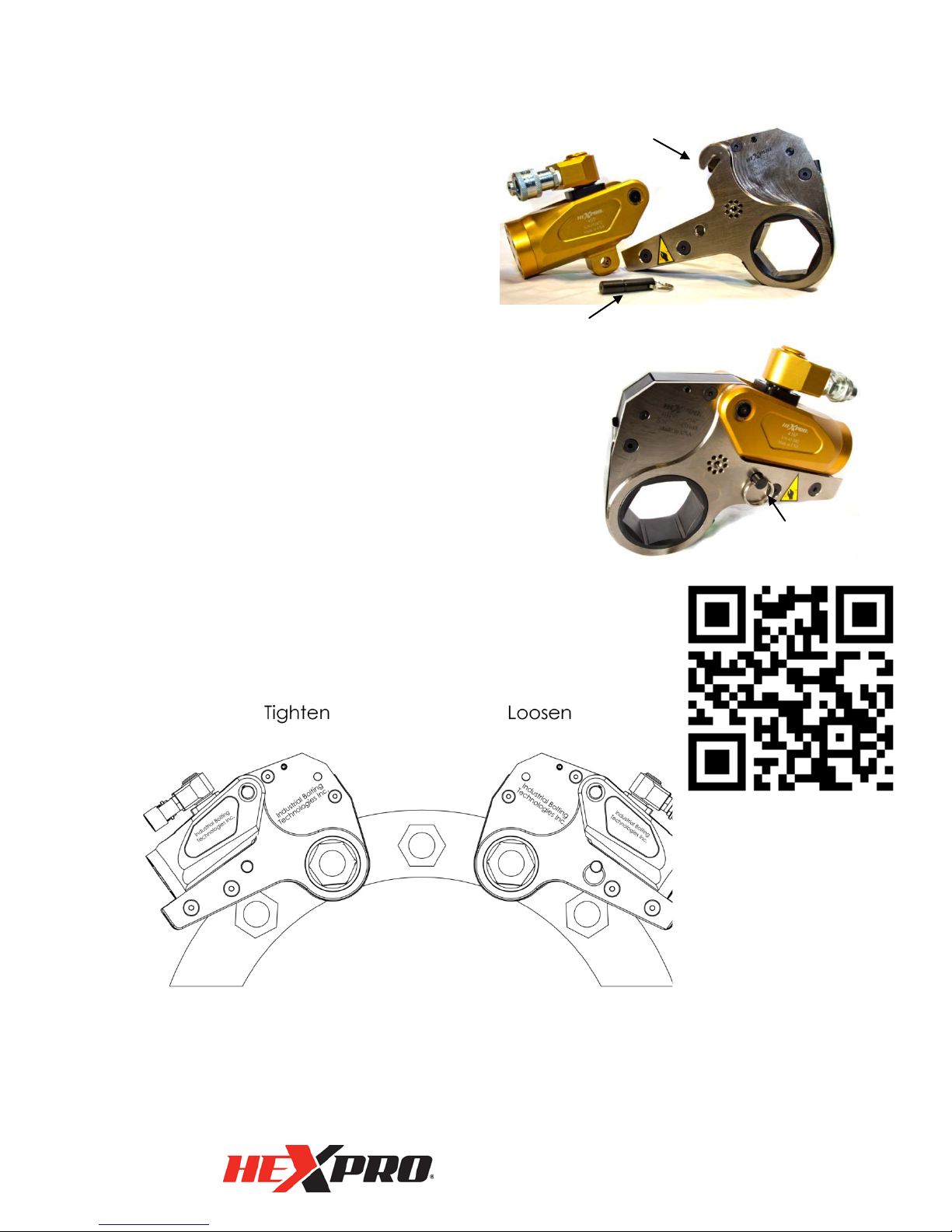

Inserting hex ratchet links
Low profile hex ratchet links are inserted and
removed from the power head as follows:
1. Insert the “hook” described by the
link’s drive plate around the fixed pin
of the power head.
2. Swing the link down to rest along the
base of the power head cylinder.
3. The link pin holes of the power head
and link will align.
4. Insert the link pin to secure.
Operation position
Loosening and tightening the nut:
Position the tool relative to the nut to tighten or loosen the nut.
The nut turns clockwise for tightening and counterclockwise for
loosening.
Figure 1
Figure 2
Link Pin
Figure 3
Hook
Link pin

TorsionX® Low Profile Wrenches (Updated 1/27/15) 7
Connecting the Hydraulic Torque Wrench
Use a twin-line hydraulic hose assembly with a 10,000 PSI
operating pressure to connect the wrench to the hydraulic
pump.
IMPORTANT
To avoid hydraulic torque wrench malfunction:
•DO NOT reverse connectors.
•DO NOT tamper with the set screw in the swivel
assembly. (It is factory preset for safety purposes
and adjustments should only be made by trained
personnel.)

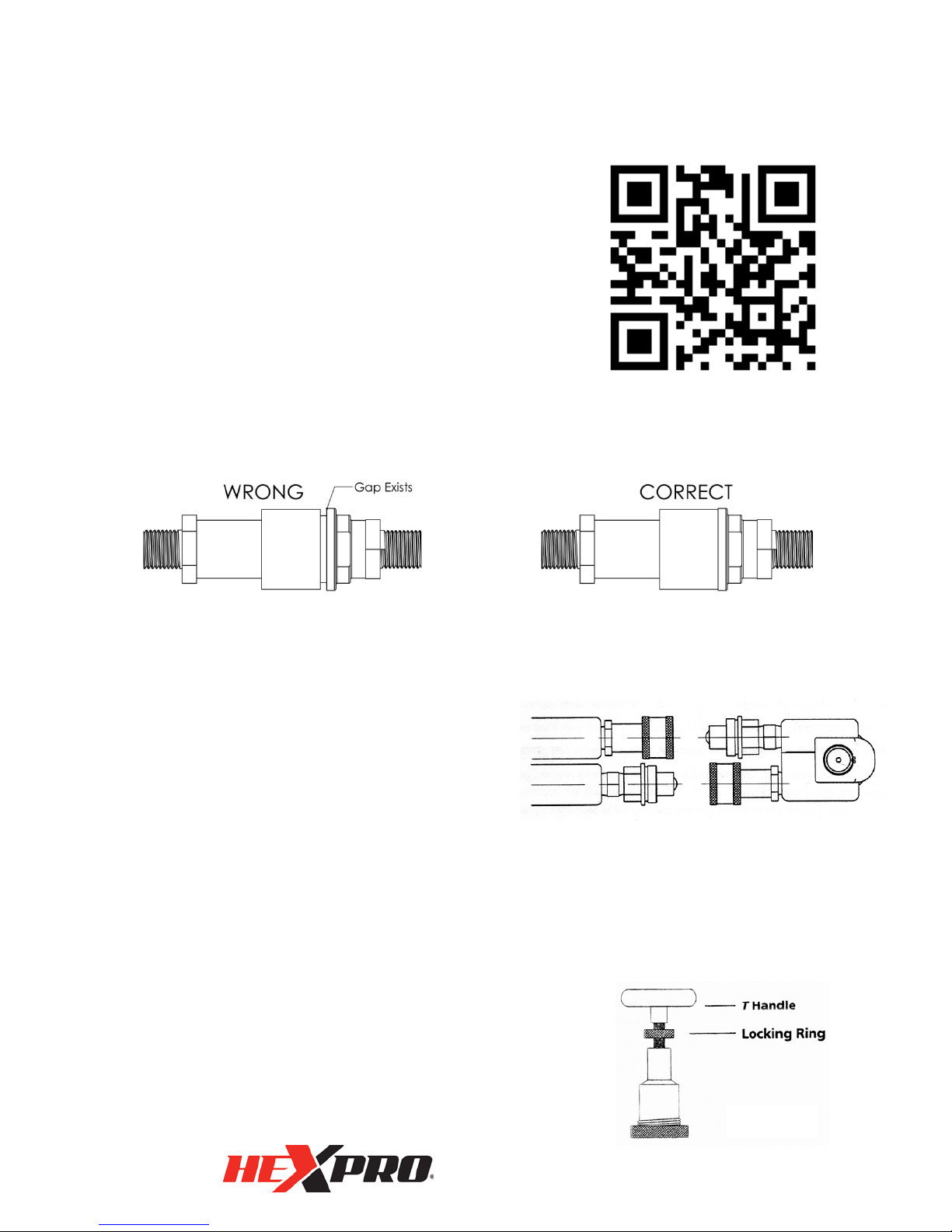

Connect the hydraulic hose assembly to the swivel as shown below:
Ensure the connectors are fully engaged and screwed snugly together.
Coupler Placement
Tool Advance Side-Male
Retract Side-Female
Hose Advance Side-Female to Female
Retract Side-Male to Male
Pump Advance Side-Male
Retract Side-Female
Setting the pressure on the hydraulic
power pack:
1. Loosen the locking ring below the “T” handle on
the hydraulic power pack external pressure
regu lato r.
2. Turn the “T” handle counterclockwise until it turns
Figure 5
Figure 6
Figure 4

TorsionX® Low Profile Wrenches (Updated 1/27/15) 8
freely and easily.
3. Turn the hydraulic power pack on.
4. Push the advance switch on the hydraulic power pack remote pendant and hold
it.
5. Keep the hydraulic power pack in advance mode and slowly turn the “T” handle
clockwise.
6. Observe the hydraulic power pack pressure gauge rise.
Note: Always adjust the regulator pressure UP - never down.
7. When the gauge reaches the predetermined
pressure, stop turning the “T” handle.
8. Let the gauge settle.
9. If gauge pressure rises above the predetermined
pressure turn the “T” handle counterclockwise to
release the back pressure then depress the
advance switch on the remote to bring the gauge
to the predetermined pressure.
10. When the pressure is correct, turn the pump off
and tighten the locking ring under the “T” handle.
11. This sets the pump pressure, controlling the torque wrench output.
12. Cycle the hydraulic power pack to ensure the pressure setting did not change as
you tightened the locking ring.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 9
Operating the HexPro Series Low Profile Wrench
Before every operation, always read and follow the Operation Instructions.
Applying the Hydraulic Torque Wrench
1. Place the ratchet link on the nut.
2. Ensure it is the correct size and fully engaged.
3. Remove ratchet link from nut.
4. Attach the ratchet link to power head
5. Cycle the hydraulic torque wrench to engage the power
head with the ratchet link.
6. Place the torque wrench on the nut.
7. Position the reaction surface against an adjacent nut,
flange or solid system component.
8. Make certain that there is clearance for the hydraulic hose assembly, swivels and
couplings.
9. Do not allow the tool to react against the hydraulic hose assembly, swivels or
couplings.
10. Depress the remote control advance button to advance the piston rod.
11. If the piston rod end did not engage the drive pin in the ratchet link when the link
was joined to the power head, it will engage the pin automatically during the first
advance stroke.
12. Check to make sure all body parts are safely out of harm’s way before applying
pressure to the hydraulic wrench.
a. This tool has massive power and can cause physical harm.
13. The nut will begin to turn when you apply hydraulic pressure to the hydraulic
torque wrench and the reaction surface moves against the reaction point.
14. Once the piston reaches the end of its stroke, release the remote button and the
tool will automatically retract the piston.
15. The operator will hear an audible “click”.
a. Each “advance and retract” is considered on cycle.
16. Continue cycling the hydraulic torque wrench until it “stalls” and the preset
PSI/Torque has been attained.
17. Cycle the tool one last time to assure total torque.
Important:
The reading of full preset pressure after the cylinder is extended DOES NOT INDICATE
this pressure (torque) is applied to the bolt/nut. It only indicates that the cylinder is fully
extended and cannot turn the socket further until the tool automatically resets itself.
•Releasing the remote control button automatically retracts the cylinder.
•The hydraulic torque wrench will automatically reset itself.
•You will hear an audible “click” indicating that you can again push the remote
control button and the socket will turn.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 10
•Each time the cylinder is extended and retracted, it is called a cycle.
•Successive cycles are made until the tool “stalls” at the preset
Torque/PSI with an accuracy of +/-3%. Repeatability is +/-1%.
•Cycle the tool one last time to achieve total torque.
“Locked-On”

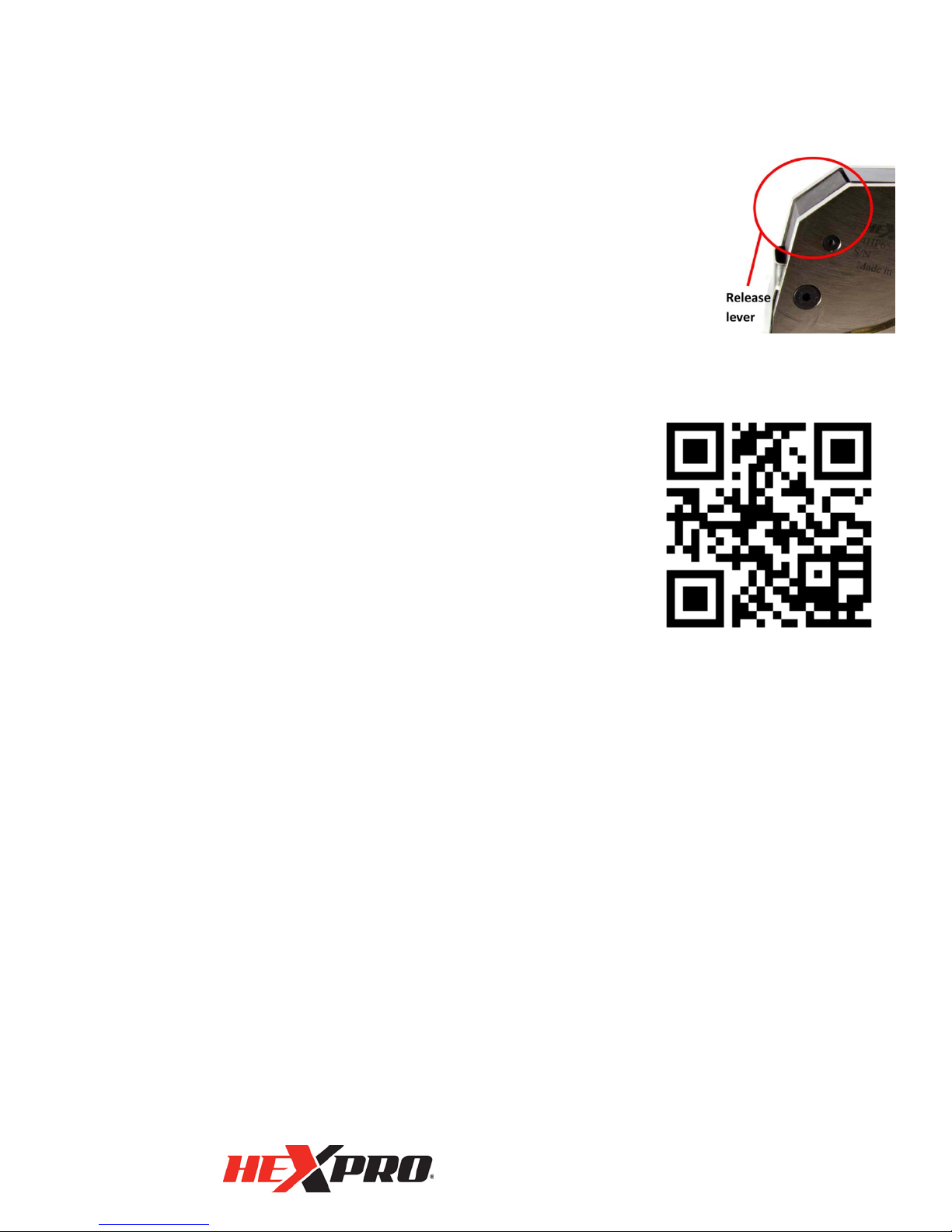

Should the hydraulic torque wrench be “locked-on” after the final cycle:
1. Push the remote control advance button to build pressure.
2. Maintain this pressure and push the release lever located on the
front of the ratchet link.
3. Release the remote control advance button, while continuing to push down on
the release lever. (Figure 7)
4. Remove the hydraulic torque wrench.
The Loosening Process:
1. Set the hydraulic power pack to 10,000 PSI.
2. Reposition the tool so the reaction surface abuts squarely
on a solid reaction point. Refer to Figure 3.
3. Press and hold hydraulic power pack’s remote control
advance button.
4. Pressure will decrease as the nut begins to turn.
5. When the cylinder is fully extended, you will hear an audible “click”.
6. Release the remote control advance button and the hydraulic torque wrench’s
cylinder will automatically retract.
7. Listen again for the audible “click”.
8. Repeat this process until the fastener can be removed by hand.
NOTE: If the nut/bolt does not loosen with the above procedures, the job will require
a larger hydraulic torque wrench to loosen the nut/bolt.
After the operation
1. Upon completing the project; turn off the power to the hydraulic power pack.
2. First disconnect the coupler connections between the hydraulic torque wrench
and hydraulic hose assembly.
3. Then disconnect the hose assembly from the hydraulic power pack.
4. Loosen the locking ring below the “T” handle on the hydraulic power pack
external pressure regulator.
5. Turn the “T” handle counterclockwise until it turns freely and easily.
6. When not in use, store tools and accessories properly to avoid damage.
Figure 7
Figure 7

TorsionX® Low Profile Wrenches (Updated 1/27/15) 11
Maintenance
Lubrication:
•Periodically coat all moving parts with a good quality lubricant.
•Under harsh environmental conditions perform cleaning and lubricating more
frequently.
Hydraulic Hose Assembly:
•Inspect the hydraulic hose assembly for cracks, burns, kinks, crush spots and
leaks after each job.
•Flush hydraulic fittings periodically as they can become plugged with dirt.
•Replace the hydraulic hose assembly immediately if you find any damage.
Connectors:
•Keep hydraulic coupler fittings clean and do not allow them to drag on the floor
or ground.
•Even small particles of dirt can cause the internal valves to malfunction.
Cylinder Seals:
•If the cylinder requires disassembly, replace cylinder seals at the same time.
•Seal kits are readily available. Unless you have a qualified technician on staff,
you should consider shipping the tool to a certified repair center.
Structural Members:
•Inspect all structural parts on the tool periodically for cracks, chips or
deformities.
•If present replace the part immediately.
Calibration:
•Calibrate all hydraulic torque wrenches and gauges annually.

TorsionX® Low Profile Wrenches (Updated 1/27/15) 12
HexPro Series Low Profile
Torque Wrench Cheat Sheet
1.Connect the hose assembly to the wrench and pump
a. Ensure couplings are tight.
2.Connect power to the pump.
3.Adjust pressure to the desired torque:
a. Hold the Advance Button on the remote control.
b. Adjust the pressure regulator on the pump to the desired pressure.
c. Do this with the tool off the nut.
4.Ensure a clean reaction point.
a. Ensure reaction point is free of all obstructions.
b. Ensure hands are clear of tool.
5.Advance wrench with the remote control.
a. Release the remote advance button at end of stroke.
b. Allow the cylinder to reset.
c. Repeat until nut no longer turns.
6.Turn off pump with remote control.
7.Move to next bolt.
8.Repeat step number 4.
Notes
▲If the tool quits ratcheting, check hydraulic couplings. Even a slightly loose
connection will cause the hydraulic system to fail.
▲If the tool is locked on the nut, press the advance button on the remote control.
Hold the advance button down and push back on the release lever. Release the
advance button on the remote and the tool will free up.
▲If you are using an extension cord to power the hydraulic pump, use a heavy
gauge cord (10 gauge or better).
PO Box 10068
Charleston, WV 25357
Email: [email protected]
Toll Free: 1-844-8Bolting
(1-844-826-5846)

TorsionX® Low Profile Wrenches (Updated 1/27/15) 13
Trouble-shooting Chart
SYSTEM PROBABLE CAUSE REMEDY
Cylinder will not advance Couplers are loose or damaged
Directional control valve on pump
Couplers not mated securely
Tighten/Replace
Assemble and clean
Tighten
Cylinder will not retract See above See above
Cylinder will not build
pressure
Piston seal leaks
Pump coupling may be broken, not mated
properly or coupler is defective
Gauge
Replace seals
Replace coupling
Replace gauge
Cylinder leaks Leaking Seals Replace housing seal kit
Cylinder operates
backwards
Couplers are reversed on hoses, pump or tool Reverse couplers
Ratchet returns on retract
stroke
Broken reaction pawl
Defective reaction pawl spring
Replace
Replace
Ratchet will not make
successive strokes
Defective drive pawl spring
Defective drive pawl
Cylinder is not retracting completely
Replace
Replace
Remove tool from job, cycle
freely once or twice, and return
to job
Tool cannot be removed
from nut
Reaction pawl is engaged Begin forward cylinder stroke.
While applying pressure, push
the reaction pawl release (on
front ratchet link). While
pressing release mechanism,
allow the cylinder to retract.
Remove tool
No pressure reading on
gauge
Gauge not tight
Pump coupling broken
Gauge defective
Defective cylinder seals
Tighten gauge coupler
Replace
Replace
Inspect and replace all cylinder
seals
Pump will not build
pressure
Defective high pressure relief valve
Electric power source is too low
Gauge
Filter is clogged
Inspect and replace
Ensure suitable electric power
source – 25amps – 12 gauge or
larger cord
Replace
Inspect and clean, or replace
Pressure reading erratic
Defective gauge
Differential Control Valve Bad
Replace
Replace

TorsionX® Low Profile Wrenches (Updated 1/27/15) 14

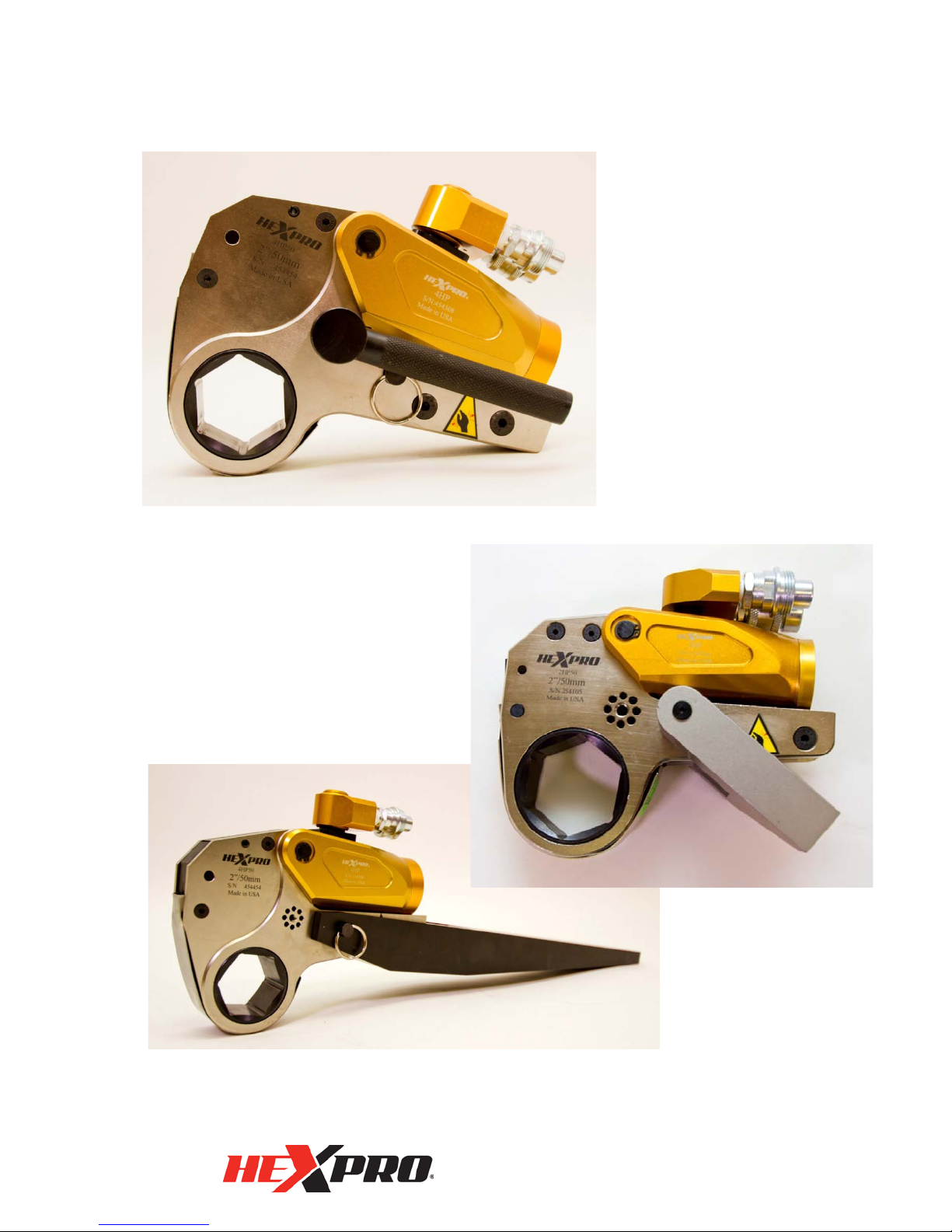

Accessories
Hydraulic Wrench Tool
Handle
Part # 9001TH
Alco Arms and Reaction Pads
See your local distributor for the part #.
Alco Arm
Reaction Pad

TorsionX® Low Profile Wrenches (Updated 1/27/15) 15
Appendix
