Toshiba teli TELI CS6910CL User manual

D4134419A
CCD Color Camera
CS6910CL
Specification
Contents
1. Overview.............................................................................................................................. 1
2. Features............................................................................................................................... 1
3. Components........................................................................................................................ 1
4. Options ................................................................................................................................ 2
5. Specifications ..................................................................................................................... 2
6. Interfaces............................................................................................................................. 6
7. Dip Switch Settin s ............................................................................................................ 8
8. CAMERA LINK Serial Control .......................................................................................... 10
9. Timin Charts.................................................................................................................... 17
10. Outline Drawin ................................................................................................................ 19
11. Cases for Indemnity (Limited Warranty)......................................................................... 20
12. Restriction for Use............................................................................................................ 21
This document is printed on recycled paper.

D4134419A
Revision history
Rev.
Item
Changed contents Date Changed by
A First Edition ’0 -06-07
T.Kazama

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
1
D4134419A
1. Overview
This camera is a CAMERA LINK output, integral-type high frame rate color camera adopting CCD
with 630,000 effective pixels.
2. Features
(1) High resolution
CCD with 630,000 effective pixels is adopted. Image processing embedded in the camera
allows high-resolution 24-bit color images in a SXGA (1280 x 960) size.
(2) Full frame output
All pixel information is outputted through progressive scan even in random trigger shutter.
(3) High frame rate
SXGA (1280 x 960) images can be outputted in high speed; 30 frames/sec.
(4) Random trigger shutter function
The random trigger shutter function provides images in any timing by input of an external trigger
signal.
( ) CAMERA LINK I/F
The CAMERA LINK standard is adopted for video output and camera control interfaces.
CAMERA LINK-compatible frame grabber board allows high-speed transfer of images to PC and
camera control from PC.
(6) Compact and lightweight
This camera is compact and lightweight with outside dimensions of 4(W) x 43(H) x 9(D) mm
and weight of approx. 1 0 g. It is easy to integrate into an industrial equipment.
3. Components
(1) Main camera body: 1
(2) Instruction Manual (Japanese): 1
(3) Instruction Manual (English): 1

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
2
D4134419A
4. Options
(1) Power cable (2 m , 3 m , m) CPRC3700-**
(2) CAMERA LINK cable (2 m , 3 m , m , 10 m) 14B26-SZLB-***-0LC
(3) Tripod mount CPT4000CL
(4) Camera adapter CA1 0, CA130C (*1)
( * 1) CA1 0 does not support trigger input. To use the external trigger function, CA130C is required.
[Compliance with EMC standard]
The compliance of this device to the EMC standard is guaranteed in the condition with the optional
parts above. If you use this product combined with parts other than specified by us, the customer
should check the EMC compliance of the entire machine/device.
5. Specifications
(1) Image sensor CCD
- Readout method All pixel simultaneous read/horizontal 2-time read
- Total number of pixels 680 (H) x 04 (V) x 2 (68 ,440 pixels)
- Number of effective pixels 648 (H) x 486 (V) x 2 (629,8 6 pixels)
- Unit cell size 3.8 x 3.8µm
- Area size of effective pixels 3.4992 (H) x 2.6244 (V) mm
- Chip size .0 (H) x 4. 3 (V) mm (1/4.2 type)
- Color filter G square grid array, R/B interpolation point sequential
- Driving frequency 24. 4 4 MHz
(2) Frame rate- scan mode
Mode Output
method Frame rate Scan mode Number of pixels in output image
SXGA 30fps Digital 30 frames sec Progressive 1280(H) x 960(V)
SXGA 15fps Digital 15 frames sec Progressive 1280(H) x 960(V)
VGA 30fps Digital 30 frames sec Progressive 640(H) x 480(V)
NTSC Analog 30 frames sec Interlace 640(H) x 480(V)
(3) Sync system Internal synchronization
(4) Aspect ratio 4:3
( ) Subject illumination
- Standard 3000lx, F8, 100K (SXGA 30 fps, shutter speed: 1/30 s)
- Minimum 30lx, F1.4 (SXGA 30 fps, shutter speed: 1/30 s, γ: 0.4 ,
Gain: + 6 dB, Video level: 0%)

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
3
D4134419A
(6) Video output
• Digital output
- Output method CAMERA LINK standard compatible (8 bit each for RGB,
max. 49.09 MHz)
• Analog output
- Output method NTSC standard compatible
- Output level VBS: 1.0V(p-p)/7 Ohm
* Digital output and analog output cannot be outputted simultaneously.
(7) S/N 0 dB (Edge enhancement: OFF, γ: 1, based on our bench
mark)
(8) Trigger input (random trigger shutter)
- Input level Low: 0 to 0. V
High: 2.0 to .0V
- Polarity Positive/negative bipolar
- Input impedance High impedance
* Trigger signal input via CAMERA LINK I/F is also possible.
(9) Output signal
• HD
- Output level 4.0V (p-p)
- Polarity Negative
- Repeating frequency 31.47 kHz (SXGA 30 fps, VGA 30 fps)
1 .73 kHz (SXGA 1 fps)
• VD
- Output level 4.0V (p-p)
- Polarity Negative
- Repeating frequency 29.97 Hz (SXGA 30 fps, VGA 30 fps)
14.98 Hz (SXGA 1 fps)
• WEN
- Output level 4.0V (p-p)
- Polarity Positive
- Pulse width 1H

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
4
D4134419A
(10) Electronic shutter
• Auto exposure
- Detection area Can be selected from Wide/Small (average in the center/spot)
- Tracking range 1/1 000 to 1/30s
* Auto exposure in random trigger shutter is disabled.
• Manual setting
- Shutter speed 1/1 000 to 4s (SXGA 30 fps, VGA 30 fps)
1/10000 to 4s (SXGA 1 fps)
1/1 000 to 1/60s (NTSC)
- Setting precision Set by a/b[s]
a:1 to 8 and b:1 to 1 000 can be set for 1 step
* When exposure time is set up for a long time, white spots and the unevenness of a
highlight portion might occasionally be observed on screen. This phenomenon is due to
the characteristics of the CCD image sensor.
(11) Gain control Analog pre-gain control available
- Control range 0 to + 6 dB
(12) White balance
• Full auto
- Operation method Area-by-area white determination tracking method
- Split area Evenly split to 8x8 in entire area
- Effective color temperature 2400K to 6 00K
- Effective area All white recognition area
* Full auto WB in random trigger shutter is disabled.
• One-push auto
- Effective color temperature 2400 to 9000K
- Effective area Entire area
* One-push auto WB in random trigger shutter is disabled.
• Manual
- Setting color temperature 3000, 3700, 4000, 4 00, 00, 6 00K (Preset settings)
R, B gains can be set separately

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
5
D4134419A
(13) γ characteristics 0.4 /0.6 /1.0/User setting (1 type)
(14) Edge enhancement Intensity 3 levels and Enhancement OFF can be set.
Horizontal-vertical both edge enhancement
(1 ) Resolution
- Horizontal resolution 600 TV lines or more
- Vertical resolution 600 TV lines or more
(16) Power source DC12V ± 10% (100 mV (p-p) or less for ripple)
(17) Current consumption Approx. 300 mA
(18) Ambient conditions
- Performance guarantee Temperature: 0 to 40°C,
Humidity 20 to 80%RH (no condensation)
- Operating guarantee Temperature: 0 to 4 °C,
Humidity 20 to 80%RH (no condensation)
- Storage Temperature: -20 to 60°C,
Humidity 20 to 9 %RH (no condensation)
(19) Lens mount C mount
(20) Dimensions 4(W) x 43(H) x 9(D)mm
(21) Weight Approx. 1 0 g
(22) Applicable safety standards EN 0081-2/1993
EN61000-6-2/2001
FCC part1 class A
[Compliance with EMC standard]
The compliance of this device to the EMC standard is guaranteed in the condition with the
optional parts in Section 4. If you use this product combined with parts other than specified by
us, the customer should check the EMC compliance of the entire machine/device.

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
6
D4134419A
6. Interfaces
(1) CAMERA LINK connector (Base configuration)
- Connector MDR 26-Pin connector 10226-2210VE (3M)
- Pin assignment
Pin No. I O Function Pin No. I O Function
1 - GND 14 - GND
2 Out Tx OUT 0- 15 Out Tx OUT 0+
3 Out Tx OUT 1- 16 Out Tx OUT 1+
4 Out Tx OUT 2- 17 Out Tx OUT 2+
5 Out Tx CLK OUT- 18 Out Tx CLK OUT+
6 Out Tx CLK 3- 19 Out Tx CLK 3+
7 In Ser TC(RxD)+ 20 In Ser TC(RxD)-
8 Out Ser TFG(TxD)- 21 Out Ser TFG(TxD)+
9 In CC1- 22 In CC1+
10 In CC2+ 23 In CC2-
11 In CC3- 24 In CC3+
12 In CC4+ 25 In CC4-
13 - GND 26 - GND
- CAMERA LINK port assignment
Port I O Function
Port A[7:0] Out ROUT[7:0] (R Image Output)
Port B[7:0] Out GOUT[7:0] (G Image Output)
Port C[7:0] Out BOUT[7:0] (B Image Output)
CC1 In TRG (Trigger Input)
CC2 In Reserved
CC3 In Reserved
CC4 In Reserved

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
7
D4134419A

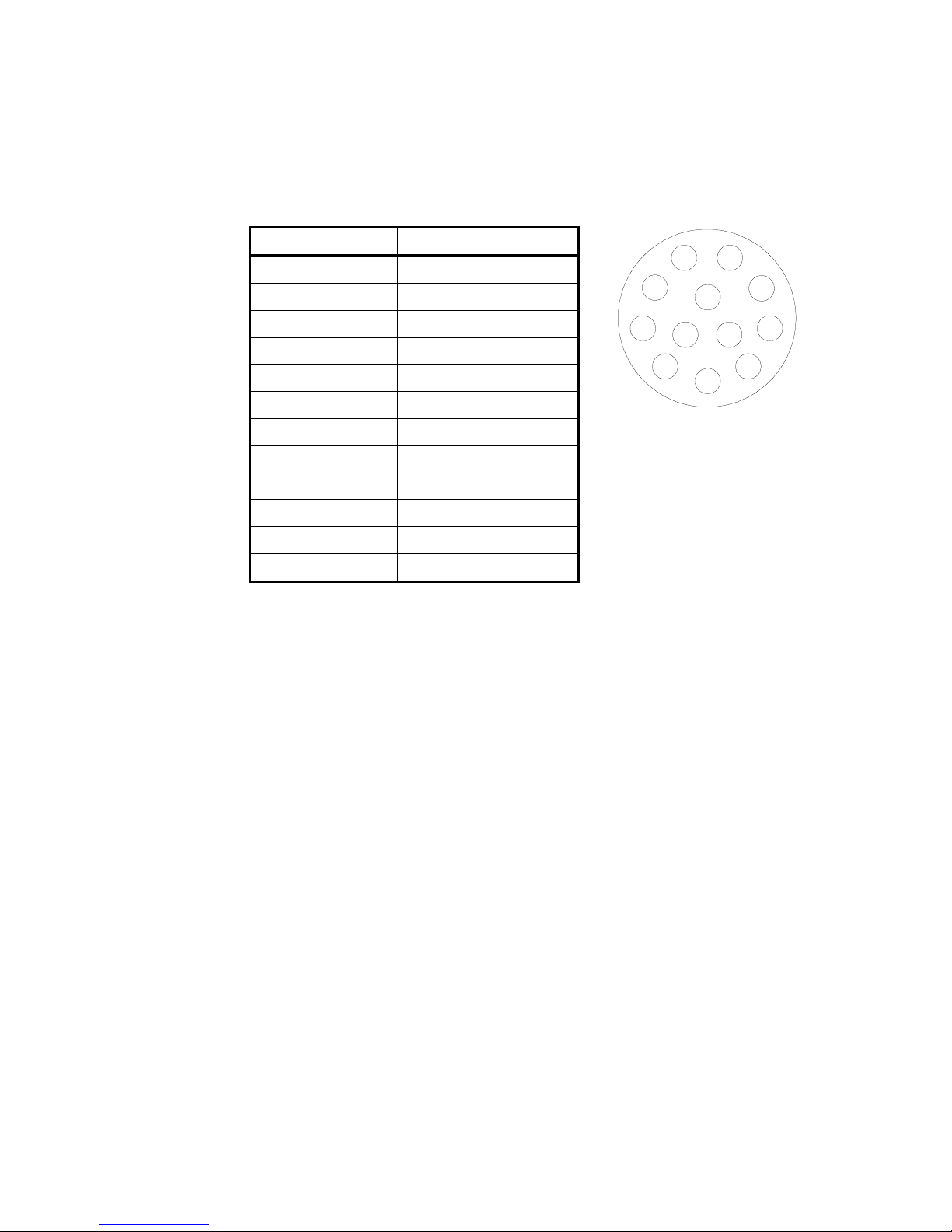

(2) VIDEO OUT/DC IN connector
- Camera-side connector HR10A-10R-12PB (Hirose)
- Cable-side connector HR10A-10P-12S (Hirose)
- Pin assignment
Pin No. I O Function
1 - GND
2 In +12V IN
3 - GND
4 Out VBS OUT
5 - GND
6 Out HD OUT
7 Out VD OUT
8 - N.C.
9 - N.C.
10 Out WEN OUT
11 In TRG IN
12 - GND
1
2
3
456
7
8
9
10
11 12
Seen from the back of the main body

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
8
D4134419A

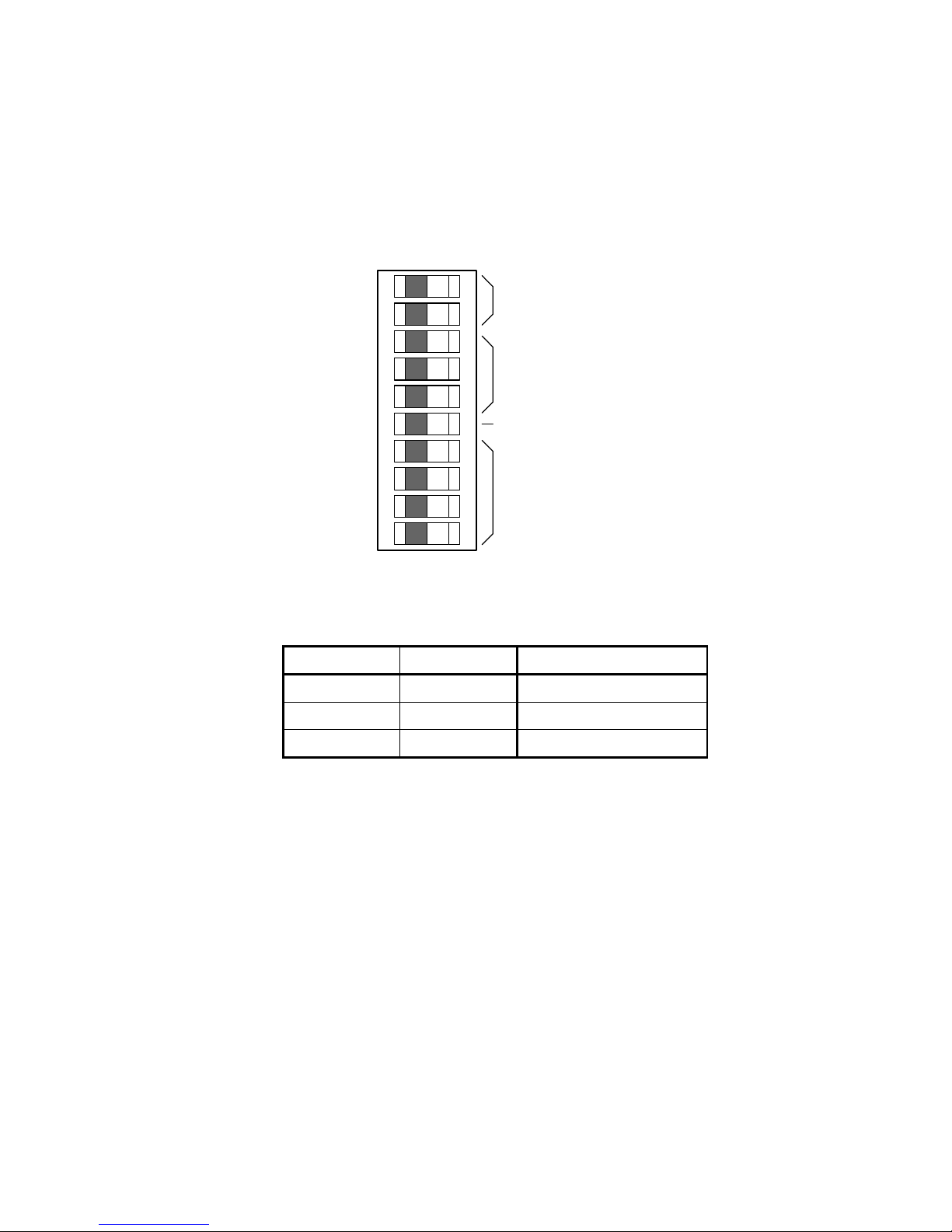

7. Dip Switch Settin s
You can set communication speed, memory call, and video output mode using the dip switches on the
back of the main camera body.
Dip switch settings are loaded when the power is turned on. Changes will not be reflected if the
switch settings are changed after the power is turned on.
1
2
3
4
5
6
7
8
9
0
O
NCommunication speed setting
Video output setting
Memory call setting
Not used
(1) Communication speed setting
You can set communication speed of the serial communication via CAMERA LINK.
Either 9600 bps, 19200 bps, or 38400 bps can be set.
SW1 SW2 Communication speed
OFF OFF 9600 bps
ON OFF 19200 bps
OFF ON 38400 bps

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
9
D4134419A
(2) Memory call setting
You can set setting value save memory numbers, which are called when the power is turned on.
This camera has 8 memory tables in all.
SW3 SW4 SW5 Memory number
OFF OFF OFF 0
ON OFF OFF 1
OFF ON OFF 2
ON ON OFF 3
OFF OFF ON 4
ON OFF ON 5
OFF ON ON 6
ON ON ON 7
(3) Video output mode setting
You can set the video output mode (analog output/CAMERA LINK output) upon power on.
If this is set to analog output, the camera starts up with the NTSC mode- AE, AWB operation.
The switch setting specifies the initial operation upon power on. After the power is turned on,
you can change the output mode during operation using command control via CAMERA LINK.
SW6 Video output mode
OFF CAMERA LINK output
ON Analog output

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
10
D4134419A
8. CAMERA LINK Serial Control
(1) Control Functions Overview
The following functions are available to control via CAMERA LINK serial communication
interface (RS232C standard compatible).
- Output Method Selection Analog (NTSC) / Digital (CAMERA LINK)
- Output Image Format Selection SXGA 30fps / SXGA 1 fps / VGA 30fps
* The setting is valid only under digital output
mode.
- Shutter Mode Selection Manual / Auto
- Auto Exposure Setting Photometry Range Setting
AE Lock Setting
Exposure Correction Level Setting
- Random Trigger Shutter Operation Setting Random Trigger: Valid / Invalid (Normal Shutter)
Trigger Polarity: Positive / Negative
- Shutter Speed Setting
- Analog Pre-gain Setting
- White Balance Operation Setting FULL AUTO / One-push AUTO / MANUAL
Manual Color Temperature Setting
R,B Gain Setting
- Gamma Characteristics Selection 0.4 / 0.6 / 1.0 / User Settings
- Edge Enhancement Setting Edge Enhancement Level Setting
- Color Matrix Setting
- Setting Value Memory SAVE / LOAD /RESET
- Readout of Each Camera Data

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
11
D4134419A
(2) Command Communication Protocol
The command communication protocol is the teli standard method (method in which parameters
are set in the registers in the camera).
In command send/receive operation, hexadecimal address and data are converted to ASCII data.
All ASCII alphabetic characters used are uppercase characters.
 Write to a register
To write data in a register, send a command, as follows:
STX(0x02) Addr. (upper) Addr. (lower) Data (upper) Data (lower) ETX(0x03)
For example, to write data 0x2 to address 0x7 , send a command, as follows:
STX(0x02) “7”(0x37) “5”(0x35) “2”(0x32) “5”(0x35) ETX(0x03)
The camera responds to the write command with No Error (ACK) or Error (NAK), as follows:
STX(0x02) ACK(0x06) ETX(0x03)
STX(0x02) NAK(0x15) ETX(0x03)
 Reading the register
To read data from a register, send "R" and "Q" following the address.
For example, to read data in address 0x6D, send a command, as follows:
STX(0x02) “6”(0x36) “D”(0x44) “R”(0x52) “Q”(0x51) ETX(0x03)
The camera responds to the read request, as follows:
STX(0x02) Data (upper) Data (lower) ETX(0x03)

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
12
D4134419A
(3) Register Map
The registers accessible to the user are as follows:
Address
Function bit7
bit6 bit5 bit4 bit3 bit2 bit1 bit0 Default
Value
Base Registers
0x00
|
0x03
Vendor Name
(Read Only)
Vendor Name
”TELI” <<
0x04
|
0x0F
Reserved rsv. 0x00
0x10
|
0x1F
Model Name
(Read Only)
Model Name
”CS6910CL” <<
0x20
|
0x2F
Serial Number
(Read Only) Serial Number -
0x30
|
0x3F
CPU Version
(Read Only)
CPU Firmware Version
ex)”V010000” <<
Self Check
Registers 0x40
Self-Check
(Read Only) Self-Check Result -
0x41
Status
(Read Only) Status Code -
0x42
|
0x4F
Reserved rsv. 0x00
Memory
Registers 0x50
Memory Information
(Read Only) Number Of Memory Banks In This Camera 0x08
0x51
Memory Save Save Bank No. -
0x52
Memory Load Load Bank No. -
0x53
Memory Reset Reset Bank No. -
0x54
|
0x5F
Reserved rsv. 0x00
Base Function
Registers 0x60
Update Registers
Value (Write Only) rsv. 1:EXEC
-
0x61
Resolution Information
(Read Only) Maximum Resolution That This Camera Supports 0x07
0x62
Frame Rate
Information
(Read Only)
Maximum Frame Rate at Maximum Resolution 0x04
0x63
Resolution
0x04:VGA
0x07:SXGA
0x80:NTSC
0x07
0x64
Frame Rate
0x03:15fps
0x04:30fps
0x06:60fps
0x04
0x65
Shutter Type
(Read Only) rsv. 0:Global
0x00
0x66
Shutter Mode rsv.
0:
Normal
1:RTS
0x00
0x67
Trigger Polarity rsv. 0:NEG
1:POS
0x00

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
13
D4134419A
Address
Function bit7
bit6 bit5 bit4 bit3 bit2 bit1 bit0 Default
Value
Base Function
Registers 0x68
Random Trigger
Shutter Mode rsv. 0:Fix
1:Pulse
0x00
0x69
Exposure Mode rsv.
0:
Normal
1:Auto
0x00
0x6A
AE Area rsv.
0:
Center
1:Spot
0x00
0x6B
AE Lock rsv. 0:OFF
1:ON 0x00
0x6C
Exposure Adjust Exposure Adjust Value
(0-9) 0x06
0x6D
Denominator Of
Exposure Time
(Lower)
0x1E
0x6E
Denominator Of
Exposure Time
(Upper)
Denominator Of Exposure Time
(0x0001-0x3A98)
0x00
0x6F
Numerator Of
Exposure Time rsv. Numerator Of Exposure Time
(0x01-0x08) 0x01
0x70
Gain (Lower) 0x00
0x71
Gain (Upper)
Analog Pre-Gain
(0x0000-0x00BF) 0x00
0x72
Setup (Lower) rsv. 0x00
0x73
Setup (Upper) rsv. 0x00
0x74
WB Mode rsv.
0:MWB
1:AWB
2:OPWB
0x00
0x75
Manual Color
Temperature
0x1E:3000[K]
0x25:3700[K]
0x28:4000[K]
0x2D:4500[K]
0x37:5500[K]
0x41:6500[K]
0xFF:Manual R and B Gain Available
0x37
0x76
WB Auto Mode rsv. 0x00
0x77
One-Push WB
(Write Only) rsv. 1:EXEC
-
0x78
Manual R Gain
(Lower) 0x39
0x79
Manual R Gain
(Upper)
R Gain
(0x0000-0x005F) 0x00
0x7A
Manual B Gain
(Lower) 0x2A
0x7B
Manual B Gain
(Upper)
B Gain
(0x0000-0x005F) 0x00
0x7C
Aperture rsv. Aperture
(0-7) 0x04
0x7D
Gamma rsv.
0: γ=0.45
1: γ=0.65
2: γ=1.0
3:User Preset0
0x01
0x7E
|
0xAF
Reserved rsv. 0x00

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
14
D4134419A
Address
Function bit7
bit6 bit5 bit4 bit3 bit2 bit1 bit0 Default
Value
Expansion
Registers 0xB0
Target Address
0-7 Register Indirect Access Target Address Register (bit0-7) 0x00
0xB1
Target Address
8-15 Register Indirect Access Target Address Register (bit8-15) 0x00
0xB2
Target Address
16-23 Register Indirect Access Target Address Register (bit16-23) 0x00
0xB3
Target Address
24-31 Register Indirect Access Target Address Register (bit24-31) 0x00
0xB4
Target Address
32-39 Register rsv. 0x00
0xB5
Data Register Indirect Access Data Register -
0xB6
Data Length
Register rsv. Indirect Access Data Length 0x00
0xB7
Sum Register Indirect Access Sum Register -
0xB8
Expansion Status
(Read Only) Expansion Status Code -
0xB9
|
0xBF
Reserved rsv. 0x00
0xC0
CRB Coefficient Color Matrix CRB Coefficient 0x4B
0xC1
CRR Coefficient Color Matrix CRR Coefficient 0x64
0xC2
CBR Coefficient Color Matrix CBR Coefficient 0x41
0xC3
CBB Coefficient Color Matrix CBB Coefficient 0x5A
0xC4
|
0xCF
Reserved rsv. 0x00

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
15
D4134419A
(4) Access to Indirect Registers
To set the user-specified gamma table, use indirect access registers.
For indirect access, seven bytes of direct registers are used. These direct registers are as follows:
Target Address 0-7 Register (Direct address: 0xB0)
Target Address 8-1 Register (Direct address: 0xB1)
Target Address 16-23 Register (Direct address: 0xB2)
Target Address 24-31 Register (Direct address: 0xB3)
Target Address 32-39 Register (Direct address: 0xB4
* This register is not used in this camera.)
Data Register (Direct address: 0xB )
Data Length Register (Direct address: 0xB6)
Sum Register (Direct address: 0xB7)
The function of each register is as follows.
 Target Address *-* Register
Indicates the address whose data is referred to or to which data is written.
 Data Register
During read operation, data stored in the Target Address *-* register is read.
During write operation, the specified data is written to the Target Address *-* Register.
When read or write operation is completed, the Target Address *-* Register is
incremented.
 Data Length Register
Set the number of bytes to be read continuously. (Specified value +1) bytes of data are
read continuously.
If 0 is specified, one byte of data is read.
 Sum Register
Every time a write or read command is executed for the Data Register, one-byte
hexadecimal data read or written is added to the value of this register and the result is
stored in this register.
When continuous write or continuous read is performed after 0x00 is written into this
register, the camera side Check Sum of the data read or written data is stored after the
continuous write or continuous read.

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
16
D4134419A
With the indirect access registers (Data Register: address 0xB ), continuous data write and
continuous data read can be performed.
Up to 32 bytes of data can be written or read by continuous write or read.
 Continuous write
To perform continuous write, send a command as follows.
In continuous write, data of any length (up to 32 bytes) can be written.
The data length for continuous write has no relation to the setting value in the Data Length
Register (address 0xB6).
The camera treats a reception of ETX, as the end of data.
STX(0x02) “B”(0x42) “5”(0x35)
ETX(0x03)
Data0(Upper) Darta1(Upper)Data0(Lower) Data1(Lower)
Data31(Upper) Data31(Lower)
 Continuous read
In continuous read, the camera responds as follows.
If you request a read operation for the Data Register (address 0xB ), (the setting value of the
Data Length Register (address 0xB6) + 1 byte) of data is read continuously.
STX(0x02)
ETX(0x03)Data31(Upper) Data31(Lower)
Data0(Upper) Data0(Lower) Data1(Upper) Data1(Lower)
 Register map in the indirect address space
The register map in the direct address space is as follows.
Address Function bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
Default
Value
0x8000000000
|
0x80000003FF
User Gamma 0 User Gamma 0 -

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
17
D4134419A
9. Timin Charts
(1) SXGA output timing
PXCK
(PIXEL DATA)
1 2 3 12
78
12
79
12
80
LVAL
DVAL
FVAL
(PIXEL DATA)
(Exposing)
51H 960H 36H 3H
1050H
FVAL
LVAL
DVAL
1560clk x 56
1280clk279clk 1clk
1560clk = 1H
12
78
12
79
12
80
1560clk x 361560clk x 960
12
77
V-timing
H-timing
PXCK:49.0909MHz(30fps mode) 24.5454MHz(15fps mode)

CCD color camera CS6910CL Specification (Rev.A)
The contents described in this document may be changed without prior notice.
18
D4134419A
(2) VGA output timing
PXCK
(PIXEL DATA)
1 2 3 63
8
63
9
64
0
LVAL
DVAL
FVAL
(PIXEL DATA)
(Exposing)
34H 480H 11H
525H
FVAL
LVAL
DVAL
1560clk x 34
640clk139clk 1clk
1560clk = 1H
63
8
63
9
64
0
1560clk x 480
63
7
780clk
V-timing
H-timing
PXCK:24.5454MHz
