 Reduction and Enlargement Copying
When placing originals on the original glass, you can copy them at the reducing and enlarging
rate of 25 to 400%. For the reversing automatic document feeder (optional), you can make
copy at the reducing and enlarging rate of 25 to 200%.
There are 3 ways of making copies in the Reduction and Enlargement mode:
y Using Automatic Magnification Selection (AMS)
y Specifying both original size and copy size separately
y Using the reduction/enlargement zoom buttons or the one-touch zoom buttons
y Automatic Magnification Selection cannot be used for highly transparent originals such
as OHP films and tracing paper, wholly dark originals or originals with dark borders, or
irregular sized originals such as newspapers and magazines. For these types of originals,
use the other reduction/enlargement modes.
y Set the paper size for the “OTHER” button as required. When the set originals or paper are
a non-standard size other than LD, LG, LT or ST, you will select the OTHER button on the
screen of step 3 below. Before pressing it, you need to make the OTHER button recognize
the same size as the originals or paper that have been set.
Page 2

 Reduction and Enlargement Copying (Cont’d.)
Automatic Magnification Selection (AMS)
1. Place paper in the drawer(s).
2. Press the desired drawer (or the Up or Down arrow
button), and then press the ZOOM button.
yThe copy paper size is selectable on the menu in
step 3 as well.
3. Press the AMS button.
4. Place the original(s).
yThe built-in sensors automatically detect the size
of the original(s) and compute the reproduction
ratio with the specified paper size respectively.
yIf “Change direction of original” appear, proceed
as directed.
ySelect other copy modes as required.
5. Press the START button.
Page 3

 Reduction and Enlargement Copying (Cont’d.)
Specifying Both Original Size and Copy Size
1. Place paper in the drawer(s).
2. Place the original(s).
3. Press the desired drawer (or the Up or Down arrow
button), and then the ZOOM button.
yThe copy paper size is selectable on the menu in
step 4 as well.
4. Press the ORIGINAL SIZE button that represents
the size of the original.
yUsing the original size and copy size, the correct
reproduction ratio is computed and displayed on
the screen.
ySelect other copy modes as required.
5. Press the START button.
Page 4

 Reduction and Enlargement Copying (Cont’d.)
Using the Reduction/Enlargement Zoom Buttons or One-touch Zoom Buttons
1. Place paper in the drawer(s).
2. Place the original(s).
3. Press the drawer button (or Up or Down arrow
button) representing the desired copy paper size,
and then press the ZOOM button.
yThe copy paper size is selectable on the screen
in step 4 as well.
4. Press the UP (or DOWN) button to set the desired
reproduction ratio.
yThe yellow indicator line moves to indicate the
range to be copied for enlargement (or reduction)
copying.
yEach time you press either button, the reproduction
ratio changes by 1%. Holding down the button
changes it continuously.
yYou can select the reproduction ratio by pressing
the 400%, 200%, 100%, 50% or 25% button
directly. (When placing the originals on the reversing
automatic document feeder (optional), you cannot
select the 400% button.)
ySelect other copy modes as required.
5. Press the START button.
Page 5

 Duplex Copying
This function allows you to set the type of originals (1-sided, 2-sided or book-type) and
the desired type of copying (1-sided or 2-sided). Duplex copying is available for the plain
paper (17-20 lb. Bond) and thick 1 paper (21-28 lb. Bond).

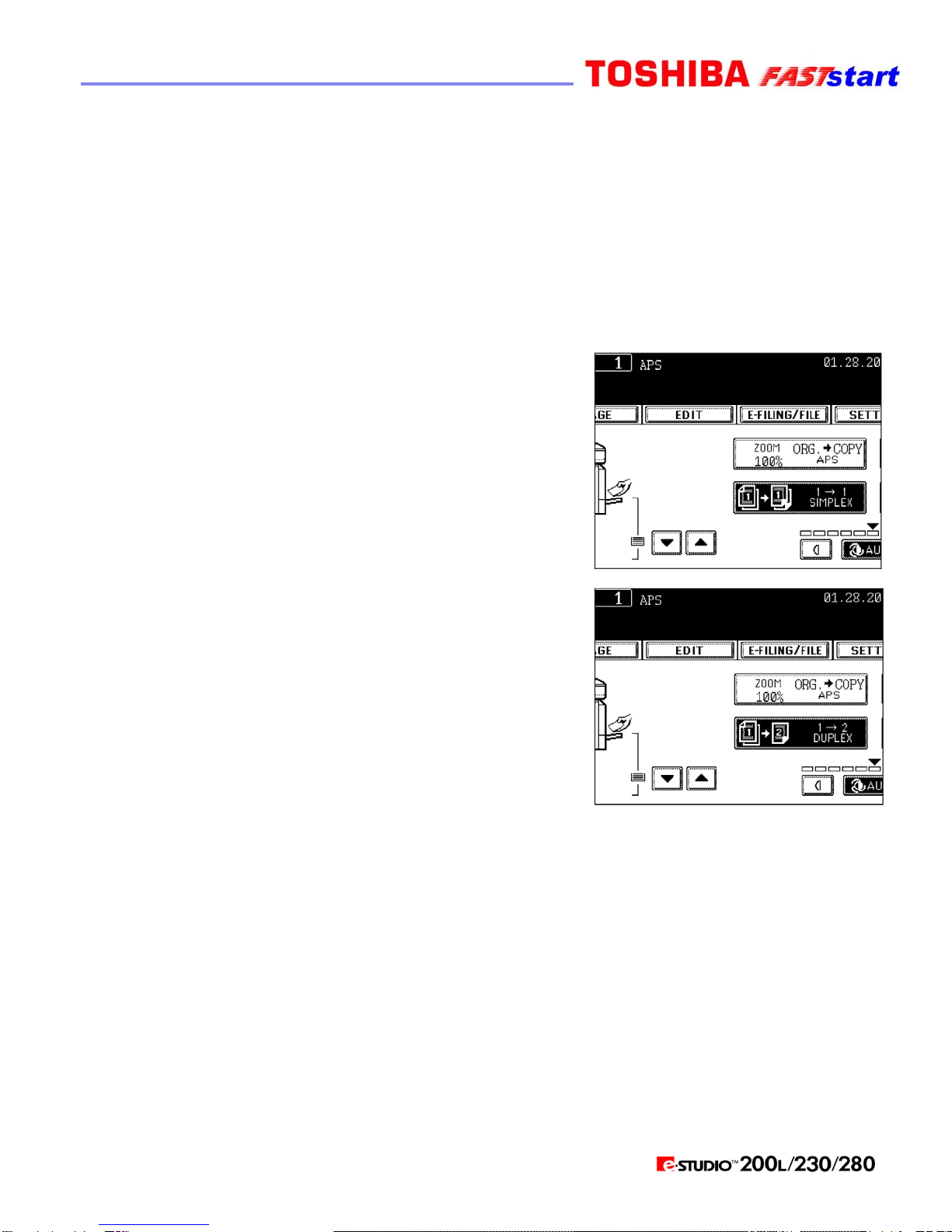

1-Sided Originals Î2-Sided Copies
1. Place paper in the drawer(s).
2. Place the original(s).
3. On the Basic menu, press the highlighted button on
the right.
4. Press the 1 Î2 DUPLEX button.
ySelect other copy modes as required.
5. Press the START button.
Page 6

 Duplex Copying (Cont’d.)
2-Sided Originals Î2-Sided Copies
1. Place paper in the drawer(s).
yWhen using this mode in bypass copying, be sure
to specify the paper size.
2. Place the original(s).
3. On the Basic menu, press the highlighted button on
the right.
4. Press the 2 Î2 DUPLEX button.
5. Press the START button.
2-Sided Originals Î1-Sided Copies
1. Place paper in the drawer(s).
2.
Place the original(s).
3. On the Basic menu, press the highlighted button on
the right.
4. Press the 2 Î1 SPLIT button.
ySelect other copy modes as required.
5. Press the START button.
yWhen placing the original on the glass, copy the
one side of the original and turn it over to copy
the other side.
Page 7

 Selecting Finishing Modes
The functions available differ depending on whether a finisher is installed and which type of
finisher (MJ1022, MJ-1025, MJ-5004 and MJ-5005) it is.
Type of Finishing Mode
yMJ-1025: Saddle-stitch finisher
yMJ-1022: Single-staple finisher
yMJ-5004: Job separator
yMJ-5005: Offset tray
yMJ-6005: Hole punch unit

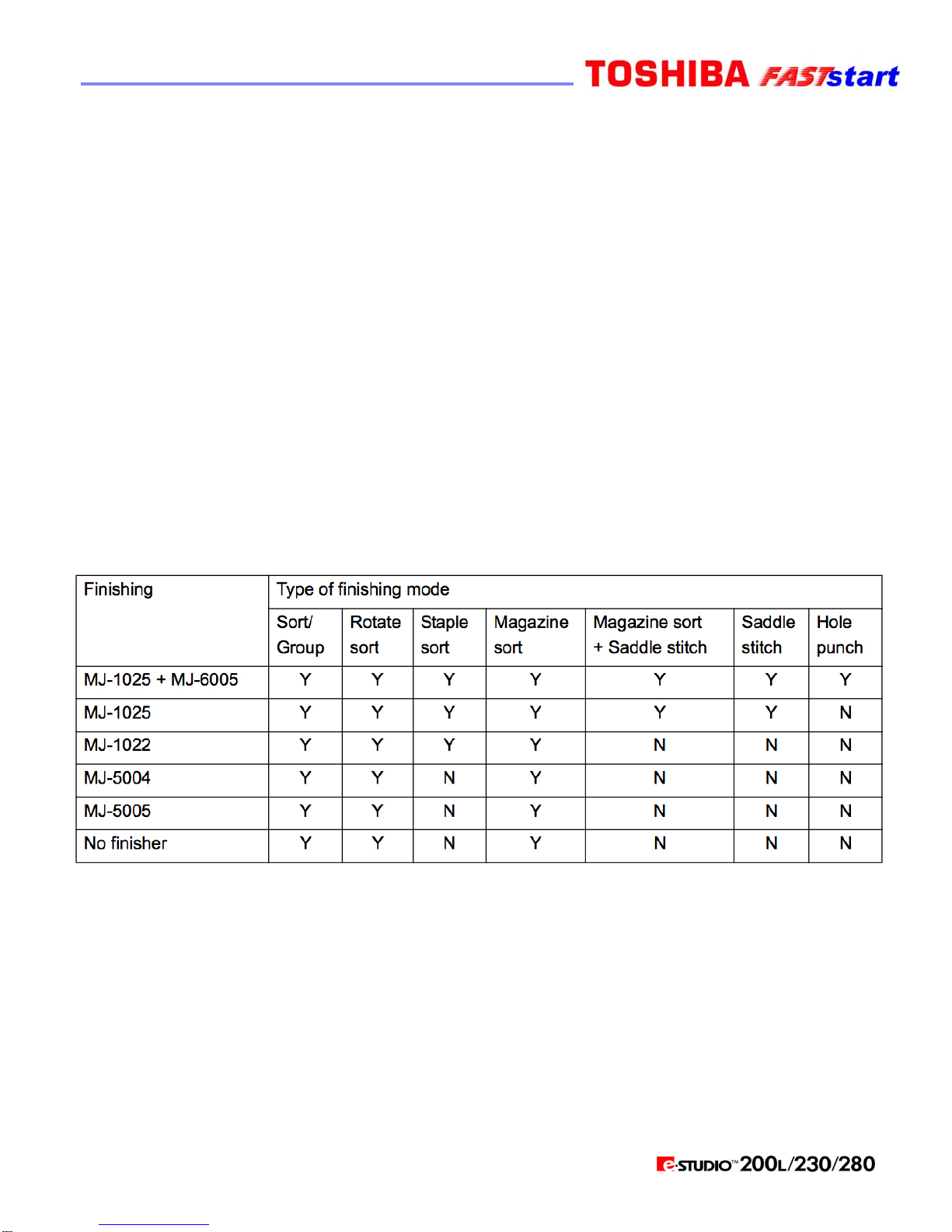

Confirm the finishing mode type of your equipment with the following table:
Y: Available
N: Not available
Page 8

 Finishing/Stapling
When the finisher (optional) is installed, you can perform automatic stapling for every set.
Three staple positions can be selected when installing the saddle-stitch finisher (MJ-1025).
yThe paper weight should be in the range of 17-28 lb. for the saddle-stitch finisher
(MJ-1025) and 17-28 lb. Bond for the single-staple finisher (MJ-1022). Special paper
such as OHP films or labels is excluded.
yStapling will not work when copied paper of different widths are mixed.
Example of selecting the FRONT STAPLE-1 button
1. Place paper in the drawer(s). When using this mode in
bypass copying, be sure to specify the paper size.
2. Place the original(s).
3. Press the Finisher button on the Basic menu as shown
in the illustration on the right (highlighted).
4. Press the FRONT STAPLE-1 (or DOUBLE STAPLE,
REAR STAPLE) button. Only the FRONT STAPLE-1
button is available when installing the single-staple finisher
(MJ-1022). Select other copy modes as required.
5. Press the START button.
TIP: If the paper quantity exceeds the maximum number of
sheets that can be stapled, the finisher automatically enters
the sort mode.
Page 9

 Exposure Settings
There are two types of image density adjustments: automatic mode and manual mode. In
the automatic mode, the density of each original is detected automatically and the optimum
image density is selected. In the manual mode, you can select the desired level of image
density. It is recommended that lighter-density originals be copied in the manual copy
density mode.
Automatic Copy Density Mode
1. Place paper in the drawer(s).
2. Place the original(s).
3. Press the AUTO button.
ySelect other copy modes as required.
4. Press the START button.
Manual Copy Density Mode
1. Place paper in the drawer(s).
2. Place the original(s).
3. Press either the left or right density level button
to adjust the copy density to the desired level.
yEach time you press either the left or right
density level button, your copies will become
lighter or darker respectively.
ySelect other copy modes as required.
4. Press the START button.
Page 10

 Store to e-Filing
In this function, the copied original data can be stored in the e-Filing. During copying, you
can print it at the same time, as required. After storing the original data, you can print it at
any time. To store the original data, you can specify the public box or one of user boxes. The
public box is a pre-set box since the installation of the equipment, and it will be used to store
documents that any user may need to work with. The user box is the one created by the user,
and, if password is set, you need to enter the password correctly.
1. Place the original(s).
yIf there is not enough space in the hard disk, the number
of originals that can be stored may be restricted.
yWhen you want to store and copy the original(s)
simultaneously, select the copy modes as required.
2. Press the E-FILING/FILE button on the basic screen
to enter the filing menu.
3. Press the STORE TO E-FILING button.
4. Press the BOX/FOLDER button. The box list
is displayed.
Page 11

 Store to e-Filing (Cont’d.)
5. Select the box in which you want to store the data, and
then press the ENTER button. Select either the “Public
box” or the “User box”.
6. The document list in the selected box is displayed.
When you want to store the original(s) in an existing
folder, select the folder and press the OPEN FOLDER
button. If you have no folder to be selected, press the
ENTER button.
yIf you want to store the data in the user box, password
entry may be required to display the list.
7. Press the DOCUMENT NAME button to enter
the name of the scanned data. The letter entry menu
is displayed. A document name can contain up to
64 letters.
yThe letter entry menu is displayed. A document name
can contain up to 64 letters
8. Press the ENTER button.
Page 12

 Store to e-Filing (Cont’d.)
9. When “PRINT THIS DOCUMENT?” appears, press
the YES button to store and print the document.
yIf you want to store the document without printing,
press the NO button.
10. Press the START button. Storing of the original starts.
11. “NEXT ORIGINAL?” appears. If you have the other
originals to be stored, press the YES button. If not, press
the FINISHED button.
yWhen the original is set on the reversing automatic
document feeder (optional) to be scanned in the
Continuous Feed mode, this screen is not displayed.
12. Press the FUNCTION CLEAR button to finish this job.
Page 13

 Page Numbering Copying
This feature allows numbers to be added at specified positions on copies.
1. Page number printed at the bottom center on the portrait copy.
2. Page number printed at the top right on the landscape copy.
1. Place paper in the drawer(s).
2. Place the original(s).
3. Press the EDIT button to enter the edit menu, and then
press the PAGE NUMBER button.
4. Select the orientation (Short edge or Long edge) and
position of the page number to be printed, and then press
the ENTER button.
5. Key in the starting page number. If the start page number
is ''1'', just press the ENTER button.
ySelect other copy modes as required.
6. Press the START button.
Page 14

 Job Build
This feature allows you to scan up to 1000 pages of originals with the optimum original mode
and image adjustment respectively, and then copy and store them as a single job.
yAutomatic paper selection, Book to 2, Image editing, X-Y zoom, Cover copying, and
Sheet insertion mode cannot be selected.
1. Place the originals of the 1st job.
yWhen an original is placed on the original glass, one
page is regarded as one job.
yWhen originals are placed on the reversing automatic
document feeder or mixed sized originals are set, see
the following page.
2. Press the EDIT button to enter the edit menu, and then
press the JOB BUILD button.
Page 15

 Job Build (Cont’d.)
3. Press the ENTER button on the screen to set JOB BUILD.
4. After “Press START button to copy after changing
settings.” appears, press the BASIC button.
5. On the Basic screen, set the copy mode, e-filing/file
function, and finishing mode you want to use for the
1st job.
yPress the SETTINGS button to confirm the settings.
yTo change the settings, press the FC button, and then
start the procedure again from step 1.
NOTE: Note that the settings for mixed sized originals, paper size to be copied, finishing
mode (unselectable for mixed sized originals), image shift, book center erase, 2IN1/4IN1, time
& date stamp, page numbering, image direction, book <-> tablet, e-filing/file function cannot
be changed for each job, respectively.
6. Press the START button. Scanning the originals of the 1st job starts.
Page 16

 Job Build (Cont’d.)

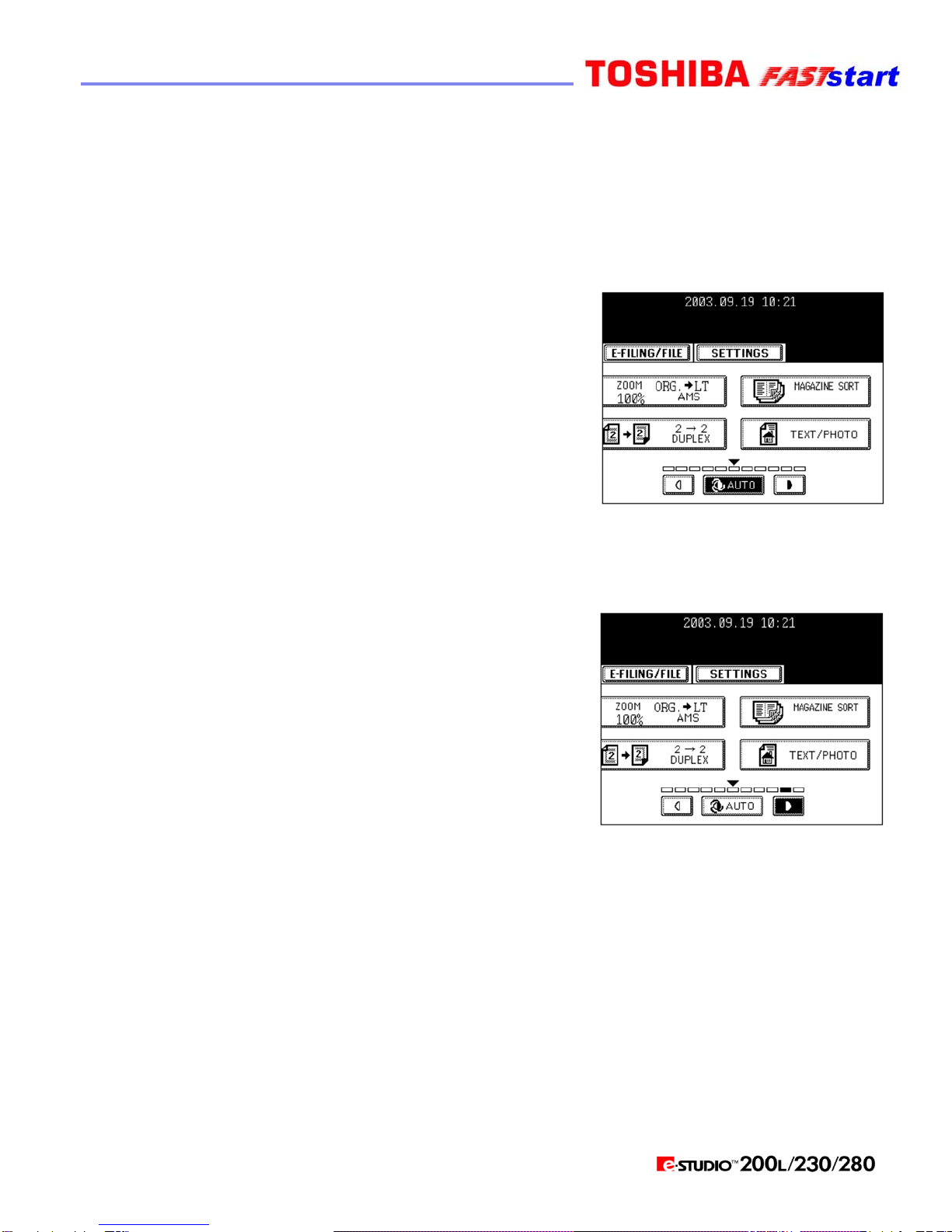

7. After scanning is completed, the JOB FINISH button
is displayed on the screen. Each button has the following
functions.
yJOB FINISH button: All of the scanned originals are
outputted as the settings, they are stored if this was set,
and then the settings of JOB BUILD are released.
8. Place the originals of the 2nd job.
9. On the Basic screen, set the settings for the 2nd job.
yThe settings for the 2nd job or later can be changed with
regard to the following functions:
- Reproduction ratio, automatic magnification selection,
original size, other size
- Scanning mode
- Image adjustment mode
- Edge erase, dual-page
yWhen the 1st job is set and 2-sided copying (or 1-sided
copying) is selected, the setting cannot be changed to
1-sided copying (or 2-sided copying) from the 2nd job.
TIPS:
yPress the SETTING button to confirm the settings.
yTo change the settings, press the FC button, and then start the procedure again from step
1.
yBe aware that copying will be performed in the same modes as those of the 1st job if the
copy modes are not changed.
10. After completing the settings, press the START button. Scanning the originals starts.
TIPS:
yFor the 3rd job or later, repeat from step 7 to 10.
yAny number of jobs can be set until the total number of
scanned original pages reaches 1000.
11. After having completed all the settings and scanning of the
originals, press the JOB FINISH button on the Basic screen.
When copy and e-file/file functions are set, storing starts.
Page 17

 Mixed Size Originals
When placing different size originals on the reversing automatic document feeder, copy can be
made by setting the MIXED ORIGINAL SIZE.
yAvailable combination of original size: LD, LG, LT, LT-R, COMP, 8.5" SQ
yThe copied image may be dislocated depending on the combination of the original size.
1. Place paper in the drawer(s).
yBypass copying is not available.
2. Adjust the tray guide to the widest original size, and
then align the original against the front side.
yPlace the originals with their face up.
3. Press the ZOOM... button to enter the setting menu
of the original or paper size.
4. Press the MIXED ORIGINAL SIZES button.
5. Select either the Automatic Paper Selection or
Automatic Magnification Selection. Select other copy
modes as required.
yFor duplex copying, select the automatic
magnification mode.
yYou cannot enlarge the copy size from LT
(horizontal) to LD (vertical), LG (Vertical).
yWhen using AMS with Mixed Original Sizes, a “Change direction of original” message
may be displayed. If this message is displayed, proceed as directed.
6. Press the START button.
Page 18
