Toshiba DW-15F3(BS)-NZ User manual

English
DISHWASHER
INSTRUCTION MANUAL
Model:
DW-15F3(BS)-NZ
Read these instructions carefully before using your
DISHWASHER, and keep it carefully.

SAFETY INSTRUCIONS
All instructions described should be carefully read and followed.
These instructions are precautions to prevent the risks of serious injury or death of the user, and
any damages to property.
MARKINGS
WARNING
CAUTION
WARNING indicates high possibility of serious injury (*1) or
death of the user.
CAUTION indicates high possibility of serious injury (*2) or property
loss (*3).
(*1) Serious injury - injury which requires hospitalization, lengthy treatment, or blindness, hot and
cold skin burn, electric shock, broken bones or poisoning.
(*2) Injury - injury, skin burn or electric shock which does not require hospitalization or lengthy
treatment.
(*3) Property loss - extended loss of houses, furniture, domestic animals or pets.
SYMBOLS
PROHIBITED!
IMPORTANT
CAUTION
PROHIBITED! Indicates prohibited actions.
Detailed instructions would be indicated on the inside of the circle
or around the symbol in figures or in writing.
IMPORTANT! Indicates mandatory actions.
Detailed instructions would be indicated on the inside of the circle
or around the symbol in figures or in writing.
CAUTION! Recommends to take precautions.
Detailed instructions would be indicated on the inside of the triangle
or around the symbol in figures or in writing.
Do not allow below people to operate the dishwasher
The dishwasher cannot be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
Take care of children and ensure they will not play with the dishwasher.
The packing material may be dangerous to children.
Do not dismantle or modify the dishwasher.
This may cause fire, electric shock or fault, and cause injuries. If repair is required,
please contact with the vendor of the dishwasher.
Use suitable power source according to the power indicated on the dishwasher
nameplate.
It will cause fire or electric shock. The use of improper power source
may cause the socket overheated and cause fire.
Away
from
children
No
modification
Electric
shock
02

Instruction
Prohibit
Instruction
Prohibit
English
Disconnect
power plug
No touch
by wet
hand
Electric
shock
No
dis-assembly
and repair
without
permission
No water
spraying
Away from
flammable
materials
Wipe
off dust
Before cleaning or maintaining the dishwasher, disconnect the power plug first.
Do not connect or disconnect the power plug by wet hand.
This may cause electric shock or fault and cause injuries.
Do not use damaged power lines, power plug or loose power socket.
This may cause electric shock or fault, and cause injuries or fires.
Do not damage power line.
Do not damage, cut, process power line or bend, pull, twist or bind power line.
Besides, do not yank the metal part of the power line, or put weights on the line
or clamp the power line.
The power line may be damaged and cause fire or electric shock. If the
power line is damaged, the damaged line must be replaced by the manufacturer
or its service agent or personnel having similar qualificarion, so as to prevent
dangers.
Do not spray water directly onto the parts of the main body of the dishwasher.
This may cause accidents of electric shock or short circuit.
Do not put flammable materials into the dishwasher.
Do not put flammable materials of kerosene, gasoline, volatile oil, diluent, ethyl
alcohol etc. as well as dishes having such matters into the dishwasher.
It will may cause explosion or fire.
Wipe off dust or dirt accumulated on the plug of power line.
The accumulated dust or dirt may cause fire.
Do not touch the inside of the cabinet, steam jets for during operation or
30 minutes after operation.
There is a fear of burning.
Take out the dishes, clean filters, handle it more than 30 minutes after operation.
There is a fear of burning.
Do not use extension cord.
It may cause fire due to heat.
It there is abnormality such as the spray arm is not moving, smoke or strange smell,
immediately unplug the power plug and stop using the dishwasher.
Please ask the agent you purchased for inspection/repair. There is a danger of
electric shock, fire by electric leakage or short-circuiting.
03

Insert plug
Insert the power plug securely to the base and let the cord go downward.
If the cord goes upward or if the plug is incompletely inserted, it may cause fire due
to electric leakage or heat generation.
Prohibit
Instruction
Prohibit
Away from
flammable
matrtials
Careful
installation
Correct
grounding
No dis-assembly
and repair
without
permission
Do not operate by putting easily combustible items such as towels and cloth inside
the cabinet of the dishwasher.
There is a fear of fire.
Separate from the heat source such as gas stove 15 cm or more.
There are fears of fires and deformations.
Do not place anything on the main unit.
Do not place heavy objects or hot objects on top of the main unit, such as containers
of water or hot water, heat appliances, glasses, electric products, cutlery etc.
Falling by opening and closing the door may cause injury. Also, spilled water may
deteriorate insulation and cause electric leakage and fire.
Do not place the dishwasher near fire.
Do not put the burning candle or cigarette on the dishwasher. It may cause fire.
Make sure the dishwasher can be set at a smooth drainage location.
The use of dishwasher having poor drainage may cause water to flow back to the
dishwasher and cause electric shock or fire.
The dishwasher must be grounded.
The current resistance are minimum after grounding, and this can reduce the danger
of electric shock when the dishwasher become fault state. The electric wires of this
dishwasher have grounding wire and grounding plug.
Fault connection of the grounding wire will cause electric shock. If E3 failure occurs,
please unplugging the power plug from the outlet, and needs to be repaired by
professional electricians or service men.
Do not change the plug without permission.
When the plug does not match the socket, proper power socket shall be installed by
professional electricians.
04

No pulling
by force
No use
No
washing
Application
environ-
ment
No
climbing
Pull off
power plug
Care about
the door
Care for
safety
Care for
cleaning
Attention
When disconnecting the plug from the socket, do not pull the power line by force.
Pull out by grasping the power plug. It may cause electric shock or fault and cause
injuries.
Do not use soap, washing powder or other hand sanitizer. Only dishwashing powder
suitable for automatic dishwasher. It may cause machine fault.
Do not wash plastic utensils.
For plastic utensils, only those marked with safety for the dishwasher or other
similar situations, can be washed by the dishwasher. For the plastic utensils without
marks, check details with the utensil manufacturer.
Only for indoor use.
Such home appliance is for household use, e.g.:
- Applications in staff kitchen of shop, office and other working environments;
- Farmhouse;
- Use for customers in hotel, car hotel and other residence environments;
- Environments of inns
Do not sit or stand on the dish rack or door of the dishwasher.
It may cause dangers of injuries due to deformation or damage.
When the dishwasher is not used for long time, pull off the power plug from
the power socket and close the dishwasher door.
Electric shock or short circuit may be caused due to the degradation of insulating
material.
The door shall keep close, to prevent stumble.
It is very dangerous to open the door during washing, and hot water may cause
scald.
When install the items (dishes, utensils etc) into the dishwasher:
1. Be careful to put sharp utensil to prevent it from scratch the door sealing strip.
2. Warning: the cutters and other sharp tools must be put in the basket, and the
sharp end is put downwards or horizontally.
Moisten the soft cloth by mild cleaning solution, then wipe the machine, and
wipe it dry by dry cloth.
After washing, check if the dishwashing powder is empties.
Firstly, confirm that there is no error or abnormality notification on the panel before
using the dishwasher.
When installing the dishwasher, use new water hose. Do not use the current
water hose.
Maximum inlet water pressure is 1
Minimum water inlet pressure is 0.04
05

06
Prohibit
Prohibit
Attention
to burn
Prohibit
Prohibit
Prohibit
Instruction
Instruction
Instruction
Loading
capacity
Attention
to pinching
of fingers
Do not strongly push open door and main body, nor put the downward
pressure to the door. Falling may cause injuries.
Be careful not to pinch fingers when opening and closing the door.
There is a risk of getting hurt while pinching fingers.
Do not get close to the exhaust port.
Steam or hot air may cause the burns.
While using or after using the dishwasher, pay attention to hot water
drained out.
High temperature hot water may come out, there is a risk of burns.
Prohibit to hit or tap the dishwasher.
Electric shock, electric leakage short circuit may cause fire.
Set the filters correctly.
Residues clogs, causing breakdown.
Do not put light and small dishes such as plastic containers.
If it is dropped by water pressure of the water spray, it may cause malfunction
due to clogging the dishwasher.
Do not use for purposes other than dishwasher dryer.
It may cause a malfunction.
Make the main unit a solid level surface.
Normal operation may not be possible. It may cause water leakage.
Fix the connection of drainage pipe certainly.
It may cause water leakage.
Quantity of tableware advised: 162 pcs (Cup x15 + Saucer x15 + Glass x15 +
Dessert dishes x15 + Dinner plate x15 + Soup plate x15 + Soup spoon x15 +
Fork x15 + Knife x15 + Teaspoon x15 + Dessert spoon x15 )

Warning
Warning
Handle the package of the dishwasher with extreme care.
All packages are recyclables.
Plastic parts are marked with abbreviation of international standard;
Treatments
PE Polyethylene, e.g., tableted package material
Polystyrene, e.g., packing material
Polymethyl, e.g., plastic clip
Polymer, e.g., control panel
Polypropylene, e.g., inner wall
PS
POM
ABS
PP
English
The packing material may be dangerous to children!
The disposal of package and machine shall be submitted to the
recycle center.
When the machine is not in service, please switch off the power and
close the machine door.
The cardboard package is made by recycled paper and shall be collected for recycling.
If the generated rubbish cannot be treated properly, they will be harmful to the environment
and human health, and they shall be properly disposed to prevent potential threat.
For more details of product recycle, please contact relevant departments of local government or
the service center for domestic refuse management.
Treatment: Please do not treat the product as unclassified municipal refuses.
Different refuses have to be subject to special treatment separately.
Such warning sign is used to prevent dangers to you and others.
Please follow it strictly.
After reading, please store it properly for use just in case.
07

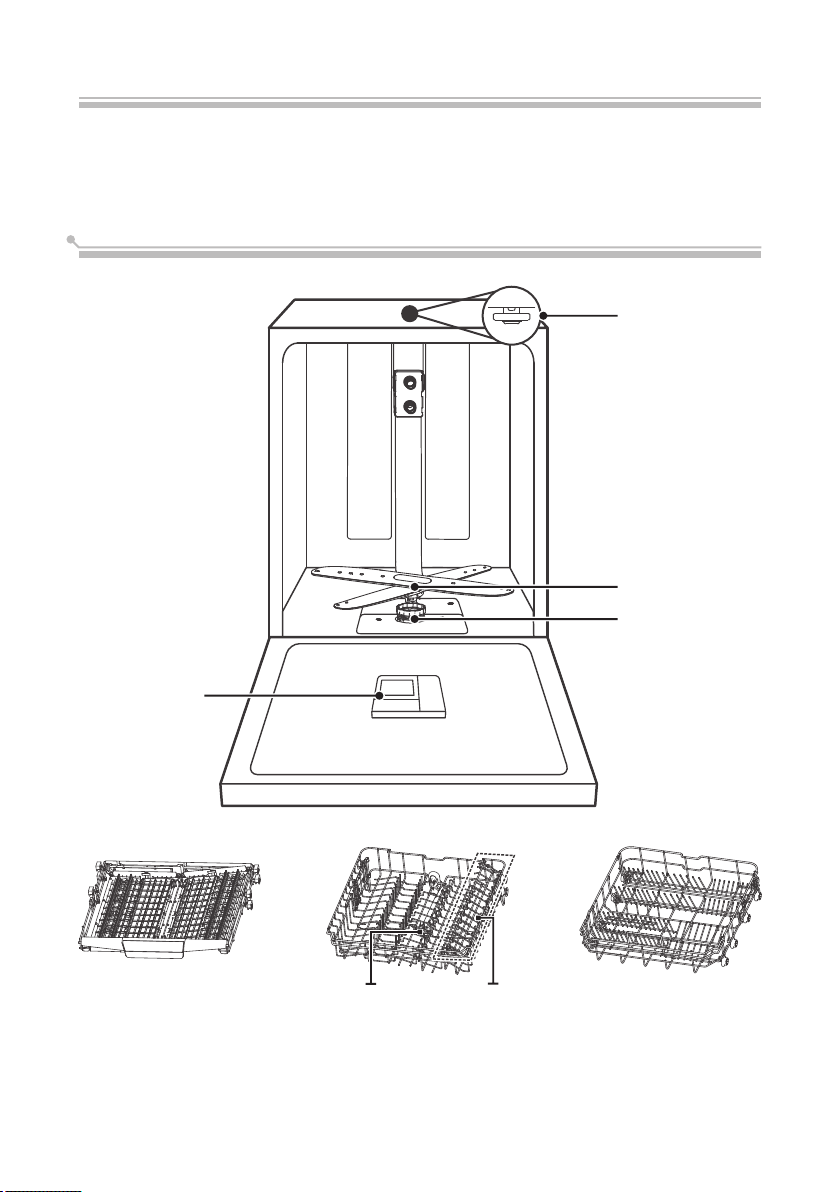

Recognize the dishwasher
Dishwasher features

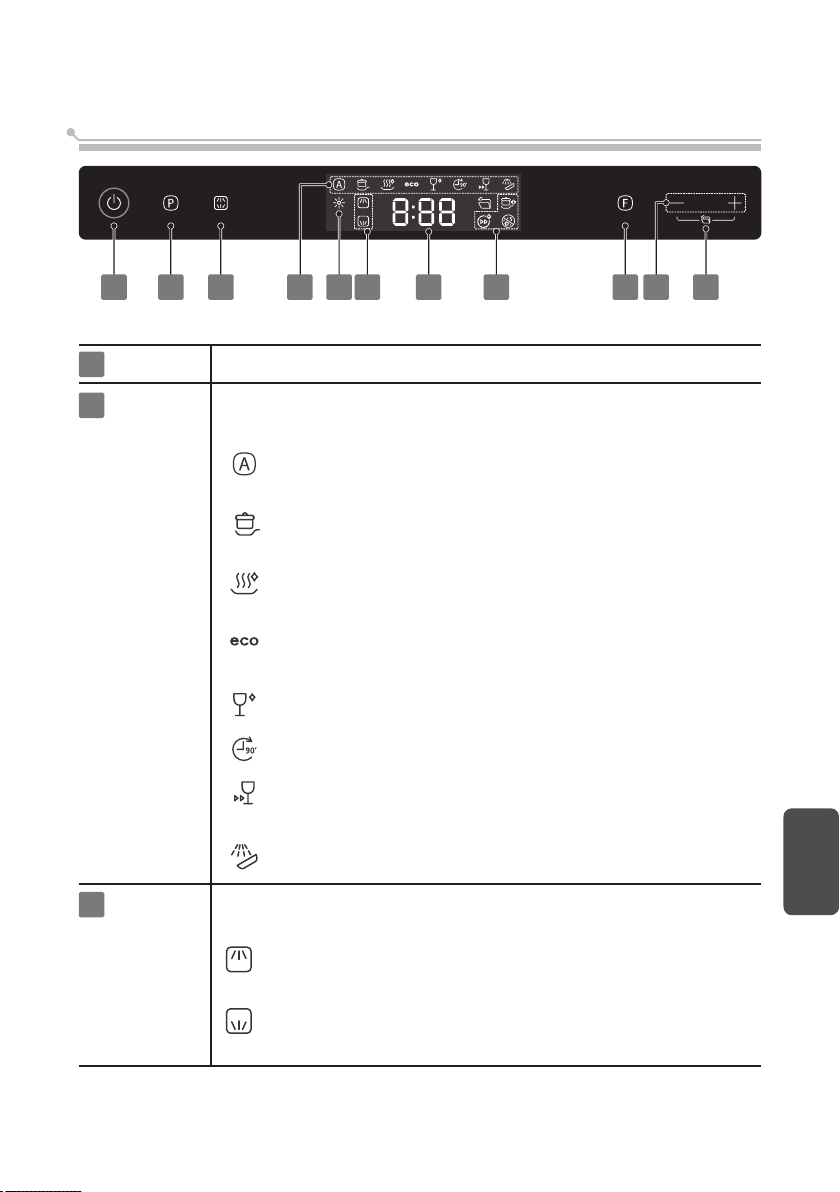

Control panel
10
11
01
Please carefully read the instruction manual before using the dishwasher,
and this is helpful for the use and maintenance of the product.
Contents
08
Start up
Cleaning and care
Filter cleaning
Spray arms cleaning
Care and maintenance
Use the dishwasher
Adding rinse aid to the dispenser
13
02
03
04
Rinse aid and detergent 17
27
28
29
18
14
Program Setting
Washing program
Changing the program mid-cycle
Put additional dishes in
Auto Open
Basket used tips
Install dishwasher bowl basket
19
20
Adding rinse aid to the dispenser
23
14
15
15
End of washing program 16

English
09
Troubleshooting
Before connecting customer service center
Error code
Installation
Product dimension
Power connection
05
30
31
33
35
36
Specification
06
Water connection
Connection of drain hoses
31
32
37
Product fiche

Recognize the dishwasher
Dishwasher features
Important:
Before using the dishwasher for the first time, read following instructions to ensure the
best results.
10
Filter
Lower spray arm
Dispenser
Top spray arm
Cutlery rack Lower basket
Upper spray arm
Upper basket
Cup rack

Control panel
1Power Press this button to turn on your dishwasher.
2Program Select the appropriate washing program and the corresponding
indicator will light up.
English
11
RAPID For slight dirty dishes, the required cleaning time
is relatively short.
GLASS For slight dirty dishes and glasses.
AUTO Light to heavily soiled daily used items, automatic
detection of the amount of soils.
90 MIN For normally soiled loads that need quick wash.
ECO This is standard program. For general dirty dishes
and utensils (such as pots, plates, glasses, pans).
Alt3Press the button to select either upper basket or lower basket loaded,
and the corresponding indicator will light up.
HYGIENE Use to sanitize your dishes and glassware.
The highest water temperature is 75˚C.
SOAK To rinse dishes that you plan to wash later that day.
INTENSIVE For dishes with oil stains and heavy dirty cooking
utensils and dishes.
UPPER
LOWER
When you select upper, only the upper rack nozzle
is activate. The lower nozzle will not operate.
When you select lower, only the lower rack nozzle
is activated. The upper nozzle will not operate.
12 3 4837 42 65

4Function Select a function and the corresponding indicator will light up.
POWER WASH To wash very dirty, hard to clean dishes. It can
only be used with Intensive, Hygiene, Eco, Glass,
90min.
12
Display
8
If the “ ” indicator is lit, it means the dishwasher is low on
dishwasher rinse aid and requires a refill.
To show the remaining time and delay time, error codes etc.
TURBO SPEED+ Reduce the program time.
It can only be used with Intensive, Hygiene, Eco,
Glass, 90min.
5Delay -/+ Press the “+” button to add the delay time or press the “-” button to
decrease the delay time, maximum 24 hours delay can be defined.
7Warning
Indicator
6Auto open After washing, the door will open automatically to achieve better
drying effect.
Press and hold the delay "-" and delay "+" buttons for 3seconds to open
or cancel this function. when the icon lights up, the function
of Auto open is selected.
SANITIZATION Use to sanitize your dishes and glassware.
When the icon lights up, the UV light is
working.

The table below shows which programs are best for the levels of food residue on
Washing program
The above program data is for reference only. Test conditions are as follows:
Attention
Power consumption at shutdown state and standby state similarly are 0.49w.
Washing capacity: 162 pcs (Cup x15 + Saucer x15 + Glass x15 + Dessert dishes x15 +
Dinner plate x15 + Soup plate x15 + Soup spoon x15 + Fork x15 + Knife x15 +
Teaspoon x15 + Dessert spoon x15)
Program Setting
English
13
them and how much dishwashing powder is needed. It also show various
information about the programs.

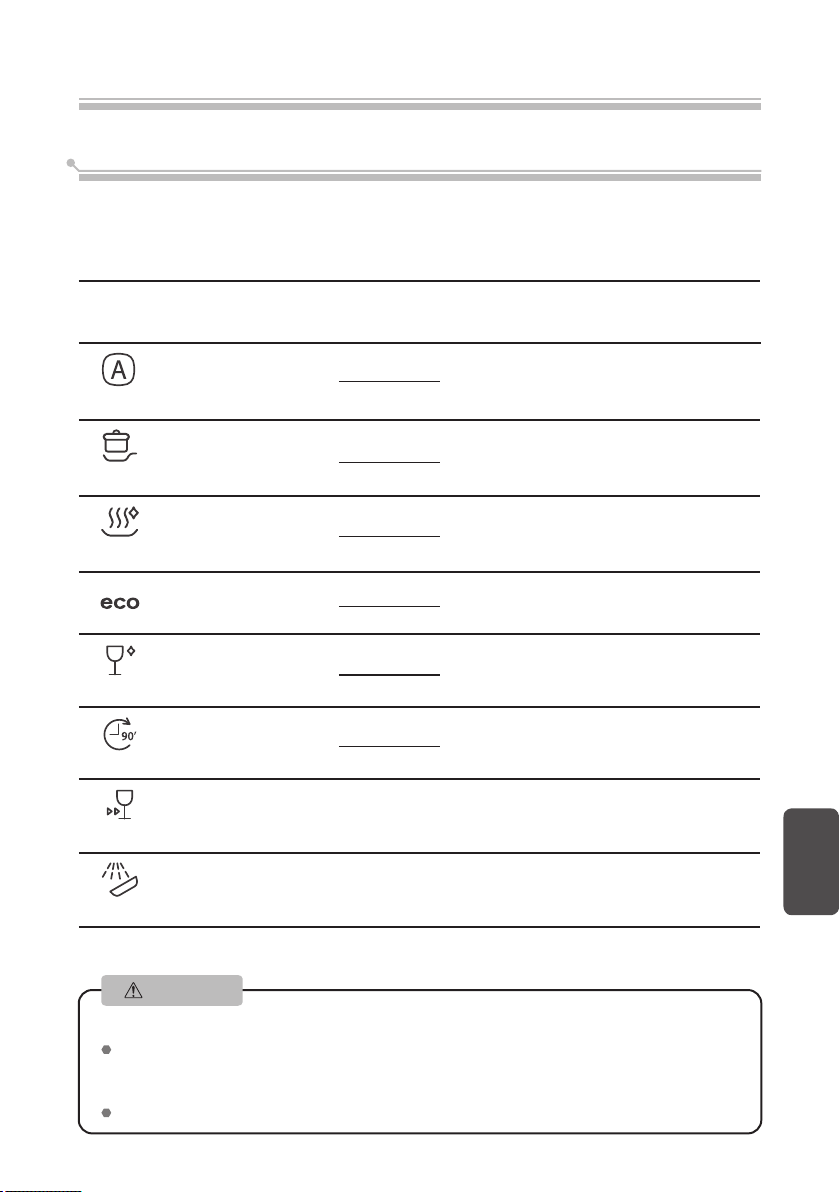

Program
AUTO
INTENSIVE
HYGIENE
(*AS/NZS 2007.1)
GLASS
90MIN
RAPID
SO
NOTE: Select Intensive or Hygiene cycle for better drying performance.
AK
Highest Water
Temperature
65℃
70℃
75℃
60℃
47℃
65℃
55℃
/
Time
(min)
150
175
178
130
195
90
30
15
Water
(L)
11~15
17.5
13.7
13
12
12.5
11
4
Dishwashing
powder (g)
5/28.75
1 tab
33.75
1 tab
/
Power
(kWh)
0.9-1.3
1.4
1.65
0.75
0.62
1.15
0.7
5/28.75
1 tab
5/28.75
1 tab
5/28.75
1 tab
33.75
1 tab
0.02
20

14
Start up
Changing the program mid-cycle
1. The plug shall be firstly plugged into the socket. Power supply shall be of
220-240V AC 50Hz type, with socket of 10 A 220-240V AC.
2. Make sure that the water supply is turned on to full pressure.
3. Open the door, press "ON/OFF" button turn on the dishwasher.
4. Press the button of desired program, the corresponding indicator will light up.
5. Then, close the door, the dishwasher will start its cycle.
A wash cycle can only be changed if it has been running for a short time otherwise, the
detergent may have already been released and the dishwasher may have already drained
the wash water. If this is the case, the dishwasher needs to be reset and the detergent
dispenser must be refilled. To reset the dishwasher, follow the instructions below:
1. Open the door a little to stop the dishwasher, after the spray arm stop working, you can
open the door completely.
2. Press the Program button for more than 3 seconds, the dishwasher will enter
standby mode.
3. Press the Program button to select the desired program.
4. Then, close the door, the dishwasher will start its cycle.
3 seconds

English
15
After washing, the door will open automatically to achieve
better drying effect.
Auto Open
Attention
The dishwasher door must not be blocked when set to open automatically.
This can disrupt door lock functionality.

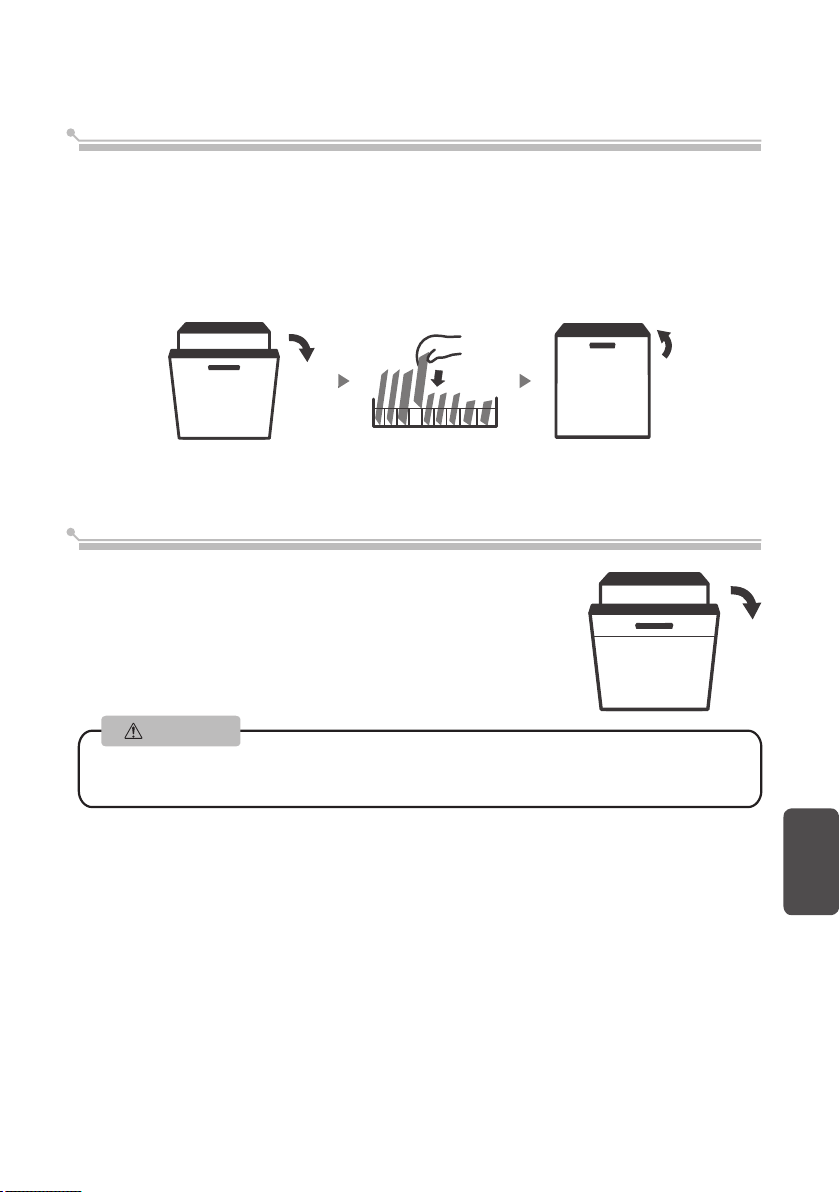

Put dishes in additional
Additional dishes can be placed in at any time before dishwasher program start. If you
want to reload dishes in the process of washing, please follow instructions below:
1. Open the door a little to stop the dishwasher, after the spray arm stop working, you can
open the door completely.
2. Put the additional dishes in.
4. Close the door, the dishwasher will start after 10 seconds.

End of washing program
After the program finishes, the machine show "End" after the buzzer beeps for 8 seconds.
Warning
Turnoffthemachine
Press ON/OFF button to turn off the dishwasher.
Hot dishes are more likely to be damaged. The dishes shall be cool for about 15 minutes
and thentaken out from the dishwasher.
Open the door carefully
It is extremely emely dangerous to open the door in the process of washing as this may cause
severe burn by hot water.
Clear the dishwasher
It is normal that the dishwasher still remains wet inside.
16

The rinse aid is released during the final rinse to prevent water from forming droplets on
your dishes, which can leave spots and streaks. It also improves drying by allowing water
to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any
other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would
damage the appliance.
Function of the rinse aid and detergent
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
When to refill the rinse aid
The regularity of the dispenser needing to be refilled depends on how often dishes are
washed and the rinse aid setting used.
The Low Rinse Aid indicator ( ) will appear in the display when more rinse aid is
needed.
Do not overfill the rinse aid dispenser.
Warning
Warning
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher detergent out
of the reach of children.
English
17
Use the dishwasher

To achieve a better drying performance with limited rinse aid, the dishwasher is designed to
adjust the consumption by user. Follow the below steps.
1. .Close the door and switch on the appliance
2. Within 60 seconds after step 1, press the Program button more than 5 seconds
to enter the set model, the rinse aid indication blinks as 1 Hz frequency.
3. Press the Program button to select the proper set according to your using habits ,
the sets will change in the following sequence: D3->D4->D5->D1->D2->D3.
The higher the number, the more rinse aid the dishwasher uses.
4. Without operation in 5 seconds or press the Power button to exit the set model,
the set success.
3Close the cap after all.

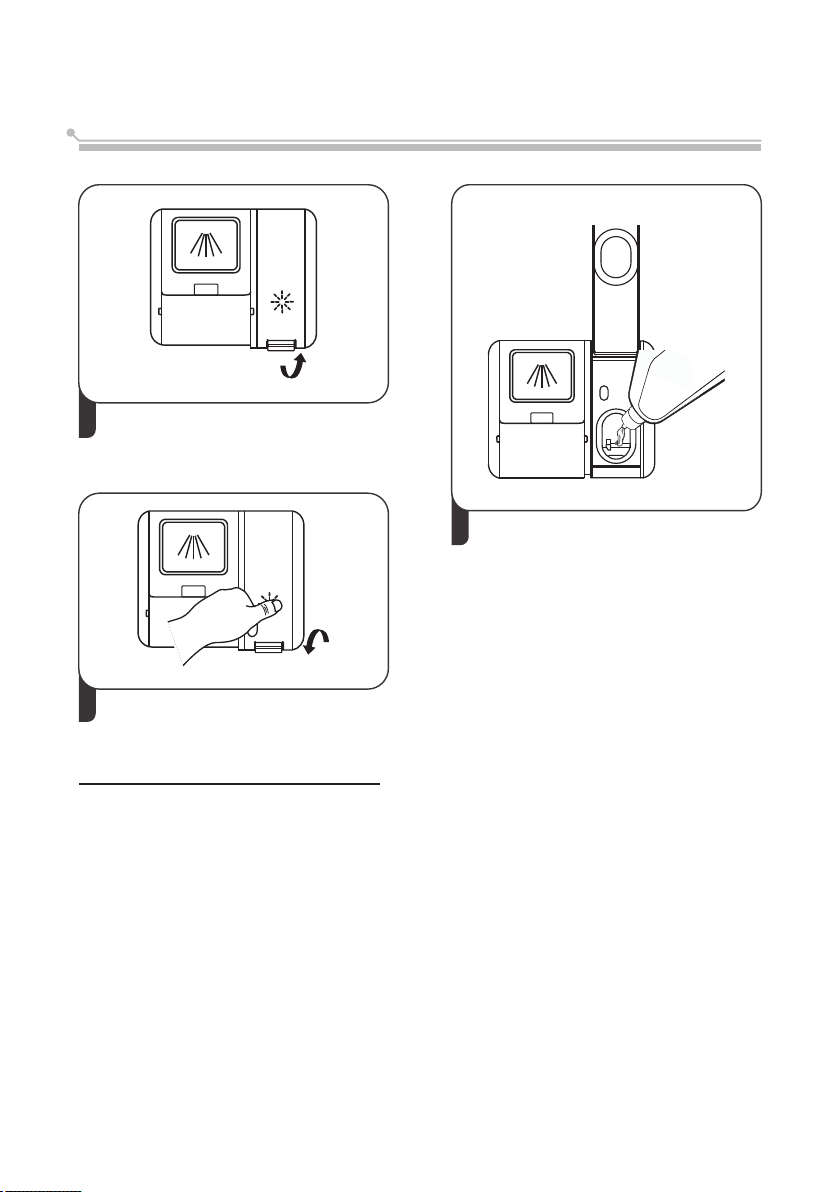

2Pour the rinse aid into the dispenser,
being careful not to overfill.
1Remove the rinse reservoir cap by
lifting up the handle .
Adjusting the rinse aid reservoir
Adding rinse aid to the dispenser
18

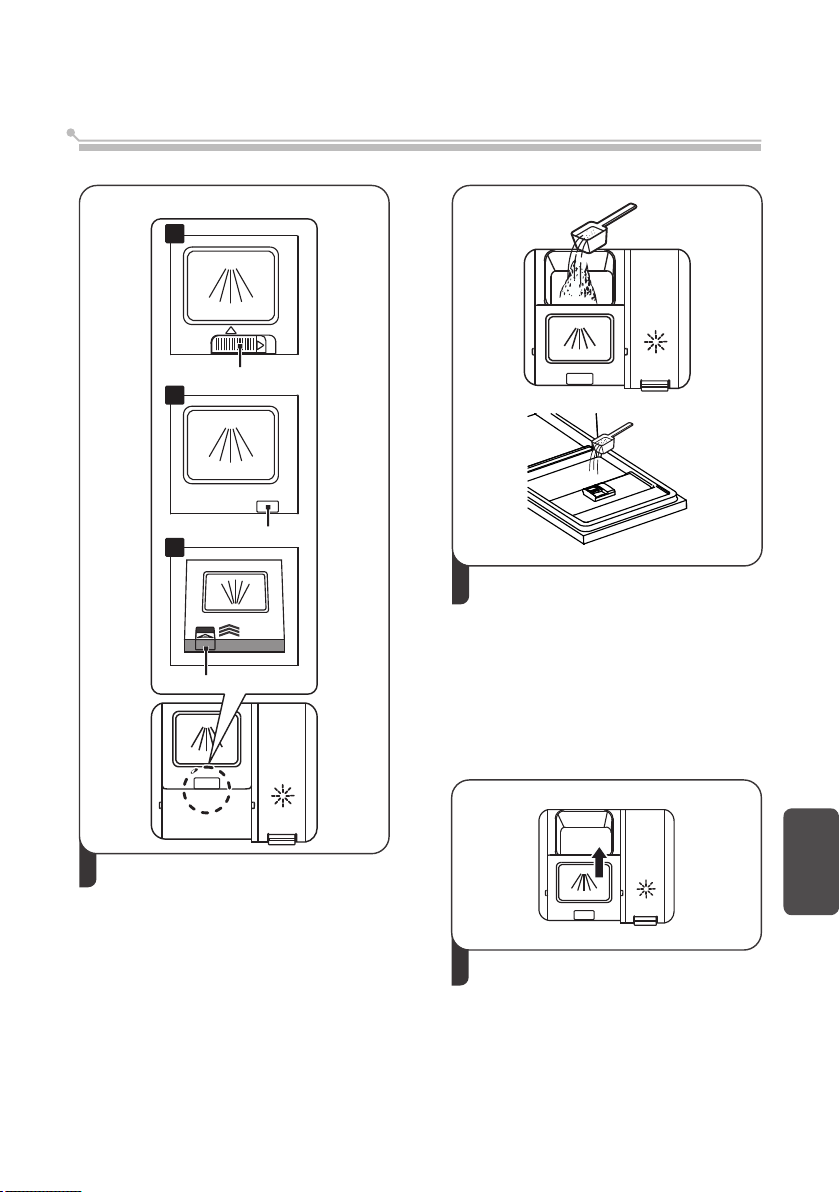

Adding detergent to the dispenser
English
19
2
1Please choose an open way according
to the actual situation.
A. Open the cap by sliding the release
latch.
B. Open the cap by pressing down the
release latch.
C. Open the cap by pressing in the
release latch.
Add detergent into the larger cavity (A)
for main wash.
For better cleaning result, especially if
you have very dirt items, pour a small
amount of detergent onto the door.
The additional detergent will activate
during the pre-wash phase.
3Close the flap by sliding it to the
front and then pressing it down.
AAA
Sliding it to the right
Press down
A
B
BBB
Press in
C
Three ways to open the cover:

Dishes and knives should not be placed in other utensils, and they can’t overlaid each other.
Do not place glass close to each other to avoid damage.
For long knives, placing upright is very dangerous.
Attention
Precautions before and after the bowl basket is placed
Install dishwasher bowl basket
Suggestion
Use the dishwashing machine rationally
Purchase dishes suitable for dishwasher.
Use a suitable mild dishwashing powder. If necessary, consult the manufacturer for more
information.
For special appliances, try to select a washing program that with a lower temperature.
Do not take out the glass dishes immediately after the program ends to prevent damage.
Limited use:Not for:
Wooden, ivory, porcelain or pearl shank tool
Non heat-resistant plastic products
Cohesive knives or dishes
Tin or copper vessels
Crystal glass
Rusty steel products
Wooden utensils
Synthetic fiber products
Stale non heat-resistant cutters with glue
adhesive part
After several cleanings, some glassware
will become dull
Color of smooth dishes may fade out if often
washed
Silver or aluminum products tend to change
color during cleaning
(For the best use of dishwasher, follow the instructions below. For different models, the
characteristics and appearance of the basket will be different) Clear larger food residues.
Soften the residue of burnt food left on the pan. It is not necessary to rinse dishes with water first.
Place the dishes in the dishwasher as follows:
Cups, glasses, pots and so on are placed face down.
For curved or concave and convex vessels, place them diagonally so that the water flows out.
All utensils should be placed safely and must not be overturned.
All utensils should be placed that the arms can rotate freely during washing.
For small objects, it is easy to fall out from the basket, which should not be placed in
the dishwasher.
The open of hollow tablewares (such as cups, glasses, pots, etc.) should face downward so
that water does not easily remain in the container or grooves.
Long or sharp knives (eg. meat cleavers) should be placed horizontally in the basket.
Do not use the dishwasher overloaded so that you can get better cleaning performance.
20
