Toshiba 47TL515U User manual

TOSHIBA
Leading Innovation »>
Easy Setup Guide
Ttl. ····IiJ9;bD
LEuTLJ

Dear Customer,
Thank you for purchasing this Toshiba LCD TV. This
manual will help you use the manyexciting features of your
new LCD
TV. Before operating your LCD TV, please
read this manual completely, and keep it nearby for
future reference.
CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat
Panel Display
Congratulations on your purchase! As you enjoy your
new prOduct, please keep these safety tips in mind:
The Issue
• The home theater entertainment experience is a growing trend
and larger flat panel displays are popular purchases. However,
flat panel displays are not always supported on the proper stands
or installed according to the manufacturer's recommendations .
•
Flat panel displays that are inappropriately
situated on dressers, bookcases,
shelves, desks, speakers, chests or
carts may fall over and cause
injury.
TOSHIBA Cares!
• The consumer electronics industry
is committed to making home
entertainment enjoyable and safe.
www.CE.org/safety
Tune Into Safety
• One size does NOT fit all. Follow the manufacturer's recommendations
for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don't allow children to climb on or play with furniture and
television sets.
• Don't place flat panel displays on furniture .....d __ 1lII...
that can easily be used as steps, such
as a chest of drawers.
• Remember that children can
become excited while watching a
program, especially on a "larger
than life" flat panel display. Care
should be taken to place or install
the display where it cannot be
pushed, pulled over, or knocked down.
• Care should be taken to route all cords and
cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
Wall Mounting: If you decide to wall mount your
flat panel display, always:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory (such
as Ul, CSA, ETl).
• Follow all instructions supplied by the display and wall mount
manufacturers.
• If you have any doubts about your ability to safely install your
flat panel display, contact your retailer about professional
installation.
• Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction. If you
are unsure, contact a professional installer.
• A minimum of two people are
required for installation. Flat panel
displays can be heavy.
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING: If you decide to wall mount this
television, always use aUL Listed wall bracket
appropriate for the size and weight
of this television.
The use
of any wall bracket otherthan aUL Listed wall
bracket appropriate for the size and weight
of this
television for wall mounting this television could result
in serious bodily injury and/or property damage. See
"Removing the Pedestal Stand"
(~ p. 6).
WARNING
To prevent injury, this apparatus must be securely
attached
to the floor/wall in accordance with the
installation instructions. See item 26 on
p. 4and
instructions on
p. 5.
If television is not positioned in asufficiently stable
location, it can be potentially hazardous due to falling.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within
an equilateral triangle, is
intended
to alert the user to the presence
of uninsulated "dangerousvoltage" within
the product's enclosure that may be
of
sufficient magnitude to constitutearisk of
electric shock to persons.
The exclamation point within
an
equilateral triangle is intended to alert the
user to the presence
of important
operating and maintenance (servicing)
instructions
in the literature
accompanying the appliance.
NOTE TO CATV INSTALLERS
This is areminder to call the CATV system installer's
attention
to Article 820-40 of the U.S. NEC, which provides
guidelinesfor propergrounding and,
in particular, specifies
thatthe cable ground shall be connected
to the grounding
system
of the building, as close to the point of cable entry
as practical. Foradditional antenna grounding information,
see items 34 and 35 on
p. 4.
2

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves,
or other apparatus
(including amplifiers) that produce heat.
9) Do not defeatthe safety purpose of Wide blade ~
the polarized or grounding type ~ ~
plug. Apolarized plug has two blades ~
with one wider than the other. ~
Agrounding type plug has two blades
and athird grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement
of the obsolete outlet.
10) Protect the power cord from being
walked on
or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, Cl)
bracket, or table specified by the ~
manufacturer, or sold with the • ~
apparatus. When acart is used, use -..1
caution when moving the cart/apparatus ~ ~~
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged
in any way, such as power-supplycord or plug
is damaged, liquid has been spilled or objects havefallen
into the apparatus, the apparatus has been exposed
to
rain or moisture, does not operate normally, or has been
dropped.
Additional Safety Precautions
14a) CAUTION: If the 1V is dropped and the cabinet or
enclosure surface has been damaged or the 1V does
not operate normally, take the following precautions:
•ALWAYS turn
off the 1V and unplug the power cord
to avoid possible electric shock or fire.
•NEVER allow your
body to come in contact with any
broken glass
or liquid from the damaged television.
The LCD panel inside the
1V contains glass and a
toxic liquid. If the liquid comes in contact with your
mouth or eyes, or your skin is cut by broken glass,
rinse the affected area
thoroughly with water and
consult your doctor.
•ALWAYS
contact aservice technician to inspect the
1V any time it has been damaged or dropped.
15) CAUTION:
• To reduce the risk of electric shock, do not use the
polarized plug with an extension cord, receptacle, or
other outlet unless the blades can be inserted
completely to prevent blade exposure.
•To prevent electric shock,
match wide blade of plug
to wide slot; fully insert.
16) CAUTION:
Do not let children swallow the product or play with the
plastic bag. Keep the
product and the plastic bag out of
the reach of children.
17) CAUTION:
Do not let water or other liquids come into contact with
the product, as it may result in damage.
18) WARNING:
• To prevent the spread of fire, keep candles or other
open flames
away from this product at all times.
•Keep the
product away from direct sunlight, fire or a
heat source such as aheater. This
may reduce the
product lifetime or result in fire.
Installation, Care, and Service
Installation
Followthese recommendations and precautions and heed
all warnings when installing
your 1V:
19) Lh WARNING: NEVER expose batteries to
Iexcessive heat such as sunshine, fire, or
•the like.
20) ALWAYS plug the product into an outletthat is located in
such amannerthat it can beeasily unplugged
in casethe
product requires service.
21) NEVER route the product's power cord inside awall
or
similar enclosed area.
22) Never modify this equipment. Changes
or modifications
may void:
a) the warranty, and b) the user's authority to
operate this equipment under the rules
of the Federal
Communications Commission.
23) Lh DANGER:RISKOFSERIOUS Cl)
PERSONAL INJURY,
•DEATH, OR EQUIPMENT •
~
DAMAGE!
Never placethe 1V on an unstable cart, I
stand, or table. The 1V may fall, causing ,.,
serious personal injury, death, or serious damage to the
1V.
24) To avoid damage
to this product, never place or storethe
TV in directsunlight; hot, humid areas; orareas subject
to
excessive dust or vibration.
25) Never place theTV in an unstabilized location such as on
ashaky table, incline
or location subject to vibration.
•Only use
cabinets fit for such purpose or stands
recommended by the manufacturer of the 1V.
•Only use furniture
that can safely support the 1V.
3

• Secure the TV with the securement clip and a sturdy
strap from the hooks on the rear of the TV pedestal
to awall stud, pillar, or other immovable structure.
Make sure the strap is tight, secure, and parallel to
the floor.
Antenna discharge unit
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
________ Power service grounding
electrode system (NEC Art 250 Pari-H)
Ground clamp
Ground clamps
I
Electric service equipment
32) Never overload wall outlets and extension cords.
30) Always place the
back of the television at least 4(four)
inches away from any vertical surface (such as awall) to
allow proper ventilation.
33) Always operate this eqUipment from a120 VAC, 60 Hz
power source only.
31) Never allow anything to rest on or roll overthe power
cord, and never place the TV where the power cord is
subject to wear or abuse.
35)
Jj\
DANGER: RISK OF SERIOUS
L1....i PERSONAL INJURY OR DEATH!
• Use extreme care to make sure you are never in a
position where your body (or any item you are in
contact with, such as a ladder or screwdriver) can
accidentally touch overhead power lines. Never
locate the antenna near overhead power lines or
other electrical circuits.
•
Never attempt to install any of the following during
lightning activity: a) an antenna system; or b) cables,
wires, or any home theater component connected to
an antenna or phone system.
34) Always make sure the antenna system is properly
grounded to provide adequate protectionagainstvoltage
surgesand built
-up staticcharges (see Section 810 of the
National Electric Code).
The slots and openings are provided to protect the TV
from overheating and to help maintain reliable operation
of the TV. Leave a space of at least 4(four) inches
around the TV.
Care
For better performance and safer operation of your TOSHIBA
TV, follow these recommendations and precautions:
Screw hole
Mounting screw
(supplied)
Sturdy strap (as short as possible)
~
~ .
Hooks '..•.•.... ~. ' .. \,
'\I/-r\:
'\. /
Securement
TV top Clip (supplied)
~T
----{---
TV back
TV side
lt
4"
I "~,
~-=q
Securement
Clip (supplied)
27) Never stand or climb on the TV.
•
Educate children about the dangers
of climbing on furniture to reach the \/
TV or its controls.
Be especially careful in households
with children to prevent them from
climbing on top of the TV. It may move,
fall over, break,
become damaged or cause an injury.
26) Always place
the TV on the floor or asturdy, level, stable
surface
that can support the weight of the unit. In order to
maintain stability and prevent the TV from falling over,
secure the TV
by either of the methods below:
•
Secure the TV with the supplied mounting screw.
(recommended)
Place the TV on a sturdy surface that has a sufficient
thickness and screw the unit on the surface securely
by using the mounting screw and the fall-prevention
screw hole.
•Ensure
that the TV is not hanging over the edge of the
supporting furniture.
•
Never place the TV on tall furniture (for example,
cupboards or bookcases) without anchoring both the
furniture and the TV to a suitable support
• Never stand the TV on cloth or other material placed
between the TV and supporting furniture.
The TV may drop or fall off which may cause an injury or
damage.
28) The apparatus shall not be exposed to dripping or
splashing, and that no objects filled with liquids, such as
vases, shall
be placed on the apparatus.
29) Never block or cover the slots or openings in the TV
cabinet back, bottom, and sides. Never place the TV:
•
on a bed, sofa, rug, or similar
surface;
•
too close to drapes, curtains,
or walls; or
•in a confined space such as a
bookcase, built-in cabinet, or
any other place with poor
ventilation.
36) If you use the TV in aroom whose temperature is 32 OF
(0 0c) or below, the picture brightness may vary until the
LCD warms up. This is not asign of malfunction.
------ ... _._--_. -_ ..•...
37) Always unplug the TV before
cleaning. When cleaning
your
TV, pleasefirstremove any dirt or
dust from the surface. Gently
wipe the cabinet and the display
panel surface (the TV screen)
with adry, soft cloth (cotton, flannel, etc.). Harsh rubbing
or use of adirty or stiff cloth will scratch the TV surface.
Avoid
contact with alcohol, thinner, benzene, acidic or
alkaline solvent cleaners, abrasive cleaners, or chemical
cloths, which may damage the TV surface. Never spray
4

volatile compounds such as insecticide on the TV
surface. Such products may damage or discolorthe TV.
38) Never hit, press, or place anything on the back cover.
These actions will damage internal parts.
39) ~ WARNING: Ji\
Lh RISK OF ELECTRIC SHOCK! ill
Neverspill liquids or push objects of any kind intothe TV
cabinet slots.
40) During alightning storm, do not touch the connecting
cables or TV set.
41) Foradded protection ofyour TV from lightning and power
surges, always unplug the power cord and disconnect
theantennafrom the
TV ifyou leavethe TV unattended or
unused for long periods of time.
42) ALWAYS unplug the TV to completely disconnect from
main power. When the
TV is turned off using the on/off
switch, it
is notcompletelydisconnected from powerand
aminute amount of current is still consumed.
43) During normal use, the TV may make occasional
snapping or popping sounds. This is normal, especially
when the unit is being turned on or off. If these sounds
become frequent or continuous, unplug the power cord
and contact aToshiba Authorized Service Provider.
44) Lh WARNING: RISK OF
SERIOUS PERSONAL
~ INJURYOR EQUIPMENT
DAMAGE!
Never strike the screen with asharp
or heavy object.
45) •The LCD screen of this product can be damaged by
ultraviolet radiation from the sun. When selecting a
location for the television, avoid locations where the
screen may be exposed to direct sunlight, such as
in
front of awindow.
•Never touch, press, or place anything on the LCD
screen. These actionswill damagethe LCD screen. If
you need
to clean the LCD screen, follow the
instructions in item 37 on
p. 4.
Service
46) ~ WARNING: Ji\
Lh RISK OF ELECTRIC SHOCK! ill
Never attempt to service the TV yourself. Opening and
removing the covers may expose you
to dangerous
voltage or other hazards. Failure
to follow this
WARNING mayresult in death or serious injury. Refer all
servicing not specified
in this manual to aToshiba
Authorized Service Provider.
-------
47) If you have the TV serviced:
•Ask the service technician
to use only replacement
parts specified by the manufacturer.
•Upon completion
of service, ask the service
technician
to perform routine safety checks to
determine that the lV is in safe operating condition.
Choosing a location for your LCD TV
To Display your LCD TV on the included Pedestal
Stand:
Observe the following safety precautions:
1) Read and Follow the pedestal assembly instructions
included with the pedestal.
CAUTION: Before beginning pedestal assembly,
carefully lay the front of the LCD Panel face down on a
flat, cushioned surface such as aquilt
or blanket.
Leave the bottom of the unit protruding over the edge
of the surface and assemble the pedestal as indicated
below.
Note: Extreme care should always be used when
attaching the pedestal stand
to avoid damage to the
LCD panel.
2) Placethe TV on asturdy, level surface that can support
the weight of the
lV.
3) Be sure to secure the lV to awall stud, pillar, surface,
or other immovable structure. To secure the
TV in this
manner: (1) attach the provided securement clip to an
immovable structure, then (2) pass asturdy strap
through the securement clip and attach each end to
the hooks located on the back of the TV. Be sure to
leave at least 4inches between the lV and the wall or
similar structure for ventilation. See item 26, p. 4for
additional details.
To Display your LCD TV using a Wall Bracket:
If you decide to wall mount your LCD TV, always use a UL
Listed wall bracket appropriate for the size and weight of
the LCD lV (1& p. 2) :
CAUTION:
1. Two people are required for installation.
2. To install awall-mount from another manufacturer, use
the enclosed SPACERS. (Except 32")
1) Unplug and remove any cables and/or other
component connectors from the rear of the TV.
2) Carefully lay the front of the unit face down on aflat,
cushioned surface such as aquilt
or blanket.
3) Follow the instructions provided with your wall
bracket. Before proceeding, make sure the
appropriate bracket(s) are attached
to the wall and the
back of the lV as described in the instructions
provided with the wall bracket.
4) Make sure to place the spacers provided with the lV
between the bracket and the back of the lV.
5) Always use the screws supplied or recommended by
the wall mount manufacturer.
5

Safety Precautions for 3D glasses
Caution
Such symptoms may occurwhen wearing 3D glasses for
long periods
of time.
Cautions on watching the 3D images
• Some viewers may experience a seizure or blackout
when exposed to certain flashing images or lights
contained in certain 3D television pictures or video
games.
Anyone who has had aseizure, loss of awareness, or
other symptom linked
to an epileptic condition, or has a
family history
of epilepsy, should contact ahealth care
professional before using the 3D function.
•
Avoid using the 3D function when under the influence
of alcohol.
• If you are ill or feel ill, you should refrain from viewing
3D images, and consult your health care provider as
may be appropriate.
• If you experience any of the following symptoms
when viewing 3D video images, stop viewing and
contact your health care provider:
Convulsions, Eye or muscle twitching, Loss of
awareness, Altered vision, Involuntary movements,
Disorientation, Eye Strain, Nausea/Vomiting, Dizziness,
Headaches.
•
If you feel eye fatigue or other discomfort from
viewing 3D video images, remove the 3D glasses and
discontinue use until the condition improves.
• Viewing in 3D may cause dizziness and/or
disorientation for some viewers.
Therefore, to avoid injury do not place your TV near open
stairwells, balconies, or wires.
Also
do not sit near objects that could be broken if
accidentally hit.
•
When viewing 3D images, always wear 3D glasses.
Watching 3D images without specified 3D glasses may
cause eye strain.
•Do
not wear 3D glasses or watch 3D images from
steep angles or while lying down.
The 3D effect is lost in these conditions and eye strain
may result.
•
It is recommended that the viewer's eyes and 3D
glasses are level with the screen.
• If you have prescription eye glasses or contact
lenses, wear the 3D glasses over them.
Watching 3D images without appropriate eyewear may
cause eye strain.
•
If 3D images often appear doubled or if you cannot
see the images in 3D, stop viewing.
Continuous viewing may cause eye strain.
•Due to the possible impact on vision development,
viewers of 3D video images should be age 6 or above.
Children and teenagers may be more susceptible to
health issues associated with viewing in 3D and should
be closely supervised
to avoid prolonged viewing without
rest.
Five screws
Screw
Wall bracket
Spacer (supplied)
TV back panel
Removing the Pedestal Stand
1) Carefully lay the front of the unit face down on aflat,
cushioned surface such as aquilt
or blanket. Leave the
stand protruding over the edge of the surface.
Note: Extreme care should always be used when
removing the pedestal stand
to avoid damage to the
LCD panel.
2) Remove the five screws.
3) Once you have removed all five
screws holding the pedestal
stand
in place, remove the
pedestal stand from the TV by
sliding the pedestal stand away
from the TV.
(Except 32")
About the 3D glasses
•Do not repair, modify, or disassemble the 3D glasses
by yourself.
Doing so may cause you to become indisposed while
watching 3D images.
•
Do not use the 3D glasses if they are cracked, broken,
or not working properly.
Continuing to use them in such astate may cause injury,
eye strain, or indisposition.
•Do
not stand or walk while wearing 3D glasses.
You may lose your balance which could result in falls or
other accidents.
•
Do not wear the 3D glasses for any purpose other
than viewing 3D programming.
3D glasses do not function as sunglasses.
•
Do not drop, exert pressure on, or step on the 3D
glasses.
Doing so may damage the glass section, which may
result
in injury.
Exposing the 3D glasses
to liquid or excessive heat may
damage the function.
•
If your nose or temple turns red, or you feel any pain
or discomfort, stop using the 3D glasses.
6

IMPORTANT: Ifyou see adouble image, your eyes are
either too high or too low in relation to the horizontal center
of the screen. Adjustyourposition so that it is closer to the
center to avoid eye fatigue and to enjoy optimum 30
effects.
•For optimal 3D effect and to avoid eye fatigue it is
important that you properly select your viewing
position.
The best viewing position is at the indicated viewing
distance with your eyes at the same level as the center of
the display as shown below. The center of the optimum
viewing area varies from set to set. The usable viewing
area is generally over
the range shown in the table below
(actual angle not depicted in draWing).
Viewing Angle Viewing Distance
32TL515U Approx. 16 deg. Over 47 inches
42TL515U Approx. 26 deg. Over 62 inches
47TL515U Approx. 26 deg. Over 69 inches
55TL515U Approx. 26 deg. Over
81 inches
liSA - Federal Communications
Commission Statement
FCC Compliance Statement
Toshiba television models 32TL515U, 42TL515U,
47TL515U, and 55TL515U
comply with Part 15 of the FCC
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
The party responsible for compliance to these rules is:
Toshiba America
Information Systems, Inc.
9740 Irvine Blvd., Irvine, CA 92618.
Ph: 1-800-631-3811
Interference: This equipment has been tested and found
to comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to providereasonable protection againstharmful
interference in aresidential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in aparticular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•
Connect the equipment into an outlet on acircuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Wireless Radio
For product available in the USA/Canada market, only
channell-II can be operated. Selectionof other channels is
not possible.
The device could automatically discontinue transmission
in caseof absence of information to transmit, or operational
failure. Note that this is not intended to prohibit
transmission of control or signaling information or the use
of repetitive codes where required by the technology.
If this device is going to be operated in 5.15-5.25GHz
frequency range,
then it is restricted to an indoor
environment only.
Important: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter.
FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits setforth for an
uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm
between the radiator &your body
>1
Same height as
Center of Display
Viewing Distance
7

Canada -Industry Canada Statement
ENERGY STAfrBJ User Information
Important notes about your LCD TV
ENERGY STAR User Information Statement: the factory
default settings of this television meet ENERGY ST AR®
requirements. Enabling or changing certain features and
functionality (e.g. PictureSettings, Auto BrightnessSensor)
may increase energy consumption, possibly beyond the
limits required for ENERGY STAR qualifi.cation.
To
ensure your television is operating at optimal energy
efficiency, select [Home]
mode during initial activation. To
return to [Home] mode settings, select [AutoView] picture
mode,
and set the Auto Brightness Sensor to [On] mode.
[AutoView]
mode is recommended for normal home use.
!For more information.
The following symptoms are technical limitations of
LCD Display technology and are not an indication of
malfunction; therefore, Toshiba is not responsible for
perceived issues resulting from these symptoms.
1) An afterimage (ghost) may appear on the screen if a
fixed, non-moving image is displayed for along period
of time. The afterimage is not permanent and will
disappear in ashort period
of time.
2) The LCD panel contained in this TV is manufactured
using an extremely high level of precision technology;
however, there may be an occasional pixel (dot of light)
that does not operate properly (does not light, remains
constantly lit, etc.). This is astructural property of LCD
technology, is not asign of malfunction, and is not
covered under your warranty. Such pixels are
not
visible when the picture is viewed from anormal
viewing distance.
Note: Interactive video games that involve shooting a
"gun" type of joystick atan on-screen target may not work
with this
TV.
This device complies with RSS-21O.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference
that may cause undesired operation
of the device.
This device
and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter.
Wireless Radio
For product available in the USA/Canada market, only
channel 1-11 canbe operated. Selection of
other channelsis
not possible.
The device could automatically discontinue transmission
incase of absence ofinformation to transmit,
or operational
failure. Note that this is
not intended to prohibit
transmission of control or signaling information or the use
of repetitive codes
where required by the technology.
Important: Any changes or modifications not expressly
approved by the party responsible for compliance could
void the user's authority to operate this equipment.
IMPORTANTNOTE:
IC Radiation Exposure Statement This equipment
complies with IC RSS-102 radiation exposure limits set
forth for an uncontrolled environment.
This equipment
should
be installed and operated with minimum distance
20 cm between the radiator & your body.
8
II
Ijijlj;tWJitl!ij
ENERGY STAR® qualified TV. Products that
earn the ENERGY STAR prevent green house
gas emissions by meeting strict guidelines set
by the
U.S. Environmental Protection Agency.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.

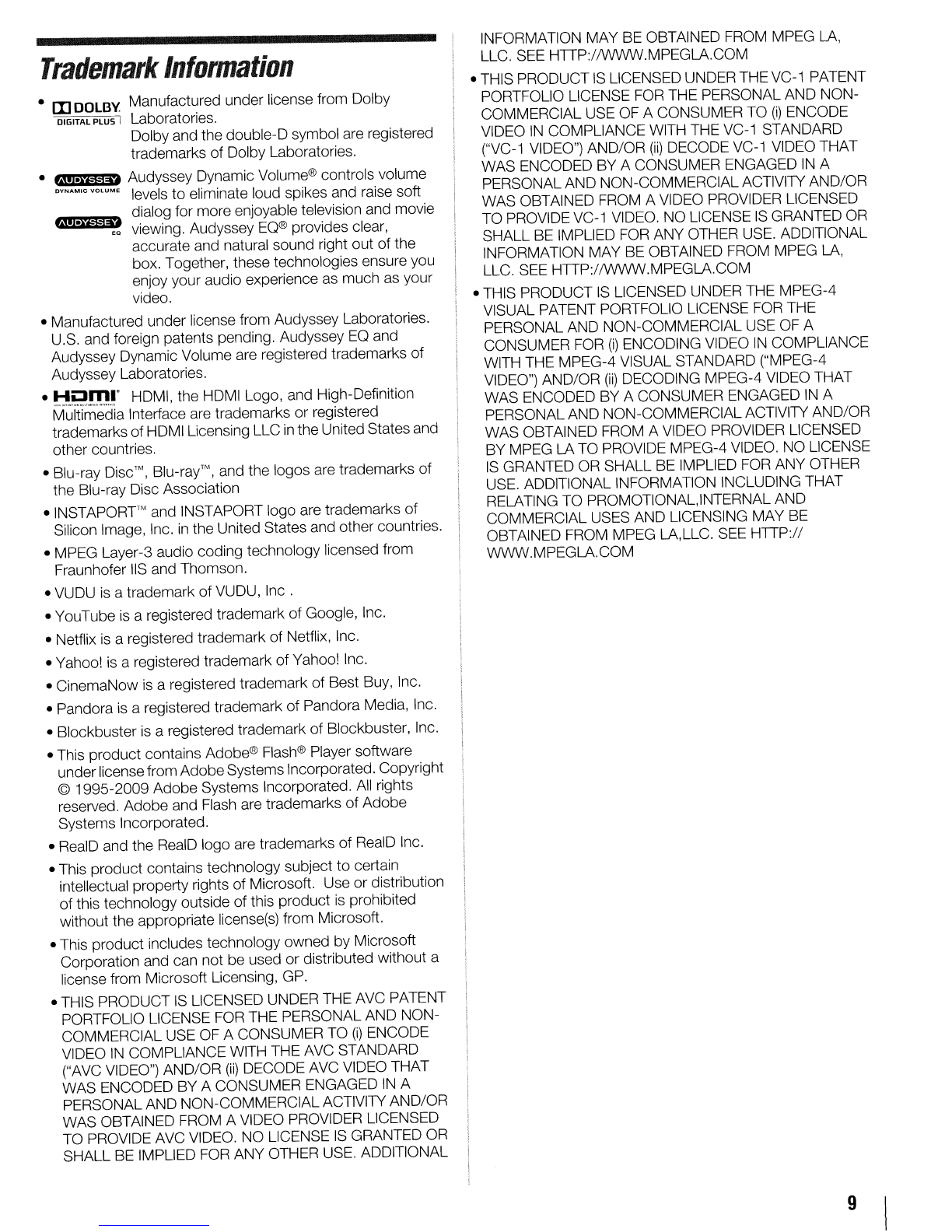

Trademark Information
• [I] DOLBY. Manufactured under license from Dolby
DIGITAL PLUS ILaboratories.
Dolby and the double-D symbol are registered
trademarks
of Dolby Laboratories.
•t.",m'-J§jD Audyssey Dynamic Volume® controls volume
DVNAM,e VOCUME levels to eliminate loud spikes and raise soft
dialog for more enjoyable television and movie
tiii)·4i#J#+
EO viewing. Audyssey EO® provides clear,
accurate and natural sound right
out of the
box. Together, these technologies ensure you
enjoy your audio experience as much as your
video.
•Manufactured under license from Audyssey Laboratories.
U.S. and foreign patents pending. Audyssey
EO and
Audyssey Dynamic Volume are registered trademarks
of
Audyssey Laboratories.
• tlBmr HDMI, the HDMI Logo, and High-Definition
Multimedia Interface are trademarks
or registered
trademarks
of HDMI Licensing LLC in the United Statesand
other countries.
•Blu-ray
Disc™, Blu-ray'M, and the logos are trademarks of
the Blu-ray Disc Association
• I
NSTAPORr
Mand INSTAPORT logo are trademarks
of
Silicon Image, Inc. in the United States and other countries.
•MPEG Layer-3 audio coding technology licensed from
Fraunhofer liS and Thomson.
•VUDU
is atrademark of VUDU, Inc.
•YouTube is aregistered trademark of Google, Inc.
•Netflix is aregistered trademark
of Netflix, Inc.
•Yahoo!
is aregistered trademark of Yahoo! Inc.
•CinemaNow
is aregistered trademark of Best Buy, Inc.
•Pandora is aregistered trademark
of Pandora Media, Inc.
•Blockbuster
is aregistered trademark of Blockbuster, Inc.
•This
product contains Adobe® Flash® Player software
underlicense from Adobe Systems Incorporated. Copyright
©1995-2009 Adobe Systems Incorporated. All rights
reserved. Adobe and Flash are trademarks
of Adobe
Systems Incorporated.
•RealD and the RealD logo are trademarks of RealD Inc.
•This
product contains technology subject to certain
intellectual property rights
of Microsoft. Use or distribution
of this technology outside of this product is prohibited
without the appropriate license(s) from Microsoft.
•This product includes technology owned by Microsoft
Corporation and can not be used
or distributed without a
license from Microsoft Licensing, GP.
•THIS PRODUCT
IS LICENSED UNDER THE AVC PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF ACONSUMER TO (i) ENCODE
VIDEO
IN COMPLIANCE WITH THE AVC STANDARD
("AVC VIDEO") AND/OR
(ii) DECODE AVC VIDEO THAT
WAS ENCODED BY ACONSUMER ENGAGED
IN A
PERSONAL AND NON-COMMERCIALACTIVITY AND/OR
WAS OBTAINED FROM AVIDEO PROVIDER LICENSED
TO PROVIDE AVC VIDEO. NO LICENSE
IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTP://WWW.MPEGLA.COM
•THIS PRODUCT
IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF ACONSUMER TO
(i) ENCODE
VIDEO
IN COMPLIANCE WITH THE VC-1 STANDARD
("VC-1 VIDEO") AND/OR
(ii) DECODE VC-1 VIDEO THAT
WAS ENCODED BY ACONSUMER ENGAGED
IN A
PERSONAL AND NON-COMMERCIALACTIVITY AND/OR
WAS OBTAINED FROM AVIDEO PROVIDER LICENSED
TO PROVIDE VC-1 VIDEO. NO LICENSE
IS GRANTED OR
SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTP://WWW.MPEGLA.COM
•THIS PRODUCT
IS LICENSED UNDER THE MPEG-4
VISUAL PATENT PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL USE OF A
CONSUMER FOR
(i) ENCODING VIDEO IN COMPLIANCE
WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4
VIDEO") AND/OR
(ii) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY ACONSUMER ENGAGED
IN A
PERSONAL AND NON-COMMERCIALACTIVITY AND/OR
WAS OBTAINED FROM AVIDEO PROVIDER LICENSED
BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE
IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION INCLUDING THAT
RELATING TO PROMOTIONAL,INTERNAL AND
COMMERCIAL USES AND LICENSING MAY BE
OBTAINED FROM MPEG LA,LLC. SEE HTTP://
WWW.MPEGLA.COM
9

Front panel control
Brightness Sensor
This sensorwill detectthe ambient lightconditions to
optimize the backlighting levels.
Examples show Model 32TL51SU.
TV Iront
===.1
'--+-----lJ
1 -'
Service LED
Power LED
Remote Sensor
Touch sensor
Touch key function:
-These are available when touched.
•POWER -To
turn the TV on and off.
.... T - To change the channel. When a
menu is onscreen, these keys function
as
up/down menu navigation
buttons.
• + - - To adjust the volume level. When
a men uis onscreen, these keys
function as
left/ right menu
navigation buttons.
•MENU -To access the menu. When a
menu is onscreen, the MENU key on
the TV's control panel functions as the
RETURN button.
•INPUT-To change the source you are
viewing. When a menu is onscreen,
the INPUT key
on the TV's control
panel functions as the OK button.
Back panel connections
For explanations of cable connections, see p. 12-17.
*To use PC/
COLORSTREAM HD2IN,
an appropriate adapter
(not supplied) is
necessary.
** To use COLORSTREAM
HD1 IN, VIDEO 1 IN, or
VIDEO 2IN, an
appropriate adapter
(supplied) is necessary.
HDMI®
IN
o
TV back
o
(~I USB
I - f7II'l' terminal
f. N ~IHJ
ICOLORSTREAM HD1 IN**
To configure
for use (for audio), see "Side
.~h ~----;-I Shared Audio" (J@"p.21).
~--.J
.~q~-~~f- -+1------ VIDEO 1IN**
ii-
UIVIDEO 2IN** To configure for use, see "Side Shared
Audio"
(J@" p. 21).
'----11---,. §n =?J I FIXED AUDIO
"'-"---~~~-::~::-I J ~ E ~ tJE
~ D
xI
NCE
rlAN"(""'EL"NIouT~,",oUTL" - tJE PC/COLORSTREAM HD2I
~
~ t ~:" I ~ 'RIl ;~~ AU~ ~ •j ~~:In~i~~r~f~~i~~~:~~e
-f?J - - r \rt!.l - -~' -A"Rear Shared Audio"
1--------1 J (J@"p. 21).
ANT/CABLE PC/COLORSTREAM
HD2IN* (Video mput)
LAN port To configure for use, see "Shared
PC Input" (J@" p. 21).
IR IN/OUT To configure for use. see p. 15-16.
DIGITAL AUDIO OUT See "Connecting adigital audio system"
(J@" p. 16).
10

liltroduction
Bundling the cables
Install the cable damps and bundle the cables in them.
Stand type
o o
Cable Clamps
Wall Mount type
oo
Cable Clamps
, ~It.,
~l
-~\
D
Cll ,
r=;;o;rrr;"",..""",d '
- I
oD0 -, ,// ;;;/.;1
!~r: 0 :] l~?f¥::U:~'--+~+-1 --
L!=:::!'========--iU -"_ ===jF-;::i=~!'-;,i
I ':
11

Connecting to a Satellite dish, an Antenna, or Cable TV
TV back panel
AV adaptercable
(supplied)
Coaxial cable
Component adapter
cable (supplied)
Cable box
Component
video cable
~
~. Satellite receiver with component video
AUDIO
~ ~ Y!M:~T~:! ~~~ i+=:O;
Satellite dish 1:-t-t'---------'''''-'·
Standard audio
cable T
VHF/UHF Antenna
Cable TV
You will need:
•Coaxial cables
• AV
adapter cable (supplied)
• Standard audio cable
•
Component adapter cable (supplied)
• Component video cable
To view satellite programs using the component video
connections:
Turn on the satellite receiver. Press IINPUTI and'" or'" to
select
ColorStream HD1. Use the satellite receiver's
controls to
change channels.
To view the antenna or cable signal:
Press
IINPUTI and ... or ... to select ANT/CABLE.
To view basic and premium cable channels:
Turn on the cable box. Press IINPUTI and ... or ... to select
ANT/CABLE.
Tune the TV to channel 3 or 4(the
channel the cable box output is set to). Use the cable
box's controls to change channels.
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
12

Connecting an HDMI® or DVI device to the HDMI input
HDMI device
TV back panel
~
~~
_-_'N _
PC/COLOR
STREAM HD2 S4
DVI device ,8,
~ A~O~
The HDMI input on your TV receives digital audio and
uncompressed digital video from an HOM I device, or
uncompressed digital video from aDVI (Digital Visual
Interface) device.
This input is designed to accept HDCP (High-
Bandwidth Digital-Content Protection) program
material in digital form from EIA/CEA-861-D
compliant[l] consumer electronic devices (such as aset-
top box or DVD player with HDMI or DVI output).
Supported signal formats: VGA, SVGA, XGA, WXGA,
SXGA, 480i (60Hz), 480p (60Hz),
nop (60Hz), l080i
(60Hz), and 1080p (24Hz/60Hz).
Supported Audio format: Linear PCM, sampling rate
32/44.1/48 kHz.
Note: Some legacy HOMI sources may not work properly
with your HOMI TV due to the adoption of new standards.
Try disabling the options in HOMI Settings.
To connect an HDMI device, you will need:
- One HDMI cable per HDMI device
-Recommendation: For proper operation, use an
HOMI cable with the HOMI Logo (HOm.).
- To display an 1080p/60 Hz signal format, you need a
High Speed HOMI cable. Aconventional HOM I/O VI
cable may not work properly.
-HOMI cables transfer video and audio. Separate
analog audio cables are not required.
To view the HDMI device video:
Press IINPUTI and .. or T to select HOMI 1, HOMI 2, HOMI
3, or HOMI4.
To connect a DVI device, you will need:
- HDMI-to-DVI adapter cable
-For proper operation, the length of the HOMI-to-OVI
adaptercable must not exceed 9.8 ft (3 mY.
Recomended length.' 6.6 ft (2 mY.
-3.5 mm Stereo to RCA V-Cable
-An HOMI-to-OVI adapter cable transfers video only.
Separate analog audio cables are required.
Note: To ensure that the HOMI or OVI device is reset
properly:
- When turning on electronic components, turn on the TV
first
and then the HOMI or OVI device.
- When turning offelectronic components, turn off the
HOMI or OVI device first and then the TV.
[1] EIA/CEA-861-D compliance covers the transmission of
uncompressed digital video with high-bandwidth digital
content protection, which
is being standardized for
reception
of high-definition video signals. Because this is
an evolving technology, it is possible that some devices
may not operate properly with the TV.
13

Connecting your TV
Connecting a VCR or DVD player with ColorStream® (component video)
Yellow White Red Green Blue
VCR DVD player
loL= .. L ] I~· .. c=:J 0.00°;1
TV back panel
AV adapter cable (supplied)
Light green
111111 ...-... ~~~o ~
1~t;;:I: ~
o h"0---'
---i!!!iiUI:J=...-... ~ ~ ~...L ~ ~
> _ 0
Light yellow '" _ :I:
o ;;\0
--+ ~~ ~...Lg
=lJIL....jr- > ~
Light yellow
AVadapter
cable
(supplied)
Component adapter
cable (supplied)
Standard
audio cable
COMP(lNENl VIDEO AUDIO OUT
'@ "~"@ ((6))"@
1-1-1-1-1
Component video
cable
Standard
AN cable
You will need:
• Standard AIV cable
• AV
adapter cable (supplied)
• Standard audio cable
•
Component adapter cable (supplied)
• Component video cable
- You can connect the component video cables from
the
OVO player to the Co/orStream HD1 terminal on
the TV Separate audio cables are required.
You can
use the Co/orStream
HDt terminals to display
Progressive (480p, 720p, 1080p)
and Interlaced
(480i, 1080i) video. Check the owner's manual
of the
OVO player in order to determine the best output
signalavailable (1080p 24 Hz/30 Hz/50 Hz/25 Hz are
not supported).
-
If your OVO player does not have component video,
connect acomposite video cable
to VIDEO 2on the
side panel.
If your OVO player has HOMI video, see
p. 13.
To view the DVD player:
Turn on the DVD player. Press IINPUTI and" or Tto select
ColorStream HD1. Audio configuration is required.
See "Side Shared Audio" (I@' p. 21), and select
ColorStream HD1.
To view the VCR or view and record antenna-sourced
channels:
Turn on the VCR. Tune the VCR to the channel you
want to watch. Press IINPUTI and .. or Tto select VIDEO 2.
The unauthorized recording, use, distribution, or
revision of television programs, videotapes, DVDs,
and other materials is prohibited under the Copyright
Laws of the United States and other countries, and
may subject you to civil and criminal liability.
14

Connecting remote IR devices
Using the IR OUT terminal
You can use the TV's IR OUT terminal to remotely
operate many infrared remote-controlled devices
enclosed in an entertainment center or similar cabinet.
You
will need:
• Dual-wand IR blaster cable
•
Other cables as required to connect the device(s) to the
TV (KW p. 13-14)
To set the IR OUT mode:
1 ~u > Settings> PREFERENCES> IR Control.
2 Press ~ or ~ to select Out.
To connect the IR blaster cable:
1Locate the infrared sensor on the front of your
device. This sensor is marked on some devices.*
2Align one of the IR blaster cable's wands about 1
inch away from the infrared sensor on the front of
the device and attach it using double-sided
mounting tape. If you have a second device, attach
the second wand in a similar manner.
Note: If you do not have asecond device, coil the
second wand with arubber
band and leave it behind
the TV.
3 Plug the IR blaster cable's plug into the TV's IR OUT
terminal.
Front of IR-controlled DVD player (for example)
Front of IR-controlled audio device (for example)
To control the device(s):
Point either the device's remote control or the TV
remote control (that you previously programmed to
operate the device) toward the front of the TV and press
the button for the desired function. The signal passes
from the remote control through the TV to the device
via the IR blaster cable.
I
f
. ...
Note: The IR pass-through feature does not support aiIIR-
controlled devices. Satisfactory quality may not be
attainable with certain devices.
*1£ you cannot locate the device's infrared sensor:
1 Turn off the device.
2
Starting at the device's lower-left corner, place
the end of the device's remote control (with the
infrared emitter) so it touches the front of the
device. Press POWER. (Do not use the TV's
remote control for this step.)
3
If the device turns on, the sensor is located where
the remote control touched the device.
4
If the device does not turn on, move the remote
control slightly to the right and press POWER
again.
5
Repeat the previous steps if necessary.
Infrared
sensor
~II ===:::!II
00000
/
IR blaster cable wand
(approx.1 inch from device)
TV back panel
r'N/,~UTl r~
~~
L-
Dual-
wand
IR
blaster
cable
15

OUT
\())
Back of IR receiver/repeater control system
(not included)
Optical
audio
cable
o
o
o
o
TV back panel
Connecting a digital audio system
The TV's DIGITAL AUDIO OUT terminal outputs a
Dolby® Digital
or 2-channel down-mixed peM (pulse-
code modulation) signal for use with an external Dolby
Digital
decoder or other external audio systems with
optical audio input.
You will need:
•Optical audio cable (Use an optical audio cable that
has the larger TosLink connector, not the smaller
mini -optical connector.)
Dolby Digital decoder or other
digital audio system
IR cable
~-::~J+ow
'-=------
TV back panel
Using the IR IN terminal
For additional control options for your home theater
system, you can connect an IR receiver/ repeater control
system (not included) to the TV's IR IN terminal.
You
will need:
•IR cable
To set the IR IN mode:
1 ~u > Settings> PREFERENCES> IR Control.
2Press ~ or ~ to select In.
To operate the TV with this connection, point the
Toshiba TV remote control toward the front of the IR
receiver
/repeater control system.
Note:
•Some audio systems may not be compatible with Dolby
Digital bitstream signals. Older audio systems that are
notcompatible with standard opticaloutsignals may not
work properly, creating ahigh noise level that may
damage speakers or headphones.
THIS DAMAGE IS
NOT COVERED BY YOUR WARRANTY
•
The DIGITAL AUDIO OUTterminal may notoutputsome
digital audio sources due
to copy restrictions.
IR receiver/repeater
control system
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of
Dolby Laboratories.
To view the HOMI device video:
Press
IINPUTI and ... or Tto select the HDMI1, HDMI 2,
HDMI 3, or HDMI 4.
To connect a OVI device, you will need:
• One HDMI-to-DVI adapter cable
16

Connecting to a home network
Connecting the TV to a home network with an
Internet connection . Wireless
The LAN port allows your Toshiba TV to connect to
your home network.
Connecting the TV to a home network with an
Internet connection· Wired
You will need:
•Coaxial or telephone cable (depending on your
modem type)
•
Standard LAN cables
•Wireless
LAN access point or wireless router
• Modem (OSL or cable)
[1] Coaxial or telephone cable (depending on your modem
type)
[2] Standard LAN cable
[3] Do NOT connect aphone jack directly to the TV's LAN port.
Built-in WLAN system:
It is
not necessary to
connect an adapter to
the TV.
[1 ]
Cable or
phone jack
Wireless LAN access point
Modem (,~~, L, or,,~,able) ~,~" ~
LJ~tiJ [if ,,' I
U[2]
[1] Coaxial or telephone cable (depending on your modem
type)
[2] Standard LAN cable
The transmission speed over the wireless LAN and the
distance over which wireless LAN can reach may vary
depending on surrounding electromagnetic
environment, obstacles, access point design and
configuration, and client design and software/
hardware configurations. The actual transmission
speed will be lower than the theoretical maximum
speed.
TV back panel
[2]
l[3]
======:=!J
Cable or
phone jack
You will need:
•Coaxial or telephone cable (depending on your
modem type)
•
Standard LAN cables
•
Router with Hub
• Modem (OSL or cable)
Modem (DSl or cable) Router with Hub
I i'C,'1 ,;:;-l rc::., I' 'li':<', 'H:r~'ll
~r-~-":t~ L':tl"c a !, ,II ., rJ
~l~ U
vJ[2]
17

~ - . '!. ,~",~ ". ~~"'!'r- ~ r:~(i!'~ ;J,~;>'·""J"'~~~lt!iF' ll·;:i'i!('l!-,,!;;""':""''1 "/':" ij--.j;~
Using the remo'te ~con'iriJl: "'.' .
Learning about the Remote Control
Selects the picture size.
Adjusts the volume level.
Accesses the sleep timer.
Reduces orturns offthe sound.
Activates highlighted items
in
the main menu system.
Enters 2-part channel numbers /
Edits the Favorites List.
Sets the remote control mode
to
control the device: TV, CABLE/SAT,
BD/DVD, or AUX. To control the TV,
press TV. Then the keypad blinks 3
times.
When theAuto Inputfeature is set, you
can use these keys to change inputs
on the
TV.
Changes the picture mode to Game
when the input mode is ColorStream
HD,
PC, VIDEO, or HDMI®.
Only the buttons used to operate the TV are described in this section.
~~~~=---- Turns the TV on and off.
~ @ ~~ 11 __ Illuminatesthe keypad for five seconds.
.--=:"'i" MODE SELECT 9==-
--7-'-~
cI=I' 2 -eu Tunes channels directly.
~5DJII
---++-fD 8 DilTIII Selects the video input source.
D0 ~ Accesses the Quick menu.
_----;..;.-..;..r+I-:.+---', [awcK] i"J-Cycles thmugh programmed channels.
III VOL It MUTE] I CH
i
lli Returns to the last viewed channel or
--+I!---I U [CHRTNJ ~ source.
Displays the NET
TVTM menu (~ p. 27). ---'1--'--1 ~1~~ Displays TV status information as well
Accesses Netflix.
_--+~N:....E_TT~V7 ~ ~
I
II I as program details, when available.
II ~ ~ ~~ ~ Displays/hides the Yahoo!®TV Widgets
Accesses the main
TV menu system. II I~ ~~rG \)0<>~ II user interface.
Opens the Channel Browser'" /
In CDDisplays the Favorites Browser /
Scrolls
to left. 11/'" ~\'\ u_ .... ~ • \..9!:.J ~ ) )~ Scrolls to right.
When a menu is onscreen,
~\..." /
these buttons select oradjust
Jld'\~(/~ ~ ~+~ II Closes onscreen menus.
programming menus.
~ _ ~;/
r;-rT~ -::L--~.l..-_~=-'-+-; 1-- Moves to the previous/next page.
Returns to the previous menu.
~I -- ~
II~~
II
HoME
~
-----;I+I----,.::,}E:c@ A20 SlJBT!.~l~11 Opens the closed caption selector.
'yEp PIC SIZE MTS co/" II
o 000
----::+---;-;,=~/ "'-----~J:+-- Selects the audio mode.
II 'OZE 0 sOP eQ
c
Freezes the picture. I::::' ~ ~ These buttons are used for BD/DVD,
~ CABLE/SAT, and VCR mode.
Switches
3D, 20, 20 to 3D, or Native
mode (~ p. 23).
TOSHIBA
CT-90367
Note: The error message "NOTAVAILABLE" may appear if you press a key for afunction that is not available
18

Initial Setup
When you first tum on or reset the TV, the Initial Setup
window will appear.
Note:
• You can stop Initial Setup by pressing §0. However, if
you do not finish Initial Setup, the Initial Setup screen will
appear every time you turn on your TV.
• §0 does not work until Menu Language, Time Zone,
and Location have been set.
1 Menu Language
Select alanguage. Press @.
2 Time Zone
Local Time Setting
-~
Daylight Saving Time Off
Select atime zone.
3 Daylight Saving Time
Local Time Setting
Time Zone Eastem
~..d..~t~~~~~~iil~J"'.i:;'j
~~~~;f~~~
Select On or Off. Press @).
4 Location
Select Home for normal home use. Press @.
5 ANT/CABLE
To select Antenna:
First, select
Antenna.
Then, select Next. Press @).
Select Auto, Digital, or Standard. Press @).
To select Cable:
First, select
Cable.
Then, select Next. Press @.
Note: If you do not want to scan channels, you do not
need to makeaselection for ANT/CABLE Select Next
and press @to skip this step.
19

;:j';%~;\~;¥,'~~~: 'or!," :~~. ",L~ ~:;~f~-~~'~~'~3~~jJ' ~~.!'\,~~;;",:<,,' "': ;i'~":.! ;;~ ':";';' ,; ':, ;.; ;I;.,,, :'~ ,. ;::;'~c·'E:-'~??H'~EfS?;!~..:::~~:~~=~!:~rq;;~~·t.~~:;_~!·!:~ ~ ... ~H;~~'r!~ :t~·+z~~~~5~";'J~·'~~~ ,~;~,~.,.:,.; "':":';<::;:'" 11";~",;T;,",::,7""-:;,;T""';:;~) .'.
Initial Setup illid Menu
6 Start Scan
Auto Tuning
-
Navigating the menu system
-To open the main menu, press ;i:0-
u
on the remote
control or TV control panel.
Press
8.
Note: If you want to stop scanning. press ~ while
scanning,
-After scanning is complete, achannel list screen
(such as the
one below) will appear. Press 8or
~.
Auto Tuning (Antenna)
Antenna Channels Found: 14
Ch. .ti'o Type RF Ch.
_IIIIIIDIIIIIII_
4-1 ~ 4
4-2 m4
6
~ 6
11 ~ 11
13 ~ 13
18 ~ 18
31 @l] 31
,
- Press"', "Y, .... , or ~ on the remote control or TV control
panel to navigate and make selections.
-To select a
menu option, press @.
-To move to the next menu page, press 8 or ....
-To return to the previous menu page, press ~~N or "Y.
-To close a menu instantly, press ~u or~.
-All menus will close automatically if you do not make
aselection within 60 seconds.
If some channels are not found after scanning:
-Check the antenna/cable connections, and scan
agam.
-Connect the TV to the antenna or cable box
directly
and scan again.
1 ~u > Settings> SETUP> Quick Setup> @.
2 A confirmation message appears. Press
.... or ~
to select Yes. Press @.
3Repeat set up to Step 6.
- If you selected Antenna previously, select
Cable.
- If you selected Cable previously, select
Antenna.
4Scan again.
7 Support Information
The Support Information screen appears. Press @.
Note: Refer to this information if there is any problem.
This can be confirmed from the following operation at
any time,
~u > Settings> SETUP> System Information>
8·
20
