TOSHIBA
Owner's Manual
REGZ~

Dear Customer,
Thank you for purchasing this Toshiba LCD TV. This manual
will help
you use the many exciting features of your new LCD
TV. Before operating your LCD TV, please read this manual
completely,
and keep it nearby for future reference.
CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat
Panel Display
www.CE.org/safety
Tune Into Safety
• One size does NOT fit all. Follow the manufacturer's recommendations
for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for
proper use of this product.
• Don't allow children to climb on or play with furniture and
television sets.
• Don't place flat panel displays on
furniture that can easily be used as
steps. such as a chest of drawers.
• Remember that children can
become excited while watching a
program, especially on a "larger
than life" flat panel display. Care
should be taken to place or install
the display where it cannot be
pushed, pulled over, or knocked down.
• Care should be taken to route all cords and
cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.
Wall Mounting: If you decide to wall mount your
flat panel display, always:
• Use a mount that has been recommended by the display
manufacturer and/or listed by an independent laboratory (such
as UL, CSA, ETL).
• Follow all instructions supplied by the display and wall mount
manufacturers.
• If you have any doubts about your ability to safely install your
flat panel display, contact your retailer about professional
installation.
• Make sure that the wall where you are mounting the display is
appropriate. Some wall mounts are not designed to be mounted
to walls with steel studs or old cinder block construction. If you
are unsure, contact a professional
installer.
• A minimum of two people are
required for installation. Flat panel
displays can be heavy.
Congratulations on your purchase! As you enjoy your
new product, please keep these safety tips in mind:
The Issue
• The home theater entertainment experience is a growing trend
and larger flat panel displays are popular purchases. However,
flat panel displays are not always supported on the proper stands
or installed according to the manufacturer's recommendations .
•
Flat panel displays that are
inappropriately situated on dressers,
bookcases, shelves, desks,
speakers, chests or carts may fall
over and cause injury.
TOSHIBA Cares!
• The consumer electronics industry
is committed to making home
entertainment enjoyable and safe.
Safety Precautions
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
WARNING: If you decide to wall mount this television,
always
use a UL Listed wall bracket appropriate for the size
and weight of this television. The use of any wall bracket
other than a
UL Listed wall bracket appropriate for the size
and weight of this television for wall mounting this television
could result
in serious bodily injury and/or property damage.
See "Removing the Pedestal Stand" (I&' page 5).
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may
be of sufficient
magnitude
to constitute arisk of electric shock to
persons.
The exclamation point within an equilateral triangle is
Intended
to alert the user to the presence of important
operating and maintenance (servicing) instructions
in
the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO
NOT REMOVE COVER (OR BACK).
NO USER-5ERVICEABLE PARTS INSIDE. REFER
SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING
To prevent injury, this apparatus must be securely attached to
the floor/wall in accordance with the installation instructions.
See item 20
on page 3 and instructions on page 5.
NOTE TO CATV INSTALLERS
This is areminder to call the CATV system installer's attention
to Article 820-40 of the U.S. NEC, which provides guidelines for
proper grounding
and, in particular, specifies that the cable
ground shall
be connected to the grounding system of the
building, as close to the point of cable entry as practical. For
additional antenna grounding information, see items
27 and 28
on page 4.
2

~
....
~
r .'
(.~ ~
;,.

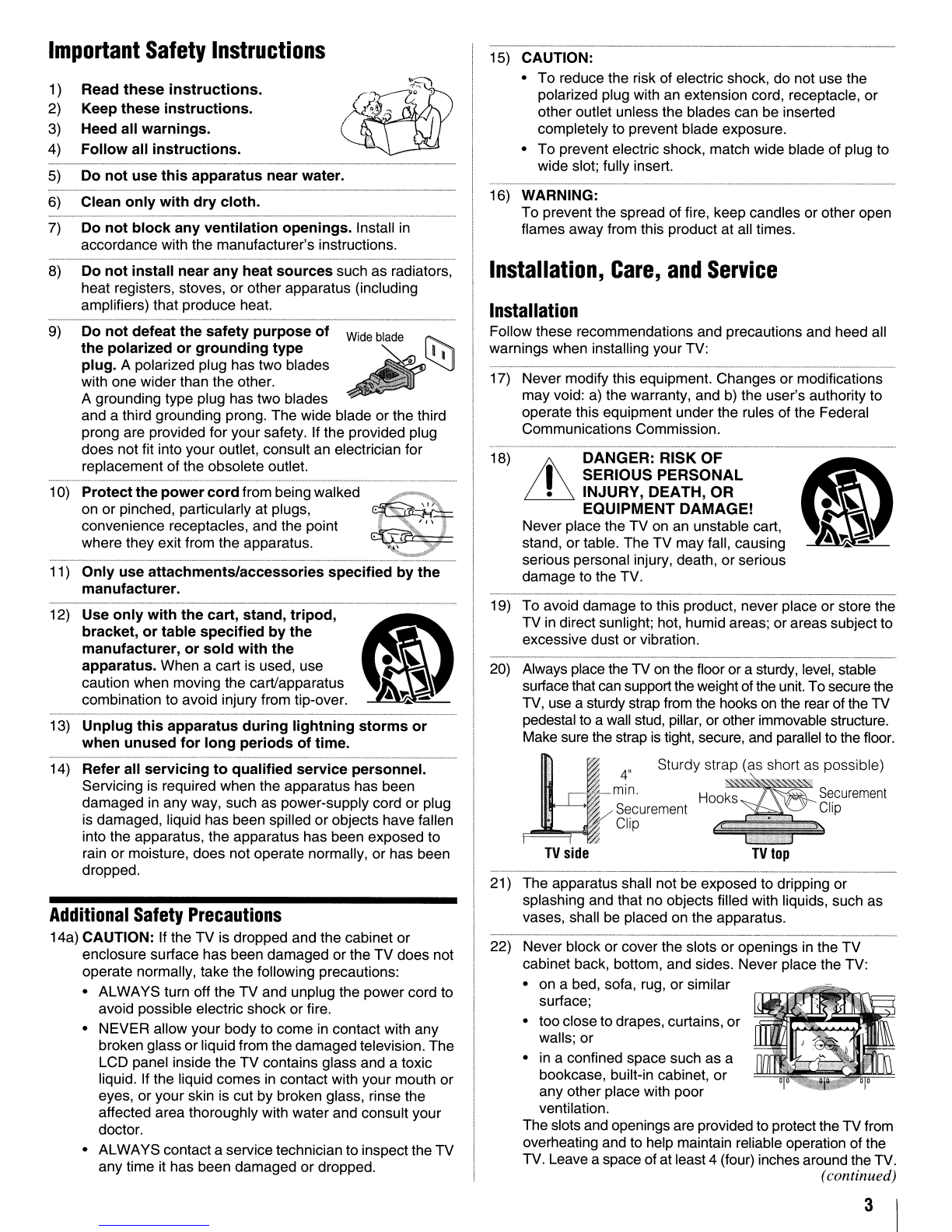

Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
------------
5) Do not use this apparatus near water.
........ _~~-_._-_. __ ._ .. _._ .. __ ._-_ .. _ .. _--_._---_. __ ._-----_._. __ ._--_._. __ ._-------"
6) Clean only with dry cloth.
-_._."_._---"--"-_._-_._-----_._----_._-_ .. __ . __ ._----- .. --_._--
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
15) CAUTION:
•To reduce the risk of electric shock, do not use the
polarized plug with
an extension cord, receptacle, or
other outlet unless the blades can be inserted
completely to prevent blade exposure.
•To prevent electric shock, match wide blade of plug to
wide slot; fully insert.
16) WARNING:
To prevent the spread of fire, keep candles or other open
flames away from this product at all times.
22) Never block or cover the slots or openings
in the TV
cabinet back, bottom, and sides. Never place the TV:
•on abed, sofa,
rug, or similar
surface;
•too close to drapes, curtains, or
walls; or
•
in aconfined space such as a
bookcase, built-in cabinet, or
any other place with poor
ventilation.
The slots and openings are provided
to protect the TV from
overheating and to help maintain reliable operation
of the
TV. Leave aspace
of at least4(four) inches around the TV.
(continued)
--_ ... _----_._---------_._-----
Lh
DANGER: RISK OF
ISERIOUS PERSONAL
• INJURY,DEATH,OR
EQUIPMENT DAMAGE!
Never place the TV on an unstable cart,
stand, or table. The TV may fall, causing
serious personal injury, death, or serious
damage to the TV.
19) To avoid damage to this product, never place or store the
TV
in direct sunlight; hot, humid areas; or areas subject to
excessive dust or vibration.
20) Always place the TV on the floor or asturdy, level, stable
surface that
can support the weight of the unit. To secure the
TV, use asturdy strap from the hooks on the rear ofthe TV
pedestal
to a wall stud, pillar, or other immovable structure.
Make sure the strap
is tight, secure, and parallel to the floor.
J i· ..•.•. :. ~;~ure:::~y strap (as short as possible)
. . •••.•..•. Clip
~
TV side TV top
21) The apparatus shall not be exposed to dripping or
splashing and that no objects filled with liquids, such as
vases, shall
be placed on the apparatus.
18)
Installation
Follow these recommendations and precautions and heed all
warnings when installing your TV:
17) Never modify this equipment. Changes or modifications
may void:
a) the warranty, and b) the user's authority to
operate this equipment under the rules of the Federal
Communications Commission.
Installation, Care, and Service
11) Only use attachments/accessories specified by the
manufacturer.
Additional Safety Precautions
14a) CAUTION: If the TV is dropped and the cabinet or
enclosure surface has been damaged or the TV does not
operate normally, take the following precautions:
•ALWAYS turn off the TV and unplug the power cord to
avoid possible electric shock or fire.
•NEVER allow your body to come
in contact with any
broken glass orliquid from the damaged television. The
LCD panel inside the TV contains glass and atoxic
liquid. If the liquid comes
in contact with your mouth or
eyes, or your skin
is cut by broken glass, rinse the
affected area thoroughly with water and consult your
doctor.
•ALWAYS contact aservice technician to inspect the TV
any time
it has been damaged or dropped.
12) Use
only with the cart, stand, tripod, &)
bracket, or table specified by the B1
manufacturer, or sold with the \0..
apparatus. When acart is used, use • ~
caution when moving the cart/apparatus ~
combination to avoid injury from tip-over. ~ ~ -
........... _ .. .- -. _ .- _- .- -. - ~ -_ _ _ .
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
_ _._ •• m«_._ .• _m". __ ._._ •.. ~_. _ _.." •... _ ...... m ••. .•••. ~_ •...•....• ~ •. __ .... __ . __ •• • • ••. __ ._._. __ .. _.••. ••_ ..• _.~ .. _ .. __ •..• ~ ~ .•••• ~ •.•.•...••••••.••. _ ...•• _._
14) Refer all servicing to qualified service personnel.
Servicing
is required when the apparatus has been
damaged
in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of Wide blade
the polarized or grounding type
plug. Apolarized plug has two blades
with one wider than the other.
Agrounding type plug has two blades
and athird grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
...... .- .- -. , , ....•........ ,. ""..,,"' ~ _ ..
10) Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
3

23) Always place the back of the television at least four (4)
inches
away from any vertical surface (such as awall) to
allow proper ventilation.
31 )WARNING:
RISK OF ELECTRIC SHOCK!
24) Never allow anything to rest on or roll over the power cord,
and never place the TV where the power cord is subject to
wear or abuse.
25)
Never overload wall outlets and extension cords.
Never spill liquids or push objects of any kind into the TV
cabinet slots.
32) While it is thundering,
do not touch the connecting cables
or apparatus.
26) Always operate this
equipment from a120 VAC, 60 Hz
power source only.
WARNING:
RISK OF ELECTRIC SHOCK!
LL
WARNING: RISK OF
SERIOUS PERSONAL
,INJURY OR EQUIPMENT
DAMAGE!
Never strike the screen with asharp
or heavy object.
37)
Service
36) • The LCD screen of this product can be damaged by
ultraviolet radiation from the sun. When selecting a
location for
the television, avoid locations where the
screen may be exposed to direct sunlight, such as in
front
of awindow,
•
Never touch, press, or place anything on the LCD
screen.
These actions will damage the LCD screen, If
you need to clean the LCD screen, follow the
instructions in item
30 on this page.
39) The cold cathode fluorescent lamp in
the LCD panel
contains asmall
amount of mercury.
When the TV reaches the end of its useful life, dispose of
the used
TV by the approved method for your area, or ask
aqualified service technician to properly dispose of the
TV.
LL
Note: The lamp(s) inside this product contain
Imercury. Disposal may be regulated due to
•environmental considerations. For disposal or
recycling information, contactyour localauthorities or the
Electronics Industries Alliance (www.eiae.org).
Never attempt to service the TV yourself. Opening and
removing the covers may expose you to dangerous
voltage or other hazards. Failure to follow this WARNING
may result in death or serious injury. Referall servicing not
specified in this manual to aToshiba Authorized Service
Center.
38) If you have the
TV serviced:
•
Ask the service technician to use only replacement
parts specified
by the manufacturer.
•Upon completion
of service, ask the service technician
to perform routine safety checks to determine that the
TV is in safe operating condition.
34) During normal use, the
TV may make occasional snapping
or popping sounds. This is normal, especially when the
unit is being turned on
or off. If these sounds become
frequent or continuous, unplug the power cord and contact
a
Toshiba Authorized Service Center.
35)
33) For added protection of your TV from lightning and power
surges, always unplug the power cord and disconnect the
antenna from the TV if you leave the TV unattended or
unused for long periods of time,
Antenna discharge unit
(NEG Section 810-20)
Grounding conductors
(NEG Section 810-21)
___ Power service grounding
. --- electrode system (NEG Art 250 Part-H)
Ground clamps
---------
tDANGER: RISK OF SERIOUS
~ PERSONAL INJURY OR DEATH!
•Use extreme care to make sure you are never in a
position where
your body (or any item you are in contact
with, such as aladder
or screwdriver) can accidentally
touch overhead
power lines. Never locate the antenna
near overhead power lines or other electrical circuits.
•
Never attempt to install any of the following during
lightning activity: a) an
antenna system; or b) cables,
wires,
or any home theater component connected to an
antenna
or phone system.
Electric service equipment
29) If you use the TV in aroom whose temperature is 32 OF
(0 0c) or below, the picture brightness may vary until the
LCD
warms up. This is not asign of malfunction.
30) Always unplug
the TV before >,
cleaning. Gently wipe the
display panel surface (the
TV @~ ~.'< ""\11
screen) using adry, soft cloth .,6. ~ .. ' .. ih "'-
only (cotton, flannel, etc.). A ,- - ~ "-.,
hard cloth may damage the
surface of the panel. Avoid
contact with alcohol, thinner, benzene, acidic
or alkaline
solvent cleaners, abrasive cleaners, or chemical cloths,
which
may damage the surface. Never spray volatile
compounds such as insecticide on the cabinet. Such
products may damage or discolor the cabinet.
28)
Care
For better performance and safer operation of your TOSHIBA
TV, follow these recommendations and precautions:
27) Always
make sure the antenna system is properly
grounded to provide adequate protection against voltage
surges
and built-up static charges (see Section 810 of the
National Electric Code).
4

Choosing a location for your LCD TV
To Display your LCD TV on the included Pedestal
Stand:
Observe the following safety precautions:
I) Read and Follow the pedestal assembly instructions included
with the pedestal.
CAUTION: Before beginning pedestal assembly, carefulIy lay
the front
of the LCD Panel face down on aflat, cushioned
surface such as aquilt
or blanket. Leave the bottom of the unit
protruding over the edge
of the surface and assemble the
pedestal as indicated below.
Note: Extreme care shouldalways be used when attaching
the
pedestal stand to avoid damage to the LCD panel.
2) Place the TV on asturdy, level surface that can support the
weight
of the TV.
3)
Be sure to secure the TV to awalI stud, pillar, surface, or other
immovable structure.
To secure the TV in this manner: (I)
attach the provided securementclip to an immovable structure,
then (2) pass asturdy strap through the securement clip and
attach each end to the hooks located on the back
of the TV. Be
sure to leave at least 4inches between the TV and the walI
or
similar structure for ventilation. See item 20, page 3for
additional details.
To Display your LCD TV using a Wall Bracket:
If you decide to wall mount your LCD TV, always use aUL-
listed wall bracket appropriate for the size and weight of the
LCD TV
(~ page 2) :
I) CAUTION: Two people are required for instalIation.
2) Unplug and remove any cables and/or other component
connectors from the rear
of the TV.
3) Follow the instructions provided with your wall bracket.
Before proceeding, make sure the appropriate bracket(s) are
attached to the wall and the back
of the TV as described in the
instructions provided with the walI bracket.
4) After attaching the appropriate bracket(s) to the wall and the
back
of the TV, remove the pedestal stand from the TV as
described below.
Removing the Pedestal Stand
I) CarefulIy lay the front of the unit face down on aflat,
cushioned surface such as aquilt
or blanket. Leave the stand
protruding over the edge
of the surface.
Note: Extreme care shouldalways be used when removing
the
pedestal stand to avoid damage to the LCD panel.
2) Remove the jack pack cover on the back of the TV to expose
the pedestal stand screws. The
jack pack covercan be removed
without tools.
3) Remove the four screws shown in the diagram below. This will
allow removal
of the pedestal stand.
4) Once you have removed
alI four screws holding the pedestal
stand in place, remove the pedestal stand from the TV by
sliding the pedestal stand away from the TV.
Four screws
5

FCC Declaration of Conformity
Compliance Statement
(Part 15):
The Toshiba 32RV530U, 37RV530U, 42RV530U, 46RV530U,
and 52RV530U
Televisions comply with Part 15 of the FCC
rules.
Operation
is subject to the following two conditions: (I) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that
may cause undesired operation.
The party responsible for compliance to these rules
is:
Toshiba America Consumer Products, L.L.c.
82 Totowa Rd. Wayne, NJ 07470.
Ph: 1-800-631-3811
Note: This equipment has been tested and found to comply
with the limits for aClass Bdigital device, pursuant
to Part 15
of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference
in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, maycause harmful
interference
to radio communications. However, there is
no guarantee that interference will not occur in aparticular
installation.
If this equipment does cause harmful interference
to radio or television reception, which can be determined by
removing and applying power to the equipment, the user is
encouraged to try to correct the interference by one ormore of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the
receiver.
•Connect the equipment into
an outlet on acircuit different
from that to which the receiver
is connected.
•Consult the dealer or
an experienced radio/TV technician for
help.
Caution: Changes or modifications to this equipment not
expresslyapproved
by Toshiba could void the user's authority
to operate this equipment.
6
Important notes about your LCD
TV
The following symptoms are technical limitations of LCD
Display technology and are not an indication of malfunction;
therefore, Toshiba is not responsible for perceived issues
resulting from these symptoms.
I) An afterimage (ghost) may appear on the screen ifafixed, non-
moving image
is displayed for along period of time. The
afterimage
is not permanentand will disappear in ashort period
of time.
2) The LCD panel contained in this TV is manufactured using an
extremely high level of precision technology; however, there
may be an occasional pixel (dot
of light) that does not operate
properly (does not light, remains constantly lit, etc.). This
is a
structural property
of LCD technology, is not asign of
malfunction, and is not covered under your warranty. Such
pixels are not visible when the picture
is viewed from anormal
viewing distance.
Note: Interactive video games that involve shooting a"gun"
type
of joystick at an on-screen target may not work with this
TV.
Trademark Information
•Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
•HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
•Deep Color is trademark of HDMI Licensing LLC. (Only available for
46" and 52" models)

Contents
Important Safety Instructions 3
Installation,
Care, and Service 3
Chapter 1: Introduction .......................... .. 9
Features of your new TV 9
Overview
of steps for installing, setting up, and using
your new TV 9
TV front and side panel controls and connections 10
TV back panel connections II
Chapter 2: Connecting your TV 12
Overview of cable types 12
About the connection illustrations 12
Connecting aVCR (or aVCR with S-video) and antenna,
Cable
TV or Camcorder 13
Connecting aDVD player with ColorStream® (component
video), aVCR, and asatellite receiver.
14
Connecting adevice to the IR OUT infrared terminal
using the IR blaster cable for IR pass-through device
control
15
Connecting an HDMP" or DVI device to the HDMI
input
16
REGZA-LINK connection 17
Connecting adigital audio system 18
Connecting an audio system 18
Connecting apersonal computer (PC) 19
Chapter 3: Using the remote control 20
Preparing the remote control for use 20
Installing the remote control batteries 20
Learning about the remote control
21
Using the remote control to control your other devices 22
Remote Control functional key chart
23
Programming the remote control to control your other
devices 24
Remote control codes 25
Chapter 4: Menu layout and navigation 27
Main menu layout 27
Setup/Installation menu layout
27
Navigating the menu system 28
Chapter 5: SeUing up your TV 29
Selecting the menu language 29
Configuring the antenna input source for the ANT/CABLE
terminal 29
Programming channels into the
TV's channel memory 30
Programming channels automatically 30
Manually adding and deleting channels
in the channel
memory 30
Labeling channels
31
Setting the HDMI'" audio mode 32
Viewing the digital signal meter. 33
Setting the time zone 33
Viewing the system status 34
Selecting the Power-On Mode 34
Chapter 6: Using the TV's features 35
Selecting the video input source to view 35
Labeling the video input sources 35
Tuning channels 36
Tuning channels using the Channel Browser'" 36
Setting the Channel Tuning Mode 38
Tuning to the next programmed channel 38
Tuning to aspecific channel (programmed or
unprogrammed) 38
Switching between two channels using Channel
Return 39
Switching between two channels using SurfLock''' 39
Selecting the picture size 39
Scrolling the TheaterWide® picture
(TheaterWide 2and 3only)
41
Using the auto aspect ratio feature 41
Selecting the cinema mode
(480i and 1080i signals) 42
Using the FREEZE feature 42
Adjusting the picture 42
Selecting the picture mode 42
Adjusting the picture quality 42
Using the TheaterLock'" feature 43
Using the closed caption mode 43
Base closed captions 43
Digital CC Settings 43
CC Selector 44
Adjusting the audio 44
Muting the sound 44
Using the digital audio selector 44
Selecting stereo/SAP broadcasts 45
Adjusting the audio quality 45
Using the StableSound® feature 45
Selecting the optical audio output format
46
Using the Dolby® Digital Dynamic Range Control
feature 46
Using the Locks menu 46
Entering the PIN code 46
If you cannot remember your PIN code 46
Changing your PIN code 47
Blocking TV programs and movies
by rating
(V -Chip) 47
Downloading an additional rating system for blocking
TV programs and movies 47
Blocking channels 48
Unlocking programs temporarily 48
Using the input lock feature 49
Using the GameTimer® 49
Using the control panel lock feature 49
Using the PC settings feature
50
Setting the PC Audio 50
Setting the sleep timer. 51
Using REGZA-LINK 51
REGZA-LINK playback device (HD DVD player, etc.)
control
51
REGZA-L1NK input source selection 52
VOLUME and MUTE controls
of Audio Receiver 52
Other REGZA-LINK functions 52
Using the HDMI settings feature 53
Displaying TV status information 54
Understanding the auto power
off feature 54
Understanding the last mode memory feature 54
(continued)
7

Chapter 7: Using the TV's advanced features 55
Using the advanced picture settings features 55
Using dynamic contrast 55
Using the static gamma feature 55
Selecting the color temperature 56
Using CableClear® digital noise reduction 56
Using MPEG noise reduction 56
Using the ColorMaster
'M
feature 57
Using the Game Mode feature 57
Using the advanced audio settings features 58
Using the surround sound features 58
Chapter 8: Troubleshooting 59
General troubleshooting 59
LED indications
61
Chapter 9: Appendix 62
Specifications 62
Acceptable signal formats
for PC IN and
HDMI terminals 63
Limited United States Warranty
for LCD Televisions 26" and Larger 64
Limited Canadian Warranty
for Toshiba Brand Flat Panel Televisions 65
Index 68
8

Features of your new TV
The following are just afew of the many exciting features of
your new Toshiba widescreen, integrated HD, LCD TV:
•
Integrated digital tuning (8VSB A TSC and QAM)
eliminates the need for aseparate digital converter set-top
box (in most cases).
•
l080p output resolution.
•
Four HDMr" digital, high-definition multimedia
interfaces with 1080p input support
(1I@f page 16).
•
HDMI capabilities
Lip-Sync
Latency feature activates an auto audio/video
display timing adjustment function that allows HDMI
source devices to accurately perform synchronization
automaticall
y.
Deep Color feature allows the HDMI source to increase the
available colors bits within the boundaries defined by the
RGB or YCbCrcolorspace. (Only supported on 46" and 52"
models)
•
REGZA-LINK allows control of external devices from the
TV remote via HDMI connection
(1I@f page 51).
•Two sets
of ColorStream® HD high-resolution component
video inputs
(1I@f page 14).
•Digital Audio
Out optical audio connection with Dolby®
Digital optical output format
(1I@f page 46).
•CableClear®digital picture noise reduction
(1I@f page 56).
•
PC IN (Analog RGB) computer terminal (1I@f page 19).
•
Channel Labeling allows you to put the Call Letters (e.g.
ABC, HBO, etc.) on the screen along with the station
numbers, so you always know what you're watching
(1I@f page 31).
•
IR OUT infrared terminal using the IR blaster cable for IR
pass-through device control
(1I@f pages 12 and 15).
•ColorMaster™ allows you
to adjust the TV's standard
colors. The menu for this feature has aunique "black"
design
to enhance contrast while you're adjusting the color
(1I@f page 57).
Overview of steps for installing,
setting up, and using your new TV
Follow these steps to set up your TV and begin using its many
exciting features.
1Observe the following when choosing alocation for the
TV:
•Read "Important notes about your LCD TV"
(1I@f page 6).
•Place the TV in aproper location
(1I@f pages 2-5)
2Do not plug in any power cords until AFTER you have
connected all cables and devices to your TV.
3BEFORE connecting cables or devices to the TV, learn
the functions
of the TV's connections and controls
(~ pages 10-11).
4Connect your other electronic device(s) to the TV
(~pages 12-19).
5See "Chapter 3: Using the remote control" (~page 20)
for an overview
of the buttons on the remote control,
install the batteries and prepare
to operate your other
device(s).
6AFTER connecting all cables and devices, plug in the
power cords for your TV and other devices.
7See"Menu layout and navigation" for aquick overview of
navigating the TV's menu system (~ page 27).
8Program channels into the TV's channel memory
(~page 30).
9For details on using the TV's features, see Chapters 6
and
7.
10 For help, refer to the Troubleshooting Guide, see
Chapter
8.
11 For technical specifications and warranty information, see
Chapter
9.
9

TV front and side panel controls and connections
_ ... "_._-- _. __ ._._.-- .. __ ... _ .. - - --------" -
Model 42RV530U is used in this manual for illustration purposes.
9
8
II +-SER-VIC-lE -;..-12
ONLY
Right side panel
4r
13
1
I .C]
he IMENU
6 .~
:l IINPUT
S
f 0lv/MONO=1l 7 ~L.......:H+-10
~II m H~~14
§_t@}--311
~ I Hom.
to:r
TV front
1 2
Control panel
1Remote sensor-Point the remote control toward this
remote sensor.
Effective range:
5ARROWS ...T
.... ~ -When amenu is on-screen, these
buttons function as up/down/leftlright menu navigation
buttons.
2Green and Yellow LEOs
Green =Power indicator
Yellow =Power-On Mode indicator
(I@" "Selecting the
Power-On Mode" on page 34)
See "LED indications" on page
61 for additional
information.
3VIDEO 2 IN -The side panel NV connections are
referred to
as "VIDEO 2" and include standard NV
connections.
4POWER -Press to turn the TV on and off.
If the TV stops responding to the controls on the remote
control or TV control panel and you cannot turn
off the
TV, press and hold the POWER button on the
TV control
panel for 5or more seconds to reset the TV.
6MENU (ENTER) -Press to access the menu system
(I@" page 27). When amenu is on-screen, the MENU
button on the TV's control panel functions as the ENTER
button.
7EXIT -Press to instantly close an on-screen menu.
8CHANNEL ...T-When no menu is on-screen, these
buttons change the channel (programmed channels only;
I@" page 30).
9VOLUME .... ~ -These buttons adjust the volume level.
10 INPUT -Repeatedly press to change the source you are
viewing (ANT/CABLE, VIDEO
1, VIDEO 2,
ColorStream HD1, ColorStream HD2, HDMI 1,
HDMI 2, HDMI 3, HDMI 4, PC).
11 HDMI™ IN -High-Definition Multimedia Interface
(HDMI4) input receives digital audio and uncompressed
digital video from an HDMI device or uncompressed
digital video from aDVI device. HDMI connection
is
necessary to receive 1080p signals.
12 Service port -For service use only. Used for updating
the television's firmware.
I 10

TV back panel connections
For an explanation of cable types and connections, see pages 12-19.
---- HllMllN -----,
HLlml
~
I
8
1DIGITALAUDIO OUT-Optical audio output in Dolby
Digital
or PCM (pulse-code modulation) format for
connecting an external Dolby Digital decoder, amplifier,
AN receiver, or home theater system with optical audio
input.
2 HDMI'M IN -High-Definition Multimedia Interface
input receives digital audio and uncompressed digital
video from an HDMI device or uncompressed digital
video from aOVI device. Also see item 4. HDMI
connection
is necessary to receive 1080p signals.
3PC IN -For use when connecting apersonal computer.
4PC/HDMI 1(AUDIO) IN -PC audio input terminal is
shared with HOMI 1analog audio input terminal, and its
use can be configured in the Audio Setup menu
(1& page 50).
5ColorStream® HD1 and ColorStream® HD2 -Two
sets
of ColorStream® high-definition component video
inputs (with standard stereo audio inputs) for connecting
devices with component video output, such as aToshiba
OVD player with ColorStream®.
Note: Component video cables carry only video
information; separate audio cables are required for a
complete connection.
TV back
I-----'--Cable Strap
9
6VIDEO 1 IN -Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video or S-video output.
Note: Standard (composite) video and S-video cables
carry only video information; separate audio cables are
required for acomplete connection.
7Fixed Audio OUT -Analog audio outputs for
connecting an audio amplifier.
8
IR OUT -For controlling infrared remote-controlled
devices through the TV. You can connect up to two
devices with an optical IR blaster cable
(1& page 12), and
then control the devices using the
TV's IR pass-through
features.
9ANT/CABLE -Antenna input that supports analog
(NTSC) and digital (ATSC) off-air antenna signals and
analog and digital Cable TV (QAM) signals.
HDMI, the HDMIIogo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are registered trademarks of Dolby
Laboratories.
11 I

Overview of cable types
Cables can be purchased from most stores that sell audio/video
devices. Before purchasing any cables, be sure
of connector
types required by your devices and the length
of each cable.
Coaxial (F-type) cable
G{U) ... -----
Coaxial (F-type) cable is used for connecting your antenna,
cable TV service, and/or cable converter box to the
ANTI
CABLE input on your TV.
Standard AN cables (red/white/yellow)
~~
~ ---+0-----
~
Standard NY cables (composite video) usually come in sets of
three, and are for use with video devices with analog audio and
composite video output. These cables (and the related inputs
on yourTV) are typically color-coded according to use: yellow
for video, red for stereo right audio, and white for stereo left
(or mono) audio.
S-video cable
o dJ!lIDu'-----
S-video cable is for use with video devices with S-video
output. Separate audio cables are required for acomplete
connection.
Note: An S-video cable provides betterpicture performance
than acomposite video cable. Ifyou connectan S-video cable,
be sure
to disconnectthe standard (composite) video cable or
the picture performance will be unacceptable.
Component video cables (red/green/blue)
I~~---
~ :0;;7
Component video cables come in sets of three and are for use
with video devices with component video output.
(ColorStream®
is Toshiba's brand of component video.) These
cables are typically color-coded red, green, and blue. Separate
audio cables are required for acomplete connection.
Note: Component video cables provide better picture
performance than astandard (composite) video
or S-video
cable.
I 12
I HDMI™ cable (with HDMI Logo "HOm.")
IO~
HDMI (High-Definition Multimedia Interface) cable is for use
with devices with an
HDMI output. An HDMI cable delivers
digital audio and video in its native format. This cable carries
both video and audio information; therefore, separate audio
cables are not required for acomplete
HDMI device
connection
(w page 16, l7 and 19).
Note: HOMI cable provides betterpicture performance than a
standard (composite) video or S-video cable.
Dual-wand IR blaster cable
~" " ........... j
Dual-wand IR blaster cable is for use with video devices with
IR (infrared) remote control. This cable can be used with the
TV's IR pass-through feature (w page IS).
To obtain IR blaster cable:
Visit http://ceaccessories.toshiba.com/
Optical audio cable
[Q] ct:::t::J::lto----
Optical audio cable is for connecting receivers with Dolby
Digital or PCM (pulse-code modulation) optical audio input to
the
TV's DIGITAL AUDIO OUT terminal (w page 18).
Analog RGB (15-pin) computer cable
Analog RGB (IS-pin) computercable is for connecting aPC to
the
TV's PC IN terminal (W page 19).
Note: Separate audio cables are required for acomplete
connection.
About the connection illustrations
You can connect different types and brands of devices to your
TV
in several different configurations. The connection
illustrations
in this manual are representative of typical device
connections only. The input/output terminals on your devices
may differ from those illustrated herein. For details on
connecting and using your specific devices, refer
to each
device's owner's manual.

Connecting a VCR (or a VCR with S-video) and antenna, Cable TV or
Camcorder
From Cable TV
or antenna
f.+--- dJIIII[D::; --- ~::i9~~ 2~~1~ - __
or
Standard
AN cable
Stereo VCR 1J
VIDEO AUDI ~
e ~ ~ ~'N CH'~ ~;@)~
~ ~ ~~o:"CH' O~T~
ff f~f"J TV '¥'
::>_~~~i~.?!,!?!: __ : ~ tt
, .1 \1
l0I
l:
~!A bDO--------------------------------' --I
TV lower back panel
TV upper back panel
Camcorder
VIDEO 2 inputs
on TV right side panel
I r~'DEa
L....cc:::tll1Jp~11 @I
p.::(JJoP~~
IZ AUDIO
''''-i.Ul-.n-
L
II-'~~~R
AUDIO VIDEO
aUT
~~ ~
I-t~
You will need:
•coaxial cables
•standard AN cables
-For betterpicture performance, if your VCR has S-video,
use an S-video cable (plus the audio cables) instead
of
the standard video cable.
-For betterpicture performance,
if your camcorder has
S-video, connectan S-video cable (plus the audiocables)
to VIDEO 1on the TV back instead of the VIDEO 2on the
TV right side panel.
-
If you have amono VCR, connect UMaNa on the TV to
your VCR's audio out terminal using the white audio cable
only
•S-video cable (if your VCR or camcorder has S-video)
- 00 not connectboth types of video cable to VIDEO 1 at
the same time or the picture performance will be
unacceptable.
•standard audio cables (if your VCR or camcorder has
S-video)
Note: When you use aCable box, you may not be able to use
the remote control
to program or accesscertain features on the
TV.
To view the antenna or Cable signal:
Select the ANT/CABLE video input source on the TV.*
To view basic and premium Cable channels:
Tum OFF the VCR. Select the ANT/CABLE video input
source on the TV.*Tune the TV to channel 3or 4(whichever
channel the Cable box output is set to). Use the Cable box
controls to change channels.
To view the VCR:
Tum ON the VCR. Select the VIDEO 1video input source on
the TV.*
To view the camcorder video:
Select the VIDEO 2video input source on the TV.*
* To select the video input source, press INPUTon the remote control
(1& page 21). To program the TV remote control to operate other
devices, see Chapter
3.
The unauthorized recording, use, distribution, or revision of
television programs, videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the United States and
other countries, and may subject you to civil and criminal
liability.
13 I

Connecting a DVD player with ColorStream® (component video), a VCR,
and a satellite receiver
Your TV has two sets of ColorStream® (component video) inputs.
From antenna
Stereo VCR $
V'DEO AUD' J;~
@ ~ ~ 0 'N CH3!:f,,,mANT@)
~, '_'~~T CH4 OUT 10 TV ,
TV upper back panel
AUDIO
OUT
• ..oL •....,..." ....... _
• ...oL~..-1WI>-.J
AUDIO
O~T
~Hc::I[JIIj)l::~
~
....--- :>'"+-----1---=-----0---------'
loo~
'riP"ri
p
'0
~
COMPONENT VIDEO S-VIDEO VIDEO
OUT OUT
From satellite dish
~
DVD player with component video
Satellite receiver with component video
TV lower back panel
You will need:
•coaxial cables
•standard
AN cables
-For betterpicture performance, if your VCR has S-video,
use an S-video cable (plus the audio cables) instead
of
the standard video cable. Do not connect both types of
video cable to VIDEO 1 at the same time or the picture
performance will be unacceptable.
-Ifyou have amono
VCR, connect UMONO on the TV to
your VCR's audio out terminal using the white audio cable
only.
•standard audio cables
•component video cables
- You can connect the component video cables (plus audio
cables) from the
OVO player or satellite receiver to either
set
of ColorStreamterminals on the TV (HD1 or HD2). The
ColorStream HD1 and HD2 terminals can be used to
display Progressive (480p, 720p) and Interlaced (480i,
1080i). Please check the Owner's Manual
of the OVO
player or satellite in order to determine the best output
signal available (1080p
is not supported).
-Ifyour
OVO player or satellite receiver does not have
component video, connect astandard
AN cable to
VIDEO 2 on the side panel. Ifyour OVO playerhas HoMI
video, see page 16.
To view satelliteprogramsusing the componentvideo
connections:
Turn on the satellite receiver. Select the ColorStream HD2
video input source on the TV.*
To view the VCR or view and record antenna
channels:
Turn ON the VCR. Tune the VCR to the channel you want to
watch. Select the VIDEO 1video input source on the TV.*
To record aTV program while watching aDVD:
Turn ON the VCR. Tune the VCR to the channel to record.
Select the ColorStream
HD1 video input source on the TV*
to view the DVD.
* To select the video input source, press INPUT on the remote control
(1& page 21). To program the TV remote control to operate other
devices, see Chapter
3.
The unauthorized recording, use, distribution, or revision of
television programs, videotapes, DVDs, and other materials is
prohibited under the Copyright Laws of the United States and
other countries, and may sUbject you to civil and criminal
liability.
To view antenna or Cable channels:
Select the ANT/CABLE video input source on the TV.*
To view the DVD player:
Turn ON the DVD player. Select the ColorStream HD1
video input source on the TV.*
I 14

Connecting a device to the IR OUT
infrared terminal using the IR
blaster cable for IR pass-through
device control
You can use the TV's IR OUT terminal (infrared pass-
through) to remotely operate (through the TV) many infrared
remote-controlled devices (such as Toshiba infrared remote-
controlled VCRs or DVD players) enclosed within an
entertainment center or similar cabinet. Without the IR OUT
connection, the device typically would need to be visible to
operate it remotely.
You will need:
•dual-wand IR blaster cable (1J@f page 12)
•other audio/video cables as required to connect the device(s)
to the TV (1J@f pages 13-16)
Front of IR-controlled DVD player (for example)
To connect the IR blaster cable:
1Locate the infrared sensor on the front of your device.
This sensor is marked on some devices.*
2Align one of the IR blaster cable's wands about 1inch
away from the infrared sensor on the front of the device
and attach it using double-sided mounting tape. If you
have asecond device, attach the second wand in asimilar
manner. (See illustration.)
Note: Ifyou do nothave aseconddevice, coil the second
wand with arubber band and leave it behind the TV.
3Plug the IR blaster cable's plug into the TV's IR OUT
terminal.
To control the device(s):
Point either the device's remote control or the TV remote
control (that you previously programmed to operate the
device; IJ@f Chapter 3) toward the front of the TV and press the
button for the desired function. The signal passes from the
remote control through the TV to the device via the IR blaster
cable.
Front of IR-controlled audio device (for example)
1f
IR blaster cable wand
(approx.1 inch from device)
*If you cannot locate the device's infrared sensor:
1Turn OFF the device.
2Starting at the lower left comer of the device, place the
end of the device's remote control (with the infrared
emitter) so it touches the front of the device and press
POWER. (Do not use the TV's remote control for this
step.)
3 If the device turns on, the point at which the remote
control touched the device is the location of the sensor.
4 If the device does not tum on, move the remote control
slightly to the right and press POWER again.
5Repeat step 4until you locate the device's infrared
sensor.
Note:
•
If you use the device's remote control to operate the device,
you also will need to use the
TV's remote control to operate
the
TV.
• The IR pass-through feature does not supportall
IR-control/ed devices; satisfactoryperformance
may notbe
attainable with certain devices.
DDDDD
II
II
Infrared
sensor
15 1

Connecting an HDMI™ or DVI device
to the HDMI input
OVI device
Note: To ensure that the HOMI orOVI device is reset properly,
it is recommended that you follow these procedures:
•When turning on your electronic components, turn on the
TV first, and then the HOMI or OVI device.
•When turning off your electronic components, turn off the
HDMI or DVIdevice first, and then the TV.
TV upper back panel
H~:'';;l
'~2a3a
~
To connect aDVI device, you will need:
one HDMI-to-DVI adapter cable (HDMI type Aconnector)
per DVI device
-For proper operation, the length of an HOMI-to-OVI
adapter cable should not exceed 9.8 ft (3m). The
recommended length is 6.6 ft (2m).
one pair of standard analog audio cables per DVI device
-An HOMI-to-OVI adaptercable transfers video only.
Separate analog audio cables are required (see
illustration).
-See "Setting the
HOMI'M audio mode" (lIE page 32).
TV right side panel
TV u~pper back pa~:.lIN ~
Hom.
1 ~j 2 ~:.3~:.
••
• •
To connect an HDMI device, you will need:
one HDMI cable (type Aconnector) per HDMI device
-For proper operation, it is recommended thatyou use an
HOMI cable with the HOMI Logo
(HOm.).
To display an 1080p/60Hz signal format. you will need a
Category2cable. Conventional HOMI/O VI cable may not
work properly.
HOMI cable transfers both video and audio. Separate
analog audio cables are not required (see illustration).
See "Setting the HOM I'M audio mode" (lIE page 32).
The HDMI input on your TV receives digital audio and
uncompressed digital video from an HDMI source device, or
uncompressed digital video from aDVI (Digital Visual
Interface) source device.
This input is designed to accept HDCP (High-Bandwidth
Digital-Content Protection) program material in digital form
from EIA/CEA-861-D-compliant[l] consumer electronic
devices (such as aset-top box or DVD player with HDMI or
DVIoutput).
The HDMI input can accept and display VGA, SVGA, XGA,
WXGA, SXGA, 480i (60Hz), 480p (60Hz),
nop (60Hz),
1080i (60Hz), and 1080p (24Hz/60Hz) signal formats. For
detailed signal specifications, see page 63.
Supported Audio format: Linear PCM, sampling rate 32/44.1/
48 kHz
Note: To connect aPC to the HOMI input, see page 19.
HOMI device
[1] EIA/CEA-861-D compliance covers the transmission of
uncompressed digital video with high-bandwidth digital content
protection, which
is being standardized for reception of high-
definition video signals. Because this
is an evolving technology. it
is possible that some devices may not operate properly with the TV.
To view the HDMI device video:
Select the HDMI 1, HDMI 2, HDMI 3, or HDMI 4video input
source on the TV.*
HDMI, the HDMIIogo and High-Definition Multimedia Interface are
trademarks or registered trademarks
of HDMI Licensing LLC.
* To select the video input source, press INPUT on the remote control
(1& page 21). To program the TV remote control to operate other
devices, see Chapter
3.
I 16

REGZA·LINK connection
You can control the basic functions of connected audio/video devices using the TV's remote control if you connect a
REGZA-LINK compatible audio receiver or playback device. For an explanation of setup and operations, see pages 51 and 52.
TV upper back panel
r---- HDMIIN ---...,
HLlml
TV right side panel
To connect an Audio Receiver and Playback Devices,
you will need:
•HDMI cables (1& page 16)
Note:
•Ifseveral devices are connected, REGZA-LiNK feature may
not operate properly.
•For
proper operation. it is recommended thatyou use HOMI
cables with the HOMI Logo
(HLlm.).
Playback device
(REGZA-liNK HD DVD player,etc.)
Before controlling the device(s):
•After completing the above connections, set the REGZA-
LINK Setup menu as you desire (1& page 52).
•The connected devices must also be set. For details, see the
operation manual for each device.
•The REGZA-LINK feature uses the CEC technology as
regulated by the HDMI standard.
•This feature is limited to models incorporating Toshiba's
REGZA-LINK. However, Toshiba is not liable for those
operations. Refer to the individual instruction manuals for
compatibility information.
17
1

...... - .. -.--~--~ -----.- -- _.
~onnecting a digital audio system
The TV's DIGITAL AUDIO OUTtenninal outputs aDolby®*
Digital
~PAD,D;~YJ or 2-channel down-mixed peM (pulse-code
modulation) signal for use with an external Dolby® Digital
decoder
or other external audio system with optical audio
input.
Note:
•Some audio systems may not be compatible with Dolby
Digital bitstream signals. Older audio systems that are not
compatible with standard optical out signals may not work
properly, creating ahigh noise level that may damage
speakers orheadphones.
THIS DAMAGE IS NOTCOVERED
BY YOUR WARRANTY.
• The DIGITAL AUDIO OUT terminal may not output some
digital audio sources because of copy restrictions.
You will need:
•optical audio cable (Use an optical audio cable that has the
larger "TosLink" connector and not the smaller "mini-
optical" connector.)
*Manufactured under license from Dolby Laboratories.
Dolby. and the double-D symbol are registered trademarks of Dolby
Laboratories.
To control the audio:
o
o
Analog audio amplifier
o
o
To control the audio:
TV upper back panel
You will need:
•standard audio cables
Connecting an audio system
This connection allows you to use external speakers with an
external analog audio amplifier to adjust the sound level.
o
o
Dolby Digital decoder or
other digital audio system
o
o
TV ... " b," ,,,,, I at dJltI::l--.J
1Turn on the TV and the digital audio device.
2Press MOU on the TV's remote control and open the Audio
menu.
3Highlight Audio Setup and press @.
4In the Optical Output Format field, select either
Dolby Digital or PCM, depending on your device
(~ "Selecting the optical audio output fonnat" on
page 46).
1 Tum on the TV and the stereo amplifier.
2Minimize the sound volume from the TV's built-in
speakers and control the volume level using the
amplifier's remote control.
AudIO Setup
PC Audio No
HDMI 1Audio Auto
MTS Stereo
Language English
~~t!Onn~ .... ~: •••••• >
Dolby Digital
Dynamic Range Control
Reset Done
I 18

Connecting a personal computer
(PC)
With either the PC IN or HOMI connection, you can watch
your
computer's display on the TV and hearthe sound from the
TV's speakers.
To connect a PC to the PC IN terminal on the TV:
When connecting aPC to the PC IN terminal on the TV, use an
analog RGB (IS-pin) computer cable and a
PC audio cable.
TV upper back panel
PC audio
cable
PC audio
output
Conversion adapter
(if necessary)
• To use aPC, set the monitor output resolution on the PC
before connecting it to the TV. The PC IN terminal can
accept and display VGA, SVGA, XGA, WXGA, and
SXGA
signal formats. For detailed signal specifications, see page
63.
•
To display the optimum picture, use the PC setting feature
(~ "Using the PC settings feature" on page 50).
Note:
• The PC audio input terminals on the TV are shared with the
HoMI 1analog audio input terminals (1& page 50).
•Some PC models cannot
be connected to this TV.
•An adapter is not needed for computers with acompatible
mini
o-sub 15-pin terminal.
•Depending on the oVo's title and the specifications of the
PC on which you are playing the oVo-Video, some scenes
may be skipped or you may not be able to pause during
multi-angle scenes.
•Signal names for mini O-sub IS-pin connector
Signal·
.".
Signal
Signal···
• Pin ~o.
'name
Pin No .
name
Pin No.
name
I R 6 Ground 11 NC
2 G 7Ground 12
NC
3B8Ground
13
H-sync
4 NC*
9
NC 14 V-sync
5NC 10 Ground 15 NC
*NC=Not connected
To connect a PC to the HDMI terminal on the TV:
When connecting aPC to the HOMI terminal on the TV, use
an adapter cable and analog audio cables.
If connecting aPC with an HOMI terminal, use an HOMI cable
(type Aconnector). Separate analog cables are not necessary
(1& page 16).
PC audio
cable
PC audio
output
The HOMI input can accept and display VGA, SVGA, XGA,
WXGA, SXGA, 480i (60Hz), 480p (60Hz),
nop (60Hz),
1080i (60Hz), and 1080p (24Hz/60Hz) signal formats. For
detailed signal specifications, see page 63.
Note:
• The edges of the images may be hidden.
•
If receiving a480i (HoMI), 480p (HoMI), 720p, 1080i, or
1080p signal program, Native mode scales the video to
display the entire picture within the borders
of the screen
(i.e. no overscanning).
19 I

Preparing the remote control
for use
Installing the remote control
batteries
Remove the battery cover from the back of the remote
control.
Install two "AAA" size batteries, making sure to match
the +and -signs on the batteries to the signs on the battery
compartment.
Your TV remote control can operate your TV and many other
devices such as cable converter boxes, satellite receivers,
VCRs, DVD players, and HTIBs (home theater in abox), even
if they are different brands.
If you have aToshiba device:
Your TV remote control is preprogrammed to operate most
Toshiba devices
(~page 24).
If you have anon-Toshiba device or aToshiba device
that the remote control is not preprogrammed to
operate:
You can program the TV remote control so it will operate the
other device
(~ pages 22-26).
1
2
Squeeze tab
and lift cover.
I 20
3Reinsert the battery cover in the remote control until the
tab snaps.
Caution: Batteries must not be exposed to excessive heat
such
as sunshine, fire or the like.
Note:
•Be sure to use AAA size batteries.
•Dispose of batteries in adesignated disposal area.
•Batteries should always be disposed
of with the
environment
in mind. Always dispose of batteries in
accordance with applicable laws and regulations.
•Ifthe remote control does not operate correctly, or if the
operating range becomes reduced, replace batteries with
new ones.
•
When necessary to replace batteries in the remote control,
always replace both batteries with new ones. Never mix
batterytypes
or use new and used batteries in combination.
•Always remove batteries from the remote control
if they are
dead or if the remote control is not to be used for an
extendedperiod
of time. This will prevent battery acid from
leaking into the battery compartment.
