Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
MAINTENANCE

Do not attempt to operatethis oven with thedoor open since this can result
in harmful exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
120V~ 60Hz
1000W
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
a. DOOR(bent)
b. HINGESAND LATCHES(broken orloosened)
c. DOOR SEALS ANDSEALING SURFACE
The oven should not be adjusted or reparied by anyone except properly
qualified service personnel.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
Model:
13.6 inch
1.5 cu.ft.
Rated Input Power(Convection):
1500W
1 0W40
21.77X21.50X12.99inch
Approx. 44.75 Lbs
1.
2.
3.
4.
EN-2
EC042A5C-SS
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY

To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic safety precautions, including the following:
EN-3
IMPORTANT SAFETY
INSTRUCTIONS WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
4.
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface .
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.

EN-4
IMPORTANT SAFETY
INSTRUCTIONS WARNING
combustible materials are placed inside the oven to facilitate cooking.
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
or
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
stand in the microwave oven for a short time
before removing the container.
spoon or other utensil into the container.
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a

EN-5
IMPORTANT SAFETY
INSTRUCTIONS WARNING
SAVE THESE INSTRUCTIONS
18. Oversized food or oversized metal utensils should not be inserted in a microwave/
toaster oven as they may create a fire or risk of electric shock.
19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch
electrical parts involving arisk of electric shock.
20. Do not use paper products when appliance is operated in the toaster mode.
21. Do not store any materials, other than manufacturer's recommended accessories, in
this oven when not in use.
22. Do not cover racks or any other part of the oven with metal foil. This will cause over-
heating of the oven.

CAUTION:
Do not insert your fingers into any gaps or holes; it may cause injuries.
DANGER
WARNING
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current. To
protect against electrical shock, this appliance is equipped with a cord having a 3 prong
grounding-type plug for insertion into a proper grounding-type receptacle. DO NOT alter
the plug for use in a 2-prong receptacle. If the plug will not fit into a receptacle, have the
proper receptacle installed by a qualified electrician.
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
Electric Shock Hazard
(grounding) plug
Three-pronged
EN-6
Improper use of the grounding can result
in a risk of electric shock
.
GROUNDING INSTRUCTIONS

EN-8
A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
If a long cord sets or extension cord is used:
a.
b.
c.
The marked electrical rating of the cord set or extension marked electrial rating of
the cord set or extension cord should be at least as great as the electrical rating of
the appliance.
The extension cord must be a grounding -type 3-wire cord.
The longer cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord
that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept the plug on
the appliance.The marked rating of the extension cord shall be equal to or greater than
the electrical rating of the appliance.
1.
2.
3.
EN-7
GROUNDING INSTRUCTIONS

GROUNDING INSTRUCTIONS
Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
When there is interference, it may be reduced or eliminated by taking the following
measures:
a.
b.
c.
d.
e.
Clean door and sealing surface of the oven.
Reorient the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
RADIO INTERFERENCE
EN-8

UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven." There may be certain non-metallic utensils that are not safe to use for
microwaving. If in doubt, you can test the utensil in question following the procedure
below.
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil
in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
Do not exceed 1 minute cooking time.
1.
2.
3.
4.
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pouches should be pierced before cooking.
UTENSIL TEST:
CAUTION
Electric Shock Hazard
EN-9
GROUNDING INSTRUCTIONS
HOUSEHOLD INDOOR USE ONLY
SAVE THESE INSTRUCTIONS

MATERIALS YOU CAN USE IN MICROWAVE OVEN
UTENSILS REMARKS
Follow manufacturer’s instructions.The bottom of browning dish
must be at least 3/16 inch (5mm) above the turntable. Incorrect
usage may cause the turntable to break.
Browning dish
Microwave-safe only. Follow manufacturer’s instructions. Do not
use cracked or chipped dishes.
Dinnerware
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glass jars
Heat-resistant oven glassware only. Make sure there is no metallic
trim. Do not use cracked or chipped dishes.
Glassware
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Oven cooking bags
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper plates and cups
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Paper towels
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Microwave-safe only ( meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
Parchment paper
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic cont ainers
soften, as the food inside gets hot. "Boiling bags" and tightly closed
plastic bags should be slit, pierced or vented as directed by
package.
Plastic
Wax paper
Thermometers
Plastic wrap
EN-10

UTENSILS REMARKS
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
May cause arcing. Transfer food into microwave-safe dish.
Aluminum tray
Metal twist ties
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Food carton with
metal handle
Paper bags May cause a fire in the oven.
Plastic foam
Wood
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
EN-11

SETTING UP YOUR OVEN

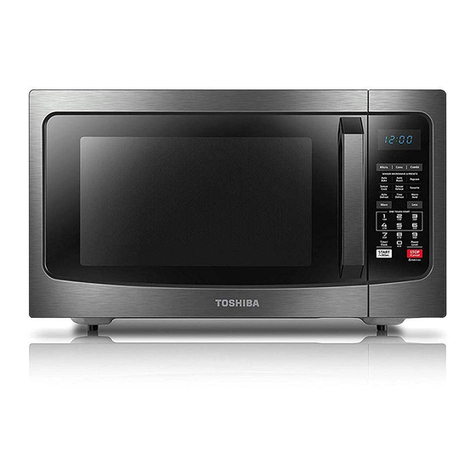

NAMES OF OVEN PARTS AND ACCESSORIES
Glass tray 1
Turntable ring 1
Instruction Manual 1
Grill Rack (Only be used in Convection
function and be placed on the glass tray)
Control panel
Turntable shaft
Turntable ring
Glass tray
Observation window
Oven Door
Safety interlock system
A.
B.
C.
D.
E.
F.
G.
F
G
A
C B
ED
Remove the oven and all materials from the ca rton and oven cavity. Your
oven comes with the following accessories:

SETTING UP YOUR OVEN
TURNTABLE INSTALLATION
a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
Turntable ring
Turntable shaft
Hub (underside)
Glass tray
EN-13

SETTING UP YOUR OVEN
COUNTERTOP INSTALLATION
INSTALLATION
1.
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove
the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
Select a level surface that provide enough open space for the intake and/or
outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One
side must be open.
(1)
(2)
(3)
(4)
Leave a minimum clearance of 12 inches (30cm) above the oven.
Do not remove the legs from the bottom of the oven.
Blocking the intake and/or outlet openings can damage the oven.
Place the oven as far away from radios and TV a s possible.
Operation of microwave oven may cause interference to your radio or TV reception.
EN-14
OPEN
12 inches(30cm )
3.0 inches( 7.5cm )
3.0 inches(7.5cm )

SETTING UP YOUR OVEN
INSTALLATION
2. Plug your oven into a standard household outlet. Be sure the voltage and
WARNING
Do not install oven over a range cooktop or other heat-producing appliance. If
installed near or over a heat source, the oven could be damaged and the
warranty would be avoid.
The accessible surface may
be hot during operation
EN-15
the frequency is the same as the voltage and the frenquency on the
rating label.

OPERATION
CONTROL PANEL AND FEATURES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(17)
Microwave
Auto Menu (Auto Bake, Auto Roast, Popcorn)
Sensor Menu (Sensor Cook, Sensor Reheat)
Auto Defrost
More
Number Pads
Timer/Clock
START ADD 30 SEC
Convection
Combination
Favorite
Warm Hold
Time Defrost
Less
Power Level
STOP Cancel Hold 3 sec: Before
cooking starts, press to clear all
previous settings. During cooking,
press once to stop oven; press twice
to stop oven and clear all settings.
Display
EN-16
(16)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(10)
(11)
(12)
(13)
(15)
(16)
(14)
(9)
(17)

1.POWER LEVELS
OPERATION
2.CLOCK SETTING
(1)
(2)
(3)
Press Timer/Clock twice, "00:00" will appear in the display. The first set of zeros will
flash; ":" and the other zero set will be lighted.
Press the number pads to enter the current clock time. For example, if the time is now
10:12, press " 1, 0, 1, 2 " in order.
Press Timer/Clock to finish clock setting, " : " will flash and the numbers will appear
as a clock time in the display.
NOTE:
If the numbers entered are not within the range between 1:00 to 12:59, the setting will
not be accepted until valid numbers are entered.
In the process of setting clock, if the pad is pressed or if there is no operation
within 1 minute, the display will automatically return to the previous clock setting.
Ten power levels are available.
When the microwave oven is plugged into an outlet, "0:00" will display.
EN-17
Level 10 9 8 7 6 5 4 3 2 1
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
Display PL10 PL 9 PL 8 PL 7 PL 6 PL 5 PL 4 PL 3 PL 2 PL 1
Prior to cooking, press Power Level and "PL10" will display. Then press number pads
to select a different power level. Please refer to page 18 "MICROWAVE COOK" for
detailed power level setting.

Press Timer/Clock once, "00:00" and "Timer" will appear in the display.
Press the number pads to enter the time amount. The maximum amount of time that
can be entered is 99 minutes, 99 seconds.
Press to confirm setting, the timer indicator will flash, and the timer will start
to count down.
When the time amount elapses, timer indicator will disappear. The oven will beep 5
times. "End" will display. The time of day will display by opening the door or pressing
.
OPERATION
Press Micro , "00:00" and "Cook" will appear in the display.
Press number pads to enter the cooking time. The maximum cooking time is 99
minutes,99 seconds.
Press Power Level; PL10 will flash. Press Power Level several times or pads 0
through 9 to select a different power level if desired. See the POWER LEVEL table
above.
Press to start cooking. The remaining cooking time will display. "Cook"
will flash.
a.
b.
c.
d.
Press Micro , "00:00" and "Cook"will display.
Press "1, 5, 0, 0" in order for 15:00 to appear in the display.
Press Power Level , then press "5" to select 50% microwave power.
Press to start cooking. Buzzer sounds once. The remaining cooking
time will display. "Cook" will flash.
4.MICROWAVE COOK
(1)
(2)
(3)
(4)
3. KITCHEN TIMER
(1)
(2)
(3)
(4)
Note:
The Kitchen Timer setting is different from the Clock setting; it is simply a timer.
During the Kitchen Timer function, no cooking function can be set into operation.
Kitchen Timer amount cannot be increased by pressing .
Pressing will cancel the Timer countdown.
Example: To cook the food with 50% microwave power for 15 minutes.
EN-18
