Toshiba ML-EC42P User manual

MICROWAVE OVEN
INSTRUCTION MANUAL
ML-EC42P(SS)
Please review this instruction manual before operating.

CONTENTS
PRODUCT SAFETY
Precautions to avoid possible exposure to excessive microwave energy
Important safety instructions
Grounding instructions
Radio interference
Utensils
Materials you can use in microwave oven
Materials can not be used in microwave oven
01
03
07
09
10
11
13
PRODUCT SETTING
Setting up your oven 14
INSTRUCTION FOR USE
Before using for the first time
Operation
1. Power levels
2. Clock setting
3. Kitchen timer
4. Microwave cook
5. Convection cook
6. Combination function (convection + microwave)
7. Warm hold function
8. One touch start
9. Time defrost
17
18
19
19
20
20
21
22
23
23
24

10. Auto defrost function
11. Auto bake & roast function
12. Sensor cook
13. Sensor reheat
14. Popcorn
15. Air fry
16. Favorite function
17. Muti-stage cooking
18. Turn on/off the buzzer sound
19. Energy saver mode
20. Lock function
21. Cooking end reminder function
22. Other specifications
23. Turntable reset function
24. Inquiring function
Cleaning
24
25
26
26
27
27
2
30
31
31
31
31
32
32
32
33
MAINTENANCE
Trouble shooting
One year limited warranty
35
36
9
BEFORE OPERATING THIS PRODUCT, READ,
UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE
REFERENCE.
NOTE

01
PRODUCT SAFETY
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a). Do not attempt to operate this oven with the door open
since open door operation can result in harmful exposure to
microwave energy.
It is important not to defeat or tamper with the safety
interlocks.
(b). Do not place any object between the
oven front face and the door or allow
soil or cleaner residue to accumulate on
sealing surfaces.
(c). Do not operate the oven if it is damaged. It is particularly
important that the oven door closes properly and that there is
no damage to the:
(1). DOOR (bent)
(2). HINGES AND LATCHES (broken or loosened)
(3). DOOR SEALS AND SEALING SURFACES
(d). The oven should not be adjusted or repaired by anyone
except properly qualied service personnel.

02
SPECIFICATIONS
MODEL ML-EC42P(SS)
RATED VOLTAGE 120V~ 60Hz
RATED INPUT POWER MICROWAVE 1500W
RATED OUTPUT POWER MICROWAVE 1000W
RATED INPUT POWER CONVECTION 1750W
All pictures in this manual are for illustrative purposes only; these may be
slightlydifferentfromthepurchasedequipment,pleaserefertothe
actual product.
NOTE
OVEN CAPACITY 1.5 cu.ft.
TURNTABLE DIAMETER 1 inch
EXTERNAL DIMENSIONS
NET WEIGHT Approx. 45.5 lbs
21.77x21.5x12.99 inch
3.6

03
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before
using the appliance.
Read and follow the
specific:
"PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE
ENERGY" found on page 1.
This appliance must be
grounded. Connect only to
properly grounded outlet.
See "GROUNDING
INSTRUCTIONS" found on
page 7.
Install or locate this
appliance only in
accordance with the
provided installation
instructions.
As with any appliance,
close supervision is
necessary when used by
children.
This appliance should be
serviced only by qualified
service personnel. Contact
nearest authorized service
facility for examination,
repair, or adjustment.
When cleaning surfaces
of door and oven that
comes together on closing
the door, use only mild,
nonabrasive soaps, or
detergent applied with a
sponge or soft cloth.
When using electrical appliances basic safety
precautions should be followed, including the
following. To reduce the risk of burns, electric shock,
re, injury to persons or exposure to excessive
microwave energy.
WARNING

04
Liquids, such as water,
coee, or tea are able
to overheat beyond the
boiling point without
appearing to be boiling.
Visible bubbling or boiling
when the container
is removed from the
microwave oven is not
always present.
THIS COULD RESULT
IN VERY HOT LIQUID
SUDDENLY BOILING OVER
WHEN THE CONTAINER IS
DISTURBED OR A UTENSIL
IS INSERTED INTO THE
LIQUID. To reduce the risk
of injury to persons:
1. Do not overheat the
liquid.
2. Stir the liquid both
before and halfway
through heating it.
3. Do not use straight-
sided containers with
narrow necks.
4. After heating, allow
the container to stand
in the microwave oven
for a short time before
removing the container.
5. Use extreme care when
inserting a spoon or
other utensil into the
container.
Keep cord away from
heated surface.
Oversized food or
oversized metal utensils
should not be inserted in
a microwave/toaster oven
as they may create a fire or
risk of electric shock.
IMPORTANT SAFETY INSTRUCTIONS

05
To reduce the risk of fire in
the oven cavity:
1. Do not overcook
food. Carefully attend
appliance when
paper, plastic, or other
combustible materials
are placed inside
the oven to facilitate
cooking.
2. Remove wire twist-ties
from paper or plastic
bag before placing bag
in oven.
3. If material inside of the
oven ignite, keep oven
door closed, turn oven
o, and disconnect the
power cord, or shut o
power at the fuse or
circuit breaker panel.
4. Do not use the cavity
for storage purposes.
Do not leave paper
products, cooking
utensils, or food in the
cavity when not in use.
Do not cover or block any
openings on the appliance.
Some products such as
whole eggs and sealed
containers, for example,
closed glass jars are able to
explode and should not be
heated in this oven.
Do not store this appliance
outdoors. Do not use this
product near water - for
example, near a kitchen
sink, in a wet basement,
near a swimming pool, or
similar location.
Do not immerse cord or
plug in water or any other
liquid.
IMPORTANT SAFETY INSTRUCTIONS

06
IMPORTANT SAFETY INSTRUCTIONS
Use this appliance only
for its intended use as
described in the manual.
Do not use corrosive
chemicals or vapors in
this appliance. This type
of oven is specifically
designed to heat, cook or
dry food.
It is not designed for
industrial or laboratory use.
Do not operate this
appliance if it has a
damaged cord or plug, if it
is not working properly, or
if it has been damaged or
dropped.
Do not clean with metal
scouring pads.
Pieces can burn o the pad
and touch electrical parts
involving a risk of electric
shock.
Do not let cord hang over
edge of table or counter.
Do not use paper products
when appliance is operated
in the toaster mode.
Do not store any materials,
other than manufacturer's
recommended accessories,
in this oven when not in
use.
Do not cover racks or any
other part of the oven with
metal foil. This will cause
over-heating of the oven.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLYNOT FOR
COMMERCIAL USE

07
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
WARNING - Improper use of the grounding can result in a risk of
electric shock. Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood, or if doubt
exists as to whether the appliance is properly grounded. If it is
necessary to use an extension cord, use only a 3-wire extension
cord that has a 3-blade grounded plug, and 3-slot receptacle
that will accept the plug on the appliance. The marked rating of
the extension cord shall be equal to or greater than the electrical
rating of the appliance.
Electric Shock Hazard:
Touching some of the internal components can
cause serious personal injury or death. Do not
disassemble this appliance.
DANGER

08
GROUNDING INSTRUCTIONS
Electric Shock Hazard:
Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is
properly installed and grounded.
1. A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
3. If a long cord or extension cord is used:
(1). The marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance.
(2). The extension cord must be a grounding-type
3-wire cord.
(3). The longer cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or
tripped over unintentionally.
WARNING

09

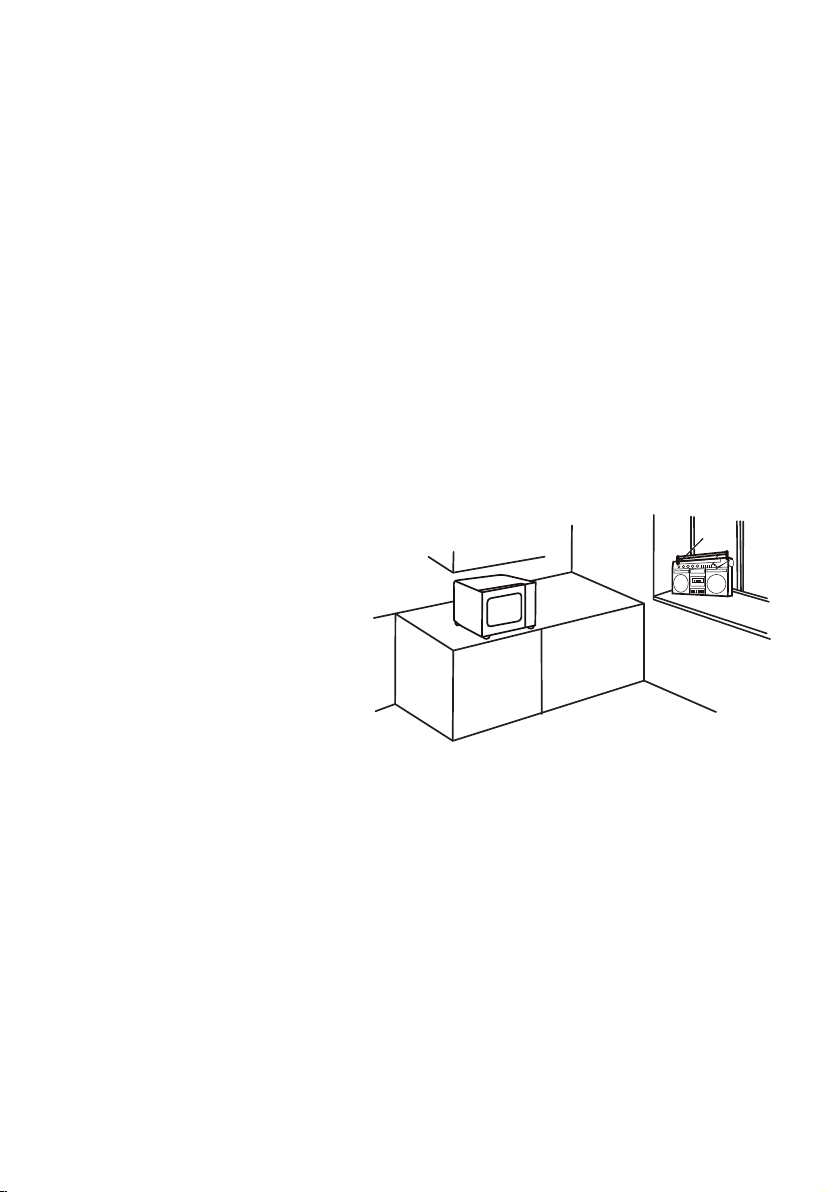

RADIO INTERFERENCE
1. Operation of the microwave oven may cause interference to
your radio, TV or similar equipment.
2. When there is interference, it may be reduced or eliminated by
taking the following measures:
(1).Clean door and sealing surface of the oven.
(2).Reorient the receiving antenna of radio or television.
(3).Relocate the microwave oven with respect to the receiver.
(4).Move the microwave oven away from the receiver.
(5).Plug the microwave oven into a dierent outlet so that
microwave oven and receiver are on dierent branch circuits.
This device complies
with part 18 of the FCC
Rules.

10

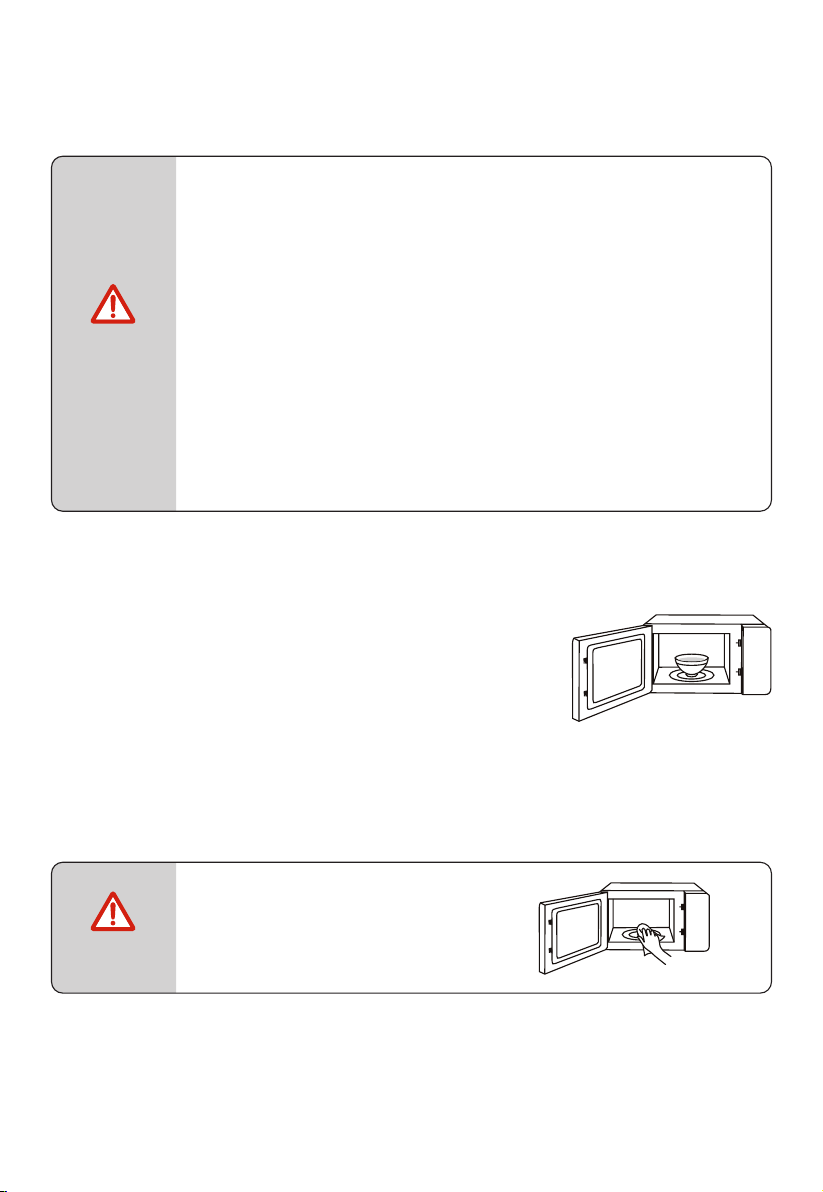

UTENSILS
Personal Injury Hazard:
Tightly-closed utensils could explode. Closed
containers should be opened and plastic pouches
should be pierced before cooking.
See the instructions on "Materials you can use in
microwave oven ." or "Materials can not be used
in micro wave oven."
There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you can
test the utensil in question following the procedure
below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup
of cold water (250ml) along with the utensil
in question.
2. Cook on maximum power for 1 min.
3. Carefully feel the utensil. If the empty
utensil is warm, do not use it for microwave
cooking.
4. Do not exceed 1 min cooking time.
KEEP THE CAVITY CLEAN
CAUTION
NOTE

11

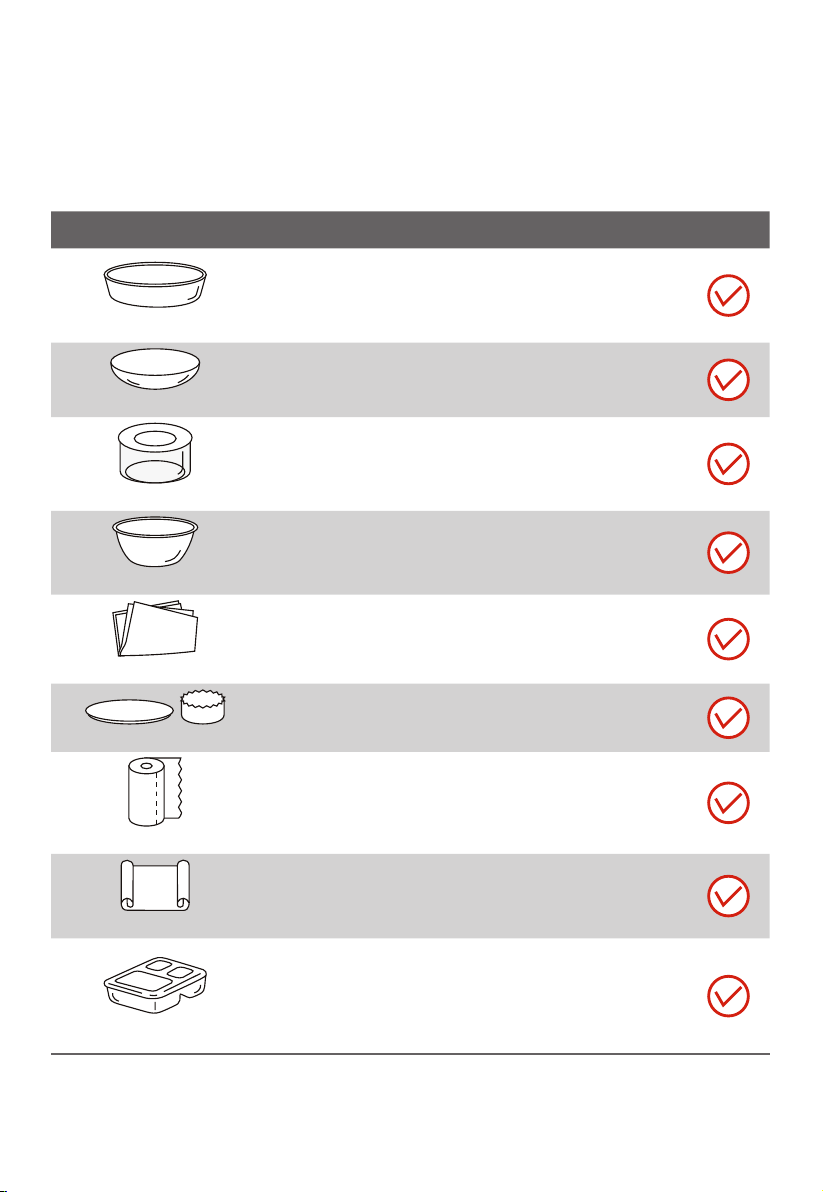

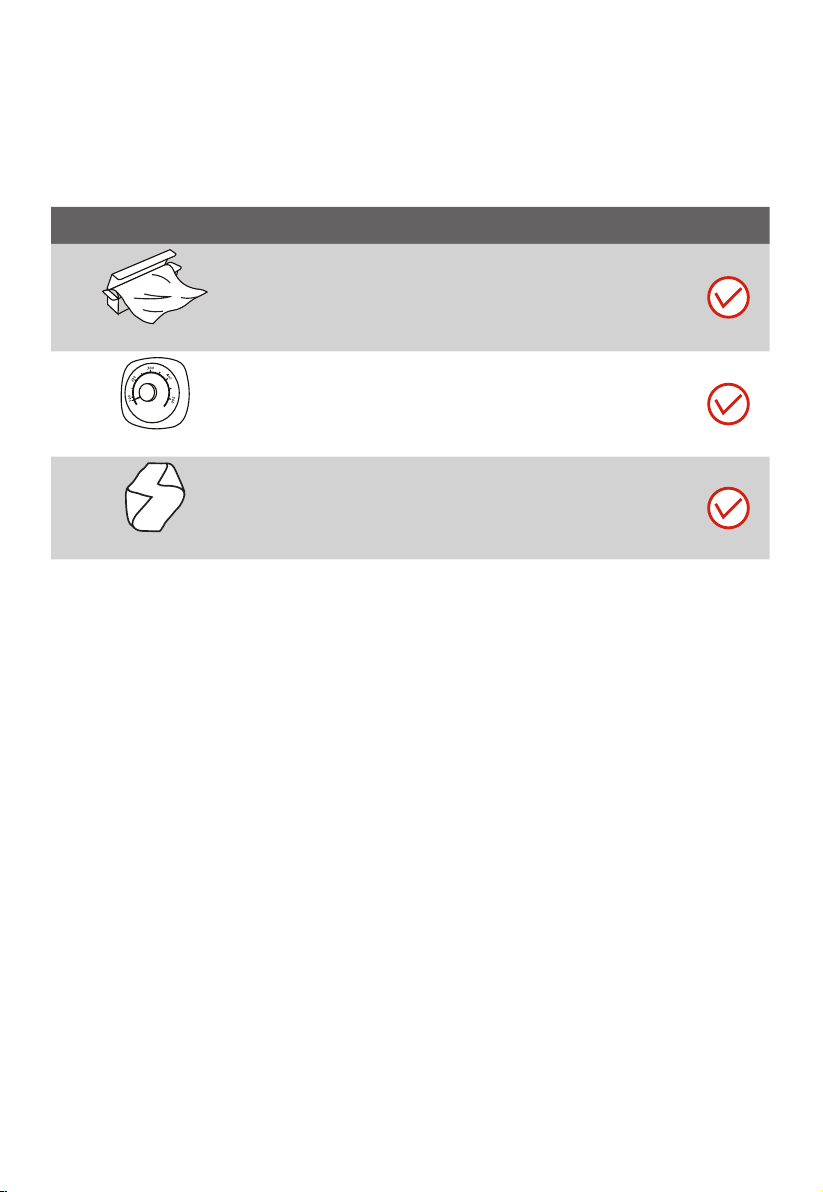

MATERIALS YOU CAN USE IN
MICROWAVE OVEN
UTENSILS REMARKS
Browning dish
Follow manufacturer’s instructions.
The bottom of browning dish must be at least 3/16 inch
(5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer’s
instructions. Do not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just
warm. Most glass jars are not heat resistant and may
break.
Glassware
Heat-resistant oven glassware only. Make sure there is
no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with
metal tie.
Make slits to allow steam to escape.
Paper plates and cups
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use
with supervision for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for
steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s
instructions. Should be labeled “Microwave Safe”. Some
plastic containers soften, as the food inside gets hot.
“Boiling bags”and tightly closed plastic bags should be
slit, pierced or vented as directed by package.

12
UTENSILS REMARKS
Plastic wrap
Microwave-safe only. Use to cover food during cooking
to retain moisture. Do not allow plastic wrap to touch
food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain
moisture.
MATERIALS YOU CAN USE IN
MICROWAVE OVEN

13
MATERIALS CAN NOT BE USED IN
MICROWAVE OVEN

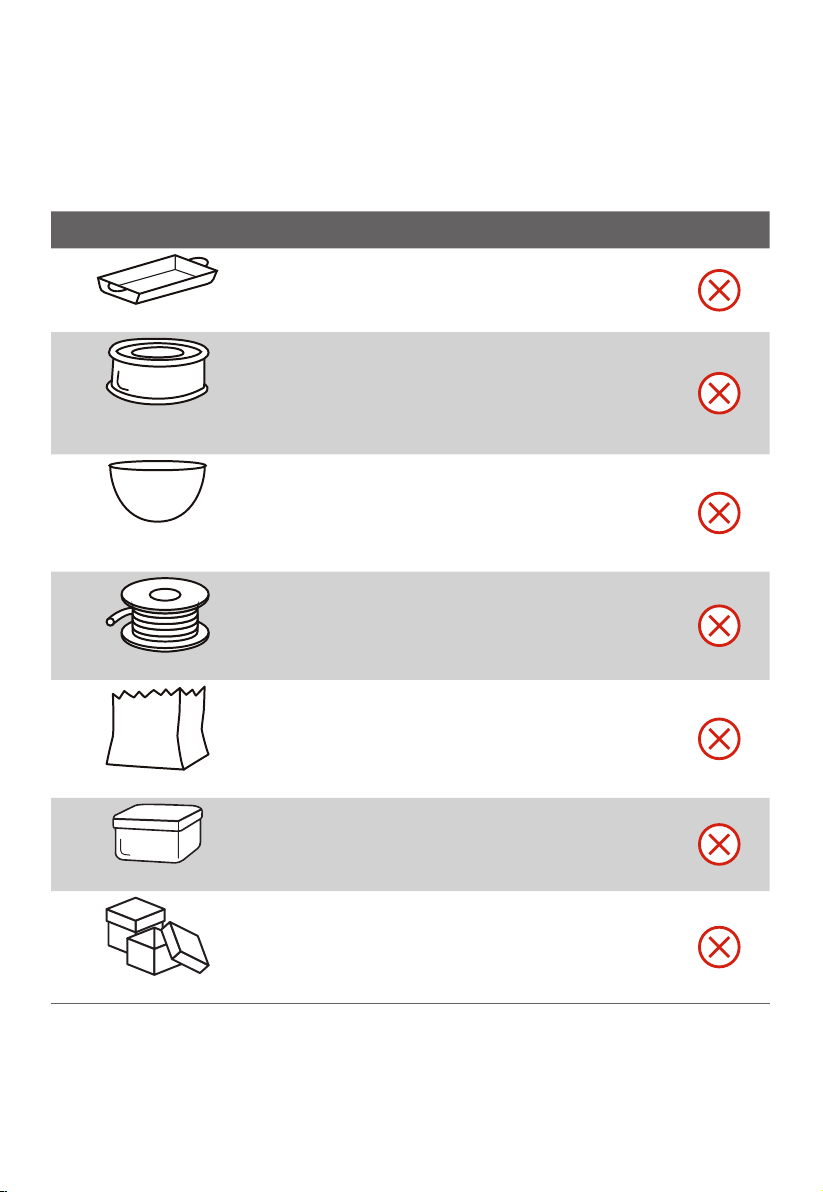

UTENSILS REMARKS
Aluminum tray
May cause arcing. Transfer food into microwave-safe
dish.
Food carton with metal
handle
May cause arcing. Transfer food into microwave-safe
dish.
Metal or metal trimmed
utensils
Metal shields the food from microwave energy.
Metal trim may cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid
inside when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven
and may split or crack.

14
PRODUCT SETTING
SETTING UP YOUR OVEN

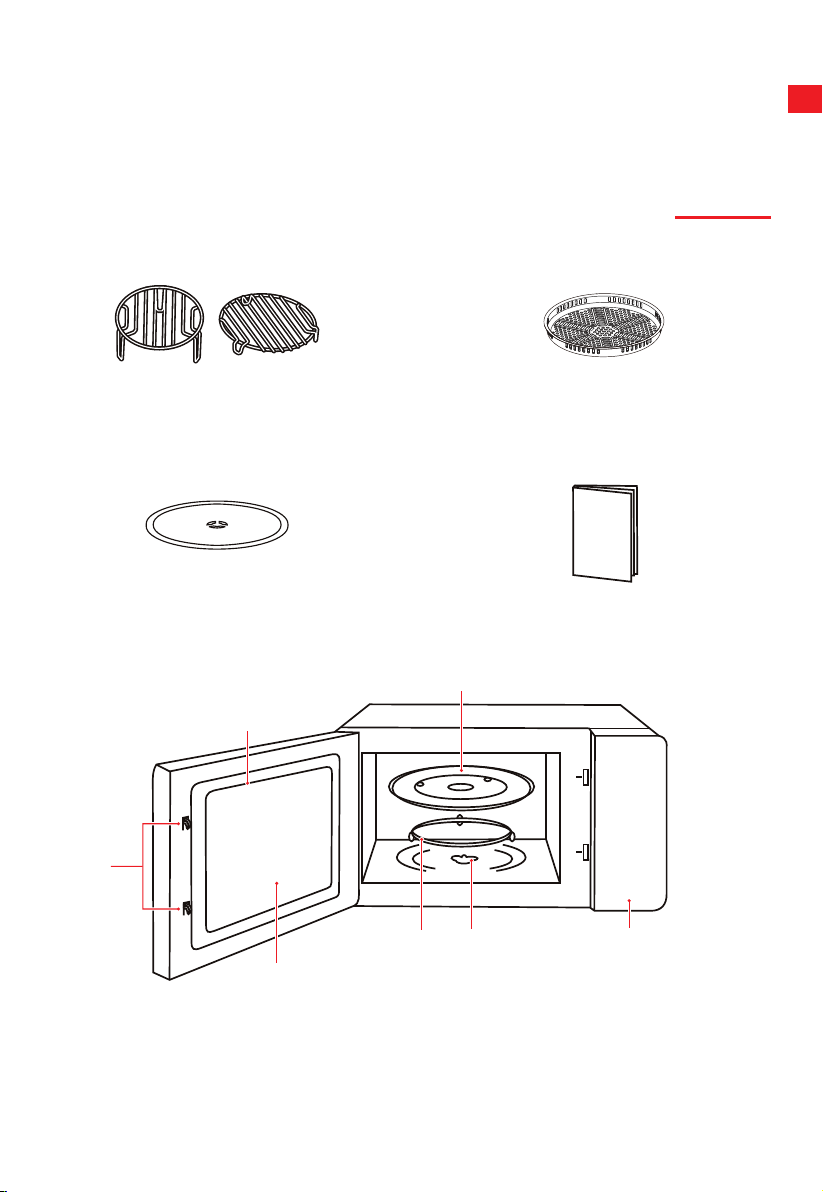

NAMES OF MICROWAVE OVEN PARTS AND ACCESSORIES
Remove the oven and all materials from the carton and oven cavity.
A. Control panel
B. Glass tray
C. Turntable shaft
D. Turntable ring assembly
E. Door assembly
F. Observation window
G. Safety interlock system
E
G
F
B
AD C
Grill Rack
(Can only be used without microwave function
and must be placed on the glass tray.)
Grill Tray
(Can only be used without microwave function
and must be placed on the grill rack.)
Instruction Manual
Glass Tray
(Can be used under all functions)

15
Cleaning the cooking compartment and putting the turntable in place.
For new installations, make sure all packaging and shipping tape has been removed from the
turntable shaft.
Before using the appliance to prepare food for the first time, you will need to put the turntable in
place correctly. You must clean the cooking compartment and accessories.
TURNTABLE INSTALLATION
1
2
3
SETTING UP YOUR OVEN

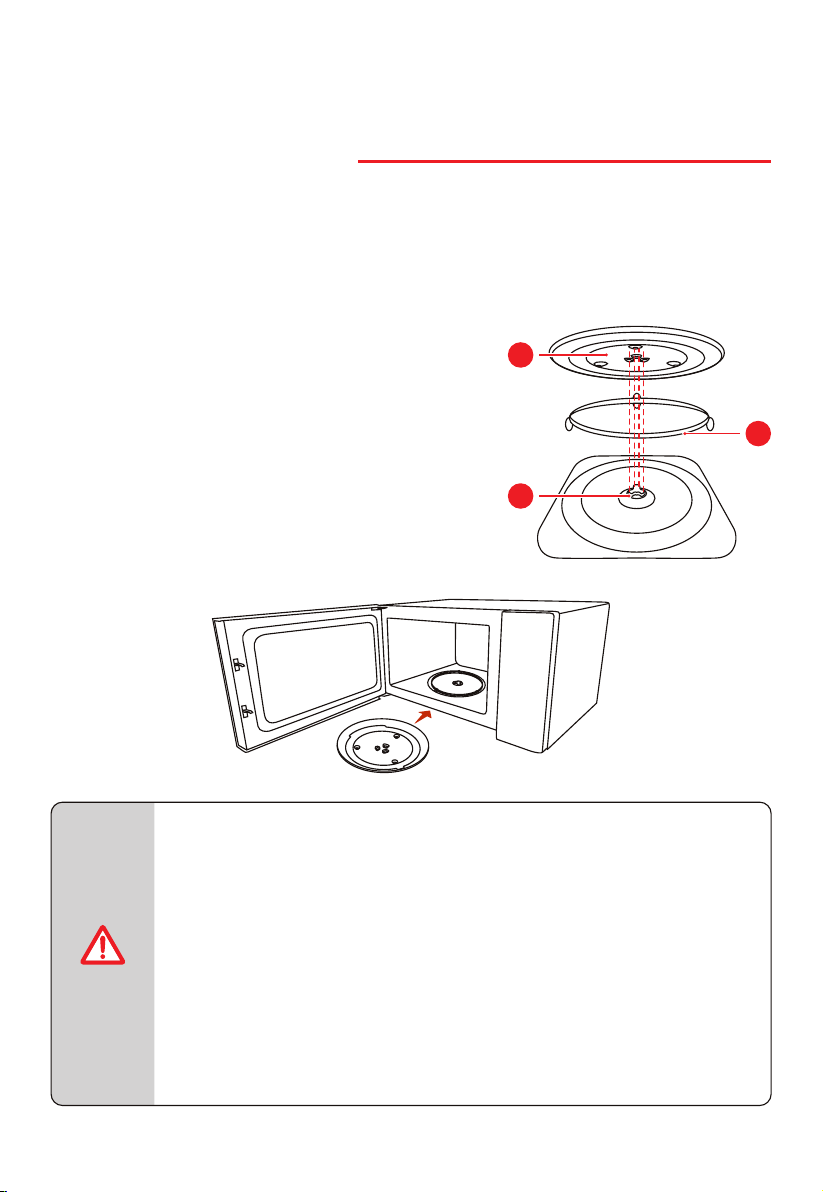

How to put the turntable in place:
1. Place the turntable ring assembly③ into the recess
in the cooking compartment.
2. Place the glass tray①on the turntable ring assembly③.
Fit the raised, curved lines in the center of the glass tray
bottom between the three spokes of the shaft.
Make sure that the glass tray①engages in the
turntable shaft②in the center of the cooking
compartment floor. The rollers on the shaft should fit inside
the turntable bottom ridge.
• Never use the appliance without the turntable. Make sure that it is
properly engaged. The turntable can turn clockwise or anti-clockwise.
• Never place the glass tray upside down. The glass tray should never
be restricted.
• Both glass tray and turntable ring assembly must always be used
during cooking.
• All food and containers of food are always placed on the glass tray
for cooking.
• Never restrict the movement of the turntable.
• If glass tray or turntable ring assembly cracks or breaks, contact your
nearest authorized service center.
NOTE

16
COUNTERTOP INSTALLATION
Remove all packing material and accessories. Examine the oven for any damage such as dents
or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not
remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
INSTALLATION
1. Select a level surface that provide enough open space for the intake and/or outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls.
One side must be open.
The minimum installation height is 3.0ft(91.4cm).
a. Leave a minimum clearance of 12 inches (30cm) above the oven.
b. Do not remove the legs from the bottom of the oven.
c. Blocking the intake and/or outlet openings can damage the oven.
d. Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV reception.
2. Plug microwave oven into a standard household outlet. Be sure the voltage and the frequency
is the same as the voltage and the frenquency on the rating label.
Top
Right
DISTANCE
(INCHES/CM)
SIDE
Left
Front
Behind
12 inches/30cm
Open
3.0 inches/7.5cm
Open
3.0 inches/7.5cm
NOTE
12 inches(30cm )
3.0 inches
(7.5cm)
>3.0ft
(91.4cm)
3.0 inches
(7.5cm) Open
• Do not install oven over a range cooktop
or other heat-producing appliance.
If installed near or over a heat source, the
oven could be damaged and the warranty
would be avoid.
The accessible surface may be
hot during operation

17
INSTRUCTION FOR USE
BEFORE USING FOR THE FIRST TIME
This section tells you what you need to do before using your microwave to prepare food for the
first time. Read the section entitled beforehand
"IMPORTANT SAFETY IN
Before you can use your new appliance, you will need to put the turntable in place correctly.
You must also clean the cooking compartment and accessories.
• Never use the appliance without the turntable.
• Make sure that it is properly engaged.The turntable can urn clockwise
or anti-clockwise.
NOTE
on
STRUCTIONS"
t
page 3.
The appliance may produce unpleasant odors when it is used for the first time.
