Toshiba ML2-EM31PAE User manual

Microwave
Solo Oven
Instruction
ML2-EM31PAE(BS)

Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
MAINTENANCE

120V~ 60Hz
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
Specifications
Model:
12.4 inch
1550W
Approx. 34.6 Lbs
1100W
1.2 cu.ft.
20.5X17.2X12.8inch
Do not attempt to operatethis oven with thedoor open since this can result
in harmful exposure to microwave energy. It is important not to
defeat or tamper with the safety interlocks.
a. DOOR(bent)
b. HINGESAND LATCHES(broken orloosened)
c. DOOR SEALS ANDSEALING SURFACE
The oven should not be adjusted or reparied by anyone except properly
qualified service personnel.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important
that the oven door closes properly and that there is no damage to the:
1.
2.
3.
4.
EN-2
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
ML2-EM31PAE(BS)

To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave oven energy when using your appli -
ance, follow basic safety precautions, including the following:
Read all instructions before using the appliance.
Read and follow the specific: " PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY" found on page 2.
As with most cooking appliances, close supervision is necessary to reduce the risk
of a fire in the oven cavity.
1.
2.
3.
EN-3
To reduce the risk of fire in the oven cavity:
This oven must be grounded. Connect only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
Install or locate this oven only in accordance with the installation instructions
provided.
Some products such as whole eggs and sealed containers-for example, closed glass
jars-are able to explode and should not be heated in the oven.
4.
5.
6.
7.
Do not overcook food. Carefully attend the appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
Remove wire twist-ties and metal handles from paper or plastic containers/ bags
before placing them in the oven.
If materials inside the oven ignite, keep the oven door closed. Turn the oven off,
and unplug the appliance. Disconnect the power cord, shut off power at the fuse
or circuit breaker panel.
Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
a.
b.
c.
d. Do not use the cavity for storage purposes.
IMPORTANT SAFETY
INSTRUCTIONS WARNING

EN-4
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Use this appliance only for its intended uses as described in this manual. Do not
use corrosive chemicals or vapors in this appliance. This oven is specifically
designed to heat or cook or dry food. It is not designed for industrial or laboratory
use.
As with any appliance, close supervision is necessary when used by children.
Do not operate this oven if it has a damaged cord or plug, if it is not working properly
or if it has been damaged or dropped.
This microwave should be serviced only by qualified service personnel.
Do not cover or block any openings on the oven.
Do not store or use this appliance outdoors.
Do not use this oven near water, for example, near a kitchen sink, in a wetbasement,
near a swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps or detergents applied with a sponge of soft cloth.
This appliance is for private household use only.
Contact nearest authorized service facility for examination, repair or adjustment.
IMPORTANT SAFETY
INSTRUCTIONS WARNING

20. Liquids, such as water, coffee, or tea are able to be overheated beyond the
boiling point without appearing to be boiling. Visible bubbling or boiling when
the container is removed from the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID.
Do not overheat the liquid.
Stir the liquid both before and halfway through heating it.
Do not use straight-sided containers with narrow necks.
After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
Use extreme care when inserting a spoon or other utensil into the container.
a.
b.
c.
d.
e.
EN-5
IMPORTANT SAFETY
INSTRUCTIONS WARNING
SAVE THESE INSTRUCTIONS

CAUTION:
GROUNDING INSTRUCTIONS
DANGER
WARNING
This appliance must be grounded. In the event of an electrical short circuit, ground-
ing reduces the risk of electric shock by providing an escape wire for the electric
current. To protect against electrical shock, this appliance is equipped with a cord
having a 3 prong grounding-type plug for insertion into a proper grounding-type
receptacle. DO NOT alter the plug for use in a 2-prong receptacle. If the plug will not
Touching some of the internal components can cause serious personal injury or
death. Do not disassemble this appliance.
Electric Shock Hazard
(grounding) plug
Three-pronged
fit into a receptacle, have the proper receptacle installed by a qualified electrician.
EN-6
Do not insert your fingers into any gaps or holes; it may cause injuries.
Improper use of the grounding can result
in a risk of electric shock

EN-8
GROUNDING INSTRUCTIONS
A short power-supply cord is provided to reduce the risks resulting from becom-
ing entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
If a long cord sets or extension cord is used:
a.
b.
c.
The marked electrical rating of the cord set or extension marked electrial
rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
The extension cord must be a grounding -type 3-wire cord.
The longer cord should be arranged so that it will not drape over the counter-
top or tabletop where it can be pulled on by children or tripped over uninten-
tionally.
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension
cord that has a 3-pronged grounding plug , and a 3-slot receptacle that will accept
the plug on the appliance.The marked rating of the extension cord shall be equal to
or greater than the electrical rating of the appliance.
1.
2.
3.
Consult a qualified electrician or serviceman if the grounding instructions are not
EN-7

GROUNDING INSTRUCTIONS
Operation of the microwave oven may cause interference to your radio, TV or
similar equipment.
When there is interference, it may be reduced or eliminated by taking the follow-
ing measures:
a.
b.
c.
d.
e.
Clean door and sealing surface of the oven.
Reorient the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
RADIOINTERFERENCE
Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
EN-8
RADIO INTERFERENCE

UTENSILS
GROUNDING INSTRUCTIONS
See the instructions on "Materials you can use in microwave oven or to be avoided
in microwave oven". There may be certain non-metallic utensils that are not safe to
use for microwaving. If in doubt, you can test the utensil in question following the
procedure below.
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the
utensil in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
Do not exceed 1 minute cooking time.
1.
2.
3.
4.
Tightly-closed utensils could explode. Closed containers should be opened and
plastic pouches should be pierced before cooking.
UTENSIL TEST:
CAUTION
Electric Shock Hazard
EN-9
HOUSEHOLD INDOOR USE ONLY
SAVE THESE INSTRUCTIONS

MATERIALS YOU CAN USE IN MICROWAVE OVEN
UTENSILS REMARKS
Follow manufacturer’s instructions.The bottom of browning dish
must be at least 3/16 inch (5mm) above the turntable. Incorrect
usage may cause the turntable to break.
Browning dish
Microwave-safe only. Follow manufacturer’s instructions.Do not
use cracked or chipped dishes.
Dinnerware
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glass jars
Heat-resistant oven glassware only. Make sure there is no metallic
trim. Do not use cracked or chipped dishes.
Glassware
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Oven cooking bags
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper plates and cups
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Paper towels
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Microwave-safe only ( meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
Parchment paper
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic cont ainers
soften, as the food inside gets hot. "Boiling bags" and tightly closed
plastic bags should be slit, pierced or vented as directed by
package.
Plastic
Wax paper
Thermometers
Plastic wrap
EN-10

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
UTENSILS REMARKS
May cause arcing. Transfer food into microwave-safe dish.
Aluminum tray
Metal twist ties
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Food carton with
metal handle
Paper bags May cause a fire in the oven.
Plastic foam
Wood
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
EN-11

SETTINGUP YOUR OVEN

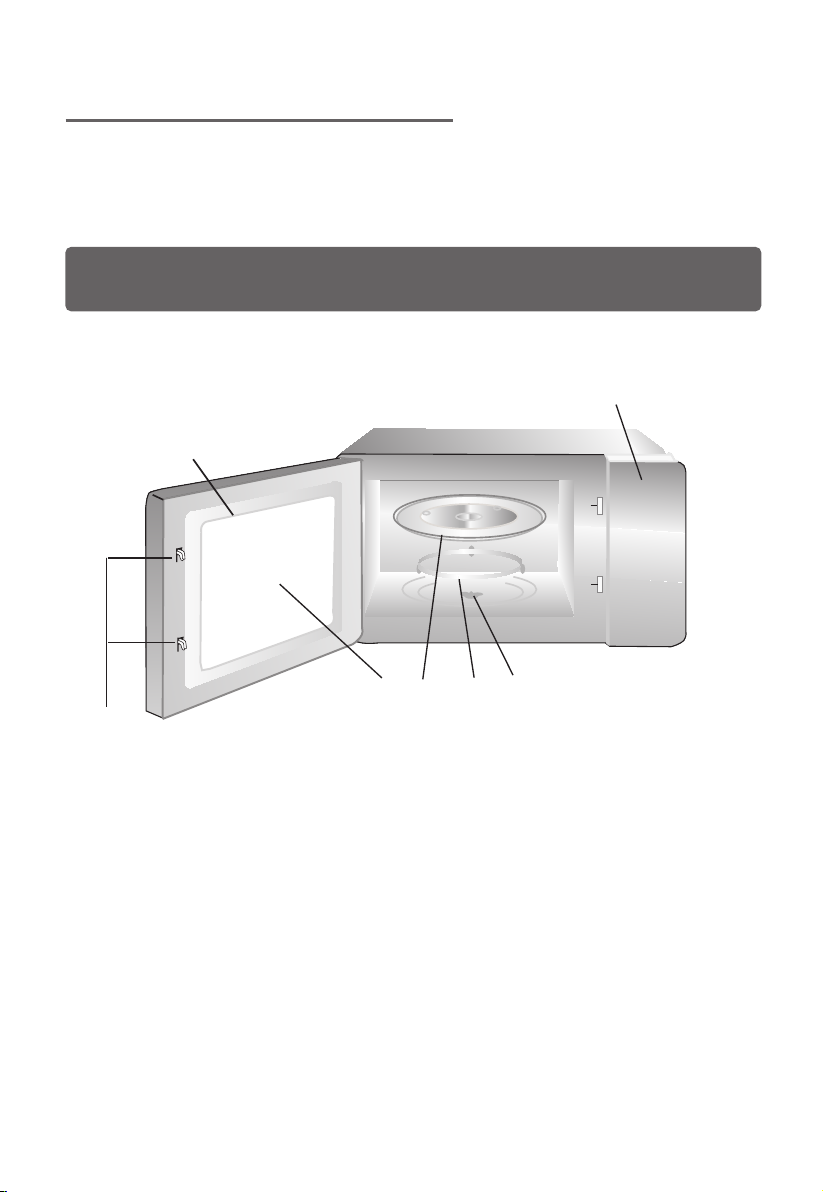

NAMES OFOVEN PARTS AND ACCESSORIES
Turntable ring 1
Instruction Manual 1
Control panel
Turntable shaft
Turntable ring
Glass tray
Observation window
Oven Door
Safety interlock system
A
B
C
D
E
F
G
.
.
.
.
.
.
.
F
G
A
C B
ED
Glass Tray 1
Remove the oven and all materials from the carton and oven cavity. Your
oven comes with the following accessories:
EN-12

SETTINGUP YOUR OVEN
TURNTABLE INSTALLATION
a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
Turntable ring
Turntable shaft
Hub (underside)
Glass tray
EN-13

SETTINGUP YOUR OVEN
COUNTERTOP INSTALLATION
INSTALLATION
1.
Select a level surface that provide enough open space for the intake
and/or outlet vents.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls.
One side must be open.
(1)
(2)
(3)
(4)
Leave a minimum clearance of 12 inches (30cm) above the oven.
Do not remove the legs from the bottom of the oven.
Blocking the intake and/or outlet openings can damage the oven.
Place the oven as far away from radios and TV a s possible.
Operation of microwave oven may cause interference to your radio or TV reception.
OPEN
12 inches(30cm )
3.0 inches(7.5cm )
3.0 inches(7.5cm )
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove
the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
EN-14

SETTINGUP YOUR OVEN
INSTALLATION
2.Plug your oven into a standard household outlet. Be sure the voltage and
the frequency is the same as the voltage and the frenquency on the
rating label.
WARNING
Do not install oven over a range cooktop or other heat-producing appli-
ance. If installed near or over a heat source, the oven could be damaged
and the warranty would be avoid.
The accessible surface may
be hot during operation
EN-15

OPERATION
CONTROL PANEL AND FEATURES
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(11)
(12)
(13)
(9)
(10)
(14)
(4) Custom Defrost: Defrost time calculated by entered weight and category of item
(5) Number Pads
(6) Power Level
(7) START ADD 30 SEC
(8) Favorite
(9) Clock
(10) Kitchen Timer
(11) ONE TOUCH START Pads (1- 6)
(12) Cook time
(13) STOP Cancel Hold 3 sec: Before cooking starts, press to clear all previous settings.
During cooking, press once to stop oven; press twice to stop oven and clear all settings.
(14) Display Window
(1) Quick Touch Presets--- Sensor Menu ( Sensor Reheat, Frozen Pizza, Frozen Entree,
(2) Custom Cook, Soften/Melt), Popcorn
Potato, Rice, Veggie )
Auto Menu (
(3) Automatically defrosts one pound items
EN-16

OPERATION
1.POWER LEVELS
Prior to cooking, press Power Level and "PL10" will display. Then press
number pads to select a different power level.
2.CLOCK SETTING
(1)
(2)
(3)
Press Clock once, "00:00" will appear in the display.
Press the number pads to enter the current clock time. For example, if the time is
now 10:12, press " 1, 0, 1, 2 " in order.
Press Clock to finish clock setting, " : " will flash and the numbers will
appear as a clock time in the display.
Level 10 9 8 7 6 5 4 3 2 1
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10%
Display PL10 PL 9 PL 8 PL 7 PL 6 PL 5 PL 4 PL 3 PL 2 PL 1
NOTE:
If the numbers entered are not within the range between 1:00 to 12:59, the setting
will not be accepted until valid numbers are entered.
In the process of setting clock, if the pad is pressed or if there is no operation
within 1 minute, the display will automatically return to the previous clock setting.
Ten power levels are available.
When the microwave oven is plugged into an outlet, "0:00" will display.
EN-17

OPERATION
Press Kitchen Timer once, "00:00" will appear in the display.
Press the number pads to enter the time amount. The maximum amount of time
that can be entered is 99 minutes, 99 seconds.
When the time amount elapses, timer indicator will disappear. The oven will
beep 5 times.
Press Cook Time , "00:00" will appear in the display.
Press number pads to enter the cooking time. The maximum cooking time is 99
minutes,99 seconds.
Press Power Level, PL10 will flash. Press number pads 0 through 9 to select a
different power level if desired. Seethe POWER LEVEL table
above.
Press to start cooking. The remaining cooking time will display.
a.
b.
c.
d.
Press Cook Time , "00:00" will display.
Press "1, 5, 0, 0" in order for 15:00 to appear in the display.
Press Power Level , then press "5" to select 50% microwave power.
Press to start cooking. Buzzer sounds once. The remaining cooking
time will display.
4.MICROWAVE COOK
(1)
(2)
(3)
(4)
3. KITCHEN TIMER
(1)
(2)
(3)
(4)
Note:
During the Kitchen Timer function, no cooking function can be set into operation.
Kitchen Timer amount cannot be increased by pressing .
Pressing will cancel the Timer countdown.
Example : To cook the food with 50% microwave power for 15 minutes.
Press to confirm setting, and the timer will start to count down.
The Kitchen Timer setting is different from the Clock setting; it is simply a timer.
EN-18
