Toshiba TekBright PA3553 Series User manual

TOSHIBA
TekBright
™
22” Wide Display
User’s Manual
GMAA0008511T
06/07

2
User’s Manual
Contents
Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Industry Canada Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WEEE Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpack the box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installing the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting screen position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting the power cord. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preset modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Display Data Channel (DDC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
User Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Front Panel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Basic Sections of the On Screen Display (OSD) Screen . . . . . . . . . . 13
On Screen Display (OSD) Operation . . . . . . . . . . . . . . . . . . . . . . . . . 13
OSD Function Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning your monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Removing the Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3
User’s Manual
Copyright
© 2007 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.
Disclaimer
The information contained in this manual, including but not limited to any
product specifications, is subject to change without notice.
TOSHIBA CORPORATION (TOSHIBA) PROVIDES NO WARRANTY
WITH REGARD TO THIS MANUAL OR ANY OTHER INFORMATION
CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE WITH REGARD TO ANY OF THE
FOREGOING. TOSHIBA ASSUMES NO LIABILITY FOR ANY DAMAGES
INCURRED DIRECTLY OR INDIRECTLY FROM ANY TECHNICAL OR
TYPOGRAPHICAL ERRORS OR OMISSIONS CONTAINED HEREIN OR
FOR DISCREPANCIES BETWEEN THE PRODUCT AND THE MANUAL.
IN NO EVENT SHALL TOSHIBA BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, OR EXEMPLARY DAMAGES, WHETHER
BASED ON TORT, CONTRACT OR OTHERWISE, ARISING OUT OF OR
IN CONNECTION WITH THIS MANUAL OR ANY OTHER INFORMATION
CONTAINED HEREIN OR THE USE THEREOF.
Trademarks
TekBright is a registered trademark of Toshiba America Information
Systems, Inc. and/or Toshiba Corporation.
All other brand and product names are trademarks or registered
trademarks of their respective companies.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

4
User’s Manual
■Reorient or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
■Consult the dealer or an experienced radio/TV technician for help.
Caution to the user
The Federal Communications Commission warns the user that changes or
modifications to the unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
FCC Conditions
This device complies with Part15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Contact
Please contact either:
■TOSHIBA’s Support Web site at pcsupport.toshiba.com.
■Or call the TOSHIBA Global Support Centre:
Within the United States at [phone]
Outside the United States at [phone]
Industry Canada Requirement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conformé à la norme NMB-003
du Canada.
To comply with the limits for an FCC Class B computing device, always use
the shielded signal cable supplied with this unit.

5
User’s Manual
WEEE Information
For EU (European Union) member users: According to the WEEE (Waste
electrical and electronic equipment) Directive, do not dispose of this
product as household waste or commercial waste. Waste electrical and
electronic equipment should be appropriately collected and recycled as
required by practices established for your country. For information on
recycling of this product, please contact your local authorities, your
household waste disposal service or the shop where you purchased the
product.
Disposal Information
This product contains mercury. Disposal of this material may be regulated
due to environmental considerations. For disposal, reuse or recycling
information, please contact your local government or the Electronic
Industries Alliance at www.eiae.org.

6
User’s Manual
Introduction
Congratulations on purchasing the TekBright™22” Wide Display, a high
performance 22-inch wide TFT LCD monitor.This manual introduces you to
all of the features, functions and technical specifications of the TekBright
monitor.
Features
■Compatible with most analog RGB (Red, Green, Blue) and Digital
display standards.
■Displays crisp and vibrant color graphics with VGA, SVGA, XGA, SXGA
(non-interlaced), SXGA, WSXGA+ and most Macintosh compatible
color video cards.
■Internal microprocessor digitally controls auto-scanning.
■Horizontal scan frequencies between 30 KHz and 81 KHz,
■Vertical scan frequencies between 56Hz and 76 Hz.
■Resident memory allows you to store factory default settings and
additional user adjustment parameters.
■Maximum resolution is WSXGA+ (1680 x 1050), best suited for
Windows applications.
■Compact and sleek cabinet design saves desk space.
■Complies with TCO 03 guidelines. In this scheme, no environmental
harmful substances are used during the entire manufacturing process.

7
User’s Manual
Unpack the box
Please check that the following items are included when you unpack the
box. Save the packing materials in case you will need to ship or transport
the monitor.
If any items are missing or damaged, notify your dealer immediately.
LCD Monitor AC Power Cord
DVI Cable (DVI modes only) D-SUB (VGA) Cable
Audio Cable User Manual

8
User’s Manual

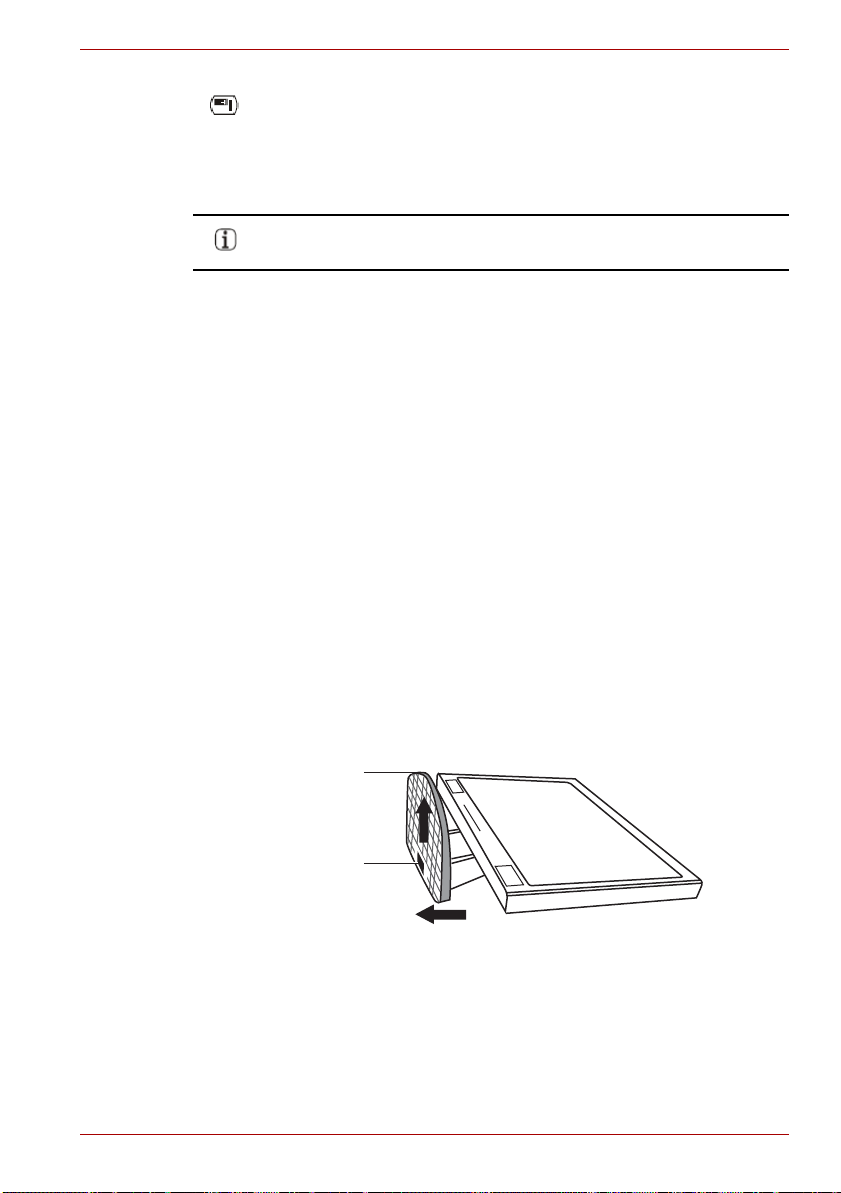

Installing the Base
Install
Carefully align the four hooks on the bottom of the monitor with the
corresponding slots on the base. The monitor will click into place.
Adjusting screen position
To optimize the best viewing position, you can adjust the tilt of the monitor.
The monitor can be adjusted to 20 degrees up or 5 degrees down from the
standard upright position as shown. Use both hands to hold the edges of
the monitor when you adjust it.
Connecting the power cord
■First check to make sure that the power cord you use is the correct type
required for your area.
■This monitor has a universal power supply that allows operation in
either 100/120V AC or 220/240 V AC voltage areas. No user-
adjustment is required.
■Plug one end of the power cord to the AC Inlet on the monitor and plug
the other end to a proper AC outlet.
■If you need to use an extension cord or power strip

9
User’s Manual
■For locations using 120V AC, use a UL listed cord set, Type SVT
wire and plug rated 10A/125V.
■For locations using 220/240V AC (outside of U.S.), use a cord set
consisting of H05VV-F cord and plug rated 10 A, 250 V.
Safety Precautions
Preset modes
Your monitor has default setting modes that are most commonly used (see
the table below). For optimum adjustment, perform the Auto Setup under
Windows “Full Screen” pattern. The monitor is capable of storing up to 9
user modes. The only condition to store as a user mode is the new display
information must have 1 KHz difference for horizontal frequency or 1 Hz for
vertical frequency or the sync signal polarities are different from the default
modes.
Never place the monitor or any other heavy object on the power cord.
Doing so may damage the cord or result in fire or electric shock, possibly
resulting in serious injury.
Do not expose the monitor to rain, excessive moisture or dust which could
cause fire or electric shock, possibly resulting in unit damage or serious
injury.
Do not cover the slots or openings of the monitor in order to allow proper
heat dissipation. Always place the monitor in a location where there is
sufficient space around it to ensure adequate ventilation.
Avoid placing the monitor against a bright background or where sunlight or
other light sources may reflect on the face of the monitor. Place the monitor
just below eye level.
Handle your monitor with care when transporting it.
Do not press, push or scratch the monitor screen to avoid damaging it.

10
User’s Manual
Power Saving
The monitor will go into “Power Saving” mode by the control signal from the
display controller and the power LED will glow amber.
The monitor will stay in power saving mode until a control signal has been
detected or the keyboard or mouse is activated. The recovery time from
power saving mode to ON is about 5 seconds.
Display Data Channel (DDC)
The monitor supports DDC2B standard, which allows Plug and Play and
makes your monitor installation easier. It requires that your computer
system also support DDC protocol. DDC (Display Data Channel) is a
communication protocol through which the monitor automatically informs
the host system about its capabilities, for example, supported resolutions
and corresponding timing.
Mode Resolution H.Freq.
(KHz) BandWidth (MHz) Polarity
HV
1 VGA 720 x 400 70 Hz 31.47 28.322 - +
2 VGA 640 x 480 60 Hz 31.47 25.175 - -
3 VESA 640 x 480 75 Hz 37.50 31.5 - -
4 VESA 800 x 600 60 Hz 37.88 40 + +
5 VESA 800 x 600 75 Hz 46.88 49.5 + +
6 VESA 1024 x 768 60 Hz 48.36 65 - -
7 VESA 1024 x 768 75 Hz 60.02 78.75 + +
8 MAC 1152 x 864 75 Hz 67.5 108 + +
9 SXGA 1280 x 1024 60 Hz 64 108 + +
10 SXGA 1280 x 1024 75 Hz 80 135 + +
11 WSXGA+ 1680 x 1050 60 Hz 65.3 146.25 - +
State Power
Consumption LED Light
ON Normal Green
Power saving mode <2 W Amber

11
User’s Manual
Installation
To install the monitor to your host system, please follow the steps as given
below:
1. Connect the Video Cable
■D-SUB Cable (VGA cable)
■Make sure both the monitor and computer are turned OFF.
■Connect the VGA video cable to both the monitor and the computer.
■DVI Cable
■Make sure both the monitor and computer are turned OFF.
■Connect the DVI video cable to both the monitor and the computer.
2. Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC
outlet.
3. Connect the Audio Cable.
4. Turn the monitor ON.
5. Then turn ON the computer. It is very important to follow this sequence.
6. If the monitor does not function properly, please refer to the
troubleshooting section to diagnose the problem.
AC Inlet
Audio
port
DVI-D
port
D-SUB
port
Cable lock slot

12
User’s Manual
User Controls
Front Panel Controls
1. Power Switch : To turn power ON or OFF.
2. Power LED : Green light indicates the power is turned ON.
3. Select MENU : To exit and enter the On Screen Display (OSD) menu.
4. Select : To move downward in the OSD Item.
Acts as Digital and Analog switching hot key when
OSD is not displayed.
5. - : To decrease the value of the parameter in the OSD,
that has been selected for adjustment.
- : Choose the previous OSD MENU page.
: Acts as Audio Mute hot key when OSD is not
displayed.
6. + : To increase the value of the parameter in the OSD,
that has been selected for adjustment.
+ : Choose the next OSD MENU page.
AUTO : Act as AUTO adjustment hot key when OSD is not
displayed.

13
User’s Manual
Basic Sections of the On Screen Display (OSD) Screen
On Screen Display (OSD) Operation
1. Press MENU button to activate the OSD menu. There are six items
to choose from. Press “+” or “-” to scroll through the top menu items.
2. Press Select button to move down through the selected top menu
options. The options will be highlighted when selected. Use “+” or “-” to
open the option that you want.
3. Then use “+” or “-” to increase or decrease the value of the option.
4. To quit the OSD screen at any time during the operation, press MENU
button. If no buttons are pressed for a time period, the OSD
automatically closes.
5. When the OSD is not displayed, press “+” key to start Auto-Adjust.
6. When the OSD is not displayed, press “-” key to turn the speakers ON/ OFF.
7. When the OSD is not displayed, press key to switch between
Analog and Digital mode.

14
User’s Manual
OSD Function Description
• Volume Increase or decrease the sound.
• Brightness Increase or decrease the brightness.
• Contrast Increase or decrease the contrast.
• Auto Contrast Press “+” button to start auto analog
contrast. [When in DVI mode, Auto
Contrast is disabled]
• Color Temperature Press “-” or “+” to select 5000, 6500, 7500,
8200, 9300 and USER. (Select USER to
make adjustments to the R/G/B content.)
In DVI mode, the following 5 items are disabled.
•HorizontalSize Increase or decrease the size of image.
•Fine Increase or decrease the snow noise of the
image.
•Left/Right Move the screen toward left or right.
• Down/Up Move the screen upward or downward.
•AutoAdjust Press “+” to turn on this function. The Auto-
Adjust will automatically adjust Vertical
Position, Horizontal Position, Clock and
Clock-Phase. This process takes about 5
seconds.
• Language Select English, German, Spanish, French,
Italian, Dutch, Portuguese, Swedish.
• Factory Reset Returns the monitor to its default settings.
•OSDTimeout Adjusts the period of OSD auto turn-off time.
• OSD Left/Right Moves the OSD control menu horizontally on
the screen. When the “+” button is pressed, the
OSD control menu will move to the right side of
the screen. When the “-” button is pressed, the
OSD control menu will move to the left side.

15
User’s Manual
Cleaning your monitor
Please follow the guidelines below when cleaning the monitor.
■Always unplug the monitor before cleaning.
■Use a soft cloth to wipe the screen and cabinet front and sides.
■Never spray cleaner directly onto the monitor or use harsh chemical
products to clean it.
Removing the Base
To remove the base from the monitor, follow these steps:
1. Make sure the monitor display is adjusted to the standard upright position.
2. Carefully lay the monitor and stand on a flat surface with the monitor
screen facing upward.
3. Hold the monitor steady with one hand. Use the other hand to pull the
tab on the base upward and tilt the top edge of the base toward the
monitor until the latch is released (see the illustration below).
4. Remove the base.
The monitor is now ready to be placed in a shipping carton or other
protected location for transporting or storage.
• OSD Down/Up Moves the OSD control menu vertically on
the screen. When the “+” button is pressed,
the OSD control menu will move to the
upper edge of the screen. When the “-”
button is pressed, the OSD control menu
will move to the lower edge of the screen.
• Information Indicates the current resolution, Vertical
Frequency.
Ta b
Top edge

16
User’s Manual
Troubleshooting
Some problems you may encounter when using your TekBright monitor are
relatively easy to identify and solve. Before sending your TekBright monitor
for servicing, please check the troubleshooting list below to see if you are
able to diagnose and remedy the problem.
(VGA Mode)
Problems Current Status Remedy
No Picture
LED ON • Using OSD, adjust brightness and contrast
to maximum or reset to their default settings.
LED OFF • Check the monitor’s power switch.
• Verify that the AC power cord is properly
connected to the monitor.
LED displays
amber color • Make sure the video signal cable is properly connected at the back of monitor.
• Make sure the computer system’s power
is ON.
Abnormal
Unstable Picture • Verify that the specification of graphics
adapter and monitor are in compliance. If
they are not in compliance, it may cause an
input signal frequency mismatch.
Display is
missing, center
shift, too small or
too large in
display size
• Using OSD, adjust Resolution, Clock,
Clock-Phase, Horizontal Position and
Vertical Position with non-standard
signals.
• If the full-screen image is missing, use
OSD to select other resolution or other
vertical refresh timing.
• Wait for a few seconds after adjusting the
size of the image before changing or
disconnecting the signal cable or turning
OFF the monitor.
Abnormal
Sound No sound, or sound level is too
low
• Verify that the audio cable is connected to
both the monitor and the host PC.
• Check to see if the volume setup of the
host PC is in the minimum position and try
to raise the volume level.

17
User’s Manual
(DVI Mode)
Problems Current Status Remedy
No Picture
LED ON • Using OSD, adjust brightness and contrast
to maximum or reset to their default
settings.
LED OFF • Check the power switch.
• Verify that the AC power cord is properly
connected to the monitor.
LED displays
amber color • Verify that the video signal cable is properly connected to the monitor.
• Verify that the power to the host PC is ON
Abnormal
Sound No sound, or sound level is too
low
• Verify that the audio cable is connected to
both the monitor and the host PC.
• Check to see if the volume setup of the
host PC is in the minimum position and try
to raise the volume level.

18
User’s Manual
Specifications*
* All specifications are subject to change without notice.
** Model number varies based on the monitor selected.
Product Name TekBright 22” Wide Display
Model Number PA3553**
LCD Display
Display Type 22” TFT LCD
Display Area (W x H) 473.76 x 296.1mm (18.7” x 11.7”)
Contrast Ratio 800:1 (Typ.)
Viewing Angle 160°H 160°V (CR=10)
Power Input
Voltage 100-240V AC
Frequency 50-60Hz
Current Rating 1.5A
Operational Features
Display Colors 16.7M
Resolution WSXGA+ (1680 x 1050) at 60Hz maximum.
Brightness 300 cd/m2(Typ.)
Response Time 5ms (Typ.)
Interface Analog RGB, Digital
Input Connector 15-pin D-SUB, Audio input DVI-D Cable
Multimedia (Optional)
Two Internal Speakers 1.5 watt output x 2
Physical Specification
Dimension(HxW xD) 399 x 508 x 191 (mm) (15.7” x 20” x 7.5”)
Net Weight Approximately 5.3Kg (11.7 lbs.)
Power
Power saving Yes
Power Consumption 49W
Safety & EMI CE, C-UL, FCC, TUV-GS, TUV-Ergonomics

TOSHIBA
Monitor panorámico de 22 pulgadas
TOSHIBA TekBright™
Manual del usuario

2
Manual del usuario
Contenido
Derechos de autor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Exoneración de responsabilidad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Marcas registradas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Declaración de conformidad con la normativas de la FCC . . . . . . . . . 4
Requisito de Industry Canada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Información sobre la directiva RAEE. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Información sobre el desecho . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Características . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Desempaque la caja. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Instalación de la base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ajustar la posición de la pantalla . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Conexión del cable de alimentación . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Precauciones de seguridad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Modos predeterminados . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Ahorro de energía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Canal de datos de pantalla (Display Data Channel o DDC) . . . . . . . . 10
Instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controles del usuario . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Controles del panel frontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Secciones básicas de la pantalla OSD. . . . . . . . . . . . . . . . . . . . . . . . 13
Operación de la pantalla OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Descripción de las funciones OSD. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Limpieza del monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remueva la base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Especificaciones*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
