TDP-P4 Quick Start
Adjust the image position.
Power
Height adjustment
Zoom
Focus
Power
cord
Power cord
Laptop power
cord
If necessary, press the activation
keys on your laptop to see the
image on the screen.*
* Your computer may use a different key combination. Check your computer’s user’s guide for more information.
Fn
F5
LCD/CRT
3
6
5
4
1
2
M1-DA analog
computer cable
USB
mouse
Power
switch
connector panel
Composite video
Computer
Lens cap
S
S-video
in
009-0565-00
P4 QS-eng.fm Page 1 Thursday, March 8, 2001 9:28 AM

Still need help?
Remember, your User’s Guide includes comprehensive instructions on setting up and
operating your projector.
1Nothing appears on the screen.
Make sure you have plugged in the power cable, removed the lens cap, and
pressed the Power switch on the back of the projector.
2All I see is the startup screen.
Make sure the computer cable is connected between the computer and the projec-
tor. Try pressing the laptop activation keys once more. Sometimes you need to
press them twice to make the image appear on the screen. If you also have a video
player plugged into the projector, try pressing the Source button on the keypad or
the Data button on the remote.
3There’s no computer image on the screen.
The projector may be having a hard time synchronizing with the computer signal.
Try pressing the Menu button on the projector keypad or remote to open the
menus. Select the Image menu, then turn Auto Image to Off. See the User’s Guide
for more information.
4The computer image fills the screen, but the text is fuzzy and hard to read.
Try setting your laptop’s resolution to the projector’s native resolution (Start/Set-
tings/Control Panel/Display/Settings tab, select 1024x768). If your laptop only
goes up to 800x600 or 640x480, change the Resize option in the Image menu to
Native. The image will be smaller, but it should be sharp. See the User’s Guide for
help with the menus.
5I can only see part of the computer image on the screen.
Try setting your laptop’s resolution to the projector’s native resolution. With some
laptop computers, it’s necessary to disable the laptop display to do this. You use
the activation keys to show the image only on the screen.
6How do I play a video through the projector?
Need to talk to someone?
Contact your Toshiba dealer or Toshiba Technical Support.
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided in this quick start and your
User’s Guide BEFORE using your projector. Failure to comply with safety instructions
may result in fire, electrical shock, or personal injury and may damage or impair pro-
tection provided by equipment. Please save all safety instructions.
Safety Definitions
•Warning:Statements identify conditions or practices that could result in perma-
nent personal injury.
•Caution:Statements identify conditions or practices that could result in damage
to your equipment.
Safety Symbols
Attention:For information about usage of a feature, please refer to the User’s
Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to lamp door of the projector.
Safety Terms:
•Warning:Don’t look directly into the lens when the projector is turned on.
•Warning: To replace the lamp, turn off the projector and unplug the
power cord. To avoid burns, wait 30 minutes before opening the lamp
access grill. Follow all instructions provided in the User’s Guide.
•Warning: Please use the power cord provided.
•Warning: Refer all service to qualified service personnel. Servicing your own
projector will void the warranty.
•Caution:Don’t block ventilation openings.
•Caution: Don’t set liquids on the projector. Spilled liquids may damage your
projector.
•Caution: Don’t place the projector on a hot surface or in direct sunlight.
•Caution: Do not drop the projector. Transport the projector in a Toshiba-
approved case; contact your Toshiba dealer for a list of cases.
in

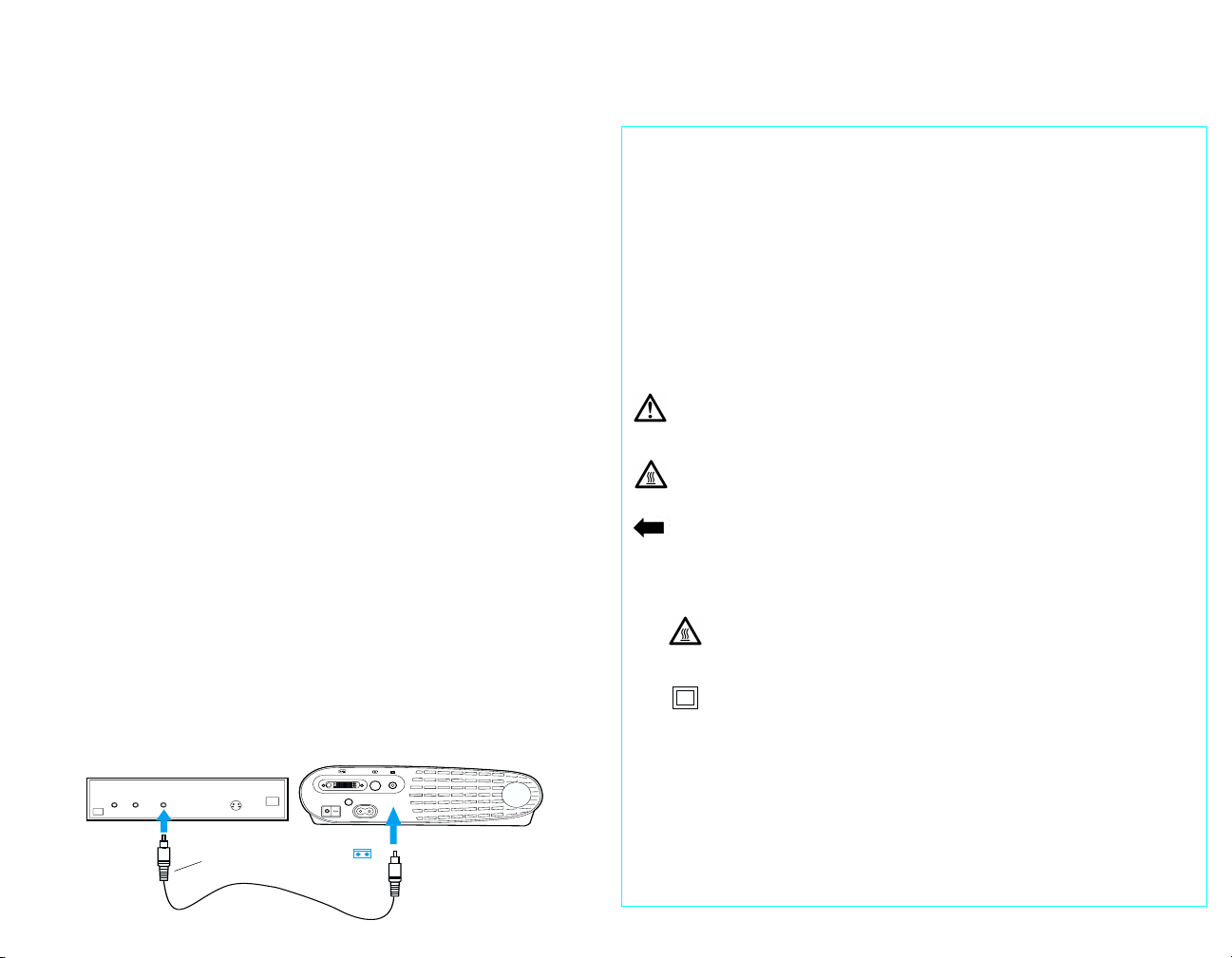

Video
