Owner’s Manual
Owner
REFRIGERATOR FREEZER
For Home Use Only
GR-RF532WE-PGJ(22)
GR-RF532WE-PMJ(02)
GR-RF532WE-PGM(22)

1. Safety warnings
1.1 Warning
1.2 Meanings of safety warning symbols
1.3 Electricity related warnings
1.4 Warnings for using
1.5 Warnings for placement
1.6 Warnings for energy
1.7 Warnings for disposal
2. Proper use of the refrigerator
2.1 Placement
2.2 Leveling feet
2.3 Leveling door
2.4 Changing the Light
2.5 Starting
2.6 Energy saving tips
3. Structure and functions
3.1 Key components
3.2 Functions
4. Maintenance and care of the refrigerator
4.1 Overall cleaning
4.2 Cleaning of door tray
4.3 Cleaning of big drawer
4.4 Defrosting
4.5 Out of operation
5. Trouble shooting
6. Disposal of your appliance
2
2
5
5
6
7
7
8
9
9
10
11
12
12
12
13
13
14
18
18
18
19
19
19
20
21
CONTENTS

2
READ SAFETY PRECAUTIONS BEFORE INSTALLATION
To prevent injury to the user or other people and property damage,
the following instructions must be followed. Incorrect operation due
to ignoring of instructions may cause harm or damage.
1.1
• WARNING: Risk of re disaster and explosion
The refrigerant of the appliance is ammable, please be care not to
damange the cooling pipes during installation and transportation.if
gas leakage happens, please contact the distributor or local service
agent, and the following precautions should be always taken:
1. Open the windows for ensuring good ventilation.
2. No re around and please do not use other electric appliance.
• This appliance is intended to be used in household and similar
applications such as sta kitchen areas in shops, oces and other
working environments; farm houses and by clients in hotels, motels
and other residential type environments; bed and breakfast type
environments; catering and similar non-retail applications.
• Children should be supervised to ensure that they do not play with
the appliance.
• WARNING: Risk of re disaster and electric shock
The power cord should be replaced when it has been damaged.
please contact the distributor or local service agent for
replacement.
• Please unplug the power plug from socket when clean the
appliance or leave the appliance nonuse for a long time.
• Do not use extension cord or ungrounded (two prong) adapters.
• WARNING: Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
1. Safety warnings

3
• WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• WARNING:Please abandon the refrigerator according to local
regulators for it use ammable blowing gas and refrigerant.
• WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
• DANGER: Risk of child entrapment. Before you throw away your old
refrigerator or freezer:
-Take o the doors.
-Leave the shelves in place so that children may not easily climb
inside.
• The refrigerator must be disconnected from the source of electrical
supply before attempting the installation of accessory.
• Refrigerant and cyclopentane foaming material used for the
refrigerator are ammable.Therefore, when the refrigerator is
scraped, it shall be kept away from any re source and be recovered
by a special recovering company with corresponding qualication
other than be disposed by combustion, so as to prevent damage to
the environment or any other harm.

4
• For EN standard: This appliance can be used by children aged from
8 years and above and persons with reduce physical sensory or
mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• For IEC standard: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.)
• Please do not use the appliance on trac means(such as ship and
so on).
• If noise, odor and smoking happens, please unplug the power plug
immediately,and contact the distributor or local service agent.
• Please do not put your hands under or behind the appliance to
prevent from being hurt.
• Please leave the packing materials and other parts out of the reach
of children to prevent from risk of suocation.

5
1.2 Meaning of safety warning symbols
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product
or endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance
of instructions marked with this symbol; or
otherwise damage to the product or personal
injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require
special caution. Insucient caution may result
in slight or moderate injury, or damage to the
product.
This manual contains lots of important safety information which
shall be observed by the users.
1.3 Electricity related warnings
• Do not pull the power cord when pulling
the power plug of the refrigerator. Please
rmly grasp the plug and pull out it from
the socket directly.
• To ensure safe use, do not damage the
power cord or use the power cord when it is
damaged or worn.
• Please do not touch the power plug with
wet hand to prevent from electric shock.
• Please use a dedicated power socket and
the power socket shall not be shared with
other electrical appliances. The power plug
should be rmly contacted with the socket
or else res might be caused.
Cautioning symbol
Prohibition symbol

6

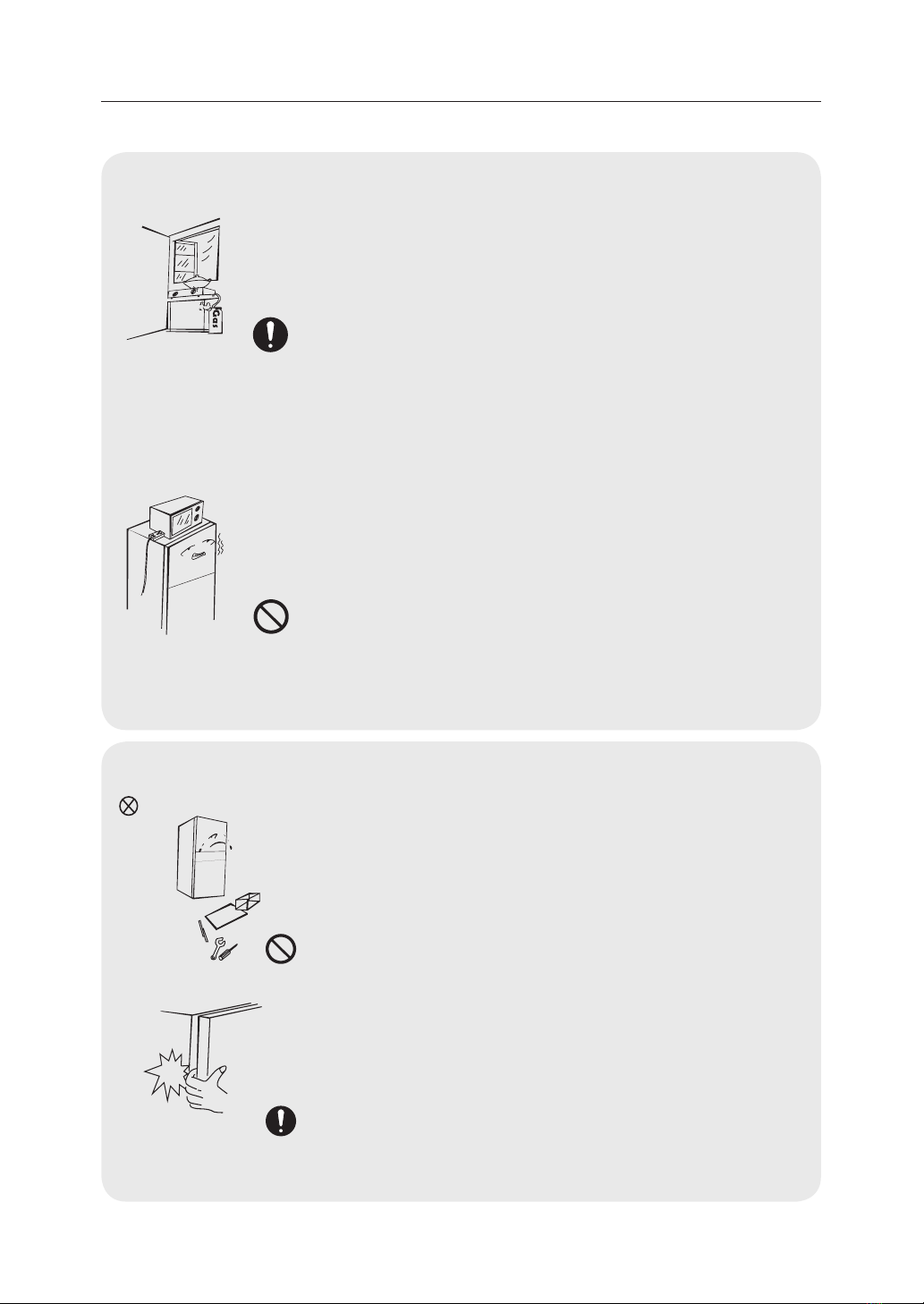

• Please ensure that the grounding electrode
of the power socket is equipped with a
reliable grounding line.
• Please ask for help from persons with
professional qualication to examine
whether the socket is with reliable grounding
line or not.
• It is the end-consumers' responsibility
to change the ungrounded socket into
grounded socket.
• Please turn o the valve of the leaking gas
and then open the doors and windows in
case of leakage of gas and other ammable
gases. Do not unplug the refrigerator and
other electrical appliances considering that
spark may cause a re.
• Do not use electrical appliances on the top
of the appliance, unless they are of the type
recommended by the manufacturer.
1.4 Warnings for using
• Do not arbitrarily disassemble or reconstruct
the refrigerator, nor damage the refrigerant
circuit; maintenance of the appliance must
be conducted by a specialist.
• Damaged power cord must be replaced
by the manufacturer, its maintenance
department or related professionals in order
to avoid danger.
• The gaps between refrigerator doors and
between doors and refrigerator body are
small, be noted not to put your hand in these
areas to prevent from squeezing the nger.
Please be gentle when close the refrigerator
door to avoid falling articles.

7

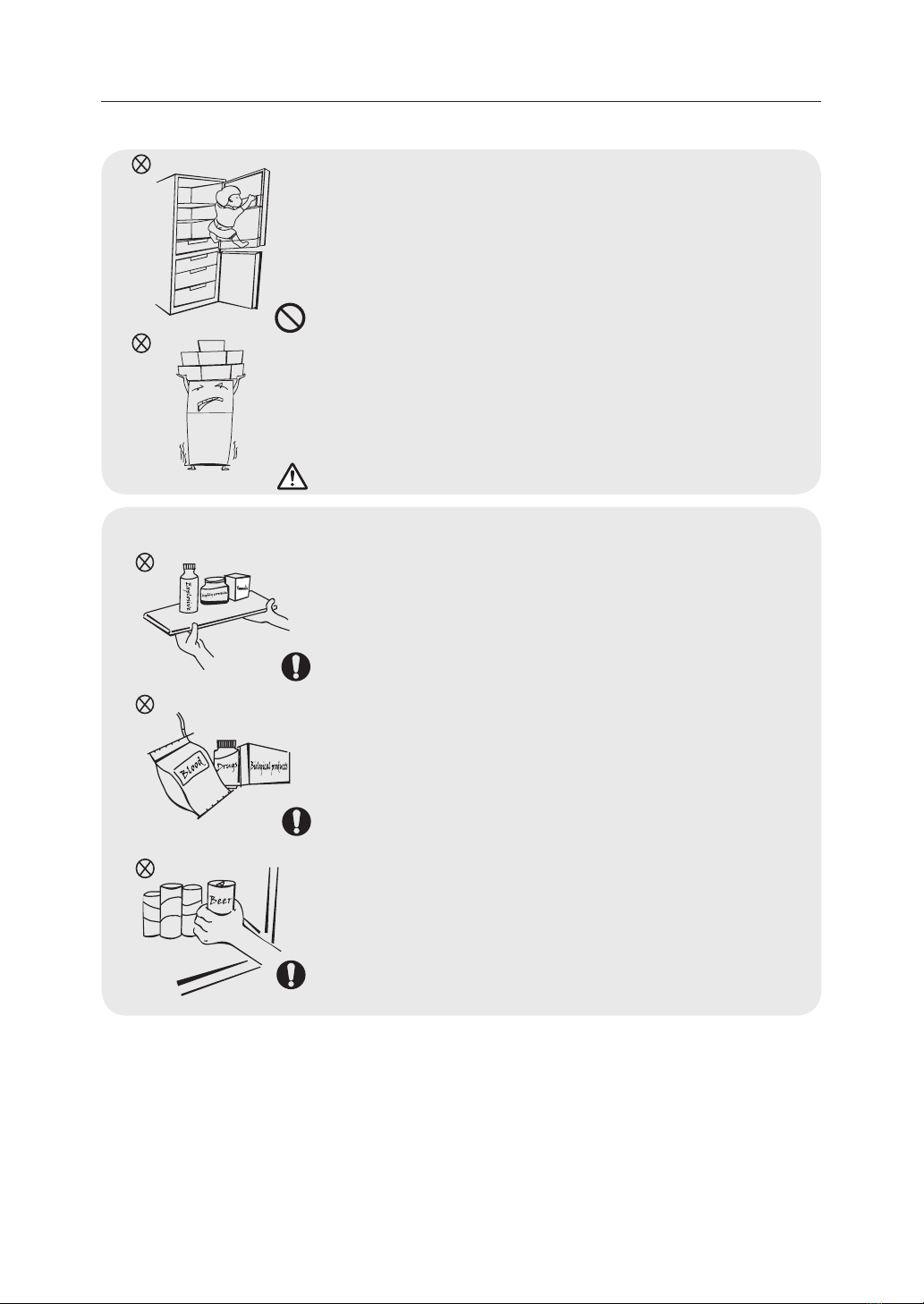

• Do not pick foods or containers with wet
hands in the freezing chamber when the
refrigerator is running, especially metal
containers in order to avoid frostbite.
• Do not allow any child to get into or climb
the refrigerator; otherwise suocation or
falling injury of the child may be caused.
• Please do not put heavy or dangerous objects
on top of the appliance(bottles,tableware,or
something containing liquid)
1.5 Warnings for placement
• Do not put ammable, explosive, volatile
and highly corrosive items in the refrigerator
to prevent damages to the product or re
accidents.
• Do not place ammable items near the
refrigerator to avoid res.
• The refrigerator is intended for household
use, such as storage of foods; it shall not be
used for other purposes, such as storage of
blood, drugs or biological products, etc.
• Do not store beer, beverage or other uid
contained in bottles or enclosed containers
in the freezing chamber of the refrigerator; or
otherwise the bottles or enclosed containers
may crack due to freezing to cause damages.
Freezing chamber

8
1.6 Warnings for energy
• Refrigerating appliances might not operate consistently
(possibility of defrosting of contents or temperature becoming
too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of
temperatures for which the refrigerating appliance is designed.
• The fact that eervescent drinks should not be stored in food
freezer compartments or cabinets or in low-temperature
compartments or cabinets, and that some products such as water
ices should not be consumed too cold;
• The need to not exceed the storage time(s) recommended by
the food manufacturers for any kind of food and particularly for
commercially quick-frozen food in food-freezer and frozen-food
storage compartments or cabinets;
• The precautions necessary to prevent an undue rise in the
temperature of the frozen food while defrosting the refrigerating
appliance, such as wrapping the frozen food in several layers of
newspaper.
• The fact that a rise in temperature of the frozen food during
manual defrosting, maintenance or cleaning could shorten the
storage life.
• The necessity that, for doors or lids tted with locks and keys, the
keys be kept out of the reach of children and not in the vicinity
of the refrigerating appliance, in order to prevent children from
being locked inside.
1.7 Warnings for disposal
• Refrigerant and cyclopentane foaming material used
for the refrigerator are ammable. Therefore, when the
refrigerator is scrapped, it shall be kept away from any
re source and be recovered by a special recovering
company with corresponding qualication other than
be disposed by combustion, so as to prevent damage
to the environment or any other harm.
• When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put the
doors and shelves in a proper place, so as to prevent
trapping of any child.

9
2.1 Placement
• Before initial start, keep the refrigerator still for half an hour
before connecting it to power supply.
• Before the refrigerator is moved, take all objects inside out,
x the glass partitions, vegetable holder, freezing chamber
drawers and etc. with tape, and tighten the leveling feet;
close the doors and seal them with tape. During moving, the
appliance shall not be laid upside down or horizontally, or be
vibrated; the inclination during movement shall be no more
than 45°.
• Before use, remove all packing materials, including bottom
cushions, foam pads and tapes inside of the refrigerator;
tear o the protective lm on the doors and the refrigerator
body. Keep away from heat and avoid direct sunlight. Do not
place the freezer in moist or watery places to prevent rust or
reduction of insulating eect.
• Do not spray or wash the refrigerator; do not put the
refrigerator in moist places easy to be splashed with water
so as not to aect the electrical insulation properties of the
refrigerator.
• The refrigerator is placed in a well-ventilated indoor place; the
ground shall be at, and sturdy (rotate left or right to adjust
the wheel for leveling if unstable).
• The top space of the refrigerator shall be greater than 30cm,
and the refrigerator should be placed against a wall with a
free distance more than 10cm to facilitate heat dissipation.
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured
that the refrigerator is disconnected from power. Precautions shall
be taken to prevent fall of the handle from causing any personal
injury.
2. Proper use of refrigerators
30cm
10cm
10cm

10
2.2 Leveling feet
1. Precautions before operation:
Information in the Instruction Manual is only for reference.
Before operation of accessories, it shall be ensured that the refrigerator is disconnected from
power.
Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.

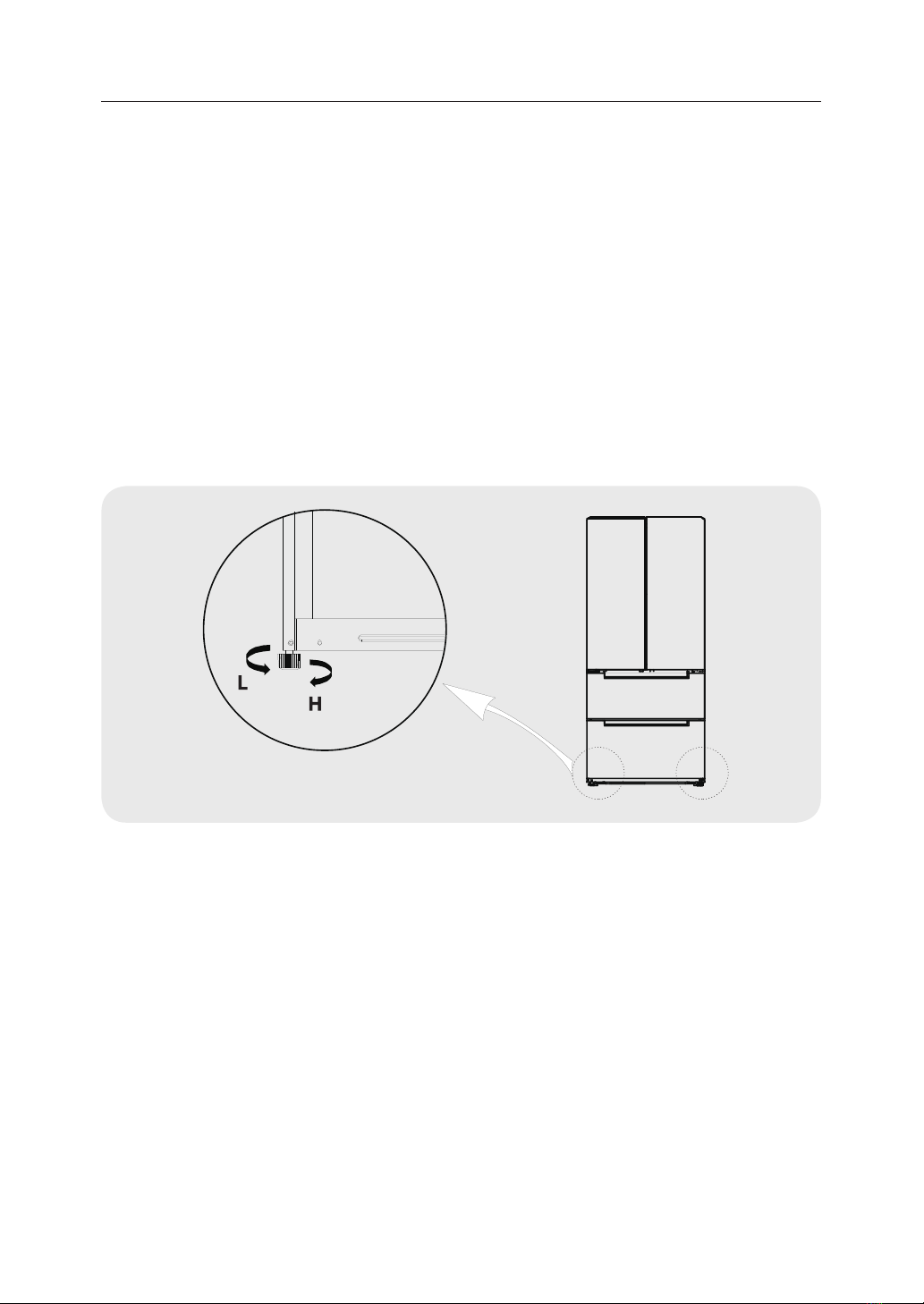

2. Schematic diagram of the levelling feet.
3. Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)

11
2.3 Leveling door
1. Precautions before operation:
Information in the operation is only for reference.
Before operation of accessories, it shall be ensured that the refrigerator is disconnected from
power.
Before adjusting the door , precautions shall be taken to prevent any personal injury.
2. Schematic diagram of levelling the door body.
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
• Raise the lower door up to the level of the higher door.
• Insert the supplied fastener-ring by using plier in the gap between the hinge-grommet and
the lower hinge.The number of fasten-rings you will need to insert depends on the gap.
Plier
List of tools to be provided by the user
Not level Hinge
grommet
Pliers
Fastener-ring
Lower hinge

12
2.4 Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer,
its service agent or similar qualied person.
2.5 Starting
•Before putting any fresh or frozen foods, the refrigerator shall
have run for 2-3 hours, or for above 4 hours in summer when
the ambient temperature is high.
•Spare enough space for convenient opening of the doors and
drawers or statement by the distributor.
2.6 Energy saving tips
•The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
•Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality,
or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance.This cuts down on frost build-up inside the appliance.
•Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less ecient.
•Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.

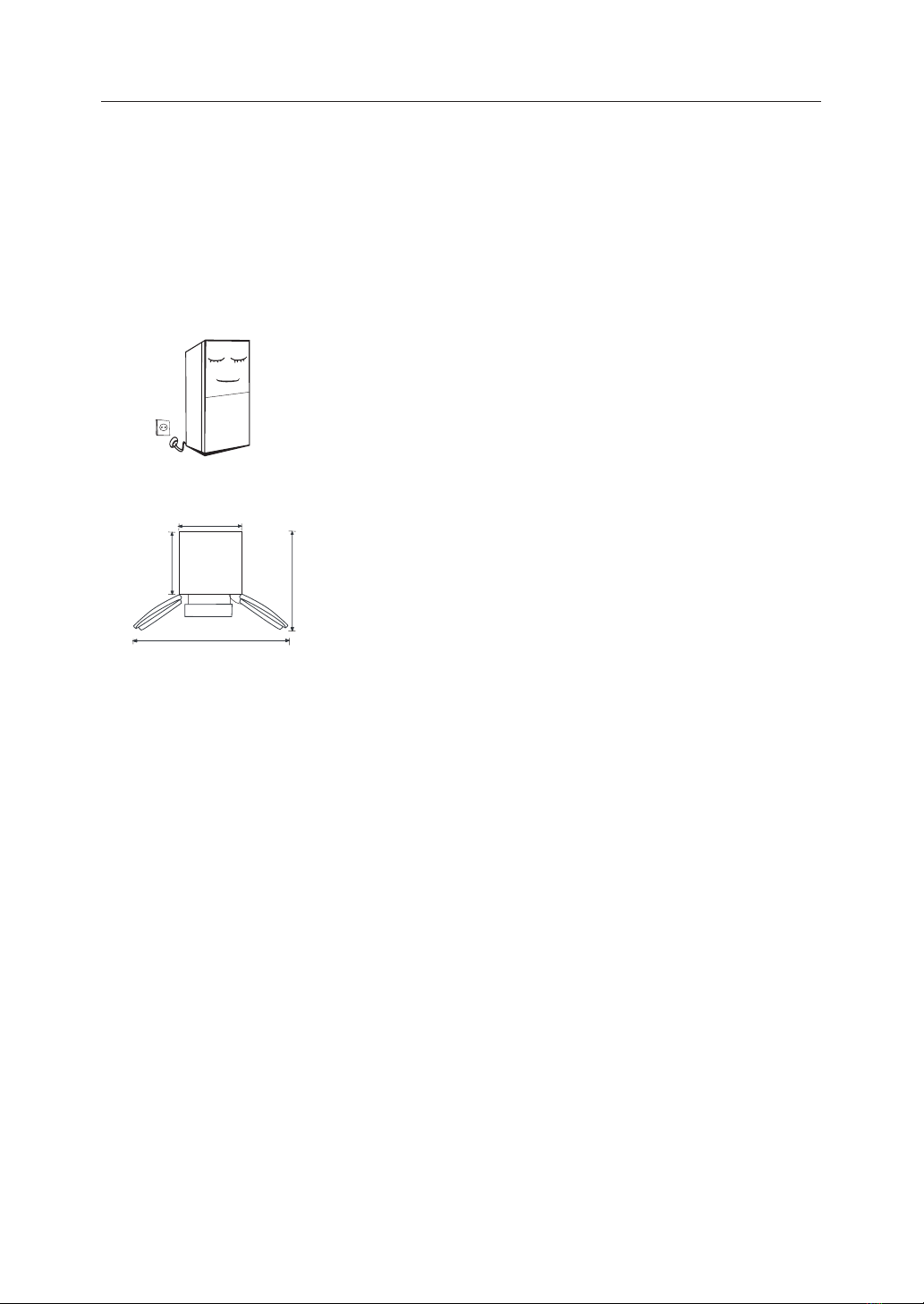

135˚
830mm
1400mm
600mm
1000mm

13

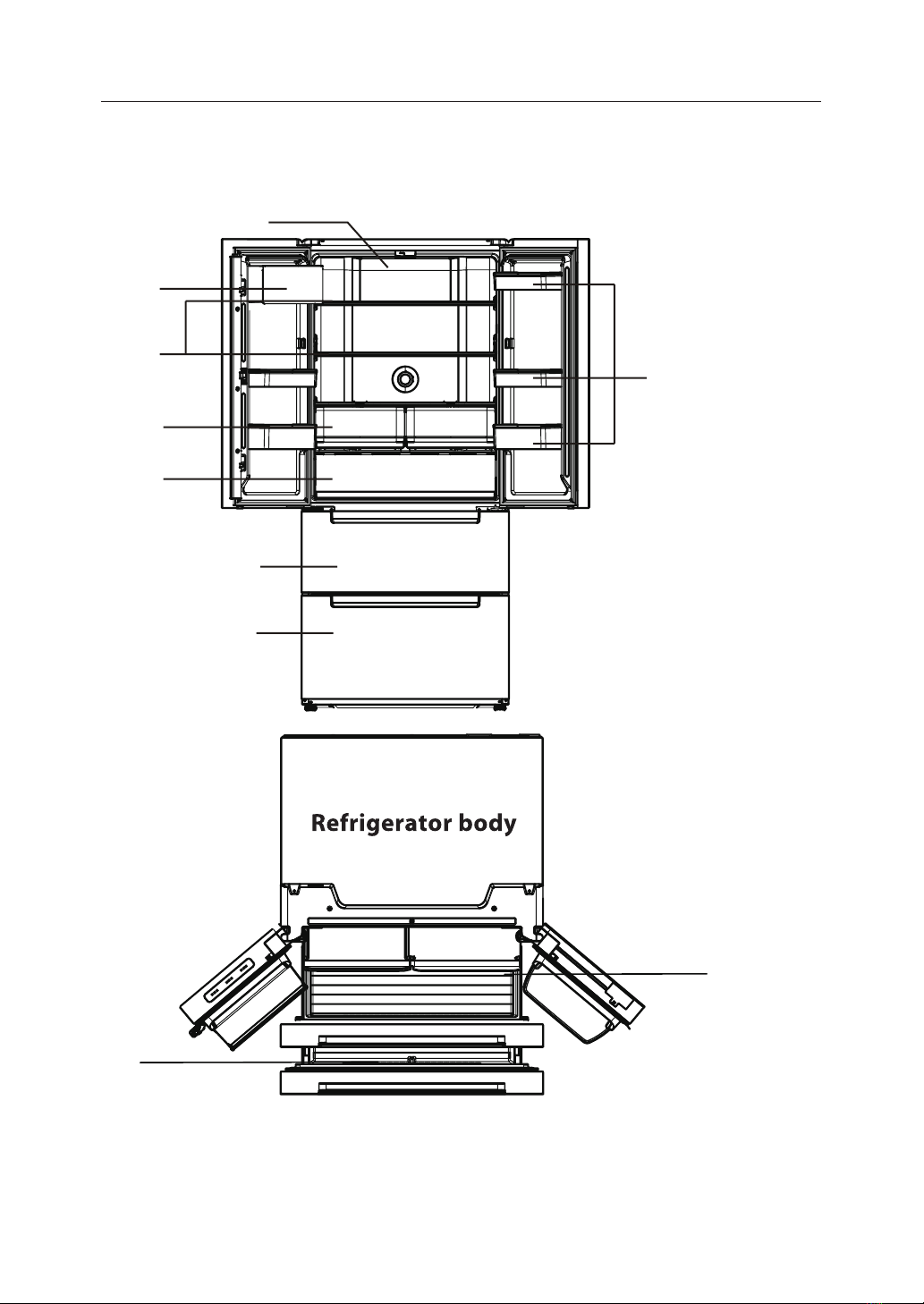

3.1 Key components
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
3. Structure and functions
LED lighting
Seal box
(Refrigerating chamber)
(Freezing chamber)
Shelf
Door tray
Big drawer
Upper freezer drawer
Lower freezer drawer
Crisper
drawer
Upper freezer drawer
Lower freezer drawer

14
Refrigerating chamber
• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages
and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room
temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and
easy use.
Freezing chamber
• The low temperature freezing chamber may keep food fresh for a long time and it is mainly
used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, sh, rice balls and other foods not to
be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be
noted food shall be consumed within the shelf time.
Note: Storage of too much food during operation after the initial
connection to power may adversely aect the freezing eect of the
refrigerator. Foods stored shall not block the air outlet; or otherwise the
freezing eect will also be adversely aected.
3.2 Functions

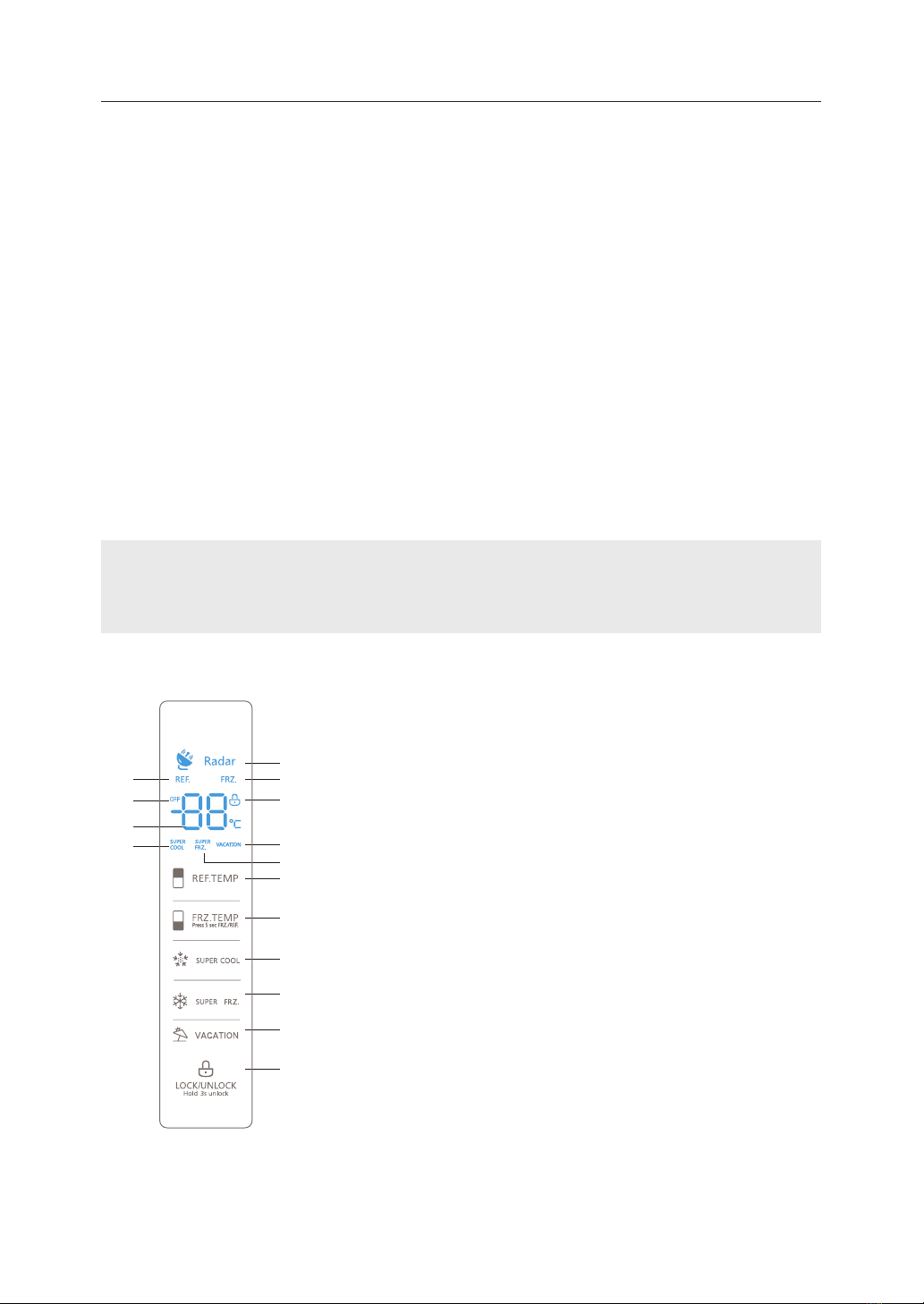

Screen
1. Radar icon
2. Refrigerating icon
3. Freezing icon
4. OFF icon
5. Lock/Unlock icon
6. Temperature display area
7. Super cool icon
8. Vacation icon
9. Fast freezing icon
Control buttons
A. Refrigerating button
B. Freezing button
C. Super cool button
D. Super freezing botton
E. Vacation button
F. Lock/Unlock button
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
1
3
5
8
9
A
B
C
D
E
F
2
4
6
7

15
Operation instructions
1. Display
When electrify the refrigerator,, the display screen will total display for 3 seconds. Meanwhile
the starting up bell rings and then the screen enters the normal display of the operation.
The rst time for using the refrigerator, the default set temperature of refrigerating chamber and
freezing chamber is 5° C/-18 °C respectively.
When the error occurs, the display shows the error code (see next page); during normal running,
the display shows
the set temperature of the refrigerating chamber or freezing chamber.
Under normal circumstances, if there is no operation on display panel or door opening action
within 30s, then the display
shows the lock state , and the display goes out after the lock state continued for 30s.

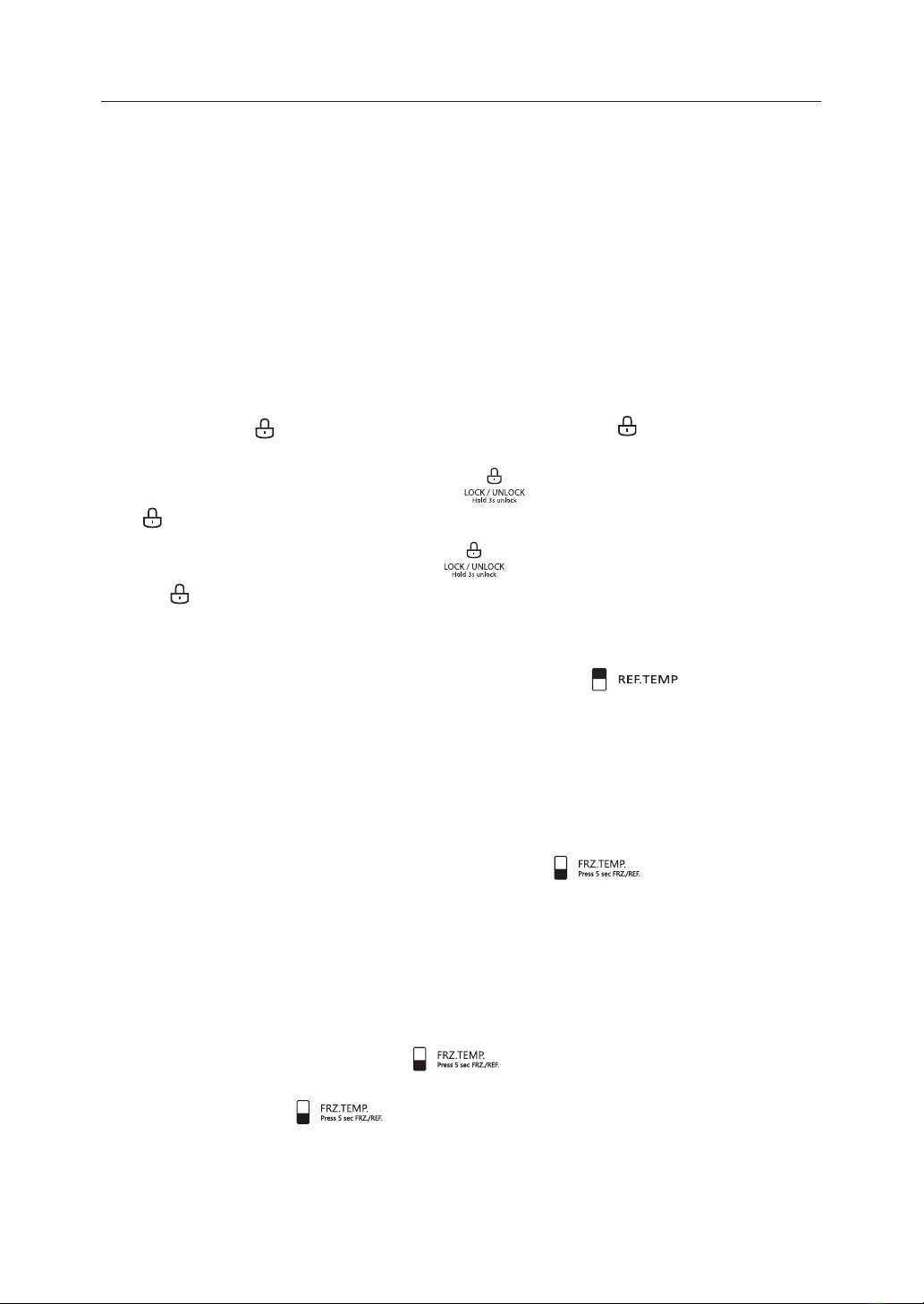

2. 2.Lock /unlock
In the unlocked state, long press the lock button for 3 seconds, enter the lock state, the
logo lights up and buzzer sounds, it means the display panel is locked, at this time, button
operation cannot be implemented;
In the locked state, long press the lock button for 3 seconds, enter the unlocked state,
the logo go out and buzzer sounds, it means the display panel is unlocked, at this time,
button operation can be implemented;
3. Temperature setting of refrigerating chamber
Press temperature adjusting button of the refrigerating chamber to change
the setting temperature of refrigerating chamber, and then each time a press of temperature
adjusting button of the refrigerating chamber,the temperature will be reduced1 °C;The
temperature setting range for refrigerating chamber is 2~8 °C. When the temperature is 2 °C,
press the button again, and the temperature of refrigerating chamber will be set at 8 °C, and it
circulates accordingly.
4. Temperature setting of freezing chamber
Press temperature adjusting button of the freezing chamber to change the setting
temperature of freezing chamber and then each time a press of temperature adjusting button
of the freezing chamber, the temperature will be reduced1°C;The temperature setting range for
freezing chamber is-24°C~-16°C).
When the temperature is -24°C, press the button again, and the temperature of freezing chamber
will be set at -16°C, and it circulates again and again.
5. The cooling mode setting of all compartments
Outside this mode, long press the button for 5 seconds, this mode takes eect the
refrigerator and freezer chamber temperature is set at 5°C the big drawer temperature is set at
3°C;long press the button for 5 seconds,exit this mode.

16
6. Mode setting

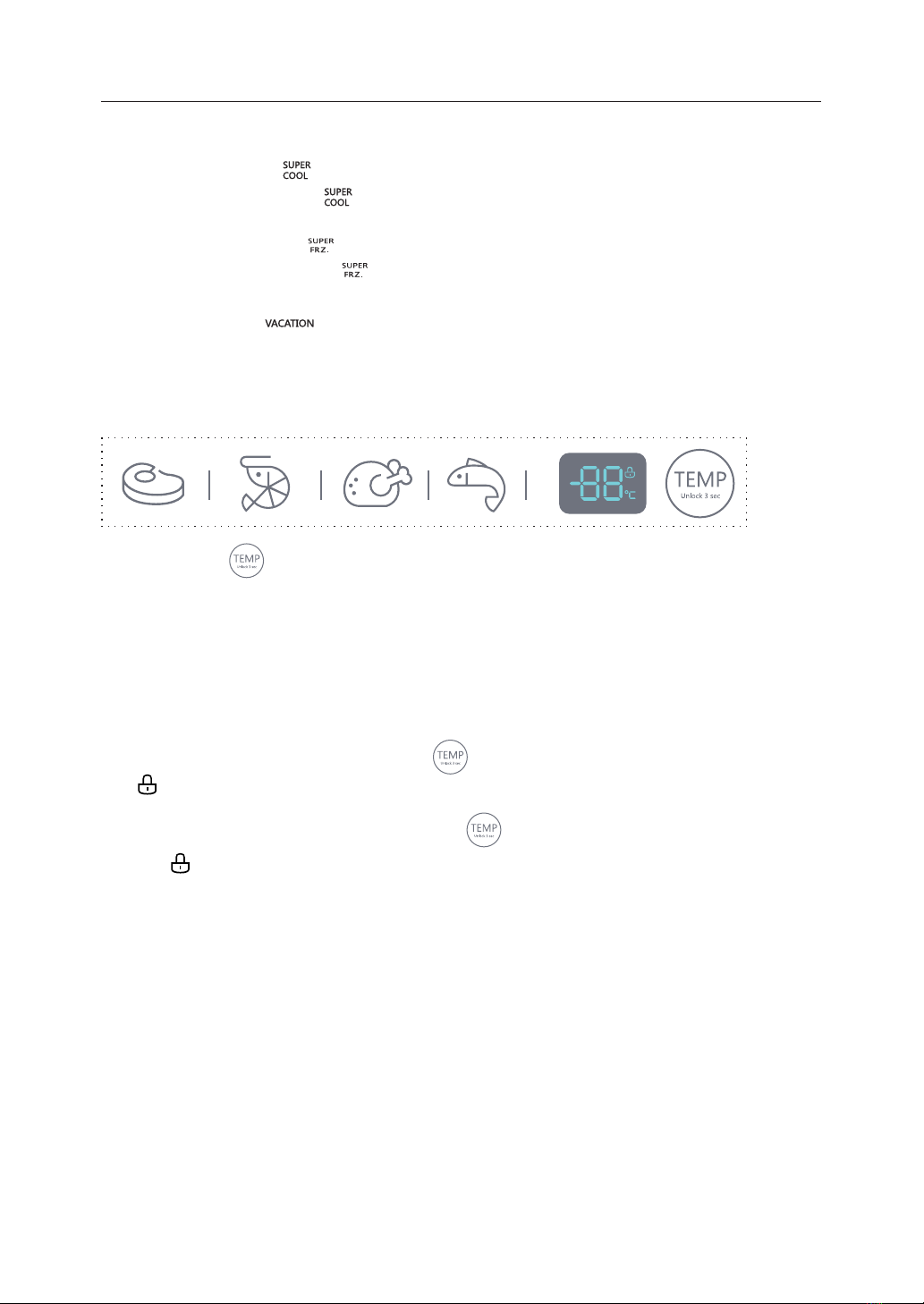

When super cool mode is set, temperature of refrigerating chamber will automatically set
at 2 °C; Exit super cool mode mode, temperature of refrigerating chamber will automatically
return back to temperature set before super cool mode.
When super freezing mode is set, temperature of freezing chamber will automatically set at
-24 °C; Exit super freezing mode , temperature of freezing chamber will automaticallyreturn
back to temperature set before super freezing mode.
When vacation mode is set, temperature of freezing chamber will be automatically set at
-18 °C;the temperature of refrigerating chamber is turned o,and the icon(OFF) shines.
7. Functions of big drawer(-2°C~3°C)
Press the botton to adjust the set temperature inside the the big drawer, each time a press
the button,the temperature of big drawer will be reduced1 °C:
Set the temperature range of 1 °C ~ 3 °C, can be used as refrigerator chamber.
Set at 0 °C, could extend the fresh food time, suitable for storage in the short term ready to eat
fresh food.
Set the temperature range of-2 °C ~ -1 °C ,suitable for storage of fresh sh, meat, etc., it doesn't
need manual or microwave defrosting, easy to be cut into pieces.
Lock /unlock:
In the unlocked state, long press the button for 3 seconds, enter the lock state, The
logo lights up , it means the display panel is locked.at this time, button operation cannot be
implemented;
In the locked state, continue to press the button for 3 seconds, enter the unlocked state,
The logo go out,it means the display panel is unlocked, at this time, button operation can
beimplemented;
8. Storage upon power failure
In case of power failure, the instant working state will be locked and maintained till re-
electrication.

17
9. Fault indication
The following warnings appearing on the display indicate corresponding faults of the refrigerator.
Though the refrigerator may still have cold storage function with the following faults, the user
shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of
the appliance.
Error code Error description
Temperature sensor failure
of refrigerating chamber
Temperature sensor failure
of freezing chamber
Temperature sensor failure
of big drawer
Freezing defrost sensor detection
circuit error
Communication error
Circulation of temperature
detection circuit error
Failure of defrosting sensor in
refrigerating chamber Moisture sensor error
E2
E4
E1
E3
E6
EH
E5
E7

18
4. Maintenance and care of the appliance
4.1 Overall cleaning
• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling eect and energy saving. The interior of the refrigerator should be cleaned regularly
to avoid odor. it is recommended to use soft towels or sponge dipped in water then wringed
dry with hands, the assistive detergents should be non-corrosive neutral. The freezer of shall
be nally cleaned with clean water and dry cloth. Open the door for natural drying before
the power is turned on.
• Do not use hard brushes, clean steel balls, wire brushes,
abrasives, such as toothpastes, organic solvents (such as
alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items clean refrigerator considering that this may
damage the fridge surface and interior.
• Do not rinse with water so as not to aect the electrical
insulation properties.
•
4.2 Cleaning of door tray

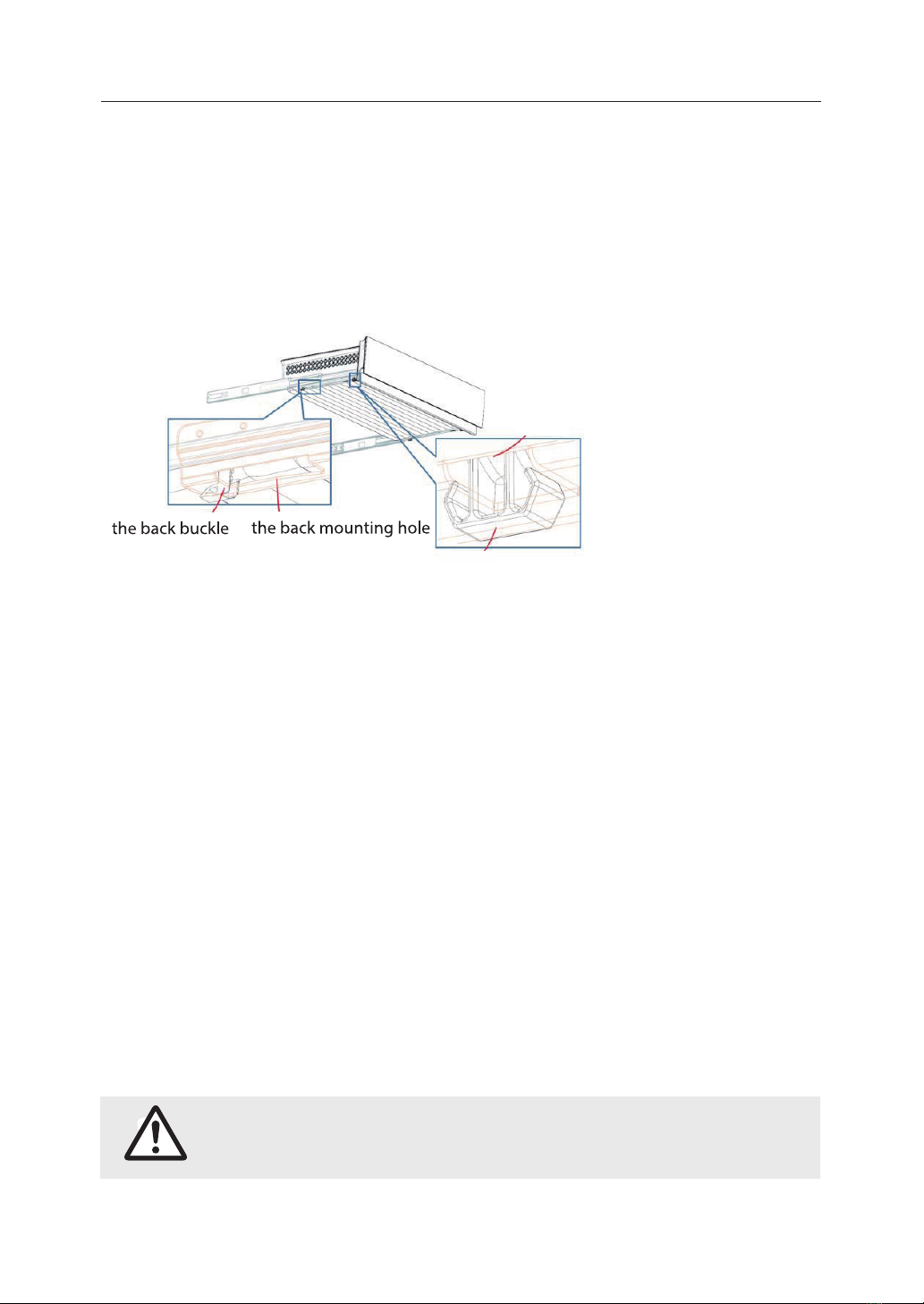

• According to the direction arrow in the gure below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
• After washing the tray having been taken out, you can adjust its installing height in
accordance with your requirement.
(The picture above is only for reference.The actual conguration will depend on the physical
product or statement by the distributor)
Please unplug the refrigerator for defrost and cleaning.

19
4.3 Cleaning of big drawer
• Disassembly: Remove the big drawer by squeezing the front buckle of the bottom of the
drawer so that the front buckle is separated from the metal rail mounting hole;
• Installation: Firstly insert the back buckle into the back mounting hole of metal guide
rail,then insert the front buckle into the front mounting hole,the installation is completed
, after installation it is recommended to push and pull the drawer to check whether the
spring-back function take eect or not;
4.4 Defrosting
• The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also be
manually removed by disconnection of the appliance from power supply or by wiping with a
dry towel.
4.5 Out of operation
• Power failure: In case of power failure, even if it is in summer, foods inside the appliance
can be kept for several hours; during the power failure, the times of door opening shall be
reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are
left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, x the glass partitions,
vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet;
close the doors and x them with tape. During moving, the appliance shall not be laid upside
down or horizontally, or be vibrated; the inclination during movement shall be no more than
45°.
The appliance shall run continuously once it is started.
Generally, the operation of the appliance shall not be
interrupted; otherwise the service life may be impaired
the front mounting hole
the front buckle
