TOSHIBA FILE NO.050-200103
SERVICE MANUAL
COLOR TELEVISION
24AF41
DOCUMENT CREATED IN JAPAN, DEC., 2001

SERVICING NOTICES ON CHECKING
6. AVOID AN X-RAY1. KEEP THE NOTICES
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
3. USE THE DESIGNATED PARTS
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
Safety is secured against an X-ray by consider-
ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe-
ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-
ray tube.
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOW TO ORDER PARTS
Inferior silicon grease can damage IC's and transistors.
When replacing an IC's or transistors, use only specified silicon grease (YG6260M).
Remove all old silicon before applying new silicon.
IMPORTANT
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
In the condition that an explosion-proof cathode-
ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
PERFORM A SAFETY CHECK AFTER
SERVICING
7.
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note1] .
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Earphone jack
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE
Sound, Inc.

GENERAL SPECIFICATIONS
G-1.Outline of the Product
24 inch(600
mmV):Measured diagonally
Color CRT 101 degree deflection
G-2.Broadcasting System
US System M
G-3.Color System NTSC PAL SECAM or Monochrome signal
G-4.NTSC Playback(PAL 60Hz) Yes No
G-5.NTSC 3.58+4.43/PAL60Hz Yes No
G-6.Antenna Input Impedance
VHF/UHF 75 ohm unbalanced
G-7.Tuner and Receiving Contactless Electric tuner 1Tuner System
2Tuner System
channel Tuner Oscar(W/O HYPER) Oscar(W/ HYPER)
France CATV) Others
channel coverage
(USA) 2~69 , 4A , A-5~A-1, A~I , J~W, W+1~W+84
TuningSystem
Frequency syn. Voltage syn. Others
G-8.Preset Channel
-- channels
G-9.Intermediate Frequency
Picture(fP) 45.75MHz MHz MHz
Sound (fS) 41.25 MHz MHz MHz
fP-fS 4.50MHz MHz MHz
G-10.Stereo/Dual TV Sound
Yes( NICAM GERMAN USA JAPAN) No
G-11.Tuner Sound Muting Yes No
G-12.PowerSource 120 V AC 50Hz AC 60Hz
G-13.Power Consumption: 137 W at AC 120 V 60 Hz
- WatDC - V
Standby: 4 WatAC 120 V 60 Hz
Per Year: - kWh / Year
G-14.Dimensions(Approx.)
670 mm(W) 471.5 mm(D) 509 mm(H)
G-15.Weight(Approx.) Net : 33 kg ( 72.7 lbs)
Gross: 36 kg ( 79.3 lbs)
G-16.Cabinet Material
Cabinet Front: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
Back Panel: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
G-17.Protector: Power Fuse

GENERAL SPECIFICATIONS
18.Regulation
Safety
UL CSA SAA SI CE SEV
BS NF NEMKO FEMKO DEMKO IEC65
SEMKO NZ HOMOLO SABS CNS SISIR
NOM AS3159 DENTORI UNE GOST NONE
Radiation
FCC DOC FTZ PTT CE SEV
SABA SI NF NZ HOMOLO UNE
CNS CISPR13 DENTORI AS/NZS NONE
X-Radiation
PTB DHHS HWC DENTORI NONE
G-19.Temperature
Operation 5 ºC~ 40
ºC
Storage -20 ºC~ 60 ºC
G-20.Operating Humidity Less than 80 %RH
G-21.Clock and Timer
Sleep Timer Yes Max 120 Min.( 10 Min. Step) No
On/Off Timer Yes Programs No
Wake Up Timer Yes Programs No
G-22.Timer back up Time
More than -- Minutes (at Power Off Mode)
G-23.TerminalsVHF/UHF Antenna Din Type F-Type France Type
Video Input(Front) (RCA ø8.3x1)
Video Input(Rear1) (RCA ø8.3x1)
Video Input(Rear2) (RCA ø8.3x1)
Video Output(Rear) (RCA ø8.3x1)
Audio Input(Front) (RCA ø8.3x2)
Audio Input(Rear1) (RCA ø8.3x2)
Audio Input(Rear2) (RCA ø8.3x2)
Audio Output(Rear) (RCA ø8.3x2)
21 Pin (x ) DC Jack(Center +) Ear Phone Jack(ø3.5)
Head Phone Jack(ø3.5) AC Outlet Ext Speaker
Diversity S Input(Front) S Input(Rear)
Color Streem (RCA ø8.3x3)
G-24.Indicator Power Stand By On Timer NONE
(RED) ( ) ( )
G-25.Display
On Screen Display
Menu (Windows Type/Picture Menu)
Picture Contrast Brightness Color Tint Sharpness
SOUND Bass Treble Balance
BBE ON/OFF Stable Sound ON/OFF
SETUP TV/CATV CH Prpgram Add/Erase
OPTIONLanguage CH Label Favorite CH
V-CHIP Color Streem DVD/DTV
Control Level Sound Brightness Contrast
Color Tint(NTSC Only) Sharpness
Tuning Bass Treble
Balance Back Light
Stereo,Audio Output,SAP Video ColorStream
Channel(TV/Cable) CH Label Sleep Timer Sound Mute
V-Chip Rating

GENERAL SPECIFICATIONS
G-26.OSD Language
Eng Ger Fre Spa Ita Por Jpn
OSD Language Setting
Eng Ger Fre Spa Ita Por Jpn
Not Applicable
G-27.SpeakerPosition Front Side Bottom
Size 2 x
4.7 inches
Imp 8 ohm x 2 pcs
Power Max 5.0 + 5.0 W
10% 4.0 + 4.0 W (Typical)
G-28.EXT Speaker
Yes - W Imp - ohm
G-29.Carton
Master Carton: Need No Need
Content: ---- Set
Material: ---- / ---- Corrugated Carton
Dimensions: ---- mm(W) ---- mm(D) ---- mm(H)
Description of Origin Yes No
Gift Box
Material Double/Brown Corrugated Carton ( with Photo Label)
Double/White Corrugated Carton ( with Photo Label)
Double Full Color Carton W/Photo
Dimensions: 760 mm(W) 589 mm(D) 614 mm(H)
Design: As Per BUYER 's
Description of Origin: Yes No
Drop Test Natural Dropping At 1 Corner / 3 Edges / 6 Surfaces
Height 25cm 31cm 46cm 62cm 80cm
Container Stuffing: 180 Sets / 41' container
G-30.Accessories
Owner's Manual ( W/Warranty) [English]
Channel Film
AC Plug Adapter Remote Control Unit
Battery (UM- 4 x 2 )
Safety Tip Toll Free Insert Sheet
Registration Card (NDL Card) Audio-Video Cord (RCA)
Registration Card Warning Sheet
Quick Set-Up Sheet Schematic Diagram
Information Sheet U/V Mixer
75 ohm Coaxial Cable ( Single Shield Double Shield)
300 ohm to 75 ohm Antenna Plug
21pin Cable Car Cord
Rod Antenna
One Pole Two Pole ( F-Type Din Type France Type)
Loop Antenna ( F-Type Din Type France Type)
Important Safety Instructions ESP Card
G-31.Other Features
Auto Degauss Auto Search Full OSD
Auto Shut Off CH Allocation Premiere
Canal+ SAP Comb Filter(3LINE)
CATV Channel Lock Auto CH Memory
Anti-Theft Just Clock Function Hotel Lock
Rental Game Position Closed Caption
Memory ( Last CH Last Vol.) Stable Sound
V-Chip(Toshiba Type) CH LAVEL Favorite CH
BBE VM Circuit

GENERAL SPECIFICATIONS
G-32.Switch
Front Power(Tact) Channel Up Volume Up
System Select Channel Down Volume Down
Main Power SW Sub Power
Rear AC/DC TV/CATV Selector
Degauss Main Power SW
G-33.Magnetic Field
BV : +0.45G BV : +0.35G BV : +0.25G
BH : 0.18G BH : 0.30G BH : 0.30G
BV : -0.15G BV : -0.25G BV : -0.50G
BH : 0.15G BH : 0.15G BH : 0.30G
G-34.Remote Control Unit: RC-DU
Glow in Dark Remocon Yes No
PowerSource: D.C 3 V BatteryUM- 4x2
Total 42 Key
Power
0 Muting TV/Video(TV/AV)
1 TV/Caption/Text Volume Up
2 CH1/CH2 Volume Down
3 Sleep MTS(Audio Select)
4 RE Call(Call) CH Down
5 Reset CH Up
6 Menu/Enter FAV. UP
7 EXIT FAV. DOWN
8 CH RTN/CH ENT(Quick View)
9
100
Multi Brand Key
CH Up(VCR) FF TV
CH Down(VCR) Rec VCR
Pause/Still Stop Cable
TV/VCR(VCR) Rew Play
CODE

1. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
*
*
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 1-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
Flip up the sides of the Rubber Cap in the direction of the
arrow and remove one side of the support.
(Refer to Fig. 1-2.)
2.
DISASSEMBLY INSTRUCTIONS
GND on the CRT
Screwdriver
Alligator Clip
Support CRT
GND on the CRT
Rubber Cap
CRT Support
Fig. 1-1
Fig. 1-2
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)
Location of Anode Cap
Fig. 1-3
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.
3.
Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)
Fig. 1-4
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.
5.
6. Confirm that the Support is securely connected. Put on the Rubber Cap without moving any parts.
CRT Support Fig. 1-5

INIT 00 83
0010
CRT ON
ADDRESS DATA
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter the Service Mode, press both set key and remote control key for more than 1 second.
Set Key Remocon Key Operations
VOL. (-) MIN 0Releasing of V-CHIP PASSWORD.
VOL. (-) MIN 1
VOL. (-) MIN 6
Initialization of the factory.
NOTE: Do not use this for the normal servicing.
POWER ON total hours is displayed on the screen.
Refer to the "CONFIRMATION OF USING HOURS".
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "NOTE FOR THE REPLACING OF MEMORY IC".
VOL. (-) MIN 8 Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.
VOL. (-) MIN Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
9
CONFIRMATION OF USING HOURS
POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.
1.
2.
3.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 1 second.
After the confirmation of using hours, turn off the power.
FIG. 1
Initial setting content of MEMORY IC.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
NOTE FOR THE REPLACING OF MEMORY IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
Table 1
1.
2.
3.
4.
5.
6.
7.
8.
The unit will now have the correct DATA for the new MEMORY IC.
Enter DATA SET mode by setting VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 1 second.
ADDRESS and DATA should appear as FIG 1.
ADDRESS is now selected and should "blink". Using the VOL. UP/DOWN button on the remote, step through the
ADDRESS until required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using VOL. UP/DOWN button until required DATA value has been selected.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
Repeat steps 3 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
A1 C3 CF 00 31 B3 27 37 BF E8
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +FINI
0F --- --- --- --- --- --- --- ---
10 --- --- --- --- --- --- ---
00 FF 84 00 00 00 30

ELECTRICAL ADJUSTMENTS
1.
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
•
•
•
•
Use an isolation transformer when performing any
service on this chassis.
Before removing the anode cap, discharge electricity
because it contains high voltage.
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
Inferior silicon grease can damage IC's and transistors.
When replacing IC's and transistors, use only specified
silicon grease.
Remove all old silicon before applying new silicon.
1. Synchro Scope
2. Digital Voltmeter
On-Screen Display Adjustment
In the condition of NO indication on the screen.
Press the VOL. DOWN button on the set and the
Channel button (9) on the remote control for more than
1 second to appear the adjustment mode on the screen
as shown in Fig. 1-1.
1.
Fig. 1-1
Use the Channel UP/DOWN button or Channel button
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end
the adjustments.
2.
3.
Prepare the following measurement tools for electrical
adjustments.
FUNCTION
OSD H
CUT OFF
RF. AGC
---
H. POSI
V. POSI
H. SIZE
V. SIZE
V. CENT
V. LIN
VS. CORR
G. DRV
B. DRV
R. BIAS
G. BIAS
B. BIAS
BRI
NO.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
FUNCTION
SUBCONT
UNI COL
---
TINT
SHARP
RGB CONT
PARABOLA
TRAPEZIU
COR TOP
COR BTM
V EHT
H EHT
FM. LVL
LEVEL
SEP1
SEP2
T. STE
NO.
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
2. BASIC ADJUSTMENTS
TV
00 OSD 15
BEFORE MAKING ELECTRICAL
ADJUSTMENTS
Fig. 1-2
2-1: CONSTANT VOLTAGE
1.
2.
3.
Set condition is AV MODE without signal.
Connect the digital voltmeter to TP002.
Adjust the VR502 until the digital voltmeter is 116 ±0.5V.
2-2: RF AGC
1.
2.
3.
4.
Receive a 70dB monoscope pattern.
Connect the digital voltmeter between the TP001 and
the GND.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "RF. AGC".
Press the VOL. UP/DOWN button on the remote
control until the digital voltmeter is 1.95 ±0.05V.
2-3: CUT OFF
1.
2.
3.
4.
Adjust the unit to the following settings.
G. DRIVE=64, B. DRIVE=64, R. BIAS=10, G. BIAS=10,
B. BIAS=10
Place the set with Aging Test for more than 15 minutes.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".
Adjust the Screen Volume until a dim raster is obtained.
2-4: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
2.
3.
4.
5.
6.
7.
8.
Place the set with Aging Test for more than 10 minutes.
Receive the white 100% signal from the Pattern
Generator.
Using the adjustment control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select "R. BIAS".
Using the VOL. UP/DOWN button on the remote control,
adjust the R. BIAS.
Press the CH. UP/DOWN button on the remote control to
select the "G. DRV", "B. DRV", "G. BIAS" or "B. BIAS".
Using the VOL. UP/DOWN button on the remote control,
adjust the G. DRV, B. DRV, G. BIAS or B. BIAS.
Perform the above adjustments 6 and 7 until the white
color is looked like a white.
2-5: FOCUS
1.
2.
3.
Receive a 70dB monoscope pattern.
Turn the Focus Volume fully counterclockwise once.
Adjust the Focus Volume until picture is distinct.
2-6: HORIZONTAL POSITION
1.
2.
3.
4.
Receive the center cross signal from the Pattern
Generator.
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (04) on the remote control to
select "H. POSI".
Press the VOL. UP/DOWN button on the remote
control until the right and left screen size of the vertical
line becomes the same.

ELECTRICAL ADJUSTMENTS
2-7: HORIZONTAL SIZE
NOTE: Adjust after performing adjustments in section 2-6.
1.
2.
3.
4.
Receive the monoscope pattern.
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select "H. SIZE".
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
right and left becomes 10 ±2%.
2-8: VERTICAL POSITION
NOTE: Adjust after performing adjustments in section 2-7.
1.
2.
3.
Receive the center cross signal from the Pattern
Generator.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select "V. POSI".
Press the VOL. UP/DOWN button on the remote
control until the horizontal line becomes fit to the notch
of the shadow mask.
2-9: VERTICAL SIZE
NOTE: Adjust after performing adjustments in section 2-8.
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern
Generator.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select "V. SIZE".
Press the VOL. UP/DOWN button on the remote
control until the rectangle on the center of the screen
becomes square.
Receive a broadcast and check if the picture is normal.
2-10: PARABOLA
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern
Generator.
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (23) on the remote control to
select "PARABOLA".
Press the VOL. UP/DOWN button on the remote control
until the right and left vertical lines are straight.
2-11: TRAPEZIUM
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern
Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (24) on the remote control to
select "TRAPEZIU".
Press the VOL. UP/DOWN button on the remote control
until the both vertical lines of the screen become parallel.
2-12: CORNER CORR TOP
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern
Generator.
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (25) on the remote control to
select "COR TOP".
Press the VOL. UP/DOWN button on the remote control
until the upper section of the both ends vertical lines are
straight.
2-13: CORNER CORR BOTTOM
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern
Generator.
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (26) on the remote control to
select "COR BTM".
Press the VOL. UP/DOWN button on the remote control
until the bottom section of the both ends vertical lines
are straight.
B
A
TV
00 OSD 15
Fig. 2-1
2-14: OSD HORIZONTAL
1.
2. Activate the adjustment mode display of Fig. 1-1. Press the VOL. UP/DOWN button on the remote control
until the difference of A and B becomes minimum.
(Refer to Fig. 2-1)
2-15: LEVEL
1.
2.
3.
4.
Receive a 70dB monoscope pattern.
Connect the AC voltmeter to TP901.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (30) on the remote control to
select "LEVEL".
Press the VOL. UP/DOWN button on the remote
control until the AC voltmeter is 75 ±2mV.

ELECTRICAL ADJUSTMENTS
2-16: SEPARATION 1, 2
Receive the stereo signal (L=2KHz, R=400Hz).
Connect the AC voltmeter to AUDIO OUT JACK though
stereo filter (L=400Hz, R=2KHz).
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (31) on the remote control to
select "SEP1".
Press the VOL. UP/DOWN button on the remote control
until the output of L-CH and R-CH become minimum.
Press the CH UP button once the set to "SEP2" mode.
Press the VOL. UP/DOWN button on the remote control
until the output of L-CH and R-CH become minimum.
Press the CH DOWN button once the set to "SEP1"
mode.
Repeat step 4 to step 7 several times.
The output difference of the between with Filter and
without Filter should be more than 25db for both L and R.
1.
2.
3.
4.
5.
6.
7.
8.
2-19: SUB TINT/SUB COLOR
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Receive the color bar pattern. (RF Input)
Connect the synchro scope to TP806.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (20) on the remote control to
select "TINT".
Press the VOL. UP/DOWN button on the remote control
until the waveform becomes as shown in Fig. 2-2.
Connect the synchro scope to TP804.
Press the CH DOWN button 3 times to set to
"SUBCONT" mode.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 115% of the white
level. (Refer to Fig. 2-3)
Receive the color bar pattern. (Audio Video Input)
Press the TV/VIDEO button on the remote control to set
to the AV mode. Then perform the above adjustments
2~7.
Receive the color bar pattern. (Audio Video Input)
Press the TV/VIDEO button on the remote control to set
to the CS mode. Then perform the above adjustments
2~6.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 140% of the white
level. (Refer to Fig. 2-4)
Fig. 2-2
Fig. 2-3
White 100% RED Level
Fig. 2-4
White 100% RED Level
2-17: BRIGHTNESS
1.
2.
3.
4.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select "BRI".
Press the VOL. UP/DOWN button on the remote control
until the brightness step No. becomes "48"
Press the TV/VIDEO button on the remote control to set
to the AV mode. Then perform the above adjustments
1~2.
Press the TV/VIDEO button on the remote control to set
to the CS mode. Then perform the above adjustments
1~2.
2-18: UNI-COLOR
1.
2.
3.
4.
5.
6.
7.
8.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select "UNI COL".
Press the VOL. UP/DOWN button on the remote control
until the contrast step No. becomes "66"
Press the TV/VIDEO button on the remote control to set
to the AV mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select "UNI COL".
Press the VOL. UP/DOWN button on the remote control
until the contrast step No. becomes "69"
Press the TV/VIDEO button on the remote control to set
to the CS mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select "UNI COL".
Press the VOL. UP/DOWN button on the remote control
until the contrast step No. becomes "75"

ELECTRICAL ADJUSTMENTS
3.
1.
2.
3.
1.
2.
3.
4.
5.
6.
7.
8.
1.
2.
3.
4.
5.
Receive the green raster pattern from color bar
generator.
Adjust the pair of purity magnets to center the
color on the screen.
Adjust the pair of purity magnets so the color at the
ends are equally wide.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole
screen is green.
Confirm red and blue colors.
Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
PURITY MAGNETS
6 POLE MAGNETS
4 POLE MAGNETS
Fig. 3-1
PURITY AND CONVERGENCE
ADJUSTMENTS
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.
3-3: STATIC CONVERGENCE
1.
2.
3.
3-4: DYNAMIC CONVERGENCE
Adjust after performing adjustments in section 3-3.
1.
2.
Adjust the differences around the screen by moving
the deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
B
Fig. 3-2-a
WEDGE WEDGE
WEDGE
WEDGE POSITION
Fig. 3-2-b
R G B
R
G
B
Receive the crosshatch pattern from the color bar
generator.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
Adjust after performing adjustments in section 3-2.
Adjust after performing adjustments in section 3-1.
3-2: PURITY
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green raster pattern from the color bar
generator.
Slide the deflection yoke until it touches the funnel
side of the CRT.
Adjust center of screen to green, with red and blue on the
sides, using the pair of purity magnets.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch pattern
on the center of the screen by adjusting the pair of
4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white
by repeating steps 6 and 7.
NOTE NOTE
NOTE
NOTE

MAJOR COMPONENTS LOCATION GUIDE
FOCUS VOLUME
SCREEN VOLUME
FB401
MAIN PCB
TP001
J702
J701 J703 J704 J705
TP002
T501
VR502
CRT PCB
J801
TP806
TP804
TP901
TU001

TU001
MICON
IC101 OEC7054A
IF/CHROMA/AUDIO
IC201 TB1253N
IC902
AN5829S
AV SWITCH
IC701
MM1311AD
SOUND AMP
IC353
AN5276
B BE
IC301
NJM2150AM
CRT
V801
V.OUTPUT
IC401
LA78041
POWER SW. REG.
IC501
STR-G6624
FBT
FB401
CRT DRIVE
R
L
R
G
B
+12V
SOUND+B
+B
SPEAKER
SP351 SPEAKER SP352
LINE1
TONE CONTROL
IC303
M62420SP
HEAD
PHONE JACK
COMB FILTER
IC901
TC90A53F
+180V
+25V
VIDEO3
LINE2
YUV IN
Y
S INPUT
IF
11 SCL
4
SDA
5
39
37
SCL
SDA
SCL
24
SDA
25
18 19
18
17
12 7
2 5
14 7
20 1
14 7
19 2
24 23
21 22
30
32
31
25
22
20
27 29
9
6
3
5
2
4
1
714 15 13 8 10
C
Y
C
L
R
V
4 1
15
13
35
T501
23
255
34 28 16 15 14 42 47 55
38
31
8
6
11
51
14
4
6
3
HV
1
79
F10
S
1
5
67
R
G
B
DY
7F10 LRVLRV
V OUT
FBP IN H OUT
ABCL
B OUT
G OUT
R OUT C IN
CVBSLNT IN
IF DET OUT
IF IN IF IN
9
10 SCL
SDA
SCL
SDA
43 44
YUV IN
H. OUT
Q402
Q405

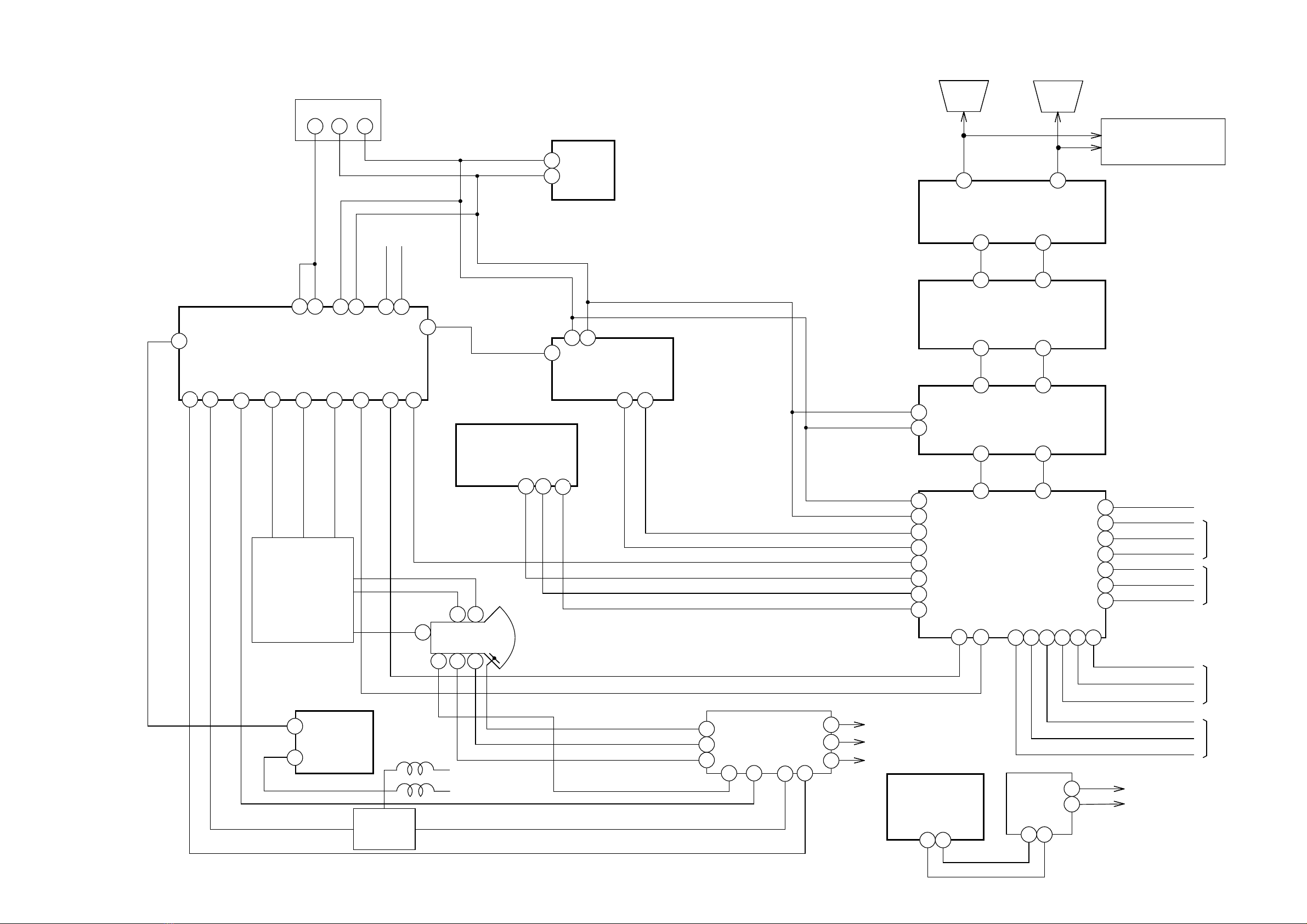

TV BLOCK DIAGRAM

NCNC
RISKOF FIRE
-REPLACEAS MARKED.
TU001
J702
J704
OS101
D109
SW105
SW102
SW101
SW104
SW103
J351
CP101
J710
J711
J712
J703
J701
D504
D501
D502
TH501
CP502
CP501 FH501
FH502 F501
R500
R501
R502
D521
R503
IC501
B502
Q502
C505
L501
C506
C513
C519 RY501
C510
W002
D506
T501
R542
HS501
R506
C507_1
W003
D507
R543
B505
D518
C522
C424
L401
C412
C423_1
C420_1
C422
C418
C421
R421
C426
D412
R411
R431
R439
CP401
L402
D408
D409
R438
R432
C415
D407
HS402
Q405
IC401
C427
W001
R425
R429
C411
C414
W014
Q507
D508
D516
Q504
R523
R515
R554 R553
R508
D514
Q510
D511
IC503 IC502
HS502 C531
C532
C504
D525
D512
Q508
R521
R522
Q501
C533
D513
B504
D510
C523
C521
D519
C516
D520
W010
D517
R001
W841
W008
C408
C409
R428
D402
C407
R416
R420
R413
R414
C406
W012
Q402
R410 R406
C402
C401
C403_1 R519
W023
W024
D405
D411
C430
Q403
Q401
R436
R441
R422
D401
HS401
Q404
W011
R418
R423
W017
W032
R430
C417
R437
R408
R509
D406
VR502
D505
C530
W025
CP851A
FB401
CP801A
R505
CP504
CP503
W067
IC701
R705 R707
R702 R708
W109
C715
C004
D001
C003
W112
W111
C744
C743
D711
C747
C745
C714
C713
C733
C735
C367
C368
C369
IC353
HS351
C364
C366
W114
R517
W045
W038
W074
W053
W051
W049
W034
W113
C608
C216
C604
C214
C211
L204
CF203
CF201
C612
C616
C630
X601
CF202 C209
IC201
C204
L203
W122
C203
C785
C784
W037
W116
W125
W124
W040
W041
W042
W039
W115
W036
W072
W070
W071
D603
W059
W134 W133
W068
W099
D604
D602
W069
W121
W064
D614
D613
D611
W098
W090
W117
W835
L701 W055
W054
C740
C738
R778
W801
IC303
C326
C351
IC101
D107 D104
R107
IC199
W108 IC103
L101
D103
C111
R131
R128
C122 X101
C119
C118
C123
R326
C310
C312
C314
C313
R335
C311
R330
R109
C783
R357
R358
CP351
C724
C725
W137
W106
W078
C929
C921
C925
C919
C918
C917 R907
R908
R786
D108
W136
W138
W126
W127
W075
W089
W129
W128
W083
W080
W018
W079
CP802A
W103
W058
W061
W100
W101 W085
W084
W131
W132
W095
W063
C428
C328
C329
C213
C711
C303
C624
C615
C924
C625
C305
C304
R743
R407
W827
L901
D102
L302
W091
W015
R139
R141
L301
W044
W802
W073
W013
W804
C436
W066
W020
J705
W047
W048
W110
W104
C116
W823
W822
D605
W088
R529
R528
C117
R142
W118
W043
W077
C413
W006
R434
W107
C416
W809
W811
W065
C002
C610
W033
C527
R718
W123
C640
D528
W094
W830
W081
W813
D612
W056
R608
T401_1
C529
W028
W031
W022
W016
R520
W021
CP902
CP901
W834
W105
W027
W026
C355
D515
C501_1
W839
W120
W130
R137
W837
W019
B501 W035
W082
W087
C729
W840
W102
W842 W093
L601
L205
L604
L603
L703
C514
L505
W140
R443
TP002
TP901
W119
TP001
CP505
W004
W007
C705
C439
C503
C502
R404
C425_1
C535_1
C517_1
R635
TP003
TP004
D201
L602
C619
D404
R426
W143
C302
W144
W142
L202_1
W844
C741
W145
C728
C730
C739
W146
W147
C536
CD701B
C935
CD701A
C737
W092
W060
W062
C642
W046
L201
R221
C419
W808
W805
W845
W816
W820
W810
W829
W817
W843
S803X
S803Y
C138
S802Y
S801X
S802X
D503_1
S801Y
B401
C434
W057
C611
S805X
S805Y
R531
CF204

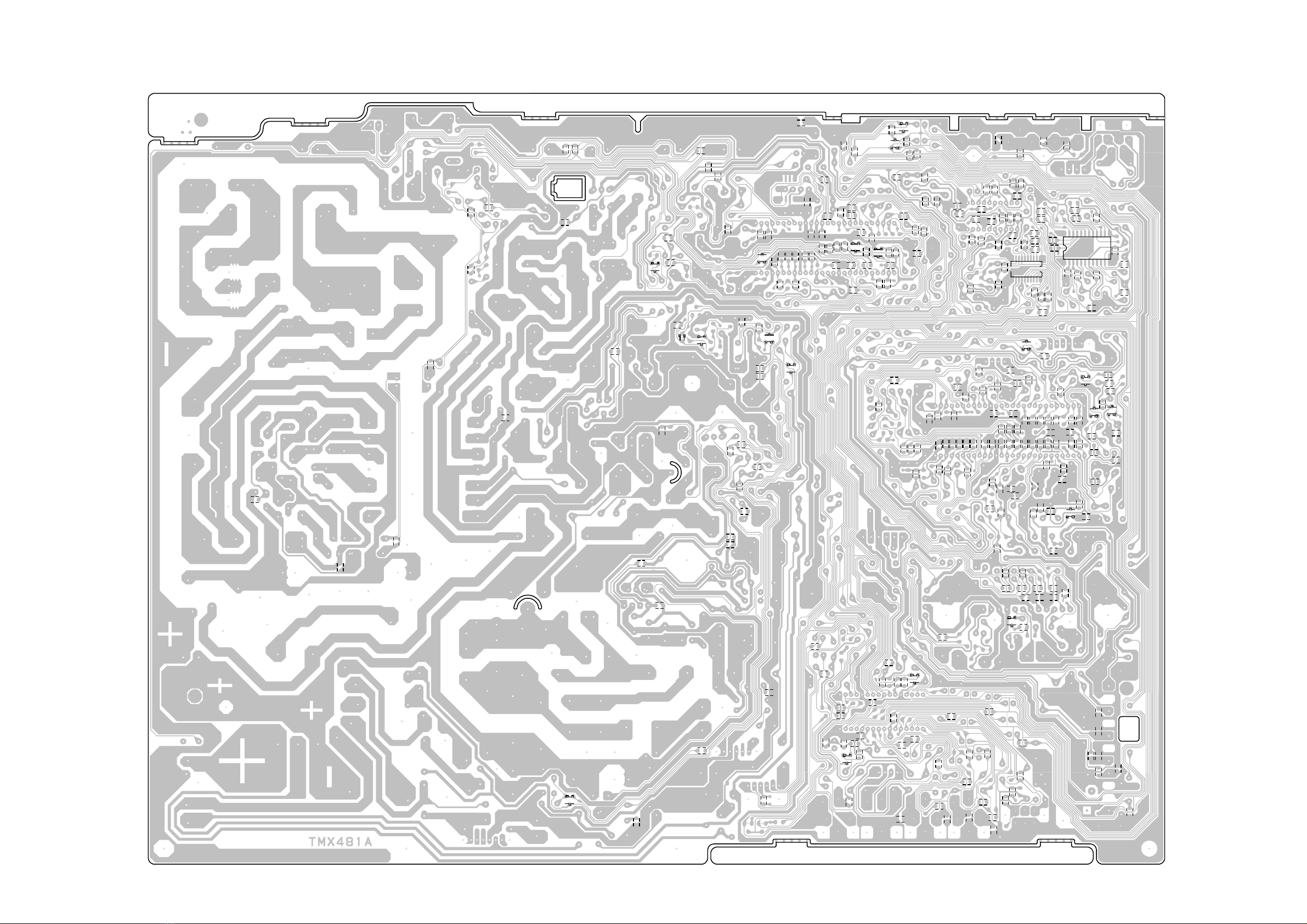

PRINTED CIRCUIT BOARDS
MAIN (INSERTED PARTS)
SOLDER SIDE

C524
C509
C512
C554
R533
R532
R510
R525
R511
Q509
R504
C405
R415
R417
R403
R524
R409
R402
Q406
R435
R419
R401
C748
C727
C726
C708
C703
R711
R728
R734
R740
R755
R006
R007 C005
C006
R715
R719
R701
R752
R751
C731
R781
R721 R722
Q701
R361
R360
R356
R355
R724
R726
Q709
R725
C706
R203
Q201 R204
R214
Q203
C607
C606
C605
R205
R602
C633
C603 C601
C634 C215 C212
C210
R212
Q202
R211 R215
R213
R210
R201
C201
R603
C617 R632
C626
C632 R625 C636 C631 C623
C622 C621
R623 R615
C620
R609 R611 R613R614
R612 C618 R610
R616
R617
R618
R624
R619
C627
C220
C207
C218
C208
C629
C222 R209 C206 C202 R202C221
R219 R220
R218
Q204
R217
C638
C001
R138
C720
C380C384
C008
IC301
R322
C331 C332
R324 C334
R321
R319
C330 C333
C335 R325
C325
R320
R323
C336
C337
R136
R124
R119
R110
R108
C108 C109 C101
R133
R134
C114 C113
R121
R123
Q102
R130
R132
Q101
R117
R129
R127
R118
R114 R116
R101 R126
R104
R115
R112 R113
C107
R102 C121
R106 C128
R103
R328
R301
C306
R303
C308 C339
R327
C338
R305
R333
R331
C309 R304
C307
R302
R730
Q704
Q705
R732
R738
R737
R739 R736
R727
R731
R125
C931
C928
C926
R905
R904
C966
C967
C932
C930
C927
C922 C965
C959
R906
IC902
Q604
R122
R111
R412
C602
R362
C112
Q103
C120
Q105
Q351
C609
C734
R314
C723
R405
R363
C746
C742
C131
C130
C007
R605
R442
R152
Q107_1
R151
Q109
C132
R223
R150
C722
C750
C124
C637
C438
R716
R758
R757
R723
R636
R140
R154
R604
R607
C793
C717
R756
C363_1
C365_1
C353_1
C352_1
R750
R747
D106
W847
W848
W849
R601
C410
C511
PRINTED CIRCUIT BOARDS
MAIN (CHIP MOUNTED PARTS)
SOLDER SIDE
C613 C201C201C201C201C201C201C201C201C201C201C201C201C201
C205

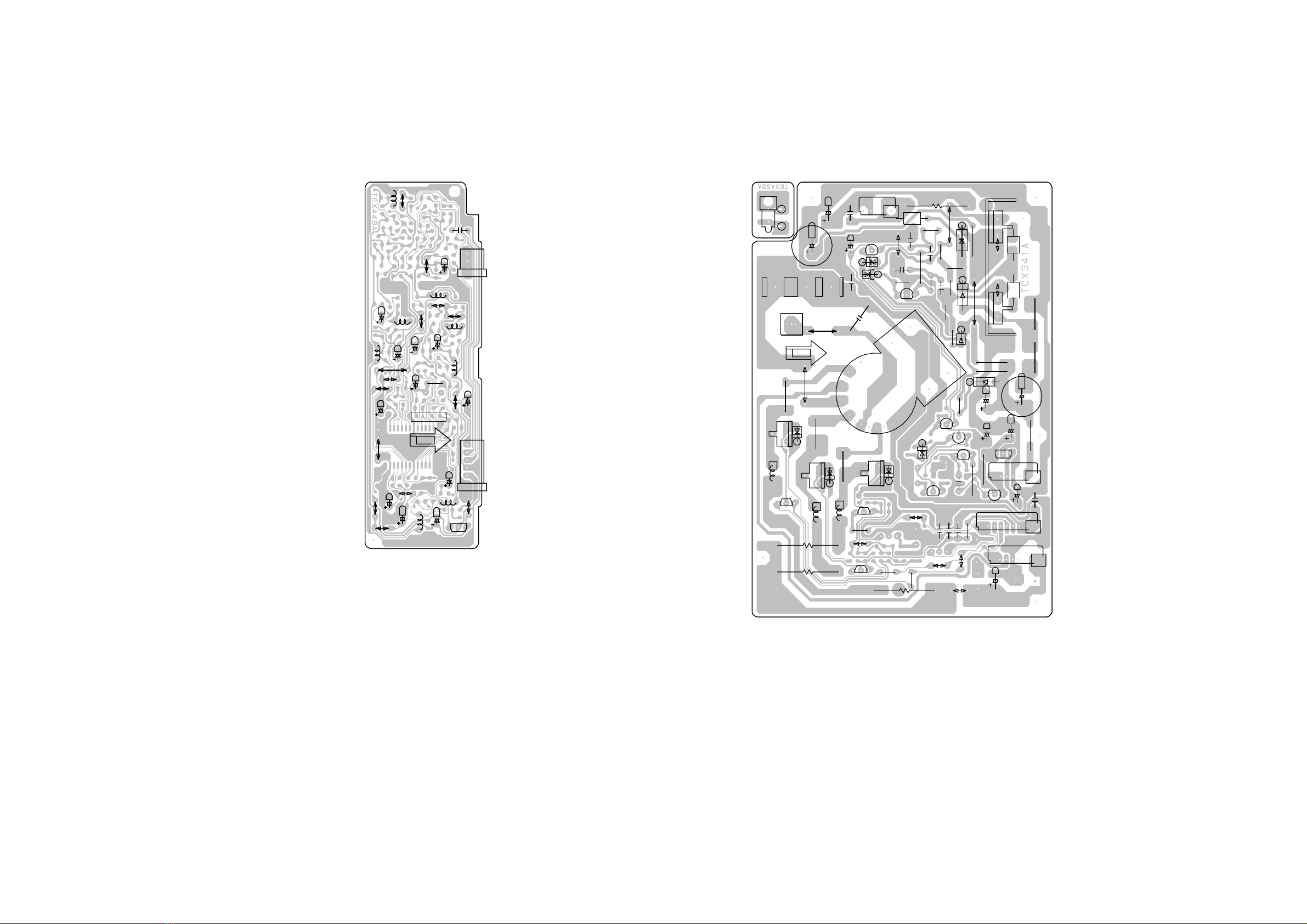

PRINTED CIRCUIT BOARDS
COMO FILTER (INSERTED PARTS)
SOLDER SIDE CRT/VM COIL (INSERTED PARTS)
SOLDER SIDE
C909
C908
C941
C947
C962
C949
L907
C953
L908
IC903
W005
R930
W004
C905
W008
W009
W002
W007
W003
C970
C968
C946
CP901
CP902
COMB.
W001
L903
L905
L912
L909
L910
C903
C901
W809
W806
W808
L904
W810
W828
W805
CP803
CP804
C809
TP805
TP806
TP804
D801
D802
D803
Q812 Q811
Q810
R830
R828
R829
R808
R804
R806
Q802
Q803
Q801
R801
R803
C813
B852
R816
R802
W010
Q856
Q855
Q857
Q854
Q852
Q853 Q851
R881
R855
C854
R879R878
B851
C865 C864
R877
R880 R851
C853
C852
C851
R857
C860 C861 D852
J801
R872
D855
R869
R875 R871
D856
R866
D853
R868
R873 R874
R876
R870
R867
C808
C815
L802
L803
L804
C862
C863
C866
IC851
D858
D857
W011
W012
W013
D854
W014
B853
W803
W801
CP801
CP802
CP851
C858
C859
Q858
Q859
CP852B
S851
S852 CP852_1
C822
C868
C823
W813
W814
W815
W802
C821
HS851
W804

PRINTED CIRCUIT BOARDS
COMO FILTER (CHIP MOUNTED PARTS)
SOLDER SIDE CRT (CHIP MOUNTED PARTS)
SOLDER SIDE
IC901
C915
C914
C916
C936
C913
C937
R918
R921
C910
C911
C912
C907 Q913
R967
C902
C906
R966
C904
R935
C943 C939
C940
C944
R928
R931
R932
Q903
R929
R924
C945
R923
R922
Q904
R917
R903
C948
Q908
C963
R938
C951C961
R946
C954 R942
R945
R947
R954
R960
Q901
R959
Q905
R919
R953
Q906
R939
R940
C950
C952
C960
R944 R943
R948
R951
Q907
R949
C955
R952
R955
Q911
R962
R964
R963 C957
C958
R965
R941
Q910
C942
R936
R956
Q909
R958
Q912
R901
R957
R968
R961
C969
R937
R970
C938
R813 R810 C804 R817
R814
R812
C805 R819 R815
R811
C806
R821
R809
R852
R856
R853
R860 C855
R861
R854 C856
R858
R859
R862 R863
C857
R864 R865
C867

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES ARESINCE THESE PARTS MARKED BYCAUTION:
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
R007
270
R006
270
R154
10K
R151
4.7K
R115
47K
R102
1K
R152
1K
R108
2.2K
R109
2.2K 1/4W
R110
10K
R107
1K 1/4W
R126
2.7K
R123
4.7K
R122
4.7K
R121
4.7K
R101
560 R114
2.2K
R116
2.2K
R119
47K
R124
47K
R125
47K
R138
1K
R140
1K
R141
1K 1/4W
R134
10K
R142
10K 1/4W
R133
10K
R136 4.7K
R150
4.7K
R106
15K
R103
1M
R139
1K 1/4W
R113
10K
R112
10K
R137
150 1/4W
R104
560
R132
33K
R131
10K 1/4W
R111
47
R130
820
R117
10K
R118
10K
R127
1K
R128 33K1/4W R129 3.9K
C120
1B
C007
0.1 B
C001
0.01 B
C004
0.022 M
C006 100P CH
C005 100P CH
C008
0.01 B
C119
0.68 TF
C112
0.0022 B
C124
0.1 B
C114
82P CH
C113
82P CH
C101
0.022 B
C108
270P CH
C109
270P CH
C117
0.68 TF
C130
220P CH
C132 820P
CH
C121
200P CH
C128
0.001 B
C107
0.01 B
C131
220P CH
C116
0.68 TF
C138
0.01 Y
W834
W804
W805
W823
W801
W822
D001
HZ30-3L
D108
MTZJ5.6B
C003
2.250V KA
C002
22006.3V YK
C118
22006.3V YK
C122
150V KA
C111
150V KA
C123
1016V KA
D106
1SS355
D103
1SS133
D104
1SS133
D102
1SS133 D107
1SS133
Q109
2SC2412K
SYNC SEP.
Q101
2SC2412K
V-BUFFER
Q102
2SC2412K
H-BUFFER
Q105
2SA1037AK
EMERGENCY
R001
27K 1W
IC101 OEC7054A
MICON
110111213141516171819 220212223242526
27 28 29
3
30 31 32 33 34 35 36 37 38 39
4
40 41 42 43 44 45 46 47 48 49
5
50 51 52
6789
TU001 NJH3022U268
1
10
11
12 13 14 15
2 3 4 5 6
7
8 9
GND B+ Vout
OS101
PIC-28143SY-2
1 2 3
IC103 PST600C
RESET
123
SW102
SKHVBED010
CH DOWN
SW104
SKHVBED010
VOL DOWN
SW105
SKHVBED010
POWER SW101
SKHVBED010
CH UP SW103
SKHVBED010
VOL UP
IC199
S-24C08ADPA-01
MEMORY
1234
5678
Q107_1
DTC114TKA
SWITCH
Q103
DTC114EKA
X-RAY TEST
L101
2.7uH
X101
CSTS0800MG03-T2
1
2
3
TP001
AGC
CP101 173979-61
2 3 4 5 6
D109
SLR-342VCT32
POWER ON
CAUTION: DIGITAL TRANSISTOR
TM101
SBKMOP006A
BT001
R03(AB)E_20_T
BT002
R03(AB)E_20_T
S801Y
S802X
S801X
R.OUT
AGC
SCL
SDA
IF
OSD_R
OSD_G
OSD_B
OSD_BLK
X-RAY_TEST
SCL
SYNC_OUT SDA
EXT_MUTE
AFT_OUT
V.OUT1 TV_MUTE
AFC SDA
X-RAY BBE_SW
SCL
POWER
GND_SIGNAL
GND_POWER P.CON+5V_W/BL
+B
EMERGENCY2
P.CON+9V AT+5V
P.FAIL DEGAUSS_H
CV_IN

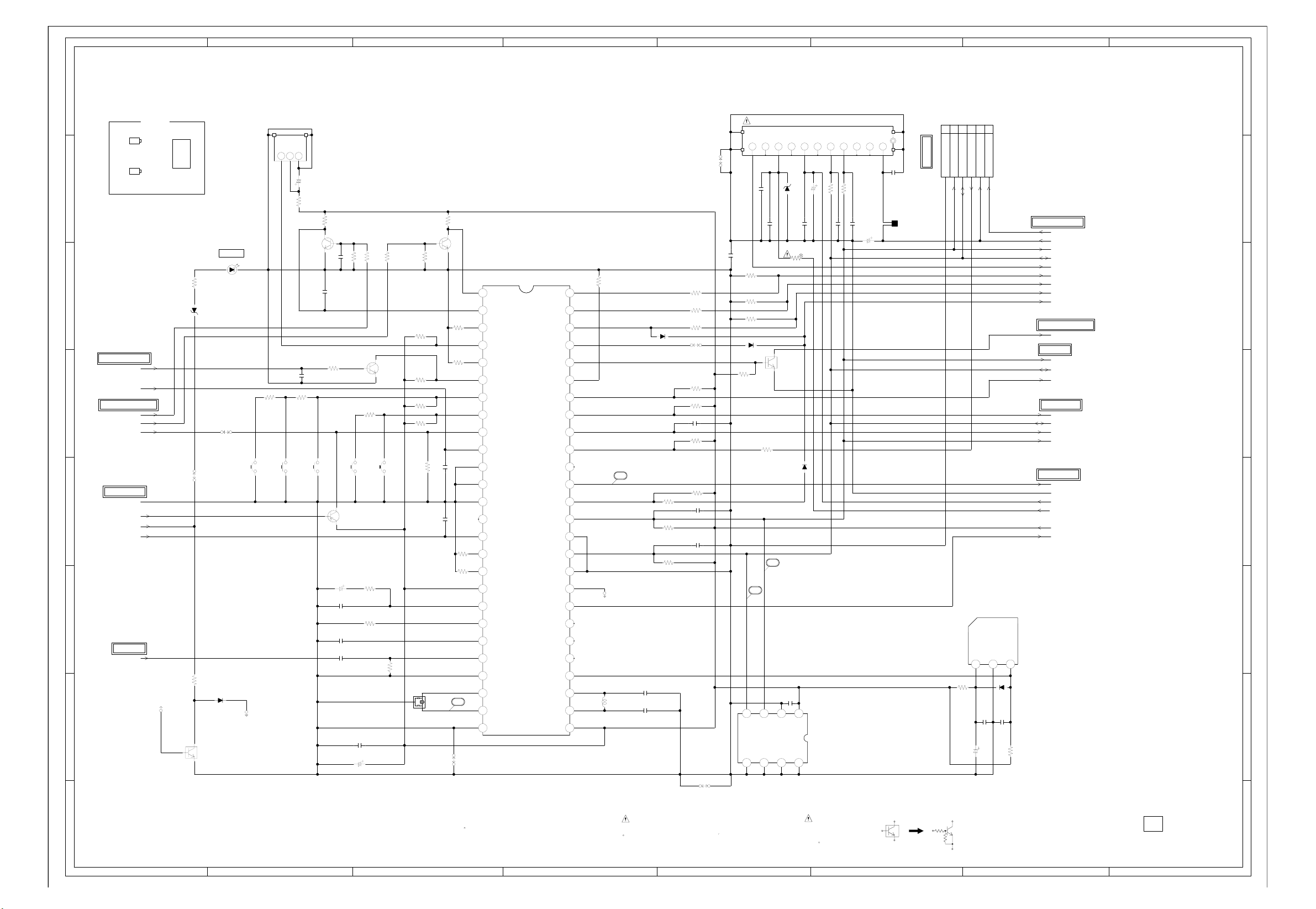

MICON / TUNER SCHEMATIC DIAGRAM
(MAIN PCB)
SDA SCL
MODE
VCC
PCB010
TMX481
0
0
4.8
2.5
15.9
FROM/TO POWER
RED LED
1
0
0
4.8
0
5.0
0
NC
0000
VSS E2 E1
E0
0
H SYNC
V SYNC
NC
REMOCON
NC
SYNC
KEY 1
KEY 2
X RAY
AFT
NC
NC
P FAIL
OSD R
OSD G
OSD B
OSD BLK
X-RAY TEST
BBE H
IIC OFF
H TONE OUT
SCL1
SCL2 (PIP)
SDA1
SDA2 (PIP)
AV2
AV1
RESET
OSC1
OSC2
VCCVSS
X.IN
X.OUT
HLF
AVCC
NC
NC
RVCO
VHOLD
CVIN
CNVSS
NC
NC
EXT MUTE
TV MUTE
POWER
IF
BTL BPL V.S SDA SCL
ADRES
AGC
30.0
5.0 5.0 5.0 4.6 6.2 1.3
NC
NC NC NC NC
0 0
I2C OFF I2C SDA I2C SCL
NC
NC
4.8
TEST POINT
GND AGC
R.OUT
SPOT KILLER
NC
NC
5.0
0
0
0
0
5.0
FROM/TO CHROMA/IF
FROM/TO DEFLECTION
0
0
FROM/TO DEFLECTION
FROM/TO AV
FROM/TO SOUND
0
0
DEGAUSS H
5.0
5.0
2
3
4
0
00.3
0
0
5.0
4.8
0
4.9
0
0.3
5.0
0
0
0
0
0
0
0
0
0
0
0
4.9
0
0
1.7
1.7
3.5
2.8
2.3
1.9 3.3
3.2
0
NC
NC
NC
0
0
4.8
NC
NC
FROM/TO POWER
VCC GND V.OUT
05.0 5.0
FROM/TO AV
FROM/TO CHROMA/IF
ACCESORY
5.0
0
4.9
0
0
4.8
0
0
4.8
5.0
5.0
1.3
5.0 5.0 5.0

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
L601
47uH
L603
47uH
L201
100uH0305
L202_1
0.82uHELF0505
L602
100uH
L205
47uH
L604
47uH
C918
4.750V KA
C919
2.250V KA
C921
1016V TT
+-10%
C209
0.4750V KA
C204
1016V KA
C619
10006.3V YK
C624
10010V YK
C924
10010V YK
C612
2.250V KA
C630
0.2250V KA
C917
4.750V KA
C925 0.3350V KA C929
3.316V TT
+-10%
C642
2.250V KANP
C625
4.750V KANP
IC902 AN5829S
SOUND DECORDER IC
1 101112
13141516171819
2
2021222324
3456789
IC201 TB1253N
CHROMA
1 10111213141516171819220 21 22 23 24 25 26 27 28
29
3
30313233343536373839
4
40414243444546474849
5
50515253545556
6789
CF203
EFCT4R5MW5
CF201
EFCT4R5YS5A
OUTOUT G IN IN
CF202
SAF45MFX220ZR
12345
CF204
MKT47.3MC110P-TF
X601
3.579545MHz
IS NON POLAR ONE.
THE ALUMI ELECTROLYTIC CAPACITOR MARKED NP
THE RESISTOR MARKED F IS FUSE RESISTOR.NOTE:
CD701B
CH244002
1
2
3
4
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:
R601 180K
R906
220K
R904
470
R905
470
R220
68
R218
2.2K
R604
470
R605
10K
R223
150
R907
100 1/4W
R908
100 1/4W
R625
120K
R618
180K
R616
100
R617
100
R624
1.5M
R221
220 1/4W
R217
6.8K
R219
470
R202
1K
R209
33K
R632
150K
R607
2.2K
R203
1.2K
R212
3.3K
R615
1.8K
R623
10K
R213
330
R609
100
R611
100
R613
100
R210
150
R205
100
R204
220
R215
470
R201
1K
R603 8.2K
R608
270 1/4W
R747
75
R750
75
R602
1K
R214
270
R211
2.2K
R619
33K
R610
2.7K
R612
2.7K
R614
2.7K
R636
2.2K
R635
33K 1/4W
C613
1B
C205
3P CH
C207
5P CH
C620
0.1 B
C621
0.1 B
C622
0.1 B
C959
0.1 B
C965
0.1 B
C926
0.047 B
C928 0.1 B C931 0.1 B C966 0.1 B C967 0.1 B
C932 0.1 B C930 0.1 B
C636
0.1 B
C626
0.012 B
C220
0.1 B
C221
0.01 B
C202
0.01 B
C201
0.01 B
C618 0.01 B
C629
0.0022 B
C222
0.01 B
C637
3P CH
C206
0.1 B
C218
0.01 B
C208
0.01 B
C617
0.01 B
C638
100P CH
C212
0.1 B
C623
0.01 B
C631
39P CH
C632
39P CH
C927
0.022 B
C922
0.022 B
C610
0.68 TF
C215
33P CH
C210
0.0022 B
C609
0.022 B
C603
0.1 B
C605
0.1 B
C606
0.1 B
C601
0.1 B
C634
0.22 B
C607
0.01 B
C633
0.1 B
C611
0.47 TF
C627
8P CH
C602
0.1 B
W849
W847
W820
W816
W848
W844
W840
W830
W842
W839
D604
MTZJ6.2B
D603
MTZJ6.2B
D602
MTZJ6.2B
D612
MTZJ6.2B
D201
MTZJ12B
C640
100016V YK
C935
4.750V KA
C203
10016V YK
C616
4716V KA
C214
1016V KA
C211
0.2250V KA
C213
10010V YK C615
10010V YK
C216
1016V KA
C604
150V KA
C608_1
150V KA
D605
11E1-EIC
D614
1SS133
D613
1SS133
D611
1SS133
Q204
2SC2814
PRE AMP
Q202
2SC2412K
TV BUFFER
Q604
2SC2412K
V.BLK
Q201
2SC2412K
AUDIO
BUFFER
Q203
2SA1037AK
TV BUFFER
L203
2.2uH
L204
12uH
L901
22uH
TP901
AUDIO_L
S805XS805Y
S802Y
S803X
S803Y
C.OUT
Y.OUT
SYNC_OUT
TUNER_VIDEO
SDA
SCL
OSD_B
OSD_G
OSD_R
OSD_BLK
R.OUT
GND_SIGNAL
P.CON+9V
P.CON+5V
GND_POWER
V.OUT2
H.OUT
AFC
EW_OUT
ABCL
VM_OUT
AFT_OUT B.OUT
AGC G.OUT
IF R.OUT
V.OUT1
FSC_OUT
TUNER_AUDIO_L
TUNER_AUDIO_R
PCB010
TMX481
(MAIN PCB)
NC
IF GND
IF DET OUT
LOOP FILTER
IF VCC(9V)
V REF
DE-EMPH
DC NF FILTER EXT AUDIO IN
Y CLAMP FILTER APL DET FILTER
CVBS EXT IN
U IN V IN C IN
CVBS OUT
BLACK DET FILTER
DIG GND
V OUT
V RAMP
H VCC(9V)
H AFC FILTER
H OUT
SYNC OUT
X-RAY
FBP IN/GP OUT
SIF/H CORR IN IF VCC(5V) VCO ADJ FILTER AUDIO OUT AFT OUT X’TAL(3.58MHz) IF AGC RF AGC APC FILTER IF IN IF IN CW OUT YC VCC(5V) R OUT G OUT B OUT YC GND SVM OUT YS/YM IN EXT R IN EXT G IN EXT B IN RGB VCC(9V) SCL SDA EHT IN
CVBS LNT IN
IK IN ABCL IN
DIG VDD
EW OUT
6.2
0.6
1.3
FROM/TO AV
0
09.0
5.0
09.0
FROM/TO MICON/TUNER
5.0 9.0 9.0
FROM/TO POWER
FROM/TO MICON/TUNER
FROM/TO AV
5
6
7
8
910
11
12
13 14 15
FROM/TO DEFLECTION
Noise
Det
Spectral
RMS Det
SAP
Filter
Noise
Filter
Spectral
Filter
SAP
Det
Stereo
Filter
GND
Input
VCA
Pilot
Det
St.PLL
Cancel
Pilot
Spectral
Expand
dbx De-Emph
SAP
Demod
Wide Band
RMS Det
Wide Band
Filter
L+R Filter L+R Demod
IIC Decoder
L-R DemodL-R Filter
fH.2fH Trap Filter
ZAP
OUT SW
AGC
Matrix
Offset
Cancel
Offset
Cancel
Wide Band
Expand
DAC
(L-R)/SAP
Switch
De-Emph
75us
SAPout
Filter
0 2.3 2.3 2.2 2.2 0.4
Vcc
5.1 2.4 2.4 0.4 2.3 3.4
9.0
3.1
3.7
2.4 3.1
3.5
4.1
9.0
4.1 2.4 2.4 3.7 2.8 3.6 2.4 2.5 1.9 2.4 2.5 2.5 2.5 2.7 1.5 6.0 4.9
3.0 0 0 0 0.1 2.7 3.2 2.1 2.0 2.9 1.6 4.8 4.8 4.8 0 2.2 0.1 2.2 2.2 2.2 1.1 6.0
7.1 4.0 2.1 0 6.0 3.4 2.0
4.2
0
0
2.3 2.3 2.3 2.3 NC 0 5.0 5.0 0 3.7 3.6 2.6 3.7
CHROMA / IF SCHEMATIC DIAGRAM
FROM/TO AV
5.0 5.0
