Toshiba 42PW33 Series User manual

42PW33
Series
Owner's manual
true
experience
43PW33 Sky Eng FC 27/7/04 16:16 Page 1

2
Contents
SETTING UP
Safety precautions –Some do’s and don’ts for you to be aware of 3
Installation and Important information 4
The remote control – an at-a-glance guide 5
Connecting external equipment 6
Side connections and controls 7
Selecting the language and system 8
Auto tune 8
Manual tune – an alternative to Auto tuning 9
Programme skip 10
Sorting programme positions 11
CONTROLS
General controls – changing programme position 11
Sound controls – volume, sound mute, bass boost, bass/treble/balance 11
Widescreen viewing 12
Picture controls – picture preferences, noise reduction (NR), picture position,
automatic format (widescreen) 13
FEATURES
The timer and time display – setting the TV to turn off and time display 14
Panel lock – disabling the buttons on the TV 14
Stereo and bilingual transmissions – stereo or dual language broadcasts 14
Input selection and AV connections – input and output sockets for connected equipment 15
TELETEXT
Setting up, general information, Auto and List modes 16
Control buttons 17
PROBLEM SOLVING
Questions and Answers 18
INFORMATION
Index, Specifications and Accessories – information on your television 20
?
For television
operation queries,
please ring the
helpline…
Remember…
For UK only

3
Safety Precautions
This equipment has been designed and manufactured to meet international safety standards but, like any
electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read
the points below for your own safety. They are of a general nature, intended to help with all electronic
consumer products and some points may not apply to the goods you have just purchased.
DON'T remove any fixed cover as this may expose
dangerous voltages.
DON'T obstruct the ventilation openings of the
equipment with items such as newspapers,
tablecloths, curtains, etc. Overheating will cause
damage and shorten the life of the equipment.
DON'T allow electrical equipment to be exposed to
dripping or splashing or objects filled with liquids,
such as vases, to be placed on the equipment.
DON’T place hot objects or naked flame sources,
such as lighted candles or nightlights on, or close to
equipment. High temperatures can melt plastic and
lead to fires.
DON'T use makeshift stands and NEVER fix legs
with wood screws. To ensure complete safety,
always fit the manufacturer’s approved stand or
legs with the fixings provided according to the
instructions.
DON'T listen to headphones at high volume, as
such use can permanently damage your hearing.
DON'T leave equipment switched on when it is
unattended, unless it is specifically stated that it is
designed for unattended operation or has a
standby mode. Switch off using the switch on the
equipment and make sure your family know how to
do this. Special arrangements may need to be
made for infirm or handicapped people.
DON'T continue to operate the equipment if you
are in any doubt about it working normally, or it is
damaged in any way – switch off, withdraw the
mains plug and consult your dealer.
ABOVE ALL – NEVER let anyone, especially
children, push anything into holes, slots or any
other openings in the case – this could result
in a fatal electric shock.
NEVER guess or take chances with electrical
equipment of any kind – it is better to be safe
than sorry.
TO FULLY DISCONNECT THE TV, SWITCH OFF
THE MAINS SOCKET AND REMOVE THE
POWER PLUG.
Leave at least 10cm clearance around the television
to allow adequate ventilation. This will prevent
overheating and possible damage to the TV. Dusty
places should also be avoided.
Damage may occur if the TV is left in direct sunlight
or near a heater. Avoid places subject to extremely
high temperatures or humidity, or locations where the
temperature is likely to fall below 5°C (41°F).
The mains supply required for this equipment is
230v AC 50Hz. Never connect to a DC supply or
any other power source. DO ensure that the TV is
not standing on the mains lead. DO NOT cut off
the mains plug from this equipment, this
incorporates a special Radio Interference Filter, the
removal of which will impair its performance. In the
UK, the fuse fitted in this plug is 5A, and is
approved by ASTA or BSI to BS1362. It should only
be replaced by a correctly rated and approved type
and the fuse cover must be refitted.
IF IN DOUBT PLEASE CONSULT A COMPETENT
ELECTRICIAN.
DO read the operating instructions before you
attempt to use the equipment.
DO ensure that all electrical connections (including
the mains plug, extension leads and inter-
connections between pieces of equipment) are
properly made and in accordance with the
manufacturers’ instructions. Switch off and withdraw
the mains plug before making or changing
connections.
DO consult your dealer if you are ever in doubt
about the installation, operation or safety of your
equipment.
DO be careful with glass panels or doors
on equipment.
Air Circulation Do not
Heat Damage
Mains Supply
Do

4
Installation and important information

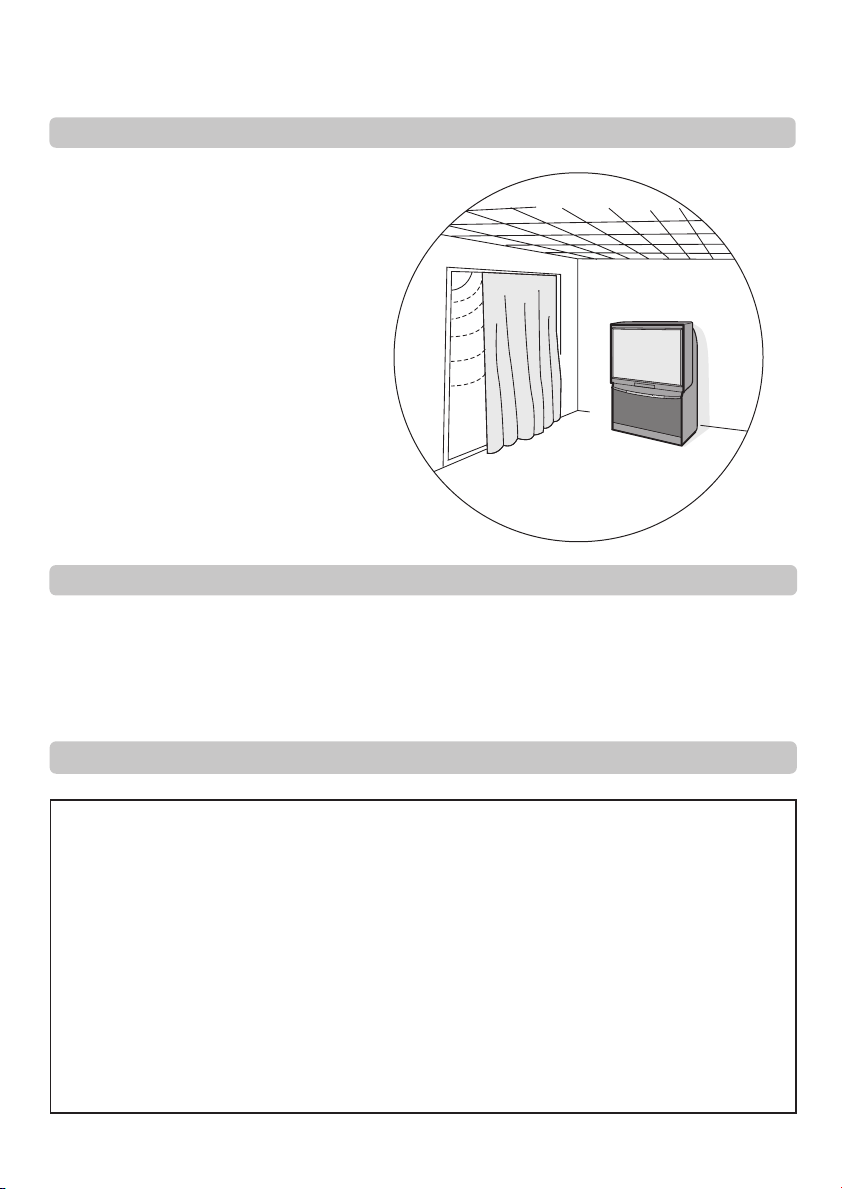

Where to install
Locate the television away from direct sunlight and strong lights.
Soft, indirect lighting is recommended for comfortable viewing.
Place the TV directly on the floor or a sturdy platform. The
mounting surface should be flat and steady. If you install
the TV onto a soft floor covering, make sure that the
covering will not be damaged by the weight of the TV.
Use curtains or blinds to prevent direct sunlight
falling on the screen.
Always take great care when moving this TV as it
could mark polished floor surfaces or damage floor
coverings.
If stationary images generated by TELETEXT, CHANNEL IDENTIFICATION LOGOS, COMPUTER DISPLAYS, VIDEO
GAMES, ON SCREEN MENUS, etc. are left on the TV screen for any length of time, they could become
permanently ingrained.
If you use your television to display completely still images, or moving pictures which have a permanent still image
superimposed e.g. broadcast network logos, it is always advisable to reduce BOTH the brightness and contrast settings.
WARNING! NEVER LEAVE A STATIONARY IMAGE ON THE SCREEN
Please take note
EXCLUSION CLAUSE
Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:
i) fire;
ii) earthquake;
iii) accidental damage;
iv) intentional misuse of the product;
v) use of the product in improper conditions;
vi) loss and/or damge caused to the product whilst in the possession of a third party;
vii) any damage or loss caused as a result of the owner’s failure and/or neglect to follow the instructions set out in the owner’s
manual;
viii) any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with
associated equipment;
Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited
to the following, loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or
misuse of the product.

5

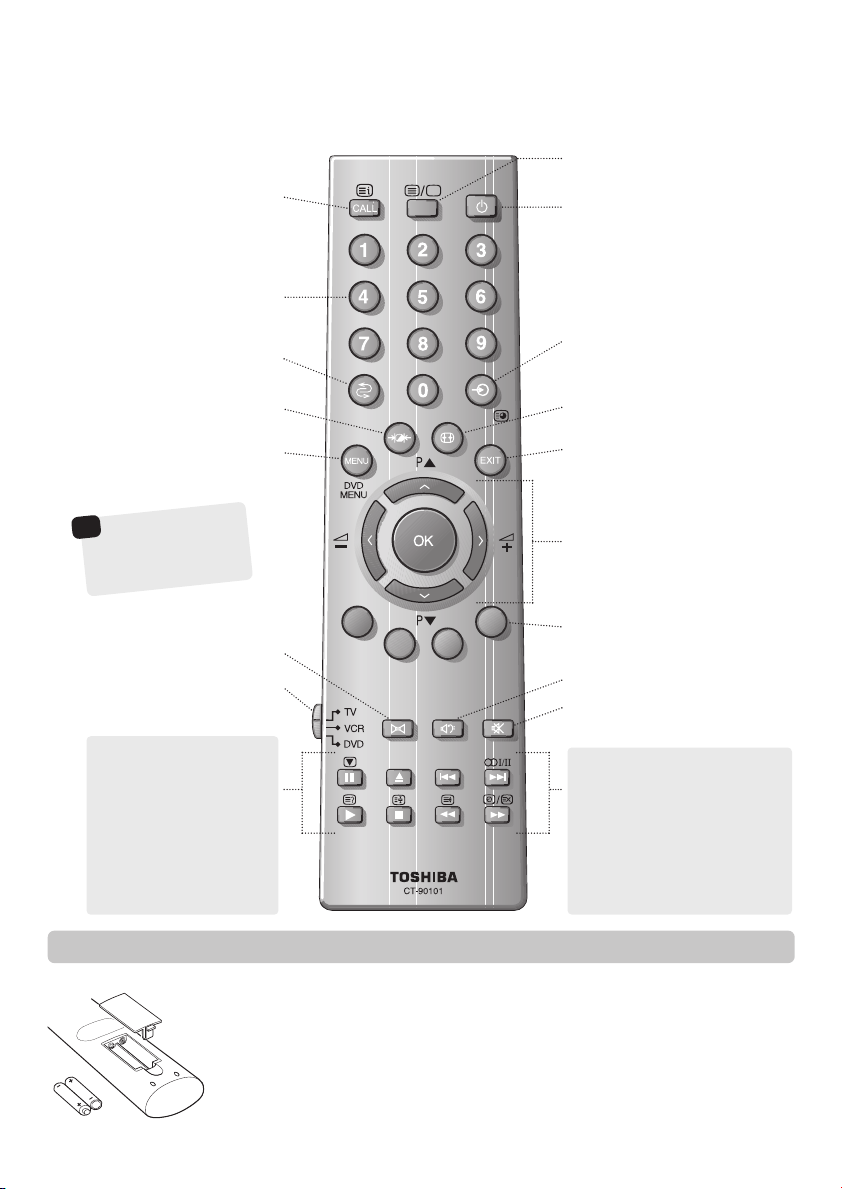

The remote control UP
Remove the back cover to reveal the battery compartment and make sure the batteries are inserted
the right way round.
Suitable battery types for this remote are UM-4, AAA, IEC R03 1.5V.
Do not combine a used, old battery with a new one or mix battery types. Dispose of them in a
designated disposal area.
The performance of the remote control will deteriorate beyond a distance of five metres or outside an
angle of 30 degrees from the centre of the TV.
Inserting batteries and effective range of the remote
Simple at-a-glance reference of your remote control.
For quick reference to
topics, please see
the
INDEX
at the end of
this manual.
To mute the sound
Teletext control buttons
To exit Menus
Bass Boost/Super Woofer
No function on this model
To bring up on-screen information and
for the teletext initial/index function
To select input from external sources
To access sub-pages when in teletext
mode
To select mode
On-screen Menus
Selectable picture preferences Widescreen viewing
Number buttons
To return to the previous programme
For On/Standby mode
To display teletext
When in VCR or DVD mode:
press
mto PAUSE
presswto EJECT
press
l
qto SKIP-REWIND
presss
l
to SKIP-FORWARD
press rto PLAY
presspto STOP
press qto REWIND
presssto FAST FORWARD
☛
To change programme positions and
teletext pages
To alter the volume
When using menus the arrows move the
cursor on the screen up, down, left or
right. OK to confirm your selection
When in TV mode:
uNo function on this model
OI/II Stereo/bilingual reception
8
/
9Time display
When in Teletext mode:
rTo reveal concealed text
qTo hold a wanted page
sTo enlarge teletext display size
8
/
9To select a page whilst viewing a
normal picture

6
Connecting external equipment
Before connecting any external equipment, turn off all main power switches.
IN
OUT
IN
OUT
the back of your TV
video recorder
decoder*
SATIN/OUT
VCRTV
SCART 3
(EXT 3)
SCART 1
(EXT 1)
SCART 2
(EXT 2)
COMPONENT VIDEO INPUT
(EXT 4)
*a decoder could
be Digital Satellite or
any other compatible
decoder.
☛
A wide variety of external equipment can be
connected to the back of the TV, therefore the
relevant owners manuals for all additional
equipment must be referred to.
We recommend Scart 1 for a decoder, Scart 2 for a
VCR and Scart 3 for additional equipment (games
console etc.).
If connecting S-VIDEO equipment, set the INPUT for
EXT2 or EXT3. See page 15.
If the TV automatically switches over to monitor
external equipment, return to normal TV by pressing
the desired programme position button.
To recall external equipment, press Bto select
between EXT1, EXT2, EXT3 or EXT4.
WE RECOMMEND THAT YOU USE SCART LEADS IN
ADDITION TO AERIAL CABLES WHEREVER POSSIBLE
Aerial cables:
Connect the aerial to the socket on the rear of the
television. If you use a decoder* and/or a video
recorder it is essential that the aerial cable is connected
through the decoder and/or through the video
recorder to the television.
Scart leads:
Connect the video recorder IN/OUT socket to the TV.
Connect the decoder TV socket to the TV. Connect the
video recorder SAT socket to the decoder VCR socket.
Before running Auto tuning put your decoder and
video recorder to Standby.
The phono sockets alongside the COMPONENT VIDEO
INPUT sockets will accept L and R audio signals.

7

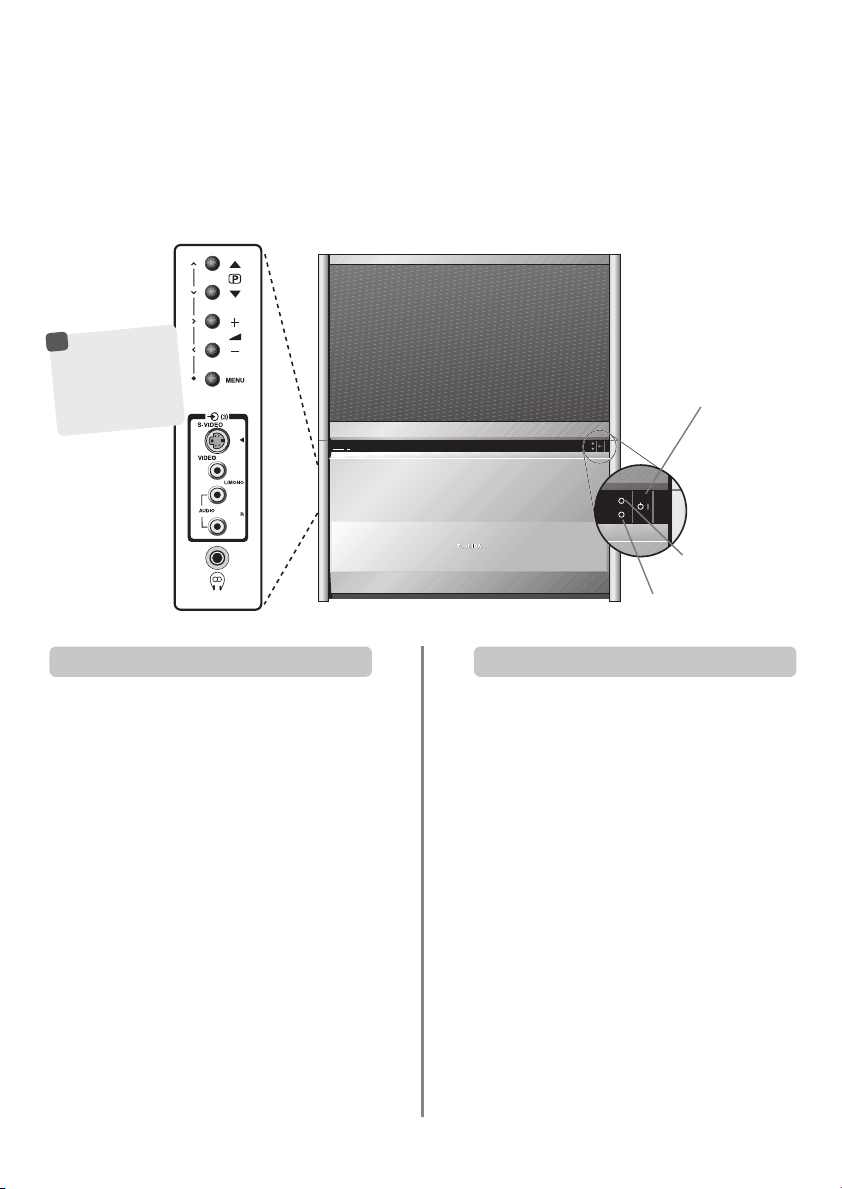

Side connections and controls
If the power-on light is unlit press the POWER button on
the front of the TV to switch the set on, then press a
number button on the remote control to see the screen.
To put the set into Standby press ion the remote
control. To view the TV press iagain or any of the
number buttons. The picture may take a few seconds to
appear. Standby should only be used for short periods of
time.
To set up the TV you will now need to use the on-screen
menus. Press the MENU button on the remote control to
see the top menu bar.
This white menu bar will show five different topics shown
in symbols. As each symbol is selected by pressing the
Sor Rbutton on the remote control, its respective
options will appear below.
To use the options press the Qbutton on the remote
control to move down through them and Sor Rto select
the required choice. Follow the on screen instructions.
The functions of each menu are described in detail
throughout the manual.
A wide variety of external equipment can be connected via the sockets located on the side of the TV.
Whilst all the necessary adjustments and controls for the TV are made using the remote control, the buttons on
the TV may be used for some functions.
DO NOT
connect equipment
to both the side
and rear
J
terminals at the
same time.
!
To alter the volume press —j+.
To alter the programme position press eeFff.
Press MENU and S,R,Qor Pto control the sound
and picture options.
Press MENU to finish.
When connecting mono sound equipment to Input 3,
connect the audio output of the equipment to the
L/Mono socket on the TV.
To select the Inputs, press Buntil the display shows
EXT3 or EXT3S as described on page 15.
Please always refer to the owner’s manual of the
equipment to be connected for full details.
Please note: Inserting the headphone jack will mute the
sound from all speakers.
Switching on Using the controls and connections
Power Button
RED – Power On
GREEN – Timer is set

8
Selecting the language and system*,
Auto tune
Before running Auto tune put your decoder and video recorder to Standby. To set up the TV use the buttons
on the remote control as detailed on page 5.
Set up


Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletextset up
1
2
3
5
6
7
8
4
Press Sor Rto select.
Now press Qto highlight Auto tuning, then R
to select.
Press Qto highlight Language.
To choose the required language, press MENU
and use Rto select Set up from the top bar.
EXIT : To exit
Previous settings
will be lost!
EXIT for no change.
System I
START


Auto tuning

Press Rto select your System*. Press Qto
highlight START and then R.
The search will begin for all available stations.
xxxxxxxxxx
will flash and the bullet will move along
the line as the search progresses.
Allow the television to complete the search.
Searching
Channel : 21
Station :
Auto tuning
  


When the search is complete the TV will
automatically return to programme position 1.
This may not be a clear picture or the signal may
be weak, so the station order may be changed by
using Programme sorting, on page 11.
If the television cannot be connected to a
video/decoder with a Scart lead or if a station on
another system is required, use Manual tuning
to allocate a programme position, see page 9.
*
* For Continental Europe only.
For UK only: Press OK to start and go to step 7.
For Continental Europe: It will be necessary to
choose the System*for your country.
Set up


EXIT : To exit
Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext
Set up
EXIT : To exit
B/G – Continental Europe, I – UK
D/K – Eastern Europe, L1, L2 – France

OK : To store EXIT : To exit
MENU : To return
Searching
00 I RRR 032 00
Manual tuning


OK : To store EXIT : To exit
MENU : To return


System
00 I060 00 VCR
Manual tuning
Press OK to select. If the programme is skipped,
Programme skip must be removed before
storing.
Press Rto select System and use Por Qto
change (if required, see step 5 on page 8).
Then press Rto select Search.
Pressing Pwill begin the search. Searching will
flash and the television will show the channel
numbers.
9
Manual tune
The TV can be tuned-in manually using Manual tuning. For example: if the television cannot be connected
to a video/decoder with a Scart lead or to tune-in a station on another System (see page 8).
Station
Programme: The number to be pressed on the remote control.
System: Specific to certain areas.
See step 5 on page 8 .
Search: Search up and down for a signal.
Programme skip: *means nothing has been stored or the facility to skip the channel is ON. See page 10.
Channel: The channel number on which a station is being broadcast.
Manual fine tuning: Only used if interference/weak signal is experienced. See page 19.
Station: Station identification. Use the
P
or Q and
S
or
R
buttons to enter up to seven characters.
Programme System Search Programme skip/
Channel
Manual fine
tuning
OK : To select EXIT : To exit
Manual tuning

Prog. Sys. Channel Station
0I60 VCR
1I22 BBC1
2I28 BBC2
3I25 ITV
4I32 CH4
5I* 69

Use Por Qto highlight the programme position
required e.g. we suggest Prog. 0 for a video.
Select Set up from the top menu bar and with
Qhighlight Manual tuning, press Rto select.
Different
Channel
numbers
may be
displayed
Continues on the next page
To allocate a programme position on the television for a decoder and VCR: turn the decoder on, insert a pre-recorded tape in the
video and press PLAY, then manually tune.
Set up


Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext
Use
S
and
R
to move across the screen and select any of these Manual Tune options.
1
2
3
4
5
6

Each signal will show on the television, if it is not
your VCR, press Pagain to restart the search.
When your VCR signal is found, press Rto move
along to Station. With P, Q, Sand Rput in
the required characters, e.g. VCR.
10
Manual tune continued
Programme skip
This TV has direct channel entry if the
channel numbers are known.
Select the Manual tuning screen in Step 3. Enter the
Programme number, the System, then the Channel
number. Press OK to store.
OK : To store EXIT : To exit
MENU : To return


Manual tuning
Station
00 I039 00 VCR
8
7
Press OK to store.
Repeat for each programme position you want
to tune or, press MENU to return to the list of
channels and select the next number to tune.
Press EXIT when you have finished.
10
11
9
PLEASE NOTE
Press MENU and repeat from Step 2 or press
EXIT.
Each programme position has to be individually
selected and set with Programme skip On
or Off.
To turn Programme skip off, repeat the
procedure for each position.
Skipped programme positions cannot be selected
by Pf(P) and Pe(Q) or by the controls on
the side of the TV, but can still be accessed by the
number buttons on the remote control.
OK : To store EXIT : To exit
MENU : To return
Manual tuning


Programme skip :On
01 I
*
022 00 BBC1
3
4
5
Use Por Qto highlight the programme position
to be skipped and press OK to select.
Press Rto select Programme skip.
Use Por Qto turn Programme skip :On.
Press OK.
*on the screen indicates a skipped programme
position.
To prevent certain programmes from being viewed, the
programme position can be skipped and the remote control
removed. The television can then be watched as normal
using the controls on the side, but the set will not show the
skipped programme position.
Programme skip
Select Manual tuning from the Set up menu.
OK : To select EXIT : To exit
Manual tuning

Prog. Sys. Channel Station
0I60 VCR
1I22 BBC1
2I28 BBC2
3I25 ITV
4I32 CH4
5I* 69

1
2

11

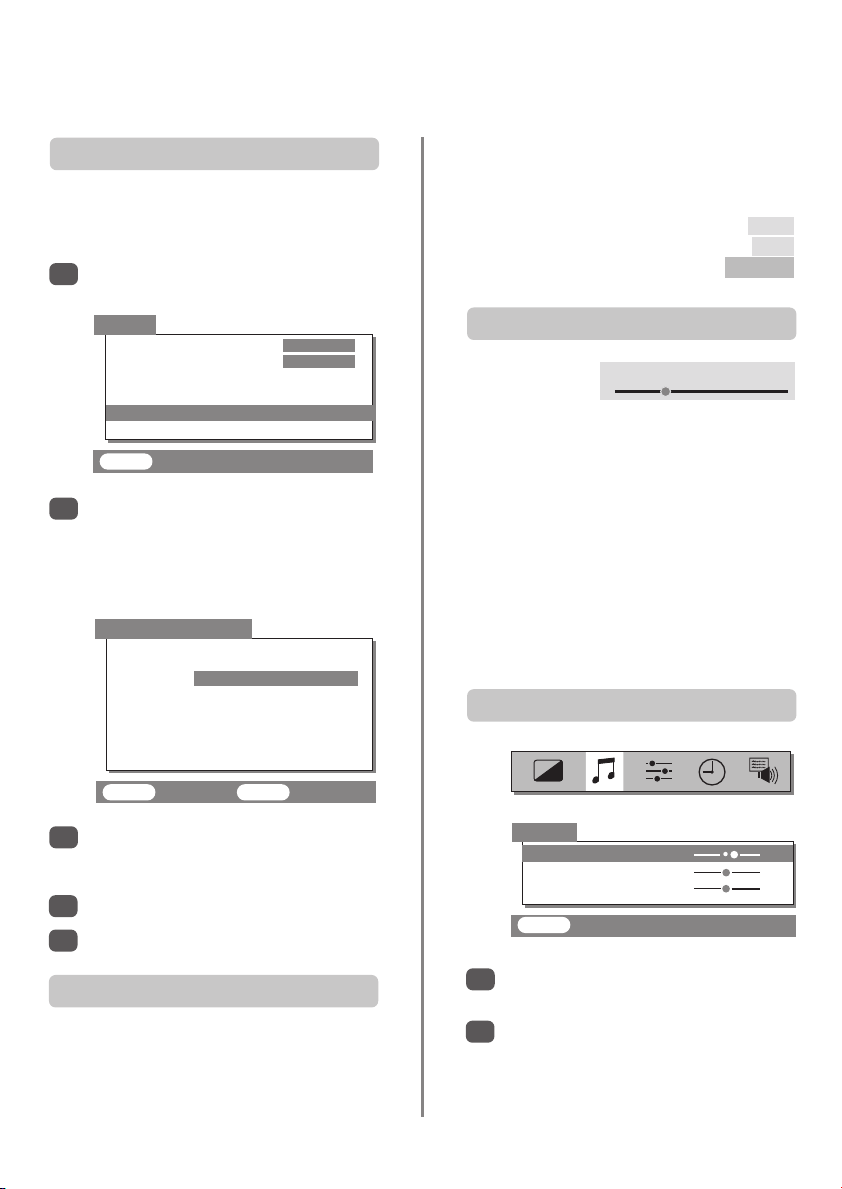

Sorting programme positions,
General and sound controls
Select Programme sorting from the Set up
menu.
The list of stations is now showing. With Qor P
highlight the station you want to move and press
OK.
The selected station will be moved to the right of
the screen.
Sorting programme positions
OK : To set EXIT : To exit
Programme sorting

Prog. Channel Station
122 BBC1
2 28 BBC2
3 25 ITV
4 32 CH4
5*69
6*69


Use Qor Pto move through the list to your
preferred position. As you do so the other stations
will move to make room.
Press OK to set your move.
Repeat as necessary, then press EXIT.
Programme sorting is an easy way of storing each
channel on the programme position of your choice, or
changing the station order if the picture is not clear.
EXIT : To exit

Set up

Language ENGLISH
Colour AUTO
Auto tuning
Manual tuning
Programme sorting
Teletext

1
2
3
4
5
Programme positions can also be selected using Pf(P)
and Pe(Q).
To revert to the previous programme position press ^^.
The programme position will be displayed
on the screen with the Stereo/Mono
indicator, described on page 14.
1
BBC1
Stereo
Volume 32
Volume
Press j — (S) or
j + (R) to adjust
the volume.
Sound Mute
Press konce to turn the sound off and again to cancel.
Bass Boost – to enhance the depth of sound
Press
nthen Sor Rto adjust the effect. The difference
will only be noticeable on sound with a strong bass. Press
nagain to turn Bass Boost off.
When an active Super Woofer is connected pressing n
will control it only if Woofer Ext. is chosen. Select
AV connection in the Feature menu, press Quntil
Woofer is highlighted then press Sor Rto choose EXT.
Press MENU and Sor Rto select the Sound
option from the top bar.
Press Qto highlight Bass, Treble or Balance
and Sor Rto change the setting.
Sound
Bass + 1
Treble 0
Balance 0
EXIT : To exit


To select a programme position use the numbered
buttons on the remote control.
For programme positions below 10 use 0 and the
required number e.g. 01 for programme position 1.
Selecting programme positions
Sound controls
Bass, Treble and Balance
1
2

12
Widescreen viewing
SUPER LIVE
This setting will enlarge the image to
fit the screen by stretching the image
horizontally, holding the correct
proportions at the centre of the image.
SUBTITLE
Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.
Press the {button repeatedly to select between Super live,Cinema,Subtitle,14:9,Wide and 4:3.
Please note: Whenever the MENU button is pressed the picture size setting will change while the menus are
ON the screen. This is to ensure that the menus do not overlap the edges of the viewable area.
CINEMA
When watching ‘letterbox format’
films/video tapes, this setting will
eliminate or reduce the black bars at
the top and bottom of the screen by
zooming in and selecting the image
without distortion.
When subtitles are included on a
letterbox format broadcast, this setting
will raise the picture to ensure that all
the text is displayed.
SUBTITLE
14:9 Use this setting when watching a 14:9
broadcast.
Use this setting when watching a
widescreen DVD, widescreen video
tape or a 16:9 broadcast
(when available). Due to the range of
widescreen formats (16:9, 14:9,
20:9 etc.) black bars may be visible
on the top and bottom of the screen.
WIDE
Use this setting to view a true 4:3
broadcast.
4:3
Using the special functions to change the size of the displayed image (i.e. changing the height/width
ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

13

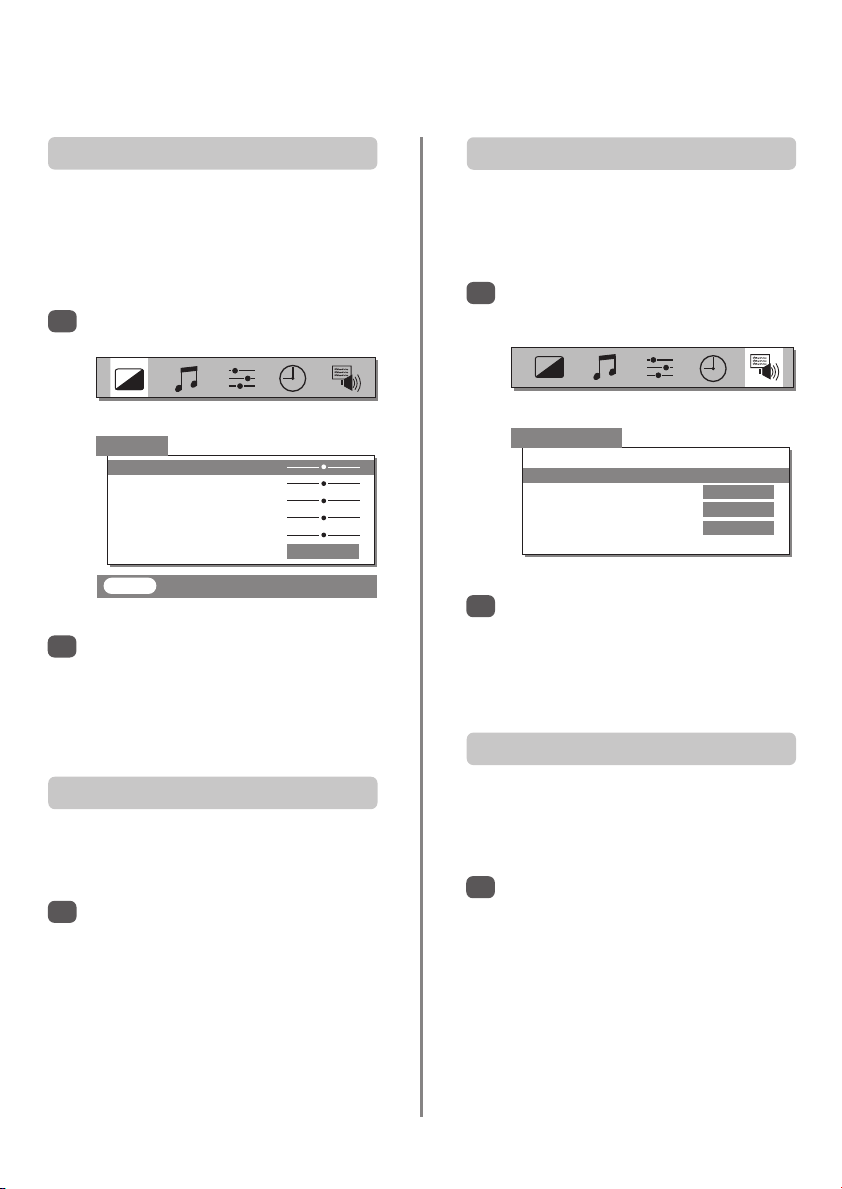

Picture controls
This television offers the choice of personalising the picture
style. Press mto view the different styles available:
Picture mode-1 to 3are preset options and
Picture mode-M stores your own settings:
Use Sor Rto adjust the Contrast, Brightness,
Colour, Tint and Sharpness.
The Tint can only be adjusted on a signal from an
NTSC video recorder or DVD player when the
television is in AUTO colour mode.
Select Picture from the top menu bar.
Picture preferences
1
2



EXIT : To exit
Noise Reduction enables you to ‘soften’ the screen
representation of a weak signal to reduce the noise effect.
Noise Reduction
Select Noise Reduction from the Picture menu.
Select between ON and OFF to obtain the best
picture. The differences may not always be
noticeable.
1
Picture position
The picture position may be adjusted to suit personal
preference and can be particularly useful for
external inputs.
Select Feature Menu from the top menu bar,
then using Qselect Picture Position.
1
Press Rto select. Use Sor Rto adjust the
horizontal/vertical position.
The options alter depending on the widescreen
format chosen and when viewing connected
equipment.
2
Feature menu






AV connection
Picture position
Panel lock OFF
Automatic format OFF
Blue screen ON
Convergence
Automatic format (Widescreen)
When this TV receives a true Widescreen picture and
Automatic format is On, it will automatically be displayed
in Widescreen format, irrespective of the
TV’s previous setting.
Select Automatic format from the Feature
menu, then select ON or OFF.
1
Contrast 50
Brightness 50
Colour 50
Tint 0
Sharpness 0
Noise Reduction ON

If stereo or dual language broadcasts are transmitted the
word Stereo or Dual will appear on the screen each time
programme positions are changed, disappearing after a
few seconds. If the broadcast is not in stereo the word
Mono will appear.
14
Press Qto select On or Off timer. Use the
number buttons to set the required time. For
example, to switch the TV off in one and a half
hours enter 01:30.
If setting the Off timer, press EXIT to finish. If
setting the On timer, enter the programme
position number required, then press ito put
the TV into Standby. The GREEN On timer
indicator on the front of the TV will now be lit.
Any equipment connected with Scart leads must
also be put into Standby to prevent them from
being displayed when the timer switches on.
Once the On timer has been set the TV can be
switched on at any time by pressing i. The
Green On timer indicator will remain on until the
set time period as passed when the TV will go to
the chosen channel. This feature can help to
avoid missing favourite programmes.
To cancel the On timer, enter zero in each
position including the programme position.
The timer, time display, panel lock
and stereo/bilingual transmissions
The time display facility allows the current time to be seen
on the TV screen.
Press 8/9whilst watching a normal TV broadcast to
see a time display from the broadcaster. It will remain on
screen for about 5 seconds.
Stereo… Press OI/II to select Stereo or Mono.
Bilingual… Bilingual transmissions are rare. If they are
transmitted the word Dual will display. Choose the
required programme number and if the word Dual
appears press OI/II to select Dual 1, Dual 2 or Mono.
From the Feature menu select Panel lock and
choose ON or OFF using Sor R.
Timer
0 – 9 : To set
EXIT : To exit
The TV can be set to turn itself On or Off after a
certain time.
Panel lock disables the buttons on the side of the TV.
All buttons on the remote control can still be used.
The Timer Panel lock
Stereo and Bilingual transmissions
The Time Display
11
2
3
4
Select Timer from the top menu bar.
When Panel lock is ON, a reminder will appear
when any of the side panel buttons are pressed.
Once the set has been switched off it can ONLY
be brought out of standby using the remote
control.
Feature menu






AV connection
Picture position
Panel lock ON
Automatic format OFF
Blue screen ON
Convergence
Off timer 00:00
On timer 00:00 P 0


AV connection







Back
EXT2 input AV
EXT3 input S-VIDEO
EXT2 output EXT 1
Woofer INT.
Input selection and AV connections
15
Defining the INPUT and OUTPUT sockets so that the television recognises connected equipment. See page 6
for a clear view of the back connection recommendations.
Select AV connection.
Use Sor Rto change the EXT2 output option to:
MONITOR = The picture on screen.
TV = The last television programme selection.
EXT 1 = The picture from equipment connected
to Scart 1.
EXT 3 = The picture from equipment connected
to Scart 3 or the side input sockets.
This specifies the type of signal going into Scarts 2 (EXT2)
or 3 (EXT3) on the back of the TV and the sockets on the
side (also EXT3). Please refer to the manufacturers
instructions for the connected equipment.
From the Feature menu select AV connection
and with Sor Rselect either AV or S-VIDEO as
the required input for EXT2 and EXT3.
If the colour is missing try the alternative setting.
This enables selection of the source to output from
Scart 2. For example, to record transmissions in stereo
from a stereo decoder – connect a stereo decoder to
Scart 1 and stereo VCR to Scart 2, then select EXT 1 as
the EXT2 output. The signal received through Scart 1 will
output directly through Scart 2.
Most VCRs and decoders send a signal through the Scart
lead to switch the TV to the correct Input socket.
Alternatively press the external source selection button
Buntil the picture from connected equipment is shown.
This button must be used to view equipment connected
using the COMPONENT VIDEO INPUT (EXT4).
An S e.g. EXT2S, indicates the input is set for an
S-Video signal.
Press Bto select EXT1, EXT2, EXT3 or EXT4.
EXT1 displays equipment connected to Scart 1.
EXT2 displays equipment connected to Scart 2.
EXT3 displays equipment connected to Scart 3 on
the back of the TV or Input 3 on the side of
the TV.
EXT4 displays equipment connected to the
COMPONENT VIDEO INPUT.
To return to TV mode press Bagain or one of
the numbered buttons.
Use the Input Selection if the TV does not switch over
automatically.
AV connection







Back
EXT2 input AV
EXT3 input S-VIDEO
EXT2 output EXT 1
Woofer INT.
Input selection
INPUT signal selection
OUTPUT signal selection for Scart 2
1
1
1
2
2

16
Teletext – setting up,
general information, Auto and List modes
This TV has a multi-page teletext memory, which takes a few moments to load. It offers two Modes of viewing
text – AUTO will display FASTEXT, if available. LIST will display your four favourite pages.
If FASTEXT is available four coloured titles will appear at
the base of the screen.
To access one of the four given subjects, press the
relevant coloured button on the remote control.
For further information on your particular text system(s),
see the broadcast teletext index page or, consult your
local Toshiba dealer.
Arrows will appear alongside the page number, indicating
sub-pages have loaded.
To access the sub-pages press
X(B)
then use Sand Rto view them.
An indicator will show on the bottom
left of the screen.
After a short time of inactivity the indicator will disappear.
To access the sub-pages again press
X(B)
. These
sub-pages will remain available to view until another
page is chosen or, in normal TV mode, the channel is
changed.
The 6/7button:
To view teletext press 6/7. Press again to superimpose
the teletext over a normal broadcast picture and again to
return to normal viewing. Programmes cannot be
changed until teletext is cancelled.
The first text page shown will be the initial page.
In AUTO mode this displays the main subjects available
and their relevant page numbers.
In LIST mode this displays whichever page number is
currently stored on the RED button.
In either mode any teletext page can be accessed by
entering the 3 digit page number using the numbered
buttons, pressing the coloured buttons or pressing
Pf(P) to advance to the next page and P e(Q) to
go back to the previous page.
Sub-pages
If there are sub-pages they will automatically load into
memory without changing the page on screen.
Teletext


Select Mode and with Sor Rchoose AUTO or
LIST then press EXIT.

Back
Character
CHARACTER-1
Mode AUTO
Select Teletext from the Set up menu.
Highlight Character, press Rto select the
required character set.
Before using teletext choose the correct alphabet
(Character)and whether to view in LIST or AUTO mode.
CHARACTER-1 for Western European countries and Turkey
CHARACTER-2 for Eastern European countries
Characters and Modes
Navigating pages using Auto
Teletext information
1
2
3
The four coloured choices at the bottom of the screen are
numbers – 100, 200, 300 and 400, which have been
programmed into the TV’s memory. To view these pages
press the relevant coloured buttons.
To change these stored pages press the relevant coloured
button and enter the 3 digit number. This number will
change in the top left of the screen and in the coloured
highlight.
Press OK to store. The bars at the bottom of the screen
will flash white. Whenever OK is pressed all four
page numbers showing at the bottom will be stored
and the previous ones will be lost.
If OK is not pressed the selection will be forgotten when
teletext is cancelled.
Other pages may be viewed by entering the 3 digit page
number – but DO NOT press OK or these pages will be
stored.
Navigating pages using List
To alter the
volume sub-pages
must be cancelled by
pressing
X
(
B
).
☛

AUTO
Press Tto access index pages. The one displayed is
dependant on the broadcaster.
LIST
Press Tto return to the page currently stored on the
RED button.
Remember to cancel teletext
before changing channels
– press the
6
/
7
button twice.
☛
17
Teletext continued
– control buttons
Below is a guide to the functions of the remote control teletext buttons.
Enter the page number then press 8/9, a normal
picture will be displayed. The TV will indicate when the
page is present by displaying the page number at the top
of the screen. Press 6
/
7to view the page.
To display news flashes:
Select the news flash page for the chosen teletext service
(see the index page of teletext service). Press 8/9. The
news flashes will be displayed as and when they are
broadcast. Press 8/9again to cancel the display.
The news flash page must be cancelled before
changing programmes.
To display an index/initial page:
T
At times it is convenient to hold a page of text. Press
q
and
q
will appear in the top left of the screen. The
page will be held on screen until the button is pressed
again.
To hold a wanted page:
q
To discover the solutions on quiz and joke pages press the
rbutton.
To reveal concealed text:
r
Press 6
/
7to display teletext.Press again to
superimpose teletext over a normal broadcast picture.
Press again to return to normal TV viewing. Programmes
cannot be changed until you return to normal TV.
To display a page of teletext:
To select a page whilst viewing a
normal page:
8
/
9
6
/
7
Press
s
once to enlarge the top half of the page, press
again to enlarge the bottom half of the page. Press again
to revert to normal size.
To enlarge the teletext display size:
s
For use with Sand Rto view sub-pages when available.
To access sub-pages:
X

A
This is sometimes due to condensation if the room
temperature rises rapidly or the TV is moved from
a cold room to a warm room. Leave the set turned on for
a while this should improve the images.
Why are there distorted images/faded colours?
Q
18
Below are the answers to some of the most common queries.
A
Check the mains switch is on and check all
connections.
Check the TV is not in standby mode.
For quick reference
to topics, see the
INDEX at the back
of this manual.

Set up

EXIT : To exit
Language ENGLISH
Colour AUTO
Teletext

Why is there no sound or picture?
Q
A
Make sure the VCR or DVD player is connected to
the TV as shown on page 6, then select the correct
input by pressing
B
.
Why doesn’t the video/DVD being played show
on screen?
Q
A
Check the correct input has been chosen,
S-VIDEO or AV. See AV connections.
Why is the video/DVD in black and white?
Q
A
When using an external source, for instance, a
poor quality video tape, if there is little or no
colour, improvements may sometimes be achieved. The
colour is factory set to AUTO to automatically display the
best colour system.
To check that you have the best colour:
There IS a picture, but why is there little or no
colour?
Q
Select Colour from the Set up menu.
With Sor Rchoose between AUTO, PAL,
SECAM, NTSC 4. 43 or 3. 58.
1
2
A
On this television the red, green and blue images
are projected separately onto the screen. They
converge to form full colour and when they converge
correctly you will see a clear picture. It is especially
apparent when viewing cartoons.
The green is fixed and therefore not adjustable. The red
and blue are factory set and should need little or no
adjustment. However, convergence may drift over time or
if the TV is moved.
Select a TV channel and let the TV warm up for at least 30
minutes before realigning the colours…
Why are there coloured outlines in the picture?
Q
1 2 3
7 8 9
4 6
f
f
f
f
 red  blue EXIT : To exit
From the Feature menu select Convergence.
To adjust the colours, press the RED or BLUE button
to select RED or BLUE and then Sor Rand Por
Qto adjust until the white cross has no 'shadow'.
Press EXIT to go back to the TV screen and check
the picture. If more adjustment is needed, simply
repeat steps 1 and 2.
If the edges of the screen are not correct, select the
numbers in turn e.g. number 1 selects the top left
hand corner of the screen, and repeat step 2.
Press EXIT to finish.
1
2
3
Feature menu






AV connection
Picture position
Panel lock OFF
Automatic format OFF
Blue screen ON
Convergence

?
For television
operation queries,
please ring the
helpline…
Remember…
For UKonly
Questions and Answers

OK : To store EXIT : To exit
MENU : To return
Manual fine tuning
00 I032 + 2 BBC1
Manual tuning


Select the Manual tuning menu. Highlight the
station and press OK, then press R to select
Manual fine tuning .
Using Por Qadjust to get the best picture and
sound. Press OK and then EXIT.
1
2
A
Interference or a weak signal. Try a different TV
station. Manual fine tuning may help.
What else can cause a poor picture?
Q
19
Questions and Answers continued
Cleaning the screen and cabinet…
Turn off the power, clean the screen and cabinet with a
soft, dry cloth. We recommend that you do not use any
proprietary polishes or solvents on the screen or cabinet as
this may cause damage.
Disposal…
When the set reaches the end of its useful life please
dispose of it in accordance with Local Government
Regulations or at a recycling centre.


Language ENGLISH
Colour AUTO
Teletext
Set up
EXIT : To exit
A
Good performance of text depends on a good
strong broadcast signal. This normally requires a
roof or loft aerial. If the Text is unreadable or garbled,
check the aerial. Go to the main index page of the teletext
service and look for the User Guide. This will explain the
basic operation of teletext in some detail. If further
information is needed on how to use text see the teletext
section.
Why are there problems with teletext?
Q
A
There are none broadcast or they have not yet
loaded. Press the
X(B)
buttton to access.
(See teletext section).
Why are there no teletext sub-pages?
Q
A
Connect the source via a Scart lead and play.
Select the Set up menu.
Why are the colours wrong when an NTSC
source is played?
Q
Set the Colour to AUTO and exit.
Go to the Picture menu and adjust the tint.
1
2
A
Check the volume has not been turned down or
that sound mute has not been selected.
Why is there a picture but no sound?
Q
A
Check the side switch on the remote control is in
TV mode.
Check the batteries aren’t dead or inserted incorrectly.
Why doesn’t the remote control work?
Q
A
Check that Panel lock is not ON.
Why don’t the controls on the side of the TV
work?
Q
A
Remove it by pressing CALL.
Why is there a message permanently on the
screen?
Q
A
Blue screen in the Feature menu is ON. When
no signal is being received, the TV will turn off the
sound and switch the TV screen to blue. After 15 minutes
the TV will switch to Standby mode.
Why has the screen turned blue?
Q
A
Check the Scart lead connection.
Why is there a good video picture but no sound?
Q

Specifications and accessories
Broadcast systems/channels
PAL-I UHF UK21-UK69
PAL-B/G UHF E21-E69
VHF E2-E12, S1-S41
SECAM-L UHF F21-F69
VHF F1-F10, B-Q
SECAM-D/K UHF R21-R69
VHF R1-R12
Video Input PAL, SECAM, NTSC 3.58/4.43
External connections
EXT1 Input 21-pin Scart RGB, A/V
EXT2 Input/Output 21-pin Scart A/V, S-video,
Selectable output
EXT3 Input (back) 21-pin Scart A/V, S-video
Input (side) 4-pin S-video
Phono jack Video
Phono jacks Audio L + R
EXT4 Input Phono jacks Y, PB/CB, PR/CR
Phono jacks Audio L + R
Fixed Output Phono jacks Audio L + R
Output to Active Super Woofer Phono socket
Automatic format (Widescreen) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Auto tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
AV connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bass boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Bilingual broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Blue screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Broadcast system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Colour system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connections – side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connections – back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Convergence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Direct entry of channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Headphone socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Input selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Manual fine tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mono . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
Noise Reduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Panel lock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Picture position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Picture preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programme selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programme skip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Programme sorting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Scart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Sharpness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Sound mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Stereo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Super woofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switch on TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Time display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Tint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tuning a programme position for your VCR . . . . . . . . . . . . . . . . . . . . .
9
Tuning – Auto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tuning – Manual
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Volume
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Widescreen viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Subject Page Subject Page
Programme Positions 100
Stereo Nicam
2 carrier system
Visible Screen Size (approx.) 106cm
Display 16:9
Sound output (at 10% distortion) Main 10W + 10W
Power consumption 125W
as specified in EN60107-1 : 1997
Standby <1.5W
Dimensions 116cm (H) 100cm (W) 42cm (D)
(approx.)
Weight (approx.) 51kg
Headphone socket 3.5mm stereo
Accessories Remote control
2 batteries
(UM-4, AAA, IEC R03 1.5V)
Toshiba Information Systems (U.K.) Limited
Consumer Products Division,
European Service Centre,
Admiralty Way, Camberley,
Surrey, GU15 3DT, UK
Specification is subject to change without notice.
Originated by Kensa Creative Solutions, Saltash, Cornwall.
© Toshiba Information Systems (U.K.) Limited
All rights reserved.
Reproduction in whole or part without written permission is strictly prohibited.
Printed on recycled paper. 100% Chlorine free.
42PW33
2356 6141A
