SERVICE MANUAL
VIDEO CASSETTE RECORDER
FILE NO. 140-200012
W501

SERVICING NOTICES ON CHECKING
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
PERFORM A SAFETY CHECK AFTER
SERVICING
4.
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
2. USE THE DESIGNATED PARTS
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
1. KEEP THE NOTICES 3. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOW TO ORDER PARTS

GENERAL SPECIFICATIONS
G-1. Outline of the Product
2 -Speed 1/2"VideoCassetteRecorder
G-2. VCR Format
VHS Standard NTSC PAL SECAM PAL-M PAL-N
VHS Hi-Fi Audio System
G-3. Video Recording System : Rotary,slant azimuth two head helical scan system
Luminance Component : FM recording
Chrominance Component: Low frequency converted direct recording
G-4. Broadcasting System
US System M
G-5. Color System NTSC PAL SECAM or Monochrome
G-6. NTSC Playback(PAL60Hz) Yes No
G-7. MESECAM Yes No
G-8. Cassette Tape
VHS type video cassette tape Width 12.65mm (1/2 Inch)
VHS-C type video cassette tape Width 12.65mm (1/2 Inch)
G-9. Tape Speed
NTSC or PAL-M PAL or SECAM
SP 33.35 mm/sec SP 23.39 mm/sec
LP 16.67 mm/sec LP 11.69 mm/sec
SLP 11.12 mm/sec
G-10. Recording/Playback Time
NTSC or PAL-M
at SP Mode Max. 210 min. (with T-210 cassette)
at LP Mode Max. 420 min. (with T-210 cassette)
at SLP Mode Max. 630 min. (with T-210 cassette)
PAL or SECAM
at SP Mode Max. 300 min. (with E-300 cassette)
at LP Mode Max. 600 min. (with E-300 cassette)
G-11.Deck OVD-5 OVD-6 OVD-6S OVD-6S(Vertical)
G-12.Rewind/Fast Forward Time(Approx.)
FF:1' 48" / Rew:1' 48" (with T-120 cassette)
(with E-180 cassette)
G-13.Search Speed
SP 3 and 5 Times
LP Times
SLP 9 and 15 Times
G-14.Slow Speed
SP 1/10 Times
LP Times
SLP 1/10 Times
G-15.Frame Advance
SP 1/10 Times
LP Times
SLP 1/10 Times
G-16.Antenna Input Impedance
VHF/UHF 75 ohm unbalanced

GENERAL SPECIFICATIONS
G-17.Tuner and Receiving Channel
Tuner: Contactless Electric Tuner
Oscar(W/O HYPER) Oscar(W/ HYPER) France CATV Others
Channel coverage
2 ~ 69 , 4A , A-5 ~ A-1 , A ~ I , J ~ W , W+1 ~ W+84
Tuning System
Frequency syn. Voltage syn. Others
G-18.Preset Channel
No -- channels
Allocation ch ~ ch
ch ~ ch
ch ~ ch
G-19.Intermediate Frequency
Picture(FP) 45.75 MHz MHz MHz
Sound (FS) 41.25 MHz MHz MHz
FP-FS 4.50 MHz MHz MHz
G-20.RF Converter Output
Channel 3or4 ch. ~
Level/Impedance 66 dBµ/ 75 ohm
Sound Selector Yes( G I K) No
G-21.Stereo/Dual TV Sound
Yes( NICAM GERMAN USA JAPAN) No
G-22.Video Signal
InputLevel 1 Vp-p/ 75 ohm
OutputLevel 1 Vp-p/ 75 ohm
S/NRatio 50 dB (Weighted)
HorizontalResolutionatSPMode 230 Lines
G-23.Audio Signal
Input Level Microphone -- dB / -- Kohm
Line -- dB/ -- Kohm
RCA -8 dB/ 50 Kohm
Output Level Line -- dB / -- Kohm
RCA -8 dB/ 1 Kohm(0dB=0.775 Vrms)
S/NRatioatSPMode 42 dB(Weighted)
Harmonic Distortion : 1.5 % (1KHz)
Frequency Response : at SP Mode 100 Hz ~ 10 KHz
at LP Mode Hz ~ KHz
at SLP Mode 100 Hz ~ 4 KHz
Hi-Fi Audio Signal NONE
Depth Multiplex Recording Rotary, Slant Azimuth Two Head
System Helical Scan System
Frequency Response : 20 Hz ~ 20 KHz(+-6dB)
Dynamic Range : More than 90 dB
Wow And Flutter : Less than 0.01 % Wrms
Channel Separation : More than 60 dB
Harmonic Distortion : Less than 1 %
G-24.Heads Video 4 Rotary Heads Track Width
(SP : 1ch 49 µm, 2ch 58 µm, SLP : 1ch 21 µm, 2ch 21 µm)
FM Audio 2 Rotary Heads Track Width(SP/SLP : 1ch 27 µm, 2ch 27 µm)
Audio / Control 1 StationaryHead( Mono Stereo(L,R) )
Erase 1 FullTrackErase
G-25.Motor: 3 Motors
Tape/Cassette Loading
Cylinder (Direct Drive)
Capstan (Direct Drive)

GENERAL SPECIFICATIONS
G-26.Power Source
120 V AC 50Hz AC 60Hz
G-27.Power Consumption: 12 W at AC 120 V 60 Hz(Approx.)
Stand by: 2.5 W at AC 120 V 60 Hz(Approx.)
Per Year: -- kWh / Year
G-28.Dimensions(Approx.)
360 mm(W) 232.5 mm(D) 95 mm(H)
G-29.Weight(Approx.) Net : 3.2 Kg ( 7.1 lbs)
Gross : 3.8 Kg ( 8.4 lbs)
G-30.Cabinet Material
Cabinet Front: PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
Flap:
PS 94HB DECABROM
ABS 94V2 NON-DECA
94V0
G-31.Cassette Loading System: Front Cassette Loading System
G-32.Tape Counter: Linear Time Tape Counter
G-33.Protector: Power Fuse Dew Sensor
G-34.Regulation
Safety
UL CSA SAA SI CE SEV
NEMKO FEMKO DEMKO IEC65 CNS SISIR
SEMKO NZ HOMOLO SABS GOST
NOM AS3159 DENTORI UNE NONE
Radiation
FCC DOC PTT CE SEV
SABA SI NZ HOMOLO UNE
CNS CISPR13 DENTORI AS/NZS NONE
G-35.Temperature
Operation 5 ºC ~ 40 ºC
Storage -20 ºC ~ 60 ºC
G-36.Operating Humidity : Less than 80 %RH
G-37.Clock and Timer
Calendar : 1990/1/1 ~ 2081/12/31 (Initial 2000/1/1 2005/1/1)
Built-in 1 Month 8 Events Programmable Timer
One Touch Recording : Max Time 5 Hours
G-38.Timer back up Time
More than 1/12 Minutes (at Power Off Mode)

GENERAL SPECIFICATIONS
G-39.TerminalsVHF/UHF Antenna Input/Output Din Type F-Type France Type
Front Video Input<RCA ø8.3>
Front Audio Input<RCAø8.3> x2
Rear Video Input<RCA ø8.3>
Rear Audio Input<RCA ø8.3>
Rear Video Output<RCA ø8.3>
Rear Audio Output<RCA ø8.3> x2
21 Pin
G-40.Indicator Power Play ATR Repeat Tape In
( ) ( ) ( ) ( ) ( )
TV/VCR REC T-REC One Touch Playback (Green,Button Light)
( ) ( ) ( )
NONE
G-41.Display
Fluorescent Indicator Yes No
Clock/Counter,Channel,Timer Rec,OTR,Play,Rec,FF(Cue),Rew(Rev),
Still,Pause,ATR,Eject,Stop
WKL,Y.M.D,Start,End AFT Repeat
VCR Memory Index VPS PDC
SP LP SLP AM PM
On Screen Display
Menu Timer Rec Set
Ch Set Up TV/CATV
Auto Ch Memory
Add/Delete
Guide Ch Set
VCR Set Up Sap On/Off
Auto Repeat On/Off
System Set Up Clock Set( Calendar 12H 24H)
Language
Auto Clock On/Off
Standard Time
Daylight Saving Time
No Noise Back Ground On/Off
G-CODE(or SHOWVIEW or PLUSCODE)No. Entry
Stereo,Audio Output,SAP Stereo,Audio Output
Play/Stop/FF/Rew/Rec/OTR/Pause/T-Rec (Symbol Mark)
CH/AV Clock/Date Memory Zero Return
Tape Counter Index ATR/Manual Tracking
Hi-Fi Dirty Head END Search Tape Speed
G-42.OSD Language
Eng Ger Fre Spa Ita Por Jan
OSD Language Setting
Eng Ger Fre Spa Ita Por Jan
Not Applicable

GENERAL SPECIFICATIONS
G-43.Carton
Master Carton: Need No Need
Content: ---- Set
Material: ---- / ---- Corrugated Carton
Dimensions: ---- mm(W) ---- mm(D) ---- mm(H)
Description of Origin Yes No
Gift Box Need No Need
Material Single/Brown Corrugated Carton ( with Photo Label)
Single/White Corrugated Carton ( with Photo Label)
Single Full Color Carton W/Photo
Dimensions: 430 mm(W) 310 mm(D) 165 mm(H)
Design: As Per BUYER 's
Description of Origin: Yes No
Drop Test Natural Dropping At 1 Corner / 3 Edges / 6 Surfaces
Height 25cm 31cm 46cm 62cm 80cm 100cm
Container Stuffing: 2,828 Sets / 40' container
G-44.Accessories
Owner's Manual ( W/Guarantee Card) [English]
Remote Control Unit( Multi BRAND) Dew Caution Sheet
Battery (UM- 4 x 2 )
Safety Tip Toll Free Insert Sheet
Guarantee Card Audio-Video Cord (RCA)
Warning Sheet Quick Set-Up Sheet
Information Sheet U/V Mixer
75 ohm Coaxial Cable ( Single Shield Double Shield)
300 ohm to 75 ohm VHF Antenna Adaptor Registration Card
Service Facility List
G-45.Other Features
Auto Head Cleaning Index Search
Auto Tracking Auto Clock
VIDEO PLUS+, SHOWVIEW, G-CODE
HQ (VHS Standard High Quality)
Auto Power On, Auto Play, Auto Rewind, Auto Eject,Auto Power Off
Forward / Reverse Picture Search SQPB
One Touch Playback SAP
CATV Multi BRAND Remote Unit
Auto CH Memory
Just Clock Function Dirty Head Warning
Kurupika Guide CM Skip(30 sec. x 6 times )
END Search Energy Star
G-46.Switch
Front Power Channel Up Channel Down
Play F.FWD/Cue Rew/Rev
Pause/Still Eject/Stop Rec/OTR
System Select Input Select Output Select
One Touch Playback
Rear RF-Converter Output Channel Selector( 1 or 2CH 3 or 4CH)
TV/CATV Selector
SIF Selector

GENERAL SPECIFICATIONS
G-47.Remote Control
Unit :RC-DP
Glow in Dark Remocon Yes No
Power Source: D.C 3 V Battery UM - 4 x 2
Control Key :Total 43 Key
0 Ch Up Power
1 Ch Down Eject
2 Input Select Play
3 Audio Select Stop
4 TV/VCR F.FWD
5 Pause/Still Rew
6 Slow Timer Rec
7 Speed REC/OTR
8 Counter Reset Auto Tracking
9 Clock/Counter Tracking Up
Menu Zero Return Tracking Down
Set Up Call
Set Down
Enter
Cancel
Cable/SAT
CTV Volume Up
VCR Volume Down

DISASSEMBLY INSTRUCTIONS
1. REMOVAL OF MECHANICAL PARTS
AND P.C. BOARDS
1-1: TOP CABINET, FRONT CABINET AND
OPERATION PCB (Refer to Fig. 1-1)
1.
2.
3.
4.
5.
6.
Remove the 4 screws 1.
Remove the Top Cabinet in the direction of arrow (A).
Disconnect the following connector: (CP651).
Unlock the 7 supports 2.
Remove the Front Cabinet in the direction of arrow (B).
Remove the 4 screws 3and remove the Operation PCB.
1-3: DECK CHASSIS (Refer to Fig. 1-3)
Remove the 3 screws 1.
Remove the screw 2.
Disconnect the following connectors: (CP1001, CP1002,
CP1003, CP4001, CP4002 and CP4003).
Remove the Deck Chassis in the direction of arrow.
1.
2.
3.
4.
Bottom Plate
Deck Chassis
1-4: SYSCON PCB AND JACK PLATE (Refer to Fig. 1-4)
Remove the screw 1.
Remove the Syscon PCB in the direction of arrow (A).
Unlock the 2 supports 2.
Remove the Jack Plate in the direction of arrow (B).
1.
2.
3.
4.
Fig. 1-3
1
2
1
1
Fig. 1-4
Syscon PCB
(A)
Jack Plate
(B)
Bottom Plate
1
2
2
1-2: FLAP (Refer to Fig. 1-2)
1.
2.
Open Flap to 90˚ and flex in direction of arrow (A), at
the same time slide in direction of arrow (B).
Then lift in direction of arrow (C).
(A)
(C)
(B)
Flap
Fig. 1-2
1
1
1
1
(A)
Top Cabinet
Fig. 1-1
(B)
2
2
2
233
3
3
2
2
2Operation PCB
Front Cabinet

DISASSEMBLY INSTRUCTIONS

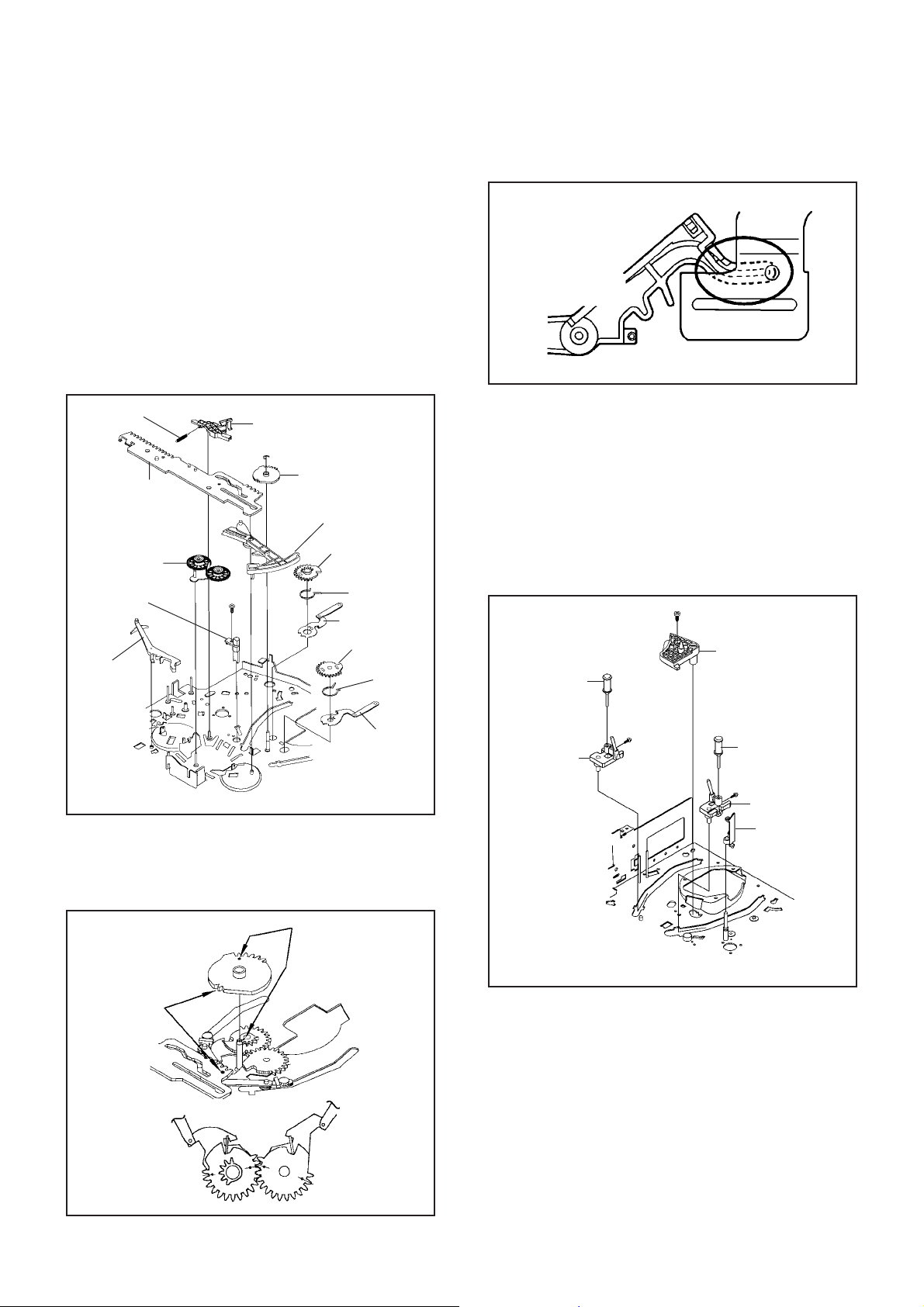

2. REMOVAL OF DECK PARTS
2-1: TOP BRACKET (Refer to Fig. 2-1)
Remove the 2 screws 1.
Slide the 2 supports 2and remove the Top Bracket.
1.
2.
NOTE
When you install the Top Bracket, install the screw (1)
first, then install the screw (2).
1
(2)
Top Bracket Top Bracket
Main Chassis
Main Chassis
2
1
(1)
2
Fig. 2-1
NOTE
When you install the Tape Guide L, install as shown in the
circle of Fig. 2-3-B. (Refer to Fig. 2-3-B)
REC Lever
Tape Guide L
• The REC Lever is not installed on the Video Cassette Player. Fig. 2-3-B
2-4: CASSETTE HOLDER ASS'Y (Refer to Fig. 2-4)
Move the Cassette Holder Ass'y to the front side.
Push the Locker R to remove the Cassette Side R.
Remove the Cassette Side L.
1.
2.
3.
Main Chassis
Main Chassis
Cassette Side L
Cassette Side R Locker R
Fig. 2-4
2-5: CASSETTE SIDE L/R (Refer to Fig. 2-5)
Unlock the 4 supports 1and then remove the Cassette
Side L/R.
1.
• Screw Torque: 5 ±0.5kgf•cm
NOTE
When you install the Cassette Side R, be sure to move the
Locker R after installing.
Cassette Side L
Cassette Side R
1
1
1
Locker R 1
Fig. 2-5
2-2: FLAP LEVER/TAPE GUIDE R (Refer to Fig. 2-2)
Move the Cassette Holder Ass'y to the back side.
Remove the Polyslider Washer 1.
Remove the Flap Lever.
Unlock the 3 supports 2and remove the Tape Guide R.
1.
2.
3.
4.
Fig. 2-2
1
2
2
2
Tape Guide R
Flap Lever
Main Chassis
2-3: TAPE GUIDE L (Refer to Fig. 2-3-A)
Move the Cassette Holder Ass'y to the back side.
Unlock the 2 supports 1and remove the Tape Guide L.
Remove the REC Lever. (Recorder only)
1.
2.
3.
1
Main Chassis
Tape Guide L
REC Lever
Fig. 2-3-A
• The REC Lever is not installed on the Video Cassette Player.
1

DISASSEMBLY INSTRUCTIONS
2-6: LINK ASS'Y (Refer to Fig. 2-6)
Set the Link Ass'y to the Eject position.
Remove the (A) side of the Link Ass'y first, then remove
the (B) side.
1.
2.
Main Chassis
(A)
Main Chassis
Link Ass'y
Fig. 2-6
2-7: LOADING MOTOR ASS'Y (Refer to Fig. 2-7)
Remove the Link Lever.
Remove the Dumper Spring.
Remove the 2 screws 1.
Unlock the support 2and remove the Loading Motor
Ass'y.
Unlock the 2 supports 3and remove the Deck PCB
(BOT).
1.
2.
3.
4.
5.
1
2
1
Loading Motor Ass'y
Link Lever
Main Chassis
• Screw Torque: 5 ±0.5kgf•cm Fig. 2-7
Deck PCB
(BOT)
Link Ass'y
(B)
Dumper Spring
3
2-8: TENSION ASS'Y (Refer to Fig. 2-8-A)
Move the Inclined S Ass'y to the back side.
Remove the Tension Spring.
Unlock the support 1and remove the Tension Arm
Ass'y.
Remove the Tension Adjust.
Unlock the 2 supports 2and remove the Tension Band
Ass'y.
Unlock the support 3and remove the Tension Holder.
Remove the SS Brake Spring.
Remove the SS Arm Brake.
1.
2.
3.
4.
5.
6.
7.
8.
3
1
2
2
Tension Adjust
Tension Band Ass'y
Tension Spring Tension Arm Ass'y
Tension Holder
Inclined S Ass'y
Fig. 2-8-A
SS Brake Spring
SS Arm Brake
NOTE
When you install the Tension Adjust, install as shown in
Fig. 2-8-B. (Refer to Fig. 2-8-B)
Fig. 2-8-B
2-9: T BRAKE ASS'Y (Refer to Fig. 2-9)
Remove the T Brake Spring.
Remove the T Brake Ass'y.
1.
2.
Adjust the direction of the Marker to inside.
T Brake Spring
Fig. 2-9
T Brake Ass'y

DISASSEMBLY INSTRUCTIONS
2-10: S REEL/T REEL (Refer to Fig. 2-10)
Remove the S Reel and T Reel.
Remove the 2 Polyslider Washers 1.
1.
2.
NOTE
Do not touch the Pinch Roller. (Use gloves.)
When you install the Pinch Roller Block, install as shown
in the circle of Fig. 2-11-B. (Refer to Fig. 2-11-B)
1.
2.
NOTE
Take care not to damage the gears of the S Reel and T
Reel.
The Polyslider Washer may be remained on the back of
the reel.
Take care not to damage the shaft.
Do not touch the section "A" of S Reel and T Reel. (Use
gloves.) (Refer to Fig. 2-10) Do not adhere the stains
on it.
When you install the reel, clean the shaft and oil it. (If
you do not oil, noise may be heard in FF/REW mode.)
After installing the reel, adjust the height of the reel.
(Refer to MECHANICAL ADJUSTMENT)
1.
2.
3.
4.
5.
6.
Fig. 2-11-B
2-12: A/C HEAD (Refer to Fig. 2-12-A)
Remove the screw 1.
Remove the A/C Head Base.
Remove the 3 screws 2.
Remove the A/C Head and A/C Head Spring.
1.
2.
3.
4.
NOTE
Do not touch the A/C Head. (Use gloves.)
When you install the A/C Head Spring, install as shown
in Fig. 2-12-B. (Refer to Fig. 2-12-B)
When you install the A/C Head, tighten the screw (1)
first, then tighten the screw (2), finally tighten the screw
(3).
1.
2.
3.
A/C Head
2
2
A/C Head Spring
1
(3)
(1)
2
(2)
A/C Head Base
Spring Position Fig. 2-12-B
2-13: FE HEAD (RECORDER ONLY) (Refer to Fig. 2-13)
Remove the screw 1.
Remove the FE Head.
1.
2.
FE Head
• The FE Head is not installed on the Video Cassette Player.
• Screw Torque: 4 ±0.5kgf•cm
Fig. 2-12-A
• Screw Torque: 4 ±0.5kgf•cm (Screw 1)
Fig. 2-13
1
S Reel
1
(A)
T Reel
(A)
1
Fig. 2-10
2-11: PINCH ROLLER BLOCK/P5-3 ARM ASS'Y
(Refer to Fig. 2-11-A)
Remove the P5 Spring.
Remove the screw 1.
Unlock the 2 supports 2and remove the Cassette
Opener.
Remove the Pinch Roller Block, Pinch Roller Arm
Spring, Pinch Roller Lever Ass'y and P5-3 Arm Ass'y.
1.
2.
3.
4.
1
2
2
P5 Spring
Cassette Opener
P5-3 Arm Ass'y
Pinch Roller Block
Pinch Roller Lever Ass'y
Main Chassis
Fig. 2-11-A
Pinch Roller Arm Spring
• Screw Torque: 5 ±0.5kgf•cm

DISASSEMBLY INSTRUCTIONS
1
2
Middle Gear
Main Cam
Pinch Roller Cam
Joint Gear
P5 Cam
Fig. 2-16-A
NOTE
When you install the Pinch Roller Cam, P5 Cam and Main
Cam, align each marker. (Refer to Fig. 2-16-B)
Pinch Roller Cam
P5 Cam
Main Cam
Marker
Check the hole of Main
Chassis can be seen.
Fig. 2-16-B
2-17: CLUTCH ASS'Y (Refer to Fig. 2-17)
Remove the Polyslider Washer 1.
Remove the Clutch Ass'y, Ring Spring and Coupling
Gear.
Unlock the 2 supports 2and remove the Clutch Lever.
1.
2.
3.
2-15: CAPSTAN DD UNIT (Refer to Fig. 2-15)
Remove the Capstan Belt.
Remove the 3 screws 1.
Remove the Capstan DD Unit.
1.
2.
3.
• Screw Torque: 5 ±0.5kgf•cm Fig. 2-15
2-16: MIDDLE GEAR/MAIN CAM (Refer to Fig. 2-16-A)
Remove the Polyslider Washer 1, then remove the
Middle Gear.
Remove the E-Ring, then remove the Main Cam, P5
Cam and Pinch Roller Cam.
Remove the Polyslider Washer 2, then remove the
Joint Gear.
1.
2.
3.
Capstan DD Unit
Capstan Belt
11
1
Fig. 2-17
1
Clutch Ass'y
Ring Spring
Coupling Gear
Clutch Lever
2
2

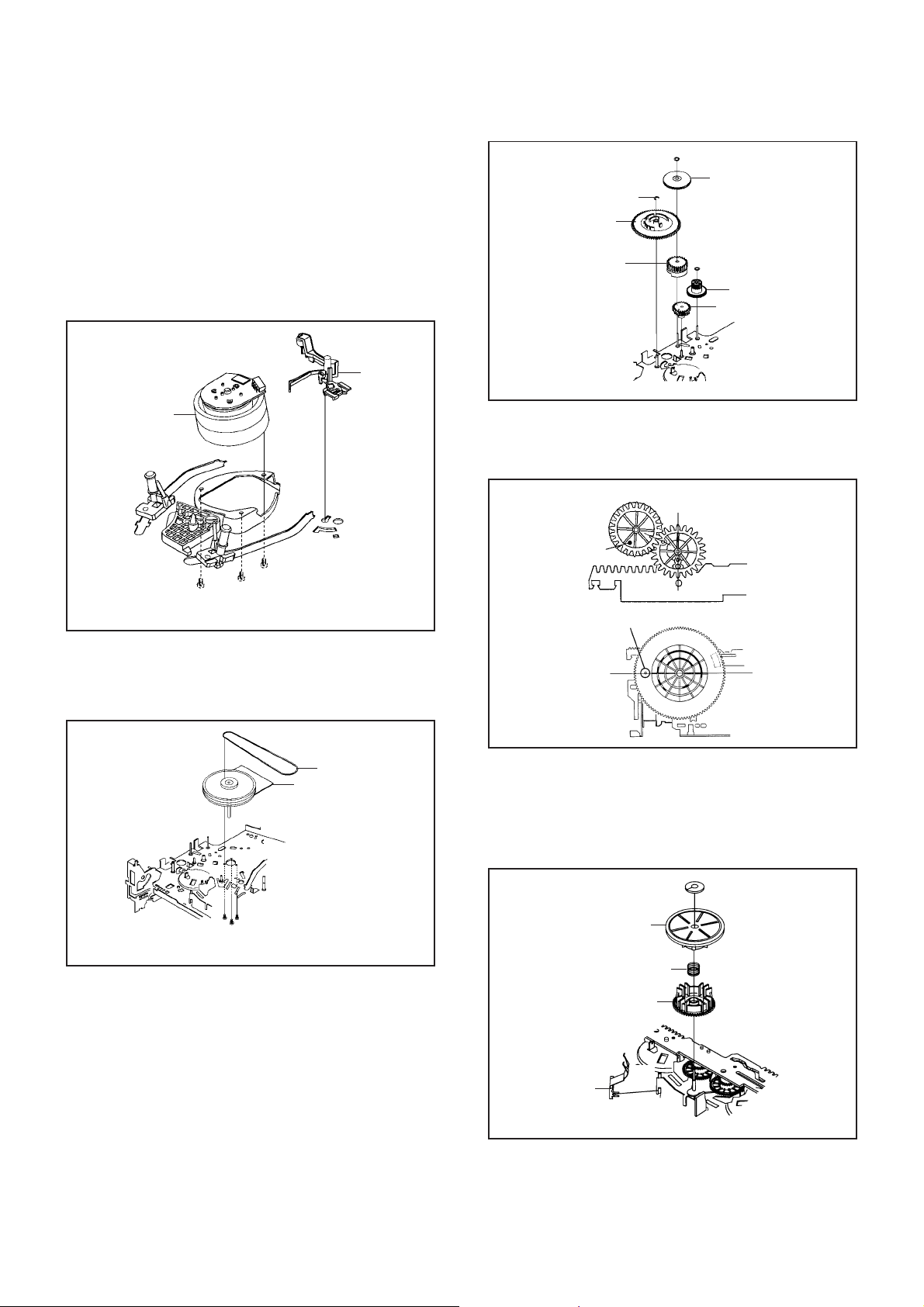

2-14: AHC ASS'Y/CYLINDER UNIT ASS'Y
(Refer to Fig. 2-14)
Unlock the support 1and remove the AHC Ass'y.
Remove the 3 screws 2.
Remove the Cylinder Unit Ass'y.
1.
2.
3.
When you install the Cylinder Unit Ass'y, tighten the
screws from (1) to (3) in order while pulling the Ass'y
toward the left front direction.
NOTE
1
AHC Ass'y
Cylinder Unit Ass'y
2
2
2
• Screw Torque: 3 ±0.5kgf•cm Fig. 2-14
(1)
(3)
(2)
E-Ring

DISASSEMBLY INSTRUCTIONS
2-18: LOADING GEAR S/T ASS'Y (Refer to Fig. 2-18-A)
1.
2.
3.
4.
5.
6.
7.
8.
9.
1
2
Capstan Brake Spring Capstan Brake Ass'y
Main Rod Main Loading Gear
Tension Lever
Loading Gear T
Loading Gear
Spring
Loading Arm T Ass'y
Loading Gear S
Loading Gear
Spring
Loading Arm S Ass'y
LED Reflecter
Idler Arm Ass'y
Clutch Actuator
Remove the E-Ring 1and remove the Main Loading
Gear.
Remove the Capstan Brake Spring.
Slide the Main Rod and remove the Capstan Brake
Ass'y.
Remove the Main Rod, Tension Lever, Clutch Actuator,
Idler Arm Ass'y.
Remove the screw 2.
Remove the LED Reflecter.
Remove the Loading Arm S Ass'y and Loading Arm T
Ass'y.
Remove the Loading Gear S and Loading Gear T.
Remove the Loading Gear Spring.
2. When you install the Clutch Actuator, install as shown in
the circle of Fig. 2-18-C. (Refer to Fig. 2-18-C)
Fig. 2-18-C
Clutch Actuator
NOTE
Do not touch the roller of Guide Roller.
Fig. 2-19
Loading Gear Holder
Inclined T
P4 Cover
Guide Roller
Inclined S
1
2
3
4
4
Guide Roller
2-19: INCLINED S/T ASS'Y (Refer to Fig. 2-19)
Unlock the support 1and remove the P4 Cover.
Remove the screw 2.
Unlock the support 3and remove the Loading Gear
Holder.
Remove the Inclined S.
Remove the Inclined T.
Remove the 2 screws 4, then remove the Guide Roller.
1.
2.
3.
4.
5.
6.
• Screw Torque: 5 ±0.5kgf•cm Fig. 2-18-A
NOTES
Loading Arm T Ass'y
Main Loading Gear
Marker
Marker
Loading Arm S Ass'y
1. When you install the Loading Arm S Ass'y, Loading Arm
T Ass'y and Main Loading Gear, align each marker.
(Refer to Fig. 2-18-B)
Fig. 2-18-B
• Screw Torque: 5 ±0.2kgf•cm (Screw 2)
• Screw Torque: 0.7 ±0.2kgf•cm (Screw 4)

KEY TO ABBREVIATIONS
A
B
C
D
E
F
G
H
A/C
ACC
AE
AFC
AFT
AFT DET
AGC
AMP
ANT
A.PB
APC
ASS'Y
AT
AUTO
A/V
BGP
BOT
BPF
BRAKE SOL
BUFF
B/W
C
CASE
CAP
CARR
CH
CLK
CLOCK (SY-SE)
COMB
CONV
CPM
CTL
CYL
CYL-M
CYL SENS
DATA (SY-CE)
dB
DC
DD Unit
DEMOD
DET
DEV
E
EF
EMPH
ENC
ENV
EOT
EQ
EXT
F
FBC
FE
FF
FG
FL SW
FM
FSC
FWD
GEN
GND
H.P.F
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Audio/Control
Automatic Color Control
Audio Erase
Automatic Frequency Control
Automatic Fine Tuning
Automatic Fine Tuning Detect
Automatic Gain Control
Amplifier
Antenna
Audio Playback
Automatic Phase Control
Assembly
All Time
Automatic
Audio/Video
Burst Gate Pulse
Beginning of Tape
Bandpass Filter
Brake Solenoid
Buffer
Black and White
Capacitance, Collector
Cassette
Capstan
Carrier
Channel
Clock
Clock (Syscon to Servo)
Combination, Comb Filter
Converter
Capstan Motor
Control
Cylinder
Cylinder-Motor
Cylinder-Sensor
Data (Syscon to Servo)
Decibel
Direct Current
Direct Drive Motor Unit
Demodulator
Detector
Deviation
Emitter
Emitter Follower
Emphasis
Encoder
Envelope
End of Tape
Equalizer
External
Fuse
Feed Back Clamp
Full Erase
Fast Forward, Flipflop
Frequency Generator
Front Loading Switch
Frequency Modulation
Frequency Sub Carrier
Forward
Generator
Ground
High Pass Filter
I
K
L
M
N
O
P
R
S
H.SW
Hz
IC
IF
IND
INV
KIL
L
LED
LIMIT AMP
LM, LDM
LP
L.P.F
LUMI.
M
MAX
MINI
MIX
MM
MOD
MPX
MS SW
NC
NR
OSC
OPE
PB
PB CTL
PB-C
PB-Y
PCB
P. CON
PD
PG
P-P
R
REC
REC-C
REC-Y
REEL BRK
REEL S
REF
REG
REW
REV, RVS
RF
RMC
RY
S. CLK
S. COM
S. DATA
SEG
SEL
SENS
SER
SI
SIF
SO
SOL
SP
STB
SW
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Head Switch
Hertz
Integrated Circuit
Intermediate Frequency
Indicator
Inverter
Killer
Left
Light Emitting Diode
Limiter Amplifier
Loading Motor
Long Play
Low Pass Filter
Luminance
Motor
Maximum
Minimum
Mixer, mixing
Monostable Multivibrator
Modulator, Modulation
Multiplexer, Multiplex
Mecha State Switch
Non Connection
Noise Reduction
Oscillator
Operation
Playback
Playback Control
Playback-Chrominance
Playback-Luminance
Printed Circuit Board
Power Control
Phase Detector
Pulse Generator
Peak-to Peak
Right
Recording
Recording-Chrominance
Recording-Luminance
Reel Brake
Reel Sensor
Reference
Regulated, Regulator
Rewind
Reverse
Radio Frequency
Remote Control
Relay
Serial Clock
Sensor Common
Serial Data
Segment
Select, Selector
Sensor
Search Mode
Serial Input
Sound Intermediate Frequency
Serial Output
Solenoid
Standard Play
Serial Strobe
Switch

KEY TO ABBREVIATIONS
S
T
U
V
X
Y
SYNC
SYNC SEP
TR
TRAC
TRICK PB
TP
UNREG
V
VCO
VIF
VP
V.PB
VR
V.REC
VSF
VSR
VSS
V-SYNC
VT
X'TAL
Y/C
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
Synchronization
Sync Separator, Separation
Transistor
Tracking
Trick Playback
Test Point
Unregulated
Volt
Voltage Controlled Oscillator
Video Intermediate Frequency
Vertical Pulse, Voltage Display
Video Playback
Variable Resistor
Video Recording
Visual Search Fast Forward
Visual Search Rewind
Voltage Super Source
Vertical-Synchronization
Voltage Tuning
Crystal
Luminance/Chrominance

SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
Method Operations
Press both PLAY button and
CH UP button on the set for
more than 2 seconds.
Initialization of the factory.
NOTE: Do not use this for the normal servicing.
PLAY/REC total hours are displayed on the FIP.
Refer to the "PREVENTIVE CHECKS AND SERVICE INTERVALS"
(CONFIRMATION OF USING HOURS).
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "NOTE FOR THE REPLACING OF MEMORY IC".
Adjusting of the Tracking to the center position.
Refer to the "MECHANICAL ADJUSTMENT" (GUIDE ROLLER) and "ELECTRICAL
ADJUSTMENT" (PG SHIFTER).
Press the ATR button on the
remote control for more than
2 seconds during PLAY.
While pressing the CH UP
button on the set, press the
STOP button on the set for
more than 2 seconds during
PLAY.
Make the short circuit between
the test point of SERVICE and
the GND.
The EOT/BOT/Reel sensor do not work at this moment.
Refer to the "PREPARATION FOR SERVICING"
Adjust the PG SHIFTER automatically.
Refer to the "ELECTRICAL ADJUSTMENT" (PG SHIFTER).
While pressing the CH UP
key on the set, press the
FF key on the set for more
than 2 seconds.

PREVENTIVE CHECKS AND SERVICE INTERVALS
The following standard table depends on environmental conditions and usage. Unless maintenance is properly
carried out, the following service intervals may be quite shortened as harmful effects may be had on other parts.
Also, long term storage or misuse may cause transformation and aging of rubber parts.
Parts Name
Audio Control Head
Notes
Time 500
hours 1,000 hours 1,500 hours 2,000 hours 3,000 hours
: Clean
: Replace
Full Erase Head
(Recorder only)
Capstan Belt
Pinch Roller
Capstan DD Unit
Loading Motor
Tension Band
Capstan Shaft
Tape Running
Guide Post
Cylinder Unit
Clean those parts in
contact with the tape.
Clean the rubber, and parts
which the rubber touches.
Replace when rolling
becomes abnormal.
Clean the Head
CONFIRMATION OF USING HOURS
PLAY/REC total hours can be checked on the FIP.
Total hours are displayed in 16 system of notation.
(16 x 16 x 16 x thousands digit value) + (16 x 16 x hundreds digit value) + (16 x tens digit value) + (ones digit value)
ADDRESS DATA
1.
2.
3.
4.
5.
Turn on the POWER.
While pressing the CH UP button on the set, press the FF button on the set for more than 2 seconds.
Adjust the ADDRESS to "20" by SET +/- button and read the DATA.
(This DATA becomes the thousands digit and hundreds digit value of the following formula.)
Adjust the ADDRESS to "21" by SET +/- button and read the DATA.
(This DATA becomes the tens digit and ones digit value of the following formula.)
After the confirmation of using hours, turn off the power.

PREVENTIVE CHECKS AND SERVICE INTERVALS
CLEANING
NOTE
After cleaning the heads with isopropyl alcohol, do not
run a tape until the heads dry completely. If the heads
are not completely dry and alcohol gets on the tape,
damage may occur.
1. AUDIO CONTROL HEAD
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol and clean the audio control head by
wiping it horizontally. Clean the full erase head in the
same manner. (Refer to the figure below.)
Audio Control Head
2. TAPE RUNNING SYSTEM
When cleaning the tape transport system, use the
gauze moistened with isopropyl alcohol.
3. CYLINDER
Wrap a piece of chamois around your finger. Dip it in
isopropyl alcohol. Hold it to the cylinder head softly.
Turn the cylinder head counterclockwise to clean it (in
the direction of the arrow). (Refer to the figure below.)
NOTE
Do not exert force against the cylinder head. Do not move
the chamois upward or downward on the head.
Use the chamois one by one.
Cylinder Head

NOTE FOR THE REPLACING OF MEMORY IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
0A C5 4B 02 64 64 4A 06 0B 37 86 33 08 08 0C 0C00
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +FINI
8C 68 5C 53 10 45 31 04 88 A5 9F 3A 00 10 BF 0010
Table 1
1.
2. Turn on the POWER. While pressing the CH UP key on the set, press the FF key on the set for more than 2 seconds.
ADDRESS and DATA should appear as FIG 1.
ADDRESS DATA
3.
4.
5.
6.
7.
8.
The unit will now have the correct DATA for the new MEMORY IC.
Fig. 1
ADDRESS is now selected and should "blink". Using the SET + or - keys on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using SET + or - until required DATA value has been selected.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
Repeat steps 3 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
