TOTAL CONTENTS
1. Precautions
2. Reference Information
3. Product Specifications
4. Disassembly and Reassembly
5. Alignment and Adjustment
6. Exploded View
7. Replacement Parts List
8. Block Diagram
9. PCB Diagrams
10. Schematic Diagrams

Toshiba 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all pretective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known erath
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.

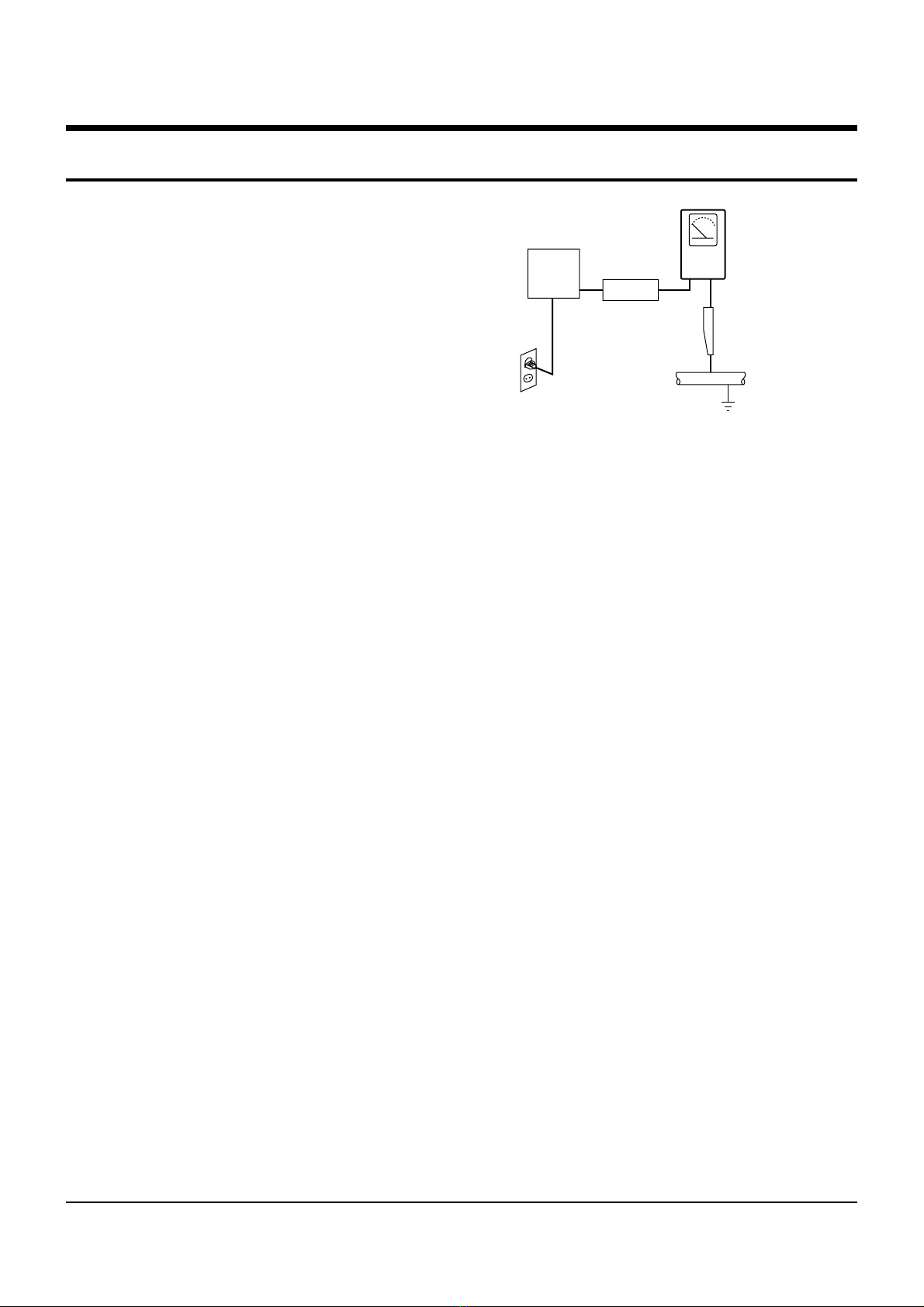

Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD

Precautions
1-2 Toshiba
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.

Toshiba 2-1
GB
6
Infrared Remote Control
ON/
STANDBY
OK
SP/LP
A.DUB
123
456
789
0
AUDIO
MENU
SLOW
PLAY
REW
STOP
COUNT.RST
TIMER
REC
CLR/RST
CH
FF
PAUSE/STILL
I.SELECT
COUNT/TR
INDEX
VTR
TRK
F.ADV
CURSOR
DISPLAY EJECT
I.SELECT
F.ADV
INDEX
MENU
REC PLAY
REW
SLOW
SP/LP
A.DUB
EJECT
ON/STANDBY
CH
COUNT/TR
CLR/RST
TIMER
FF
PAUSE/STILL, OK
STOP
DISPLAY
TRK
AUDIO
NUMBER
BUTTONS
COUNT.RST
GB
5
Front View of the VCR
Rear View of the VCR
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
AERIAL IN CONNECTOR
AUDIO L, R OUTPUT SOCKETS
AUDIO L, R INPUT SOCKETS
VIDEO INPUT SOCKET
VIDEO OUTPUT SOCKET
OUT TO TV CONNECTOR
VIDEO CASSETTE COMPARTMENT STOP
BUTTON
REW BUTTON F.F
BUTTON
RECORD BUTTON
EJECT BUTTON
CHANNEL SELECTION BUTTONS PLAY
BUTTON
ON/STANDBY BUTTON
LINE IN 2 VIDEO
INPUT SOCKET
LINE IN 2 AUDIO L, R INPUT SOCKETS
2. Reference Information
2-1 Operation of Controls

Reference Information

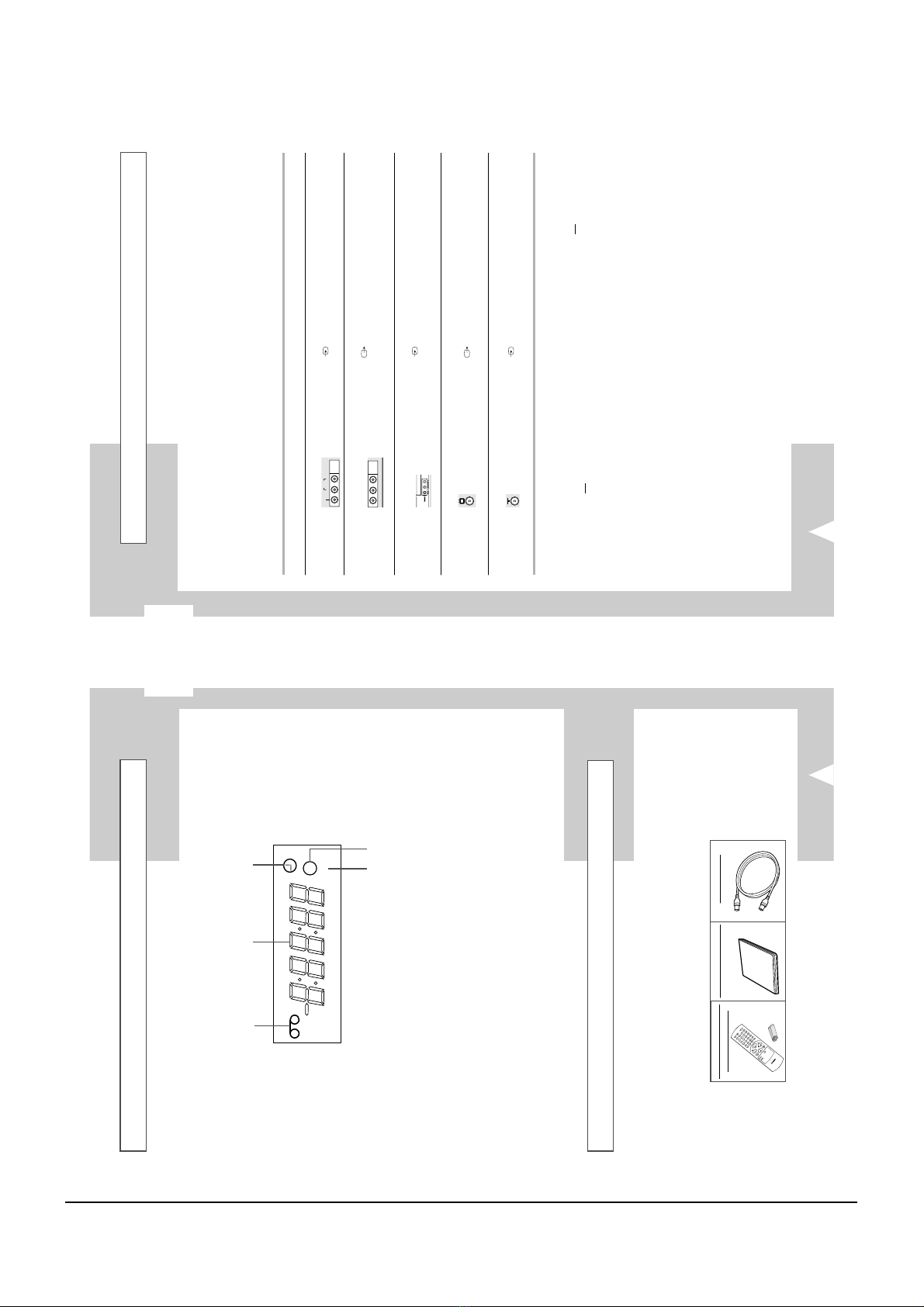

2-2 Toshiba
GB
8
Deciding How to Connect Your VCR
You must take into account various factors when connecting audio or video systems:
◆Types of connectors available on your systems ◆Systems connected permanently to the VCR or temporarily (camcorder for example)
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use LINE IN 1 Rear Audio/Video RCA In ◆Camcorder
◆Other VCR
Audio/Video Rear Audio/Video RCA Out ◆Television
output ◆Other VCR
◆Audio Hi-Fi system
LINE IN 2 Front Audio/Video RCA In ◆Audio Hi-Fi system
◆Camcorder ◆Other VCR
OUT TO TV Rear 75 ΩOut ◆Television
coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
coaxial ◆Cable television network
☛Whenever you connect an audio or video system to your VCR, ensure that all elements are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions and associated safety precautions.
TV
LINE IN 1
VIDEO AUDIO
R L
LINE OUT
GB
7
Display Indicator
Accessories
You have just purchased a TOSHIBA Video Cassette Recorder (VCR). Together with your VCR, you will find the following accessories in the box.
ON/
STANDBY
OK
SP/LP
A.DUB
123
456
789
0
AUDIO
MENU
SLOW
PLAY
REW
STOP
COUNT.RST
TIMER
REC
CLR/RST
CH
FF
PAUSE/STILL
I.SELECT
COUNT/TR
INDEX
VTR
TRK
F.ADV
CURSOR
DISPLAYEJECT
REMOTE CONTROL &
BATTERIES “AAA”
OWNER’S INSTRUCTIONS
COAXIAL CABLE
1Cassette loaded indicator 2 Multi-function display 3 Timer indicator 4Hi-Fi indicator 5Rec indicator
VCR
4 5
123
Hi-Fi

Reference Information
Toshiba 2-3
GB
10
Connecting Other Equipment to Your VCR
You can connect other audio and/or video equipment to your VCR in different ways. The following illustrations give a few examples of the connection possibilities.
➢
The RCA connectors on the front and rear of the VCR are used for equipment, such as camcorders, VCRs or sound systems.
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
FRONT OF THE VCR REAR OF THE VCR
Camcorder
VCR
Sound system
GB
9
Connecting Your VCR to the TV using the Coaxial Cable
To receive television programmes a signal must be received from one of the following sources:
◆An outdoor aerial ◆An indoor aerial ◆A cable television network
☛Make sure that both the television and the VCR are
switched off before connecting the cables.
1
Remove the aerial or network input cable from the television.
2
Connect this cable to the 75Ωcoaxial socket marked on the rear of your VCR.
3
Plug the coaxial cable supplied into the socket on your VCR.
4
Plug the other end of the coaxial cable into the connector previously used for the aerial on the television.
5
To obtain better quality pictures and sound on your television, you can also connect your VCR to the television via the RCA cable (see section below) if your television is equipped with this type of connection.
TV
Connecting Your VCR to the TV using the RCA Cable
You can connect your VCR to the television using the RCA cable if the appropriate input is available on the television. You thus:
◆Obtain better quality sound and pictures ◆Simplify the setting up procedure of your VCR
☛◆Regardless of the type of connection chosen, you must always connect the coaxial cable
supplied. Otherwise, no picture will be visible on the screen when the VCR is switched off.
◆Make sure that both the television and the VCR are switched off before connecting the cables.
1
Connect the coaxial cable as indicated in the above section.
2
Connect one end of the RCA Audio/Video cable to the Video output and Audio L, R output socket on the rear of the VCR.
3
Plug the other end into the appropriate connector on the television.
Aerial
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
RF coaxial cable
TV
2
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
4
2
TV
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
3

Reference Information
2-4 Toshiba
GB
ON/
STANDBY
123
456
CH
VTR
DISPLAY EJECT
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
12
Tuning Your Television for the VCR
You must tune your television for the VCR only if you are not using
a RCA cable
➢To view pictures from your VCR when a RCA cable is
used, the television must be set to the audio/video mode (AV).
1Switch on the television. 2Switch on the VCR by pressing ON/STANDBY on the front of the
VCR or ON/STANDBY on the remote control.
3Select a programme position on the television to be reserved for
use with your VCR.
4Insert the video cassette in the VCR. Check that the VCR starts
reading the cassette; if not, press PLAY (

) button.
5Start a scan on your television or set the television to UHF
channel 60.
6Fine tune the television until the pictures and sound are obtained
clearly.
7If you cannot find the pictures and sound, or there is interference
from nearby channels, it may be necessary to change the setting of the VCR output channel (see Solving Problems section of this manual).
8When the picture and sound are perfectly clear, store this channel
at the desired programme position on the television. Result:
That programme is now reserved for use with your VCR.
4
2
You must insert or replace the batteries in the remote control when you:
◆Purchase the video cassette recorder ◆Find that the remote control is no longer working
correctly
1Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2Insert two AAA, R03 or equivalent batteries, taking care to respect
the polarities: ◆
+ on the battery with + on the remote control
◆
–on the battery with –on the remote control
3Replace the cover by aligning it with the base of the remote
control and pushing it back into place.
➢Do not mix different battery types (manganese and
alkaline for example).
Inserting Batteries in the Remote Control
1
GB
11
Plug & Auto Set Up
2
AUTO SET UP PLEASE WAIT
60%
I
■■■■■■■■■■■■
-------I
END:MENU
CLOCK
MON
12:00 1/JAN/2001
¥

END:MENU
Your VCR will automatically set itself up when it is plugged into the mains for the first time. TV stations will be stored in memory. The process takes a few minutes. Your VCR will then be ready for use.
1Connect the coaxial cable as indicated on page 9.
(Connecting Your VCR to the TV Using the Coaxial Cable)
2Plug the VCR into the mains.
A message appears “AUTO SET-UP WILL BE STARTED. CHECK ANTENNA AND TV CABLE CONNECTION”and then press OK to proceed.
3The process will finish after a few minutes.
◆
The number of stations automatically stored by the VCR
depends on the number of stations that it has found.
4On completion, press MENU twice to exit the menu.
AUTO SET-UP WILL BE STARTED. CHECK ANTENNA AND TV CABLE CONNECTION.
PROCEED:OK
END:MENU

Reference Information
Toshiba 2-5
GB
14
Displaying/Hiding On-Screen Information
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS

¥
OK END:MENU
Your VCR displays most information both on the VCR and the television. You can choose to display or hide this information on the television screen (except for the Index, Programming MENU which cannot be hidden).
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding

or

buttons, until the OSD option is
selected.
5To... Press
¥
or

, until...
Display on-screen information ON is displayed. Hide on-screen information OFF is displayed.
6On completion, press MENU twice to exit the menu.
PTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO NICAM :ON


END:MENU
GB
13
Setting the Date and Time
OK
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
2
2
1
3
2
CLOCK SET
PROG OPTIONS INSTALL
CLOCK BONUS
CLOCK
CLOCK
MON
12:00 1/JAN/2001
¥

END:MENU

¥
OK END:MENU
Your VCR contains a 24-hour clock and calendar used to:
◆Automatically stop programme recording ◆Preset your VCR to record a programme automatically
You must set the date and time when:
◆You purchase the video cassette recorder ◆The power supply remains off for more than 1 hour
☛◆Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
CLOCK SET option.
3Press the OK button to select this option.
Result: The CLOCK SET menu is displayed.
4Press
¥
or

to select the hour, minutes, day, month and year.
Result: The option selected flashes.
5Press the

or

buttons to increase or decrease the value.
Result: The day of the week is displayed automatically.
➢You can hold the

or

buttons down to scroll more
quickly through the values.
6On completion, press MENU twice to exit the menu.
2
◆ The life of the batteries is about 1 year depending on the
conditions of use.
◆ If the remote control does not operate correctly, replace all
batteries with new ones.
◆ Do not dispose of the batteries by fire. ◆ If the remote controller is not to be used for a long period of
time, remove the batteries to avoid possible damage from battery corrosion.
◆ When using the remote controller, press the buttons at intervals
of about 1 second to ensure the correct mode of operation.
◆ Keep the remote controller away from extremely hot or humid
places and avoid sharp impacts.
◆ Do not expose the remote sensor of the VCR to a strong light
source such as direct sunlight or illumination (especially high- frequency lighting) when using the remote controller.
◆ Be careful do not to spill water on the remote controller or to
place it on anything wet.
Notes on Batteries Caring for the Remote Controller
ON/
STANDBY
123
456
789
0COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
30˚30˚
7 m
Notes: Point the remote controller at the VCR and press the buttons within the operating range as illustrated. Distance: within about 7 m from the
front of the remote sensor.
Angles : within about 30˚in every
direction.

Reference Information

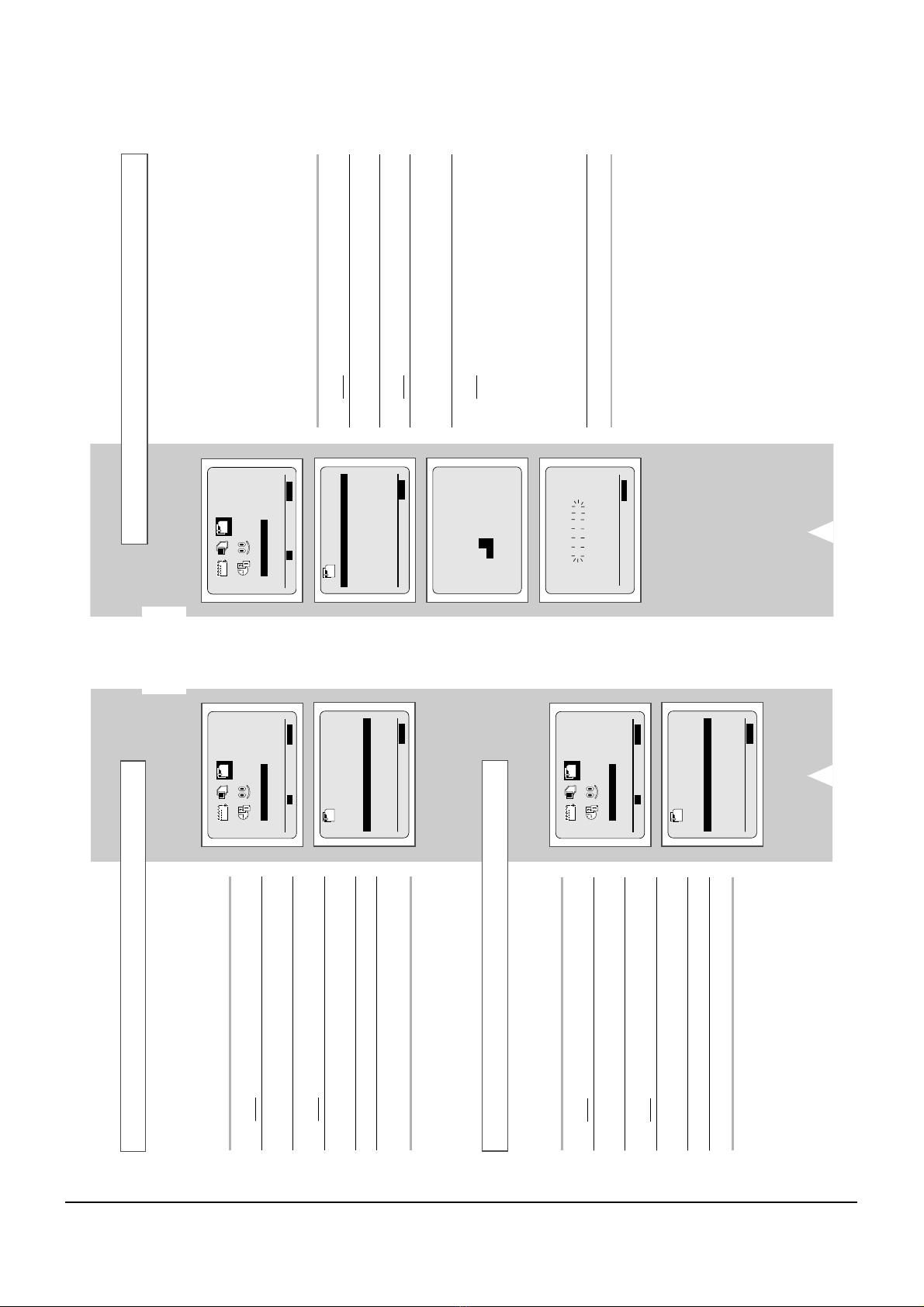

2-6 Toshiba
GB
16
Presetting the Stations Automatically
☛You do not need to preset the stations if you have already
set them automatically (see Plug & Auto Set Up on page 11).
Your VCR contains a built-in tuner used to receive television broadcasts. You must preset the stations received through the tuner. This can be done:
◆Plug & Auto Set up (see page 11) ◆Automatically ◆Manually (see page 17)
You can store up to 80 stations.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the AUTO SET
UP option is selected.
Press the

button to select this option.
5Press OK to start the auto scanning.
Result:
◆
The PLEASE WAIT indication flashes on the
television screen.
◆
The first frequency band is scanned and the first station found is displayed and stored.
◆
The VCR then searches for the second station and so on.
◆
When the automatic scanning procedure has finished, the VCR switches automatically to programme 1.
➢
The number of stations automatically stored by the VCR depends on the number of stations that it has found.
6If you wish to cancel the auto scanning before the end, press the
MENU button three times to exit the menu.
➢◆Once the auto scanning procedure has finished, some
stations may have been stored more than once; select the stations with the best reception and delete the ones no longer required (see page 18).
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
AUTO SET UP PLEASE WAIT
2%
I--------------------I
END:MENU
YOUR DATA WILL BE LOST
PRESS OK TO CONTINUE
MENU TO EXIT
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
GB
15
Your VCR output channel may need to be changed if the pictures suffer from interference or if your TV cannot find the pictures. Also, you can change the VCR output channel to adjust the frequency in which information is displayed on the screen.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the VCR OUTPUT
CH option is selected.
5Select the required output channel by pressing the
¥
or

buttons.
6On completion, press MENU twice to exit the menu.
Then tune your television again (see page 12).
Setting the VCR Output Channel
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
You must choose the sound mode (G, I or K) according to the TV set connected to your VCR.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the TV SYSTEM
option is selected.
5
Press the

button to select G, I or K.
6On completion, press MENU twice to exit the menu.
Selecting the RF OUT Sound Mode (G, I, or K)

Reference Information
Toshiba 2-7
GB
18
If you have stored a TV station:
◆That you do not require ◆At the wrong programme position
you can cancel it.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the MANUAL SET
UP option is selected.
5Press the

button to select this option.
Result: The TV STATION TABLE menu is displayed.
6Press the corresponding

or

buttons, until the required preset
TV station (PR) is selected.
7Press the CLR/RST button. 8Repeat the same procedure from Step 6onwards until all the
required stations have been cleared.
9On completion, press the MENU button three times to exit the
menu.
Clearing a Preset Station
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
789
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
7
** TV STATION TABLE **
PR CH NAME SYTEM
1 002 ---- B/G/D/K 2 3 4 5


SWAPPING:OK
DELETE:CLR/RST MENU
GB
17
Presetting the Stations Manually
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
Your VCR contains a built-in tuner used to receive television broadcasts. You must preset the stations received through the tuner. This can be done:
◆Plug & Auto Set up (see page 11) ◆Automatically (see page 16) ◆Manually
You can store up to 80 stations.
☛You do not need to preset the stations manually if you
have already set them automatically.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the MANUAL SET
UP option is selected.
5Press the

button to select MANUAL SET UP option.
Result: The TV STATION TABLE menu is displayed.
6Press the

or

buttons to select a programme number as
required.
7Press the

button to preset the station.
Result: The MANUAL TUNING menu is displayed.
8Press the
¥
or

buttons to start scanning.
Result: The frequency band is scanned and the first station
found is displayed.
If you know the number of the channel you want, press the numeric buttons on the remote control for example, for channel 04, first press “0”and then press “0”, “4”(see page 39).
9Press the corresponding

or

buttons until NAME is selected.
Press the

buttons until the cursor blinking and select the
carracter by using

or

buttons.
10 If you... Then...
Wish to store the
◆
Press the corresponding

or

buttons,
station displayed until the MFT is selected.
◆
Press the
¥
or

buttons to adjust the
picture, if necessary.
◆
Press OK to store the station .
Do not wish to
◆
Press the corresponding

or

buttons,
store the station until the CH is selected.
displayed
◆
Press the
¥
or

buttons to go on
scanning the frequency band and display the next station
◆
Go back to the beginning of Step 9
11 Repeat this procedure from Step 6onwards, until all the required
stations have been stored.
12
On completion, press the MENU button three times to exit the menu.
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
** MANUAL TUNING **
SYSTEM : B/G/D/K PR : 1 CH : 002 MFT : - NAME : ----

¥
MEMORY: OK
END:MENU
** TV STATION TABLE **
PR CH NAME SYTEM
1 002 ---- B/G/D/K 2 3 4 5


SWAPPING:OK
DELETE:CLR/RST MENU

Reference Information
2-8 Toshiba
GB
20
Selecting the Cassette Type
If you wish to use the tape counter to display the time remaining on a cassette, you must indicate the type of cassette inserted.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option. 4Press the corresponding

or

buttons, until the TAPE
SELECT option is selected.
5Press the
¥
or

buttons as many times as required, until the
correct cassette length is displayed.
E180 E240 E 300 E260
6Press MENU twice to exit the menu.
Selecting the Recording Speed
T
ype Recording Time (in SP)
E-180 180 mins. or 3 hours E-240 240 mins. or 4 hours E-260 260 mins. or
4 hours and 20 mins.
E-300 300 mins. or 5 hours
You can record a cassette at two different speeds:
◆SP (Standard Play) ◆LP (Long Play)
In Long Play modes:
◆Each cassette lasts twice as long
To record a cassette... Press the SP/LP button on the
remote control, until...
In standard play mode SP is displayed.
In long play mode LP is displayed.
OK
SP/LP
A.DUB
AUDIO
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS

¥
OK END:MENU
PTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO NICAM :ON


END:MENU
GB
19
Changing the Preset Station Table
You can rearrange the preset TV stations according to your own preferences programme number assigned to the station.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding

or

buttons, until the MANUAL SET
UP option is selected.
And then press the

button to select this option.
Result: The TV STATION TABLE menu is displayed.
5Press the corresponding

or

buttons, until the required preset
TV programme is selected. Result: The selected station is displayed at the same time on
the television screen.
6To change the programme number assigned to a station press the
OK button on the remote control. (For example, To move a TV station in programme 1 to programme 3)
7Press the

or

buttons to select required position. And then
press OK again to swap the position.
8You can modify this station by repeating the same procedure from
Step 5onwards.
9On completion, press the MENU button three times to exit the
menu.
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL

¥
OK END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
** TV STATION TABLE **
PR CH NAME SYTEM
1 002 ---- B/G/D/K 2 3 4 5


SWAPPING:OK
DELETE:CLR/RST MENU
** TV STATION TABLE **
PR CH NAME SYTEM
1 2 3002 ---- B/G/D/K 4 5


SWAPPING:OK
DELETE:CLR/RST MENU

Reference Information
Toshiba 2-9
GB
22
Recording a Programme Immediately
Protecting a Recorded Cassette
Video cassettes have a safety tab to prevent accidental erasure. When this tab has been removed, you cannot record on the tape.
1If you wish to protect a cassette, break off the tab using a small
screwdriver.
2To re-record over a protected cassette (safety tab broken), cover
the hole with adhesive tape.
1
OK
SP/LP
A.DUB
AUDIO
SLOW
REW
STOP
FF
PAUSE/STILL
CURSOR
7
OK
SP/LP
AUDIO
SLOW
REW
STOP
FF
PAUSE/STILL
CURSOR
5
ON/
STANDBY
123
456
789
COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
4
4
Before recording a programme, you must have preset the corres- ponding station (unless you are recording via an external video source). If you have not done so, refer to pages 16 and 17.
1Switch on the television. 2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used).
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening covered with adhesive tape. Result: The VCR is switched on automatically.
4Select:
◆
The station to be recorded using the CH
(
i
or
j
)
buttons
or
◆
The LINE IN 1 or LINE IN 2 source using the I.SELECT button for a satellite tuner or external video source
Result: The station number is displayed and the programme
can be seen on the television.
5Select the recording speed (SP/LP) by pressing the SP/LP button
as many times as required (see page 20).
6Hold REC down for a while to start recording.
Result:
The record indicator appears on the television and VCR display. An index is recorded on the tape (see page 30).
7To stop recording, press
■
once.
➢◆If the cassette is ejected when you start recording,
check that the safety tab is intact or the opening is covered with adhesive tape.
◆If you reach the end of the tape while recording, the
cassette rewinds automatically.
GB
21
NICAM
NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound. Please refer to page 27.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding

or

buttons, until the NICAM option
is selected.
5To... Press
¥
or

, until...
Mono mode OFF is displayed.
OFF: Only set at this position to record the
standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception conditions.
NICAM mode ON is displayed.
ON: Normally set at this position.
6On completion, press MENU twice to exit the menu.
PTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO NICAM :ON


END:MENU

Reference Information
2-10 Toshiba
The Timer Programming feature allows you to preset the VCR to record a programme up to one month before that programme is to be broadcast. Up to six programmes can be preset.
☛Before presetting a recording, check that the date and
time are correct.
1Insert a cassette with the safety tab attached. 2Press MENU on the remote control.
Result: The programming menu is displayed.
3Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
4Press

to select the input source.
5Select the required station by pressing the

,

buttons or
I.SELECT to select the LINE IN 1 or LINE IN 2 input sources.
6Press

to select the recording day.
7Select the required day by pressing the

or

buttons.
8Press

to select the recording start time.
9Select the required hour value by pressing the

or

buttons.
10 Press

to select the minutes.
11 Select the required minute value by pressing the

or

buttons.
12 Press

to select the recording end time.
13 Select the required recording end time by pressing the

or

buttons, following the same procedure as when selecting the recording start time.
14 Press

to select the the recording speed (AUTO/SP/LP).
15 Press the

or

buttons to switch between the AUTO, SP
(Standard Play) or LP (Long Play).
16 When you have finished, press the MENU button. 17 Press the ON/ STANDBY button to activate the timer.
Result: Before starting recording, the VCR compares the timer
duration with the remaining time on the cassette.
☛Auto Tape Speed Select
The VCR’s “Auto Tape Speed Select” function compares the duration of the timer recording to the actual recording time remaining on the tape loaded. If there is insufficient tape to complete a timer recording in AUTO mode, the VCR automatically switches to LP mode to record the whole programme.
E.g. If there is a one hour AUTO mode timer recording
to be started, but only 40 minutes of tape remaining, the VCR will record in SP for 20 minutes and switch to LP mode for the remaining 40 minutes.
GB
24
Using the Timer Programming Feature
MENU
PLAY
REW
TIMER
REC
CLR/RST
FF
COUNT/TR
INDEX
F.ADV
CURSOR
2
PROG 1/JAN MON 21:28
PR DAY START
→
STOP
L1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

¥
DELETE:CLR/RST MENU
ON/
STANDBY
123
456
CH
VTR
DISPLAY EJECT
TIMER PROGRAMMING
PROG OPTIONS INSTALL
CLOCK BONUS
PROG

¥
OK END:MENU
17
GB
23
This function enables you to record up to nine hours of programmes. (LP) Your VCR stops automatically after the requested length of time.
1Switch on the television. 2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used)
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening covered with adhesive tape. Result: The VCR is switched on automatically.
4Select:
◆
The station to be recorded using the
CH (
i
or
j
)
buttons
or
◆
The LINE IN 1 or LINE IN 2 source using the I.SELECT button for a satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
5Select the recording speed (SP/LP) by pressing the SP/LP button
as many times as required (see page 20).
6Hold the REC button down for a while to start recording.
Result: The record indicator appears on the television screen
and VCR display. An index is recorded on the tape (see page 30).
7Press the REC button several times to increase the recording time
in: ◆
30-minute intervals up to four hours
◆
1-hour intervals up to nine hours (LP)
Result: The length is displayed on the television displays. The
selected programme is recorded for the length of time requested. At the end of that time, the VCR stops recording automatically.
8If you wish to cancel the recording before the end, press
ON/STANDBY.
☛If the end of the tape is reached while recording:
◆The recording stops ◆The VCR automatically turns off
Recording a Programme with Automatic Stop
LENGTH 2:30
SET LENGTH :
PRESS REC
789
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
6
3
ON/
STANDBY
123
456
789
0COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
4
4
6

Reference Information
Toshiba 2-11
GB
123
456
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
CH
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
26
This function allows you to play back any pre-recorded cassette.
1Switch on both the television and your VCR. 2Insert the video cassette to be played. If the safety tab on the
cassette is intact, press

.
Otherwise, the cassette is played automatically.
➢
When a cassette is loaded, the tape position is optimized automatically to reduce disturbance (Digital Auto Tracking). When playing a cassette, if the end of the tape is reached, the cassette is rewound automatically. NTSC tapes can be played back but cannot be recorded with this VCR.
3To... Then press...
Stop the playback
■
(STOP).
Eject the cassette (EJECT).
Playing a Cassette Adjusting Picture Alignment Manually
The Picture Alignment feature allows you to adjust the alignment manually to obtain the best possible picture. When noise bars or streaks appear during playback, adjust alignment manually by pressing the TRK (
i
or
j
) buttons until the picture is clear
and stable. Result:
◆
The tracking bar appears.
◆
The image is adjusted.
◆
The tracking bar disappears when you release the button.
OK
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
CURSOR
3
2
3
You can cancel any programmes that are:
◆Incorrect ◆No longer required
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
3Select the programme to be cancelled by pressing the

or

buttons.
4Press the CLR/RST button to cancel the selected programme.
Result: All the recording information is deleted and the
broadcast will not be recorded.
5On completion, press MENU twice.
You can check your preset recordings:
◆When you have finished presetting the VCR ◆If you have forgotten which programmes will be
recorded
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
3Press the

or

buttons to select the required programme.
4Press the
¥
or

buttons to select and change any values as
required. For more details, refer to the previous page.
5On completion, press MENU twice.
GB
25
Checking a Preset Recording Cancelling a Preset Recording
PROG
1/JAN MON 21:28
PR DAY START
→
STOP
L1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

SET:

DELETE:CLR/RST MENU
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
PROG
1/JAN MON 21:28
PR DAY START
→
STOP
L1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

SET:

DELETE:CLR/RST MENU
4

Reference Information
2-12 Toshiba
GB
28
456
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
CH
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV

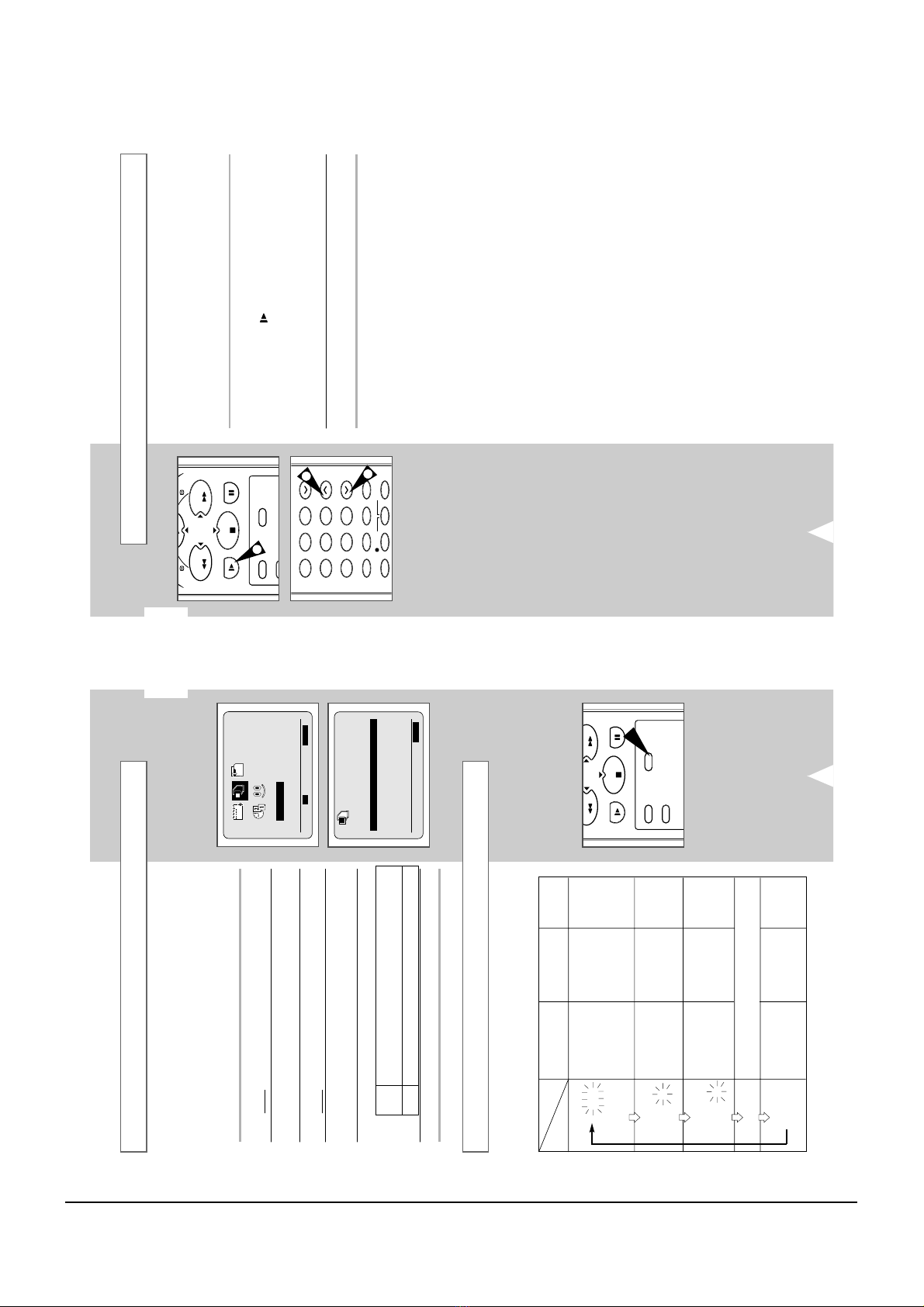

Playing a Cassette in Slow Motion
You can play a cassette in slow motion.
➢No sound is heard when playing back a cassette in slow
motion.
1Press:
◆

to start playing the cassette
◆
Press SLOW ( ) and release SLOW button on the remote control. If you press the SLOW (
I

) button twice, the
playback will slow down to 1/12 th of normal speed.
◆
To return to the normal speed, press the PLAY (

)button.
2When playing back in slow motion, picture interference may occur.
Press the TRK (
i
or
j
) buttons to minimize this effect.
☛When you have been using the Slow Motion function for
more than about five minutes, the VCR will automatically play to protect the: ◆Cassette ◆Video heads
OK
SP/LP
A.DUB
AUDIO
SLOW
REW
STOP
FF
PAUSE/STILL
CURSOR
1
2
2
GB
27
When monitoring a TV programme or playing back a Hi-Fi recorded video tape, press the AUDIO button to select a desired sound output. As the AUDIO button is pressed, the sound output and the indicator change as below:
Selecting the Audio Output Mode
OK
SP/LP
A.DUB
AUDIO
SLOW
REW
STOP
FF
PAUSE/STILL
CURSOR
L R
MIX
MONO
L
R
Heard in stereo. (left channel and right channel) Left channel heard from both the left and right speakers. Right channel heard from both the left and right speakers. Heard in monaural.
Channel I(MAIN) heard from the left speaker, channel II (SUB) heard from the right speaker. Channel I (MAIN) heard from both the left and the right speakers. Channel II-(SUB) heard from both the left and the right speakers. Channel I (MAIN) heard from both the left and the right speakers.
Heard in monaural. Heard in monaural. Heard in monaural. Heard in monaural.
Sound mixed the left and right channels, and the normal audio track.
OSD display
Sound type Stereo sound Bilingual sound Standard
sound
broadcast
Selecting the Colour Mode
Before recording or playing back a cassette, you can select the required system standard. ➢
◆When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV. If your TV is a PAL system only TV, set NTPB. If your TV is Multi System TV (NTSC 4.43 compatible), set NT4.43 and you can record NT4.43.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding

or

buttons, until the
COLOUR SYSTEM option is selected.
5Press the

button to select AUTO
➝
PAL
➝
MESECAM
➝
B/W.
AUTO When playing back a cassette, the system standard is
automatically selected by the VCR.
B/W Black and White
6On completion, press MENU twice to exit the menu.
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS

¥
OK END:MENU
PTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO NICAM :ON


END:MENU

Reference Information
Toshiba 2-13
GB
30

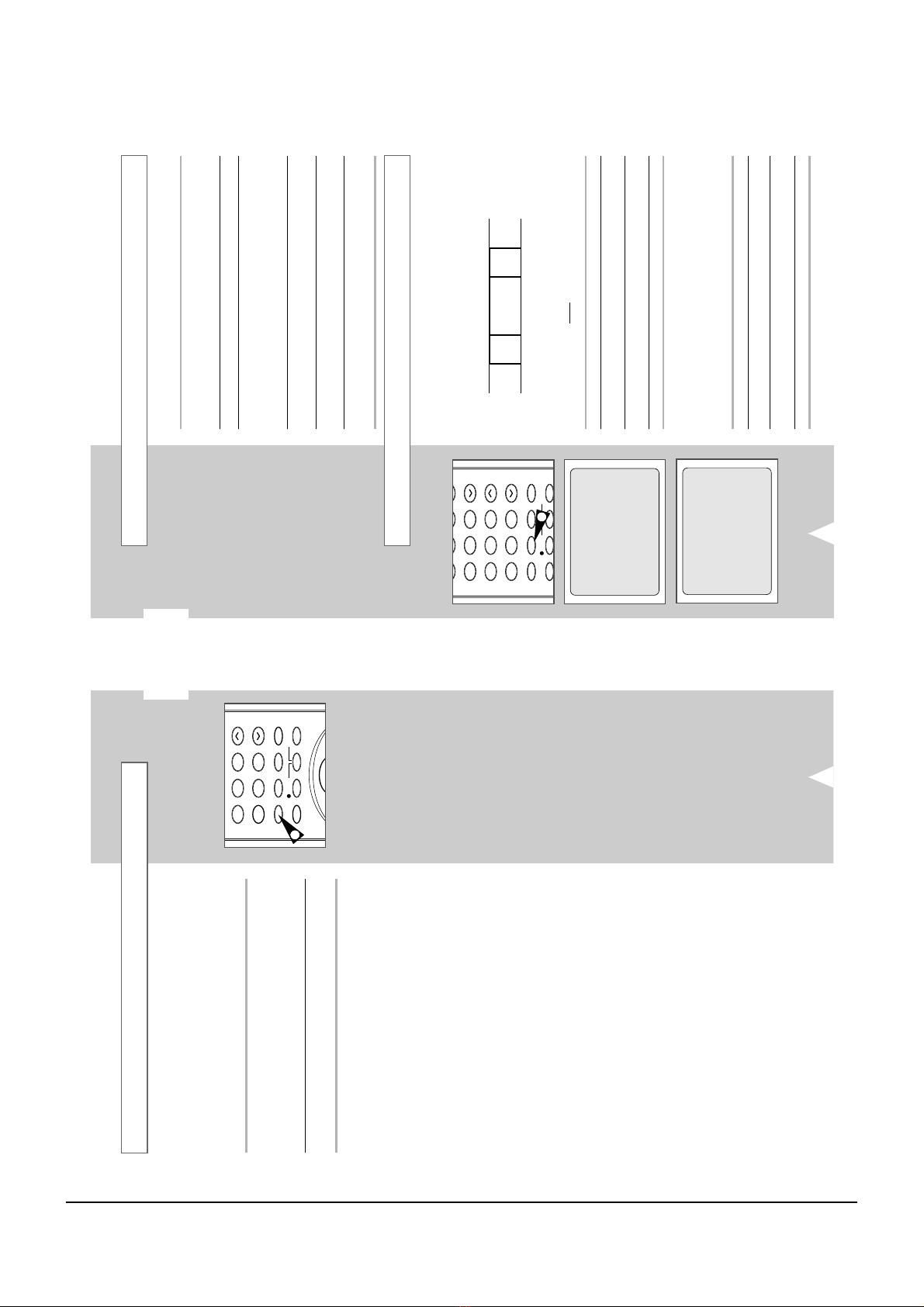

Picture Search, Fast Forward/Rewind
Picture Search enables you to Fast Forward or Rewind and look for a particular part of a tape.
1Press PLAY, the VCR will enter normal play mode. While in play,
press and release the

(or
¥¥
) button. The VCR will search at 5
times the normal playback speed.
2To return to normal playback mode, press the

button.
3If you press and HOLD down the

(or
¥¥
) button the VCR will
search at 9 times the normal speed. Releasing the

button will
return the VCR to search at 5 times the normal speed. To return to normal playback mode, press the

button.
4Whilst in Picture Search mode, if you press the

button again,
the VCR will enter normal Fast Forward mode.
5Likewise, whilst in Picture Search
¥¥
mode, if you press the
¥¥
button again, the VCR will enter normal Rewind mode.
6If, when Rewinding (
¥¥
) or Fast Forwarding (

), you press the
¥¥
(or

) button, the VCR will enter the Picture Search mode.
Searching for a Specific Sequence
Each time you record a cassette on this VCR, an “index” is automatically marked on the tape when recording starts. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows:
etc. Prev
Seq. Seq. being
played Next
Seq. etc.
21 12
➞
➢This VCR uses a standard indexing system (VISS). As a
result, it will recognize any indexes marked by other VCRs using the same system and vice versa.
INTRO SCAN
1To search for a specific index, press INDEX. 2Press the
¥¥
or

buttons depending on the direction
where your desired programme is located.
3
When an Index mark is found the VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.
4
If you want to watch the tape from a particular Index, simply press

.
Index Skip Search: This feature will enable you to fast forward/rewind to a specific point on a tape: E.g. if you have recorded 3 different programmes on a tape and you have rewound the tape to the beginning, by using this feature you can go directly to the start of programme 2 simply by pressing the INDEX button.
1Press the INDEX to start the Index search. 2Press the
¥¥
or

buttons twice more. This will take
you directly to the start of the desired programme is located.
3These Index searches can be made forwards: (press

) or
backwards: (press
¥¥
).
4
To cancel an Index search simply press the

or
■
button.
456
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
CH
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
INDEX:
¥¥
INDEX SEARCH:

+01
1
GB
29
You can:
◆Stop the cassette at a given frame (image) ◆Advance one frame at a time
➢No sound is heard when playing back frame by frame.
1Press:
◆
PLAY (

) to start playing the cassette
◆
PAUSE/STILL (
II
) to stop the tape at a given frame
◆
F.ADV to advance frame by frame
2To return to normal playback, press PAUSE/STILL (
II
) button
again.
☛When you have been using the Frame-by-Frame function
for more than about five minutes, the VCR will auto- matically play to protect the cassette and video heads.
➢Vertical stability: When playing back frame by frame,
interference may be seen on the screen. Press the TRK
(
i
or
j
)
buttons to minimize this effect.
Playing a Sequence Frame by Frame
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
1

Reference Information
2-14 Toshiba
GB
32

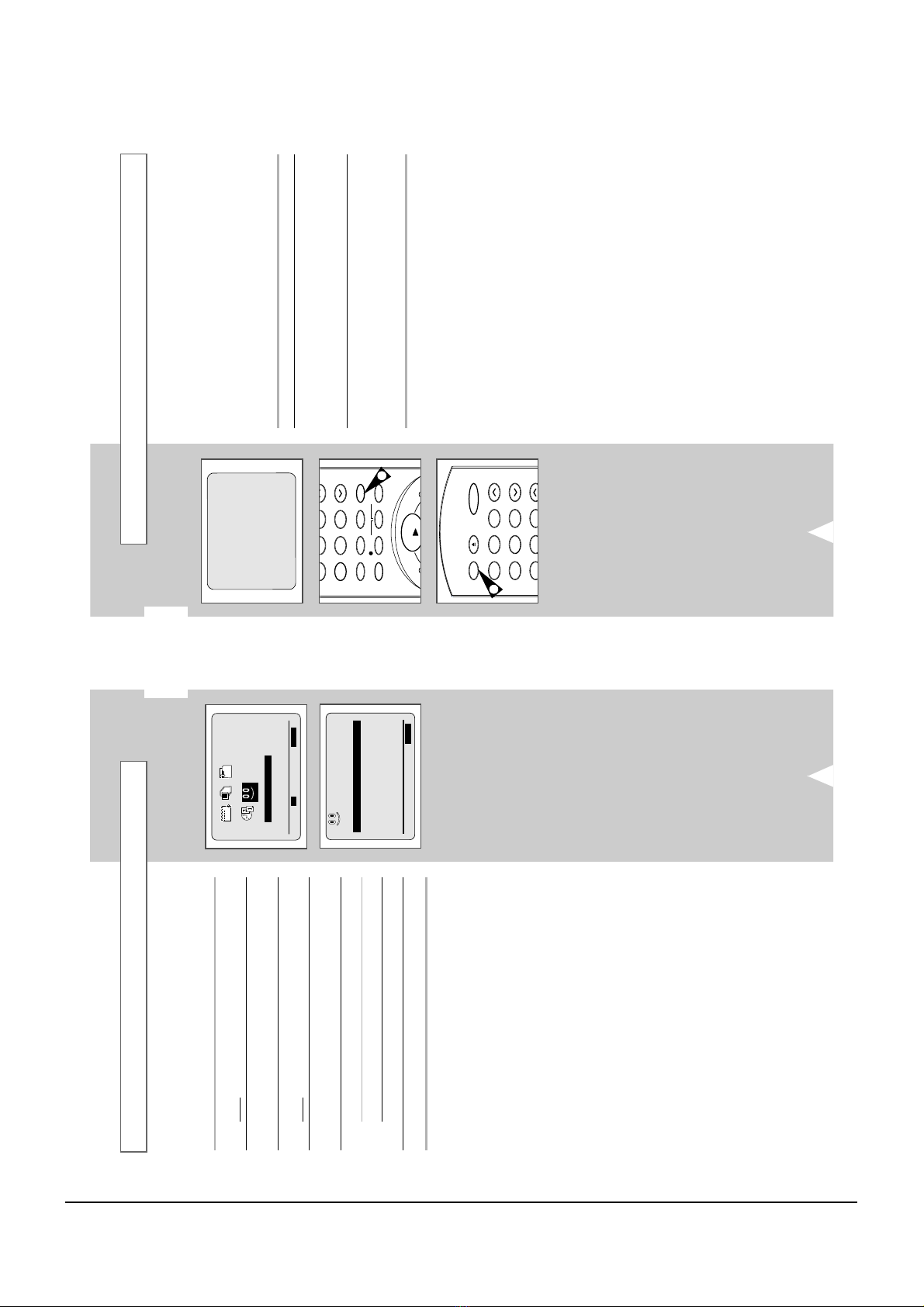

Using the Tape Counter
789
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
ON/
STANDBY
123
456
CH
VTR
DISPLAY EJECT
0:00:00
2
2
The tape counter:
◆Indicates the elapsed time in the play and record modes
(hours, minutes and seconds)
◆Is reset when a cassette is inserted in the VCR ◆Allows you to find the beginning of a sequence easily
☛If the remaining time is to be calculated correctly, you
must indicate the type of cassette being used.
1Insert a cassette in your VCR. 2To set the tape counter to zero at the beginning of a sequence:
◆
Press DISPLAY. twice to display the counter
◆
Press CLR/RST when you want to set the tape counter to zero
3When you are ready,
◆
Start playback or Recording.
◆
Press the
■
button.
◆
To fast-froward or rewind to the sequence at which the counter was set to zero, press
¥¥
or

.
➢Some VCR information, such as the counter, can be
displayed on the television screen (unless you have deactivated the OSD mode; refer to page 14). Press DISPLAY: ◆Once to display the current function, programme
number, recording speed, date, time and counter
◆Twice to display the counter only ◆Three times to display the time remaining on the
cassette
◆Four times to clear the display
GB
31
You can set repeat play to repeat the tape continuously from beginning to end.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
EASY OPERATION option.
3Press the OK button to select this option.
Result: The EASY OPERATION menu is displayed.
4Press the corresponding

or

buttons, until the
REPEAT PLAY option is selected.
5To... Press
¥
or

, until...
Repeat play ON is displayed. Do not wish to repeat play OFF is displayed.
6On completion, press MENU twice to exit the menu.
Auto Repeat Play
AUTO POWER OFF :OFF REPEAT PLAY :OFF


END:MENU
BONUS
EASY OPERATION
PROG OPTIONS INSTALL
CLOCK BONUS
BONUS

¥
OK END:MENU

Reference Information
Toshiba 2-15
This function allows you to start a new recording at a specific position on the cassette while maintaining a very smooth scene change.
1
Insert the cassette to be edited in your VCR.
2
Press the

button to start playback.
3
When you reach the position from which you wish to start the new recording, press the PAUSE/STILL button.
4
Press the F.ADV button as often as necessary to advance frame by frame, until the exact recording position is located.
5
While the VCR is in still mode, hold the REC button down for a while to activate the Assemble Edit function. Result: Record symbol flashes in the display.
6
Select the source from which you wish to record by pressing: ◆
The CH (

or

) buttons for television channels
◆
The I.SELECT button for the LINE IN 1 or LINE IN 2 input sources
7
Press the

button to start recording.
8
When you have finished recording, press
■
.
➢ ◆A smooth edited scene will only be achieved if there
are of the same video system.
◆There might be some noise in the picture at the end of
recording
GB
34
You can copy a cassette to your VCR from another video source, such as another VCR or a camcorder.
☛It is an infringement of copyright laws to copy
prerecorded cassettes or to re-record them in any form without the permission of the owners of the corresponding copyright.
1
Connect the VCR, from which the cassette is to be copied, to the
appropriate RCA audio and video input connectors on the rear of your VCR, as indicated on page 10. You can also use a RCA audio and video cable to connect the LINE IN 2 input on the front of your VCR.
2
Insert a blank cassette in your VCR.
3
Insert the pre-recorded cassette in the other video source (VCR or camcorder).
4
Press the I.SELECT button to select the appropriate input on your VCR: ◆
LINE IN 1 for the rear input
◆
LINE IN 2 for the front input
5
Start playing back the cassette to be copied.
6
Hold REC down for a while to start recording on your VCR.
7
When you have finished recording, press
■
on both VCRs.
➢If you wish to view the cassette being copied:
◆Your VCR must be connected as usual to the
television (see page 9 for further details)
Using the Assemble Edit Function
Recording from Another VCR or Camcorder
MENU
PLAY
REW
TIMER
REC
CLR/RST
FF
COUNT/TR
INDEX
F.ADV
CURSOR
OK
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
CURSOR
2
6
6
GB
33
Connecting an RCA Audio/Video Input Cable
You can connect other audio/video equipment to your VCR using audio/video cables if the appropriate outputs are available on the equipment chosen. Examples:◆You wish to copy a video cassette with the help of a
second VCR (see page 34).
◆You wish to play back and/or copy pictures taken
with a camcorder (see page 34).
◆You wish to dub a prerecorded video cassette with
sound from a stereo system (see page 35).
☛◆Regardless of the type of connection chosen, you
must always connect the coaxial cable supplied. Otherwise, no picture will be visible on the screen when the VCR is switched off.
◆Make sure that both the television and the VCR are
switched off before connecting the cables.
1Connect one end of the RCA A/V cable into the VIDEO INPUT
socket on the front of the VCR.
2Plug the other end of the A/V cable into the appropriate output
connector on the other system (VCR or camcorder).
3Connect one end of the RCA audio cable supplied into the AUDIO
INPUT sockets on the front of the VCR. ➢
Take care to respect the colour coding of the left and right channels.
4Plug the other end of the audio cable into the appropriate output
connectors on the other system (VCR, camcorder or Hi-Fi sound system).
1
33
