Toshiba W522CG User manual

SQPB
Video Cassette Recorder
W522CG
OWNER’S MANUAL
AC68-02123L
W522CG ENG new(1-9) 2/20/04, 11:151

2
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC
thatprovidesguidelinesforpropergroundingand,inparticular,specifiesthatthecablegroundshall
beconnectedtothegroundingsystemofthebuilding,asclosetothepointofcableentryaspractical.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alertthe userto thepresence ofuninsulated
“dangerousvoltage”withintheproduct’sen-
closure that may be of sufficient magnitude
to constitute a risk of electric shock to per-
sons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presenceofimportantoperatingandmainte-
nance(servicing)instructionsintheliterature
accompanying the appliance.
SAFETY PRECAUTIONS
User Installer Caution: Changes or modification made to this equipment not expressly approved by
ToshibaCorporationorparties authorized by Toshiba Corporationcouldvoid the user’s authority to
operate the equipment.
Contact: Toshiba America Consumer Products, L.L.C.
Address: 1420 Toshiba Drive, Lebanon, TN 37087
Telephone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)This device may notcauseharmful Interference, and (2)thisdevicemust accept any
interference received, including interference that may cause undesired operation.
FCC Notice: “Declaration of Corformity”.
Product Name: Video Cassette Recorder
Model Number: W522CG
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN
OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE
ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALI-
FIED PERSONNEL ONLY.
W522CG ENG new(1-9) 2/20/04, 11:152

3
INTRODUCTION
It is permissible to record television programs, film, video tapes and other material only in
the event that third party copyrights and other rights are not violated.
IMPORTANT PRECAUTIONS
Save Original Packing Materials
Theoriginalshippingcartonandpackingmaterialswillcomeinhandyifyoueverhavetoship
yourVCR.Formaximumprotection,repackthesetasitwasoriginally packed at the factory.
Avoid Volatile Liquid
Do not use volatile liquids, such as an insect spray, near the unit.
Do not leave rubber or plastic products touching the unit for a long time. They will mar the
finish.
Moisture Condensation
Never operate this unit immediately after moving it from a cold location to a warm location.
When the VCR is exposed to such a change in temperature, moisture may condense on the
cylinder inside, one of its most crucial internal parts. To prevent the VCR from possible
damage, do not use the unit for at least 2 hours when there is an extreme or sudden change
in temperature.
Compatibility
This video cassette recorder (VCR) is compatible with any other VCR bearing the
mark. HQ VHS equipment is also compatible with existing, non-HQ VHS equipment.
As an ENERGY STAR Partner, TOSHIBA has determined that this product or
product model meets the ENERGY STAR guidelines for energy efficiency.
®
®
Copyright
In the spaces provided below, record the Model and Serial No. located at the rear of your video
cassette recorder.
Model No. Serial No.
Retain this information for future reference.
W522CG ENG new(1-9) 2/20/04, 11:153

4
1. Read owner’s manual
After unpacking this product, read the owner’s manual carefully, and follow all
the operating and other instructions.
2. Power Sources
This product should be operated only from the type of power source indicated
on the marking label. If you are not sure of the type of power supply to your
home, consult your product dealer or local power company. For products
intendedtooperatefrombatterypower,orothersources,refertotheoperating
instructions.
3. Grounding or Polarization
This product may be equipped with a polarized alternating current line plug (a
plug having one blade wider than the other). This plug will fit into the power
outletonly one way.This is asafetyfeature. Ifyouare unabletoinsert theplug
fullyintotheoutlet,tryreversingtheplug.Iftheplugshouldstillfailtofit,contact
your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
4. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure
reliable operation of the product and to protect it from overheating, and these
openings must not be blocked or covered. The openings should never be
blockedbyplacingtheproductonabed,sofa,rugorothersimilarsurface.This
productshouldnotbeplacedinabuilt-ininstallationsuchasabookcaseorrack
unless proper ventilation is provided or the manufacturer’s instructions have
been adhered to.
5. Heat
Theproductshouldbesituatedawayfromheatsourcessuchasradiators,heat
registers, stoves, or other products (including amplifiers) that produce heat.
IMPORTANT SAFETY
INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS
GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT.
RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can
result in electric shock or fire hazard. The safeguards incorporated in this unit will protect
you if you observe the following procedures for installation, use and servicing. This unit is
fully transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO
DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
ONLY.
W522CG ENG new(1-9) 2/20/04, 11:154

5
6. Water and Moisture
Do not use this product near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub; in a wet basement; or near a swimming pool and
the like.
7. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
8. Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked
onorpinchedbyitemsplaceduponoragainstthem,payingparticularattention
tocords atplugs, convenience receptacles,and thepointwhere theyexit from
the product.
9. Overloading
Do not overload wall outlets; extension cords, or integral convenience recep-
tacles as this can result in a risk of fire or electric shock.
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ELECTRIC
SERVICE
EQUIPMENT GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC – NATIONAL ELECTRICAL CODE
S2898A
10. Outdoor Antenna Grounding
Ifan outside antennaorcable systemisconnected totheproduct, be surethe antenna orcablesystem
isgroundedsoasto provide some protectionagainst voltagesurges and built-upstatic charges. Article
810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
11. Power Lines
Anoutsideantennasystemshouldnotbelocatedinthevicinityofoverheadpowerlinesorotherelectric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
INTRODUCTION
W522CG ENG new(1-9) 2/20/04, 11:155

6
16. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
a) When the power-supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions as an improper adjustment of other controls
may result in damage and will often require extensive work by a qualified technician to restore the
product to its normal operation.
e) If the product has been dropped or damaged in any way.
f) When the product exhibits a distinct change in performance - this indicates a need for service.
12. Lightning
Foraddedprotectionforthisproductduring storm, orwhenit is leftunattended
and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.
13. Object and Liquid Entry
Neverpushobjects of anykind intothisproductthrough openings astheymay
touch dangerous voltage points or short-out parts that could result in a fire or
electric shock. Never spill liquid of any kind on the product.
15. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table.
The product may fall, causing serious injury to a child or adult, and serious
damage to the product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product. Any mounting of
the product should follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
A product and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the product and cart
combination to overturn.
14. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
17. Servicing
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
18. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
19. Safety Check
Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper
operating condition.
S3125A
IMPORTANT SAFETY
INSTRUCTIONS
W522CG ENG new(1-9) 2/20/04, 11:156

7
INTRODUCTION
Provides important notes and general
explanation of the VCR, including names of the
buttons, jacks, etc.
SAFETY PRECAUTIONS .................... 2
IMPORTANT PRECAUTIONS ............. 3
IMPORTANT SAFETY
INSTRUCTIONS................................... 4
Contents .............................................. 7

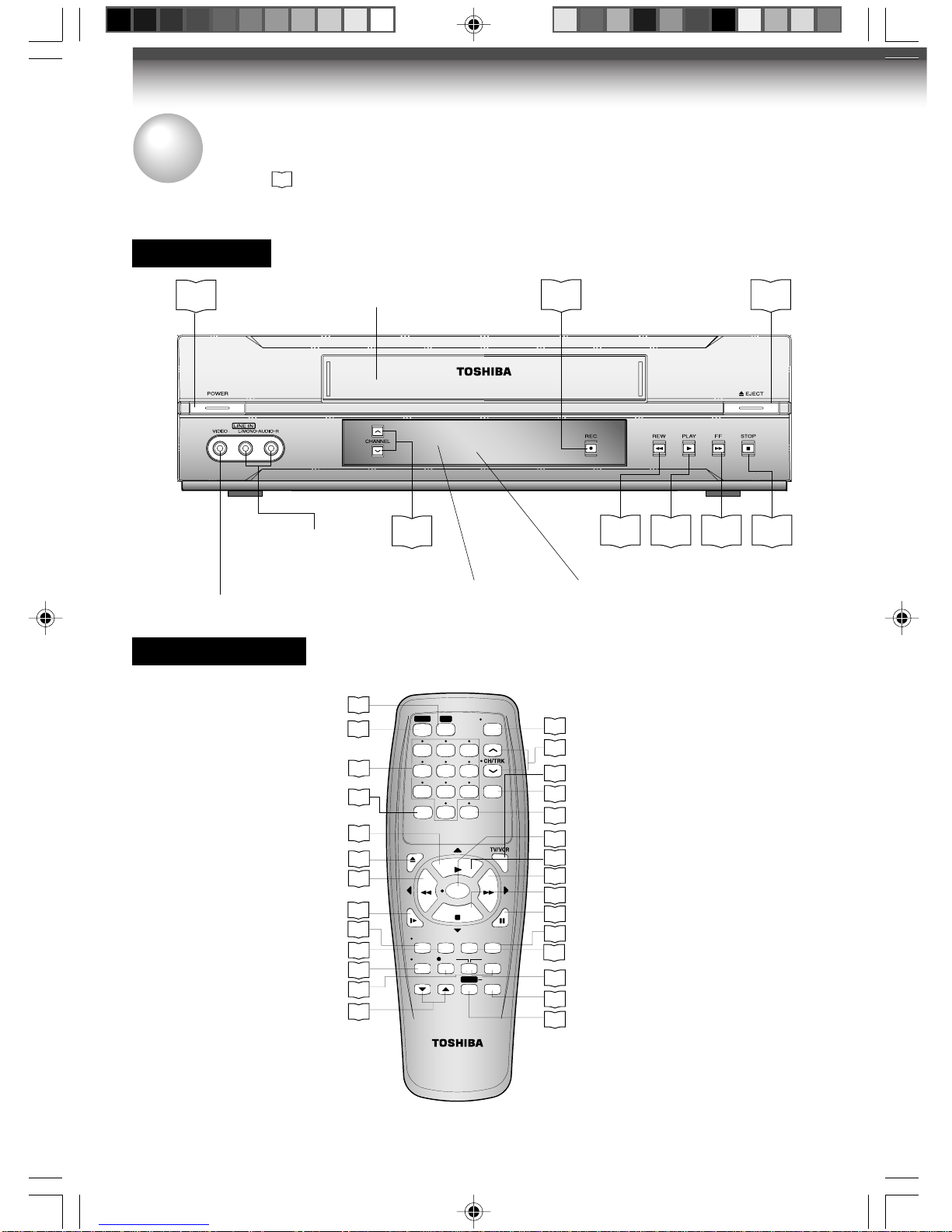

Identification of Controls ................... 8
•Front Panel
•Remote Control
•VCR Display
•Rear Panel
PREPARATION
Explains what you need to do before operating
the VCR.

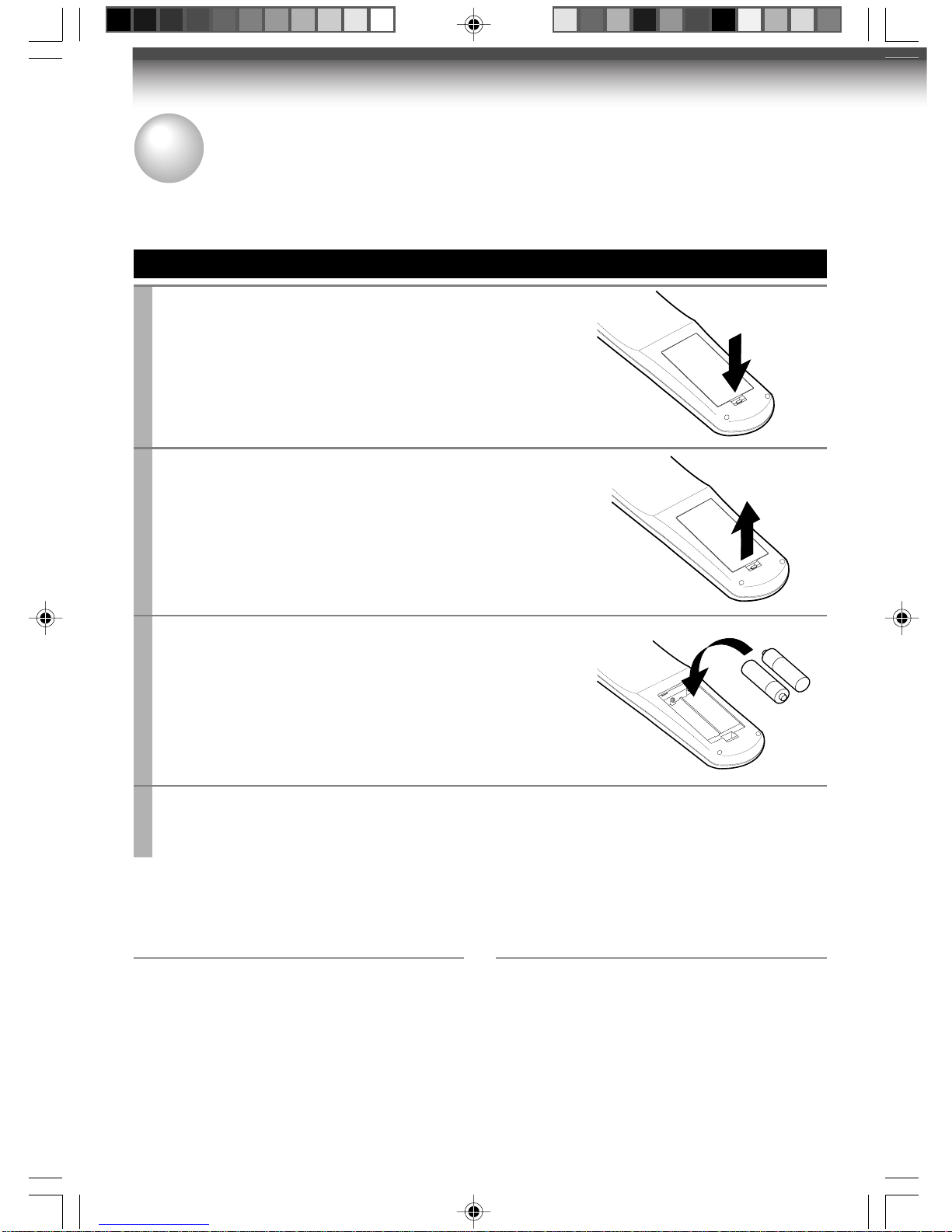

How to Use the Remote Control...... 10

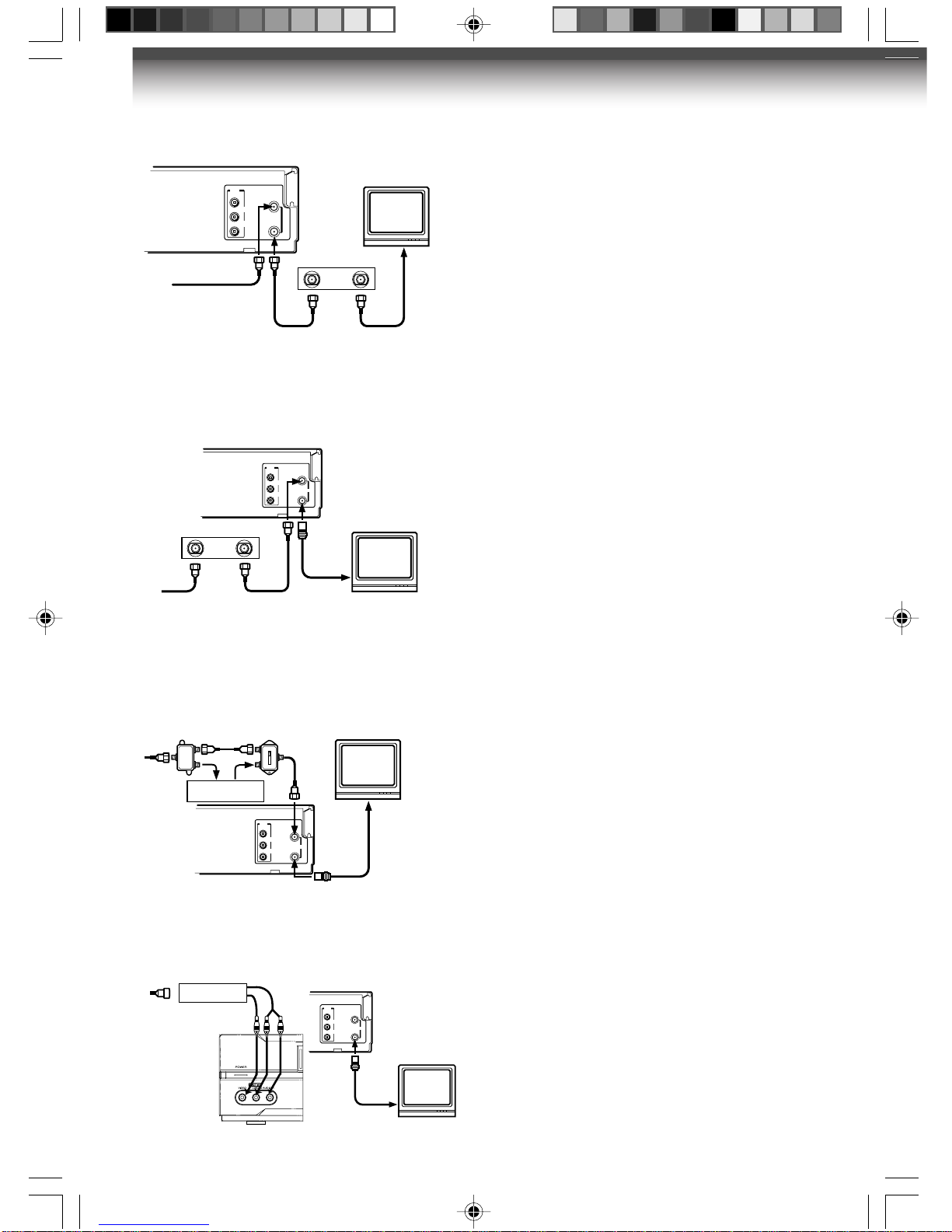

Connections ...................................... 11
Auto Set Up ....................................... 13
Initial Settings Using On-screen
Display ............................................... 14

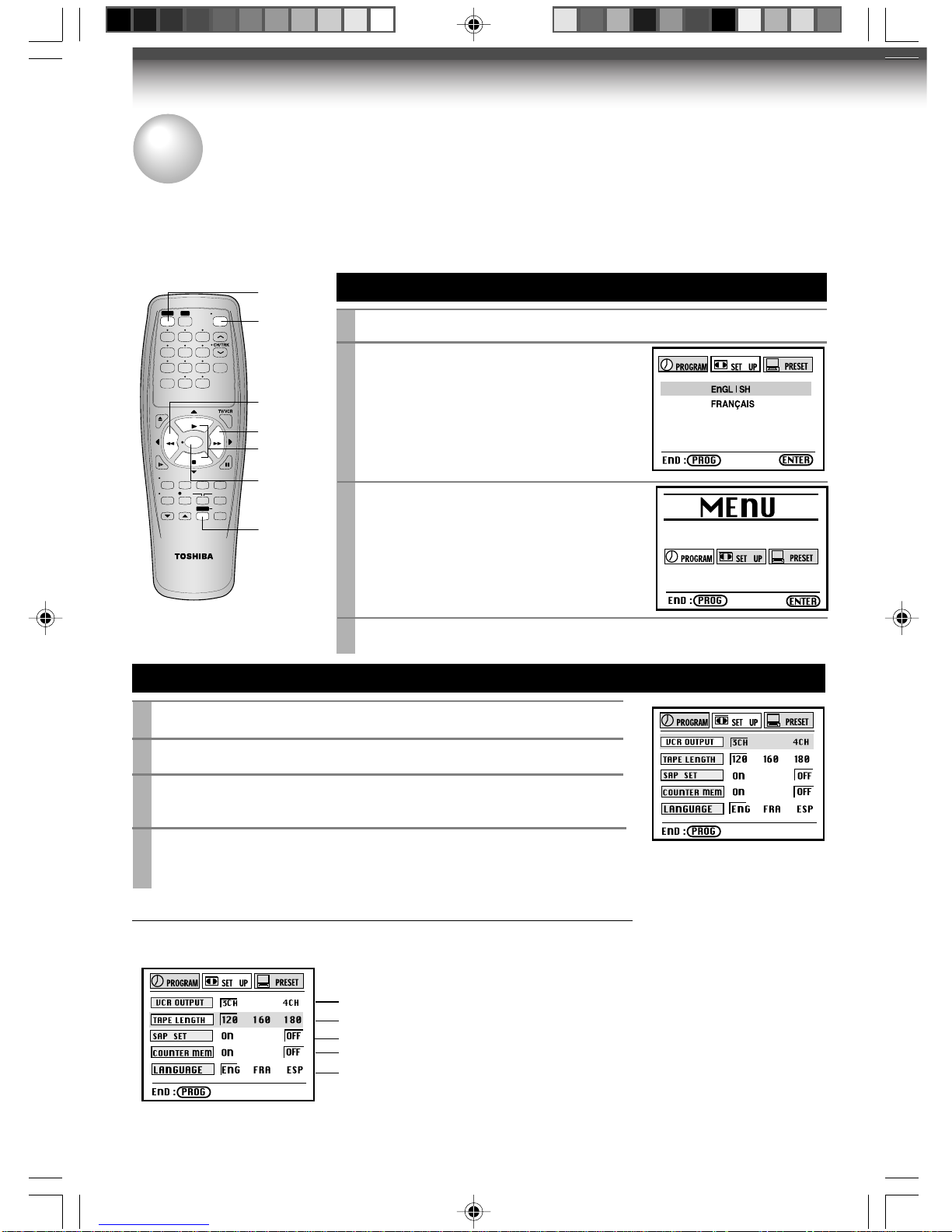

•Setting the Language
•Setting the VCR output channel
•Optional settings on the SETUP
screen

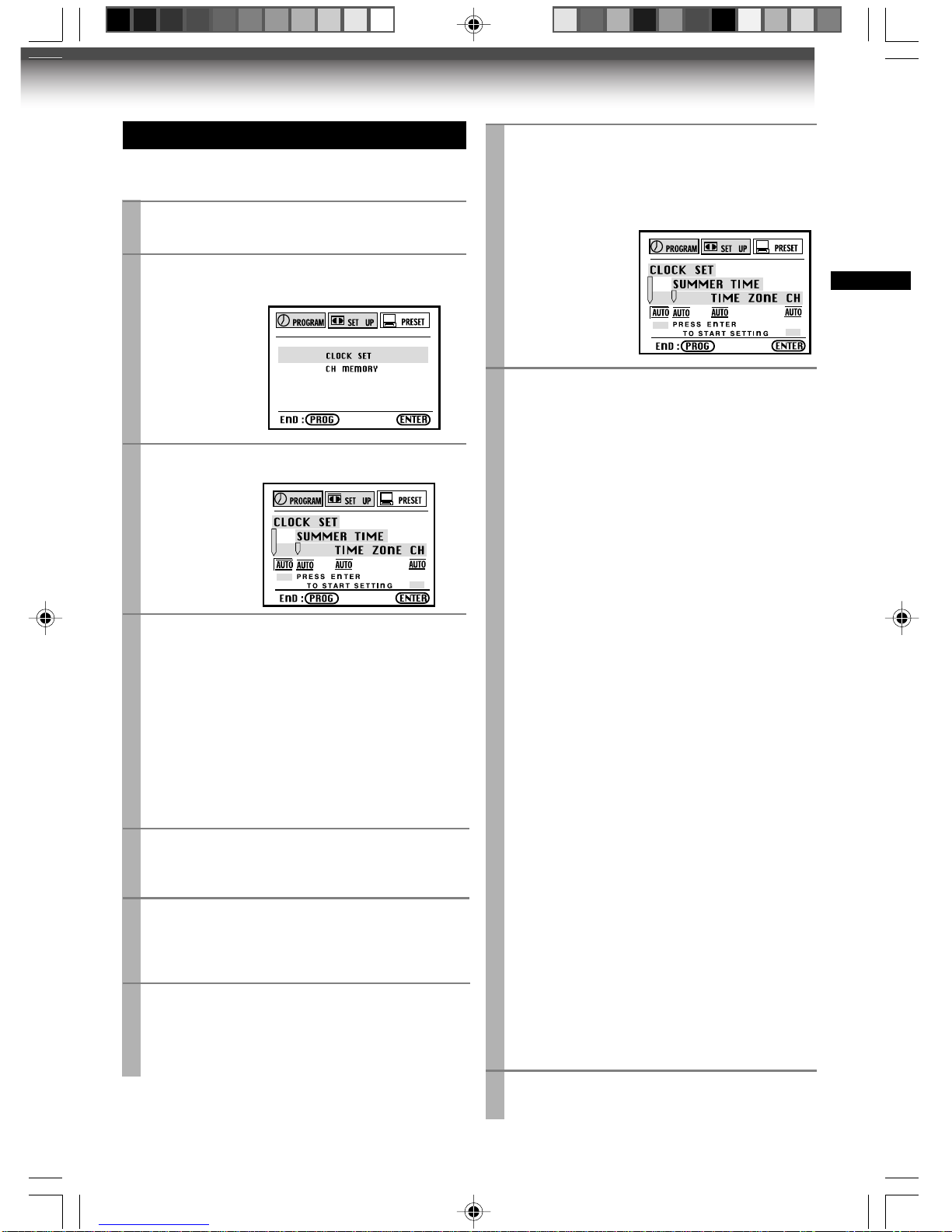

•Setting the Clock

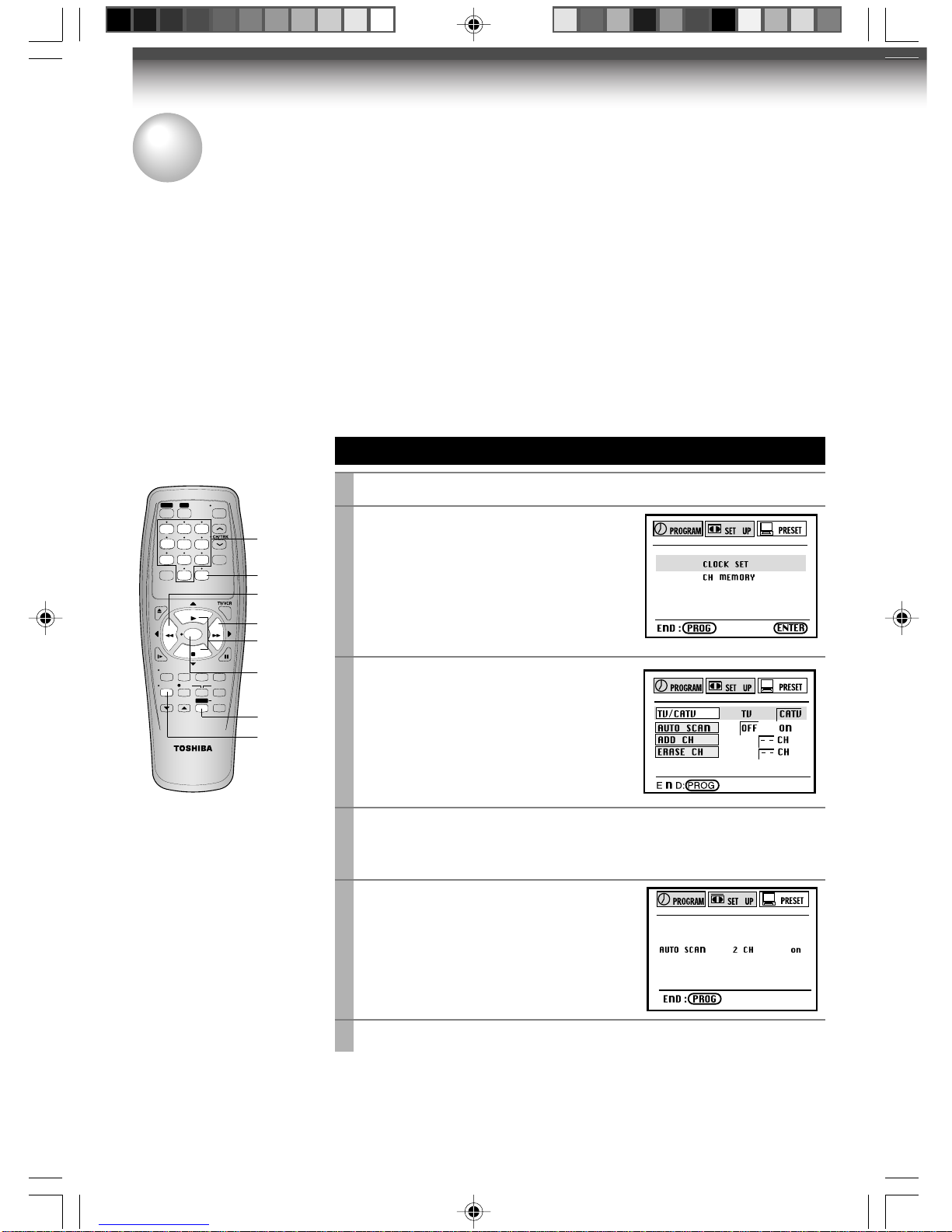

Storing Channels on the VCR.......... 16

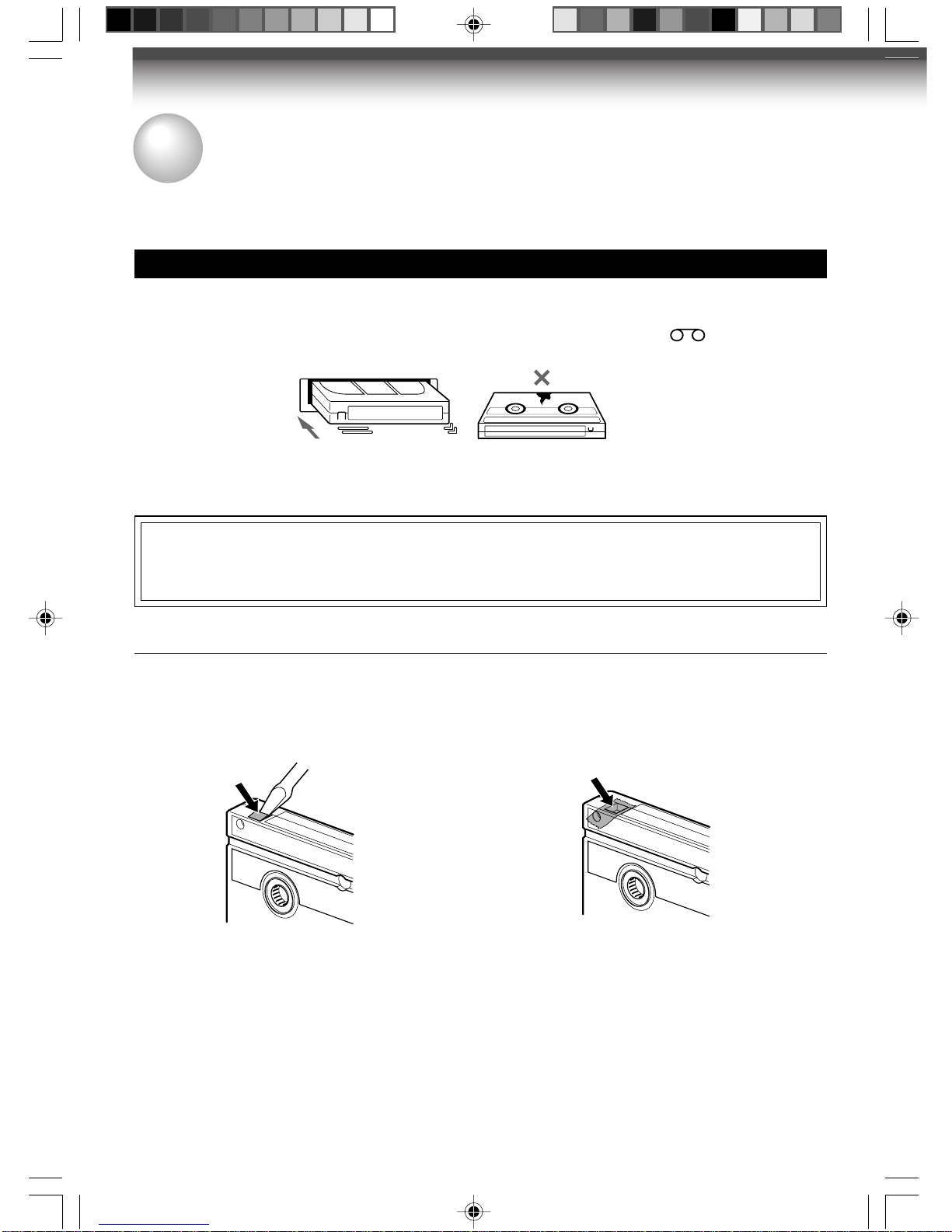

Video Cassette Use .......................... 18
PLAYBACK
Explains variable functions concerning
playback.
Playback ............................................ 19
•Basic Playback
•Double Speed Playback
•S-VHS Quasi Playback (SQPB)
Variable Speed Playback ................. 20
•Picture Search
•Commercial Movie Skip
•Still Picture
•Frame Advance
•Slow-motion Picture
Useful Functions in Tape
Operation........................................... 22
•Counter Function
•Tape Remaining Time
•Memory Stop Feature (Zero Return)
RECORDING
Explains recording functions.
Recording a TV Program.................. 24
•Basic Recording
•Watching a TV program while
recording another
•Skipping unnecessary scenes while
recording
•Recording off time setting
Timer Program Recording ............... 25
MTS Broadcast Compatibility.......... 28
ADDITIONAL INFORMATION
Remote Control
for TOSHIBA TVs .............................. 29
Before Calling Service Personnel ... 30
Specifications ................................... 31
Accessories ...................................... 31
LIMITED WARRANTY............. Back cover
Contents
INTRODUCTION
W522CG ENG new(1-9) 2/20/04, 11:157

8
Front Panel
Remote Control
* These buttons are used to control the
cursor on the screen.
INTRODUCTION
Identification of Controls
See the page in for details.
This manual shows the names of buttons in italics.
To operate your TV.
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TVVOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
29
19
19
21
17
18
14
123
6
5
4
100
9
87
0
STOP
FF
REW
PLAY
ENTER
24
22
24
22
29
A.SELECT
28
POWER
CH/TRK
CM SKIP
100
ENTER
PLAY *
FF *
STOP *
PROG.
CANCEL
TIMER
COUNT RESET
SP/SLP
PAUSE/STILL
TV VOL
REC
I.SELECT
REMAIN/COUNTER
DISPLAY
SLOW
REW *
EJECT
PLAY *
A.SELECT
Number
buttons
VCR
TV
19
14
17
19
19
14
14
19
20
24
22
26
27
24
TV/VCR
20
To operate this VCR.
14
24
24 18
19 19 19 19
LINE IN VIDEO jack
LINE IN AUDIO
( L/MONO, R) jaks
EJECTREC
Cassette Compartement
POWER
CHANNEL
Remote
sensor
REW PLAY FF STOP
VCR Display
W522CG ENG new(1-9) 2/20/04, 11:158

9
INTRODUCTION
VCR Display
Multifunctional
indicator
VCR indicator
RF OUT (TO TV) terminal
Timer recording indicator
VCR
TIMER
Hi-Fi
LINE IN Front jacks
If the connected equipment is monaural (has one audio output jack), connect the L (MONO) side, the same
sound is recorded on both L and R on the Hi-Fi track.
Hi-Fi indicator
Rear Panel
LINE OUT VIDEO jack
Cassette indicatorCassette indicator
RF IN (FROM ANT.) terminalLINE OUT AUDIO jack (L,R)
TO Wall outlet
OUT
(TO TV)
IN
(FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
W522CG ENG new(1-9) 2/20/04, 11:159

10
Setting up the Remote Control
1
Open the battery compartment lid on the
rear panel.
2
Install 2 batteries (“AA” size) following
the polarity diagrams.
3
Close the battery compartment lid.
4
Point the remote control at the VCR and press the buttons within the operating range.
Distance: within about 7 m from the front of the remote sensor
Angles: within about 30˚ in every direction
Notes on batteries
•The life of the batteries is about 1 year
depending on the conditions of use.
•If the remote control does not operate correctly,
replace all batteries with new ones.
•If the remote control is not to be used for a
long period of time, remove the batteries to
avoid possible damage from battery corrosion.
Caring for the remote control
•Do not expose the remote sensor of the VCR
to a strong light source such as direct sunlight
or illumination (especially high-frequency
lighting) when using the remote control.
•Be careful not to spill water on the remote
control or to place it on anything wet, and avoid
sharp impacts.
How to Use the Remote Control
This section explains how to get ready for remote control operation.
PREPARATION
+
+
W522CG ENG new (10-19) 2/20/04, 11:1610

11
PREPARATION
Antenna/VCR/TV Connection
1
Disconnect the antenna cable from your TV and connect it to the RF IN terminal on the
VCR.
2
Connect the RF OUT terminal to the TV.
AUDIO/VIDEO Connections
TheAUDIO/VIDEO jacks are also available to connect your TV.
When connected your TV using the
AUDIO/VIDEO OUT jacks
To watch video pictures, set the video input mode
on your TV. For the video input mode, refer to the
manual of your TV.
Connections
Before you use this VCR, it is necessary to connect it to your TV. Several ways of connecting are
available depending on your use of TV or cable box. Select one which is applicable to your equipment.
PREPARATION
Cable Connection
Choose one of the below according to your usage of the cable box.
Incoming cable
VHF UHF
VHF/UHF
OUT
( TO TV)
IN
( FROM ANT.)
RF
OUT
( TO TV)
IN
( FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
LINE OUT VIDEO VIDEO IN
AUDIO INLINE OUT AUDIO
OUT
( TO TV)
IN
( FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
OUT
(TO TV)
IN
(FROM ANT.)
L
R
LINE
OUT
VIDEO
AUDIO
1
2
VHF/UHFcombination
antenna VHF antenna
only UHF antenna
only
Antenna splitter
(not supplied)
This set-up will enable you to:
–record an unscrambled channel.
–watch an unscrambled channel while recording it.
–record an unscrambled channel while watching
another (only when you connect a cable-
compatible TV).
You will need to:
•to record a channel while watching another, press
TV/VCR on the remote control to turn off the
“VCR”indicator in the VCR display and select a
desired channel on the TV (only when you connect
a cable-compatible TV)
•select TV channel 3 or 4 to receive video signals.
(See page 14)
.
W522CG ENG new (10-19) 2/20/04, 11:1611

12
This set-up will enable you to:
–watch an unscrambled or scrambled channel
while recording it.
–record an unscrambled channel while watching
another unscrambled channel (only when you
connect a cable-compatible TV).
•A/B switch “A”:record and watch an unscrambled
channel which comes bypassing
the cable box.
•A/B switch “B”:record and watch a scrambled or
unscrambled channel coming
through the cable box.
Connections (continued)
This set-up will enable you to:
–watch or record a channel through the cable box
via the LINE IN (AUDIO/VIDEO) jacks.
You will need to:
•press I.SELECT so that the VCR display shows
“L”.
OUT
( TO TV)
IN
(FROM ANT.)
L
R
LINE
OUT
VIDEO
AUDIO
OUT
( TO TV)
IN
( FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
Incoming cable
Cable box
OUT
IN
Incoming cable
Cable box
OUTIN
OUT
( TO TV)
IN
( FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
A
B
A
B
A
B
A/B switch
Cable box
OUT
( TO TV)
IN
( FROM ANT.)
RF
L
R
LINE
OUT
VIDEO
AUDIO
Cable box
This set-up will enable you to:
–record an unscrambled channel.
–watch an unscrambled channel while recording it.
–record an unscrambled channel while watching
another (scrambled or unscrambled).
You will need to:
•set TV channel to the output channel of the cable
box.
turn on the cable box and select cable channel 3
or 4 according to the output channel of the VCR.
•to record a channel while watching another, press
TV/VCR on the remote control to turn off the
“VCR”indicator in the VCR display and select a
desired cable channel on the cable box.
•
This set-up will enable you to:
–watch an unscrambled or scrambled channel
while recording it.
–record any channels through the cable box.
You will need to:
•set VCR channel to the output channel of the
cable box, and select a desired cable channel on
the cable box.
•while the VCR is turned off or the “VCR”indicator
is not lit in the VCR display, set TV channel to the
output channel of the cable box.
•set TV channel 3 or 4 to receive video signal.
(See page 14. )
Front AV
W522CG ENG new (10-19) 2/20/04, 11:1612

13
PREPARATION
Auto Set Up
The VCR’s clock and tuner channels are set automatically when the VCR is plugged into the AC outlet.
PREPARATION
Auto Set up
1
Plug the VCR into the AC outlet
2
“Auto”blink while the VCR automatically sets the clock using
the data broadcast by the local TV stations.
While “Auto”is blinking, channel memory is also set
automatically.
3
When Auto set up has been completed, the VCR is on
standby mode.
Notes
•It may takes several minutes during the Auto set-up
•Press CANCEL on the remote control to cancel the auto set-up.
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TV VOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
123
6
5
4
100
9
87
0
STOP
FF
REW
PLAY
ENTER
A.SELECT
CANCEL
W522CG ENG new (10-19) 2/20/04, 11:1613

14

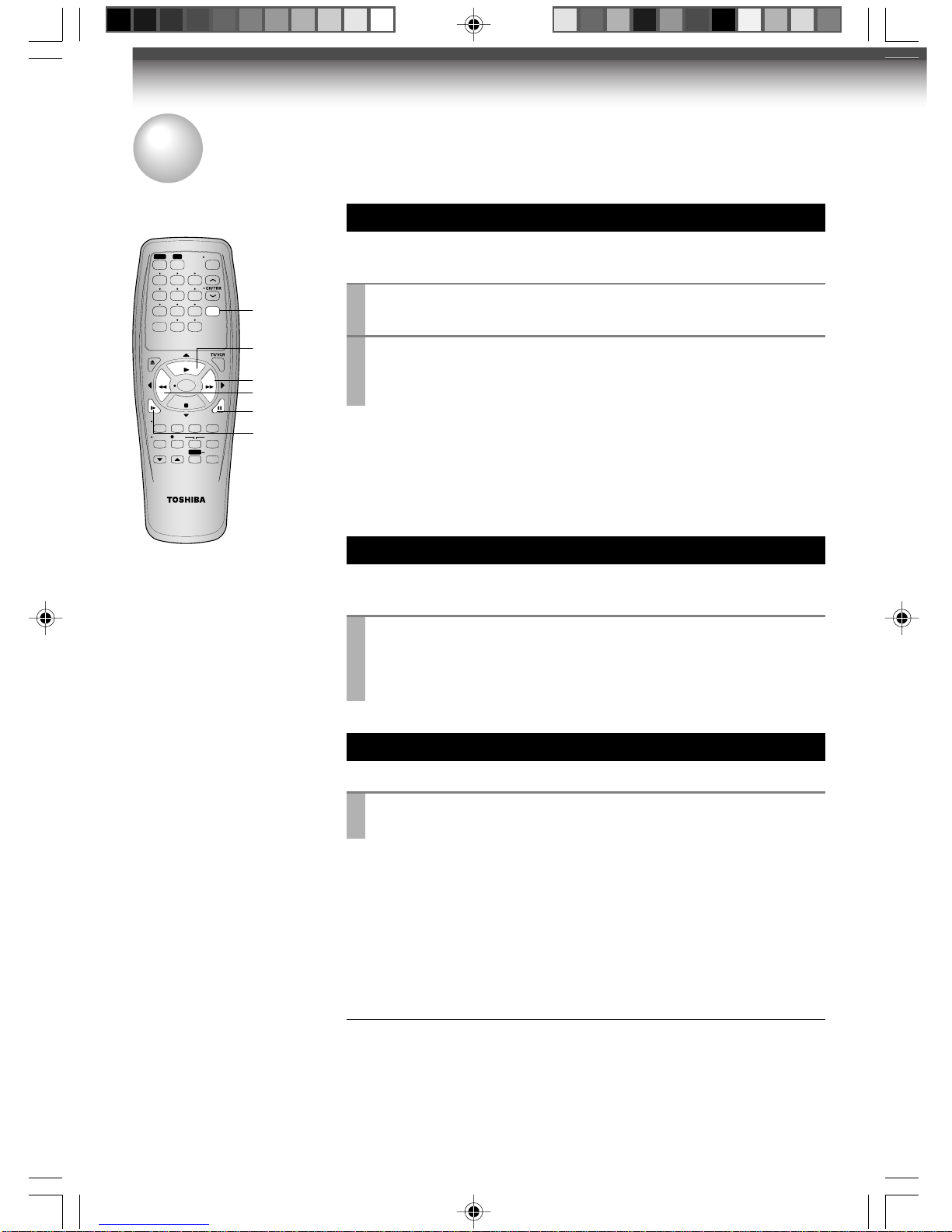

Setting the Language
1
Press POWER to turn on the VCR.
2
Press PROG..
The following screen appears on the TV.
PREPARATION
Initial Settings Using On-screen Display
The language selection and clock setting must be set first when VCR is first plugged in or after it
encounters a power failure.
Preparation
•Turn on the TV, and select the video channel (3 or 4), or the video input mode if you made the Audio/Video
connection (page 11).
•Press VCR to set the remote control operating the VCR.
4
Press PROG. to return to the normal TV screen.
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TV VOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
123
6
5
4
100
9
87
0
A.SELECT
ENTER
STOP
FF
REW
PLAY
VCR
POWER
REW
FF
PLAY, STOP
PROG.
ENTER
3
Select the language using PLAY or
STOP and press PROG..
The screen turns to the MENU screen.
Optional settings on the SET UP screen
Other optional settings can be made. Press ENTER while “SET UP”is
selected on the MENU screen. The screen turns to the SET UP screen.
To exit, press PROG. once.
Page 22
Page 28
Page 23
To change the language, move down here and set to the desired one.
Page 14
1
Press PROG..
2
Select SET UP using FF or REW and press ENTER.
3
Select the VCR OUTPUT using PLAY or STOP and set VCR
output channel using FF or REW.
Setting the VCR Output Channel
4
Press PROG. to exit.
A message will appear indicating the VCR output channel is changed.
W522CG ENG new (10-19) 2/20/04, 11:1614

15
PREPARATION
8
Press ENTER to start the “AUTO”clock
set feature.
After the VCR is turned off, it automatically
updates the clock using the data broadcast
by the local TV stations.
* The clock is
revised by
broadcasting
signal at 8:00A.M
every morning.
9
Select the options using FF or REW.
Change the data using PLAY or STOP.
1) Set “SUMMER TIME
(Daylight-Saving Time)”.
DST start: Daylight-saving time begins on
the first Sunday in April. Because the
clock automatically changes from 2:00 AM
to 3:00 AM (forward one hour).
DST end: Daylight-saving time ends on
the last Sunday in October. The VCR
clock automatically changes from 2:00 AM
to 1:00 AM (back one hour).
Remember that any part of a scheduled
Timer Recording that falls between these
two times will not be recorded.
AUTO: the VCR is using the clock data
Broadcast by the local TV stations.
IN: You want to use the DST function, and
you are living in the area that apply
Daylight-saving time.
OUT: You are not living in the area that
apply Daylight-saving time and you do not
want to use DST function.
2) Set “TIME ZONE”.
If you select “AUTO”for your time zone,
the VCR sets the clock using the first
Coordinated Universal Time information it
finds. If the time is not correct, select
another time zone or use the “MANU”
option.
3) Set “CLOCK DATA CH”.
If you don't know the clock data channel,
select “AUTO”. The VCR will scan
automatically to tune the channel carrying
the clock data.
If AUTO CLOCK SET is unsuccessful, set the
time and date through the “MANU”clock
set menu selection.
10
Press PROG . .
Now the clock starts.
5 Move to the next using FF
(To move back,press Rew.)
6Vary the digits to set the hour.
PLAY : To increase.
STOP : To decrease.
7 Repeat step 5 and 6 to set the minutes,
month, day , and the year (by the last
two digits).
Proceed to step 10 to start the clock.
Setting the Clock
Example: To set the clock to 2:30 p.m. on
August 25 (summer time) 2004
1
Press PROG . .
The MENU screen appears on the TV.
2
Select “PRESET”using FF or REW, and
press ENTER.
3
Press ENTER to select “CLOCK SET”.
4
Select “AUTO”or “MANU”using PLAY or
STOP.
AUTO: The VCR automatically sets or adjusts
the clock.
If you select “AUTO”mode, proceed to step 8.
MANU: You can set the clock manually.
If you select “MANU”mode. Select “SUMMER
TIME “using FF Set to “IN“or “OUT“for the
SUMMER (daylight saving ) time using PLAY or
stop.(For “IN”and “OUT”selections, see the
W522CG ENG new (10-19) 2/20/04, 11:1615

16
Incoming Antenna/Cable(CATV) Signals
The VCR scans through all receivable TV and CATV channels and stores only the active
ones in your area into the memory. Once the storing is finished, you can select a desired
channel using CH/TRK.
Preparation
•Turn on the TV, and select the video channel (3 or 4) or the video input mode if you made the Audio/Video
connection (page 11).
•Press I.SELECT so that the channel number will appear if “L”is displayed in the VCR display.
Incoming Antenna/Cable(CATV) Signals
1
Press PROG. to display the MENU screen.
2
Select “PRESET”using FF or REW,
and press ENTER.
3
Select “CH MEMORY”using PLAY
or STOP, and press ENTER.
4
Set “TV/CATV“to “TV”or “CATV”using FF or REW.
TV: To store channels received via the antenna.
CATV: To store channels received via the incoming cable.
5
Select “AUTO SCAN”using PLAY or
STOP, and press FF to set to “ON”.
The VCR starts scanning and the
channels are stored in the VCR in
ascending order. When the scanning is
finished, the screen automatically
returns.
6
Press PROG . twiceto exit.
PREPARATION
Storing Channels on the VCR
This section is required if you receive only normal TV or unscrambled cable channels.
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TV VOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
A.SELECT
ENTER
STOP
FF
REW
PLAY
REW
FF
PLAY, STOP
1,6
ENTER
123
6
5
4
9
87
0
I.SELECT
100
100
Number
buttons
W522CG ENG new (10-19) 2/20/04, 11:1716

17
PREPARATION
To add channels
To erase channels
3)Enter a channel number of 1 to 125 using
number buttons.
For more than 100 number, first press 100.
For CATV channels, refer to the chart below.
(For other orders, check with your cable
company.)
4)Repeat steps 2) and 3) to add or erase
channels as necessary.
5)Press PROG.two times to exit.
Selecting stored channels
Once the active channels have been stored, you
can select the channels in two ways below.
Number buttons
To enter digits of the channel number.
•For one-digit number, enter 0 before.
•For more than 100 number, first press 100.
•Each number button needs to be pressed
within 2 seconds.
CH/TRK buttons
To shift up or down the stored channel numbers.
Adding or erasing channels
Adding channels
If a desired channel cannot be scanned
automatically because of a weak signal, it can be
added to the memory.
Erasing channels
You can erase a stored channel from the memory
if it is unnecessary.
1)Follow steps 1to 3 of “Incoming Antenna/
CATV Signals”.
2)Select “ADD CH”or “ERASE CH”using PLAY
orSTOP.
Channel reference chart
Number on the VCR
Corresponding channel number TV
CATV STD (HRC/IRC)
CH NUMBER 1 2 3 456789
–23456789
1(A-8) 234 5(A-7) 6(A-6) 7 89
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
10 11 12 13 A B C D E F G H I J K L M N O P Q
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
R S T U V W AA BB CC DD EE FF GG HH II JJ KK LL MM NN OO
52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 …
52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 ––
…
PP QQ RR SS TT UU VV WW XX YY ZZ AAA BBB 65 66 67 68 69 70 71 …
93 94 95 96 97 98 99 100 101 102 103 …121 122 123 124 125
–––––––––––
…–––––
93 94 A-5 A-4 A-3 A-2 A-1 100 101 102 103 …121 122 123 124 125
CATV signals
•STD (standard) cable TV signals
•HRC (Harmonic Related Carriers) cable TV signals
•IRC (Incremental Related Carriers) cable TV signals
IRC is also called ICC (Incremental Coherent Carriers)
W522CG ENG new (10-19) 2/20/04, 11:1717

18
Video Cassette Use
Loading a cassette
Push the cassette into the cassette compartment with the window side facing up and the
label side towards the front. The VCR is automatically turned on. The indicator will
appear in the VCR display.
Ejecting a cassette
Press EJECT. The cassette is ejected from the cassette compartment.
Warning
Do not insert your hands or any foreign objects into the compartment. This may result
in injury or damage. Take special care with children to avoid accidents.
Precautions when using video cassettes
Video cassettes have a safety tab to prevent accidental erasure. If the tab has already been removed,
recording cannot be performed.
To prevent accidental erasure
Remove this safety tab with a screwdriver. To record again Cover the tab hole with adhesive tape.
•Avoid exposing cassettes to direct sunlight. Keep them away from heaters.
Avoid extreme humidity, vibrations or shock, strong magnetic fields (near a motor, transformer or
magnet) and dusty place.
PREPARATION
Video Cassette Use
W522CG ENG new (10-19) 2/20/04, 11:1718

19
PREPARATION
Adjusting the tracking
When playback starts, the VCR automatically adjusts the tracking for clear pictures and sound
(Digital Auto Tracking).
If the VCR cannot locate the best possible tracking point, hold down one of CH/TRK to adjust the
tracking manually.
Notes
•During the adjusting, the playback picture and sound may be distorted.
•The digital auto tracking is activated only in the playback mode.
•The noise on the screen may not be completely eliminated depending on the tape used, especially when the
tape was recorded on another VCR.
Basic Playback
1
Load a recorded cassette.
Power is turned on.
If the cassette has no safety tab,
playback starts automatically.
2
Press PLAY to start playback.
3
To stop playback, press STOP.
To resume normal playback Press PLAY.
Rewinding / Fast-forwarding
Press REW or FF in the stop mode.
S
SLP
VCR
REC L
TIMER
PLAYBACK
Playback
This section explains the basic playback operation.
Preparation
•Select the video channel (3 or 4) or video input mode on the TV.
•Press VCR to set the remote control operating the VCR.
ST
VCR L
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TV VOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
123
6
5
4
100
9
87
0
ENTER
A.SELECT
STOP
FF
REW
PLAY
CH/TRK
2
FF
REW
3
1
Press PLAY during playback.
A tape runs at double speed
playback.
Double Speed Playback
S-VHS Quasi Playback (SQPB)
•This VCR can also play back at tape which is recorded in S-VHS format.
But the playback pictures does not have the same quality and resolution as the original S-VHS
playback picture.
•This VCR cannot record in S-VHS format.
•SQPB is an abbreviation for S-VHS Quasi Playback.
VCR
PLAYBACK
W522CG ENG new (10-19) 2/20/04, 11:1719

20
Still Picture
A picture freezes so that you can watch closer.
1
Press PAUSE/STILL during playback.
The picture freezes.
To resume normal playback
Press PAUSE/STILL
again.
Notes
• The still mode is automatically cancelled after about 5 minutes and returns
to normal playback.
• The still picture may shake if a picture of a fast-moving object or scene is
frozen. This is not a defect in the unit.
Adjusting Still Picture Stability
If the still picture is distorted or flickers, hold down one of CH/TRK until
the picture becomes stable.
Note
The distortion of the still picture may not be eliminated completely.
Commercial Movie Skip
You can skip a portion of playback you do not want ( such as a
commercial ) and then return to normal playback.
1
Press CM SKIP during playback.
The VCR will automatically search forward for 30 seconds
to a maximum of 3 minutes ( six presses ) and then
resume normal playback.
PLAYBACK
Variable Speed Playback
You can play back a tape at various tape speeds.
Picture Search
A tape runs at 5 times or 7 times the normal playback speed so
that you can quickly locate a particular scene.
1
Press FF or REW during playback.
The tape runs at 5 times the normal playback speed.
2
To change the tape speed to 7 times the normal playback
speed, press and hold FF or REW.
If you release it, the tape speed returns to 5 times.
Note
If you press FF or REW during picture search, the mode changes to fast-
forwarding or rewinding.
To resume normal playback
PressPLAY.
SLOW
PAUSE/STILL
REC TIMER
TV
VCR
POWER
I.SELECT
SP/SLP
DISPLAY
TVVOL
COUNTER
PROG. CANCEL
REMAIN/
RESET
COUNT
EJECT
CM SKIP
123
6
5
4
100
9
87
0
STOP
ENTER
A.SELECT
FF
REW
PLAY
PLAY
FF
REW
PAUSE/STILL
SLOW
CM SKIP
