Toshiba RWF-W1669BF(W) User manual

RWF-W1669BF(W)
RWF-W1669BF(K)
Please read the manual carefully before operating the water dispenser.
Retain it for future reference.
Bottom Loading

AC 220-240V
Rated Voltage
Rated Frequency 50/60Hz
10-43℃ humidity ≤90%
100W
Refrigerant R134a/32g
T
Hot water capacity
Cold water capacity
Applicable environment
Climate class
Refrigerating Power
4L/h(≥85°C)
4L/h(≤10°C)
650W
Rated Power
Heating Power 550W
15.9 kg
310x360x1040mm
Product size
Applicable water
Net weight
puried water of 5 gallons
Applicable water pressure ≤0.004MPa
A. SPECIFICATIONS

5
C.
PART NAME
NO.PART NAME
1
water collector assembly
2
3
heating switch
4
cooling switch
5
power supply cord
6condenser
low/empty water pilot lamp
NO.PART NAME
heating pilot lamp
cooling pilot lamp
drain outlet
tap of cold water
tap of hot water
8
9
10
11
12
FRONT REAR
1
2
3
4
5
6
7
8
9
10
11
12
7 lower door

F. GETTING STARTED
6
E. OPERATION PANEL
1.Plug the power supply cord into a properly grounded wall outlet,;
the 3 pilot lamps will light up then go off, one at time ,form
left to right.
4.The low/empty water pilot lamp will ash when the water level
in the bottle is low or when the bottle is empty.
heating pilot lamp
cooling pilot lamp
lacking water pilot lamp
Note: Be sure that the ground pin of the unit’s 3-pin power cord plug is inserted into the
electrical outlet hole for grounding. Also, this hole must be reliably connected to a
grounding provision.
2
3

7
heating
cooling
switch
switch OFF
ON
OF F
ON
(Green)
(Red)
1. Open the lower door.
2. Hang the probe assembly on probe hanger.
3. Place a fresh bottle outside the cabinet.
4. Clean the outside of new bottle with a cloth.
5. Insert the probe into the bottle.
6. push the probe assembly downward until it
7. Slide the bottle into the cabinet and the close
Installing a Water Bottle
Probe
assembly
lower door
probe
hanger
clicks in place and until the tube hits the
First, make sure that the two switches at the rear top portion of the unit are turned OFF.
If these switches are turned ON when the plug is inserted into an outlet, the water dispenser
will be damaged. Plug the power supply cord into a properly-grounded wall outlet. The pump
will then start to move water from the water bottle to the hot and cold tanks and it will take
around 3~4 minutes to ll both tanks for the rst time. During this period, the pump will
continuously run and this is normal.
Supply Electricity
at the rear top
portion of the unit
bottle of the bottle.
door.

Changing Bottles

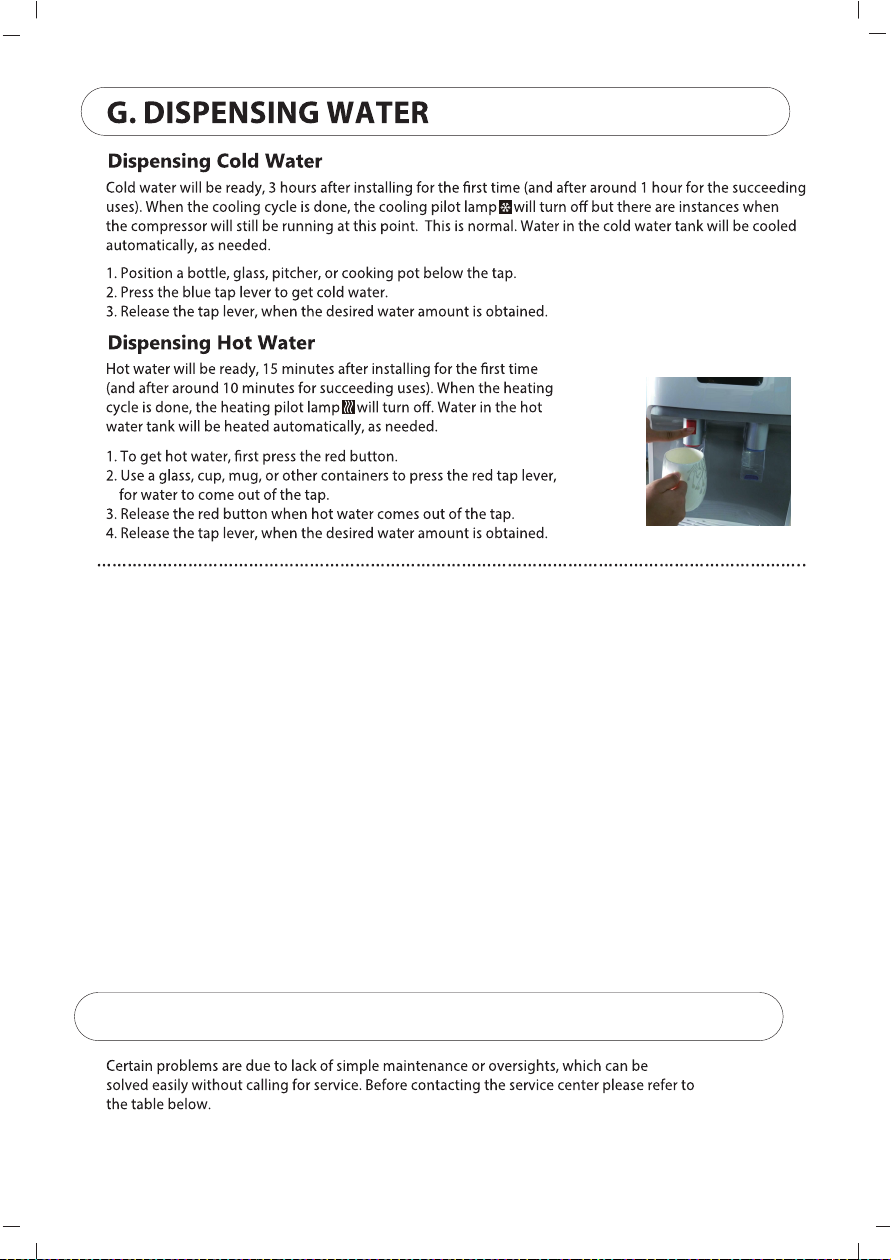

8
H. TROUBLE SHOOTING
The low/empty water pilot lamp will ash to alert you when the water level in the bottle is low
or when the bottle is empty.
Replace the bottle with a lled-one, as soon as possible.
Caution: Do not dispense hot or cold water when the low/empty water pilot lamp is ashing,
as this could empty the tanks and cause the dispenser to overheat.
1. Turn OFF the heating and cooling switches.
2. Open the lower door.
3. Slide the empty bottle out of the cabinet.
4. Remove the probe assembly from the empty bottle and hook the probe assembly on the
probe hanger.
5. Set the empty bottle aside.
6. Place a fresh and lled bottle outside the cabinet. Clean the outside of the new bottle, with
a piece of cloth.
7. Insert the probe into the bottle. Push the probe assembly downward until it clicks in place
and until the tube hits the bottom of the bottle.
8. Slide the bottle into the cabinet and close the door.
9. The pump will then begin to move water from the bottle to the hot and cold tanks. When
the low/empty water pilot lamp stops ashing, you may turn on the heating or cooling
switch, as needed.

9
rear
rear

10
WARNING! To avoid a hazards due to instability of the appliance, it must be xed in accordance
with the instructions given above.
Water dispenser
bracket
screw hole
1800-10-8635567
7. The Water Dispenser must be grounded by connecting the
plug of the power supply cord to a 3-hole electrical outlet
with a reliable grounding connection.
1-2. Loosen and remove one of the two screws at the rear-left
corner of the unit (when you are facing the rear of the unit).
3. Use the same screw that you removed, to x the bracket to
the rear-left corner of the unit.
4. Drill a hole on the oor surface where the water dispenser
will be installed.
5. Fix the bracket to the oor, using the screw provided with the
bracket.
6. Tighten the screw.
