Total SAFT SPH 11 User manual

Important recommendations
■WARNING: Risk of fire, explosion,
or burns. Do not disassemble,
heat above 70°C, or incinerate.
■Never smoke while performing any
operation on the battery.
■For protection, wear rubber gloves,
long sleeves, and appropriate
splash goggles or face shield.
■The electrolyte is harmful to skin
and eyes. In the event of contact
with skin or eyes, wash immediately
with plenty of water. If eyes are
affected, flush with water, and
obtain immediate medical attention.
■Remove all rings, watches and
other items with metal parts before
working on the battery.
■Use insulated tools.
■Avoid static electricity and take
measures for protection against
electric shocks.
■Discharge any possible static
electricity from clothing
and/or tools by touching an
earth-connected part "ground"
before working on the battery.
■Ventilation, in accordance with the
IEC 62485-2 standard, is
mandatory during commissioning
and operation.
1. Receiving the shipment
Unpack the cells immediately upon
arrival. Check the packages and cells
for transport damage. The cells are
normally shipped filled, discharged and
are ready for assembly.
2. Storage
Store the cells indoors in a dry, clean
and cool location (0°C to +30°C /
+32°F to +86°F).
■Do not store in unopened packing
crates. The lid and the packing
material on top of the cells must
be removed.
■Do not store in direct sunlight or
exposed to excessive heat.
■Cells delivered filled and discharged
may be stored for many years before
they are installed.
■Cells delivered charged must not
be stored more than 3 months
(including transport).
SPH Ni-Cd batteries
Installation and operating instructions
3. Installation
3.1. Location
Install the battery in a dry and clean
room. Avoid direct sunlight, strong
daylight and heat.
The battery will give the best perfor-
mances and maximum service life
when the ambient temperature is
between +10°C to +30°C (+50°F to
+86°F).
3.2. Mounting
Verify that cells are correctly
interconnected with the appropriate
polarity and with the connectors are
correctly torque.
The battery connection to load should
be with nickel plated cable lugs.
Recommended torques for connecting
nuts are:
M10 = 10+/- 2 N.m (88 in/lbs +/- 16 in/lbs)
M12 = 15+/- 2 N.m (133 in/lbs +/- 16 in/lbs)
The connectors and terminal nuts
should be corrosion-protected by
coating with a film of neutral vaseline.
Install the IP2X protections according
to the assembly instructions in
Appendix A to have the battery
compliant to IEC 62485-2/
EN 50272-2 standards for IP2X level
protection against electrical shocks.
3.3. Ventilation
During charging, the battery is emitting
gases (oxygen and hydrogen mixture).
Ventilation of the battery room, in
accordance with the IEC 62485-2
standard and local regulations.
3.4. Electrolyte
The electrolyte to be used is: E4
When checking the electrolyte levels,
a fluctuation in level between cells is
not abnormal and is due to the
different amounts of gas held in the
separator of each cell. The level should
be at least 15 mm above the minimum
mark (lower) and there is normally no
need to adjust it.
When the cells are charged, the
electrolyte level can be above the
maximum level mark (upper).
4. Commissioning
Verify that ventilation, in accordance
with the IEC 62485-2 standard,
is provided during this operation.
A good commissioning is important.
Charge at constant current is preferable.
If the current is limit lower than
indicated in the table A, charge for a
proportionally longer time.
After commissioning, the battery shall
be charged permanently according to
section 5.
Prior and during commissioning
charge, record all data requested in
the commissioning report available on
www.saftbatteries.com.
■
For filled and discharged cells
stored up to 1 year,
a commissioning charge is not
required and the cells are ready for
immediate use. 90% state of charge
is reached within 10 hours after
placed in service. If full performance
is needed immediately a
commissioning charge as described
in the following section is necessary.
■For filled and discharged cells
stored for more than 1 year, a
commissioning charge is necessary:
• Constant current charge:
charge for 8 h at 0.2 C5 A.
When the charger maximum voltage
setting is too low to supply constant
current charging, divide the battery
into two parts to be charged
individually.
• Constant voltage charge:
1.50 V/cell minimum for 24 h with
current limited to 0.2 C5 A, or for
48 h with current limited to 0.1 C5 A.
■For filled and charged cells stored
for more than 3 months (including
transport), or if cells have been
stored for a few years or show
difficulties in recovering
performance, constant current
charging becomes necessary and
the following values are
recommended:
a) 15 h charge at 0.2 C5 A
b) Discharge at 0.2 C5 A down to
1.0 V/cell
c) 8 h charge at 0.2 C5 A
d) The battery is ready for use.
May 2020

SPH Ni-Cd batteries
Table A
Cell type
Capacity
C5Ah
(Ah)
Charging Current
0.2 C5A
(A)
Electrolyte per cell Terminal
per pole
Length of cell
topper nozzle
(mm)
Solid
(Kg)
Liquid
(l)
Standard range:
SPH 11 11 2.2 0.07 0.25 M 10 45
SPH/F 16 16 3.2 0.13 0.44 M 10 65
SPH/F 21 21 4.2 0.11 0.38 M 10 65
SPH/F 24 24 4.8 0.10 0.35 M 10 65
SPH/F 28 28 5.6 0.16 0.54 M 10 65
SPH/F 36 36 7.2 0.24 0.84 M 10 65
SPH/F 45 45 9.0 0.22 0.76 M 10 65
SPH/F 52 52 10.4 0.20 0.70 M 10 65
SPH/F 60 60 12.0 0.26 0.89 M 10 50
SPH/F 70 70 14.0 0.24 0.82 M 10 50
SPH/F 80 80 16.0 0.21 0.71 M 10 50
SPH/F 90 90 18.0 0.46 1.60 M 12 45
SPH/F 100 100 20.0 0.44 1.50 M 12 45
SPH/F 115 115 23.0 0.38 1.30 M 12 45
SPH/F 130 130 26.0 0.44 1.50 M 12 45
SPH/F 150 150 30.0 0.55 1.90 M 12 45
SPH/F 170 170 34.0 0.64 2.20 2 x M 12 45
SPH/F 190 190 38.0 0.61 2.10 2 x M 12 45
SPH/F 220 220 44.0 1.39 4.80 2 x M 12 55
SPH/F 250 250 50.0 1.31 4.50 2 x M 12 55
SPH/F 280 280 56.0 1.21 4.20 2 x M 12 55
SPH/F 300 300 60.0 1.16 4.00 2 x M 12 55
SPH/F 320 320 64.0 1.10 3.80 2 x M 12 55
Compact range:
SPH 16 B 16 3.2 0.06 0.20 M 10 45
SPH 21 B 21 4.2 0.04 0.15 M 10 45
SPH 28 B 28 5.6 0.14 0.47 M 10 45
SPH 36 B 36 7.2 0.11 0.39 M 10 45
SPH 47 B 47 9.4 0.08 0.28 M 10 45

The battery container temperature is
to be monitored during charge. If the
temperature exceeds + 45°C (+113°F)
during charging, then it must be
stopped to reduce the temperature.
The charging can be resumed when
battery container temperature
For capacity test purposes, the
battery has to be charged in
accordance with IEC 60623 section 5.
5. Charging in service
At continuous parallel operation, the
battery is on continuous charge and
has only occasional discharges.
Recommended charging voltage
(+20°C to +25°C / +68°F to +77°F):
■for dual charge level:
• Float level: 1.40 ± 0.01 V/cell
• High level: 1.45 ± 0.01 V/cell
■for single charge level:
1.41 ± 0.01 V/cell.
In case of frequent deep discharges
(cycling), the charging voltage values
should be increased. Contact Saft for
more details.
For use at temperature outside
+10°C to +30°C (+50°F to +86°F),
the correcting factor for charge
voltage is –2 mV/°C/cell
(–1.1 mV/°F/cell).
6. Preventive Maintenance
■Keep the battery clean using only
water. Do not use a wire brush or
solvents of any kind. Vent caps can
be rinsed in clean water if necessary.
■Check visually the electrolyte level.
Never let the level fall below the
minimum level mark. Use only
distilled or deionized water to top-up.
Experience will tell the time interval
between topping-up.
Note: Once the battery has been
filled with the correct electrolyte at
the battery factory, there is no need
to check the electrolyte density
periodically. Interpretation of density
measurements is difficult and could
be misleading.
■
Check the charging voltage.
It is of great importance that the
recommended charging voltage
remains unchanged.
The charger should be checked and
recorded at least once yearly.
If a cell float voltage is found below
1.30 V, high rate charge is
recommended to apply to the cell
concerned.
■
The connectors and terminal nuts
should be corrosion-protected by
coating with neutral vaseline.
■
High water consumption of the
battery is usually caused by improper
voltage setting of the charger.
6.1. Changing electrolyte
Due to the sintered electrode plastic
bonded technology, it is not necessary
to change the electrolyte during the life
time of the cell.
6.2. Topping-up
No electrolyte level measurement is
necessary if you use a Saft filling-pistol,
which allows the correct level to be
obtained by a simple nozzle setting.
See nozzle lengths in tables.
If a filling-pistol is not available, the
electrolyte level can be checked by
transparence or measured in the case
of flame retardant containers.
Insert a transparent glass or plastic
tube (alkali resistant, 5 to 6 mm in
diameter) vertically into the cell vent
SPH Ni-Cd batteries
until it touches the top of the plates.
Close the top end of the tube by
putting a finger on it and remove the
tube from the cell.
The height of the liquid in the tube
indicates the electrolyte level above
the plates.
■Level (mm) high low
SPH 16 B to SPH 47 B 25 5
SPH 11 25 5
SPH/F 16 to SPH/F 52 55 5
SPH/F 60 to SPH/F 80 70 5
SPH/F 90 to SPH/F 190 65 5
SPH/F 220 to SPH/F 320 55 5
7. Environment
To protect the environment all used
batteries must be recycled.
Contact your local Saft representative
for information.

Saft
Industrial Standby Division
26, quai Charles Pasqua
92300 Levallois-Perret - France
Tel: [phone]
Fax: [phone]
www.saftbatteries.com
Doc N° 22033-0520-2
Data in this document is subject to change without
notice and becomes contractual only after written
confirmation.
Société Anonyme au capital de 26 300 205
€
RCS Nanterre 481 480 465
Le Révérend Imprimeur - Printed in France - 2k

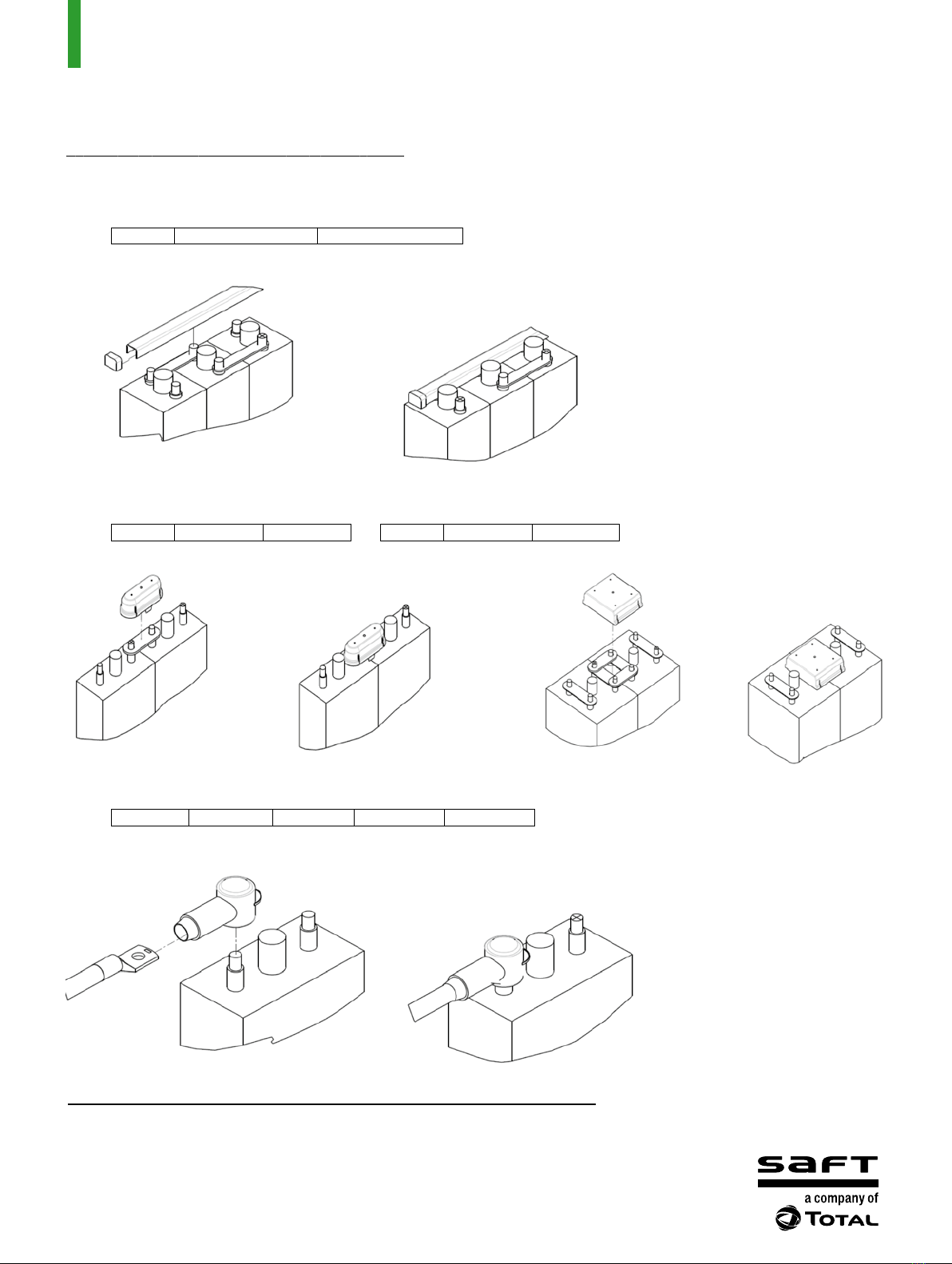

Appendix A: IP2X protection assembly instructions
• Linear terminal cover
• Terminal cover
• End-Lug cover
P/N 208783 + 225051 224823 + 225052
P/N 225740 225741 P/N 225742 224824
P/N 224887 224888 224889 224890
SPH Ni-Cd batteries
