Total TG103251 User manual

350W
TG103251
UTG103251
GRASS TRIMMER
One-Stop Tools Station

2
GENERAL SAFETY RULES
WARNING! Read all instructions.
Failure to follow all instructions
listed below may result in electric shock,
fire and/or serious physical injury. Make
sure you fully understand and observe
the safety precautions and warning
before starting and using the trimmer
for the first time.
SAVE THESE INSTRUCTIONS
1. Always wear ear protection, if the
noise pressure level at the place of
work exceed 85dB
2. Wear protective glasses or goggles.
3. Your grass trimmer is a high-
speed, fast cutting power tool. The
electrical connection and cutting
tools are potential sources of
danger.
Therefore, special safety
precautions must be observed to
reduce the risk of personal injury.
4. Never allow children or people
unfamiliar with these instructions to
use the grass trimmer
5.
The operator or user of this grass
trimmer is responsible for accidents
or hazards occurring to other people
or their property.
6. Keep children and bystanders away.
Never trim while people near here.
7. Always wear substantial footwear
and long trousers.
8. Do not operate this grass trimmer
when barefoot or wearing open
sandals.
9. Never use the grass trimmer with
a damaged guard or without the
guard in place.
10. Never work with an electrical
trimmer while under the influence of
alcohol or drugs.
11. Never attempt to modify your
trimmer in any way since it may
increase the risk of personal injury.
Do not use wire or metal reinforced
line. This excludes all liability
for personal injury or damaged
to property caused by use or
impermissible modification.
12. Do not run with the grass trimmer.
13. Only use your trimmer for cutting
grass and weeds, never for other
purposes.
14. Only use the grass trimmer in
daylight or good artificial light.
15. We recommend, using a Residual
Current Device (RCD) with a tripping
current of not more than 30mA.
16. Use only extension cables suitable
for outdoor use, preferably with a
high visibility cord. Specification as
below:
For extension cables up to 15
meters, use a wire with a cross
section of 1.5mm2
For extension cables over 15 meters
and less than 40 meters, use a wire
with a cross section of 2.5mm2
17. Before use, check the grass trimmer
is in good condition and that it is
operating properly. Pay Special
attention to extension cable, power
outlet, switch and cutting head.
18. Before use, check the line and
extension cords. Do not use
the grass trimmer, if the cord is
damaged or worn.
19. Protect your extension cable from
sharp objects, excessive heat and
damp or wet locations.
20. Keep the extension cord away from
rotating nylon line.
21. If the insulation on the power cable
or extension cable is damaged
during use, disconnect the power
supply immediately and have
the damaged cable replaced.
Do not touch the cable before
disconnecting the supply!
22. Switch on the grass trimmer
according to these instructions and
keep you hands and feet well away
from the cutting line!
23. Always hold your grass trimmer
firmly, make sure you always
maintain a good balance and secure
footing.
24. Make sure the open side of the
protection guard is pointing away

3
from yourself before you switch on
the trimmer.
25. Do not operate the grass trimmer
on wet grass, or under damp
conditions.
26. Take special care in slippery
conditions on slops and uneven
ground.
27. Watch for hidden obstacles such
as tree stumps and roots to avoid
stumbling
28. Check the cutting head at regular
intervals. If the behavior changes
(excessive noise, vibration etc.)
immediately:
Switch off!
Holding the trimmer firmly press the
head against the ground and bring
to a complete stop.
Disconnect the mains supply.
Check the condition of the cutting
head; look for damage, missing
parts and cracks.
29. Have the damaged cutting head
replaced immediately even if it only
has superficial cracks. Never attempt
to repair a damaged cutting head
30. Only use original cutting heads
and replacement spools. Never use
metal cutting lines.
31. Warning! Danger of injury by the
line cutting device. After replacing
a spool, be sure to bring the unit
into normal working position before
turning it on again.
32. Clean the plastic parts with damp
cloth only.
33. Never leave you grass trimmer
outdoors in the rain. Store your tool
in a dry place, keep out of reach
of children.
34. Warning!
1) The nylon line continues to rotate
after the motor is switched off.
2) Do not put your hands or feet
near or under the rotating parts
when the machine rotating
3) Never pick up or carry the
trimmer while the motor is running.
4) Switch off the trimmer and
disconnect the power supply, if:
You leave the machine
Before checking, cleaning and
working on the appliance.
After striking a foreign object.
Inspect the appliance for damage.
The grass trimmer starts to vibrate
abnormally.
35. Always ensure that ventilation
openings are kept clear of debris.
36. Take care against injury from the
blade fitted for trimming the cutting
line.
Warning! There is a sharp blade
fitted to the guard for cutting the
line to length. Keep your fingers
clear.
37. After extending new cutting line
always return the machine to its
normal position before switching
on.
Important note
Remove the mains plug from socket
before carrying out any adjustment or
servicing.
38. Always ensure that ventilation
openings are kept clear of debris.
39. Take care against injury from the
blade fitted for trimming the cutting
line to length. After extending
new cutting line always return the
machine to its normal position
before switching on.
40. All electric power tools should
be properly insulated and any
extension cables should be orange
so it will stand out when laid around
the garden
41. When using a hand controlled
electric tool, feed the cable over
your shoulder, this should prevent
you cutting through it.

4
SYMBOL EXPLANATION
Read the instruction manual prior to operation.
Wear eye protection
Do not expose to moisture
Disconnect the mains plug if the cord is damaged or entangled
Keep bystanders away
Do not touch the nylon line until it stops completely when replacing
new line
o
360

5

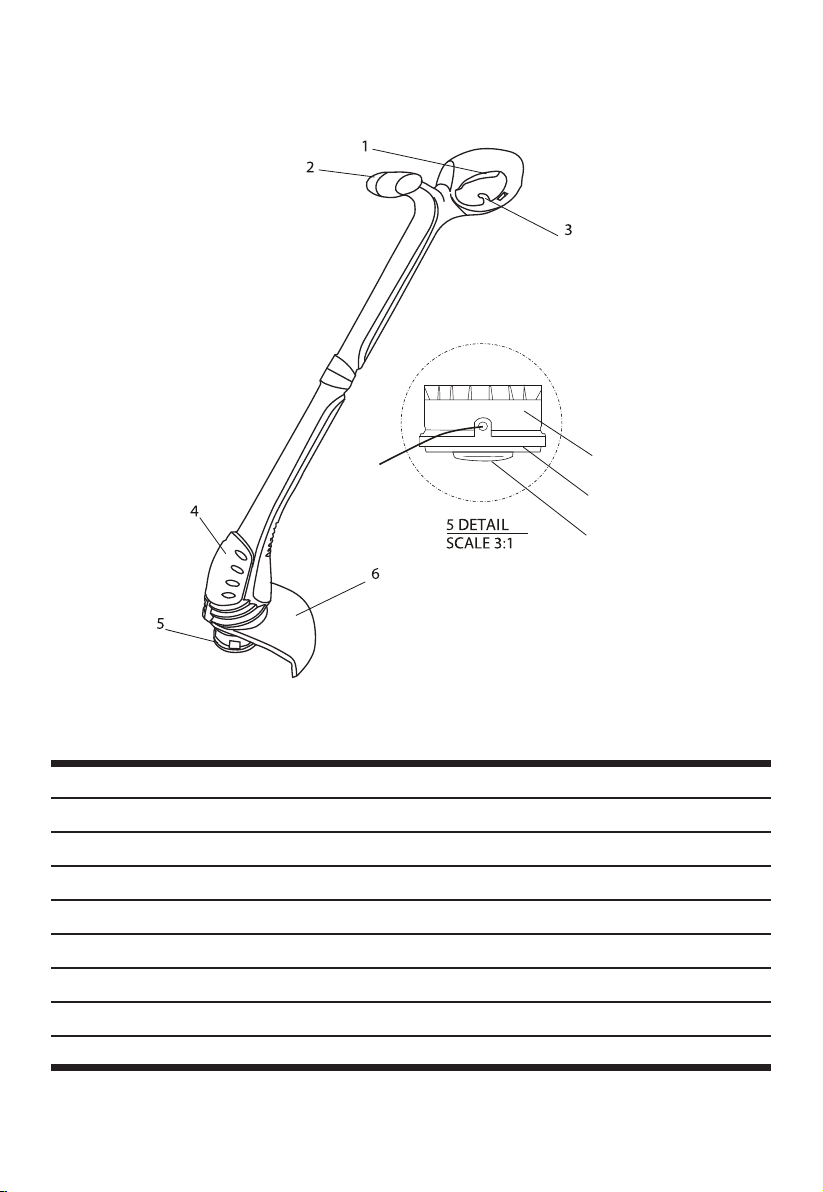

COMPONENT, SPECIFICATION
1. Power On/Off switch
2. Front Handle
3. Cable securing knob
4. Motor housing
5. Cutting head
6. Guard
7. Spool holder
8. Spool cover
9. Spool

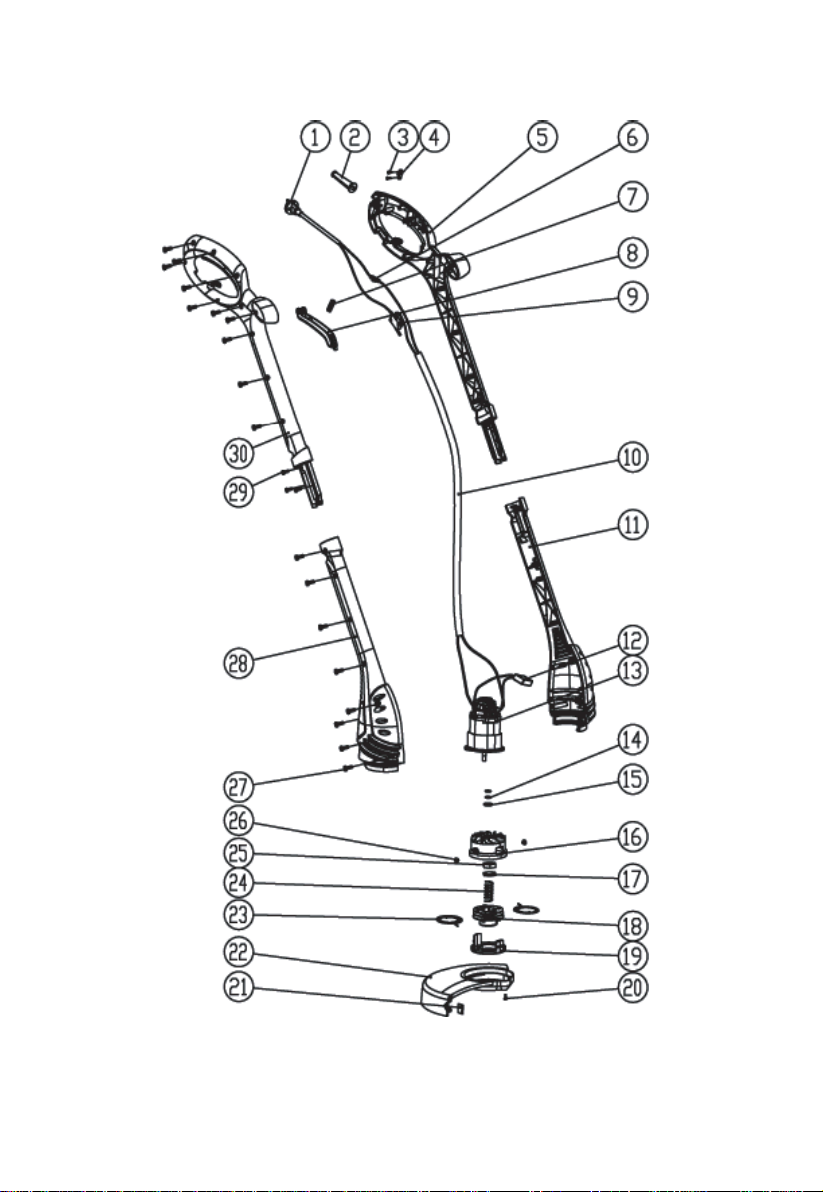

COMPONENT LIST
7
8
9

TECHNICA L SPECIFICATIONS
Model No.
TG103251 UTG103251
Wattage
Voltage and
frequency
No-load
speed
Max.cutting
diameter
Line
diameter
Measured sound pressure
level
Guaranteed sound power level
Vibration does not exceed
Double insulation
Cutting line
length
350W
220-240V~50/60Hz
11000/min
250mm
1 . 2mm
80dB(A)
94dB ( A )
2.5m/s
2
2X3m
350W
110-120V~60Hz
11000/min
250mm(10˝ )
1.2mm(3/64˝)
80dB(A)
94dB(A)
2.5m/s
2
2X3m
6

7
ASSEMBLY INSTRUCTION
Assembling Grass Trimmer (see Fig1,
Fig2 and Fig3)
Fig 1 Fig 2
Fig 3
Note: The machine may be fully
assembled, however this instruction
gives you full assembly details.
Insert the upper parts into lower part
firmly until a “click” is heard. Note: the
screw holes should be on the same side.
Guard Fitting
1. Position motor head/axle as shown in
Fig4, with screw fixing hole at the top
centre (remove pre-fitted screw).
2. Position guard with inner side, ie.
moulding facing you as shown in Fig5.
3. Lower the guard over the motor head/
axle (see Fig6) and align slots as shown
in Fig7 (note position of the tab).
4. Align marks on head of the unit and
the guard, turn the guard in a clockwise
direction, see Fig7.
Fig 4
Fig5
Fig 6
Fig 7

8
Warning! Take great care when
doing this as the guard has a very
sharp cutting edge.
5. Keep turning the guard until it locks
into position (the tab will lock into
place), insert screw into screw hole at
top centre and tighten. The guard is now
installed, see Fig.8
Fig 8
Insert and tighten
screw
Preparing the trimmer for use
1. Cord tension relief: Form a loop with
the power cable and pull it through the
eyelet on the Trimmer’s handle. Place
the power cable around the knob, this
will prevent straining the power cable
during use, see Fig9 & Fig10.
Fig 9 Fig 10
2. Check the length of the nylon cutting
line, pull line to inner edge of outer
guard, if the line is very short, i.e. more
than 50mm away from the edge of
the guard. Push down on centre of the
cutting head and at the same time pull
the line a few centimeters beyond the
guard (see Fig11), when the trimmer
starts the line will automatically be cut
to the correct length.
Fig 11
3. When you need to increase the line
length during use you can simply ‘bump
feed’ the trimmer to restore line to
correct length.
To bump feed, turn on the
trimmer and gently bump the top of the
cutting head on a firm surface, the line
will be automatically extended and cut,
see Fig12.
Fig 12
OPERATING THE TRIMMER
1. To switch on the trimmer, press the
On/Off switch. To stop simply release the
On/Off switch (see Fig13).
2. If you find that the nylon line is
too short follow the instruction as in
preparing the trimmer for use’ section 3
(see Fig11).
Let the trimmer run for a few seconds
without touching the working area, and

9
allow the trimmer to cut the line.
Use the trimmer at an angle of
approximately 20 degrees to the
working area (see Fig14).
Swing the trimmer from side to side
(see Fig15).
3. Do not overload your trimmer, take
small “bites” this will keep machine
operating at high speed and will greatly
improve cutting efficiency, (see Fig16
and Fig17).
4. Use the edge of the guard as a guide
when using near fences walls etc, and
move in a backwards direction (see
Fig18).
TO REPLACE THE CUTTING
LINE
Always unplug the trimmer before
carrying out any maintenance
1. To replace the nylon line, first remove
the spool cover from the spool holder
by pushing down centre of the spool
and at the same time pressing the two
spool cover opening buttons firmly, now
remove the empty spool and replace
with a new pre-wound spool (see Fig19).
Fig 19
2. Insert the line through the “brass”
holes on the spool holder, pull line out.
Push spool inwards against the spring
clip and then push spool cover firmly
downwards until it locks into position
and at the same time pull lines and be
sure that they are released from spool
rail notches. If not, the bumping- feed
will not operate.
Follow the instruction on cutting the
line in “Preparing the trimmer for use”
section 4 before use (see Fig20).
Fig 13
Fig 14
Fig 15 Fig 16
Fig 17 Fig 18

10
Fig 20
Note: New line can be purchased from
any good garden or DIY center.
To rewind the spool with new line
(See Fig21 - 24)
Insert the line through a hole in the
spool and secure it. (See Fig21)
Fig 21
Snugly and evenly wind the cutting
line onto the spool in the direction of
the arrow on the spool until the line
builds up to the notches in the spool
rim. Do not overfill spool. (See Fig22 &
23)
Fig 22
Fig 23
Repeat to replace the other cutting
line.
Insert the line through the ‘brass’
holes on the spool holder, pull line out.
Push spool inwards against the spring
clip and then push spool cover firmly
downwards until it locks into position.
Follow the instruction on cutting the
line in ‘Preparing the trimmer for use’
section 4 before use. See Fig24
Fig 24
Note: New line can be purchased from
any good garden or DIY center.
MAINTENANCE AND
STORAGE
1. Your trimmer requires no additional
lubrication or maintenance. There
are no user serviceable parts in your
trimmer.
2. Never use water or chemical cleaners
to clean your trimmer. Wipe clean with
a dry cloth.
3. Always store your trimmer in a dry

12
No. Part Description Qty
1 Power cord 1
2 Power cord sleeve 1
3 Screw 2
4 Press thread board 1
5 Left handle 1
6 Connected column 1
7 Switch spring 1
8 Switch button 1
9 Jiggle switch 1
10 Inner lead 1
11 Left housing 1
12 Capacitance 1
13 Motor 1
14 Washer 3
15 Washer 1
16 Connect 1
18 Connect cover 1
19 Line spool 1
20 Line cover 1
21 Blade 1
22 Guard 1
23 Spool line 2
24 Spring 1
25 Nut 1
26 Hole 2
27 Screw 18
28 Right housing 1
29 Screw 3
30 Right handle 1
TG103251,UTG103251 Spare part list

13
TG103251,UTG103251 Exploding view

350W
GRASS TRIMMER
One-Stop Tools Station
T0116.V03
MADE IN CHINA
www.totaltools.cn
TOTAL TOOLS CO.,LIMITED
