Toto TBV03429B User manual

1. 安全注意事项(为了安全起见，请务必遵守)
安装前，务请细读本「安全注意事项」的内容，并正确地安装。
必须实行
禁 止
禁止拆解
警告
注意
警 告
警 告
禁 止
否则可能因使用冷水侧时吐热水而造成烫伤。
冷热水管请勿装反
否则可能会喷出高温热水造成烫伤以及因发生漏水而造成弄湿家具等损
坏财产。
清洁过滤网时，必须先确实地关闭进水角阀或总开关。
另外，必须确认本体左侧和供热水侧的安装架部分处于不热的状态。
根据使用条件的不同而有造成无法按刻度确保热水的情况，请注意避免
受烫伤。
必须进行温度调节，以按刻度确保热水。
必须实行
注 意
否则，可能因产品性能受损导致烫伤、受伤，或因漏水而引起家具浸湿
等财产损失。
除了本说明书内所记载的项目以外，禁止拆解
否则可能会造成破损，以及因发生漏水而造成的家具浸湿等财产损失。
不要施加强力或冲击。
否则可能造成产品使用寿命缩短，易破损、烫伤，以及由于漏水造成家
庭财产污损。
供热水温度不得超过90℃，建议供热水温度为60℃.供热水管请勿
使用蒸汽。
否则可能导致部件破损，从而因漏水浸湿财物致使财物受损。
在预防冻结的场所使用时，配管部缠上保温材料。
● 为了安全、正确的使用产品，防止给您或者他人的人
身及财产安全造成损失，此说明书采用了许多标志。
各标志与含义如下：
此标志表示无视此标志的内容，进
行误操作的话，可能导致人员死亡
或重伤。
此标志表示无视此标志的内容，进
行误操作的话，可能造成人员伤害
或物质财产损失。
壁式恒温式水嘴（浴室用）
为了能够发挥产品功能，请细读本安装说明书的内容，并正确地安装。安装后，请务必向客户仔细地说明使用方法。
0000049 2019.8
施工说明书
TBV03427B
TBV03429B
TBV03431B
●需遵守的内容通过以下标志加
以区分、说明。
表示不可行，“禁止”
之意。
左图表示“禁止拆解”。
表示必须"强制"实行
的内容。
左图表示“必须实行”。

67
A 12.580.5 0
-6
G1/2
墙面
150
150±20
墙面
●为防止误操作而导致的烫伤，冷水水压必须高于或等于热水水压。如必
须给热水侧加压时，热水侧压力也必须低于冷水水压。
●热水供给设备的设定温度不要超过60℃,以免烫伤。
为了确保舒适的吐水温度，建议设定温度在50～60℃的范围内。
●为了减少供热设备到水嘴间的阻力，请按最短距离进行排管。水管
须包裹保温材料。
●包装产品之前，因执行通水试验，可能会在产品内部留有残水，但
是产品性能上毫无问题。

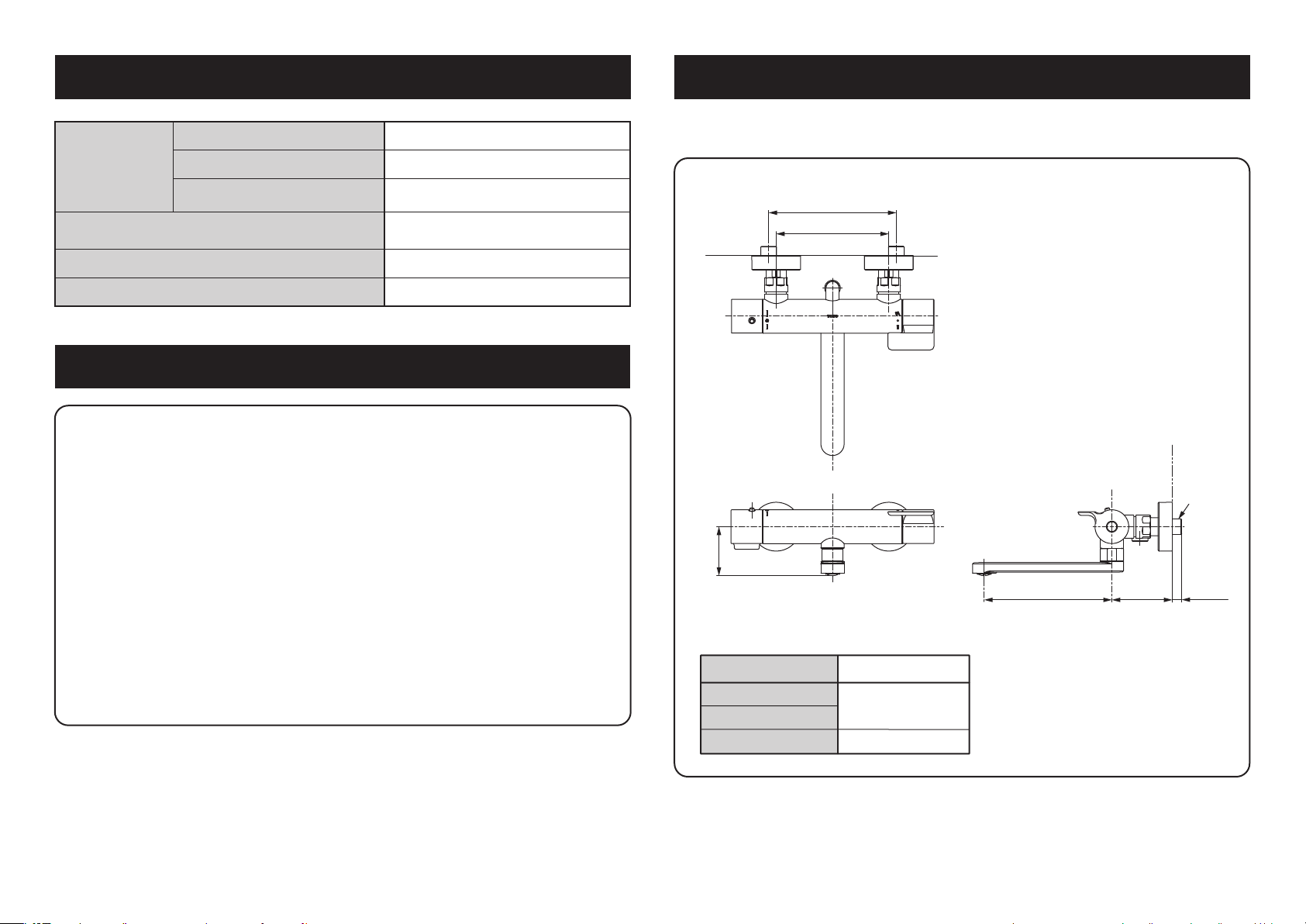

2. 规格 4. 完成图
3. 安装前须知
TBV03427B
TBV03429B
TBV03431B
型号 A
170
无喷水龙头
※根据产品型号，图片与实物可能稍有差异。
（单位：mm）
供冷水·供热水压力
最低水压 0.05 MPa (流动压)
1.0 MPa (静压)
0.1~ 0.5 MPa (流动压)
4~90℃, 建议供热水温度60℃.
1～40℃
普通家庭用
最高水压
推荐使用压力
供水温度
使用环境温度
用途

注 意
市场销售的
软管等
转换(开关)把手
温度调节把手 安装架（附过滤网）
(两个)
密封圈
法兰盘（x2）
喷水龙头
（淋浴龙头时不带喷水龙头）
施工说明书
使用说明书
请确认有无下列零件。
水龙头本体部
其它
安装架部
※ 根据产品型号，图片与实物可能稍有差异。
※施工步骤以淋浴室和浴室的水龙头为代表而登载。
5. 部件的确认 6-1. 施工步骤
4水龙头本体的固定
2安装架的安装 1安装前须知
供冷水管·供热水管的清洁
3喷水龙头的安装
淋浴喷头用
弯管接头
1安装前须知 供冷水管·供热水管的清洁
安装产品前， 请务必完全除去供冷水管和供热水管内的垃圾以
及灰尘并洗干净。
要
重
配管
水桶
市场销售的
管接头等
请务必交给客户
否则，供冷水管和供热水管内的垃圾以及灰尘可
能会堵住过滤网而导致下列现象。
①吐水量少
②难以进行温度调节
因此,请务必进行供冷水管和供热水管内的清扫。
准备市场销售的软管和水桶，与安装架连接该软管
等，然后慢慢地打开总开关，以便冲洗供冷水管和
供热水管内的垃圾和灰尘。

注 意
注 意
3喷水龙头的安装
接上封面
将喷水龙头安装在本体上。
●请注意U形密封圈的方向。U形
密封圈的开着的方向为本体
侧。
●U形密封圈脱落时，请将U形密
封圈插入本体侧。
U形密封圈的方向
U形密封圈
本体
6-2.
4水龙头本体的固定
U形密封圈
本体
喷水龙头
安装
活动扳
（200mm）
拧紧
供冷水侧
盖形螺母
供热水侧
盖形螺母

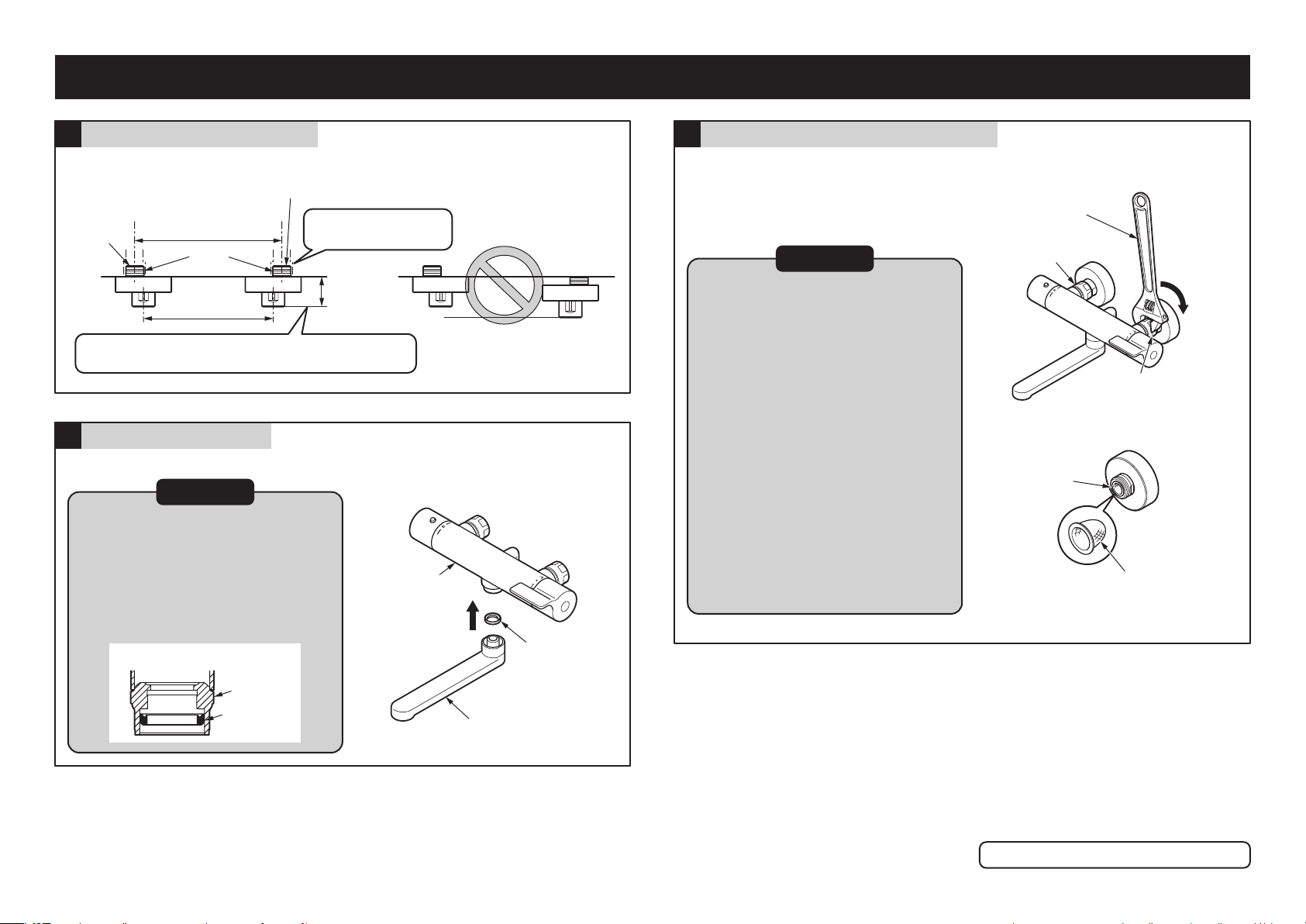

2安装架的安装
安装安装架。（供冷水侧 · 供热水侧 )
左右安装架的端面
应与墙面呈平行对齐
150+ í20
对墙面成直角
供冷水
36 0
-6
150
墙面
缠上密封带
（供冷水、供热水）
供热水
（单位：mm）
安装架
过滤网
G1/2
①水龙头本体安装在安装架。
②边进行调节边交替拧紧供冷水管和供热
水管侧的盖形螺母，以保持水平状态。
●牢牢地拧紧盖形螺母，以免发生
松动现象。
否则本体可能会倾斜而导致漏水。
●切勿将安装架旋到松动方向。
否则与配管的连接可能会松动而
导致漏水。
●确认有无密封圈。
●请确认可以将过滤网装进安装架
中。
否则可能会导致漏水。

安装架部

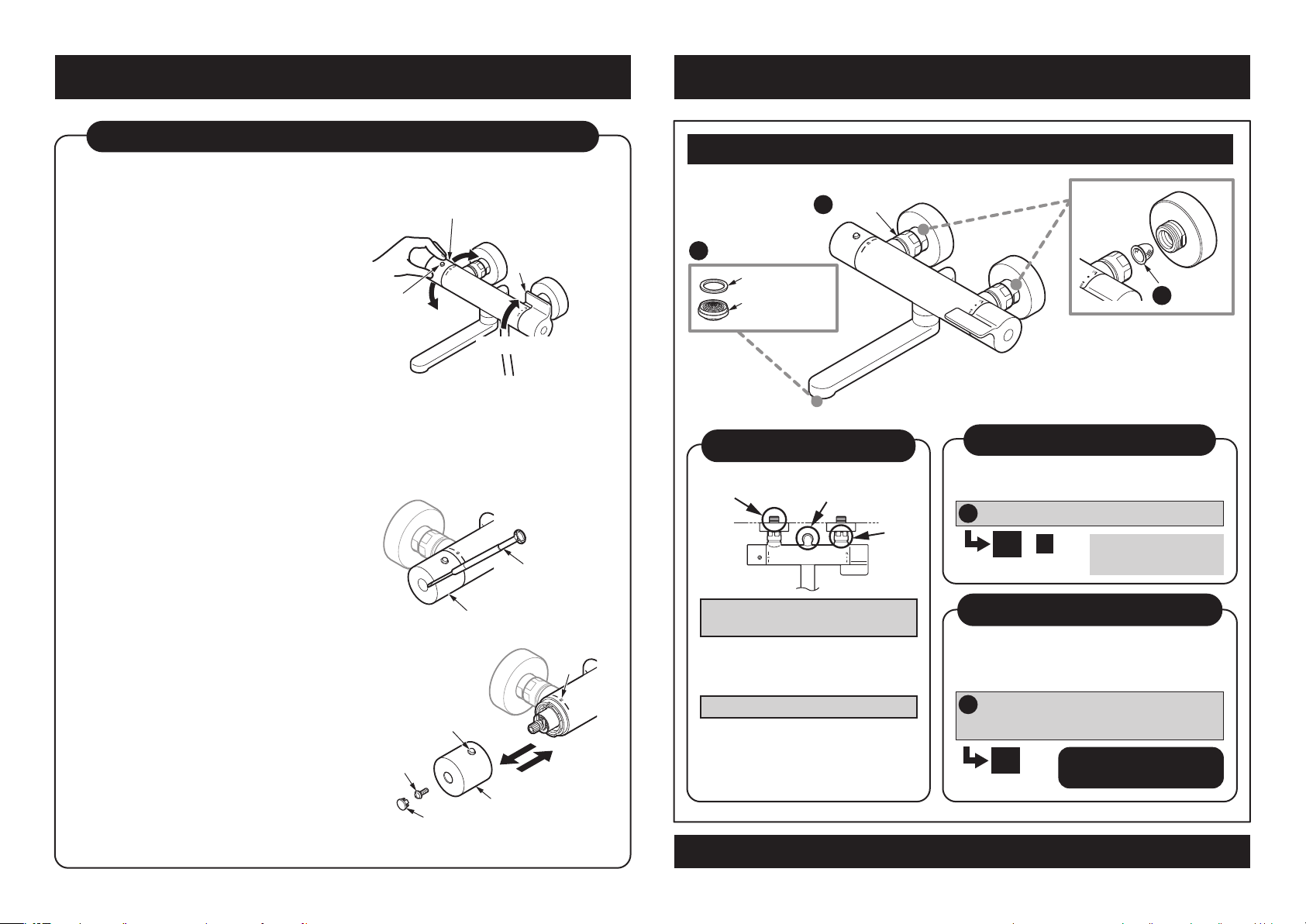

7-1. 施工后的调节
1. 吐水的确认 3. 吐水温度的确认
2. 清洁过滤网和吐水口盖帽
安装结束后，请务必清洁过滤网和吐水口盖帽。
淋浴喷头侧
喷水龙头侧
喷水龙头
"40"
温度调节把手
安全按钮
上 ( 淋浴喷头侧)
转换(开关)
把手
约40℃
水龙头本体 过滤网
安装架
安装结束后，打开配管部的总开关，以确认
水有无从喷水龙头和淋浴喷头出来。
过滤网和吐水口盖帽堵塞时，不仅流量减少，而且造成仅仅出来冷水或热水的情
况，从而不能有效地发挥产品功能。
※清洁过滤网时，先确实地关闭总开关，然后再拆下过滤网。
另外，必须确认本体左侧以及供热水侧的安装架部分已经处于不热的状态。
（详情请参照使用说明书内的「日常保养」之项。)
※拆下吐水口盖帽时，切勿使用一字形螺丝刀等的尖端细的工具。
出厂时虽然温度调节把手已经设定好，但是根据使用条件(供冷水和供热水压力以
及供冷水和供热水温度)不同，可能会有不能确保显示吐水温度的情况。
请按如下要领进行确认。
1. 温度调节把手的安全按钮对准本
体刻度的"40"。
2. 将转换(开关)把手向上侧旋至到
底。
从淋浴喷头出水。
3. 确认吐水温度。
吐水温度约为40℃时，即可使用。
温度低时，升高热水供给设备的设定
温度，直至喷出40℃的热水为止。
热水供给设备的设定温度不要超过
60℃,以免烫伤。
如果热水供给设备的设定温度高于
50℃，温度还是低时，需要重新调整
把手。
一字螺丝刀
松开
密封圈
喷水龙头
吐水口盖帽
吐水口
圆形板状的
物品

吐水口
2
螺母
1
密封圈
吐水口
盖帽
流量和吐水温度的确认
漏水的确认
4. 温度调节把手的设定
"40"
安装结束后，请确认下列项目。
盖形螺母有无松动现象。
1
2
A
BC
A·Ｃ处漏水之场合
B处漏水之场合
7-2.8. 检查项目
确认有无松动现象
参照
7-1. 2.清洁过滤网和
吐水口盖帽
水龙头本体的固定
参照
4
−
6-2.
安全按钮
安全按钮
温度调节把手
上(淋浴喷头侧)
转换(开关)把手
冷水侧
供热水侧
盖帽
小螺丝
温度调节把手
精密螺丝刀
温度调节把手
过滤网
2
吐水温度与显示温度不一致时，才可执行把手的重新调整。
※请务必交给客户产品包装箱内附带的使用说明书等。
1. 将转换(开关)把手向上侧旋至到底。
从淋浴喷头出水。
2. 与刻度无关，将温度调节把手旋
到喷出合适温度的热水之位置。
温度调节把手旋到超过刻度"40"附近，
就会被锁定。需要40℃以上的热水
时，边按下安全按钮边转动把手即
可。
3. 拆下温度调节把手。
请注意避免使温度调节把手转动，拆
下保护盖和小螺丝，以拔出把手。
5. 固定结束后，确认是否喷出合适
的热水(约40℃）。
4. 安装温度调节把手。
对准刻度"40"的文字和规定位置后插入
温度调节把手，用小螺丝固定并安装
保护盖。
确认有密封圈后，重新拧紧盖形
螺母。
请确认配管上无腐蚀和裂纹后，
在该配管部重新缠上密封带进行
安装。
请确认有无漏水。 确认水龙头本体有无松动现象。
流量少或难以进行温度调节时，请确认
下列项目。
垃圾等是否堵住吐水口和过滤
网。
