Getting Started
How to use
MaintenanceTroubleshooting
Warranty
Maintenance….............
11~12
Periodic Checking.....…
Specification…….............…
15~16
17
1~5
6
Important Safeguards….
Model Numbers and
How to use………...............
7~8
9
Before Use.....................
■Thank you for your recent purchase
of TOTO products. Please read the
manual carefully to ensure the safe
use of your product.
0GU3020
05.2007
SHOWER TOWER
TS991A
Instruction Manual
®
®
How to Adjust……….........
10
13~14
Components …...
TroubleShooting……..…
English Español Français

Less than
185˚F (85˚C)
Warning
Do not use hot water supply that is higher
than 185˚F (85˚C).
Absolutely Do NOT.
Do not dissemble!
Mandatory!
The action must be performed as described.
Do Not!
● After you read this instruction manual, keep it where it can be easily referred to again..
●The following symbols indicate safe and proper use of the product.
Failure to observe them may result in injury or property damage.
The symbols and their meanings are as follows:
Meaning
Sign
Warning
Caution
■The items of observation are clarified and described as follows.
Some models may have different components from the ones illustrated below.
Important Safeguards
(For your safety, please follow the instructions below)
Read the “Important Safeguards” section thoroughly before installing and using the product.
Ignoring these symbols may cause personal
injury or property damage
Ignoring this symbol may result in personal
injury or property damage.
If hot water is over 185˚F (85˚C), property damage,
scalding and other injuries are likely to occur..
Do not disassemble or modify the products
by using external parts or removing parts.
If the system is broken, property damage, scalding and
injuries are likely to occur.
Getting Started
1

Getting Started
Warning
Hand shower
Body shower
Showerhead
HOT!
You may get burned due to high
temperature of the hot water side.
You may be scalded due to high temperature
at the hot side.
Do not touch the left bottom of the
product or the installation adapters
as the hot water side with your bare
hand. Cover plates must be put or
all the times.
Do Not!
If it is set opposite to the function described,
you may be scalded when hot water is used
unintentionally.
Check Push buttons everytime before
using the product.
Check the temperature every time you take a
shower.
Everytime before using the hot water,
you must check with your hand that
the temperature is suitable with your
hand.
Scalding or other injuries may occur.
Do not disassemble or modify the item
in any way not decribed in this manual.
If the system is broken, property damage,
scalding and other injuries are likely to occur.
2
Ah!
Mandatory
Do not
disassemble
Do Not
touch
Do not allow children to use the product
without adult supervision.

Getting Started
3
Warning
HOT!
Slowly
Old check
valve
No
leakage!
New
check valve
Scalding may be resulted if push button are
pressed quickly without checking the temperature.
Leftover hot water flows out during the next use
and that person may be scalded.

The temperature control handle should
be kept under “104” before each use.

After hot water is used, let cold water
flow for a short time.
Always use the hot water with caution. Otherwise,
you may get scalded.

Before each use, always check the
water temperature.
Mandatory
If the shower tower is unstable and shaky,
property damage, scalding and injuries are likely
to occur.

Check regularly (twice a year) that
there is no leakage and that the
shower tower is not loose.
If check valve malfunctions, in some cases, the
water flow may reverse, and this may cause
unexpected accidents such as leakage. 
To guarantee the safety of the check
valves, replace them regularly
(Please refer to P.15)
If you turn the temperature handle too quickly,
the temperature may rise too fast, and you may
be scalded. 
Turn the temperature control handle
slowly and gently.
Ah!
No
loose-
ness!

Getting Started
4
Warning
Filter at hot side
Filter at
cold side
Check valve
OFF
Cap
°F
If the product is damaged and broken, property
damage, scalding and other injuries are likely
to occur.
Do not hit or impact the product with any
objects
If hot water pressure is higher than cold water
pressure, you cannot adjust the temperature
correctly, and you may be scalded
.
The cold water supply pressure must be
higher than that of the hot water supply
pressure.
.
(Please refer to P.12)
If check valves are shut off, hot water will expell
while removing the cap, which can scald you
and cause serious injury.
If you want to clean the filters, shut off the hot
and cold check valves.
Otherwise, scalding may be resulted from high water.
Regardless of the weather condition, always
check the temperature control handle, making
sure that it is at the cold side. Also confirm
water temperature of the product by using a
temperature indicator.
Do Not!
Scalding can be resulted from using very hot water.
For safety reasons, it is recommended to use
water under 104°F (40˚C).
Do not use very hot water (over 140°F)
during shower.
Ah!
Mandatory
104˚F
(40˚)

Getting Started
5
Caution
Do Not!
Otherwise, unexpected damage such as leakage
can be resulted.
Shut off the check valve or main valve, if the
Shower Tower is not used for long period of
time.
The shower tower or the supporting wall can be damaged
and property damage, injuries and leakage can be
resulted.
The shower bar should not be used as a handrail
grab bar or be used to hang objects. Do not also
attempt to hang from it.
When the temperature falls below freezing give
proper care to the piping and product to
prevent causing damage to the product and
malfunction
Do not drop or damage Handshower.
Overly frequent might cause pealing plating from the
surface. Replace a new one, if plating is pealed.
The Handshower should not be subjected to
overly frequent use, such as in a public
bathroom or in leisure facilities.
Slowly
Push the push buttons gently
If you press the push buttons too quickly, you
may hear the pipes rattle, property damage may
occur due to water leakage.
Freezing
Bathroom
Mandatory
Main
Valve
If the piping is frozen, the component may suffer
damage and/or leakage wrap the piping with heat
insulation.

Getting Started
6
Please refer to the Installaton manual for set-up drawing of the product.

water supply
inlet (Cold)
Water Supply
inlet. (Hot)
Temperature Control
handle
Volume Control
Handle
Showerhead
Push button for
Showerhead
Push button
for hand shower
Hand shower
Push button
for body shower
Body shower
2
Check valve at
Cold side


Filters


Model Number and Components
Check valve at
Hot side
Shower Arm
Shower Tower
Main Body
Shower
hose
Shower hager
MODEL #: TS991A

How to use
7
Confirm the temperature of the water output
If the temperature handle is different from the factory setting (supply water
temperature and static pressure), the water temperature will not be same as
indicated.
When this happens, check on the following key points.
2. Set the mark of temperature
handle to “104” on the scale.
3. Turn the flow lever to the
highest position.
1. Set temperature on the hot
water device.
4. Push the ON/OFF button of
hand shower.
Water should run out of the hand
shower.
5. Check outflow temperature.
If the outflow temperature is
appropriate (about 104 ° F), then
use the product normally.
If the outflow temperature is
inappropriate, refer to P.8 to set
the temperature handle correctly.
Tips
For safety reasons, the product is
equipped wth a function that keeps
scalding water from running, If set
correctly, themaximum temperature
is about (113
° F).
Temperature control
handle
Push
104° F
Volume control
handle
Push button
for hand shower
Set the temperature on the hot
water device 68°F higher that the
outflow temperature.
To prevent scalding due to
malfunction, the recommended
hot water temperature is 140°F.
Hand shower
Mark
Before Use

How to use
8

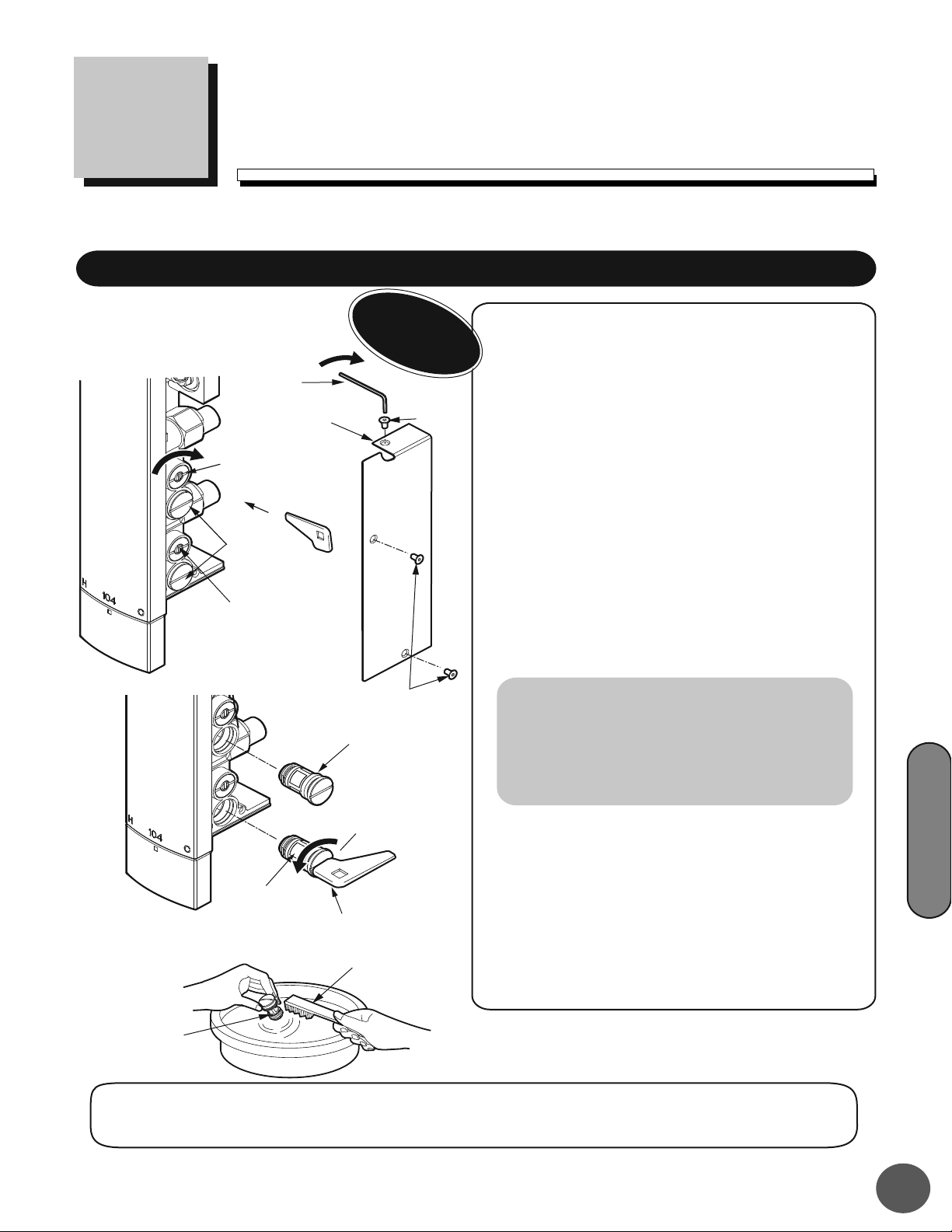

Calibrate the valve
* To calibrate when the outflow temperature is not correctly indicated:
3. Ignoring the reading on the
scale turn the handle until
the actual temperature of the
water flowing out is 104°F.
Water should come out of
the hand shower.
2. Push the ON/OFF button of
the hand shower.
1. Turn the flow lever to the
highest position.
4. Remove the temperature
handle.
Make sure you do not to turn the
temperature handle while detaching it,
remove the small screw and
temperature handle.
Temperature
handle
Hot side
Small screw
Temperature
handle
Cold side
Ring
104° F
Hand shower
Flow lever
Since you have to remove the
ring to do this, be careful not
to lose it.
Push
ON/OFF button
of hand shower

Showerhead
Stop
* Press the Push button gently.
Pressing it too hard or quickly may
result in water hammer.
Flow
Tips
●After the shower is shut off, water can still drip out for
a short time, this is just water leftover in the pipe. If it
does not stop after several minutes, check if you have
engaged the push button completely.
●“Water hammer” is a phenomenon where banging noise
can be heard when the water is shut off too
quickly, this is not a problem of the product. However care
should be taken to avoid this since pipe breakage or leakage
may result.
Press push button for the
showerhead.
Press push button for the
hand shower
Press push button for the
body shower
Tempered water will come out.
Tempered water will come out.
Tempered water will come out.
Press it again, and the water will stop.
Press it again, and the water will stop.
Press it again, and the water will stop.
Overhead shower
Body shower
Hand shower

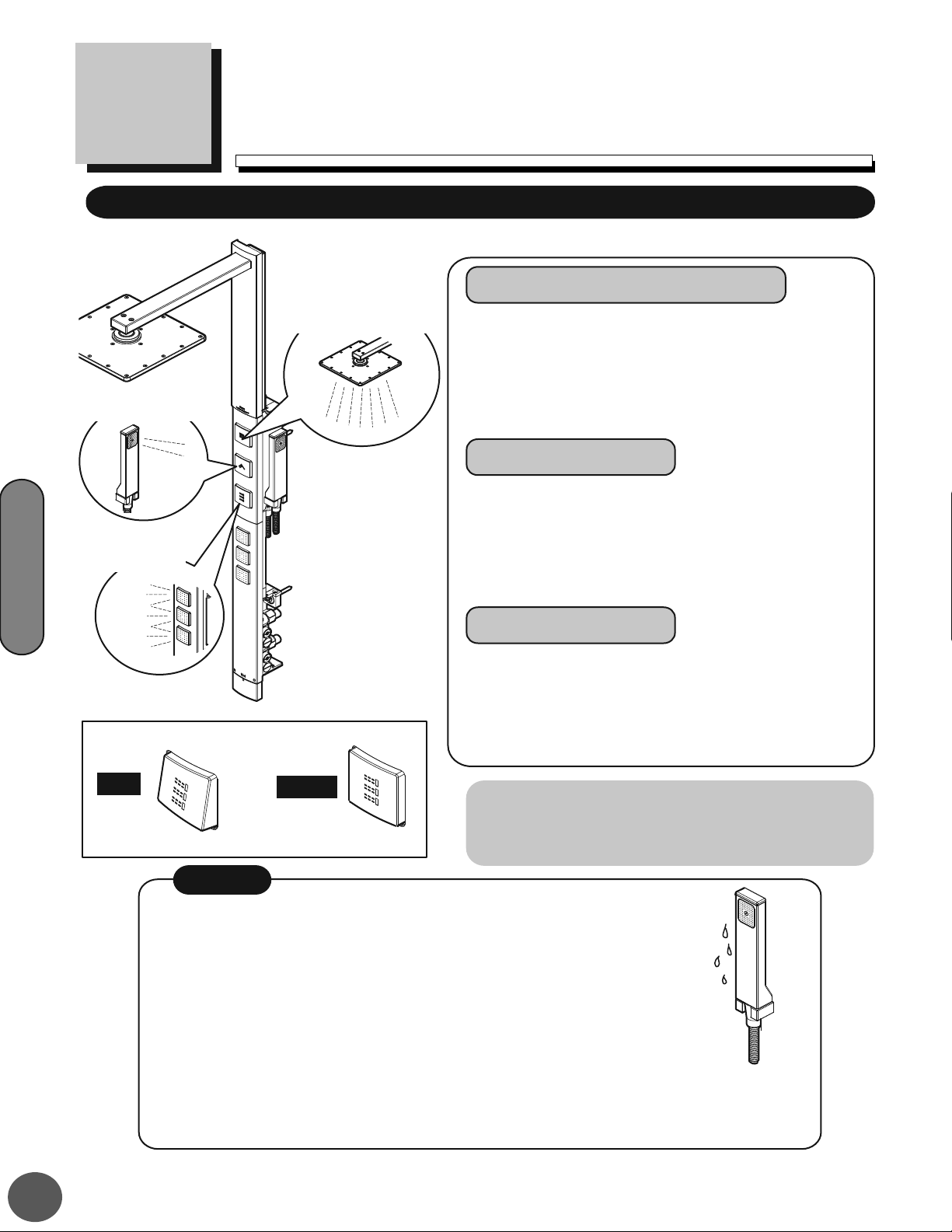

Normal Operation (Use of push buttons).
How to use
Hand shower
Body Shower
9
How To Use

How to use
10
Hot side
Cold side
Temperature control handle
Turn the temperature
control handle
It is normally set to "104", set it to your
comfortable, at the “mark”
Turn the volume control handle.
As you turn it upward, the flow rate increases,
as you turn it downward the flow rate decreases.
How to adjust the temperature
How to adjust flow rate
To prevent being scalded, a hot water
supply temperature of less than 185˚F
(85˚C) is recommended.
The maximum flow rate of the Shower Tower is
2.5 gpm (9.5L/min).
Discharge Quantity
2.5gpm (9.5L/min) Showerhead.
2.5gpm (9.5L/min) Handshower.
0.83gpm (3.17L/min) Each Bodyspray
Tip
Volume Control
handle
Increase
Decrease
mark
For safety reasons, the product is built
with a function that prevents flow of overly
hot water,
(When set correctly, the
maximum temperature of the Shower
Tower is about 113°F)(45˚C)).
The volume control handle cannot be
used to shut off the flow rate of water.
How To Adjust
Mark

Shut
Check valve
at cold side
Check valve
at hot side
Open/Shut
tool.
Open/shut tool
Cover plate

Screw
Screw
Cap
Filter
Filter
(Hot)
Unscrew
Brush
Critical 1. Unscrew the screws (3
locations) with a hexagon
wrench, and remove the
lower right cover plate.
Use the open/shut tool to
shut off the check valves,
of the Shower Tower.
3. Use the brush to clean dirt
and debris from filters.
4. Install the filter and turn on
the check valves.
5. Use screws to reinstall the
cover plates.
2. Insert the open/shut tool
into the cap groove of the
filters, then take out the
caps and filters slowly.
There are filters at both the cold
and hot sides.
Check if the filter on the hot side
is not hot before taking the filter out.

Regular maintenance is recommended. Follow these instructions
for daily maintence
Cleaning the filters
Allen wrench
(medium)
Main
tena
nce
Maintenance
Maintenance
11
Filter
(Cold)
Filters with
caps
Always confirm that check valve and filter with cap at Hot side
cold down before taking the filter out for cleaning

Main
tena
nce
Maintenance

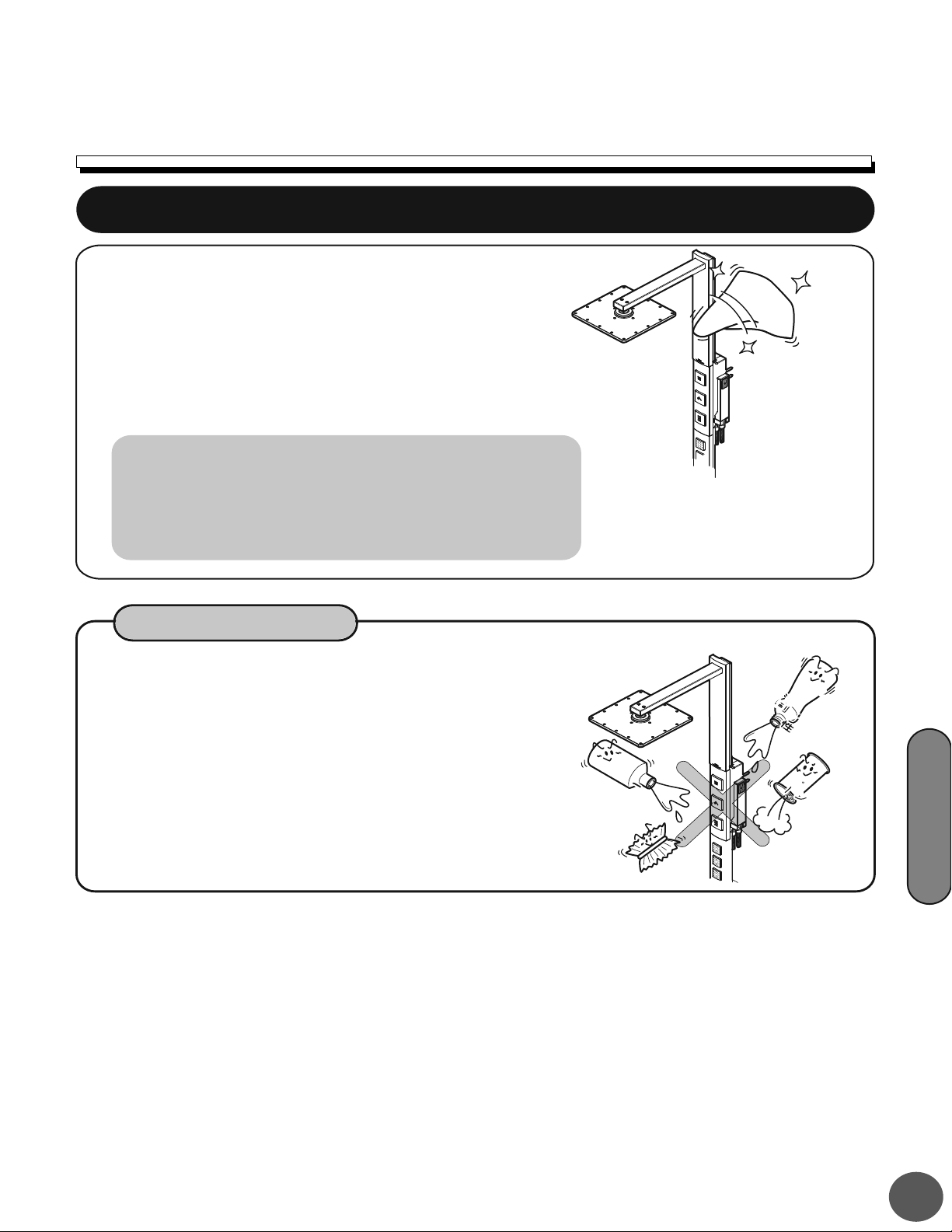

Use a soft cloth for maintenance
Use a damp, soft cloth to clean the
Shower Tower.
* For general cleaning
* For cleaning dirt.
Use a soft cloth with diluted dish washing detergent.
Wipe the area with a wet cloth and dry using a soft cloth.
●Acidic cleaning agents, bleaching agents,
alkali cleaning agents,
●Solvents like thinner and benzene
Notice
Avoid using anything tht may scratch the
Shower Tower surface.
●Cleaning agents like bleach powders
which contain coarse particles
●Nylon scrubbers and brushes
While wiping, you can press the push button
and use cold/hot water.
Be careful not to get wet.
Alkali
Thinner
Cleanser
12
Never use:

Maintenance
Leakage in pipe connection (Recommended twice a year)
Looseness in the main body (Recommended twice a year)
Please check your Shower Tower regularly according to the following instructions.
If there is deterioration or wear, property damage
or injuries are likely to occur due to water leakage.
In case of leakage, shut off the check valves and
main valve (refer to P.16) and request service
from professional plumber or your dealer.
If loose, request service from professional
plumber.
If it cannot function normally, request service from
the professional plumber or contact your dealer
Temperature control handle operation(Recommended per month)
If the temperature handle is unused for a long of
time, lime buildup may have developed on the
Check the piping to see whether
there is any leakage
moving parts. This may cause malfunction of
temperature Control handle.
Turn the temperature control
handle regularly.
If you use the product while the main body
is loose, it will cause leakage and property
damage due to the load on the pipe.
Check looseness in the Shower
Tower main body
Temperature control handle
Periodic Checking
No
leakage!
No
looseness!
13
Ignoring this may cause property
damage.

Contractor
Description of service
M/D/Y
For your convenience we have provided this Memo to record service history and requests.
If the filter/check valve malfunctions, water
from the valve may run in reverse, and
this may result in unexpected accidents
such as leakage.
For safety and comfort, check and replace parts regularly.
Replace Filter/Check valves
Filter/
check
valve
Cover
plate
Screws
To replace the filter check valve, request
service from the TOTO USA Dealer or tech
support.
Ć
Main
tena
nce
Maintenance
14
Filter/check valve
(2 locations, Hot and cold)

2. Use a flathead screwdriver
to shut off the check valve
at the cold and hot side.


If this does not stop the water,
shut off the main valve.
Shut off the check valves or main valve in case of
continuous water leakage.
If water keeps coming out due to pipe leakage, follow the
instructions in the figure below to shut off the
check valves or main valve.
Check valve
at cold side
Check valve
at hot side


Shut
Main
valve
Main
valve
1. Use a hexagon wrench to
unscrew the 3 screws and
remove the cover plates,
use the open/shut tool to
shut off the check valves
at the cold/hot side.
Cover

Screw
Screw
Hex. wrench
(medium)
Troubleshooting
Troubleshooting
15
To shut off the main valve.
To shut off the check valves.

In
such
cas
e
Main
tena
nce
Troubleshooting
Cause SolutionProblem
Is the setting of temperature handle
correct?
Check the settings on the
temperature handle
Clean the filters.
Clean the filters.
Low flow
rate
Use check valve to adjust
the flow.
Open the valve fully.
Set the temperature control
handle to the middle point.
Open the valve fully.
Use volume control handle
to adjust the flow.
Is the check valve fully open?
Water flow
does not stop
Push the push button again
Is the Push button in the stop position?
Is the hot water supply temperature hot
enough?
Water
temperature
is too low
Is the stop valve at cold/hot side fully
open?
Water
temperature
is not
controlled
properly
Does the water heater provide enough
hot water
P.11
P.11
P.12
P.11
P.8
P.12
P.12
P.12
P.8
P.10
The shower may drip, because water left
in the pipe is flowing out.
This is not a problem.
Check the settings and
behavior of the water heater.
Before contacting a repairman, check the following common problems and solutions. If
the problem persist, contact your dealer or ask advise from TOTO USA technical support.
Page
Check the settings and
condition of the water heater.
Is the check valve at hot side fully open?
The temperature control handle is set
at “H”?
Is the volume control handle?
Are the filters clogged?
Are the filters clogged?
Water
temperature
is too high
16
The check valve is turned off? Turn on the valve
P.12
Water supply is suspended? Wait until supply is restored
The check valve is turned off? Clean the filters
P.11
Water
doesn’t run
Is the check valve at cold side fully open? Open the valve fully
P.12
The temperature control handle is set
at “C”?
Set the temperature control
handle to the middle point.
P.8

Specifications
Specifications
17
TS991A
Model #
Maximum 90% RH
Water Supply Pressure maximum water pressure (check local
building codes): 125psi (0.86MPa) (static)
minimum required water pressure:
20 psi (0.14Mpa) (flowing)
Less than 185°F (85˚C)
Water that meet National/Primary
drinking water regulation
34 - 104° F (2 - 40˚C)
1/2” NPSM
Supplied Water
Temperature
Water Quality
Ambient Temperature
Water Supply Connection
Max. 2.5 gallons per minute (9.5 L/min)
Flow Rate
Humidity
ExplanationProblem
For safety reason, the maximum water temperature does not
exceed 1130°F (45˚C) even if the temperature handle is fully set to
the hot side
If you cannot locate the location of the check valve, refer to the Setup Drawing(P.6)
The following problem is not a malfunction.
Water does not get hotter
beyond a certain point.

Replacement Parts
shower arm
Supply coppertube
Rear cover
Supply
coppertube
Braclet screws
Upper bracket
Side coverplate # 2
Hand
showerhead
shower Filter and
washer kit
1
4
5
7
8
9
10
12
13
14
Coach screws
11
Hand shower
handle hanger
15
lower bracket
17
coach screws
11
Check valve
21
Filter/check valve
22
bracket
screws
16
side cover plate #4
19
side cover plate
screw
20
temperature control handle
24
temperature control stem adapter
23
SMA thermo
valve assembly
28
temperature
limiter
27
limiter collar
26
screw and
washer
25
Side cover plate #3
36
Valve unit
38
Body shower
set
34
Push button
(showerhead)
41
showerhead
43
Push button
(handshower)
40
Push button
(body sprays)
37
side cover plate #1
42
Screw & O-ring
33
Volume control
handle
Volume control stem adapter
31
Volume control retainer nut
30
Volume control stem
29
hose
32
18

WARRANTY
©2006 TOTO < USA, Inc. á 1155 Southern Road, Morrow GA 30260
Phone [phone] Fax [phone] www.totousa.com
TOTO
< USA, INC. is a wholly owned subsidiary of TOTO < Ltd.
Printed in March, 2007
0GU3006E
4. This warranty gves you specific legal rights. You may have other rights which vary from State to State or
province to province.
3. This warranty does not apply to the following items:
a) Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical
storm, etc.
b) Damage or loss resulting from any unreasonable use, misuse, abuse, negligence, or improper
maintenance of the product.
c) Damage or loss resulting from removal, improper repair, or modification of the product.
d) Damage or loss resulting from sediments or foreign matter contained in a water system.
e) Damage or loss resulting from improper installation or from installation of a unit in a harsh and/or
hazardous environment.
f) Damage or loss resulting from acts of animals such as mice and insects.
g) Damage or loss resulting from a use of abnormal power supply.
h) Damage or loss resulting from abrasion of consumable supplies.
i) Damage or loss resulting from frost.
THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO<. REPAIR OR REPLACEMENT AS
PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER.
TOTO<SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY PURCHASER, OR FOR LABOR OR
OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY
OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF
MERCHANTABILITY OR FITNESS FOR USE, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS. OR THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND
EXCLUSION MAY NOT APPLY TO YOU.
5. To obtain warranty repair service under this warranty, you must take the product or deliver it prepaid to
a TOTO<service facility together with a letter stating the problem, or contact a TOTO<distributor or
products service contractor, or write directly to TOTO<U.S.A., INC., 1155 Southern road, Morrow,
Georgia 30260, [phone]. If, because of the size of the product or nature of the defect, the
product cannot be returned to TOTO<, receipt by TOTO<of written notice of the defect shall constitute
delivery. In such case, TOTO<may choose to repair the product at the purchaser’s location or pay to
transport the product to a service facility.
2. TOTO<’s obligations under this warranty are limited to repair or replacement, at TOTO<’s option,
of products or parts found to be defective, provided that such products were properly installed
and used in accordance with OWNER’S MANUAL. TOTO<reserves the right to make such
inspections as may be necessary in order to determine the cause of the defect. TOTO<will not
charge for labor or parts in connection with warranty repairs or replacements. TOTO<is
noresponsible for the cost of removal, return and/or reinstallation of products.
TOTO® warrants its products to be free from defects in materials and workmanship durning normal
residential use for as long as the original consumer end-user purchaser owns their home. This
limited lifetime warranty is extended only to the original consumer end-user purchaser and only. so
long as the Product remains in use by the original place of installation in the purchaser’s residence.
This warranty applies only to Product purchased and installed in North America.
1.
