Toto TLP02309 User manual

ֵ⭞䈪᱄Ҝ
ֵ⭞ᯯ⌋
ؓޱ
䘏〃᛻߫ᰬ
ֵ⭞ࢃ
ᆿޞрⲺ⌞ᝅӁ亯  
䜞փ〦  
ֵ⭞ᯯ⌋  
ᰛᑮؓޱ  
ᇐᵕؓޱ  
ᱥ᭻䳒"  
୤ᵃࣗ  
૞䈘ૂᣛؤ  㿷ሷᓋ
௙үثۓଣ૆ߎҸ՛фս۩ћ߂峭શ۞澞
બԇڷєূஃયߎ҅પޢаٷ࠳֪଒҅澞
બ״֑ґ঒ߎ҅પޢаљҎ֨ڷޞՕசޞՈஃ澞
ශ TLP02309ශ
TLP02310ශ
䬒䠇໷ᕅঋ󰶛᧝᳍㻻
⍍䶘ಞ≪౪
TOTO LTD.
Dealer:
See “Troubleshooting” (P.14) before asking for repairs.
For advice on repairs and handling,
first contact your dealer.
Tel: -
2017.8
03N52E
TOTO web site http://www.toto.com/index.htm
Address:
TOTO Asia Oceania Pte. Ltd.
Telephone: [phone]
FAX : [phone]
Address : 10 Eunos Road 8 #12-07 Singapore Post Centre Singapore 408600
Website : asia.toto.com
TOTO KOREA LTD.
놹쀉꘽뿭 
)$;꘽뿭 
늱ꭁ ꫑끭겑ꍽ붡霡ꩶꯍ鶎꘽덵ꈑ넩뤉ꠁ點럪
뿽뵍넩덵 KWWSZZZWRWRNUFRNU

2
使用前
使用热水时，直接从热水侧放水，会因流出的高温热水而烫伤。为避
免烫伤，请先从冷水侧打开，然后慢慢地调整到适当的水温。
使用前，请务必确认手柄的位置
否则，可能因老化或磨损等原因导致烫伤・受伤、因漏水导致浸湿财
产、致使财物受损。
请定期（一年两次以上）检查给排水管周围有无漏水或松动
现象。
禁止碰触
必须实行
警告
供热水侧处于高温状态可能会造成烫伤。
使用时请勿直接触碰手柄装饰盖
处于高温状态的水嘴本体及手柄装饰盖可能会造成烫伤。
使用高温热水时，切勿直接触碰水嘴本体及手柄装饰盖。
否则在下次使用时，可能会因产品内残留的高温热水而造成烫伤。
使用高温热水后，请短暂放冷水
冷水水压必须高于热水水压或同等于热水水压
否则会因无法正常地调节温度而导致烫伤。如必须给热水侧加压时，
热水侧压力也必须低于冷水水压。
1
使用前
警告
禁 止
●阅读后，请务必妥善保管在使用者随时可取阅之处。
●为了安全、正确的使用产品，防止给您或者他人的人身及财产安全造成损失，此说明书
采用了许多标志。各标志与含义如下：
■需遵守的内容通过以下标志加以区分、说明。
表示不可行，“禁止”之意。
左图表示“禁止拆解”。
表示必须“强制”实行的内容。
左图表示“必须实行”。
含 义
标 志
注意
此标志表示无视此标志的内容，进行误操作的话，
可能造成人员伤害或物质财产损失。
警告
此标志表示无视此标志的内容，进行误操作的话，
可能导致人员死亡或重伤。
否则，可能因产品性能受损导致烫伤、受伤，或因漏水而引起家具浸
湿等财产损失。
请勿擅自进行诸如安装非本产品结构零件以外部件，或拆除
零件等改装。
否则可能造成产品使用寿命缩短，易破损、烫伤，以及由于漏水造成
家庭财产污损。
供热水温度不得超过90℃，建议供热水温度为60℃.供热水管
请勿使用蒸汽。
禁止拆解
否则，可能因产品受损导致烫伤、受伤，或因漏水而引起家具浸湿等
财产损失。
非专业维修人员绝对不能进行说明书记载检修项目外的产品拆
解、修理和改造。
使用前，请仔细阅读本「安全上的注意事项」的内容，并正确地使用。
安全上的注意事项
()
为了安全起见，
请务必遵守

4
使用前
以免发生漏水等意外事故。
长期不使用时，请务必关闭供水管道总阀。
残障人士及智力能力缺陷和常识缺乏的人（包括儿童）需要在
专人监护下使用本产品。
安装本产品，请委托法资质的专业人员安装。
否则可能导致部件破损，从而因漏水浸湿财物致使财物受损。因结
冰造成的破损，即使在质保期内也属于收费修理。
在可能结冰时，请保持水嘴周围温度，防止降至冰点以下
请勿在室外或可能结冰的地方使用
关闭过快时，水管会发出「咚」的撞击声音，使水管收到冲击进而可
能导致漏水而造成的家具浸湿等财产损失。
请慢慢地操作把
否则可能会造成产品变色或损坏
请勿使用中性洗涤剂以外的洗涤剂
(请参见第11页之内容。)
如果将卸妆剂、发胶、洗发液、染发剂等附着于树脂零件上放置不管，
则可能会造成产品变色或损坏。如意外附着于产品时，请立即用水洗
干净。
请勿使化妆品等附着于水嘴表面。
注意
必须实行
禁 止
3
使用前
否则可能会造成破损，以及因发生漏水而造成的家具浸湿等财产损失。
不要施加强力或冲击。
禁 止
注意
请勿忽视产品各部分的松动现象。
否则会因零部件损坏，或表面镀层出现裂纹而导致受伤。
如出现以上现象，请立即委托修理。
请勿对电镀层表面施加强力或冲击。
否则会因零部件损坏，或表面镀层出现裂纹而导致受伤。如出现以上
现象，请立即委托修理。
否则可能会造成破损，以及因发生漏水而造成的家具浸湿等财产损失。
请勿使把手承受过大的力量。
否则可能会造成破损，以及因发生漏水而造成的家具浸湿等财产损失。
请勿对产品施以重压，或拽拉产品。
否则可能导致产品无法良好运作或发生故障。
请勿对拉杆施加过度的压力、撞击，或拉出拉杆。

6
使用方法
温度调节方法
向左侧旋到底为最高温度位置。
旋转手柄。
以中央部为基点，旋到右侧会出来冷水，
愈往左侧旋转，水温愈高。
右50°左50°
手柄
使用方法
供热水侧 供冷水侧
混合
热水 冷水
5
使用前
第9页
吐水口
面板
手柄
水嘴
拉杆
第8页
手柄装饰盖

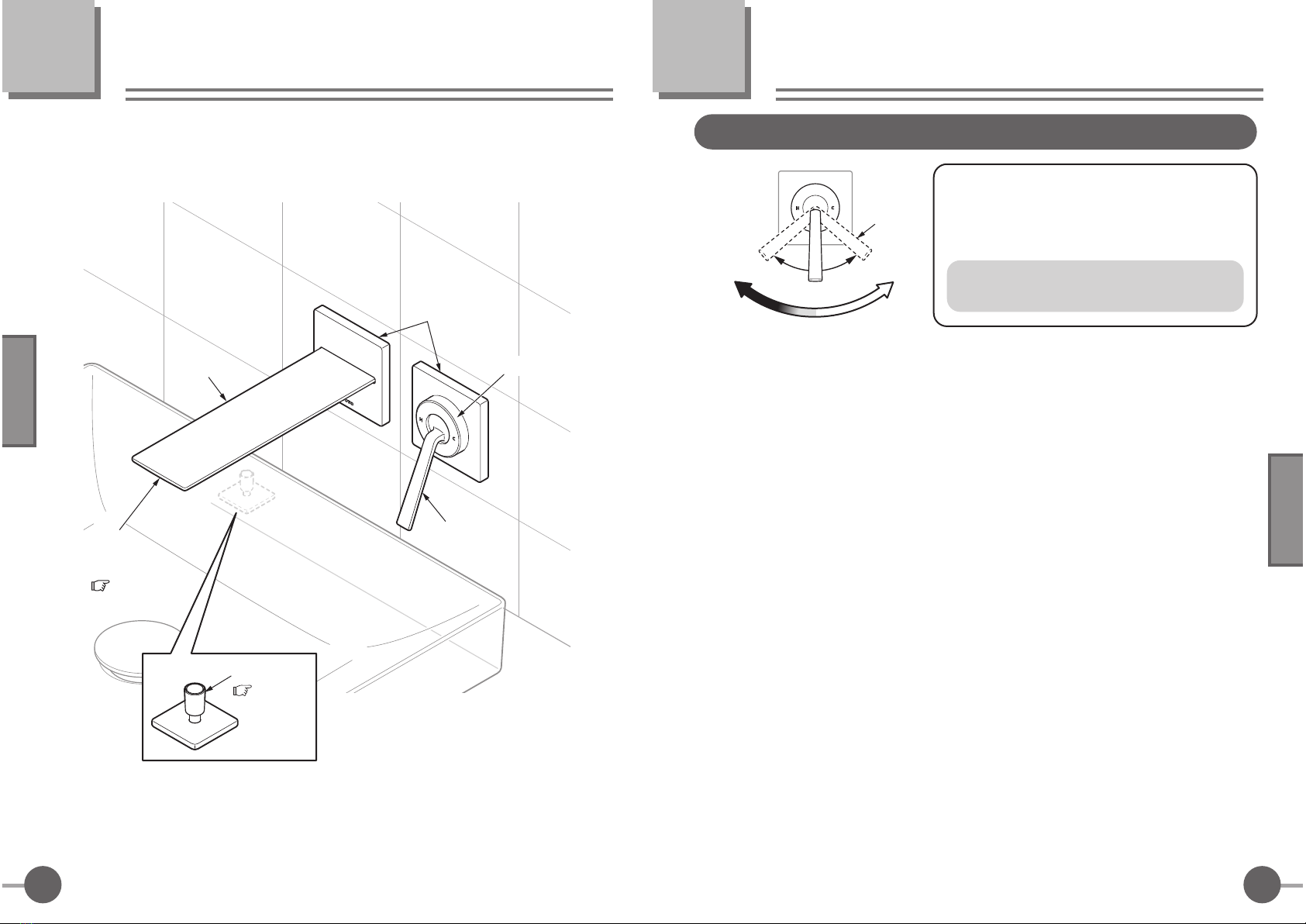

各部位名称

8
使用方法
关闭
止水塞
止水塞的开关（仅限安装排水配件时）
拉出拉杆。
关闭止水塞，可在洗面器中储水。
按下拉杆，就打开止水塞，开始排水。
打开
止水塞
按拉
拉杆
7
使用方法
吐水（冷·热水）
打开手柄。
开始吐水。
完全打开则流水量最大。
停止吐水（冷·热水）
关闭手柄
停止吐水。
注意
●「水锤现象」是指关闭过快发出「咚」的噪声，并非产品问题。因可能导致
供水管损伤或漏水，所以必须慢慢地关闭手柄，以免出现水锤现象。
关闭
打开
手柄
请慢慢地操作把手。否则可能会出现水
锤现象。

10
保养
用软布擦拭保养
否则可能因水嘴弯曲、破损而造成漏水等意外
事故。
切勿对水嘴施加过大的压力。
建议
用适量稀释好的餐具用中性洗涤剂沾湿软布，
再用软布擦除污垢，然后用清水擦干净。
●污垢严重时
用冷水或温水将软布打湿后拧干，擦除污垢。
●轻微污垢时
9
保养
为了有效地发挥产品功能以及让您舒适、卫生地使用，请作好日常保养。
吐水口的保养
为避免零件丢失，请关闭止水塞（或用
毛巾堵住止水塞）。
精密一字形
螺丝刀
吐水口罩
凹槽
吐水口罩
漏水
沉头螺丝
(M3×7)
牙刷
用手
指按入。
吐水口罩
内六角扳手
（对边2.0mm）
1.用内六角扳手（对边2.0mm）松开
沉头螺丝而拆下。
用手指将吐水口罩按入水嘴后，拧紧固
定螺丝。
4.将吐水口罩安装在水嘴上后用
沉头螺丝固定。
2.将精密一字形螺丝刀插入吐水
口罩与水嘴之间的凹槽，拆下
吐水口罩。
3.用牙刷等去除堵住吐水口罩内
整流网的垃圾或污垢。
5.安装结束后，检查吐水口部有
无漏水。
吐水口罩未能正确安装时，请
重新安装吐水口罩。
日常保养

12
保养
无松动
为了能够安全、舒适地使用本产品，请务必进行下列检查。
与开始使用时相比，检查产品有
无松动等异常部位。
拉上 拔出
安装
❶❷ ❸ ❹
内六角扳手
(对边2.5mm)

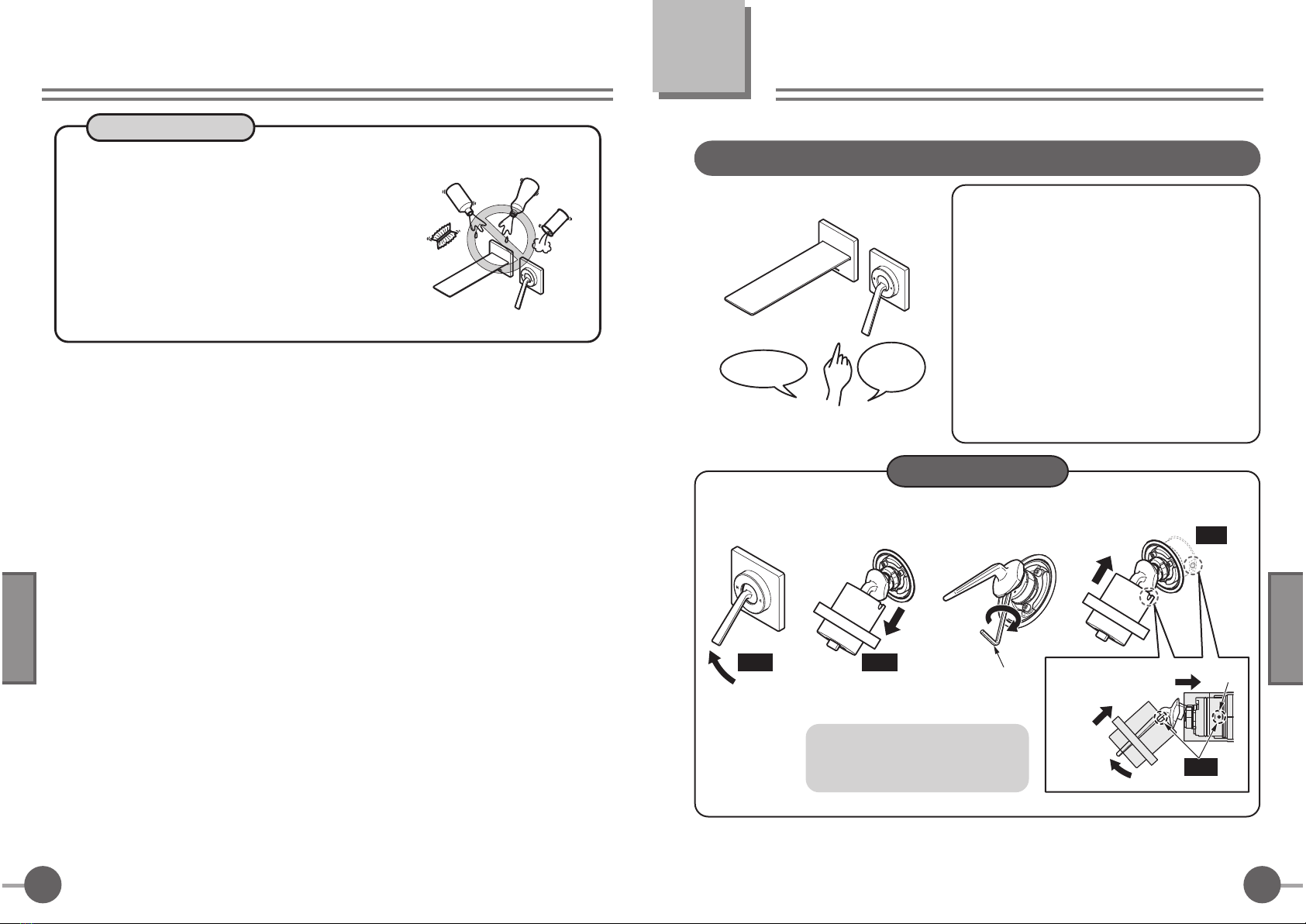

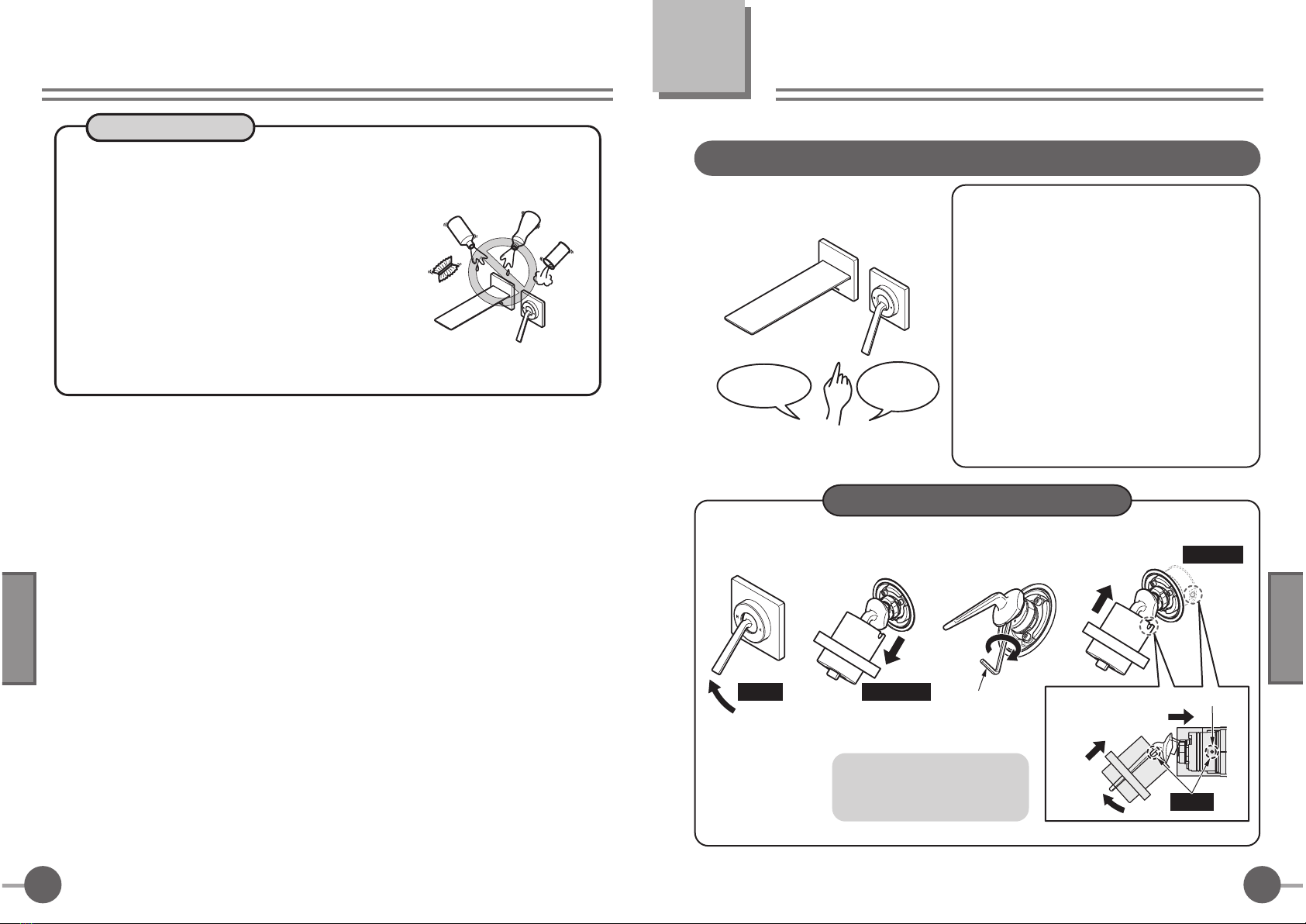

手柄的固定方法
产品的松动（一年两次以上）
对准
凹槽
抬起手柄
凸起
安装装饰盖时如与手柄擦碰，
可能会造成手柄的损伤，请加
以注意。
※固定前，请关闭管道总阀。
如果在水管周围松动状态下继续使用时，会
使供水管承受负载，并有导致漏水的可能。
另外，对松动等异常现象放任不管，会造成
零部件损坏，或表面镀层出现裂纹而导致受
伤。
发现有松动时，先柝下装饰盖，然后再重新
拧紧固体本体的螺丝。
若仍未解决松动时，请委托经销商或代理店
进行修理。（收费）
无异常
定期检查
11
保养
请勿使用可能损坏产品表面的下列物品。
・酸性清洗剂、含氯的漂白剂、碱性清洗剂
否则可能会造成产品表面变色或树脂零件损坏。
・香蕉水、挥发油等溶剂
否则可能会造成橡胶或树脂零件损坏。
・去污粉、研磨粉等含有粗颗粒物质的清洗剂
・百洁布，刷子等
否则可能会损伤产品表面。
建议

14
这种情况时
管道总阀
管道总阀
紧急时的止水方法
发生给水管周围漏水、无法止水等紧急情况时，请根据下图要领关
闭进水角阀或管道总阀。
委托修理前
检查项目现象 处置方法 参照页数
吐水口是否堵塞？ 清洁吐水口。
与流量可调式燃气热水器搭配使用时，
燃气热水器的设置是否合适？
请将燃气热水器的流量
调整至合适的范围。
−
确认热水供给设备的设定
温度和工作状态。
将手柄降低到止水位置。
手柄是否降低到止水位置？
(是否完全关闭) 第7页
第9页
吐水口是否堵塞？ 清洁吐水口。 第9页
只有冷水
热水供给设备是否供给充足的热水？
−
确认热水供给设备的设定
温度和工作状态。
热水供给设备是否供给充足的热水？
−
重新拧紧松开的螺栓。
手柄的固定螺栓是否松开？ 第12页
将手柄旋至左侧。
以中央部为基点，手柄是否旋至左侧？
第6页
●下列情况并非故障。委托修理前，请先检查以下项目，如果仍未解决时，请委托
经销商或代理店进行修理。详情请确认售后服务部分(第16页)。
无法调节
温度
手柄松动
只出冷水
流量小
不止水
是故障码?
13
保养
无漏水
检查给排水管周围有无漏水
给排水管周围的漏水（一年2次以上)
水嘴的固定方法
内六角扳手
(对边2.5mm)
因老化和磨埙坏，进而导到受伤、或因漏水
导到浸湿财产等事故的发生。
发现漏水时，请关闭管道总阀（见14页），
然后请委托经銷商或代理店进行修理。

16
这种情况时
客户的日常保养·检修
易耗零件的更换
安装
日期
建议整体
更换产品
1
12
2
23
3
34
4
45
5
56
6
67
7
78
8
89
9
910
10
10 11
11
11 12
12
12
使用年数
磨损老化零件的更换
磨损老化零件的更换
(请根据内容委托经销商)
(请根据内容委托经销商)
磨损老化零件的更换(请根据内容委托经销商)
［委托修理前，请确认「是故障吗？」之内容（第16页）。］
免费修理时换下的零件、产品属于东陶（中国）有限公司所有。
零件的更换
售后服务
15
这种情况时
初次使用时，因为有细微的凹凸，相互
摩擦的表面较窄，所以使用时可能会感
到手感较轻。
一般家庭
使用期间 : 半年～两年
A
B
A
B
操作力
初次使用
使用次数
操作力的变化
稳定
手感较轻
随着凹凸被磨平，相互间的摩擦面扩大，
导致与初次使用时相比，操作手感加重。
小知识
零件（陶瓷阀芯）的相互磨合
将手柄往上下或左右操作时，图中的A和B零件相互摩擦。
说 明
现 象 参照页数
−
●下列现象并非故障。
与初次使用时相比，使用
一段时间后，可能会感到
把手操作时有些紧
这是因内部零件相互磨合、适应后的结果，
并非故障。

18
备忘录
17
这种情况时

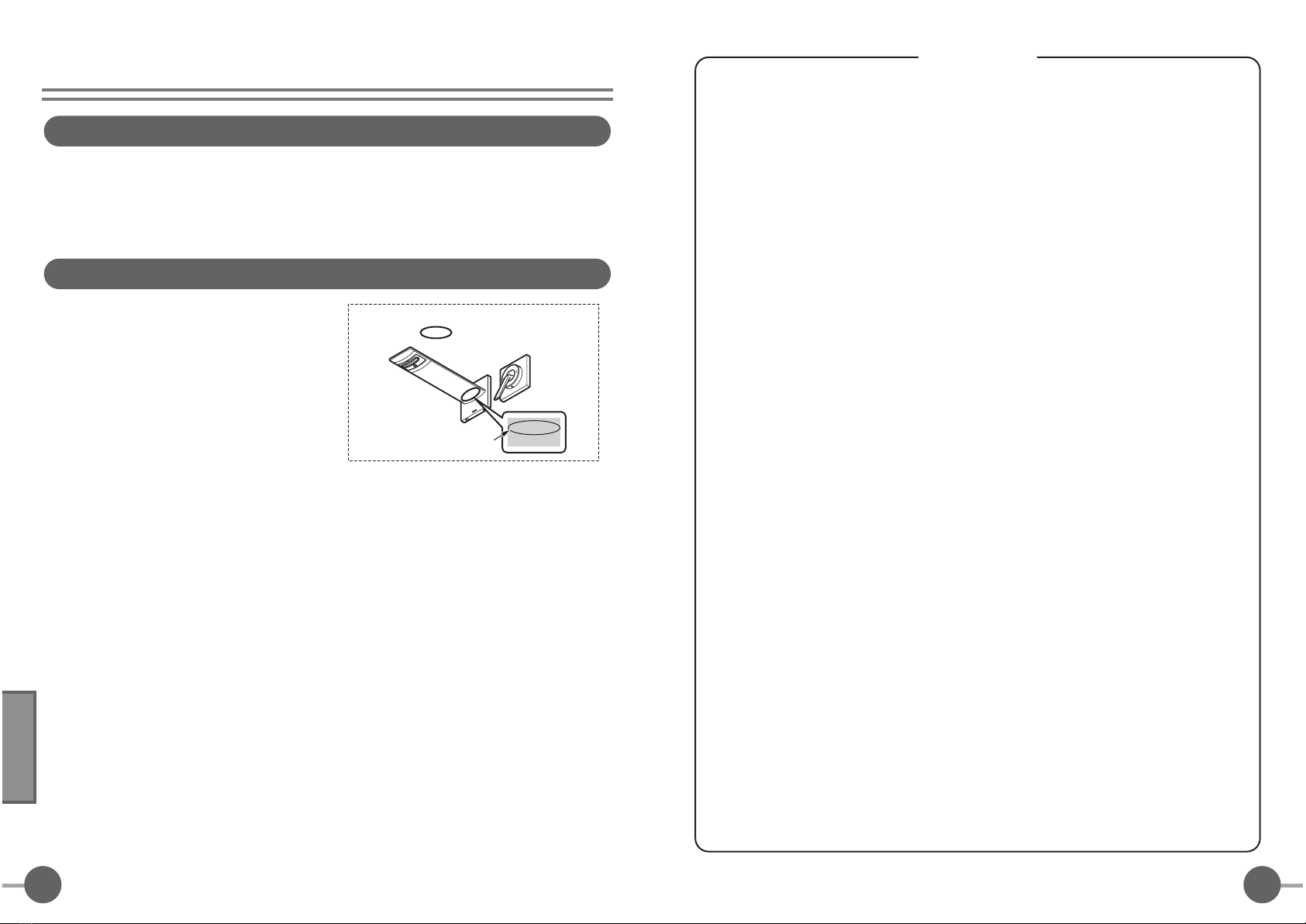

磨损·老化零件的更换
委托修理时
●阀芯或密封圈磨损和老化，可能会造成漏水。
此时，需要更换该零件。
●请委托经销商或代理店更换磨损・老化零件。
［委托修理地点]
经销商或代理店
［需联络的内容]
①地址、姓名、电话号码
②产品名称 ③型号
④安装日期
⑤故障内容、异常情况
（从哪里漏水等）
⑥希望到府上的维修日期
TLP02309
型号
06401E0001B
请通过贴在部分的标签，来确
认产品型号。

Operation Manual
How to Use
Maintenance
What to Do?
Introduction
Safety Precautions .................... 1-4
Names of Parts............................. 5
How to use ................................ 6-8
Daily Care................................ 9-11
Periodic Checks .................... 12-13
Troubleshooting..................... 14-15
After-Sale Services................ 16-17
Information ................... Back cover
Thank you for choosing the Wall-Mounted Single
Handle Faucet (Embedded Type).
For the best performance, please read this manual
carefully.
Keep this manual in a safe handy place for future
reference.
Wall-Mounted
Single Handle Faucet
(Embedded Type)
Model
Number
TLP02309
TLP02310
7272ṠᕅՐ⽴
؍Ҹ՛x৆୦֌
㔅䬶୼φђ䲬δѣളεᴿ䲆ޢ
Ҷ֢։ե߆ԇઢ͹֡ؔઢ
澜澜澜澜澜澜澜澜澜۴ߑۯ
֪澜֭͹Ԙч١߉ஆԚҰԢ૨՚澜ԘчⰧୌИڶԘࠡ
ৠ澜֭͹]]]ZUZUIUSIT
ညᢎؤ⨼ࢃθ䈭⺤䇚ɇᱥ᭻䳒ϋɈҁ亯δㅢ享εȾ
䴶㾷䈘䰤ؤ⨼ૂֵ⭞ᰬθ
䈭俌ݾф䍣ҦⲺᆿ㻻ޢᡌ㔅䬶୼㚊㌱
ઢ՚炕
2017.8
03N52E
:5:5ৠ஼ http://www.toto.com/index.htm
ଽ৚

2
Introduction
If you discharge water from the hot water side, hot water comes out
and may scald you. When you use hot water, start first with cold water
and then adjust the water temperature slowly to desired temperature.
Check the lever handle location before discharging water.
Part(s) may break due to deterioration and wear and you may be
scalded or injured, and water may leak, wet household articles and
cause damage to your property.
Periodically (More than twice a year) check around the
piping for any water leaks and looseness.
The hot water supply side is hot and may scald you.
Do not directly touch the left side of the handle cover.
The spout, the water discharge port and the main body are hot and
may scald you.
When you use high-temperature hot water, do not
directly touch the spout or handle cover.
When you use the faucet the next time, the hot water that remains
in the faucet comes out and may scald you.
After using hot water, flow cold water for a while.
Set the cold water supply pressure higher than the hot
water supply pressure or set them to the same pressure.
If the hot water supply pressure is set higher than the cold water
supply pressure, the temperature cannot be adjusted to appropriate
temperature and you may be scalded. When increasing the hot water
supply pressure, be sure to set the hot water supply pressure lower
than the cold water supply pressure or set them to the same pressure.
Do Not
Touch
Mandatory
WARNING
1
Introduction
●Read this manual carefully and keep it where it is easily available.
●This manual employs various indications in order to install the product safely and
properly and to prevent harm to the customer and other people as well as, damage to
their property. The indications and meanings are as follows.
■
The contents you must observe are classified into the following symbols; their meanings are explained.
Indicates things that you must not do as “Prohibited”.
The left figure indicates that “Disassembly is Prohibited”.
Indicates things that you must do without fail as “Mandatory”.
The left figure indicates to “Execute it without fail”.
Read the section on “Safety Precautions” thoroughly to ensure proper use.
Meaning
Symbol
WARNING
This indication means that if the content in the column
of this indication is ignored or handled wrongly, death
or serious injury may occur.
This indication means that if the content in the column
of this indication is ignored or handled wrongly, injury or
property damage may occur.
CAUTION
WARNING
Prohibited
If the water hotter than 90°C is used, the water may scald you and
the life of the faucet may shorten causing it to break and leak water
that may wet household articles and cause damage to your property.
Do not use the water hotter than 90°C.
Otherwise, the product may not perform to expectations and leak water
that may wet household articles and cause damage to your property.
Do not modify the product using parts other than those
that constitute this product or by mounting other parts
or dismounting original parts.
Otherwise, the water may scald or injure you and the product may break and
leak water that may wet household articles and cause damage to your property.
Do not disassemble parts other than those described in
this manual.
Disassembly
Prohibited
Safety Precautions
(Be sure to follow all precautions for safety sake.)

4
Introduction
Unexpected accidents like water leaks may be caused.
If the product will not be used for a long period of time,
close the main valve of the piping.
Otherwise, the parts may break and leak water that may wet
household articles and cause damage to your property.
Repairs to parts broken due to freezing are subject to billing
even within the warranty period. If freezing is anticipated, do not
lower the temperature around the faucet below zero.
Do not use the product in any place where freezing can
be expected.
If you close the water discharge port, a loud “banging” noise is heard
as the piping is impacted by water hammering. In some cases, water
may leak whereby wetting household articles and causing damage to
your property.
Operate the lever handle slowly.
If you use cleaning agents other than neutral detergent, the faucet
may discolor or break.
Do not use cleaning agents other than neutral detergent.
(Refer to page 11.)
If cleansing agents, hairdressing, shampoos, hair dyes, etc. are left
adhering to plastic parts, the product may discolor or break. If
adhered, immediately wash away with water.
Do not let cosmetics, etc. adhere to the faucet.
CAUTION
Prohibited
Mandatory
3
Introduction
Otherwise, the product may break and leak water that may wet
household articles and cause damage to your property.
Do not subject the product to strong force or impact.
Do not leave the abnormality-like looseness as it is.
If the abnormality-like looseness is left as it is, the part(s) may
break and plated surfaces may crack whereby injuring you.
If you detect any broken part(s) or cracked plated surfaces,
immediately ask for repairs.
Do not strike or operate plated part(s) with undue force.
The plated surface may crack whereby injuring you. If the plated
surface cracks, immediately ask for repairs.
The lever handle may break and leak water that may wet household
articles and cause damage to your property.
Do not subject the lever handle to strong force or impact.
The product may break and leak water that may wet household
articles and cause damage to your property.
Do not put your body weight on the product or hang on
the product.
Otherwise, malfunction or trouble may be caused.
Do not subject the pulling bar to strong force or impact
and do not pull it.
Prohibited
CAUTION

6
How to Use
How to adjust the temperature
Lever
handle
Hot water
Cold water
Mix
Left
50°
Right
50°
Cold water
Hot water
Turn the lever handle.
Cold water comes out if you turn the lever
handle to the right of center. If you turn it to
the left, the water temperature rises gradually.
If you turn the lever handle fully to the left,
the water temperature rises to the maximum.
How to Use
5
Introduction
See page 9
Water
discharge
port
Plate
Handle
Spout
Pulling bar
See page 8
Handle cover
Names of Parts

8
How to Use
Pop-up waste
Open and close the Pop-up waste
(only when the Pop-up waste are mounted).
Pull the pulling bar.
The Pop-up waste close and water can be
accumulated in a wash bowl.
If you push it, the Pop-up waste opens and
water is drained.
PushPull
Pulling bar
Pop-up
waste
Pop-up waste closes. Pop-up waste opens.
7
How to Use
To use cold/hot water
Lift the lever handle.
Water comes out.
At the highest position, the flowrate becomes
the maximum.
To stop cold/hot water
Lower the lever handle.
Water stops coming out.
Down
Up
Lever
handle
Operate the lever handle slowly. In some
cases, you may incur water hammering.
Note
●“Water hammering” ” is a phenomenon that causes a loud “banging” sound.
It is not due to trouble with the faucet, but when the water is stopped
suddenly. However, this phenomenon may cause damage to piping and leak
water. Therefore, lower the lever handle slowly to avoid water hammering.

10
Maintenance
Wiping with a cloth
Otherwise, the faucet may bend or break,
whereby causing damage like water leaks, etc.
Do not apply excessive loads to the
faucet.
Notes
Soak a piece of cloth in cold or lukewarm
water, wring well and wipe away dirt
completely.
Wipe off dirt with a piece of cloth impregnated
with appropriately diluted neutral bath cleaner,
then blot up any residual dirt and water with a
dry piece of cloth.
●Slightly dirty
●Stubborn dirty
9
Maintenance
In order for the product to exert its full performance and to be used
in a sanitary condition, perform care daily.
Care for the water discharge port
Flat-blade
precision
screwdriver
Water discharge
port case
Notch
Water discharge port case
Leak
Countersunk
small screw (M3 x 7)
Toothbrush
Push it
in with a
finger.
Water
discharge
port case
Hexagonal wrench
(Distance across
faces: 2.0 mm)
Close the Pop-up waste without losing parts.
Block the Pop-up waste with a towel, etc
1. Loosen and remove the
countersunk small screw
using a hexagonal wrench
(distance across faces: 2 mm).
2. Insert the flat-blade precision
screwdriver in the notch between
the water discharge port case
and the spout, and remove the
water discharge port case.
3. Remove dirt and debris
caught by the wire screen
using a toothbrush, etc.
4.
Assemble the water discharge port
case on the spout and lock it place
with the countersunk small screw.
Press the water discharge port case into the
spout with a finger and tighten the setscrew.
5. When mounting work is
complete, check the water
discharge port for any water
leaks.
If water discharge port case
is not mounted properly,
re-mount it.
Daily Care

12
Maintenance
For safe and comfortable use, please conduct the following checks.
Raise Pull it out
Mount it
❶❷ ❸ ❹
How to anchor the lever handle
Looseness of the product (More than twice a year)
Align
Notch
Projection
Lift the
handle
Contact with the handle
when inserting the cover
may damage the handle.
*Close the main valve of piping before anchoring.
No
looseness
No
abnormality
If you continue to use the product with loose
piping, load is applied to the pipe(s) and may
result in water leakage.
If you leave any abnormality like looseness
unfixed, part(s) may break or plated surfaces
may crack whereby injuring you.
If you find a loose part, remove the cap and
retighten the screw that anchors the main body.
If the looseness cannot be fixed, ask your
dealer or seller for repairs (subject to billing).
Check for any parts that seem
abnormal such as being loose
as compared to when you first
began using the product.
Hexagonal
wrench
(Distance across
faces: 2.5 mm)
Periodic Checks
11
Maintenance
Notes
Do not use the materials that may break the faucet.
・Acidic detergents, chlorine bleaches and
alkali detergents
The faucet surface may discolor or the plastic part(s)
may break.
・Solvents such as thinner, benzine, etc.
Rubber and plastic part(s) may break.
・Detergents that contain coarse particles
such as cleansers, polishing powders, etc.
・Nylon scrubbers, scrubbers, brushes, etc.
The faucet surface may be damaged.

14
Troubleshooting
Main valve Main valve
How to stop water in an emergency
In case of an emergency such as leaking water around the
piping or water does not stop flowing, close the water shutoff
valve or the main valve as shown in figure below.
Lever handle
is loose.
Before asking for repairs
Phenomena Check Point
Is the lever handle lowered down to
the water stop position?
(Is the water stop valve fully close?)
Is the water discharge port clogged?
If the single handle faucet is used in
combination with a gas water heater,
is the capacity set appropriately for
the capacity change type?
—
—
Page 7
Page 12
Remedy
Ref.
Page
Water does
not stop.
The flowrate
is too slow.
Only cold
water comes
out.
Temperature
cannot be
adjusted
well.
Page 6
Only cold water
comes out.
Lower the lever handle down
to the water stop position.
Clean the water discharge port.
Check the water heating
temperature and the
operation of the water heater.
Set the appropriate
capacity.
Check the water heating
temperature and the
operation of the water heater.
Retighten the loose screw.
Turn the lever handle to
the left side.
Clean the water
discharge port.
Is a sufficient volume of hot water
coming from the water heater?
Is a sufficient volume of hot water
coming from the water heater?
Is the water discharge port
clogged?
Is the screw that anchors the
lever handle loose?
Is the lever handle turned to the
left side of center?
—
●The following phenomena are not troubles. Before asking for repairs, check
the following points. If the troubles persist, ask your dealer for repairs.
For details, check the after-sale services (page 16).
Page 9
Page 9
Troubleshooting
13
Maintenance
No water
leaks
Water leak around piping (More than twice a year)
How to anchor the spout
Hexagonal wrench
(Distance across
faces: 2.5 mm)
Check around piping for any
water leaks.
Part(s) may break due to deterioration or
wear, and you may be injured, and water may
leak, wet household articles and cause
damage to your property.
If water leaks, close the water shutoff valve
and the main valve (see Page 14) and ask
your dealer or seller for repair.

16
Troubleshooting
Daily care and checking by customer
Replacement of consumable parts
Date of
installation
Consideration
of
replacement
1
12
2
23
3
34
4
45
5
56
6
67
7
78
8
89
9
910
10
10 11
11
11 12
12
12
Years of use
Replacement of worn and degraded parts
Replacement of worn and degraded parts
(Ask your dealer depending on the status of wear and degradation.)
(Ask your dealer depending on the status of wear and degradation.)
Replacement of worn and degraded parts
(Ask your dealer depending on the status of wear and degradation.)
[Before asking for repairs, please check “Troubleshooting” (Page 14).]
Parts and products that are dismounted for repairs belong to TOTO.
Replacement of part(s)
After-Sale Services
15
Troubleshooting
When first using the product, since the
indents are minute and the friction area
is very small, both parts readily move.
Period of use in a general family:
Half year ~ 2 years
A
B
A
B
Operation
force
When first using
the product:
Frequency of use
Change of operation force
Stable
Somewhat
light
The indents are worn and the friction
area becomes large. Therefore, a force
somewhat stronger than when first
using the product is needed.
Tip
When you move the handle up and down or to the right and left, parts A and
B shown in the figure rub against each other.
Fitness of parts (Ceramic valves)
—
●The following phenomena may occur but they are not due to any trouble.
ExplanationPhenomena Ref. Page
This is due to the fact that the parts inside the
product fit each other well and become stable
during use. This is not due to any trouble.
Handle operation is
heavier that when first
using the product.

18
MEMO
17
Troubleshooting
Replacement of parts subject to wear and deterioration
When asking for repairs
●If the valve and packing wear or deteriorate, water may leak.
Replacement of applicable parts is necessary.
●Ask the place of purchase to replace worn or deteriorated parts.
[Where to ask for repair]
Your dealer or seller
[Information we want to know]
(1) Address, name and telephone number
(2) Name of product (3) Model number
(4) Date of installation
(5) Details of trouble and status of abnormality
(From where water leaks, etc.)
(6) Desired date of visit
TLP02309
06401E0001B
Model number
Confirm the model number on the label that
is affixed to part.
