Touch HOME CARE User manual
Product Manual
HOME
CARE
CONTENTS
Contents
Product information
List of products
How to use the medical devices
How to use the application
Troubleshooting
03
05
07
18
24
CONTENTS
WHAT IS
HOME CARE ?
Product Information
It is the smart health check system that will help check and analyse your health
by regularly collecting your measurements then give basic recommendations on
how to take care of your health. This is done by collecting data from devices such
as blood pressure monitor, blood sugar monitor, forehead thermometer, ECG
(heart rate) monitor, blood oxygen monitor and body weight and composition
monitor.
| 03
| 04
Health Data Analysis
Saves Time
Easy to Use
Health Information Report Health Care
Recommendations
Can easily analyse your health
by yourself to get accurate and precise
health information.
Health check-ups can be done
at home, reducing travel and
waiting time at the hospital.
Health checks can be done anytime
and anywhere. It is easy to use
and hassle-free.
Health records and health reports
via smart health care monitors. Recommends appropriate personal
self-care routines.
Smart Health Check
Display Device
Blood Sugar
Monitor
| 05

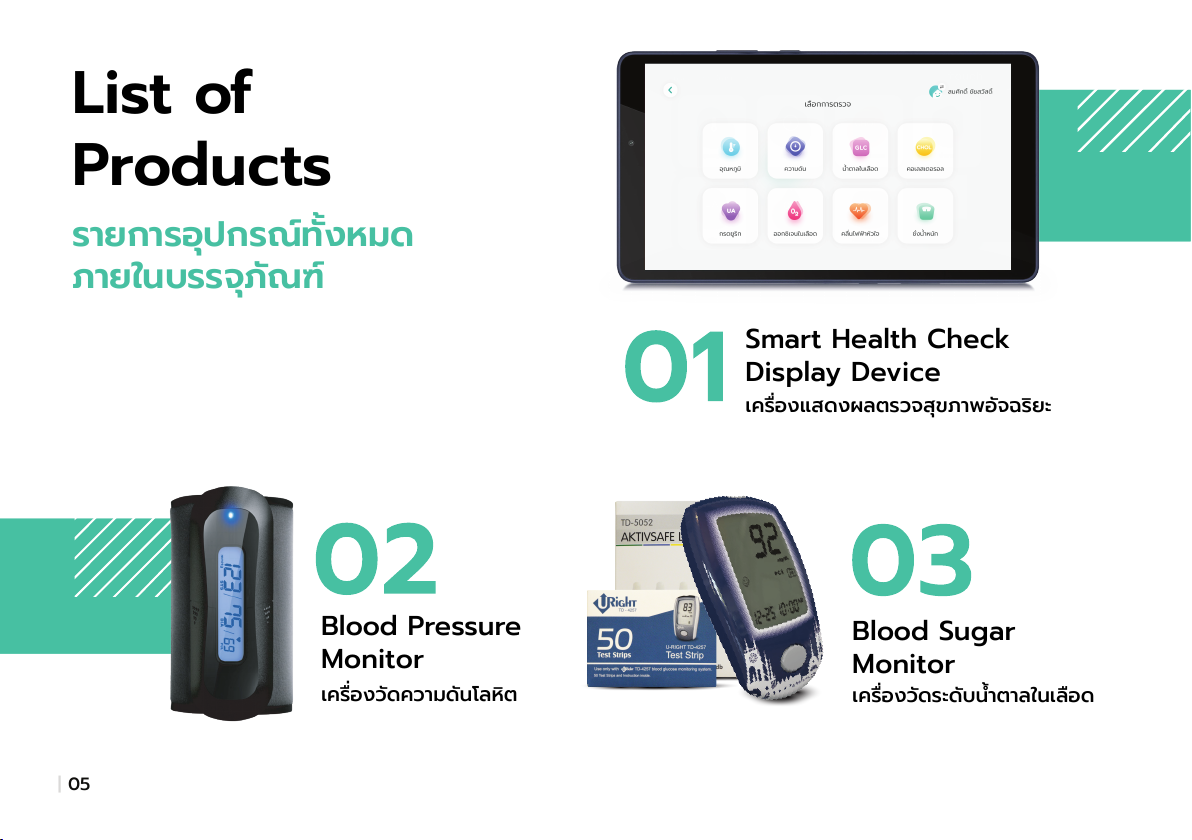

List of
Products
Blood Pressure
Monitor
| 06

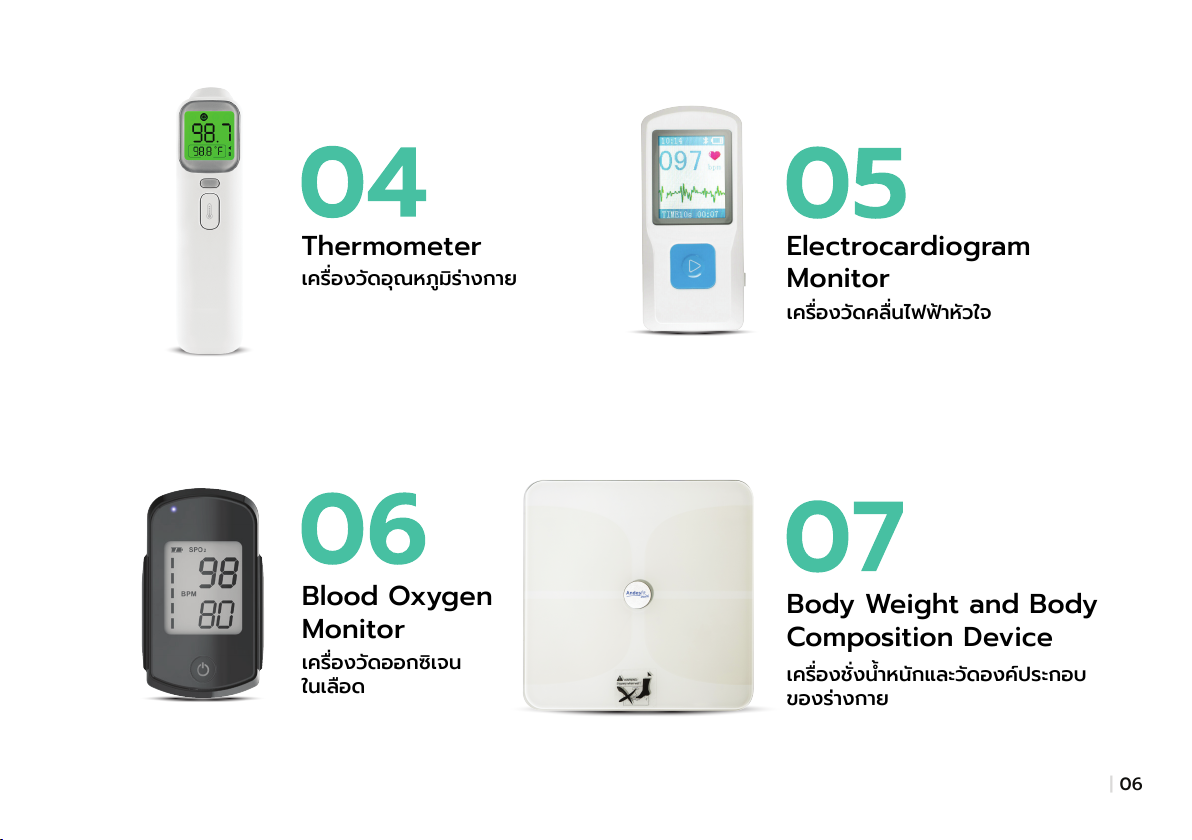

Thermometer
Electrocardiogram
Monitor
Blood Oxygen
Monitor
Body Weight and Body
Composition Device

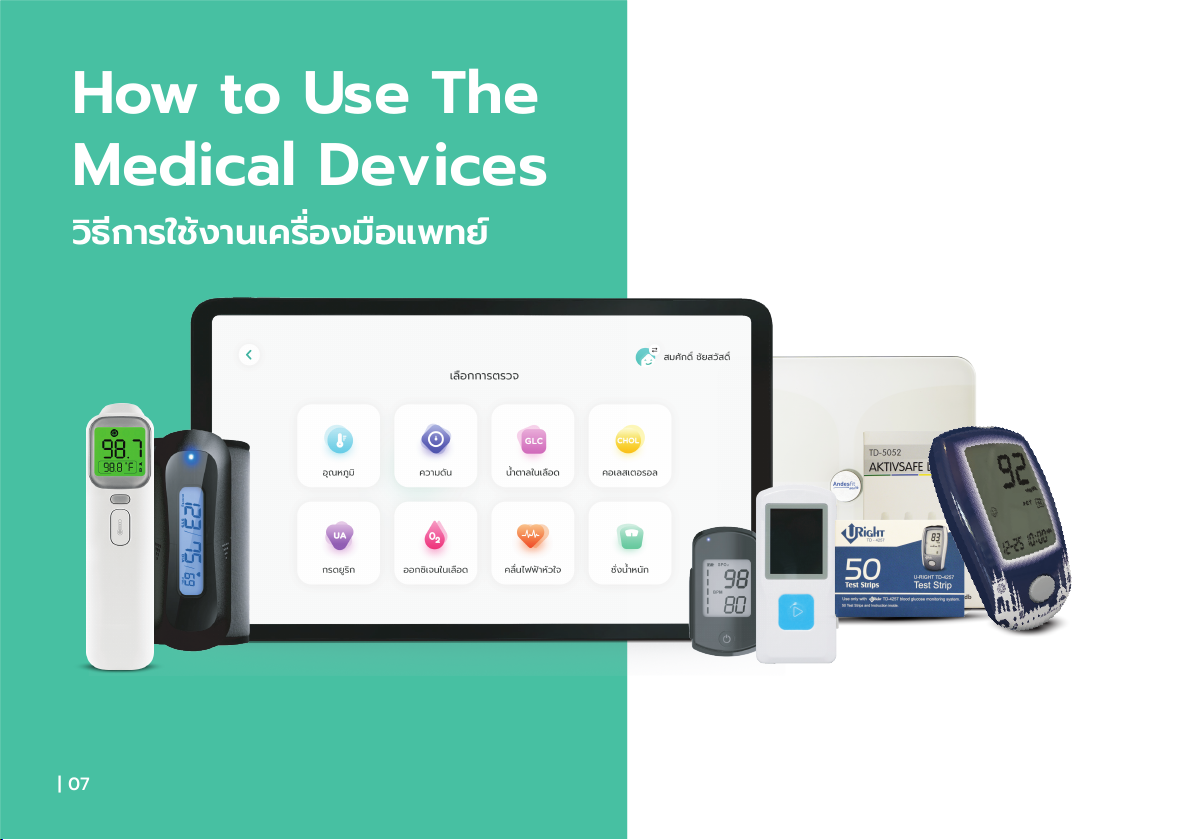

How to Use The
Medical Devices
| 07
| 08
POWER
ON
1
CHOOSE
MODE
2
MEASURE
4

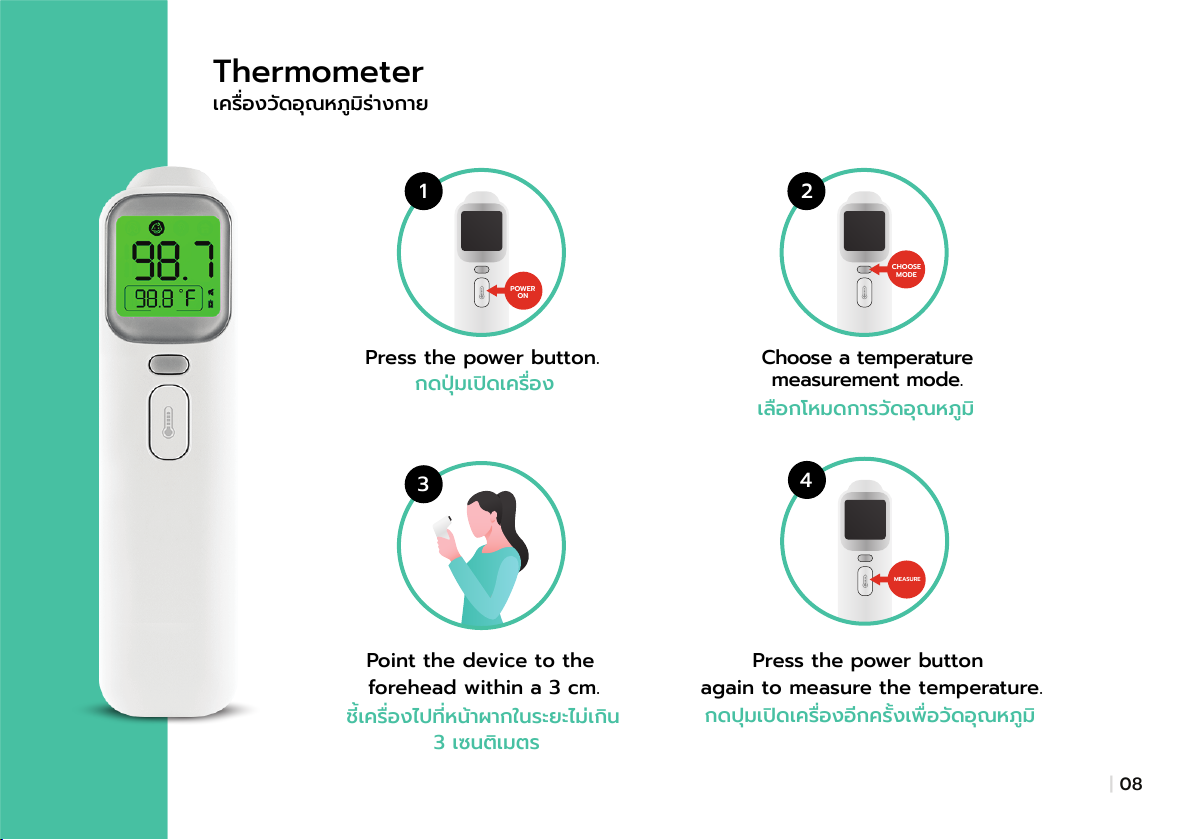

Point the device to the
forehead within a 3 cm.
Press the power button.
Choose a temperature
measurement mode.
Press the power button
again to measure the temperature.
3
Thermometer
| 09

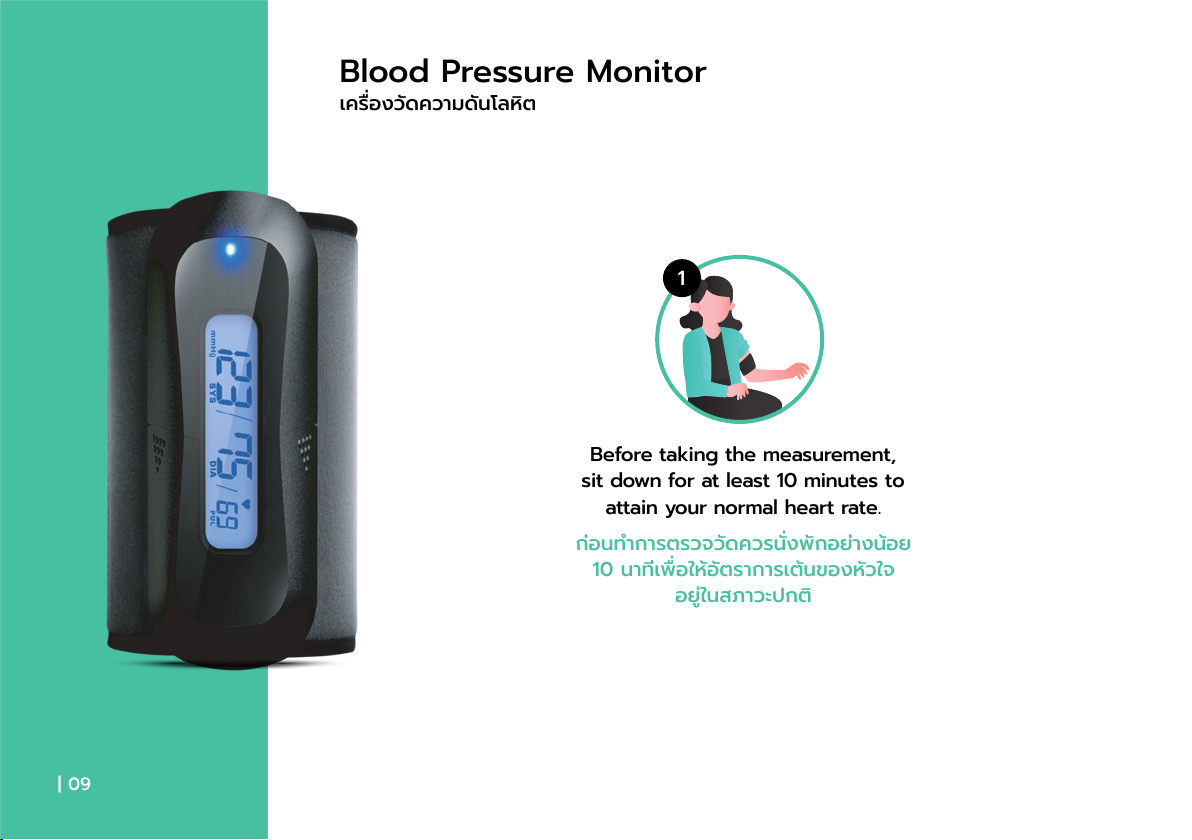

Before taking the measurement,
sit down for at least 10 minutes to
attain your normal heart rate.
1
Blood Pressure Monitor
2
Wrap the cuff around either arm
and tighten the strap so the red tab
is on the upper arm about 2 cm
above the elbow.
Place your arm so that the device
is at the same level with your heart.
Then press the blue button at the bottom
to start taking the measurement.
3
| 10
| 11
Take off you r shoes
and socks before
you start weighing.
1
Stand on the device
to weigh.
2
Body Weight and Body
Composition Device

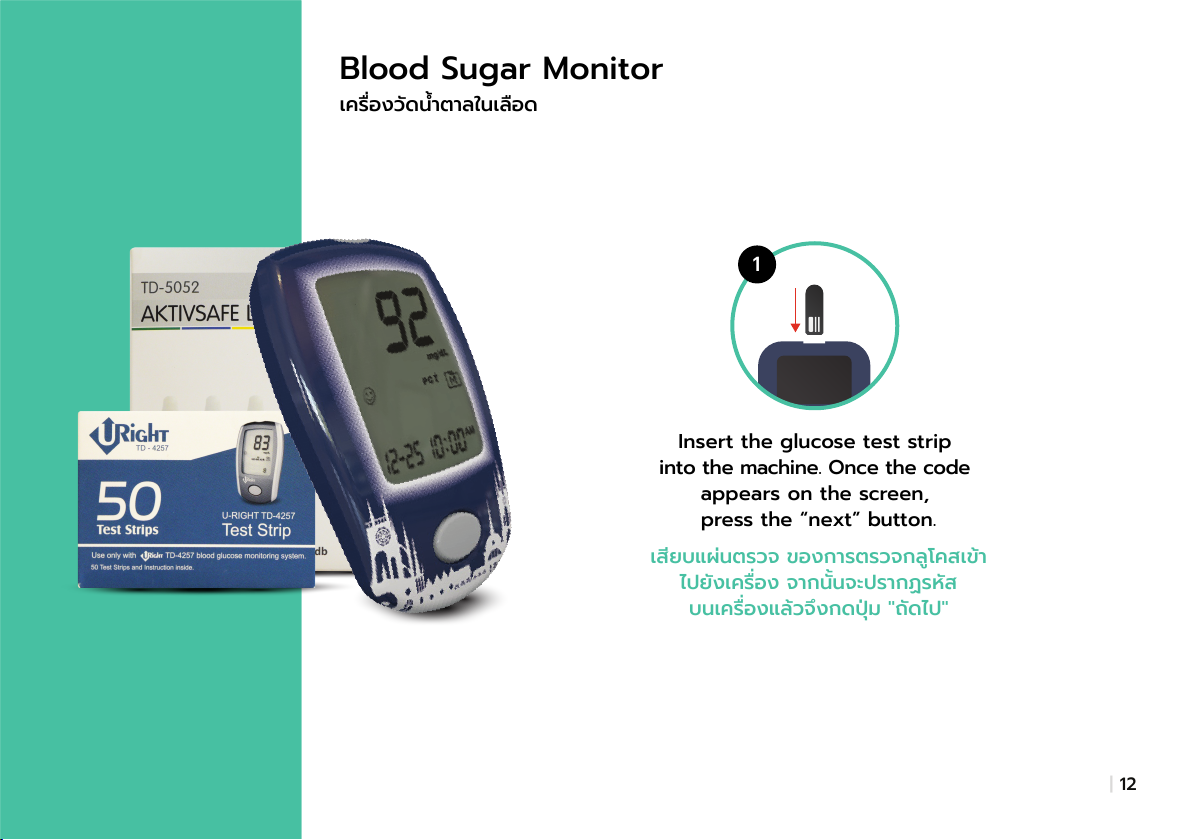

Insert the glucose test strip
into the machine. Once the code
appears on the screen,
press the “next” button.
1
Blood Sugar Monitor
| 12
Next, slide the bar on the left side
of the device to release the test strip.
The result will be displayed on
the application screen.
Draw blood with a lancet needle
and touch the end of the test strip
with a drop of blood. The device screen
will show a countdown of 5 seconds.
The monitor will show the blood sugar
value. Press the “next” button.
23
| 13
| 14
1

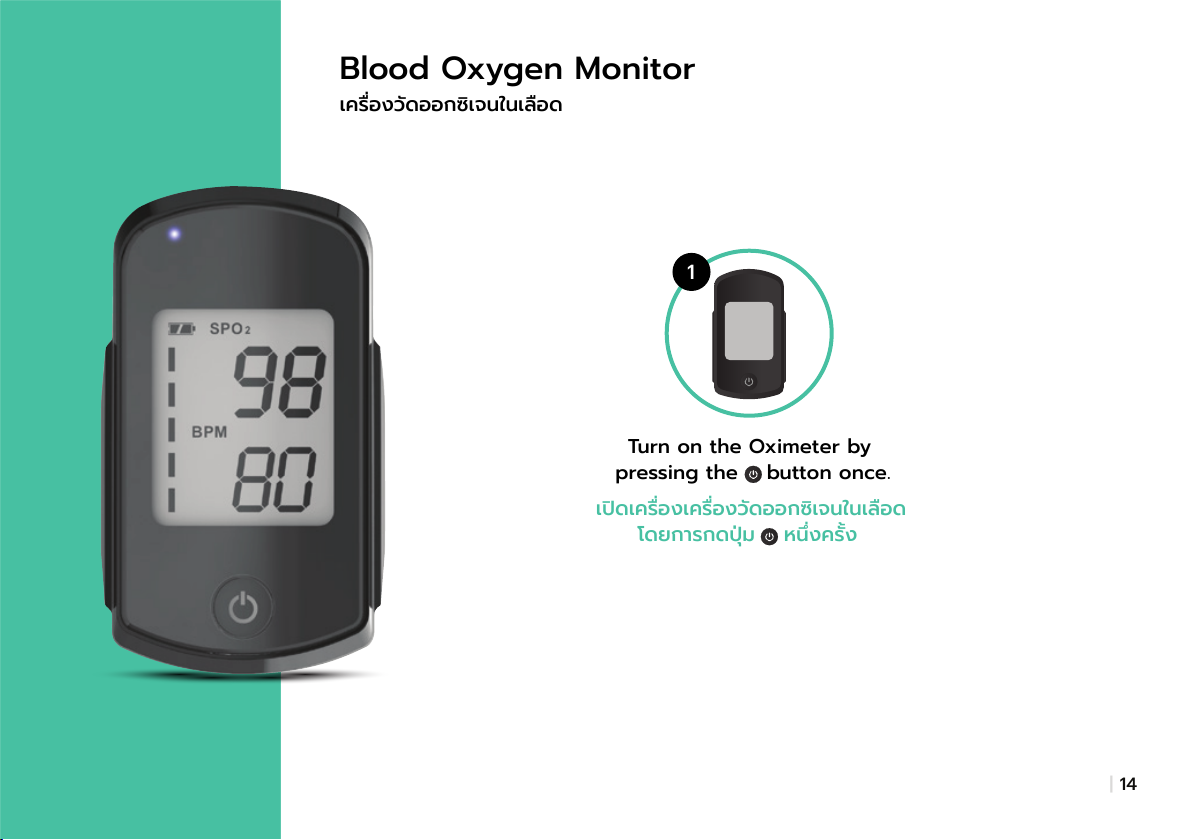

Blood Oxygen Monitor
Turn on the Oximeter by
pressing the button once.
it will display the blood oxygen level
and pulse rate on the display screen.
(The amount of oxygen in the
blood and the pulse rate will change
over time according to the actual
of person taking the measurement).
3
Use one hand to hold the clamp
open with the screen side up
hand into the rubber hole.
To measure the oxygen level,
and wait for the device to measure.
2
| 15

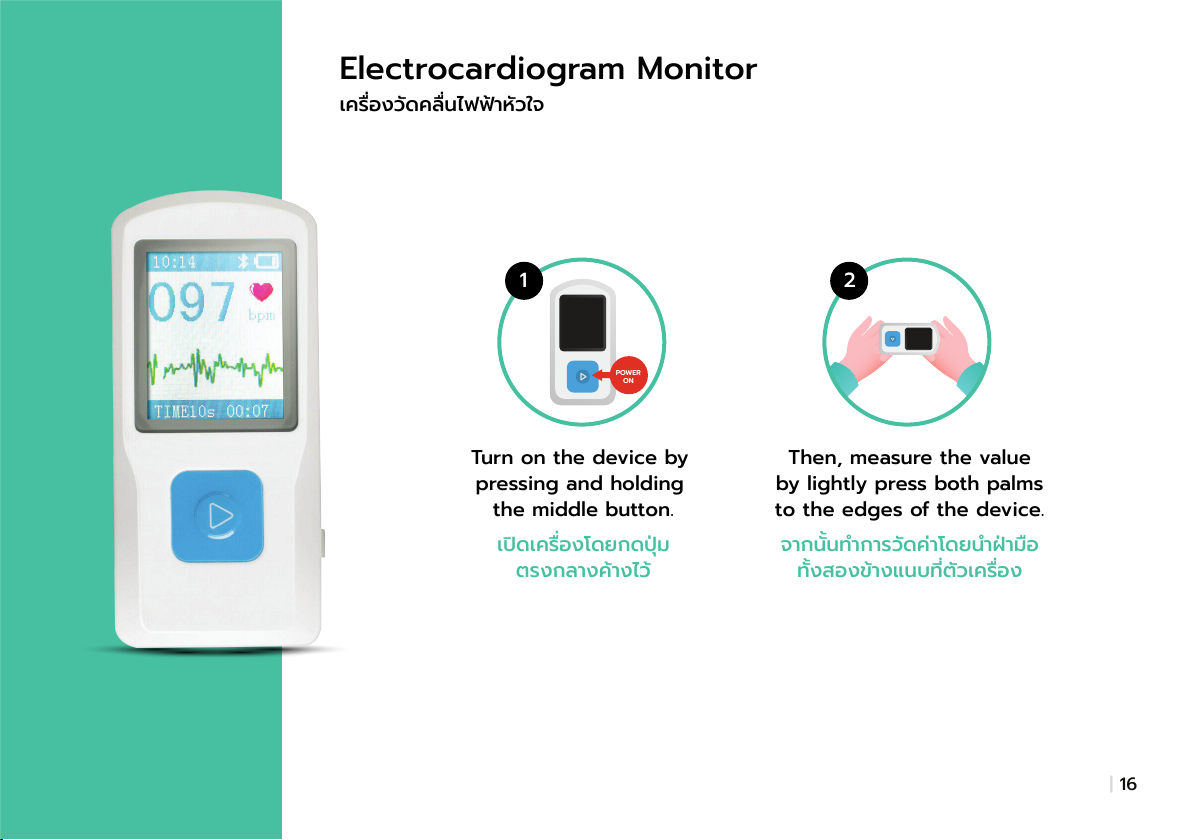

Turn on the device by
pressing and holding
the middle button.
1 2
Then, measure the value
by lightly press both palms
to the edges of the device.
POWER
ON
| 16
Electrocardiogram Monitor
Wait approximately
30 seconds for the
device to beep.
Release both hands
from the device.
34
| 17
| 18
How to Use
the Application
Home care the Smart Home Health Check-up kit.
Because we want you to be healthy. It was developed in order
to analyse health data with recommendations on how to
take care of your health.
“
”
1
2
3
| 19
Getting Started
* When opening the application for
introductory tutorial on how to use
the application.
