Touchstone Whisper Lift II PRO User manual

Whisper Lift II PRO

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
2
READ ME FIRST
1. After completing the unpacking and uncrating of the cabinet, you will find the Owner’s
Manual, TV, installation hardware, and the wireless remote all together and sealed in a clear
plastic envelope and affixed to the underside of the cabinet.
2. To insure the safety and security during shipping, we package the wooden and/or glass
shelves that come with some cabinets, along with the TV mounting brackets (2) under the
main cabinet, and then we secure this with heavy duty strapping so it remains secure in
shipping.
3. To access the package of parts, simply tilt the cabinet back on its edge and using a box
cutter, cut the strapping as close to the underside edge of the cabinet as possible, releasing
the package. Pull the package out and set the cabinet back down on its base. CAUTION: At
least two people should be involved when tilting the cabinet back on its edge and always use
great care when tilting the cabinet back on its edge to access the parts package.
4. Prior to starting the TV installation process, we recommend you write down the serial
number for the cabinet which can be found on the 3x3 white rectangular label affixed
prominently on the inside of the cabinet under the lid. The bottom line set of numbers on
this label is the cabinet serial number.
Cabinet Serial Number

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
3
Table of Contents
Contents
About Your Touchstone TV Lift Cabinet ................................................................................................................. 4
Storage Space ............................................................................................................................................................ 4
Other features common to all Touchstone cabinets .................................................................................................. 5
Additional Cabinet Features (unique to certain cabinets only) ................................................................................. 5
Basic Lift Mechanism Features ................................................................................................................................ 5
Safety ............................................................................................................................................................................ 6
Lift Components & TV Installation Hardware........................................................................................................ 7
Components .............................................................................................................................................................. 7
Hardware ................................................................................................................................................................... 7
Tools ......................................................................................................................................................................... 7
Operating the Whisper Lift II PRO TV Lift ............................................................................................................ 8
Initialize the Whisper Lift II PRO Lift ..................................................................................................................... 8
Operating the Wireless Remote ............................................................................... Error! Bookmark not defined.
Operating the Wired Remote .................................................................................................................................... 9
Mounting and Installing the TV .............................................................................................................................. 10
Attaching TV Mounting Brackets to Flat Panel TV ............................................................................................... 10
Installing TV on Lift ............................................................................................................................................... 12
Installing Locking Brackets on Whisper Lift II PRO TV Lift ................................................................................ 13
Setting Height of Adjustable Roller Assembly ........................................................ Error! Bookmark not defined.
Whisper Lift II PRO TV Lift Features .................................................................... Error! Bookmark not defined.
Initialize the Whisper Lift II PRO Lift .................................................................... Error! Bookmark not defined.
Pairing Universal IR Remote with Whisper Lift II PRO ......................................... Error! Bookmark not defined.
Setting Lift Height ................................................................................................... Error! Bookmark not defined.
Setting Lift Height Memory Button (Middle Button) on Wireless Remote ............ Error! Bookmark not defined.
Whisper Lift II PRO Accessories ............................................................................................................................ 19
Install IR Sensor (included) .................................................................................................................................... 19
Install 12v Trigger Cable (optional) ....................................................................................................................... 19
Infrared Repeater Kit (optional) .............................................................................................................................. 20
Technical Support ..................................................................................................................................................... 20
Touchstone Home Products Limited Warranty ..................................................................................................... 21
Warranty Coverage ................................................................................................................................................. 21
Warranty Registration ............................................................................................................................................. 21

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
4
About Your Touchstone TV Lift Cabinet
Congratulations on the purchase of your Touchstone TV Lift Cabinet. Touchstone Home Products takes pride in
the quality of our cabinet craftsmanship and the smooth functionality of our TV lift mechanism. Please take a few
minutes to learn about the features of your TV lift cabinet to insure you get the optimum use and performance from
your new purchase.
Storage Space
- Our full size and mid-size cabinets come with ample storage space in the base of the main cabinet for
placing your components. Cable boxes, DVR/DVD players, video game consoles can all be placed on the
bottom of the cabinet and you can access the cords from the rear of the cabinet, using the handy slide panels
in the back of the main cabinet.
- Side cabinets for additional storage are available for our full-size cabinets
- Each full size and mid-size cabinet comes with additional personal storage areas in the front for storing
DVDs, CDs, books, video games, etc.
- Each full size and mid-size cabinet comes with adjustable shelves. The shelves can be installed and placed
at desired heights in the cabinet by placing the shelf clips into the pre-drilled holes. This is the same
procedure for setting the shelves in the side cabinets as well.
- If you purchased one of our 73000 series end-of-bed TV Lift cabinets, it comes equipped with a built-in
component shelf which has room for at least two components, and raises and lowers with the lift, providing
you with perfect line of sight and easy access to your cable box, DVD/DVR player, etc.
Full & Mid Size Main Cabinet Interior
End of Bed Cabinet
Component Shelf

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
5
About Your Touchstone TV Lift Cabinet – cont.
Other features common to all Touchstone cabinets
- All cabinets come with adjustable feet in all four corners of the cabinet. These can be used to raise/lower
the cabinet, and to level the cabinet so that all doors and lid operate smoothly.
Additional Cabinet Features (unique to certain cabinets only)
- Our transitional series of cabinets that have glass fronts come with internal lights that operate by simply
touching the hinges on the doors.
- Our Adonzo 70052 media cabinet comes with a pull down speaker mesh compartment in the front of the
main cabinet that is perfect for placing a Center Channel speaker, a 3.1 Sound Bar, or a vide game console.
- Our Adonzo 70052 media cabinet also comes standard with wood front or mesh fronts, so that you can
mix/match depending up on your audio-visual requirements for your system.
- Our 73000 series cabinets come with a built-in component shelf that can store at least two (2) components.
Basic Lift Mechanism Features
- Lift mechanism comes fully assembles and ready for TV mounting (see the Mounting TV section)
- Our lift is very quiet because it operates on a low voltage actuator (think piston that goes up and down).
- Our lift is durable and comes with a 2 year warranty. However, should a part fail, it is very easy to replace.
- Our unique roller extension gently and smoothly raises and lowers the lid of your TV Lift cabinet, saving
wear and tear on your lift, and providing a soft and save closure. The extension also allows for the TV to be
mounted higher on the lift, giving you more room for components in the bottom of the cabinet.
70052 Pull Down Media Compartment

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
6
Safety
Installing your Flat Screen TV in your Touchstone TV lift cabinet is fast and easy. Operating your lift is very
straightforward. However, to avoid the risk of personal injury and to insure optimum performance of your TV lift
mechanism, please pay particular attention to the warnings and safety notices throughout this manual.
IMPORTANT SAFETY and PRE-INSTALLATION INSTRUCTIONS
1. Please adhere to the proper installation procedure as detailed in the installation instructions.
2. Safety precaution measures must be practiced at all times during installation of this product.
3. The entire installation instructions should be fully read and understood before beginning installation.
4. At least two people should be available to mount the TV on the lift mechanism. Please take care when
handling your flat screen TV as injury and damage can result from dropping or mishandling of the TV.
5. Plasma screen TV’s should remain upright at all times. Never place screen face down on the floor. This
could cause damage to the TV.
6. The stand on your flat screen TV is removable! Please remove the stand prior to installing the TV on the
lift mechanism. Consult your TV’s owner’s manual for instructions for removing the stand.
7. Carefully measure all dimensions of your LCD, PLASMA, or LED TV before proceeding. Then consult the
Mounting and Installing the TV section of this manual for maximum TV size.
IMPORTANT!: After installing your TV, you may find there is room in the bottom of the cabinet to install
a small cable/satellite TV box. Once the TV is mounted, remove the front panel on the Elevate TV Lift
Cabinet and completely lower the lift. Carefully inspect the space between the bottom of the TV and the
bottom of the cabinet to see if your component will fit in the bottom of the cabinet. Consult the Mounting
and Installing the TV section of this manual for more information.
8. All cords connecting components to the TV should be a minimum of 72” (6 feet) in length when installing
component inside of cabinet or a minimum of 144” (12 feet) in length when installing component outside of
cabinet (length of cable will depend on placement of your component).
9. WARNING!: TV Lift Mechanism contains moving parts. Please keep hands, arms, and fingers away from
the lift and cabinet lid opening when the lift is in motion. Cables should be wire-tied or secured neatly so
lift does not contact them during operation.
Contact Touchstone Customer Service at 1-800-215-1990 for any questions regarding the operation of your TV lift
cabinet. We are also available on the web at www.touchstonehomeproducts.com

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
7
Lift Components & TV Installation Hardware
Components
Hardware
- 4 Lift Mounting Screws (included)
- TV Mounting Screws
-> Please consult your TV manufacturer for the size and length of the mounting screw for your TV.
Included is a basic set of mounting screws that accommodates most LCD/Plasma TVs. Depending on your
television, the screws included in the kit may not fit your television. If that is the case, these screws can be
purchased at most hardware/home improvement stores.
Tools
In order to assemble the Whisper Lift II PRO, you will need the following tools:
- Philips-head screwdriver
- size 4 metric hex wrench
- size 5 metric hex wrench
- adjustable wrench or size 4 and size 5 metric socket wrench

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
8
Operating the Whisper Lift II PRO TV Lift
Initialize the Whisper Lift II PRO Lift
PLEASE RUN INITILIZATION PROCEDURE BEFORE OPERATING LIFT AFTER INSTALLATION!
Before you run the Whisper Lift II PRO Lift, you will need to initialize the Control box. To initialize the control
box, you will need to do the following:
1. Press and HOLD the UP and DOWN button on the wired remote control together at the same time until the red
light on the top of the control box starts to flash.
2. Release the UP and DOWN button and the indicator light on the top of the control box will flash 3 times and turn
off. The lift will go all the way to the bottom, back up the top and all the way down to the bottom again. The red
light on the control box will come back on when the initialization procedure is complete.
**Note: Do not proceed until this procedure is complete.
**DO NOT INSTALL COMPONENTS IN CABINETS OR UNDER TV UNTIL AFTER RUNNING THE LIFT
INITIALIZATION PROCESS.
The initialization process is now complete and you can now use your Whisper Lift II PRO!
Press and HOLD both
UP and DOWN button
simultaneously.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
9
Operating the Whisper Lift II PRO TV Lift – cont.
Operating the Wireless Remote
The remote control for your Touchstone Whisper Lift II PRO Advanced TV Lift is controlled via radio frequency.
You do not need to point the remote control directly at the cabinet to operate the lift.
** Lift Height Memory button will only function when button has been programmed by user. To program this
button, please refer to the instructions on p. 18 of this manual.
Operating the Wired Remote
A wired control is included with your Touchstone Whisper Lift II PRO TV Lift, which can be mounted inside of
the cabinet and control the lift should you misplace the wireless remote control.
When installing the wired remote in the cabinet, the DOWN arrow points toward the wire and the UP arrow points
away from the wire.
DOWN
UP
UP Button
MEMORY Button
DOWN Button
Indicator Light

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
10
Mounting and Installing the TV
IMPORTANT: Prior to installing the TV onto the lift, please ensure the following:
- If you have not done so already, remove the stand from your flat screen TV.
- TV weight needs to be under 100lbs.
- TV has VESA compliant mounting pattern.
Attaching TV Mounting Brackets to Flat Panel TV
Tools Required
- Phillips head screwdriver
Parts Required
- TV mounting brackets
- TV mounting screws
***Note: Touchstone Home Products includes a screw pack containing some of the most popular sizes of
mounting screws, used by most TVs on the market. Due to the amount of TVs in the marketplace and no standard
for mounting screw size, Touchstone Home Products cannot guarantee that the screws required for your TV are
included in the screw pack. Please consult your TV manufacturer for the size of the mounting holes in the back of
your TV and use the appropriate size screws. Touchstone Home Products assumes no liability for damage to a TV.
Instructions
1. Remove stand from TV. Consult TV manual for instructions on removing the stand from the TV.
2. Located the TV mounting brackets. They are pictured below.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
11
Attaching TV Mounting Brackets to Flat Panel TV- cont
3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket
so that the slotted holes are toward the top of the TV, while the round holes are toward the bottom of the TV.
3. Attach TV mounting brackets to back of TV. Consult your TV owner’s manual for the proper size mounting
screw.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
12
Installing TV on Lift
1. Using the internal wired control, move the lift to the up position. The UP button
is the button opposite of the cable side of the wired remote.
2. Hang TV on top crossbracket.
3 With TV hanging on top crossbracket, slightly raise the TV (A) and push it back toward the lift (B) so that the
bottom crossbracket is centered between the bottom set of hooks on the back of the TV mounting brackets.
4. Move the TV down slightly to fully attach TV to crossbrackets. The TV will hang on the top crossbracket and
the upper set of hooks on the bottom of the TV mounting brackets will lock the TV in place from moving while on
the lift.
UP
DOWN

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
13
Installing Locking Brackets on Whisper Lift II PRO TV Lift
Tools Needed:
- Philips-head screwdriver
Instructions
1. Locate the bag with the Locking Bracket Kit included with your lift. In this bag, there will be 2 brackets and 2
philips-head screws.
2. Install the screw in each bracket so that the end opposite of the head of the screw is just slightly through the
bracket.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
14
Installing Locking Brackets on Whisper Lift II PRO TV Lift – cont.

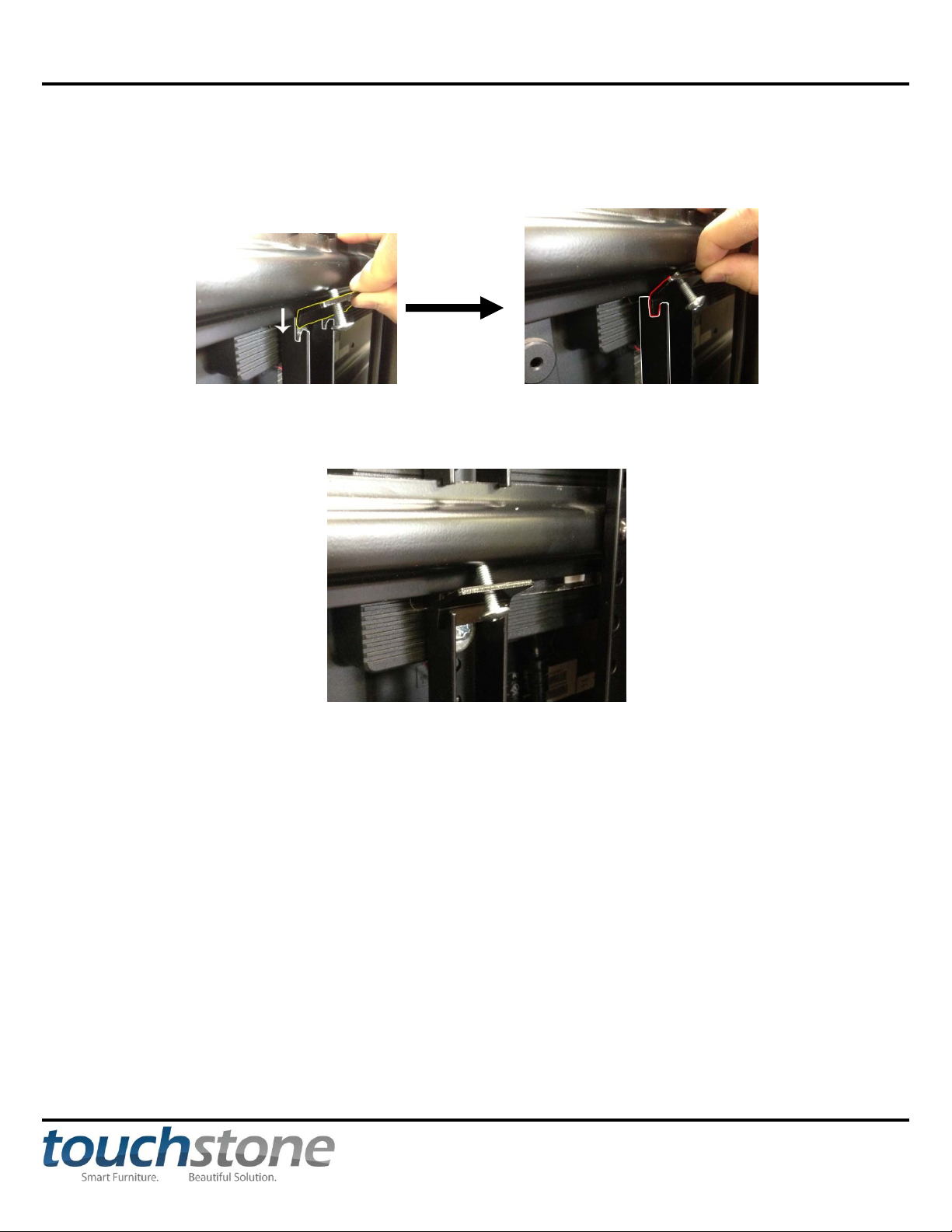

3. Place the angled end of the bracket into the slots in the TV mounting bracket just below the bottom cross bracket
on the lift, as shown in the diagram below.
4. With a Philips-head screwdriver, tighten the screw so that the screw is tight against the cross bracket, as shown in
the picture below.
5. After installing the first locking bracket, install the 2nd locking bracket on the other TV bracket in the same
manner. Your TV should now be locked in place and not move from side to side.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
15
Setting Adjustable Roller Height
Each Whisper Lift II PRO comes with an adjustable roller assembly that allows you to set the maximum height of
the lift.
Tools Needed:
- none
Instructions:
1. Raise the lift to a height that is comfortable for you to work at.
2. The adjustable roller is held in place by 2 screws and wing nuts on either side of the lift. By hand, remove the 4
sets of screws and wing nuts.
3. Raise the adjustable roller to the desired level and refasten the adjustable roller to the lift using the screws/nuts
removed in step 2.
4. Adjust height of adjustable roller as needed so that lid of cabinet closes flush.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
16
Whisper Lift II Pro Advanced TV Lift Features
Initialize the Whisper Lift II PRO Lift
PLEASE RUN INITILIZATION PROCEDURE BEFORE OPERATING LIFT AFTER INSTALLATION!
Before you run the Whisper Lift II PRO Lift, you will need to initialize the Control box. To initialize the control
box, you will need to do the following:
1. Press and HOLD the UP and DOWN button on the wired remote control together at the same time until the red
light on the top of the control box starts to flash.
2. Release the UP and DOWN button and the indicator light on the top of the control box will flash 3 times and turn
off. The lift will go all the way to the bottom, back up the top and all the way down to the bottom again. The red
light on the control box will come back on when the initialization procedure is complete.
**Note: Do not proceed until this procedure is complete.
**DO NOT INSTALL COMPONENTS IN CABINETS OR UNDER TV UNTIL AFTER RUNNING THE LIFT
INITIALIZATION PROCESS.
The initialization process is now complete and you can now use your Whisper Lift II PRO!
Press and HOLD both
UP and DOWN button
simultaneously.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
17
Whisper Lift II PRO Advanced TV Lift Features - cont
Pairing Universal IR Remote with Whisper Lift II PRO Advanced
The Whisper Lift II PRO Advanced TV Lift can be paired with your existing universal IR remote control. To pair a
universal IR Remote control with the Whisper Lift II PRO Advanced TV Lift, please follow the directions below:
1. Press and hold the learning button on the control box until the red indicator light starts to flash. The light will
flash 3 times and turn off. When the light turns off, the control box is now in pairing mode.
3. Pair the UP/DOWN/STOP to a button on your IR remote. Do the following for each button:
a. Press the UP button on the white wireless remote. The red light on the control box will flash once and
turn ON.
b. Aim the IR remote at the IR sensor and press any button on the IR remote to pair the UP function to that
button. The red indicator light will flash again and stay ON.
c. Follow steps A and B for both the DOWN and STOP buttons.
4. Once pairing is completed, press and hold the learning button on the control box starts to flash. The red indicator
light will flash 5 times and light will stay solid once pairing is complete.
You will now be able to operate the Whisper Lift II PRO Advanced TV Lift with your IR remote control.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
18
Whisper Lift II PRO Advanced TV Lift Features - cont
Setting Lift Height
The Whisper Lift II PRO Lift has the ability to save a preset lift height. To set the lift height, you will need to do
the following:
1. Press and HOLD the UP and DOWN button on the wired remote control together at the same time until the red
light on the top of the control box starts to flash.
2. Release the UP and DOWN button and the indicator light on the top of the control box will flash 3 times and turn
off. The lift will go all the way to the bottom and then start to go back up.
3. Once the lift raises to the desired height, press the UP button on the wired remote to STOP the lift. The lift will
then pause and lower to the bottom.
The MAX height on your Whisper Lift II PRO lift will now be set. To go to the set height, press UP button on
either the wired or wireless remote control.
Setting Lift Height Memory Button (Middle Button) on Wireless Remote
You can use the middle button on the wireless remote to set the lift to any height. Move the lift to the desired
height and stop the lift. Press and HOLD the middle button on the wireless remote until the light on the control box
starts to flash. Release the middle button and the lights on the remote will flash and turn off. The middle button is
now set to move the lift to the desired height.
Press and HOLD both
UP and DOWN button
simultaneously.
Press UP button to
STOP lift

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
19
Whisper Lift II PRO Accessories
Install IR Sensor (included)
If you plan to use the Whisper Lift II PRO TV Lift with an existing IR remote control, attach the IR sensor to port
B on the side of the control box.
IR Sensor Cable
After installing the IR Sensor cable, install the IR sensor cabinet into your cabinet. Please refer to p.21 for
instructions on pairing the Whisper Lift II PRO TV Lift with your existing IR remote control.
Install 12v Trigger Cable (optional)
The Whisper Lift II PRO TV Lift comes equipped with a 12v trigger port (port A) for connection to automated
systems. A male 3.5mm mono cable is required for this connection.
**12v trigger cable not included.

Touchstone TV Lift
www.touchstonehomeproducts.com 800.215.1990
20
Whisper Lift II PRO Accessories – cont.
Infrared Repeater Kit (optional)
We have conveniently predrilled a hole in the upper right-hand corner of the front panel of the Elevate TV cabinet
that will allow for the mounting of the Touchstone Infrared Repeater Kit (part number 70012). The Touchstone
Infrared Repeater allows the customer to install a small satellite TV/cable box in the bottom of the cabinet. The
Touchstone Infrared Repeater allows the user to change the channel on their box without having direct line of sight
to the component.
For more information on the Touchstone Infrared Repeater Kit, please visit
http://www.touchstonehomeproducts.com/irrepeaterkit.html or call our Customer Service Department at 1-800-215-
1990 for more information and pricing.
Technical Support
Should you have any problems with your Touchstone Home Products Elevate TV Lift Cabinet, our technical
support staff is here to support. Our technical support reps are available Monday to Friday from 8:00am to 5:00pm
EST for phone assistance at 1-800-215-1990. We also can be reached via email at
[email protected] 24hrs per day.
