Minuteman BP192RTXL User manual

Para Systems, Inc.
1455 Lemay Dr.
Carrollton, TX 75007
Phone: [phone]
Fax: [phone]
Internet: minutemanups.com
UPS Sizing: sizemyups.com
P/N 34000472 R2
User's Manual
BP192RTXL
BP240RTXL
Battery Packs

1
1. Introduction 2
2. Rear Panels 6
3. Installation 7
4. Operation 12
5. Replacing the Battery 12
6. Obtaining Service 18
7. Specifications 19
8. Limited Product Warranty 20
Table Of Contents

23
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS !
Thank you for purchasing this power protection product. It has been de-
signedandmanufacturedtoprovidemanyyearsoftroublefreeservice. Please
read this manual before installing your BPRTXL Battery Pack, models
BP192RTXL,BP240RTXL as itprovides important informationthat should be
followed during installation and maintenance of the Battery Packs and batter-
ies allowing you to correctly set up your system for the maximum safety and
performance. Included is information on customer support and factory ser-
vice if it is required. If you experience a problem with the Battery Packs
please refer to Obtaining Service section in this manual to collect enough
information so that the Technical Support Department can rapidly assist you.
WARNING: Risk of Electrical Shock. Hazardous live parts inside these Bat-
tery Packs are energized from the battery.
CAUTION! This Battery Pack series is ONLYintended to be installed in an
indoor temperature controlled environment that is free of conductive contami-
nants. This Battery Pack series is not for use in a computer room as defined
in the Standard for the Protection of Electronic Computer/Data Processing
EquipmentANSI/NFPA75. Select a location which will providegood air circu-
lation for the Battery Pack and UPS at all times.
WARNING: These Battery Packs contains potentially hazardous voltages.
Do not attempt to disassemble the Battery Pack beyond the battery replace-
ment procedure. These Battery Packs contain no user serviceable parts.
Repairs and Battery replacement must be performed by QUALIFIED SER-
VICE PERSONNEL ONLY.
CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE BAT-
TERY PACK. Themounting brackets are ONLYforsecuring the BatteryPack
to the rack.
Chapter 1: Introduction
CAUTION! ThemaximumambientoperatingtemperatureforthisBatteryPack
series is 40°C (“0 ~ 40°C” for Ambient Operation).
Theexternalventsand openings on the BatteryPackare provided for ven-
tilation. To ensure reliable operation of the UPS and to protect the UPS
from overheating, these vents and openings must not be blocked or cov-
ered. Do not insert any object into any of the vents or openings that may
hindertheventilation.
Install the Battery Pack in a well ventilated area, away from excess mois-
ture,heat, dust, flammable gasor explosives.
Leave adequate space (at least 15cm) around all sides of the Battery
Pack for proper ventilation.
Do not mount the Battery Pack with its front or rear panel facing down at
any angle.
Before usage, you must allow the Battery Pack to adjust to room temper-
ature (20°C~25°C or 68°F~77°F) for at least one hour to avoid moisture
condensing inside the UPS.
WARNING: Qualified Service Personnel ONLY must perform the Installa-
tionand Servicing ofthese Battery Packs. MINUTEMANaccepts no liabilities
and is not limited to: injury to the Service Personnel, or damages to; the Bat-
tery Pack, the UPS, or the connected equipment caused by the incorrect
installation or servicing of the Battery Packs. These Battery Packs MUST be
operatedwith their respective UPSmodels, see thetable below:
BP240RTXL
UPS ED8000RT-CU
ED10000RT-CU
Battery
Pack BP192RTXL
ED5000RT-CU
ED6000RT-CU
CAUTION! To de-energize the Battery Pack:
1. If the UPS is on press and release the On/Off/Test button.
2. Turn off the input breaker on the rear panel of the UPS.
3. Turn off the DC breaker on the rear panel of the Battery Pack.
4. Disconnect the battery cable from the rear panel of the UPS.
5. To de-energize the Battery Pack completely, disconnect the batteries.

45
RECIEVING INSPECTION
Once you receive the product it should be visually inspected for damage that
may have occurred in shipping. Immediately notify the carrier and place of
purchase if any damage is found. Warranty claims for damage caused by the
carrier will not be honored by the manufacturer. The packing materials that
the product was shipped in were carefully designed to minimize any shipping
damage. In the unlikely case that the product needs to be returned to the
manufacturer, use the original packing material. Since the manufacturer is
not responsible for shipping damage incurred when the product is returned,
the original packing material is inexpensive insurance. PLEASE SAVE THE
PACKING MATERIALS!
NOTICE: Thisequipment has been testedandfound to comply withthe limits
for a ClassA computing device in accordance with the specifications in Sub-
part J of Part 15 of FCC Rules and the ClassAlimits for radio noise emissions
from digital apparatus set out in the Radio Interference of the Canadian De-
partment of Communications. These limits are designed to provide reason-
able protection against such interference in a residential installation. This
equipment generates and uses radio frequency and if not installed and used
properly, that is, in strict accordance with the manufacturer's instructions, this
equipment may cause interference to radio and television reception. If this
equipmentdoes cause interferenceto radio ortelevision reception, which can
be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Re-orientthereceivingantenna.
Relocatethe computer withrespect to the receiver.
Movethecomputeraway from the receiver.
Plugthe computer into a different outlet sothat the computerand receiver
areon different branch circuits.
Shieldedcommunicationsinterface cables must be usedwiththis product.
WARNING: Changes or modifications to this unit not expressly approved by
theparty responsible forcompliance could void the user's authority to operate
theequipment.
LIFE SUPPORT POLICY
As a general policy, we do not recommend the use of any of our products in
life support applications where failure or malfunction of the product can be
reasonably expected to cause failure of the life support device or to signifi-
cantly affect its safety or effectiveness. We do not recommend the use of any
of our products in direct patient care. We will not knowingly sell our products
for use in such applications unless it receives in writing assurances satisfac-
tory to us that (a) the risks of injury or damage have been minimized, (b) the
customer assumes all such risks, and (c) our liability is adequately protected
under the circumstances.
Examplesofdevicesconsideredtobelifesupport devices are neonatal oxygen
analyzers,nervestimulators (whether used foranesthesia, pain relief, orother
purposes), auto transfusion devices, blood pumps, defibrillators, arrhythmia
detectorsand alarms, pacemakers, hemodialysissystems, peritoneal dialysis
systems,neonatalventilator incubators, ventilators forboth adults and infants,
anesthesiaventilators,and infusion pumps aswellas any other devices desig-
nated as “critical” by the United States FDA.
© COPYRIGHT 2014 BY PARA SYSTEMS, INC.
AllRightsReserved.All rights of thisUserManual (“Manual”), including butnot
limited to the content, information, and figures are solely owned and reserved
by Para Systems, Inc. (“Para Systems”). The Manual can only be applied to
the operation or the use of this product.Any disposition, duplication, dissemi-
nation, reproduction, modification, translation, extraction, or usage of this
Manual in whole or in part is prohibited without the prior written permission of
ParaSystems.GiventhatParaSystemswill continuously improve and develop
the product, changes may be made to the information in this Manual at any
time without obligation to notify any person of such revision or changes. Para
Systems will make all possible efforts to secure the accuracy and the integrity
of this Manual. Para Systems disclaims any kinds or forms of warranty, guar-
antee,or undertaking,either expressly orimplicitly,including but notlimited to
thecompleteness, faultlessness, accuracy, non-infringement, merchantability
or fitness for a particular purpose of the Manual.

67
1. The DC Circuit Breaker connects and disconnects the DC bus voltage
from the Battery Pack to the UPS. The DC Circuit Breaker will trip in the
event of a DC overcurrent condition.
2. The top External Battery connector is for connecting to the UPS and/or for
Daisy Chaining additional Battery Packs.
3. The bottom External Battery connector is for Daisy Chaining additional
Battery Packs and/or connecting an external battery charger.
INSTALLATION PLACEMENT
This Battery Pack series is ONLYintended to be installed in an indoor tem-
perature controlled environment that is free of conductive contaminants. DO
NOToperate the Battery Packin: extremely dustyand/or unclean areas, loca-
tions near heating devices, water or excessive humidity, or where the Battery
Pack is exposed to direct sunlight. Select a location, which will provide good
air circulation for the Battery Pack at all times. Route cables so they cannot
be walked on or damaged. This Battery Pack series is not for use in a com-
puter room as defined in the Standard for the Protection of Electronic Com-
puter/DataProcessing EquipmentANSI/NFPA75. Typical battery life is 3 to 5
years. Environmental factors do affect battery life. High temperatures, poor
ventilationsandfrequent, short duration discharges haveanegative impact on
battery life.
INSTALLATION
Besure to read theinstallation placement and allthe cautions before installing
the Battery Pack. Place the Battery Pack in the final desired location and
completethe rest of the installation procedure.
WARNING! These Battery Packs are extremely heavy. Any time the Battery
Pack has to be handled be sure to use, enough personnel, strong supports
and equipment to safely handle the Battery Pack.
CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE BAT-
TERY PACK. Themounting brackets are ONLYforsecuring the BatteryPack
to the rack.
Chapter 2: Rear Panels Chapter 3: Installation
NOTE: If you are using more than one of these Battery Packs with the
Endeavor 5-10KVA RT series UPS, the UPS must be configured so that the
UPS will report the correct estimated runtime on the LCD screen and in the
PowerMonitoring software and/orthe SNMP card. See thePower Monitoring
software or the SNMP card’s User's Manual to configure the UPS.
Operating Temperature (Maximum): 0 to 40°C (+32 to +104°F)
Operating Elevation: 0 to 2,000m (0 to +6,562 ft)
Operatingand StorageRelative Humidity: 95%,non-condensing
Storage Temperature: -15 to +50°C (+5 to +122°F)
Storage Elevation: 0 to 15,000m (0 to +49,213 ft)

89

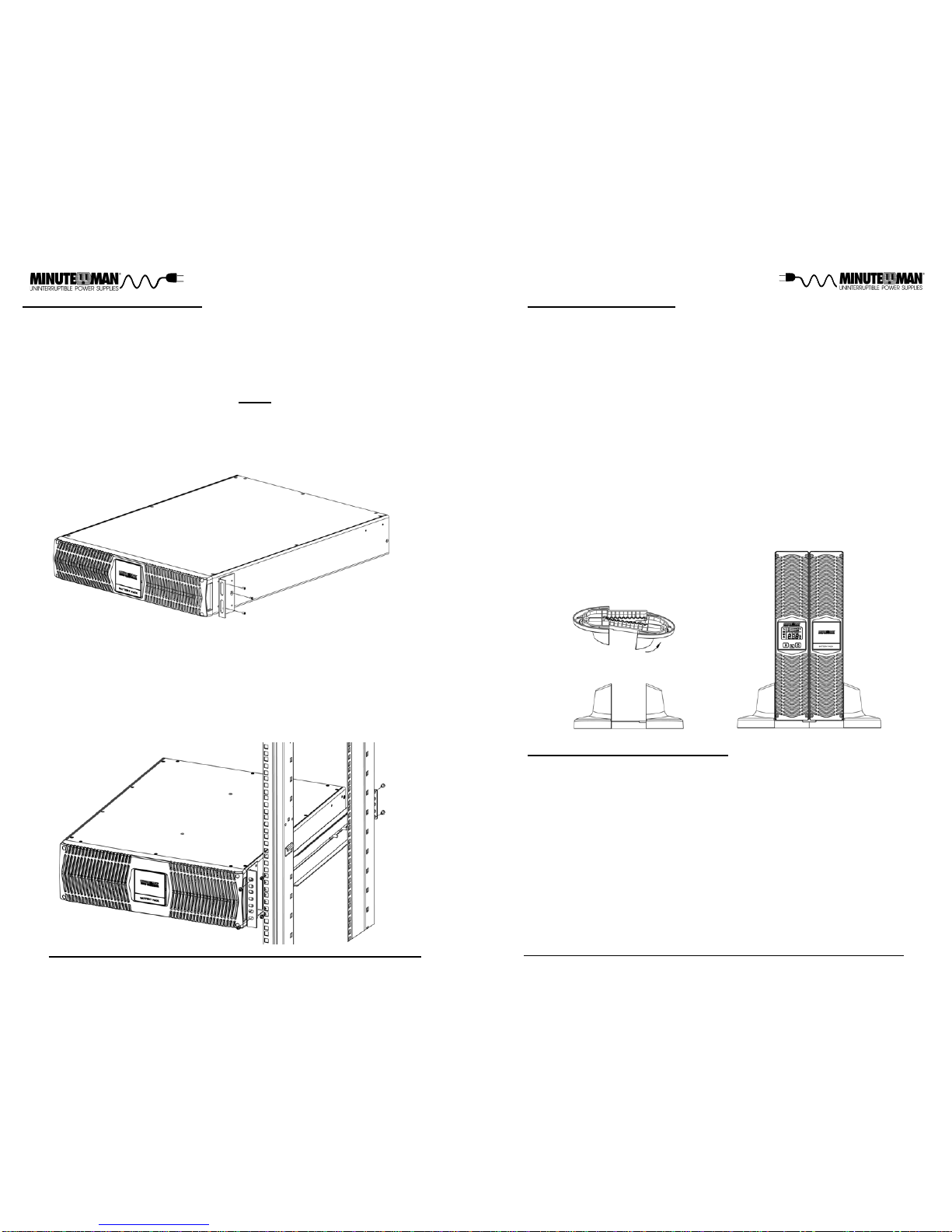

RACKMOUNT CONFIGURATION
Usetheincluded rackmount brackets andscrews to mount theBattery Pack in
a rack by following the steps below.
USE CAUTION: TheseBattery Packs areextremely heavy. Use two or more
peoplewhen installing theBattery Pack.
CAUTION! DO NOT USE THE MOUNTING BRACKETS TO LIFT THE BAT-
TERY PACK. Themounting bracketsare ONLYfor securingthe Battery Pack
to the rack.
1. Attach the rackmount brackets to the mounting holes on theside panels of
the Battery Pack as shown below.
2. Followsteps1through4 to install theBatteryPack into the Rail kit. Seethe
figurebelow.
Step 1: Adjust the length of the rail according to the rack.
Step 2: Securely tighten the wing nuts.
Step 3: Secure the rail to the rack with the enclosed screws.
Step 4: Slide theBattery Pack onto therail and secure tothe rack with the
enclosedscrews.
TOWER CONFIGURATION
The tower configuration allows the user to install the Battery Pack in the up-
right position. The tower stands are provided with the Battery Pack. WARN-
ING: Use two or more people when installing the Battery Pack. Use CAU-
TION, these Battery Packs are extremely heavy.
1. Once the location of the Battery Pack has been determined, place the to-
wer stands in the desired location.
WARNING: The Battery Pack must be installed in the proper up-right posi-
tion. Once the Battery Pack is placed in the tower stands, looking at the front
panel the the top cover of the Battery Pack MUST be on your left hand side.
2. Slide the Battery Pack into the tower stands. Make sure that the Battery
Pack is stable.
3. The name plate panel can be rotated to read in the up-right position. Re-
move the front panel from the UPS. On the backside of the front panel, p-
ushthenameplatepaneloutwards,thepanelwillpopout. Rotatethe name
plate panel counter clockwise so that it reads in the upright position. Re-
install the front panel on the Battery Pack.
CONNECTING THE BATTERYPACK
(QUALIFIEDSERVICEPERSONNELONLY)
Please read all of the WARNINGS and CAUTIONS before attempting to con-
nect or service the batteries or the Battery Pack. The installation and servic-
ing of the batteries and the Battery Pack must be performed by Qualified
Service Personnel ONLY.
Replace the batteries and/or Battery Pack with the same number and type as
originallyinstalled.
CAUTION: Donot open or mutilate batteries. Released electrolyte isharmful
to the skin and eyes and may be toxic.
CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

10 11
NOTE: If you are using more than one of these Battery Packs with the
Endeavor 5-10KVA RT series UPS, the UPS must be configured so that the
UPS will report the correct estimated runtime on the LCD screen and in the
PowerMonitoring software and/orthe SNMP card. See thePower Monitoring
software or the SNMP card’s User's Manual to configure the UPS.
4. Remove both of theExternal Battery Connector'scover plates fromthe
rear panel of the first Battery Pack.
5. Remove the top External Battery Connector's cover plate from the rear
panel of the second Battery Pack.
6. Connect the first #8AWG premolded battery cable to the External Battery
Connector on the rear panel of the UPS and secure with the retaining
screws.
7. Connect the other end of the first #8AWG premolded battery cable to the
ExternalBattery Connector on the rear panel of the first Battery Pack and
secure with the retaining screws.
8. Connect the second #8AWG premolded battery cable to the bottom Exte-
rnal Battery Connector on the rear panel of the first Battery Pack and se-
cure with the retaining screws.
9. Connect the other end of the second #8AWG premolded battery cable to
thetop External Battery Connectoronthe rear panel ofthe second Battery
Pack and secure with the retaining screws.
10. Turn on all of the DC breakers on the rear panel of the Battery Packs.
11. The Battery Packs are ready for normal operation, see the UPS User's
Manual for the normal startup of the UPS.
NOTE: There is no maximum number for Daisy Chaining the Battery Packs,
however the recharge time will increase exponentially for every Battery Pack
added.
1. The UPS MUST be in the off position.
2. The DC breaker(s) on the rear panel of the Battery Pack(s) MUST be in
the off position.
3. Remove the External Battery Connector's cover platefrom the rearpanel
of the UPS (requires a phillips screwdriver).
4. Remove the top External Battery Connector's cover plate from the rear
panel of the Battery Pack.
5. Connect the one end of the #8AWG premolded battery cable to theExter-
nal Battery Connector on the rear panel of the UPS and secure with the
retaining screws.
6. Connect the other endofthe #8AWGpremolded battery cable totheExte-
rnal Battery Connector on the rear panel of the Battery Pack and secure
with the retaining screws.
7. Turn on the DC breaker on the rear panel of the Battery Pack.
8. The Battery Packisreadyfornormaloperation,seetheUPSUser'sManual
for the normal startup of the UPS.
NOTE: If using more than one Battery Pack see Daisy Chaining.
DAISYCHAINING
(QUALIFIEDSERVICEPERSONNELONLY)
"DaisyChaining" means connecting oneBatteryPack to another BatteryPack
to another Battery Pack, this chain could go on indefinitely. Follow the steps
below to Daisy Chain the Battery Packs. Please read all of the WARNINGS
and CAUTIONSbefore attempting to connect the external battery pack.
1. The UPS MUST be in the off position.
2. The DC breakers on the rear panel of the Battery Packs MUST be in the
off position.
3. Remove the External Battery Connector's cover platefrom the rearpanel
of the UPS (requires a phillips screwdriver).

12 13
Chapter 4: Operation
SYSTEM OVERVIEW
These Battery Packs will extend the runtime capabilities of the UPS. These
Battery Packs do not have internal chargers and are charged by the UPS to
properlymaintainthebatteries. Thereisno maximum number for Daisy Chain-
ing the Battery Packs, however the recharge time will increase exponentially
for each Battery Pack added. NOTE: If you are using more than one of
theseBatteryPackswith the Endeavor 5-10KVARTseriesUPS,theUPSmust
be configured so that the UPS will report the correct estimated runtime on the
LCD screen and in the Power Monitoring software and/or the SNMP card.
See the Power Monitoring software or the SNMP card’s User's Manual to
configure the UPS.
CHARGING THE BATTERY
These Battery Packs do not have internal chargers. The Battery Packs are
charged by the UPS. It is recommended that the Battery Packs be charged
for a minimum of 4-hours before use. The Battery Pack maybe used immedi-
ately, however,the “On-Battery” runtime oftheUPS may be lessthan normally
expected. NOTE: If the Battery Pack is going to be out of service or stored
fora prolonged period of time, the batteries must be recharged for atleast 24-
hours every ninety days.
TURNING THE BATTERYPACK ON/OFF
Turning on the DC circuit breaker on the rear panel of the Battery Pack will
connectthe DC bus voltage from the Battery Packto the UPS. Turningoffthe
DC circuit breaker on the rear panel of the Battery Pack will disconnect the
DC bus voltage from the Battery Pack to the UPS.
(QUALIFIED SERVICE PERSONNELONLY)
Replace the batteries and/or Battery Pack with the same number and type as
originallyinstalled.
CAUTION: Donot open or mutilatebatteries. Released electrolyte isharmful
to the skin and eyes and may be toxic.
CAUTION: Do not dispose of batteries in a fire. The batteries may explode.
The batteries in these Battery Pack are recyclable. Dispose of the batteries
properly. The batteries contain lead and pose a hazard to the environment
and human health if not disposed of properly. Refer to local codes for proper
disposal requirements or return the battery to the supplier.
CAUTION: The battery can present a risk of electrical shock. These batter-
ies produce sufficient current to burn wire or tools very rapidly, producing
molten metal. Observe these precautions when installing or replacing the
batteries:
1. Remove watches, rings, orother metal objects.
2. Use hand tools with insulatedhandles.
3. Wear protective eye gear (goggles), rubber gloves and boots.
4. Do not lay tools or other metal parts on top of batteries.
5. Disconnect the charging source prior to connecting or disconnecting the
batteryterminals.
6. Determine if the battery is inadvertently grounded. If the battery is, rem-
ove the source of the grounding. Contact with any part of a grounded ba-
ttery can result in an electrical shock. The likelihood of such shock will be
reduced,ifsuchgrounds are removed during installation andmaintenance.
Please read all of the WARNINGS and CAUTIONS before attempting to con-
nect or service the batteries or the Battery Pack. The installation and servic-
ing of the batteries and the Battery Pack must be performed by Qualified
Service Personnel ONLY. Typical battery life is 3 to 5 years. Environmental
factors do affect battery life. High temperatures, poor utility power, and fre-
quent,shortdurationdischargeshaveanegative impact on battery life. NOTE:
If there is a power interruption while replacing the batteries, with the UPS on,
the load will not be backed up.
WARNING! This Battery Pack contains potentially hazardous voltages. Do
not attempt to disassemble the Battery Pack beyond the battery replacement
procedure. These Battery Packs contain no user serviceable parts.
Chapter 5: Replacing The Battery
CAUTION: Replacethebatteries with the samenumberand type as originally
installed in the Battery Pack. These batteries have pressure operated vents.
TheseBattery Packs containsealed non-spillable maintenancefree lead acid
batteries.
BP192RTXL
Battery B00056
Model BP240RTXL
B00058

14 15
BATTERYREPLACEMENT PROCEDURE
(QUALIFIEDSERVICE PERSONNELONLY)
PLEASE READ THE CAUTIONS AND WARNINGS BEFORE ATTEMPTING
TO REPLACE THE BATTERYMODULES
Thebatteries can bereplaced without poweringdown the wholeUPS system.
NOTE: If there is a power interruption while replacing the batteries, with the
UPS on, the load will not be backed up. To replace the batteries without
poweringdown the UPSsystem start with step number 6.
BP240RTXL
1. Turn off the equipment that is plugged into the output receptacles of the
UPS.
2. Press and release the On/Off/Test button on the front panel to turn the
UPS off.
3. Disconnect the UPS from the utility power.
4. Unplug the equipment from the output receptacles of the UPS.
5. Unplug the computer interface cable from the rear panel of the UPS.
6. Turn off all of the DC circuit breakers on the rear panel of all of the Battery
Packs.
7. Disconnect all of the battery cables.
8. Remove the Battery Pack from the rack and lay on the floor or a tabletop.
USE CAUTION: TheseBattery Packs areextremely heavy. Use two or more
peoplewhen removing theBattery Pack.
9. Remove the cover screws from the top cover.
10. Removethe cover and set aside.
11. Remove the retaining screws for the battery retaining brackets.
12. Removethebattery retaining brackets and set aside.
NOTE: Before disconnecting the battery wires it is recommended that you
draw a diagram of how the batteries are connected.
13. Disconnect the battery positive (red) and battery negative (black) wires.
14. Disconnect all of the battery wires.
15. Removeall of thedefective batteries andset aside.
16. Install the new batteries in the same orientation as the original batteries.
17. Verify proper polarity. Re-install the battery wires.
18. Reconnect the battery positive (red) and battery negative (black) wires.
19. Re-install the battery retaining brackets and secure with the retaining
screws.
20. Re-install the top cover and secure with the retaining screws
21. Re-install the Battery Pack in the rack.
22. Reconnect all of the battery cables.
23. Turn on all of the DC circuit breakers on the rear panel of all of the Battery
Packs.
24. Properly dispose of the old batteries at an appropriate recycling facility or
return them to the supplier in the packing material for the new batteries.
25. The Battery Pack is ready for normal operation.
NOTE: If the UPS has a Weak/Bad BatteryAlarm after replacing the batter-
ies, the user must initiate a self-test to clear the Weak/Bad BatteryAlarm. To
initiate a self-test see section 4 "ON / OFF/ TEST BUTTON" in the UPS's
User'sManual.

16 17
31. Reconnect all of the battery cables.
32. Turn on all of the DC circuit breakers on the rear panel of all of the Battery
Packs.
33. Properly dispose of the old batteries at an appropriate recycling facility or
return them to the supplier in the packing material for the new batteries.
34. The Battery Pack is ready for normal operation.
NOTE: If the UPS has a Weak/Bad BatteryAlarm after replacing the batter-
ies, the user must initiate a self-test to clear the Weak/Bad BatteryAlarm. To
initiate a self-test see section 4 "ON / OFF/ TEST BUTTON" in the UPS's
User'sManual.
BP192RTXL
(QUALIFIEDSERVICEPERSONNELONLY)
1. Turn off the equipment that is plugged into the output receptacles of the
UPS.
2. Press and release the On/Off/Test button on the front panel to turn the
UPS off.
3. Disconnect the UPS from the utility power.
4. Unplug the equipment from the output receptacles of the UPS.
5. Unplug the computer interface cable from the rear panel of the UPS.
6. Turn off all of the DC circuit breakers on the rear panel of all of the Battery
Packs.
7. Disconnect all of the battery cables.
8. Remove the Battery Pack from the rack and lay on the floor or a tabletop.
USE CAUTION: These Battery Packsare extremely heavy. Use two or more
peoplewhen removing theBattery Pack.
9. Remove the front panelretaining screws.
10. Removethe front paneland set aside.
11. Remove the cover screws from the top cover.
12. Removethe cover and set aside.
13. Remove the retaining screws for the battery retaining bracket.
14. Removethe battery retaining bracket andset aside.
NOTE: Before disconnecting the battery wires it is recommended that you
draw a diagram of how the batteries are connected.
15. Onthe right handside at therear find theAndersonconnector holder box.
Open the box and disconnect the battery positive (red) and battery nega-
tive (black)Anderson connectors.
16. On the left hand side in the middle find theAnderson connector holder
box. Open the box and disconnect theAnderson connectors.
USE CAUTION: The battery modules are heavy.
17. Slide the front battery module out and set on a tabletop.
18. Slide the rear battery module out and set on a tabletop.
19. Open the battery modules one at a time.
20. Disconnect all of the battery wires.
21. Removeall of thedefective batteries andset aside.
22. Install the new batteries in the same orientation as the original batteries.
23. Verify proper polarity. Re-install the battery wires.
24. Re-installthebatterymodules.
25. Reconnect the Anderson connector on the left hand side. Re-install the
Anderson connector holder box.
26. Reconnect theAnderson connectors on theright hand side. Re-install the
Anderson connector holder box.
27. Re-install thebatteryretainingbracketandsecurewiththe retaining screws.
28. Re-install the top cover and secure with the retaining screws
29. Re-install the front panel and secure with the retaining screws.
30. Re-install the Battery Pack in the rack.

18 19
Battery Type
Typical Recharge Time
BatteryPart Number
ModelNumber SYSTEMSPECIFICATIONS
Format Rack/TowerConvertible
DCCurrent 39.2Amps
BATTERYSYSTEM
Typical Battery Life
Battery Quantity
System Voltage
Sealed,Non-Spillable,MaintenanceFree,ValueRegulated, LeadAcid
3-5years, depending on discharge cycles and ambient temp
BatteryCableLength 21" / 533.4mm
PHYSICAL
Weight - Net
Size - Net
L X W X H
Size - Shipping
L X W X H
Weight - Shipping
23.4 x 17.3 x 5.14"
595 x 440 x 130.6 mm
29.5 x 23.6 x 10.9"
750 x 600 x 276 mm
REGULATORYCOMPLIANCE
Safety and Approvals
EMCVerification
cTUVus (Conforms to UL1778 4th Edition & CSA 22.2 no. 107.3-05)
FCC Class B, CE certified
B00056 B00058
122.4lbs
55.5 Kgs
80.5 lbs
36.5 Kgs 134.5lbs
61.0 Kgs
172.0lbs
78.0 Kgs
16 20
192VDC 240VDC
BP192RTXL BP240RTXL
8-hoursto 90% after full load discharge
IF THE BATTERYPACK REQUIRES SERVICE
Chapter 6: Obtaining Service Chapter 7: Specifications
1. Verify there are no tripped circuit breakers and that the batteries are good.
A tripped circuit breaker and defective batteries are the most common iss-
ues.
2. Call your dealer for assistance. If you cannot reach your dealer, or if they
cannotresolvethe issue call or faxtheTechnical Support department at the
following numbers; Voice phone [phone], FAX line [phone]
or visit our Web site at www.minutemanups.com the "Discussion Board".
Before calling the Technical Support Department have the following infor-
mationavailable:
a) Contact name andaddress.
b) Where and when the unit was purchased.
c) All of the model information about your unit.
d) The serial number of your unit.
e) Any information on thefailure, including LEDsthatmay be illuminated
or error codes displayed.
f) A description of the protected equipment including model numbers, if
possible.
g) A technician will ask you for the above information and if possible,
helpsolvethe issue over thephone. In the event thattheunit requires
factory service, the technician will issue you a Return MaterialAutho-
rizationNumber (RMA #).
h) If the unit is under warranty, the repairs will be done at no charge. If
the unit is not under warranty there will be a charge for the repair.
3. Pack the unit in its original packaging. If the original packaging is no lon-
geravailable, ask theTechnicalSupportTechnician about obtaininganew
set. It is important to pack the unit properly in order to avoid damage in
transit. Never use Styrofoam beads for a packing material.
a) Include a letter with your name, address, day time phone number,
RMA number, a copy of your original sales receipt, and a brief desc-
ription of the problem.
4. Mark theRMA # onthe outside of allpackages. The factory cannotaccept
any package without the RMA # marked on the outside.
5. Return the unit by insured, prepaid carrier to:
Para Systems Inc.
MINUTEMANUPS
1809 W. Frankford Road, Suite 150
Carrollton,TX75007
ATTN: RMA#_______
31.5 x 23.6 x 9.1"
800 x 600 x 230 mm
25.2 x 17.3 x 3.5"
640 x 440 x 89 mm
35.7Amps
BatteryCableType Premolded#8AWG
Output Protection Resettable Circuit Breaker
ENVIRONMENTAL
Operating Temperature (max)
Operating/Storage Humidity
OperatingElevation
0 to 40°C (+32 to +104°F)
95%Non-Condensing
0 to 2,000m (0 to +6,562 ft)
Storage Elevation 0 to 15,000m (0 to +49,213 ft)
StorageTemperature -15 to +50°C (+5 to +122°F)
NOTE: TheseBatteryPacksdonot have internal chargers. The typical recharge time is based on
the UPS charging the batteries.
NOTE: Specifications are subject to change without notice.

20 21
Notes:
ParaSystems, Inc.(Para Systems)warrants thisequipment, whenproperly applied and
operated within specified conditions, against faulty materials or workmanship for a pe-
riod of three years from the date of purchase. For equipment sites within the United
Statesand Canada,this warrantycovers depotrepairor replacementof defectiveequip-
mentat thediscretion ofPara Systems. Depotrepair willbe from the nearest authorized
service center. The customer pays for shipping the product to Para Systems. Para
Systems pays ground freight to ship the product back to the customer. Replacement
partsand warrantylabor will beborne byPara Systems. Forequipment located outside
ofthe UnitedStatesand Canada, ParaSystems only covers faulty parts. ParaSystems
products that are depot repaired or replaced pursuant to this warranty shall only be
warrantedfor theunexpired portionof thewarranty applyingto theoriginal product. This
warranty applies only to the original purchaser who must have properly registered the
productwithin 10 days ofpurchase.
Thewarranty shall be voidif (a) the equipmentis damaged by the customer,is improp-
erlyused, is subjected to an adverse operatingenvironment, or is operated outside the
limitsof its electrical specifications; (b)the equipment isrepaired or modifiedby anyone
otherthan Para Systemsor Para Systems approved personnel;or (c) hasbeen used in
amanner contrary to theproduct’s User's Manual or other written instructions.
Anytechnical advice furnished before or after deliveryin regard to use or application of
ParaSystems’ equipmentis furnishedwithout chargeand onthe basis thatit represents
Para Systems’ best judgment under the circumstances, but it is used at the recipient’s
solerisk.
EXCEPTAS PROVIDEDHEREIN, PARASYSTEMSMAKES NO WARRANTIES, EX-
PRESSEDORIMPLIED,INCLUDINGWARRANTIESOFMERCHANTABILITYANDFIT-
NESSFORAPARTICULAR PURPOSE. Somestatesdo notpermit limitationof implied
warranties;therefore, the aforesaidlimitation(s) may not apply to thepurchaser.
EXCEPTAS PROVIDED ABOVE, IN NO EVENT WILLPARASYSTEMS BE LIABLE
FORDIRECT, INDIRECT, SPECIAL,INCIDENTAL,OR CONSEQUENTIALDAMAGES
ARISINGOUTOFTHE USE OF THISPRODUCT, EVENIFADVISED OFTHE POSSI-
BILITYOF SUCHDAMAGE. Specifically, ParaSystems is notliable forany costs,such
as; labor for on-site installation, on-site maintenance or on-site service, lost profits or
revenue,loss ofequipment, lossof use ofequipment, lossof software,loss of data,cost
ofsubstitutes, claims by third parties,or otherwise. The sole and exclusiveremedy for
breachof any warranty, expressedor implied, concerning ParaSystems’productsand
theonly obligation of Para Systemshereunder,shall bedepot repairor replacement of
defective equipment, components, or parts; or, at Para Systems’option, refund of the
purchase price or substitution with an equivalent replacement product. This warranty
givesyou specific legalrights and youmay also have otherrights which varyfrom state
tostate.
No employee, salesman, or agent of Para Systems is authorized to add to or vary the
terms of this warranty.
Chapter 8: Limited Product Warranty
