TourPro Lighting LIGHT SKY F1000 PROFILE-50R Series User manual

F1000 PROFILE-50R
F1000R PROFILE-50R
TourPro Lighting

Congratulations on choosing our company product! We thank you for your custom.
◆Please note that this product, as all the others in the rich my company range, has
been designed and made with total quality to ensure excellent performance and
best meet your expectations and requirements.
◆Carefully read this user manual in its entirety and keep it safe for future reference.
It is essential to know the information and comply with the instructions given in this
manual to ensure the fitting is installed, used and serviced correctly and safely.
◆My company disclaims all liability for damage to the fitting or to other property or
persons deriving from installation, use and maintenance that have not been carried
out in conformity with this user manual, which must always accompany the fitting.
◆My company reserves the right to modify the characteristics stated in this user
manual at any time and without prior notice.
Contents
感谢您选用我们公 司的产品。
请记住,这款产品和公 司的其他产 品一样,坚持以人为本的 设计制造理 念,以产品质
量为根本。
我们把客户的利益 放在第一位,尽 最大的努力满足客户 的要求。
请仔细阅读完这本 使用说明书 并妥善保管,以便日后参 考。在充分 了解产品 信息的
情况下,严格遵守使用 说明书进行 操作,这样才能确保产品 正确安全地 安装、使 用与服务。
我们公司不承担所 有由于个人 在安装、使用、维修 时没有按照 说明书操 作而损坏灯
具或其他性能的责 任。
我们公司保留在任 何时间和没 有提前通知的情况下 修改说明书 权利。
1. Safety information..................................................................................................2
2.Technical information..............................................................................................4
3.Attachment .....................................................................................8
4.Installation and connecting....................................................................................9
5. Lamp replacement.................................................................................................10
6. Control panel.........................................................................................................11
7. Menu setting.........................................................................................................12
8.Channel function...................................................................................................19
9. ...................................................................................26
10. ................................................................................27
11. ..................................................................................................27
12. ........................................................29
13. Company information..........................................................................................30
and body size
Circuit connecting diagram
Duty exonerative and copyright protection
Cleaning and maintenances
Troubeshooting
1
www.lightsky-china.comwww.lightsky.com.cn
PROFESSIONAL SHOW LIGHTING
LIGHT SKY

安装
确保固定灯具的 所有 零部件都完好无 损。
在固定灯具之前 请确 保固定物是牢固 的。
安全绳索一定要恰当固定在安全的结构上。
当要更换安全绳 索时,必 须要用原装备用 绳索替换。
, 3定位灯具时 光束照射的物体到投影镜头的距离至少 米。
与易燃材料的最小距离
定位灯具放置点 后,与附 近的可燃物距离 不能低于0.5米。
安装面
必须安装在牢固物体的表面。
最高环境温度
如果环境温度(Ta)超过38 ，请勿操作此灯具。℃
电击防护
电源供应系统的 地线 必须有效接地（ 标准EN 60598-1）。
另外,建议您使用适 当大 小的漏电电路断 路器,保护灯具电源 线以 免其间接接地或 对地短路。
电源供应
■Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework,
so that, if the primary support system fails,the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
■distance of illum inated objects Minimum
The projector needs to be positioned so that the objects hit by the beam of light are at least 3
metres from the lens of the projector.
■m distance from flammable materialsMinimu
The projector must be posit
every point on the surface of the fitting.
Ioned so that any flammable materials are at least 0.5 metres from
■esMounting surfac
It is permissible to mount the fitting on normally flammable surfaces.
■m ambient temperatureMaximu
Do not operate the fixt ℃ure if the ambient temperature (Ta) exceeds 38 .
■Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance
according to standard EN 60598-1).
It is,moreover, recommended to protect the supply lines of the projectors from indirect contact and/or
shorting to earth by using appropriately sized residual current devices.
■ins supplyConnection to ma
Connection to the electricit
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
Don't use the power cable when the insulation is damaged.
It must be the manufacturer or distributor or the professional person to change the damaged power
cable in order to avoid any dangerous.
y mains must be carried out by a qualified electrical installer.
SAFETY INFORMATION
3m
t 38℃
a
与照射物体的最小距离
连接电源的总线 必须 由有资格的专业 技术人员安装。
检测总线频率及 电压 是否与灯具上的 标签上所标注的 数值 一致,即和灯具设计 数值一致。
该标签还给出了 输入 功率,您需要参考计 算电线所能够连 接的 最大灯具数量,以避 免出现过载。
请勿使用绝缘层 有损 伤的电源线,发现灯 具电源线有损伤 时,必须 由制造商或经销 商或一个有
专业资格的人员 更换,以 免发生危险。
2
www.lightsky.com.cn
LIGHT SKY

■erature of the external surfaceTemp
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 120℃.
t 120℃
c
■Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains
After switching off, do not remove any parts of the fitting, to avoid getting burnt for at least 30 minutes.
After this time the likelihood of the lamp exploding is virtually nill.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be
mounted and, if visibly Damaged, they have to be replaced with genuine spares.
supply.
■Lamp
The fit
apparatus.
Carefully read the "operating instructions" provided by the lamp manufacturer.
Immediately replace the lamp if damaged or deformed by heat.
ting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the
■Battery
This product contains a rechargeable lead-acid battery. To preserve the environment, please d
the battery at the end of its life according to the regulation in force.
ispose
Pb
The products referred to in this
they are subject:
Low Voltage 2006/95/CE
Electromagnetic Compatibility 2004/108/CE
manual conform to the European Community Directives to which
外表面最高温度
在热稳定的状态 下,外表面的温度最高点可达120℃。
维护
在开始任何维修 工作 或清洁灯具之前,必 须切断供电电源 。电 源切断后,为了避免 烧伤,10分钟内
不可拆卸灯具中 的任 何一个零部件。 冷却过后灯泡爆 炸的 可能性几乎为零 。如果需要更换 灯泡,
则需再等待20分钟,以 免烧 伤。
灯泡
灯具上装有一个需高压触发器的灯泡，此触发器安置在灯具上。
请仔细阅读灯泡制造商提供的“使用说明”。
如灯泡有损坏或 热变 形,请立即更换灯泡 。
电池
本产品包含一个可充电锂电池。为了保护环境,请 根据 规定处理寿命结 束的电池。
该产品符合欧洲 共同 体要求，遵守：
低压2006/95/CE
电磁兼容性2004/108/CE
3
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

TECHNICAL INFORMATION
E-ballast:original made in Germany ballast
镇流器:德国制造电子整流器
型号
参数
Parameter
Model
Voltage :AC100-240V 50/60Hz
Power :1310W
电压
功率
Ballast
镇流器
Voltage/Power
电压/功率
HTI 1000/PS Lok-it 6500K
光源:德国制造Osram
Lamp
灯泡
High precision optical lens
一个单面磨砂的高透柔光镜，配合ZOOM可以
实现10-60度柔光效果
Lens
柔光镜
6200K-6500K
Color Temperature
色温
Lam pa
灯泡
verage life
平均寿命 750H
Color
颜色盘
8 colors +1 white
8个固定颜色+白色,双向彩虹效果
Prism
棱镜
Bi-directional rotation 4 face prism
可以双向旋转的 四棱 镜
5 rotation gobos+1 white
有5种不同图案+白光
7 gobos+1 white
有7种不同图案+白光
Rotation gobo
旋转图案盘
Fix gobo
固定图案盘
8 facet & 4 blades framing shutters modules
一个可以八向四 片自 由变换的切割模 组
Framing Shutters System
切割盘
6.5-44 degree
6.5-44度(7倍变焦)
Beam angle
光束角度
Standard DMX512/
国际标准DMX512信号或无线/RDM
Wireless DMX 512/RDM
Control Mode
控制方式
37/42 Channels
3通道 7/42
Channel
通道
F1000 PROFILE-50R series
Color mixing system
混色系统
CMY+linear CTO
CMY+线性CTO
Pan axis 540°, Tilt axis 270°, automatically
accurate position
投射范围:X向540度,Y向270度,可自动校正定位
Pan/Tilt
水平/垂直
4
www.lightsky.com.cn
LIGHT SKY

◆Two side handles for transportation.
包括两个方便搬运和运输手把。
◆Device locking PAN and TILT mechanisms
for transportation and maintenance.
X/Y轴锁定装置方便运输和维修。
◆Structure:Plastic
外观:PA66工程塑料
◆Feature:Remote control lamp's ON/OFF,Automati
-cally adjust cooling fan speed and enter into ener
-gy-saving mode when the strobe off.
其他功能:远程控制灯泡开关,风机自动调速,机械闭光
自动开启节能模式(降低功率50%)
◆Automatic charging battery,without electricity.
内置长寿命电池,可自动充电,不需要接通灯具电源
◆Protected against the entry of solid bodies larger
than12mm.
防止大于12mm固体进入灯具。
◆No protection against the entry of liquids.
禁止任何液体进入灯具
◆Bipolar circuit breaker with thermal protection.
过流和过热保护。
◆Automatic break in off lamp in case of overheating or
failed operation of cooling system.
当过热或散热系统失效时自动熄泡。
型号
Model
参数
Parameter
27pcs mute sound motor, 2pcs three phase
motor,16 bit driver
共27个超静音电机,其中2个三相静音电机,
16Bit驱动
Motor
电机数量
X/Y time
X/Y轴时间
X:3.6s;Y:2.1s
X轴:3.6s;Y轴:2.1s
Strobe
频闪
Double lens strobe (0.5-12Hz)
双片式频闪(0.5-12Hz)
Size
灯具尺寸
39Kg
965x540x1010mm
Single Fly case
航空箱尺寸(1台装)
N.W./G.W.
净重/毛重
N.W./G.W.
净重/毛重
450x373x788mm
N.W.
净重
Fly case (2in)
航空箱尺寸(2台装)
78kg/132kg
39kg/79kg
772x527x863mm
IP rate
防护等级 IP42
F1000 PROFILE-50R series
5
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

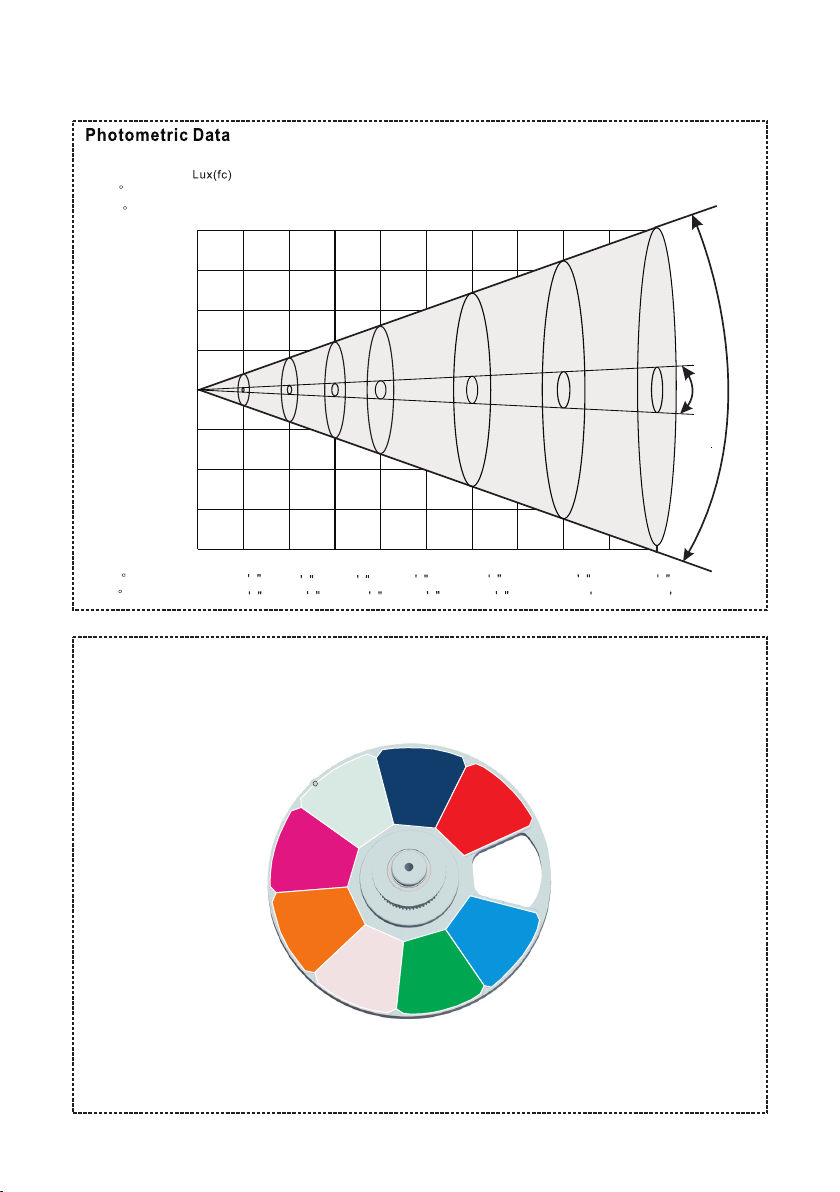

6.5 highlights
44 highlights
77500(7203) 19600(1822) 9150(850) 3660(340) 2280(212) 1220(113) 795(74)
2560(238) 645(60) 272(25) 158(15) 78(7) 43(4) 30(3)
5 10 15 20 40
Distance m
44 diameter m(ft in)
6.5 diameter m(ft in)
0
0.57(1 9 )
4.0(13 1 )
1.1(3 6 )
8.0(26 2 )
1.7(5 8 )
12.1(39 7 )
2.3(7 5 )
16.2(53 1 )
4.5(14 8 )
32.3(106 )
0
30 50
6.5°44°
3.4(11 2 )
24.2(79 4 )
5.7(18 7 )
40.3(132 )
5
10
15
20
5
10
15
20
Color wheel 颜色盘
5-Magenta
4-Orange
品红色A11
橙色A36
CTB
DL058
减绿 色
SPF044
深蓝A06
7-Congo
绿色A23
2-Green
红色A05
蓝色A08
白光孔
8-Red
1-Blue
White
6-CTB
3-1/2minus green
6
www.lightsky.com.cn
LIGHT SKY

Open
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
7
6
5
4
3
2
1
White

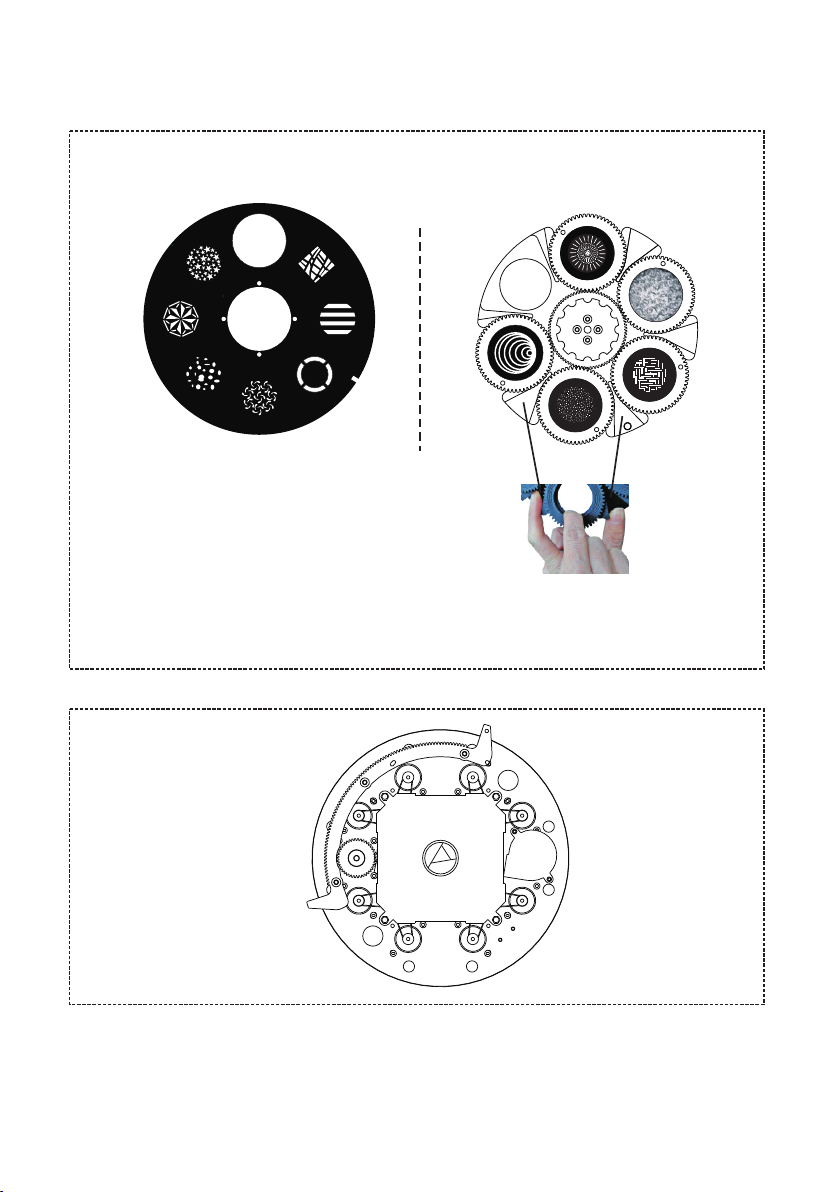

Fix wheel 固定图案盘 旋转图案盘
Rotation gobo wheel
Framing shutters system
切割模组
Gobo size:outside(φ36mm)/inside(φ25mm)
图案尺寸:外φ36mm/内φ25mm
轻轻的向下压一下,再拔出图案片。
7
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

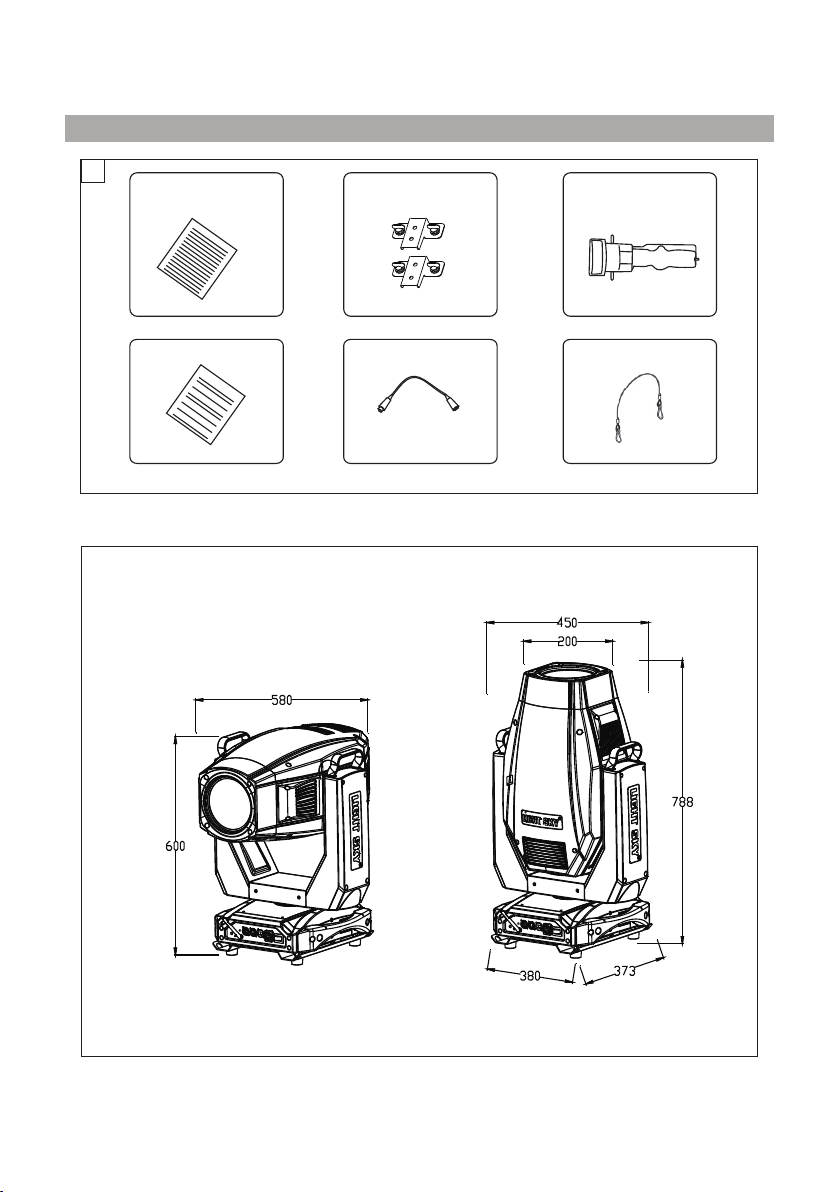

ATTACHMENT AND BODY SIZE
Attachment contents- Fig. 1
Body Size---Fig 2
LAMP
1
SAFETY CORD
DMX CABLE
WARRANTY CARD
USER MANUAL
BRACKET
(fitted into projector)
8
www.lightsky.com.cn
LIGHT SKY

3
灯具防雨罩的安 装步 骤及灯具可以安 装在静止且铺有 特殊 橡胶垫的地板上,或 装在支架上、天 花板 及墙壁上。
警告：
除了灯具放置在 地板 上外,其他的都需把 安全绳索装上。
这要求安全绳索 必须 牢固地固定灯具 的支架,然后连接到 底座 的中心固定点上 。
4
L
N

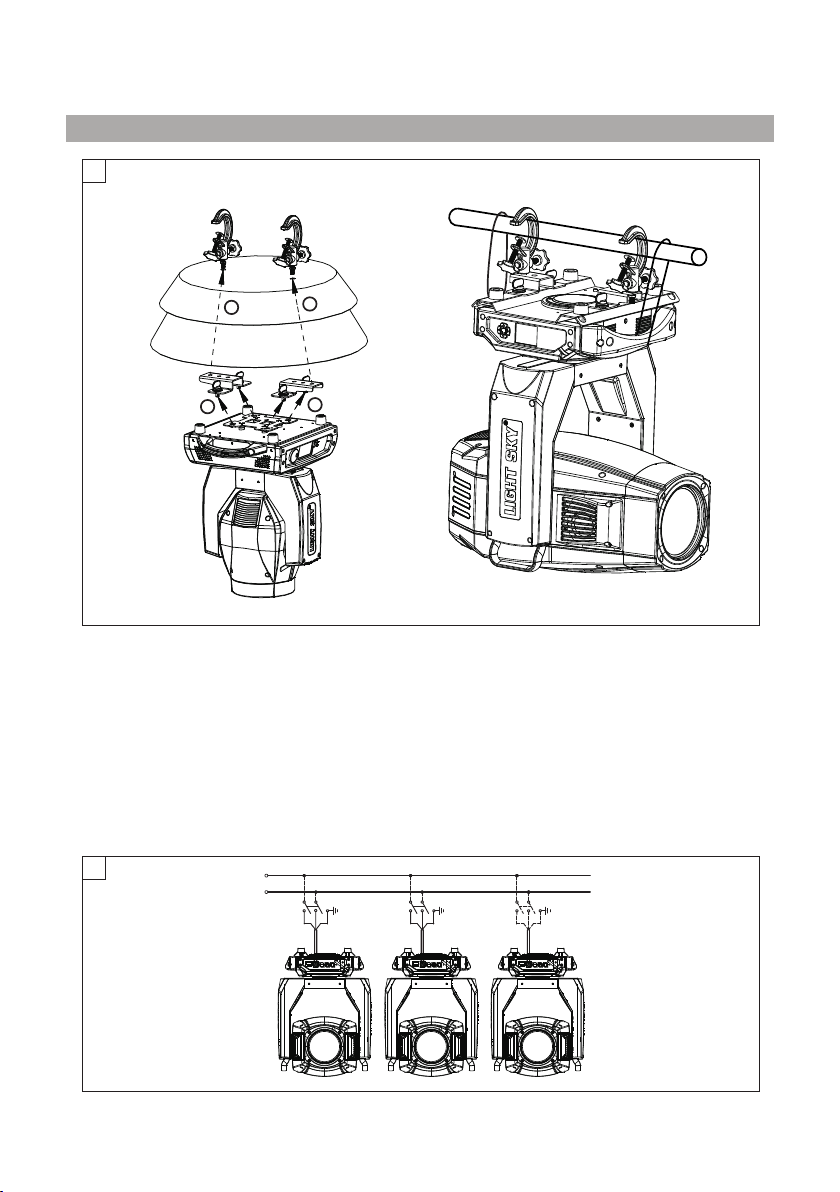

The projector can be installe
WARNING:with the exception of when the projector is positioned on the floor, the safety cable must be fitted.
This must be securely fixed to the support structure of the projector and then connected to the fixing point at
the centre of the base.
d on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
Connecting to the mains suppply ---Fig 4
INSTALLATION AND CONNECTING
Installing the projector- Fig. 3
Mains
11
22
9
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

DMX 512
5
SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
SIGNAL
SCREEN
DMX512
5 PIN
1
2
3
4
5
SIGNAL
Connecting to the control signal line (DMX) - Fig. 5
◎ Please use the round 3 or 5-pin XLR plugs &sockets offered by menu facture to connect the first
projector's output to the second projector' input and connect the second projector's output to the
third projector's input. And in the same way for the rest,eventually connect the last projector's
output,all the projectors are together.
主灯的输出端与 子灯 的输入端之间的 连接,可以采用由厂 商提 供的圆柱形3或5芯XLR电缆。将主灯的OUT插
座与子灯底座上 的IN插座 相连,然 后再将OUT插座与下一个子灯的IN插座相连,如此类推直到所有子灯都被
连接在一起。
◎The projectors's control signal output or input by using the 3 or 5-pin XLR pug and socket.If need to
lengthen the communication cable,please make sure the both side of 3 or 5-pin plug is one to one .
(one to one,two to two,three to three).Otherwise,the communication cable will be interrupted.The
communicate cable is 2-cord screened cable 75Ω resistance with each core is at least a 0.5mm
diameter.(Caution:All the inside leading wire of 3 or 5-pin XLR plug couldn't touch each other or
plinth).
信号线进行接入 或接 出时,应使用与灯具一并提供的圆柱形3或5芯XLR插头。如果需要延长通讯电缆,在接
线时,公母3或5芯XLR插头 两端必须一一对 应(即1对应1,2对应2,3对 应3),否则 易导 致通讯中断 。通 讯线为两
芯屏蔽线,阻抗特性为75Ω。(注意：每根通讯电缆线的线芯直径至少应为0.5mm,所 有的3或5芯XLR的内部
导线不应互相接 触或 接触到插头物体 。)
◎Recommend to use the DMX signal terminator for the installation to avoid the electronic noise dama
-ge the digital control signal.Simply speaking,DMX terminator is an XLR connector with a 120Ω 1/2W
resistor connected across pin 2 and 3.Which is then plugged into the output socket on the last projec
-tor in the chain.Refer to the connection.
在安装灯具时建 议使 用DMX信号 终端 器;它可以避免由电噪声而导致干扰数字控制信号。
简单来说,DMX终端器 是一 个XLR连接 器,在其2脚 与3脚之间连有一个120欧姆1/2W的电阻,将它连到最 后一
台灯具的OUT插座上。
LAMP REPLACEMENT
Adju st lamp
Adju st lamp
p
m
a
l
e
c
a
l
p
e
R
OUT
10
www.lightsky.com.cn
LIGHT SKY

6
打开电源开关,液晶屏会显示公司的LOGO如下图7，按确认键后 图 和
图10的信息(图9和图10,5秒切换一次)。
就显示菜单如图8，过10秒钟后就显示如 9
Press the switch. The projector starts resetting the effects. At the same time, the following
information scrolls on the display :(please refer to the actual material)
CONTROL PANEL
WA RNI NG :HO T!
Max imum am bient t emper ature t =38℃.
a
Alw ays dis conne ct from m ains be fore re placi ng the la mp.
Cau tion: Hot lam p. Allow t o cool fo r 30 minu tes
bef ore ope ning.
Ext erior s urfac e tempe ratur e under
ste ady sta te cond ition = 120 .
Pro longe d expos ure to
uns hield ed lamp c an
cau se eye an d skin bu rns.
℃
L
E
E
R
S
I
S
W
Art-N et
POWER S UPPLY A C100-240 V 50/ 60Hz
IN OUT
1=SCREEN
2=SIGNAL-
3=SIGNAL+
4=EMPTY
5=EMPTY
DMX PINS
LAMP: 1000W
POWER :1310W
Supply side
公司LOGO(以实物为准)
(please refer to the actual
material)
7
9
8
10
设置 SETTING
手动控制 MANUAL
设备信息 INFO
测试设备 TEST
个性设置 PERSON
服务选项 SERVICE
中文菜单
中文
ENGLISH MENU
ENGLISH
“*”号 显示当 前使用 的信息
(“*”Display the current use
of information)
“*”号 显示当 前使用 的信息
DMX Address
LAMP power:***
DMX range:*-**
***
1.LAMP ON TIME:***
2.LAMP POWER:***
3.RDM UID:****.********
4.PT SPEED MODE:***
5.CONTROL MODE:***
6.DMX ADDRESS:***
7.DMX RANGE:***
1.亮泡时 间:** *
2.灯泡功 率:** *
3.RDM UID:****.********
4.X Y速度模 式:** *
5.控制模 式:** *
6.DMX地址: ***
7.DMX通道: ***
BASIC INFORMATIO
基本 信息
“*”Display the current use
of information
11
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

SETTING
设置
INFO
设备 信息
DMX
设置地址码
Address
Channel
通道模式
mode
DMX input mode
DMX输入模式
Standard(37CH)
标准
Extended(42CH)
扩展模式(42CH)
模式(37CH)
001-512
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function
Wired input
有线
Wireless input
无线
Reset wireless
重置无线
Exit
退出
Fixture times
设备时间
Fixture temperatures
设备温度
Fan speed
风机速度
Power on time ****H
上电时间
Lamp on time ****H
亮泡时间***H
Zoom/Focus ***C
调焦板***C
Profile-6M ***C
6 ***C
切割 路板
CMY.CTO
CMY.CTO板***C
***C
Pan/Tilt
X/Y板***C
***C
Display
显示板***C
***C
LAMP_TEM
灯泡测温板***C
***C
Lamp fan L
fan R ****RPM
****RPM
Head fan L
fan R ****RPM
****RPM
灯泡风机左
灯泡风机右 ****RPM
****RPM
头部风机左
头部风机右 ****RPM
****RPM
RDM UID
RDM地址 ****:********
Profile-9M ***C
切割9路板***C
MENU SETTING(V1.0)
12
www.lightsky.com.cn
LIGHT SKY

INFO
设备 信息
ⅠMenu ⅡMenu Ⅲ Menu(ENGLISH) Function
DMX live
设备通道
1.Shutter
2.Dimmer
3.Dimmer fine
4.Cyan
5.Magenta
6.Yellow
7.CTO
8.Colour wheel
12.Rota.gobo
13.Gobo rotation
14.Gobo fine
18.Blade UP1
19.Blade UP2
20.Blade DW1
11.Fixation wheel
21.Blade DW2
17.Frost inserti
15.Prism
16.Prism rotatio
10.Iris
29.Zoom
30.Autofocus dis
27.Focus
32.Macro effects
33.Pan
34.Pan fine
35.Tilt
36.Tilt fine
37.Function
31.Autofocus fin
40.Colour Time
41.Beam Time
38.Calibration
42.Gobo time
1.频 闪
Ⅲ 中文 Menu( )
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255 0-255
0-255
0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255
0-255
0-255 0-255
0-255
0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255
0-255 0-255
2.调 光
3.调 光微调
4.青 色
5.品 红
6.黄 色
7.降 色温
8.颜 色盘
18 .叶片.上1
13 .图案自 转
14 .图案盘 微调
19 .叶片.上2
20 .叶片.下1
21 .叶片.下2
11 .固定图 案盘
22 .叶片.右1
17 .雾化
15 .棱镜
16 .棱镜旋 转
10 .光圈
29 .缩放
37 .功能
27 .调焦
28 .调焦微 调
33 .水平
34 .水平微 调
35 .垂直
36 .垂直微 调
39 .水平垂 直时间
32 .效果宏
40 .颜色时 间
41 .光束时 间
38 .校准
42 .图案时 间
Exit 退出
0-255
9.颜 色宏
0-255
12 .旋转图 案盘
0-255
23 .叶片.右2
0-255
24 .叶片.左1
0-255
25 .叶片.左2
0-255
26 .切割旋 转
0-255
30 .自动调 焦距离
0-255
31 .自动调 焦微调
39.Pan-Tilt Time
9.Macro colours 0-255
0-255
0-255
0-255
23.Blade RG2
24.Blade LF1
25.Blade LF2
26.Framing rotat
22.Blade RG1
0-255
0-255
0-255
0-255
0-255
28.Focus fine 0-255
0-255
13
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

INFO
设备 信息
ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function
Version info
版本信息
Lamp On/Off
灯泡开关
OFF
关
Lamp power
灯泡功率
DMX lamp off
DMX控制灯泡
Pan/Tilt
X Y轴
PT swap
XY 调换
1000_6M_U_
上板 1000_6M
SOFT:V*.**
软件:V*.**
1000_6M_D_
下板 1000-6M
SOFT:V*.**
软件:V*.**
1000_XY_
1000-XY板
SOFT:V*.**
软件:V*.**
1000_DPY_
1000-DPY板
SOFT:V*.**
软件:V*.**
1000_9M_
SOFT2:V*.**
1000_6M_M-SOFT:V*.**
中板 1000-9M 1:V*.**
软件2:V*.**
中板 1000-6M 软件:V*.**
SOFT1:V*.**
软件
Exit
退出
PERSON
个性 设置
ON
开
Default: 默认
OFF
关
ON
开
OFF
关
ON
开
Pan invert
X轴反向
OFF
关
ON
开
Tilt invert
Y轴反向
OFF
关
ON
开
Exit
退出
500-1000W
Default: 默认
Default: 默认
Default: 默认
Default: 默认
14
www.lightsky.com.cn
LIGHT SKY

ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function
DMX reset
DMX复位
Reset
复位
Display
显示设置
Dimmer reset
调光复位
CMY.CTO reset
CMY.CTO 复位
PERSON
个性 设置
OFF
关
ON
开Default: 默认
Effects
效果复位
reset
System reset
系统复位
Exit
退出
Pan/Tilt
XY复位
reset
Display language
语言选择
Display sleep
休眠时间
英文 English( )
Light always
常亮
2 minutes
2分钟
4 minutes
4分钟
6 minutes
6分钟
Display intensity
背光调节 10-100
Display rotation
屏幕旋转
Normal
正常
Rotate 180
旋转180度
Auto
自动
TFT Calibration
屏幕校准
Exit
退出
Default: 默认
中文(Chinese)
Exit
退出
Default: 默认
Default: 默认
Fan mode
风机模式
Silent mode
静音模式
Normal mode
正常模式
Hot mode
高温模式
Default:默认
15
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

MANUAL
手动 控制
ⅠMenu Ⅱ Menu(ENGLISH) Function
1.Shutter
2.Dimmer
3.Dimmer fine
4.Cyan
5.Magenta
6.Yellow
7.CTO
8.Colour wheel
9.Macro colours
10.Iris
11.Fixation wheel
12.Rota.gobo
13.Gobo rotation
14.Gobo fine
15.Prism
16.Prism rotatio
17.Frost inserti
18.Blade UP1
19.Blade UP2
20.Blade DW1
21.Blade DW2
22.Blade RG1
23.Blade RG2
24.Blade LF1
25.Blade LF2
32.Macro effects
26.Framing rotat
33.Pan
27.Focus
34.Pan fine
28.Focus fine
35.Tilt
29.Zoom
36.Tilt fine
30.Autofocus dis
31.Autofocus fin
1.频 闪
Ⅱ 中文 Menu( )
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255 0-255
0-255
2.调 光
3.调 光微调
4.青 色
5.品 红
6.黄 色
7.降 色温
8.颜 色盘
9.颜 色宏
10 .光圈
11 .固定图 案盘
12 .旋转图 案盘
13 .图案自 转
14 .图案盘 微调
15 .棱镜
16 .棱镜旋 转
18 .叶片.上1
19 .叶片.上2
20 .叶片.下1
21 .叶片.下2
22 .叶片.右1
23 .叶片.右2
24 .叶片.左1
25 .叶片.左2
26 .切割旋 转
27 .调焦
28 .调焦微 调
29 .缩放
30 .自动调 焦距离
31 .自动调 焦微调
Exit 退出
17 .雾化
0-255
0-255
0-255
0-255
0-255
32 .效果宏
33 .水平
34 .水平微 调
35 .垂直
36 .垂直微 调 0-255
0-255
0-255
0-255
0-255
0-255
16
www.lightsky.com.cn
LIGHT SKY

ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function
Test all
全部测试
SERVICE
服务选项
TEST
测试设备
Test pan/tilt
X Y测试
Test effects
效果测试
Exit
退出
Exit
退出
Error list
错误清单
Adjust
校准
Pan
水平
Tilt
垂直
Effect
效果盘
Focus
调焦
Zoom
缩放
Prism
棱镜
Prism rota
棱镜旋转
Frost
雾化
Cyan
青色
Magenta
品红
Yellow
黄色
CTO
降色温
Shutter
频闪
Colour wheel
颜色盘
Fixation wheel
固定图案盘
Rota.gobo
旋转图案盘
Iris
光圈
Blade UP1
叶片.上1
Framing rotat
切割旋转
Gobo rotation
图案自转
Blade UP2
2叶片.上
Blade DW1
下叶片. 1
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
Blade DW2
下叶片. 2
Blade RG1
右叶片. 1
Blade RG2
右叶片. 1
Blade LF1
左叶片. 1
Blade LF2
左叶片. 2
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
±5.00%
17
www.lightsky-china.com
PROFESSIONAL SHOW LIGHTING

ⅠMenu ⅡMenu Ⅲ Menu Ⅳ Menu Function
Fan clean
风机清扫
SERVICE
服务选项
Updata
软件升级
Factory
工厂设置
Exit
退出
OFF
关
ON
开
Default: 默认
18
www.lightsky.com.cn
LIGHT SKY
