QUICK REFERENCE
GUIDE
2011
CAMRY HYBRID
414498M1_r1.indd 1 1/6/10 11:07 AM

8

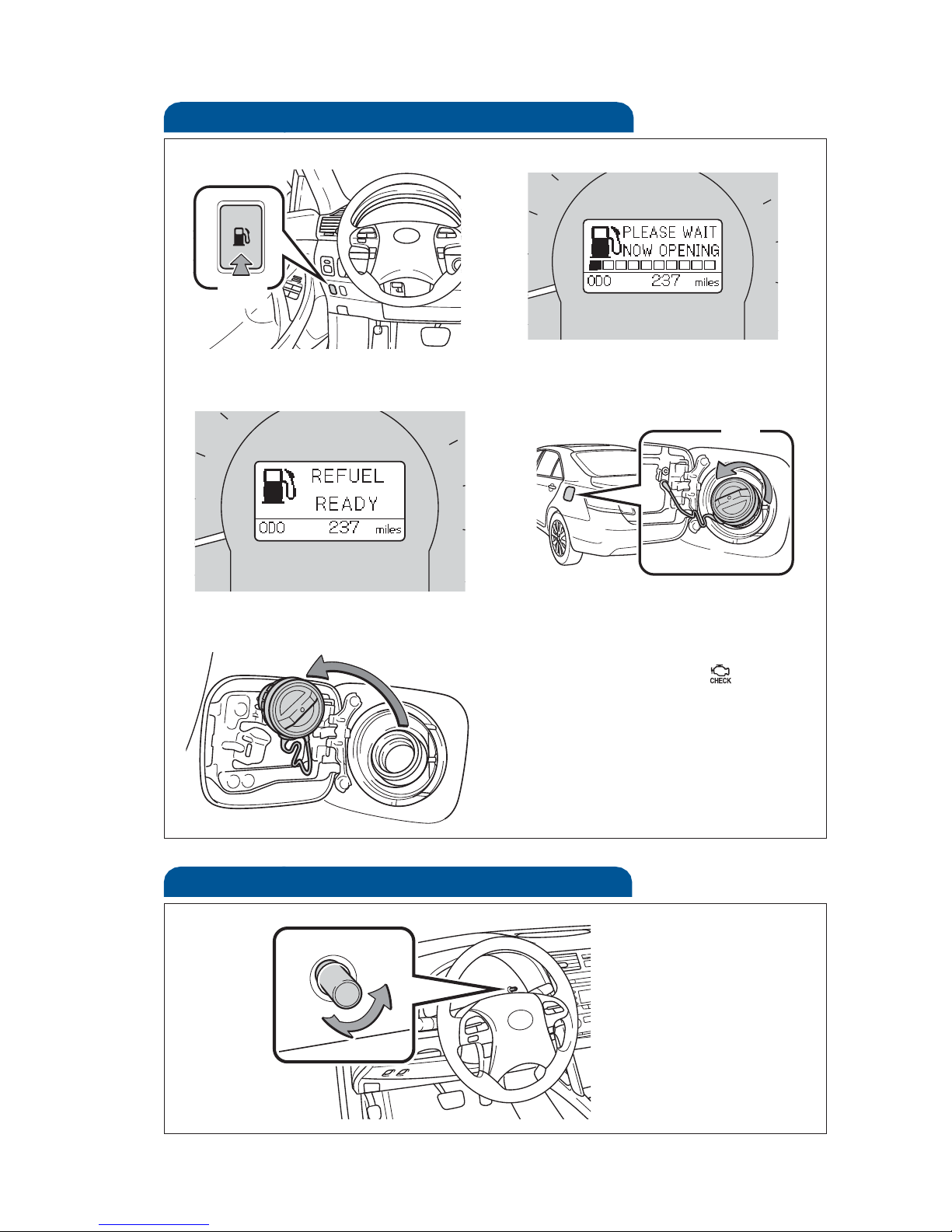

Fuel tank door release and cap
Push*
Light control-Instrument panel
Brightness
control
-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)
(2)
(4)
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
NOTE: This is also the
trip meter reset button.
* It may take up to 10 seconds after
pushing button for the door to open
if the internal tank pressure is high.

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and raise hood
Pull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance

10
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly
and firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.

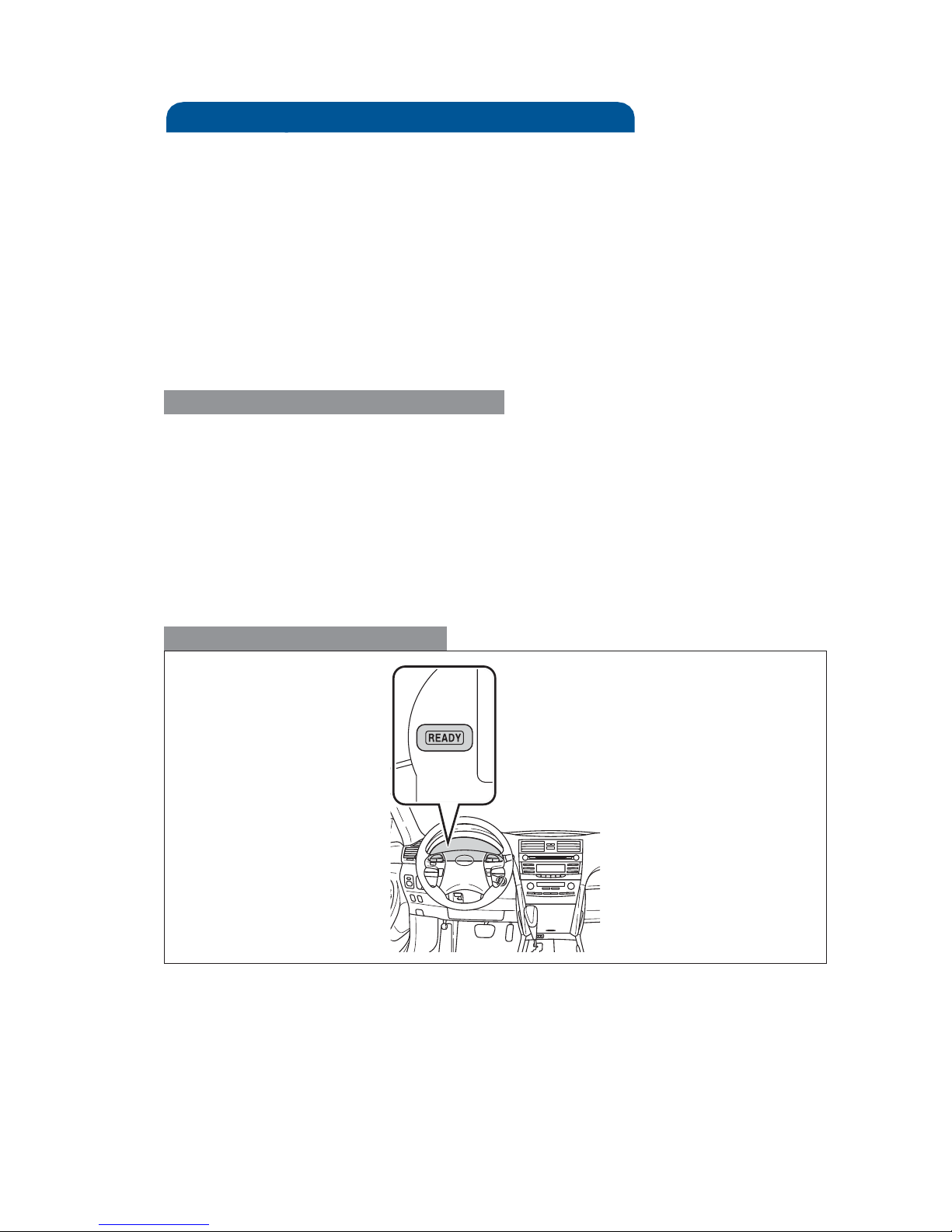

Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
NOTE: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

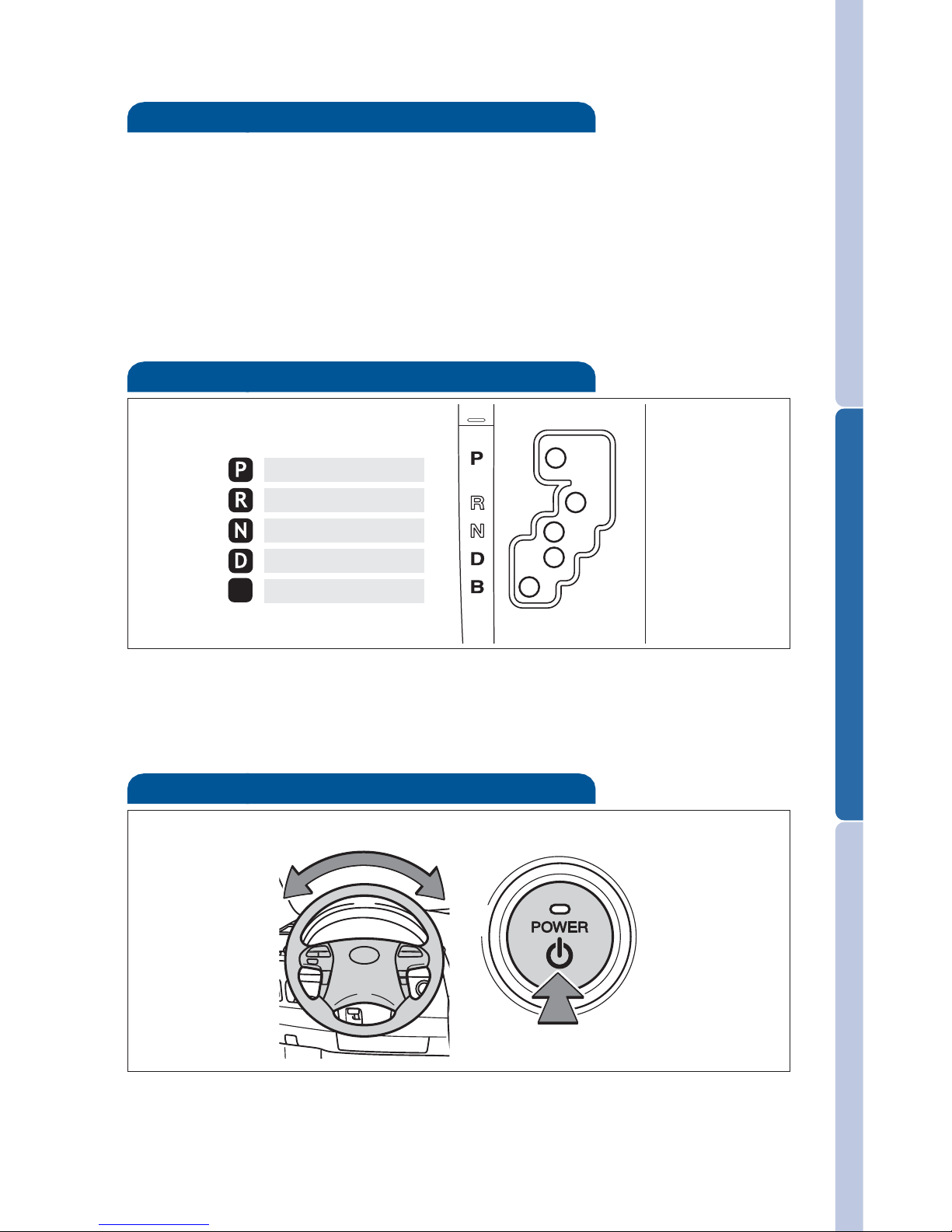

Transmission
1 The “POWER” switch must be set at “ON” and the brake pedal depressed
to shift from Park.
2 The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Tu r n
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF
and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Gently turn wheel while pressing the “POWER” switch. If the lock does not
release, the switch indicator will flash green.

12
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open and close. To stop window
midway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL) Automatically turns on the
headlights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed after
locking.
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam
Auto
DRL OFF
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Adjust frequency*
Front fog lights (if equipped)
Tu r n
Front fog lights come on only when the headlights are on low beam.

14
FEATURES/OPERATIONS
Seat adjustments-Front
Seatback angle
Seat position (forward/backward)
Lumbar support (driver side only)
Seat position, cushion angle and height (driver side only)
Manual seat Power seat
Seats-Head restraints
Lock release button
Fold down
Pull
Seats-Folding rear seats

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manual for
more details.
For programming assistance, contact HomeLink®at 1-800-355-3515, or
visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set

16
FEATURES/OPERATIONS

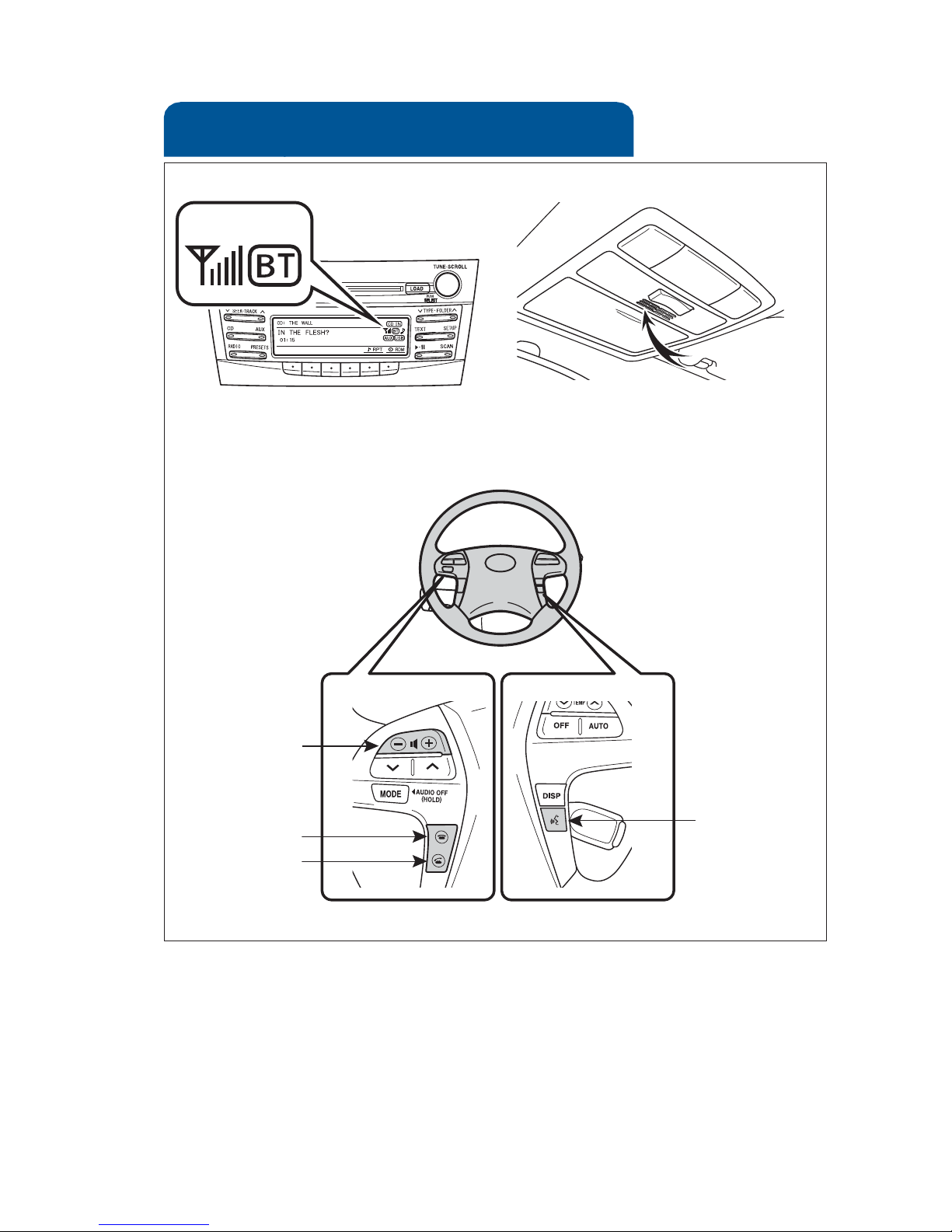

Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual for more details, or go to Toyota.com and enter
“Bluetooth” in the keyword search.
Microphone
Audio unit
Steering wheel telephone switches
Volume
Start call
End call
Voice command
button
Telephone controls (Bluetooth®)
(if equipped)

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Moonroof (if equipped)
Sliding operation Tilting operation
Open
Tilt
Close
Close
Recommended driving
position to minimize
wind noise.

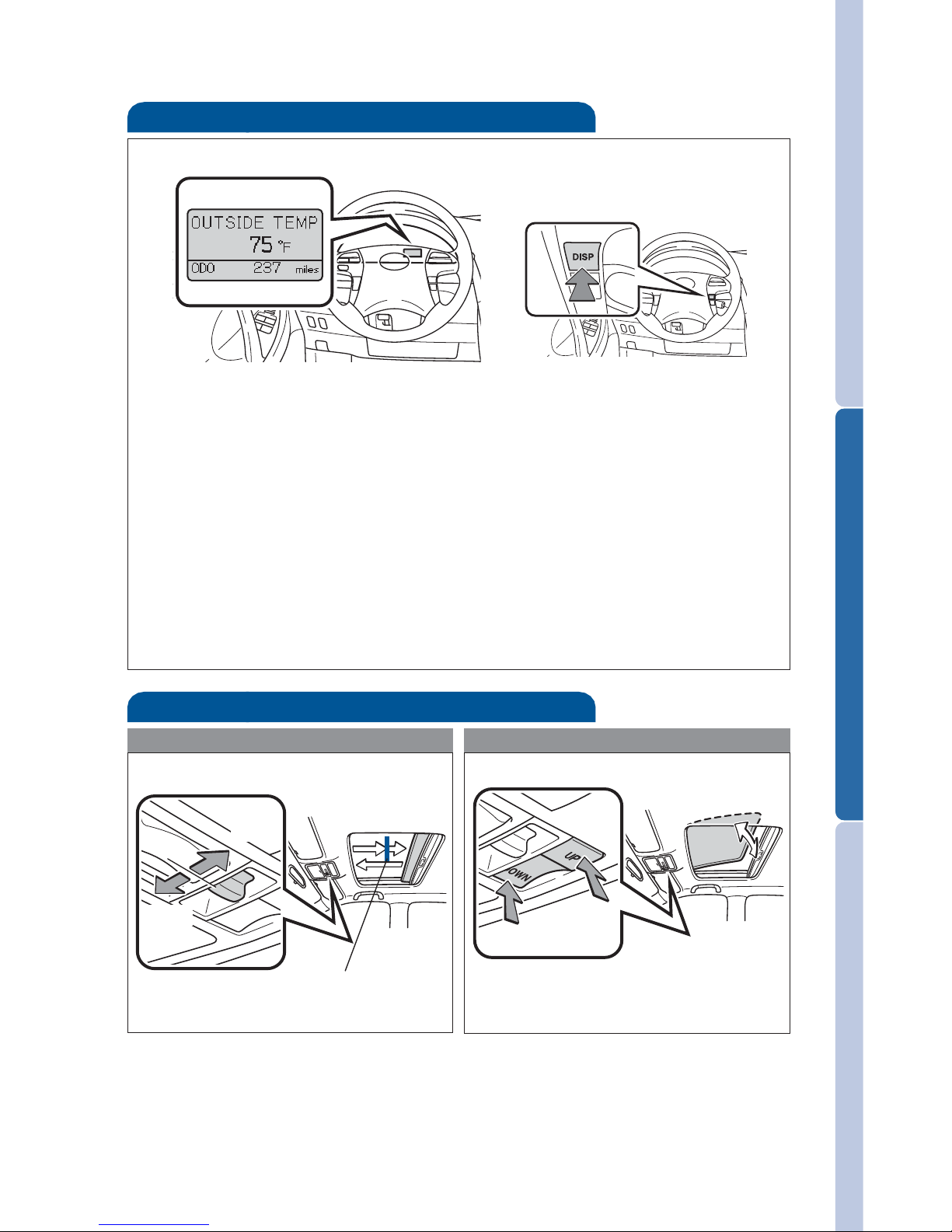

Multi-information display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.

18
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E .FILE” or “TUNE.SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan
Mode
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
Type 1
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Seek station/
CD track select
Mode
Preset buttons - functions in other
modes indicated above number
Push to skip
up/down folder
View CD text
Mute/pause
Station/CD
track scan

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Steering wheel switches
Audio control A/C control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod, etc.).
v
v
Volume control
Temperature
selector
Auto A/C
ON
A/C OFF
RADIO
To preset stations Tune in the desired station and hold down a preset
button until you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX or USB/AUX mode.
AUX or USB/AUX audio jack
19
Wire pass through
USB/AUX audio jack
(if equipped)
AUX audio jack

20
FEATURES/OPERATIONS
Air Conditioning/Heating
“DUAL” button
Indicator ON: Separate temperature settings for driver and
passengers.
Indicator OFF: Synchronize temperature settings for driver and
passengers.
Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector (passenger side)
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Rear window defogger/Outside rearview mirror defoggers (if
equipped)
Windshield airflow/defogger
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.

21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

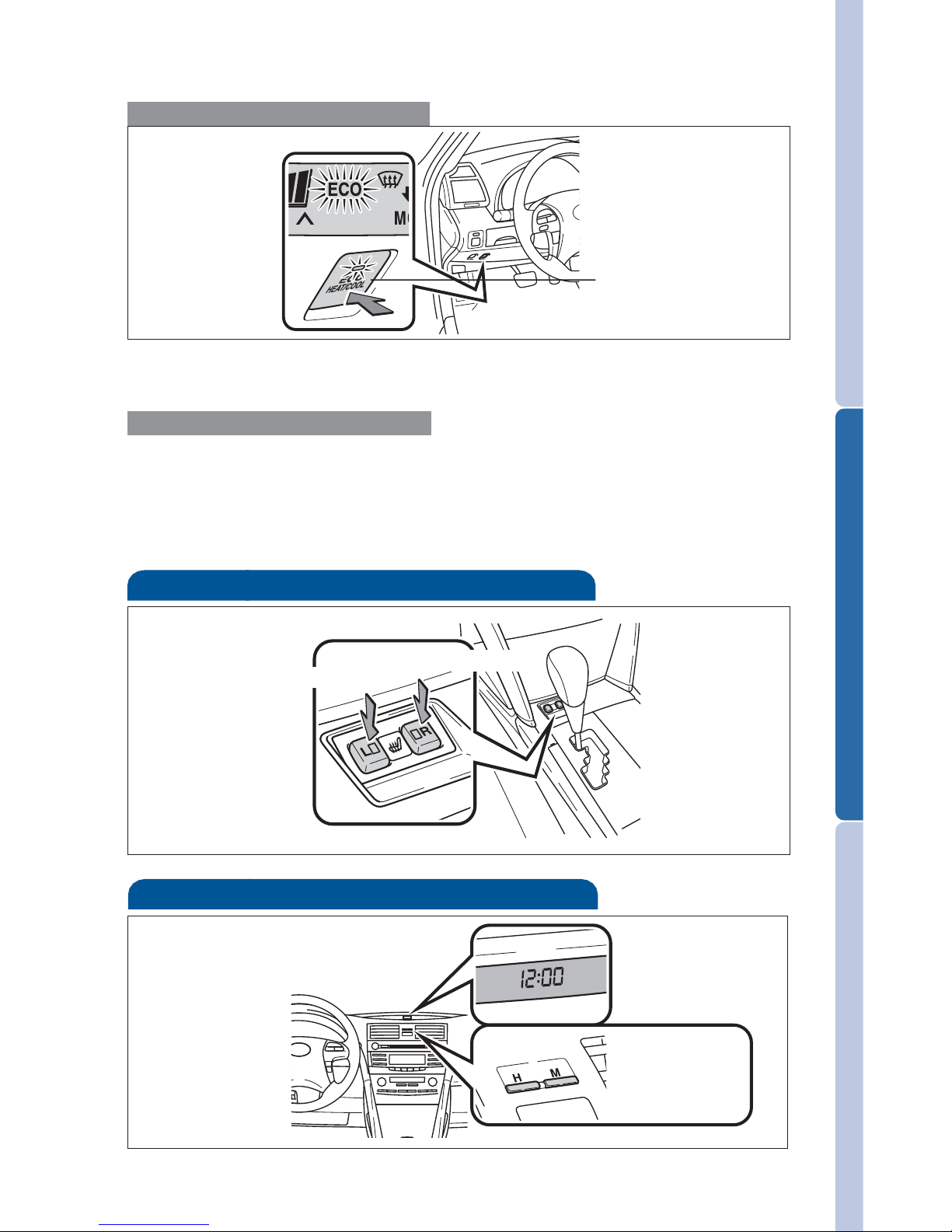

Seat heaters (if equipped)
Front passenger seat
Driver seat
Clock
H-Hour set
M-Minute set
Refer to the Owner’s Manual for adjusting time.
21
“ECO HEAT/COOL” switch
Economical mode
ON/OFF
NOTE: Slightly improves gas mileage. It may take longer to reach set cabin
temperature.
PlasmaclusterTM*
* This system adopts the plasmacluster technology, manufactured under license from SHARP
Corporation. PlasmaclusterTM is a trademark of SHARP Corporation.
Improves air quality by emitting positive and negative ions into the cabin.
This system operates from the driver side vent and a low system noise is
normal.

22
FEATURES/OPERATIONS

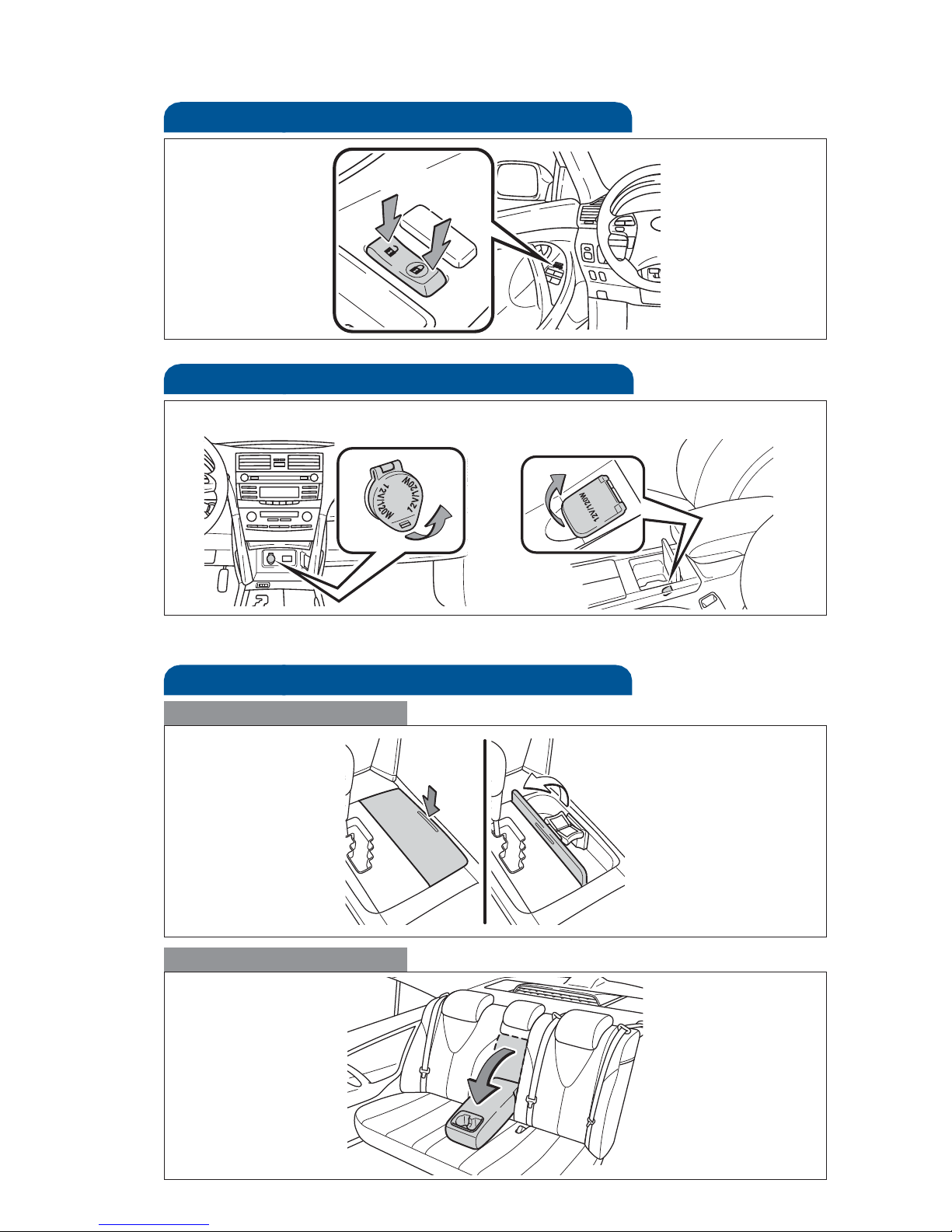

Door locks
Lock
Unlock
Power outlets
Instrument panel
“POWER” switch must be set at “ACC” or “ON” to be used.
Center console
Cup holders
Front
Rear

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
SAFETY AND EMERGENCY FEATURES
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Fuel filler door-Internal release
(2) Pull up
(1) Remove
23

24
SAFETY AND EMERGENCY FEATURE
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks three
times.
2. Wait a few minutes to allow
initialization to complete.
Rear seat outside position guides provide added comfort for children who
have outgrown child restraints.
Child comfort guide
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the POWER switch to “ON” mode, and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.

25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt anchor
Spare tire & tools
Tool location
Wheel nut wrench
Jack handle
Transport eyelet
(if equipped)
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Jack
Spare tire
Trunk-Internal release
Pull up
(1)
(4)
(3)
(2)
Refer to the Owner’s Manual for
tire changing and jack
positioning procedures.

CUSTOMER EXPERIENCE CENTER
1-80 0-331-4331
00505-QRG11-CAMH
Printed in U.S.A. 1/10
09-TCS-03789 Cert no. SGS-COC-005612
414498M1_r2.indd 1 1/11/10 10:00 AM
