Toyota Coaster 2015 User manual

For your safety and comfort,
read carefully and keep in the vehicle.
Quick index
•If a service reminder indicator or warning buzzer comes on.......................... 43
•If your vehicle will not start............................................................................. 102
•If your engine stalls while driving ................................................................... 105
•If your vehicle overheats................................................................................ 106
•If you have a flat tire....................................................................................... 107
•If your vehicle needs to be towed................................................................... 119
•Tips for driving during break–in period........................................................... 76
•How to start the engine.................................................................................. 88
•Pre–trip safety check...................................................................................... 89
•Complete index.............................................................................................. 173
Gas station information
Fuel type:
Diesel fuel that contains 50 ppm or less of sulphur, cetane number 50 (cetane
index 45) or higher
See page 76 for detailed information.
Fuel tank capacity: 95 L (25.1 gal., 20.9 Imp. gal.)
Engine oil:
API CD, CE, CF, CH-4, CI-4 or CJ-4
ACEA E-3, E-4, E-5, E-6 or E-9
API CJ-4, ACEA E-6 or E-9 is preferred.
See page 143 for detailed information.
Tire information: See pages146 through 151.
Tire inflation pressure: See page 169.
Publication No. OM36689E
Part No. 01999-36689
Printed in Japan 01–1501–00
コースター (豪州E)Z
ワQ–8
DIC87 Black COASTER_36689E
NOT FOR REPRODUCTION

COASTER_AE
i
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner’s Manual explains the operation of your new Toyota. Please read
it thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and trouble−free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
very well and is interested in your complete satisfaction. Your Toyota dealer will
provide quality maintenance and any other assistance you may require.
Please leave this Owner’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota’s policy of continual product improvement, we reserve
the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
ã2015 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.
NOT FOR REPRODUCTION

COASTER_AE
ii
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.
NOT FOR REPRODUCTION

COASTER_AE
iii
Important information about your Toyota
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
Using these spare parts and accessories which are not
genuine Toyota products may adversely affect the safety of
your vehicle, even though these parts may be approved by
certain authorities in your country. Toyota therefore cannot
accept any liability or guarantee spare parts and accesso-
ries which are not genuine Toyota products, nor for re-
placement or installation involving such parts.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.
Fuel information
Use only low sulphur diesel fuel (50 ppm or less of sul-
phur contents). See “Fuel” in Section 2 for details.
Installation of an
RF−transmitter system
As the installation of an RF−transmitter system in your
vehicle could affect electronic systems such as multiport
fuel injection system/sequential multiport fuel injection
system, electronic engine control system and anti−lock
brake system, be sure to check with your Toyota dealer
for precautionary measures or special instructions regard-
ing installation.
NOT FOR REPRODUCTION

COASTER_AE
iv
Maintenance schedule
Please refer to the separate “Warranty and Service
Booklet”.
Operation of the power steering
When the steering wheel is turned to the extreme right or
left position, reduce the force applied and do not attempt
to turn it further. Applying excessive force to the steering
wheel may cause damage to its power steering mecha-
nism.
NOT FOR REPRODUCTION

COASTER_AE
v
1 OPERATION OF INSTRUMENTS AND CONTROLS Page
1 Overview of instruments and controls 1...........................
2 Keys and Doors 7.............................................
3 Seats, Seat belts, Steering wheel and Mirrors 21...................
4 Lights, Wipers and Defogger 33.................................
5 Gauges, Meters and Service reminder indicators 39................
6 Engine (ignition) switch, Transmission and Parking brake 49.........
7 Air conditioning system 57.....................................
8 Other equipment 69...........................................
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 75............
3 STARTING AND DRIVING 87....................................
4 IN CASE OF AN EMERGENCY 101..............................
5 CORROSION PREVENTION AND APPEARANCE CARE 125......
6 MAINTENANCE REQUIREMENTS 131...........................
7DO−IT−YOURSELF MAINTENANCE
1 Introduction 135..............................................
2 Engine and Chassis 141.......................................
3 Electrical components 153.....................................
8 SPECIFICATIONS 165..........................................
9 INDEX 173.....................................................
Table of contents
NOT FOR REPRODUCTION

COASTER_AE
vi
NOT FOR REPRODUCTION

COASTER_AE
1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2....................................
Instrument cluster overview 4...................................
Indicator symbols on the instrument panel 5......................
Finish
SECTION 1−1
NOT FOR REPRODUCTION

COASTER_AE
2

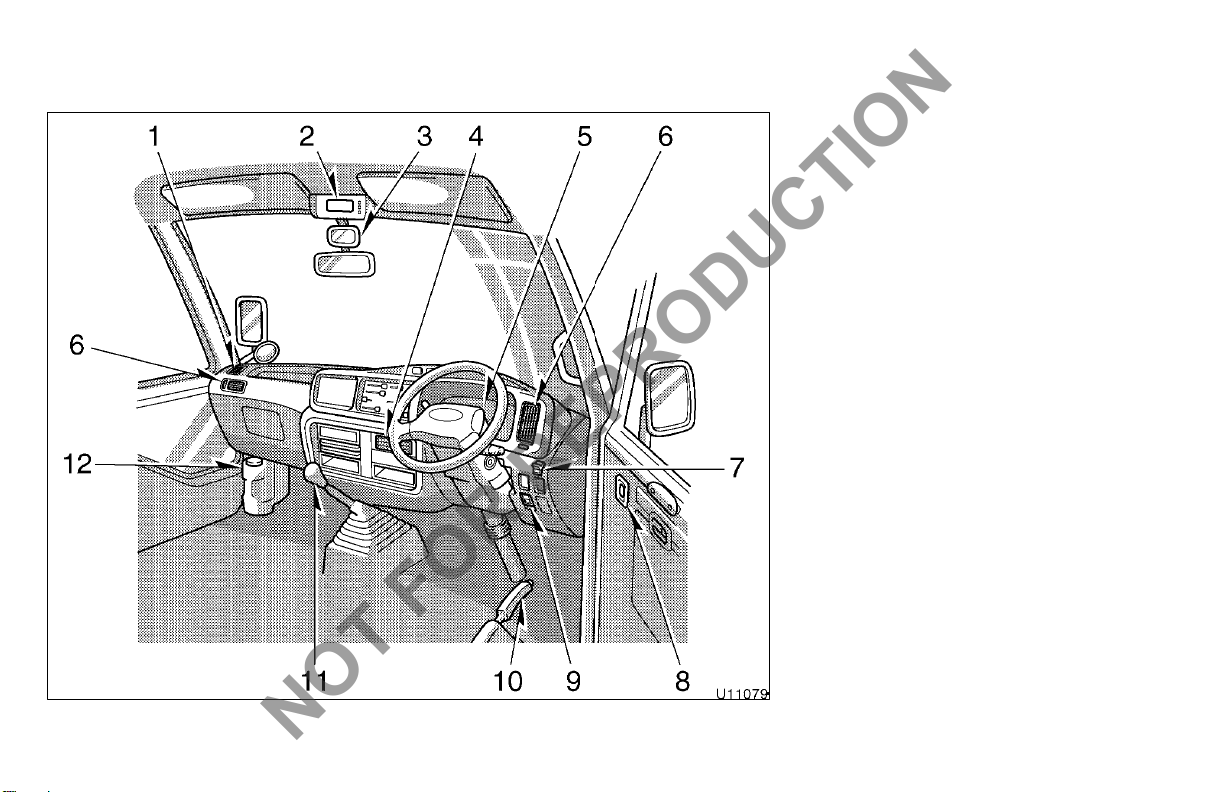

1. Side defroster outlet
2. Clock
3. Passengers’ door check mirror
4. Center vent
5. Instrument cluster
6. Side vents
7. Passengers’ door control switch
8. Power door lock switch
9. Fuel filler door opener
10. Parking brake lever
11. Manual transmission gear shift lever or
automatic transmission shift lever
12. Windshield washer fluid tank
Finish
Instrument panel overview
NOT FOR REPRODUCTION

COASTER_AE
3

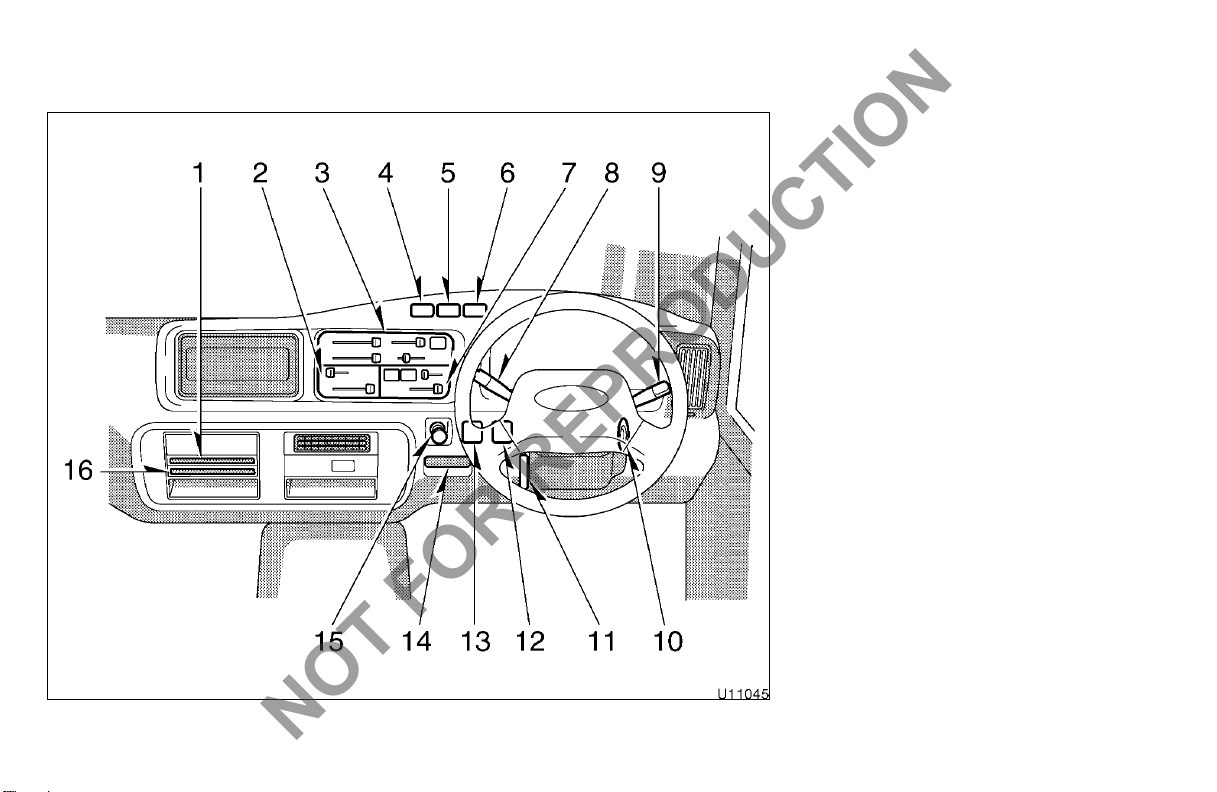

1. Auxiliary box
2. Rear heater controls
3. Front heater controls
4. Emergency flasher switch
5. Front interior light switch
6. Rear interior light switch
7. Cooler controls
8. Wiper, washer and exhaust retarder
switches
9. Headlight and turn signal switches
10. Engine switch
11. Tilt and telescopic steering lock release
lever
12. DPF (Diesel Particulate Filter) system
manual regeneration switch
13. Rear window defogger switch
14. Ashtray
15. Cigarette lighter
16. Cup holder
Finish
NOT FOR REPRODUCTION

COASTER_AE
4
1. Fuel gauge
2. Engine coolant temperature gauge
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Tachometer
6. Odometer, trip meter and meter light
control knob
7. Odometer, two trip meters and meter
light control display
Finish
Instrument cluster overview
NOT FOR REPRODUCTION

COASTER_AE
5

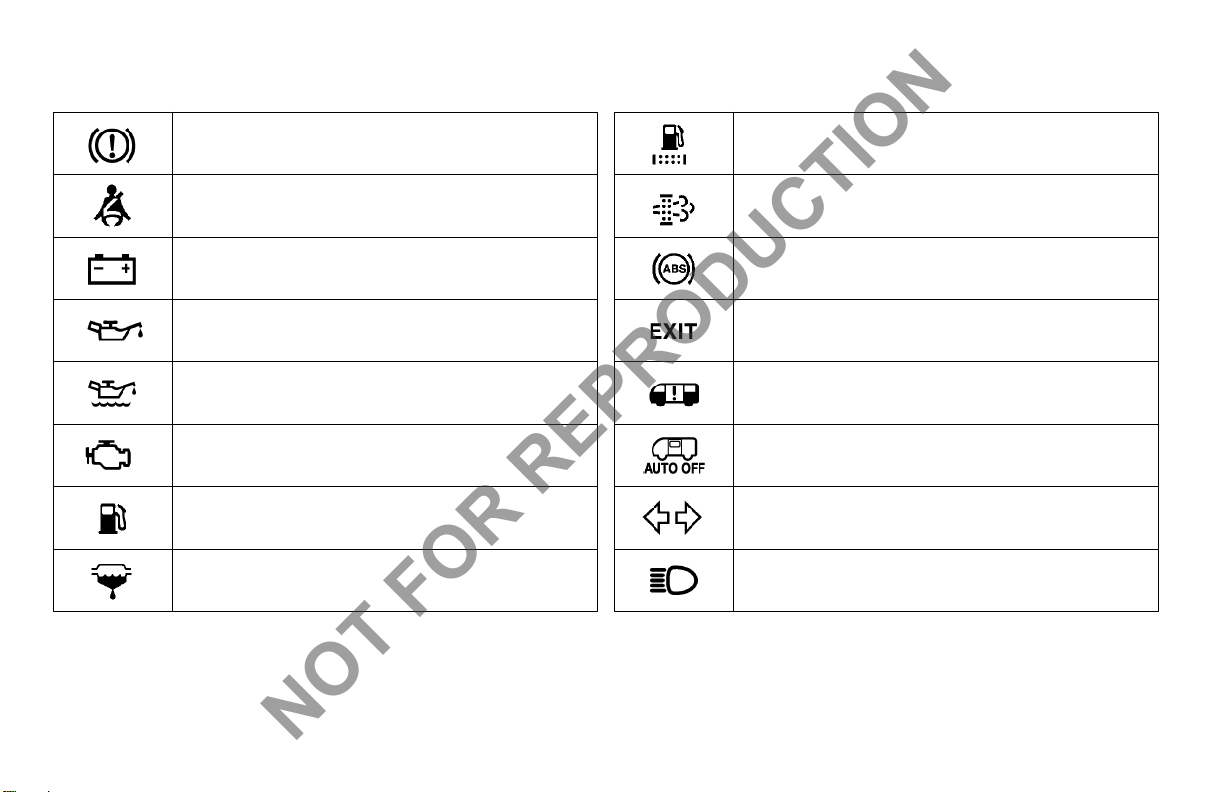

Brake system warning light*
Charging system warning light*
Low engine oil pressure warning light*
Low engine oil level warning light*Open passengers’ door warning light*
Fuel filter warning light*
Emergency door warning light*
Turn signal indicator lights
Headlight high beam indicator light
Malfunction indicator lamp*
Anti−lock brake system warning light*
Fuel filter replacement warning light*
DPF (Diesel Particulate Filter) system indicator
light*
Driver’s seat belt reminder light*
Low fuel level warning light*
Passengers’ door indicator light
Finish
Indicator symbols on the instrument panel
NOT FOR REPRODUCTION

COASTER_AE
6
Exhaust retarder indicator light
The indicators marked with *are service reminder indicators.
For details, see “Service reminder indicators and warning
buzzers” in Section 1−5.
Overdrive−off indicator light
Finish
NOT FOR REPRODUCTION

COASTER_AE
7
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8........................................................
Driver’s door 8.................................................
Passengers’ door 9............................................
Side windows 17...............................................
Engine access hole covers 18...................................
Fuel tank cap 19...............................................
Finish
SECTION 1−2
NOT FOR REPRODUCTION

COASTER_AE
8
These keys work in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your key
inside the vehicle.
Unlock
Lock
Front
LOCKING AND UNLOCKING WITH KEY
Turn the key towards the front of the
vehicle to lock and towards the back to
unlock.
Vehicles with a power door lock sys-
tem—The driver’s door and glide type pas-
sengers’ door and/or emergency door de-
pending on the vehicle’s equipment lock or
unlock simultaneously.
Lock Unlock
LOCKING AND UNLOCKING WITH IN-
SIDE LOCK KNOB
Turn the lock knob forward to lock and
backward to unlock.
If you want to lock the door from the
outside, set the knob in the locked posi-
tion before closing the door. The outside
door handle must be held up while the
door is being closed. Be careful not to
lock your keys in the vehicle.
Finish
Keys Driver’s door
NOT FOR REPRODUCTION

COASTER_AE
9

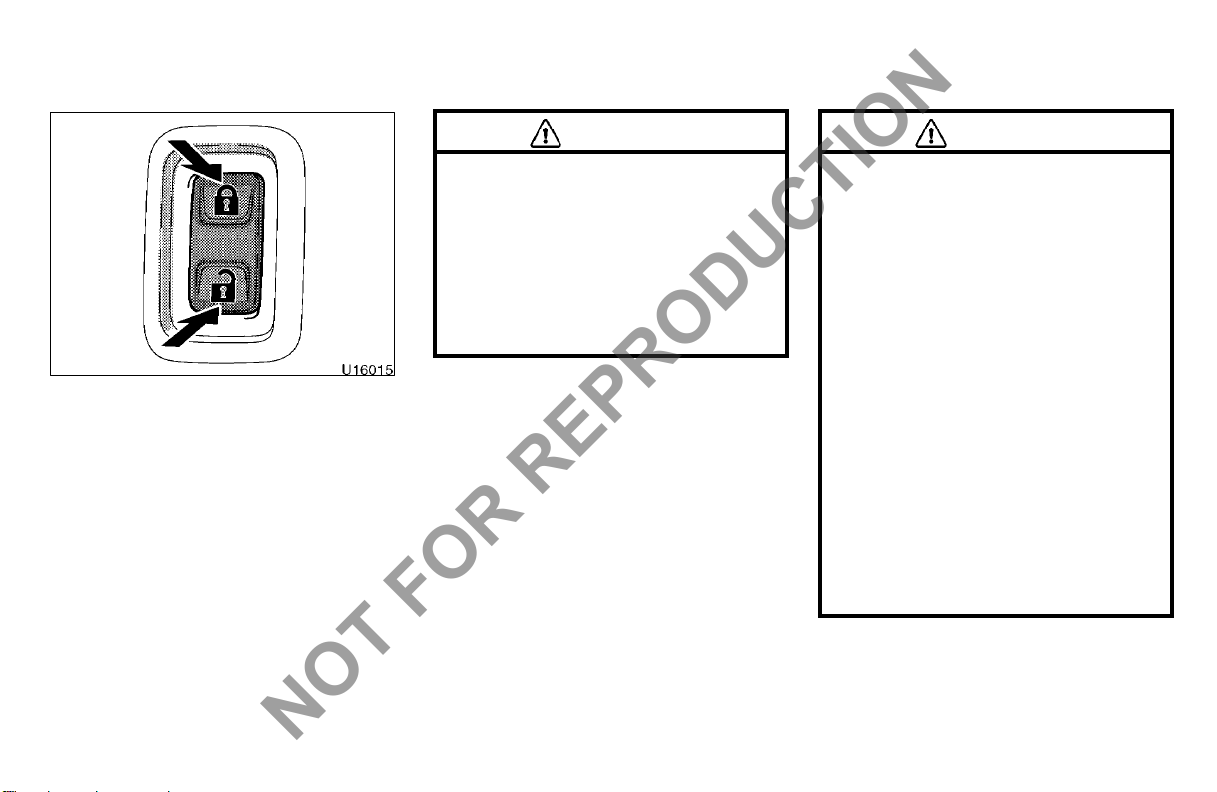

LOCKING AND UNLOCKING WITH POW-
ER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch on the upper
side.
To unlock: Push the switch on the lower
side.
The driver’s door and glide type passen-
gers’ door and/or emergency door depend-
ing on the vehicle’s equipment lock and
unlock simultaneously.
CAUTION
Before driving, be sure that the door
is closed and locked, especially when
small children are in the vehicle.
Along with the proper use of seat
belts, locking the door helps prevent
the driver from being thrown out from
the vehicle in an accident. It also
helps prevent the door from being
opened unintentionally.
CAUTION
Observe the following precautions
while driving. Failure to do so may
cause the door to open unexpectedly
and occupant to fall out of the ve-
hicle, resulting in death or serious
injury.
DEnsure that the door is properly
closed.
DAlways lock the door.
DDo not operate the inside handle of
the door while driving.
When children are in the vehicle, ob-
serve the following precautions. Fail-
ure to do so may result in death or
serious injury.
DDo not allow children to play in the
vehicle. If a child is accidentally
locked in the vehicle, they could
have heat exhaustion or other inju-
ries.
Finish
Passengers’ door (glide
type)—
—Passengers’ door precautions
NOT FOR REPRODUCTION

COASTER_AE
10
DDo not allow a child to open or
close the passengers’ door. Doing
so may cause the passengers’ door
to move unexpectedly, or cause the
child’s hands, head, or neck to be
caught by the closing passengers’
door.
Unlock
Lock
LOCKING AND UNLOCKING WITH KEY
Turn the key counterclockwise to lock
and clockwise to unlock.
The key can be removed only at the cen-
ter position.
Unlock
Lock
LOCKING AND UNLOCKING WITH IN-
SIDE LOCK BUTTON
Push in the lock button to lock and pull
it out to unlock.
If you want to lock the door from the
outside, push in the button before closing
the door. Be careful not to lock your keys
in the vehicle.
Finish
—Manual operation
NOT FOR REPRODUCTION

COASTER_AE
11
CAUTION
Before driving, be sure that the door
is closed and locked, especially when
small children are in the vehicle.
Along with the proper use of seat
belts, locking the door helps prevent
the passengers from being thrown out
from the vehicle in an accident. It
also helps prevent the door from be-
ing opened unintentionally.
Open
Open
Outside Inside
OPENING FROM INSIDE AND OUTSIDE
The door can be opened as shown.
CAUTION
When operating the passengers’ door,
observe the following precautions.
Failure to do so may cause parts of
the body to be caught, resulting in
death or serious injury.
DWhen opening or closing the pas-
sengers’ door, thoroughly check to
make sure the surrounding area is
safe.
DDo not leave the passengers’ door
at half−opened position because the
passengers’ door is not latched at
this position. The passengers’ door
may move unexpectedly on an in-
cline.
Finish
NOT FOR REPRODUCTION

COASTER_AE
12
DWhen the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
DOpen the passengers’ door fully
while passengers are getting on or
off on a downward slope. Do not
operate the outside handle or inside
handle while the door is open as
the door could suddenly close by
itself causing injury.
DWhen closing the passengers’ door,
take extra care to prevent your fin-
gers etc. from being caught.
NOTICE
zDo not hold any part other than the
grip.
zDo not close the door by applying
the brakes. Doing so could cause
the door to be damaged.
Push in lock button
Manual/automatic
change lever
SETTING FOR ELECTRICAL OPERATION
Push in the door lock button and place
the manual/automatic change lever in
the “AUTOMATIC” position.
If manual operation is needed, move the
manual/automatic change lever to the
“MANUAL” position and lift the lock button
up. The passengers’ door indicator light
(“AUTO OFF” light) on the instrument
cluster comes on when the engine switch
is turned to the “ON” position, indicating
that the manual/automatic change lever is
in the “MANUAL” position.
Finish
—Automatic operation
NOT FOR REPRODUCTION

COASTER_AE
13
Open
Close
OPERATING PASSENGERS’ DOOR CON-
TROL SWITCH
Push the switch to the “OPEN” position
to open the door and to the “CLOSE”
to close.
The engine switch must be in the “ON”
position.
The door will move while the switch is
being operated and stop when released.
A buzzer will briefly sound when the door
starts opening or closing.
If the door will not be locked when it is
closed, try again with the engine running
and all other electrical components off.
The accelerator pedal cannot be pressed
while the door is open.
DIf the door still does not operate, check
the circuit breaker. See “Checking the
circuit breaker” in Section 7−3.
DIf the passengers’ door control switch
is released partway through the door
closing operation, the door will stop
moving. After this the door may not
close completely, even if the switch is
pressed to the “CLOSE” position again.
In that case, open the door fully and
then attempt the close operation again.
CAUTION
Observe the following precautions
when the automatic passengers’ door
system is on. Failure to do so may
cause death or serious injury.
DBefore operating the control switch,
make sure the vehicle is completely
stopped and that the parking brake
is firmly applied.
DCheck the safety of the surrounding
area to make sure there are no ob-
stacles or anything that could
cause any of your belongings to get
caught.
DIf anyone is in the vicinity, make
sure they are safe and let them
know that the passengers’ door is
about to open or close.
NOTICE
Do not let passengers ride or put
their feet on the door arm or link. It
may damage the door−opening mecha-
nism.
Finish
NOT FOR REPRODUCTION
