!A word about safe vehicle operations
This Pocket Reference Guide is a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guide is not intended
as a substitute for the Owner’s Manual
located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s
Manual and supplementary manuals so you
will have a better understanding of your
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new Camry Hybrid.
This Pocket Reference Guide is not a full
description of Camry Hybrid operations.
Every Camry Hybrid owner should review
the Owner’s Manual that accompanies this
vehicle.
Pay special attention to the boxed
information highlighted in yellow
throughout the Owner’s Manual. Each box
contains safe operating instructions to
help you avoid injury or equipment
malfunction.
All information in this Pocket Reference
Guide is current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.

1
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
INDEX
Item Page no.
OVERVIEW
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Smart Key26-7
Trunk release 6
FEATURES/OPERATIONS
Air Conditioning/Heating 18-19
Audio 16-17
Auto lock functions111
Clock 17
Cruise Control 15
Cup holders 21
Garage door opener (HomeLink®)321
Hybrid Synergy Drive System 10-11
Light control-Instrument panel 12
Lights2&turn signals 14
Multi-information display 20
Moonroof 17
Parking brake 12
Power outlets 21
Seat adjustments-Front 13
Seat-Folding rear seat 13
Seat heaters 19
Seats-Head restraints 13
Te l e p h o n e controls (Bluetooth®)20
Tilt and telescopic steering wheel 12
Transmission 11
Windows 19
Windshield wiper & washer 15
SAFETY ANDEMERGENCY FEATURES
Child comfort guide 23
Door locks 22
Doors-Child safety locks 22
Fuel filler door-Internal release 25
Jump starting 24
Seat belts 22
Seat belts-Shoulder belt anchor 23
Spare tire & tools 25
Tire Pressure Warning System reset 23
Trunk-Internal release 25
1Programmable by customer. Refer to theOwner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on customizing
this feature.
3HomeLink®is aregistered trademark of Johnson Controls, Inc.

3
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
2
OVERVIEW
Steering wheel audio control
Steering wheel climate control
Multi-information display switch
Cruise control
Speech command button
Te l e p h o n e controls
Headlight and turn signal controls
Wiper and washer controls
Engine immobilizer system indicator light
Clock
“AIRBAG ON” and “AIRBAG OFF” indicator and front
passenger seat belt reminder lights
Emergency flasher switch
Audio system or navigation system with integrated
audio system1,2
Air Conditioning controls
Tire Pressure Warning System reset (in glove box)
Rear window and outside rear view mirror
defogger switch1
AUX adapter
12V DCPower outlet
Auxiliary boxes
“POWER” switch
Air Conditioning/Heating economy (ECO) mode
switch
Fuel filler door opener
Power rear view mirror controls
1If equipped
2For details, refer to the “Navigation System
Owner’s Manual.”
Instrument panel
Steering wheel controls

4 5
OVERVIEW
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
Driver seat belt reminder1
(Alarm will sound if speed is over 12mph.)
Front passenger seat belt reminder1
(Alarm will sound if speed is over 12mph.)
Brake system warning1
Charging system warning1
Electric power steering system warning1
Anti-lock brake system warning1
Malfunction/Check Engine indicator1
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
When the anti-lock brake system (ABS) function is in
action, you may feel the brake pedal pulsating and
hear anoise. In this situation, to let the anti-lock
brake system work for you, just hold the brake pedal
down more firmly. Donot pump the brake as this will
result in reduced braking performance.
Indicator symbols
Open door warning1
Low windshield washer fluid level warning1
Driving ready light
“AIRBAG ON” indicator
“AIRBAG OFF” indicator
Headlight low beam indicator
Tu r n signal indicator
Low fuel level warning1
Master warning1(See multi-information display)
Headlight high beam indicator
Cruise Control indicator2
Slip indicator
Airbag SRS warning1
Vehicle Stability Control/Traction Control
warning1
Engine coolant temperature
Service indicator and reminder
Fuel economy meter
Gear shift position indicator
Speedometer
Fuel gauge
Tri p meter reset/Instrument panel light control
Multi-information display
Driving ready light
Instrument cluster
Low tire pressure warning1
Brake system warning1

7
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
6
OVERVIEW
Trunk release
Pull up
Driver seat
Smart Key*
NOTE:Gear shift lever must be in “Park” and brake
pedal depressed.
Start function
Without depressing the brake pedal
Pressing the “POWER” switch will change the
operation mode in succession from:
Accessories such as the radio will operate.
Power ON; engine not running.
All systems OFF.
ACC
ON
OFF
DepressCarrying
Green indicator ON
Push
+
Locking/Unlocking operation
Carry remote to
Lock/Unlock
Push
Trunk open
Front door unlock
Grasp
Front door lock
*Driver door unlocking function can be programmed
to unlock driver door only, or all doors. Grasping
front passenger handle will unlock all doors.
NOTE:Doors may also be locked/unlocked using
remote.
Push
NOTE:After unlocking, if adoor is not opened within 60
seconds, all doors will relock for safety.
Unlocking operation
Trunk lid operation
Push
ONCE: Driver door
TWICE: All doors
Push and hold Push and hold
Keyless entry
Locking operation
Push
Alarm operation

9
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
8
OVERVIEW
Hood release
Pull up latch and raise
hood
Pull
Engine maintenance
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including
oil changes, will help extend thelife of
your vehicle and maintain performance.
Please refer to the“Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Fuel tank door release and cap
Push*
Tu r n the cap counterclockwise
and store
*It may take up to 10seconds after pushing button
for the door to open if the internal tank pressure is
high.
NOTE:Tighten cap until one click is heard. If the
cap is not tightened enough, Check Engine “ ”
indicator may illuminate.

11
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
10
FEATURES/OPERATIONS
Put the selector lever in “P. ”
Depress the brake pedal, and press the “POWER”
switch briefly and firmly.
The “READY” light will blink. After afew
seconds, when the light remains steady and a
beep sounds, you may begin driving.

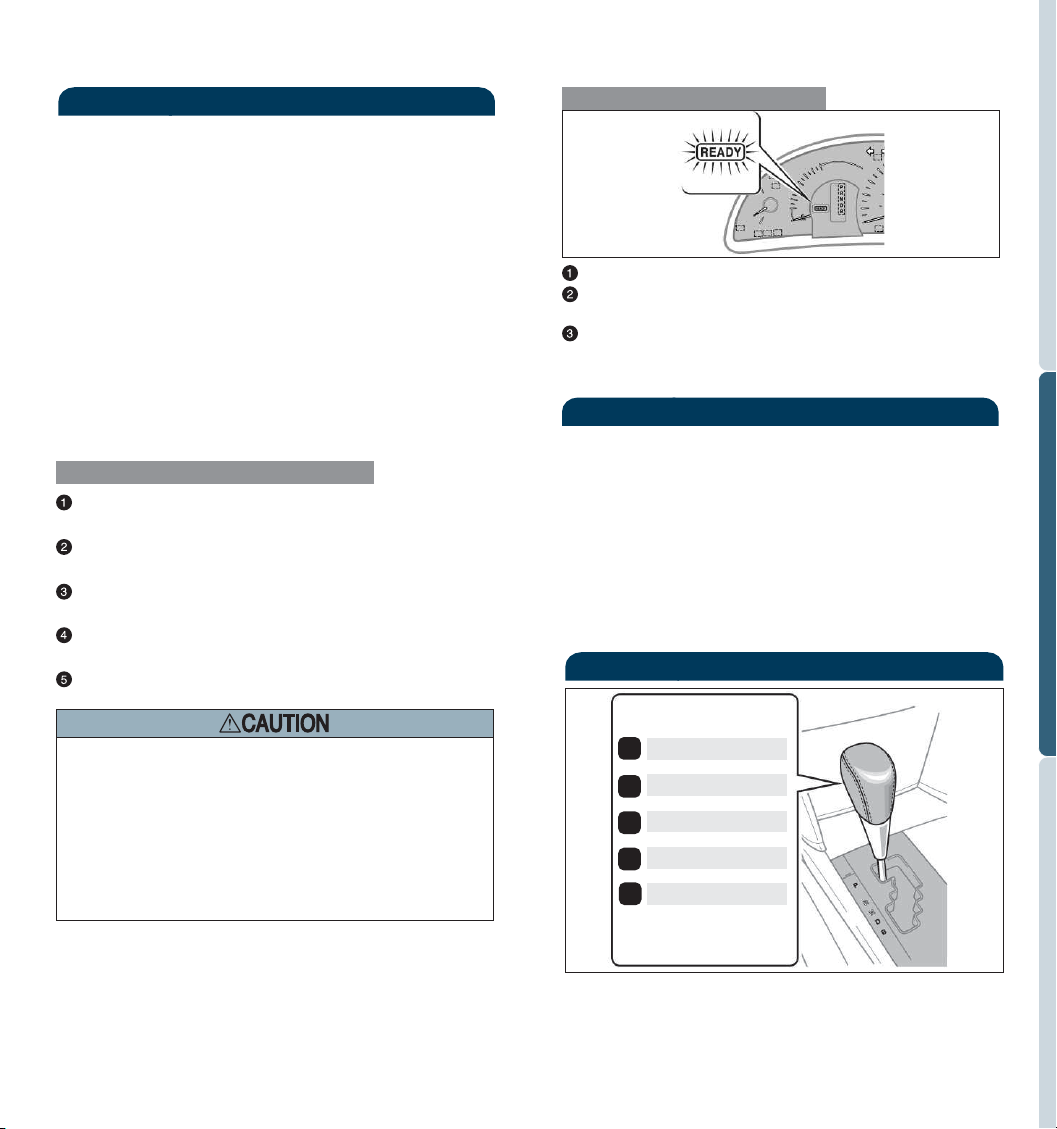

Starting the Hybrid System
Transmission
1The “POWER” switch must be set at ON, and the
brake pedal depressed to shift from “Park.”
2The engine brake is the equivalent of downshifting.
Shift to “B” when engine braking is desired (i.e,
downhill driving, coasting to astop, etc.).
Park1
Reverse
Neutral
Drive
P
R
N
D
BEngine braking2
Auto lock functions
Automatic door locks can be programmed to operate
in 4different modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above
approximately 12mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the “POWER” switch is set from
ONto ACC or OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
The Hybrid Synergy Drive System utilizes acomputer
controlled gasoline engine and electric motor to
provide the most efficient combination of power for
the vehicle. To conserve energy, when the brakes
are applied the braking force generates electricity
which is then sent to the traction battery. In
addition, the engine shuts off when the vehicle is
stopped. The benefits are better fuel economy,
reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information
of theHybrid System are shown on the
multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
Ensure tire pressures are maintained at levels
specified in the Owner’s Manual.
Link trips, if possible, to reduce engine cold
starts.
Avoid driving at speeds that are higher than
necessary, especially on the highway.
When possible, avoid sudden stops to maximize
regenerative braking energy.
Minimizeuse of the air conditioning.
•The vehicle has high voltage DCand AC systems as
well as a12-volt system. DCand AC high voltage is
very dangerous and can cause severe burns and
electric shock that may result in death or serious
injury.
•Never touch, disassemble, remove or replace high
voltage cables, their connectors and high voltage
parts such as the inverter unit, traction battery,
traction motor, air conditioning compressor, AC/DC
converter, etc.
Hybrid Synergy Drive System

13
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
Seat-Folding rear seat
Seat adjustments-Front
Power Seat Manual Seat
Position and height (driver side only)
Seatback angle
Lumbar support (driver side only)
Seatback angle
Position
12
FEATURES/OPERATIONS
Lock release button
Seats-Head restraints
Lock release button
Height
Front seats
Pull Fold down
Rear seats
Tilt and telescopic steering wheel
Lock release
lever
Angle
Length
Tu r n i n g headlights on in bright daylight may reduce
visibility of instrument panel cluster. For optimum
visibility, turn headlights to “AUTO” or “OFF.” If
headlights are turned on during daylight, instrument
lights won’t dim.
Note: This is also the trip meter reset button.
Refer to the Owner’s Manual for more details.
Light control-Instrument panel
Brightness
control
+
-
Hold wheel, push lever down, set angle and length,
then return lever.
Note: Donot attemptto adjust while thevehicle
is in motion.
Parking brake
Set: Depress
Release: Depress again

15
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
14
FEATURES/OPERATIONS
Lights & turn signals
Headlights
-Daytime Running Light system (DRL) Automatically
turns on the headlights at areduced intensity.
-Automatic light cut off system Will automatically
turn lights off after adelay of thirty (30) seconds,
or when the lock switch on remote is pushed.
1Tu r n s DRL OFF
Turn signals
High beam flasher
Right turn
Lane change
Lane change
Left turn
Low beam
Headlights
DRL OFF1
Parking lights
AUTO
High beam
Cruise Control
1The set speed may also be cancelled by depressing
the brake pedal.
2The set speed may be resumed once vehicle
exceeds 25 mph.
Turning system ON/OFF
Functions
Resume2/Increase speed
Set/Decrease speed
Cancel1
Refer to the Owner’s Manual for more details.
System
ON/OFF
Windshield wiper & washer
Adjust interval
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast

17
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
16
FEATURES/OPERATIONS
Audio
Eject CD
Push to
turn
ON/OFF
Push to
adjust
tone &
balance
Seek station/
CD track
select
Station/CD
track scan
Mode
Preset buttons -button functions in
other modes indicated above number.
Load CD(s)
To scan tracks on adisc Push and hold “SCAN.”
Push again to hold selection.
CD Changer
-To load one disc Push “LOAD” and insert 1 disc.
-To load multiple discs Push and hold “LOAD” until
you hear abeep. Insert one disc. Wait until the
green indicator illuminates and shutter opens to
insert nextdisc.
RADIO
To preset stations Tune in the desired station and
hold down apreset button (1-6) until you hear a
beep. Push desired preset button (1-6) to select.
To scan stations Push “SCAN.” Push and hold to scan
preset stations. Push again to hold selection.
Steering wheel controls
“-+”
Volume control
“”
-Inradio mode Push to select apreset station;
push and hold to seek the next strong station.
-InCD mode Push to skip up or down to
next/previous track.
“MODE”
Push to turn audio ONand select an audio mode.
Push and hold to turn the audio system “OFF.”
>
>
CD PLAYER
View
genre/
Push to
skip up
/down
folder
View CD text
Byinserting amini plug of acommercially available
component into the AUX audio jack, you can listen
to music from aportable audio device through the
vehicle’s speaker system.
AUX audio jack
Moonroof (Ifequipped)
Sliding operation Tilting operation
Open
Close
Tilt
Close
Recommended driving
position to minimizewind
noise.
AM/Satellite
radio
Wire pass
through
Mode
Clock
H-Hourset
M- Minute set

19
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
18
FEATURES/OPERATIONS
Air Conditioning/Heating
Windows
Window operation
Automatic operation (Driver side only) Push the
switch completely down and release to fully open. To
stop window mid-way, lightly pull the switch up.
Window lock switch Deactivates all passenger
windows.*
*Driver’s window remains operable.
Window
lock switch
Up
Driver side
Down
Up
Down
Steering wheel controls
Temperature selector
Auto A/C ON
A/C OFF
PlasmaclusterTM*
*This system adopts the plasmacluster technology, manufactured
under license from SHARP Corporation. “PlasmaclusterTM”is a
trademark of SHARP Corporation.
Improves air quality by emitting positive and
negative ions into the cabin. This system operates
from the driver side vent and alow system noise is
normal.
“DUAL” button
Indicator ON: Separate temperature settings
for driver and passenger.
Indicator OFF: Synchronizetemperature
settings for driver and passenger.
Driver temperature
Fan speed
Air flow vent
Passenger temperature
Air Conditioning ON/OFF
Fresh or recirculate cabin air
Rear defogger
Windshield air flow
Climate control OFF
Automatic climate control ON/OFF
Adjust the temperature setting, and air flow
vents and fan will adjust automatically.
“ECO HEAT/COOL” switch
Economical mode
ON/OFF
Seat heaters (if equipped)
Left front seat Right front seat
NOTE:Slightly improves gas mileage. It may take
longer to reach set cabin temperature.
In “ ” or “ ” mode, use fresh air (“ ”
indicator light “OFF”) to reduce window
fogging.

20 21
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
Bluetooth®technology allows placement or receipt
of calls without taking your hands from the steering
wheel or using acable to connect the telephone and
the system.
Refer to the Owner’s Manual for more details.
Cup holders
Front Rear
Multi-information display
Push “DISP” to change information in the following
succession.
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
FEATURES/OPERATIONS
Telephone controls (Bluetooth®)
Garage door openers manufactured under license
from HomeLink®*can be programmed to operate
garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact the T
oyota
Customer Experience Center at 1-800-331-4331,or
visit http://www.homelink.com
*HomeLink®is aregistered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
Power outlets
Designed for 12V car accessories. “POWER” switch
must be set at ACC or ONto be used.
Front console
Center console

23
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
22
SAFETY AND
EMERGENCY FEATURES
Keep as low on
hips as possible
Take up
slack
To o high
Seat belts
Doors-Child safety locks
Moving the lever to “LOCK” will allow the door to
be opened only from the outside.
If belt is fully extended, then retracted even
slightly, it cannot be re-extended beyond that point,
unless fully retracted again. This feature is used to
help hold child restraint systems securely.
To f i n d more information about seat belts, and how
to install achild restraint system, refer to the
Owner’s Manual.
Rear door
Door locks
Unlock Lock
Seat belts-Shoulder belt anchor
Push up, or
squeezelock
release to lower
Rear seat outside position guides provide added
comfort for children who have outgrown child
restraints.
Child comfort guide
Tire Pressure Warning System reset
If tire pressure becomes low on any of the tires
(including spare),indicator comes on. Pushing reset
button should not turn off the light. Correctly
adjusting tire inflation will turn off the light after a
few minutes. Push and hold reset button until the
indicator blinks three times after replacing tire or
wheels.

24
SAFETY ANDEMERGENCY FEATURES
Jump starting
Connect positive (red) jumper cable to the
positive (+) terminal on the discharged 12-volt
battery.
Connect positive (red) jumper cable to the
positive (+) terminal on the booster battery.
Connect negative (black) jumper cable to the
negative (-) terminal on the booster battery.
Connect negative (black) jumper cable to the
recommended connecting point of the vehicle
with the discharged battery.
Depress brake pedal, and press “POWER” switch
to start the vehicle.
Refer to the Owner’s Manual for more details.
To access the battery, remove the cover.
Recommended
connection point
for negative
terminal
Connecting jumper cables
Depress Push
+
12-volt battery location

Spare tire &tools
Tool location
Removing the spare tire
25
OVERVIEWFEAT URES/OPERATIONS SAFETY ANDEMERGENCY FEATURES
Loosen and remove the nut.
Remove the spare tire cover.
Loosen and remove the bolt.
Remove the jack tray.
Refer to the Owner’s Manual for tire changing and
jack positioning procedures.
Trunk-Internal release
Pull up
Fuel filler door-Internal release
(2)Pull up
(1) Remove
Jack handle Wheel nut wrench
Spare tire Jack
