OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
2
2005 CELICA from Sep. ’04 Prod. (OM20888U)
1. Side vents
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and/or
interior light
5. Glove box
6. Automatic transmission selector lever
or manual transmission gear shift lever
7. Power window switches
8. Power door lock switch
9. Auxiliary box
10. Parking brake lever
11. Transmission shift switches
12. Hood lock release lever
13. Power rear view mirror control switches
Instrument panel overview

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
3
2005 CELICA from Sep. ’04 Prod. (OM20888U)
1. Instrument panel light control knob
2. Headlight, turn signal and front fog
light switches
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Auxiliary box
7. Audio system
8. Air conditioning controls
9. Cigarette lighter
10. Ashtray
11. Rear window defogger switch
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Headlight beam level control dial
16. Window lock switch

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
4
2005 CELICA from Sep. ’04 Prod. (OM20888U)
1. Tachometer
2. Service reminder indicators and
indicator lights
3. Speedometer
4. Fuel gauge
5. Engine coolant temperature gauge
6. Odometer and two trip meters
7. Trip meter reset knob
8. Gear position indicators
Instrument cluster overview

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
5
2005 CELICA from Sep. ’04 Prod. (OM20888U)
SRS warning light∗1
Open door warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Anti- lock brake system warning light∗1
Driver’s seat belt reminder light∗1
Low fuel level warning light∗1
or or
Automatic transmission fluid temperature
warning light∗1
Headlight low beam indicator light
Tail light indicator light
Headlight high beam indicator light
Front passenger’s seat belt reminder light∗1
Indicator symbols on the instrument panel

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
6
2005 CELICA from Sep. ’04 Prod. (OM20888U)
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1-6.
∗2: If this light flashes, see “Automatic transmission” in Section
1- 7.
∗3: If this light flashes, see “Cruise control” in Section 1- 7.
Cruise control indicator light∗3
Overdrive- off indicator light
Automatic transmission indicator lights
M mode indicator light∗2
Turn signal indicator lights

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
7
2005 CELICA from Sep. ’04 Prod. (OM20888U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
8
2005 CELICA from Sep. ’04 Prod. (OM20888U)
Your vehicle is supplied with two kinds
of keys.
1. Master keys—
These keys work in every lock.
Since the side doors and back door
can be locked without a key, you
should always carry a spare master
key in case you accidentally lock your
keys inside the vehicle.
2. Sub key—
This key will not work in the back door
and glove box.
To protect items locked in the glove
box or luggage compartment when us-
ing valet parking, leave the sub key
with the attendant.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
1. “LOCK” switch
2. “UNLOCK” switch
3. “PANIC” switch
Keys Wireless remote control—

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
9
2005 CELICA from Sep. ’04 Prod. (OM20888U)
The wireless remote control system is
designed to lock or unlock all the
doors or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
10
2005 CELICA from Sep. ’04 Prod. (OM20888U)
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

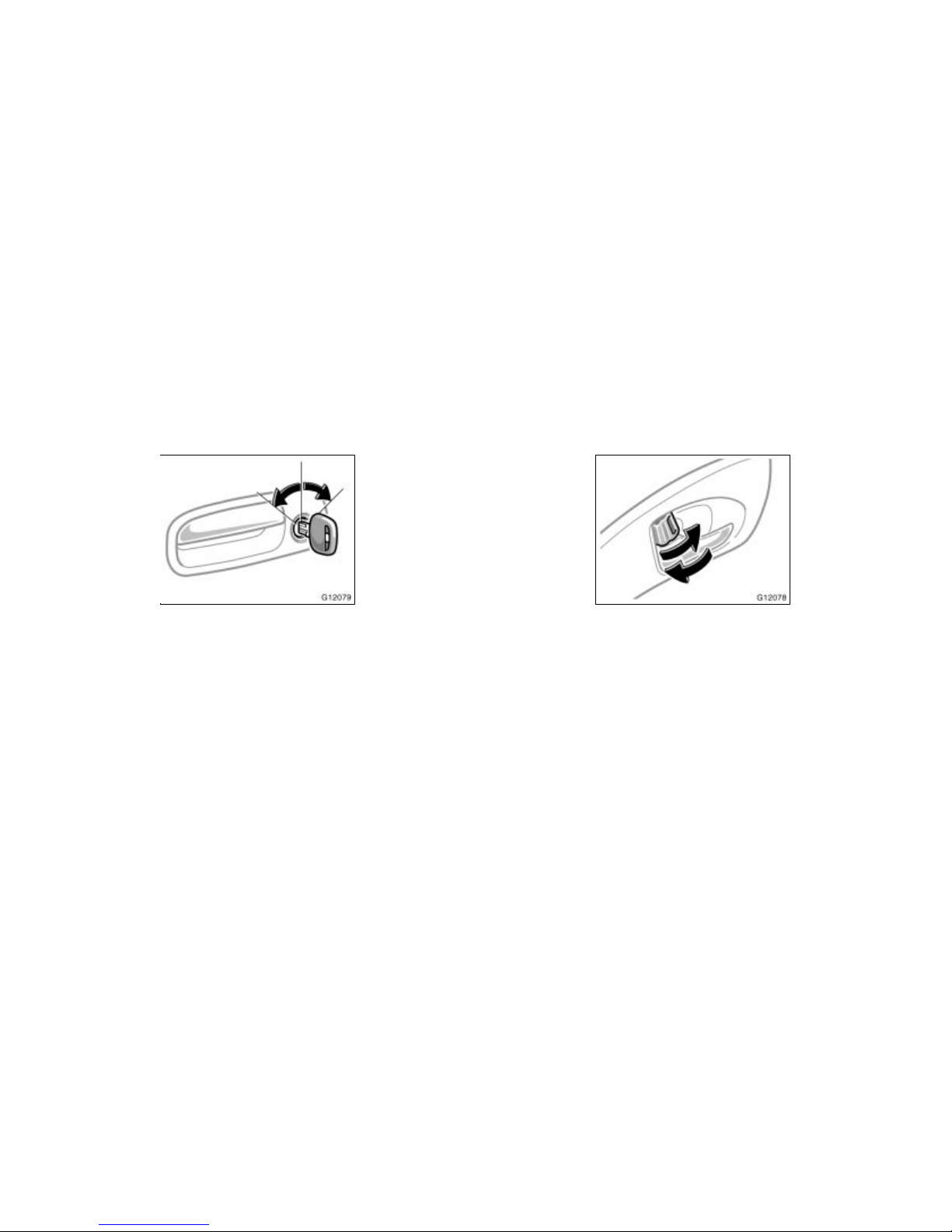

Locking operation
Unlocking operation
—Locking and unlocking
doors

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
11
2005 CELICA from Sep. ’04 Prod. (OM20888U)
To lock: Push the “LOCK” switch. Both
side doors and back door are locked si-
multaneously. At this time, parking lights,
side marker lights and tail lights flash.
Check to see that both side doors and
back door are securely locked.
If either side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks both side doors and back door
simultaneously. At this time, parking lights,
side marker lights and tail lights flash
twice.
When the interior light switch is in the
“DOOR” position, and both side doors and
back door are unlocked simultaneously us-
ing the wireless remote control transmitter,
the interior light will come on and remain
on for about 15 seconds before fading
out, even if the door is not opened. (For
further information, see “Interior light” in
Section 1- 5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both side
doors and back door will be automatically
locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock either side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ACC” or “ON” position.
—Activating panic mode

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
12
2005 CELICA from Sep. ’04 Prod. (OM20888U)
The “PANIC” mode does not work when
the ignition key is in the “ACC” or “ON”
position.
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
 During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
1. Using a coin or equivalent, open the
transmitter case.
—Replacing battery

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
13
2005 CELICA from Sep. ’04 Prod. (OM20888U)
2. Remove the discharged transmitter bat-
tery by ballpoint pen. Insert the tip of
ballpoint pen at the guide groove and
lift as shown in the above illustration.
NOTICE
Do not bend the terminals.
3. Put in a new transmitter battery with
positive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
14
2005 CELICA from Sep. ’04 Prod. (OM20888U)
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with the power door lock sys-
tem—Both side doors and back door lock
and unlock simultaneously with either side
door. In the driver’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock both side
doors and back door simultaneously.
Vehicles with the power door lock sys-
tem—When the interior light switch is in
the “DOOR” position, and both side doors
and back door are unlocked using either
the key or the wireless remote control
transmitter, the interior light will come on
and remain on for about 15 seconds be-
fore fading out. (For further information,
see “Interior light” in Section 1-5.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the side door with the lock knob
in the lock position will also lock the side
door. Be careful not to lock your keys in
the vehicle.
Vehicles with the power door lock sys-
tem—Doors cannot be locked when either
side door is open and the key is in the
ignition.
Side doors

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
15
2005 CELICA from Sep. ’04 Prod. (OM20888U)
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Both side doors and back door lock or
unlock simultaneously.
CAUTION
Before driving, be sure that the side
doors are closed and locked, espe-
cially when small children are in the
vehicle. Along with the proper use of
seat belts, locking the side doors
helps prevent the driver and passen-
gers from being thrown out from the
vehicle during an accident. It also
helps prevent the side doors from be-
ing opened unintentionally.
The windows can be operated with the
switch on the center console.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both side doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either side door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s side of
the center console.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
16
2005 CELICA from Sep. ’04 Prod. (OM20888U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
OPERATING THE PASSENGER’S
WINDOW
Use the switch on the passenger’s side
of the center console.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the instrument panel, the passenger’s win-
dow cannot be operated.

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
17
2005 CELICA from Sep. ’04 Prod. (OM20888U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Insert the master key into the keyhole
and turn it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “—Locking and unlocking doors” and
“Side doors” in this Section.)
When closing the back door, make sure
it is securely closed.
See “—Stowage precautions” in Section 2
for precautions when loading luggage.
Back door

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
18
2005 CELICA from Sep. ’04 Prod. (OM20888U)
When closing the back door, the inside
handle can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Hood

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
19
2005 CELICA from Sep. ’04 Prod. (OM20888U)
3. Hold the hood open by inserting the
support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

WWW.MANUALS.WS
WWW.MANUALS.WS
’05MY CELICA U (L/O 0409)
20
2005 CELICA from Sep. ’04 Prod. (OM20888U)
1. To open the fuel filler door, pull the
lever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang the
tether as shown in the illustration.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It has a built-
in check valve to reduce fuel tank
pressure.
