Toyota Corolla MN 00505-QRG09-COR User manual

2009
Quick Reference Guide
MN 00505-QRG09-COR
Printed in the USA 12/07
CustomerExperience Center
1-800-331-4331

21

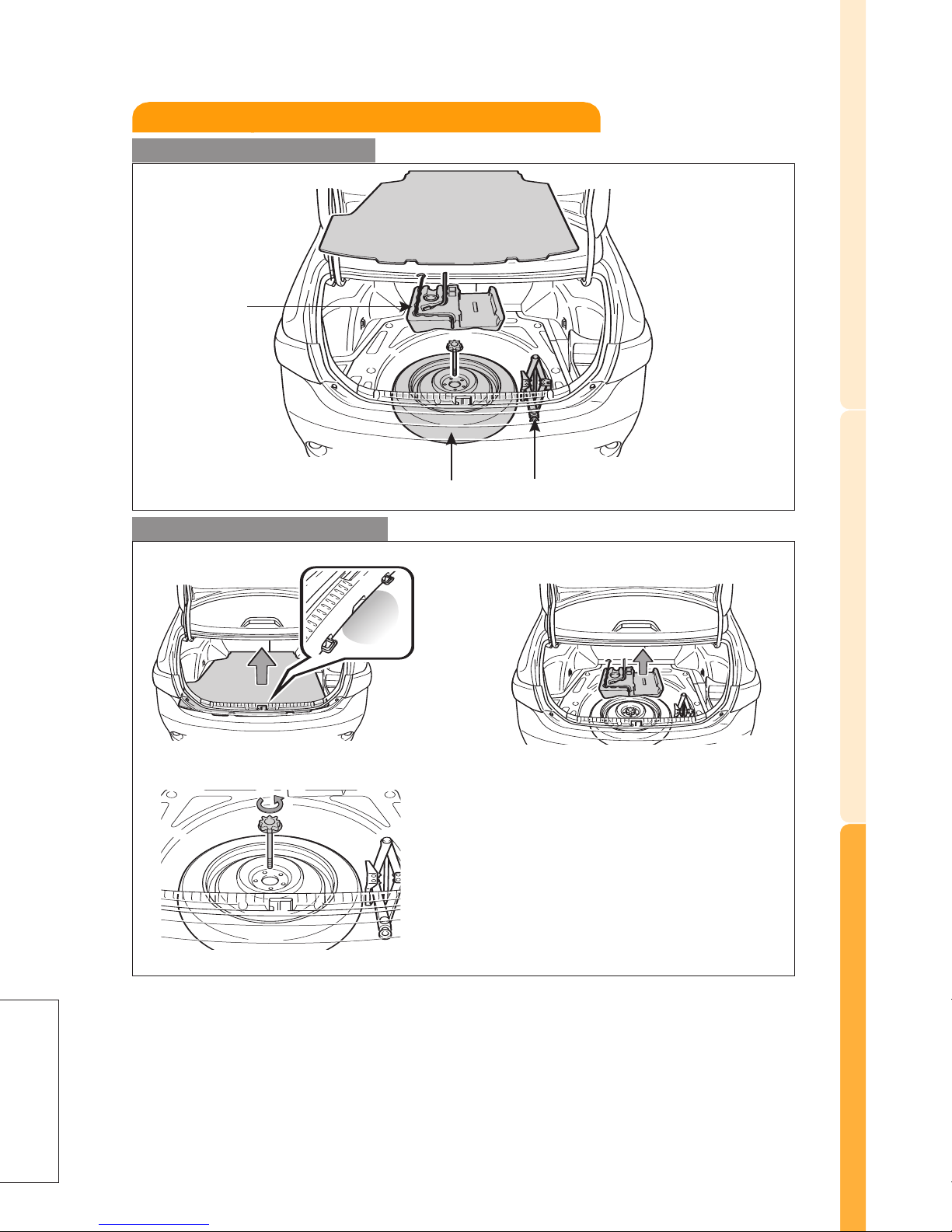

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the luggage floor cover.
(2) Remove the tool tray.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Spare tire
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Jack
Tool box
(1) (2)
(3)
This iGuide is not intended as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions,to help you avoid injuries, and
Notices,to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual.For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com.This user-friendly website makes learning
all about your new vehicle fun and easy.

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14
Audio 12-13
Auto lock functions29
Automatic Transmission 8
Auxiliary storage 18
Clock 16
Cruise control 15
Cup holders 18
Door locks-Power 17
Light control-Instrument panel 18
Lights & turn signals 11
Moonroof 17
Multi-information display 15
Parking brake 8
Power outlets 14
Seat adjustments-Front 9
Seat adjustments-Rear 9
Seats-Head restraints 10
Telephone controls (Bluetooth®)16
Tilt and telescopic steering wheel 17
Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19
Doors-Child safety locks 20
Seat belts 19
Seat belts-Shoulder belt adjustment 19
Spare tire & tools 21
Tire Pressure Warning System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Quick Reference Guide

2 3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch1
Power rearview mirror control
Auxiliary storage
Headlight, turn signal and front fog light1controls
Wiper and washer controls
Emergency flasher button
Audio system2
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
AUX adapter
Tire Pressure Warning System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Air Conditioning system
Steering wheel controls

4 5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW

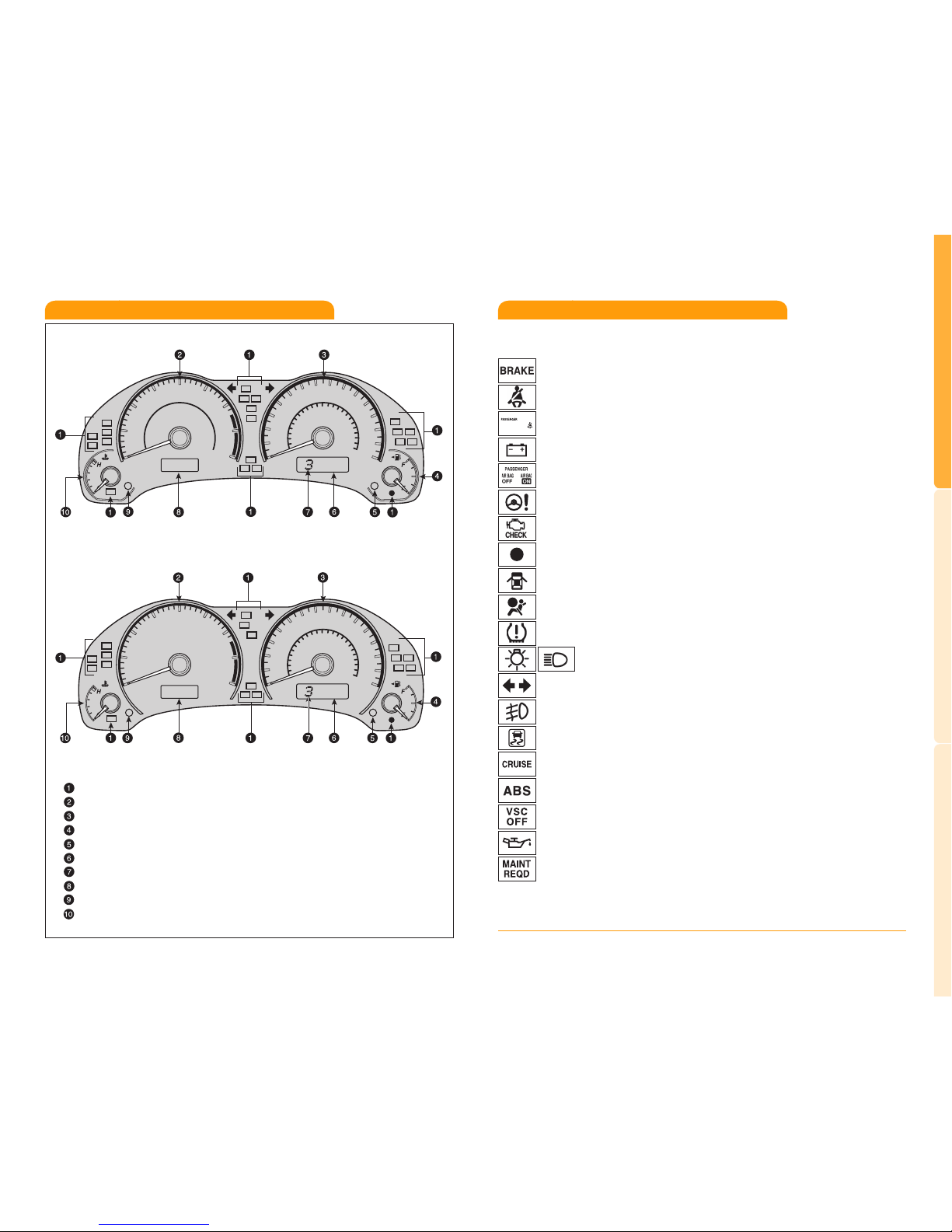

Indicator symbolsInstrument cluster
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Odometer and two trip meters
Automatic Transmission shift range display (if equipped)
Multi-information display
Display button
Engine coolant temperature
Charging system warning1
Brake system warning1
“AIR BAG ON” and “AIR BAG OFF” indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Low engine oil pressure warning1
“VSC OFF” indicator1
Engine oil replacement reminder1
Electric power steering warning1
Optitron type meters
Non-optitron type meters
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

6 7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW

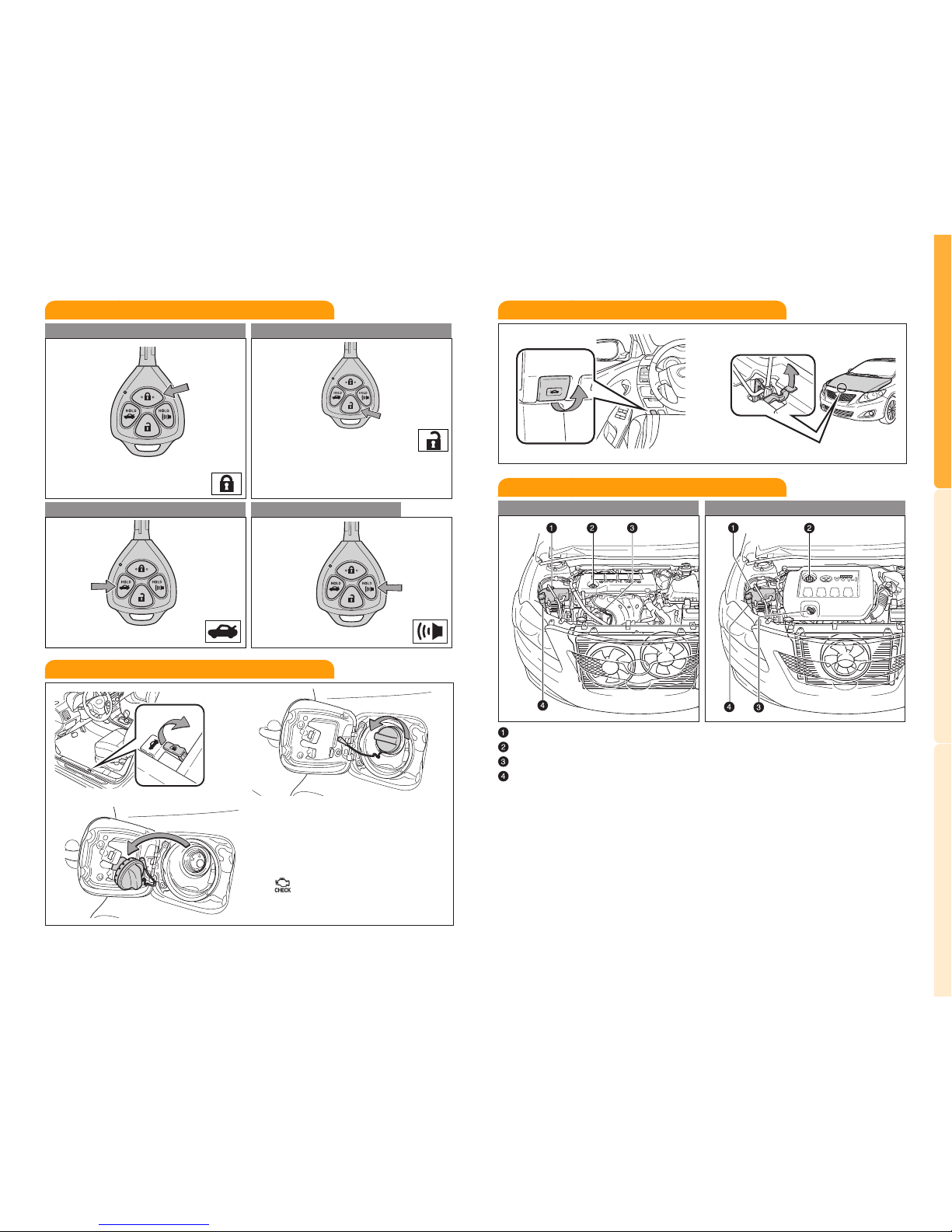

Keyless entry (if equipped)
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Trunk lid operation
Push and hold
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not
tightened enough, Check Engine
“ ” indicator may illuminate.
Pull
Turn
Store
Hood release
Pull up latch
and raise hood
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Pull
4cylinder (2AZ-FE) engine
4 cylinder (2ZR-FE) engine

8 9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

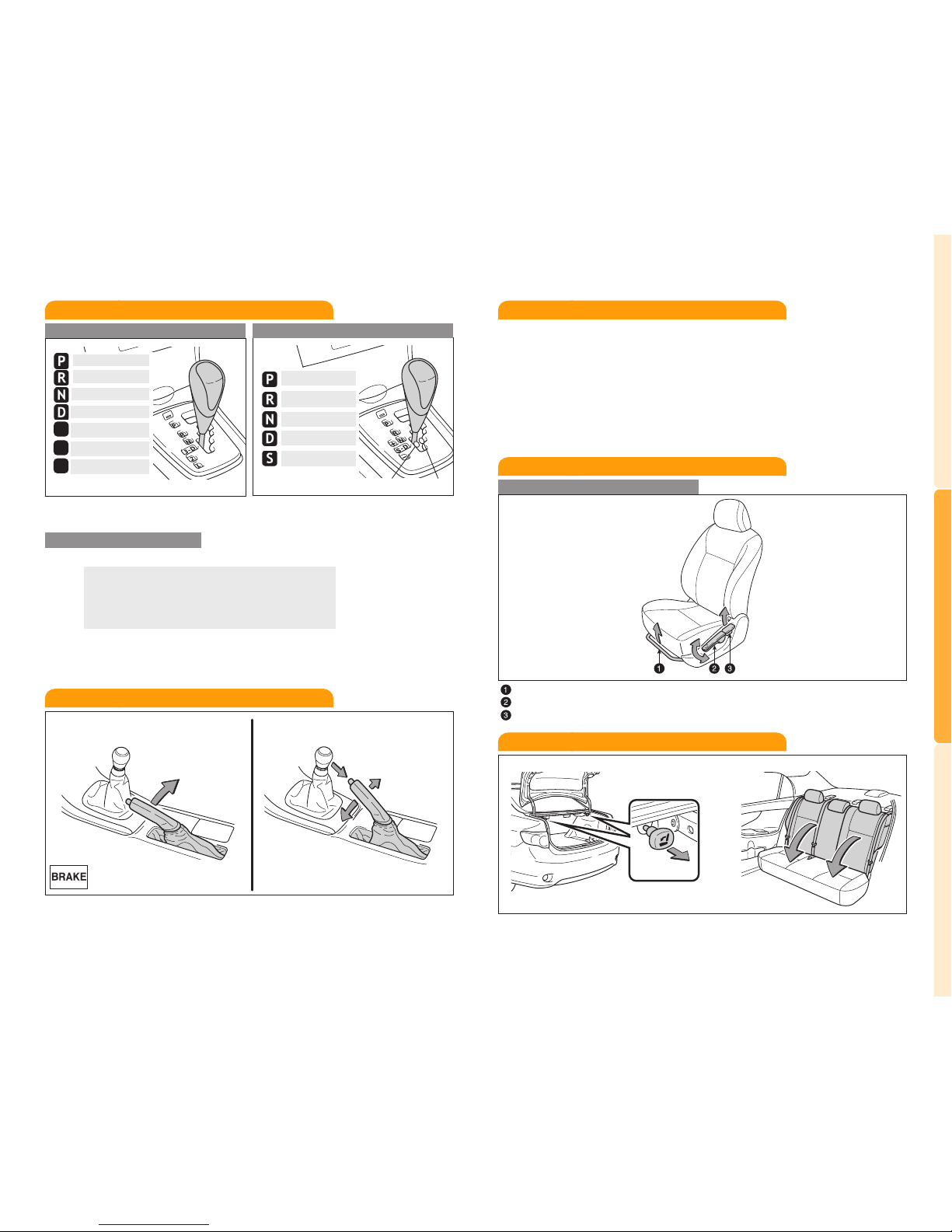

Automatic Transmission (if equipped)
*The ignition switch must be ON, and the brake pedal depressed to shift
from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+:Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into “Park.”
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch or “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
Standard type Multi-mode type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
3
2
L
“S” “D”
Seat adjustments-Rear
Seat adjustments-Front
Manual seat
Position
Height crank (driver side only)
Seatback angle
Pull
Fold down
Parking brake
(2) Push
Set Release
(1) Pull slightly
(3) Lower
Pull

10 11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Seats-Head restraints
Front Rear
Lock release button Lock release button
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically
upon starting engine. The brightness of the headlights will automatically
change depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Headlights
Parking lights
Turn
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Windows-Power (if equipped)
Up
Down
Driver side
Window lock switch
Automatic operation (driver side only) Push the switch completely down
and release to fully open. T
o stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Adjust interval*
*Intermittent windshield wiper interval adjustment Rotate up to
decrease interval, down to increase interval (if equipped).

12 13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

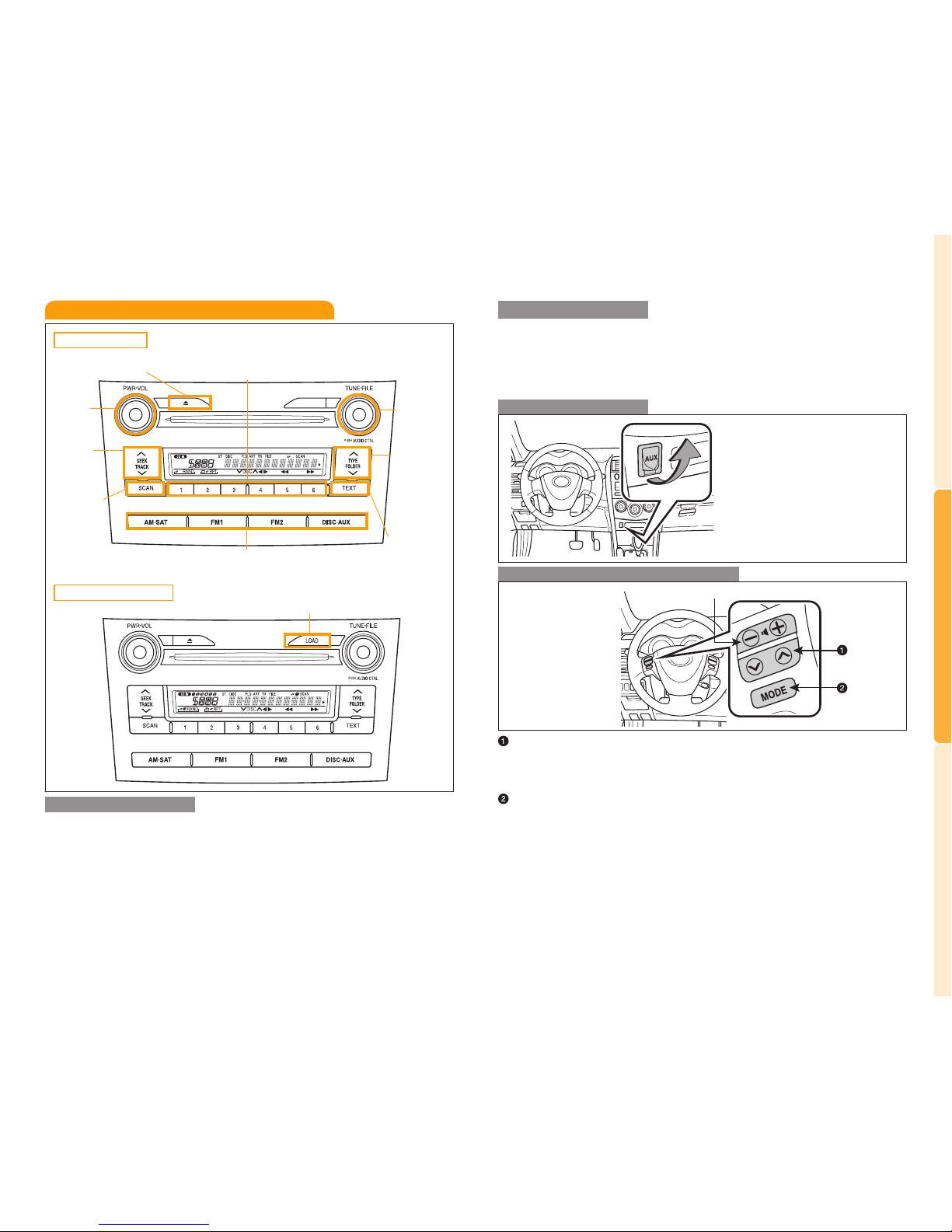

Audio RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE.”
“”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system “OFF.”
v
v
AUX audio jack
Eject CD
Push to
turn
ON/OFF
Seek
station/
CD track
select
Station/CD
track scan
Mode
Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down
folder and
radio
category
type
Push and
turn to
adjust tone
&balance
Steering wheel switches (if equipped)
Volume control
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system.
Load CD(s)
Type 2 other functions
Type 1 functions

14 15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Multi-information display
Push the display button to change information in the following:
(1) Clock
(2) Outside temperature
(3) Current gas mileage
(4) Average gas mileage*
(5) Miles left on remaining fuel
(6) Average vehicle speed from engine start*
(7) Running time from engine start*
* Push and hold display button to reset.
Display button
Air Conditioning/Heating
Airflow vent
Fan speed
Temperature
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin air
In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Power outlets
Center console
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
Front console (if equipped)

16 17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
compatible telephone and the system.
Refer to the Owner’s Manual for more details.

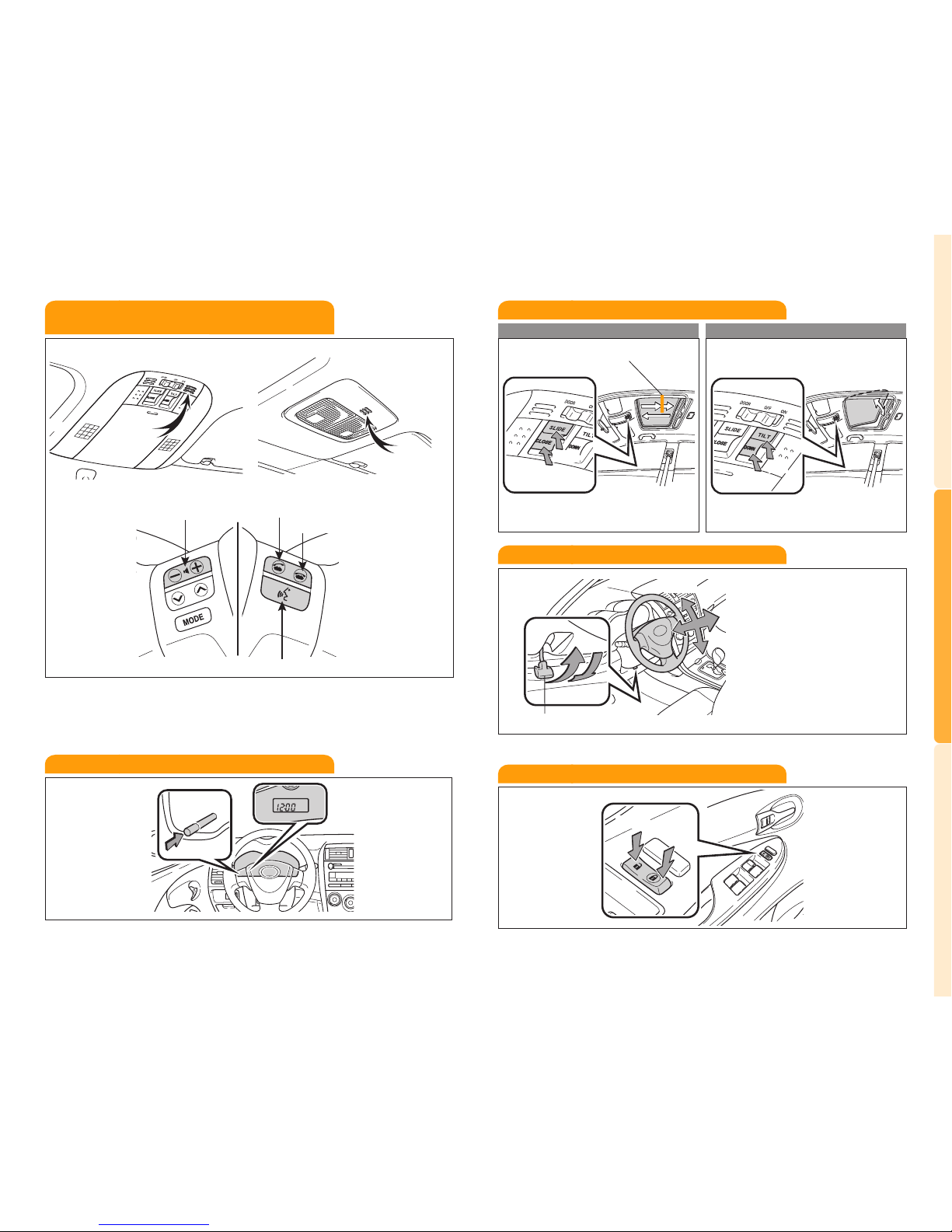

Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroof
Vehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, then
return lever.
Door locks-Power(if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operation Tilting operation
Open
Tilt
Close Close
Recommended driving position to
minimize wind noise.
Clock
(1) Push and hold the display button to set the clock. (2) While flashing,
press button repeatedly to adjust minutes. (3) Wait five seconds to adjust
the hour. (4) Wait another five seconds for process to complete.

19
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
18
FEATURES/OPERATIONS

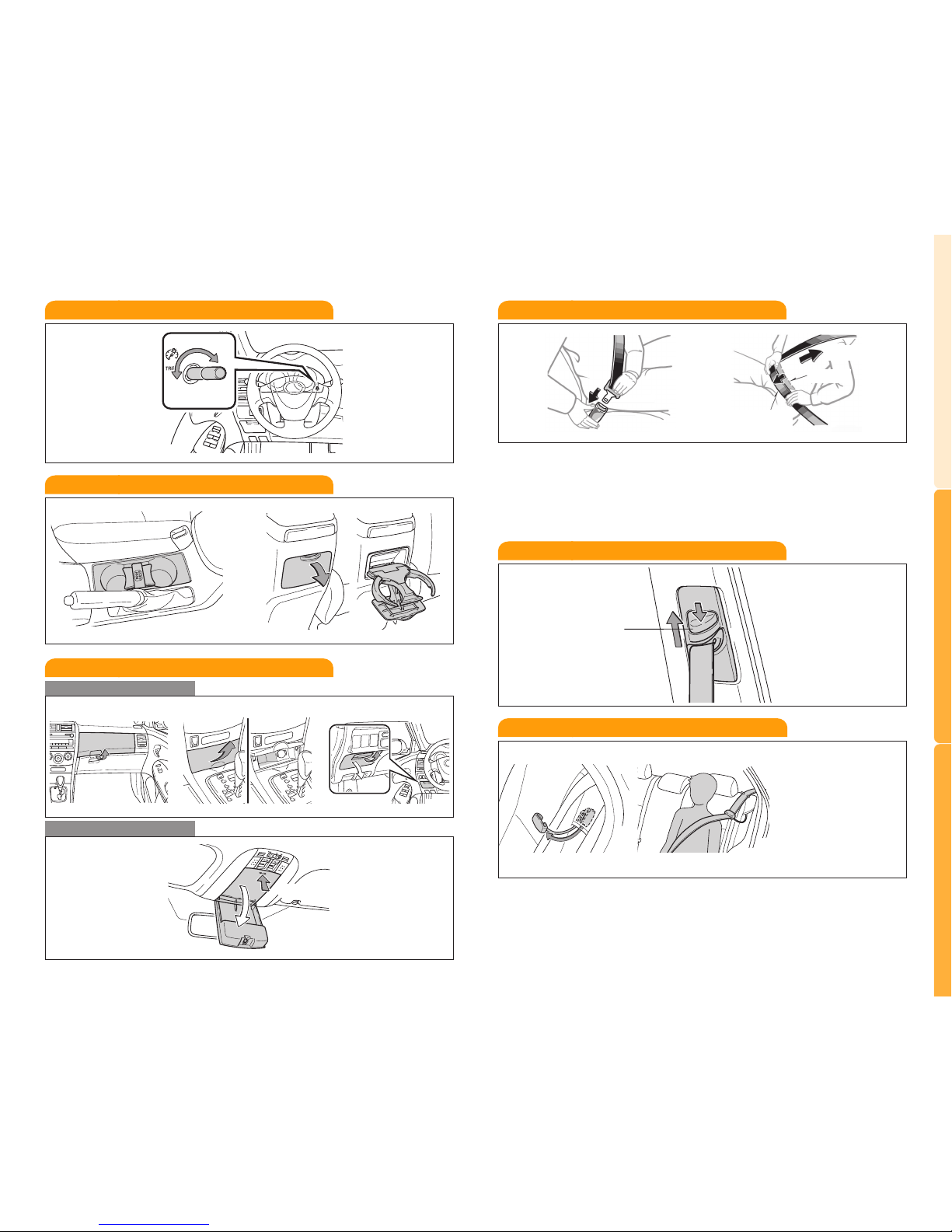

Cup holders
Front
Auxiliary storage
Instrument panel
Overhead console
Type A Type B Type C
Rear
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt adjustment
Rear seat outside
position guides
provide added
comfort for children
who have outgrown
child restraints.
Child comfort guide
SAFETY AND
EMERGENCY FEATURES
Pull
Pull
Push
Pull
Light control-Instrument panel
Brightness
control -
+

20
Tire Pressure Warning System
If tire pressure becomes critically low on any of the tires, indicator comes
on. Pushing “ SET” button should not turn off the light. Correctly
adjusting tire inflation will turn off the light after a few minutes. After
replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manual for more details.
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Trunk-Internal release
Pull up
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Doors-Child safety locks

21
Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the luggage floor cover.
(2) Remove the tool tray.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Spare tire
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Jack
Tool box
(1) (2)
(3)
This iGuide is not intended as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions,to help you avoid injuries, and
Notices,to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual.For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com.This user-friendly website makes learning
all about your new vehicle fun and easy.
