Toyota Prius Prime User manual

PRIUS PRIME_QG_OM47C92U_(U)
1Charging operation
2Plug-in Hybrid Applications
3Basic operation
4Things you must know
The quick guide is not intended as a substitute for your “OWNER’S
MANUAL”. We strongly encourage you to review the “OWNER’S MANUAL”
and supplementary manuals so you will have a better understanding of your
vehicle’s capabilities and limitations.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.

2
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation

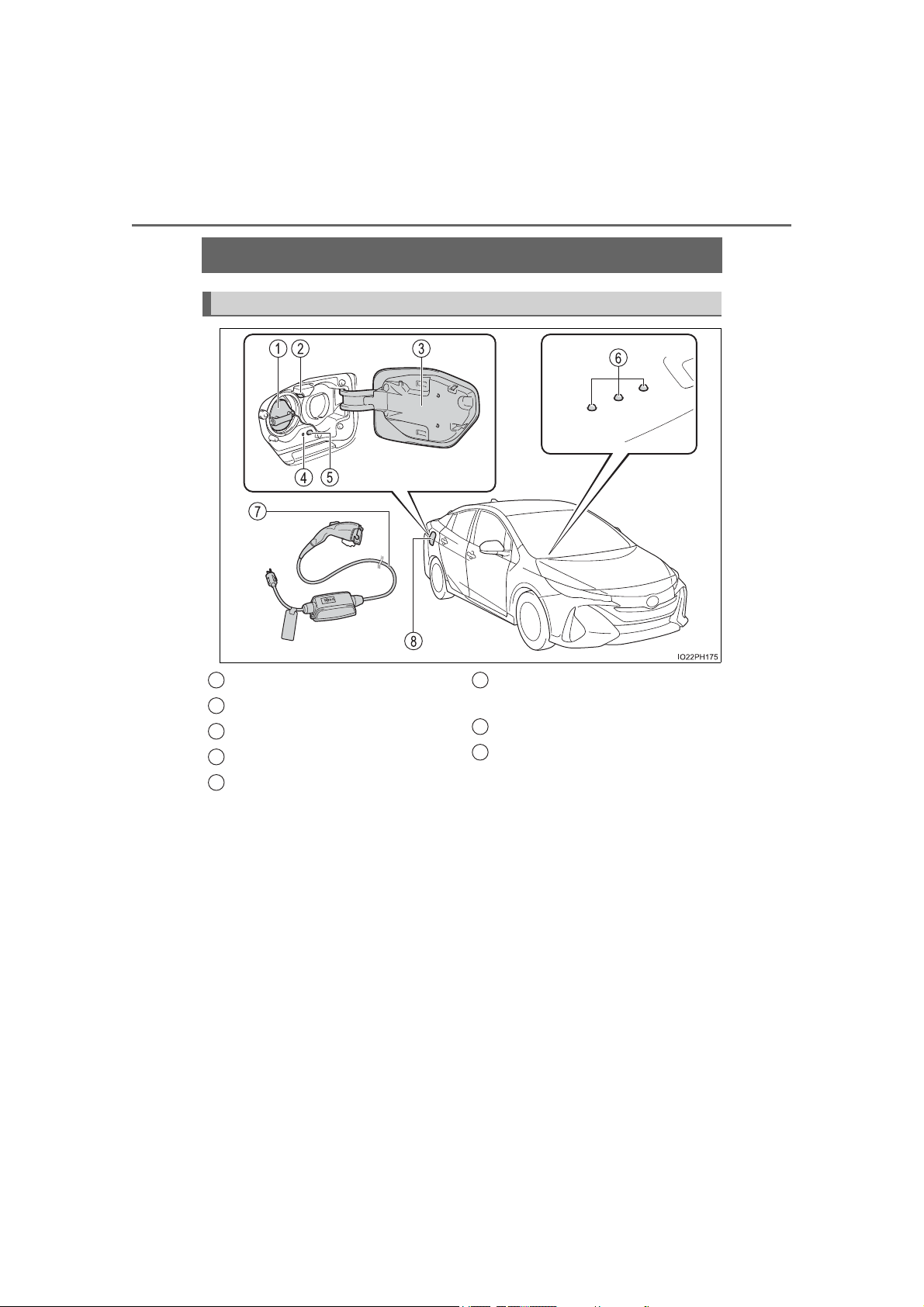

Charging equipment
*: If equipped, refer to “OWNER’S MANUAL”
Charging equipment and names
Charging inlet
Charging inlet light
Charging port lid
Charging indicator
Charging connector lock
switch*
Hybrid battery (traction bat-
tery) status indicator
Charging cable
Charging port
1
2
3
4
5
6
7
8

PRIUS PRIME_QG_OM47C92U_(U)
3
1. Charging operation
1
Charging operation
The names of each part of the charging cable
Charging connector
Latch release button
Plug
Plug-cord
CCID (Charging Circuit Inter-
rupting Device)
Power indicator
Charging indicator
Error warning indicator
1
2
3
4
5
6
7
8

4
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
■Safety functions
The CCID (Charging Circuit Interrupting Device) has the following
safety features.
●Electrical leakage detection function
If an electrical leakage is detected during charging, the power
source will be automatically interrupted, thus preventing fires or
electrical shocks caused by electrical leakage.
●Automatic check function
This is an automatic system check that is run before charging
begins to check for problems in the operation of the electrical
leakage detection function.
●Temperature detection function
A temperature detection function is equipped to the plug. While
charging, if heat is generated due to looseness on the outlet side
etc., this function suppresses heat by controlling the charging
current.
●Conditions for supplying current to the vehicle
The CCID (Charging Circuit Interrupting Device) is designed to
prevent electrical current from being supplied to the charging
connector when it is not connected to the vehicle, even if the plug
is inserted into the outlet.
●The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.
●If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.
●When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.

PRIUS PRIME_QG_OM47C92U_(U)
5
1. Charging operation
1
Charging operation
WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your local code.
Use of a 15A individual circuit is strongly recommended.
●Use of a block heater for charging is prohibited.
●Make sure to connect the charging connector and charging inlet directly.
Do not connect a converting adaptor or extension cord between the
charging connector and charging inlet.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
●Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-Inter-
rupter (GFCI).
●Do not connect to a power strip.
ITO12P109
ITO12P110

6
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
■Opening the charging port lid
Vehicles without smart lid &
connector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration).
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.

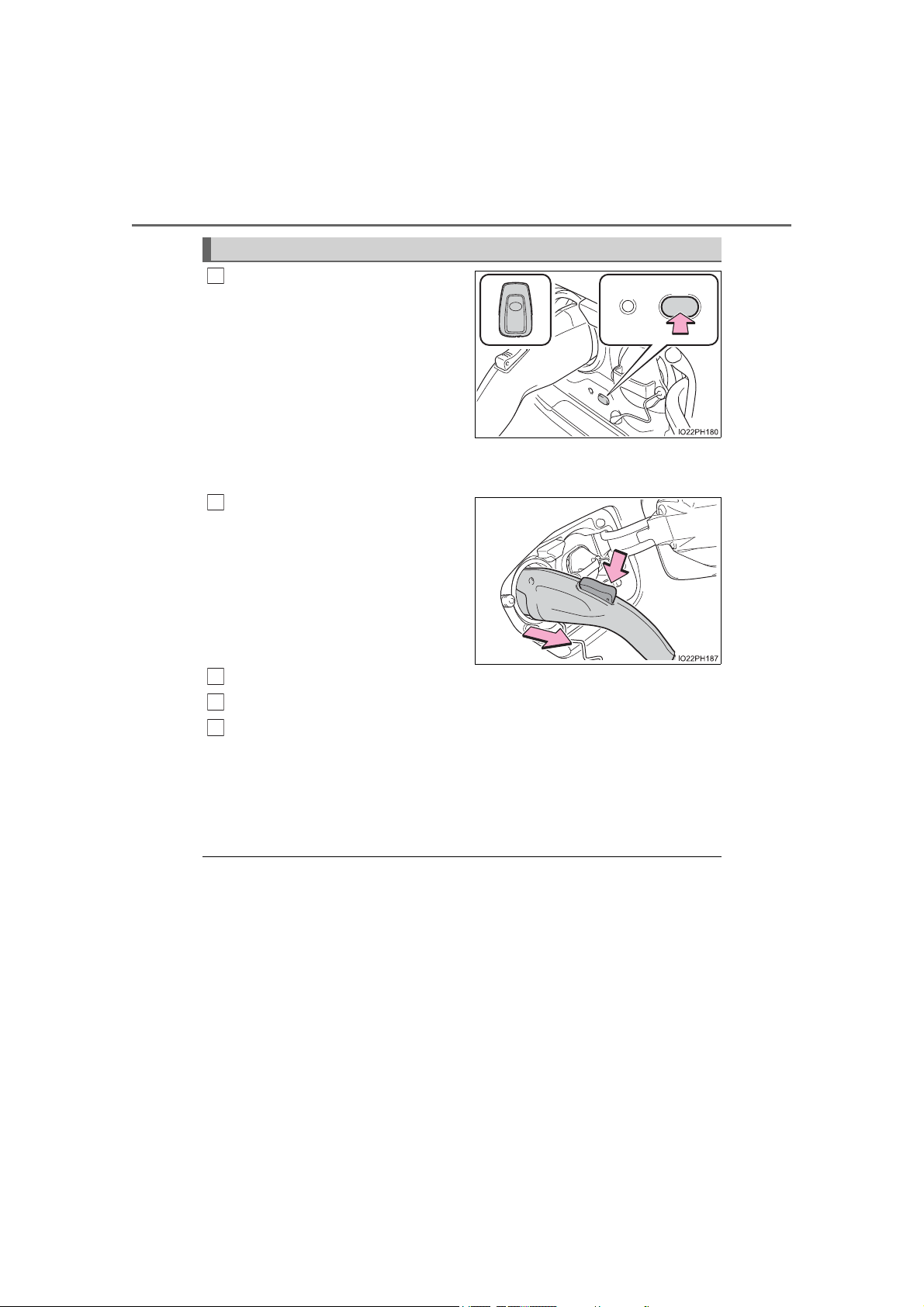

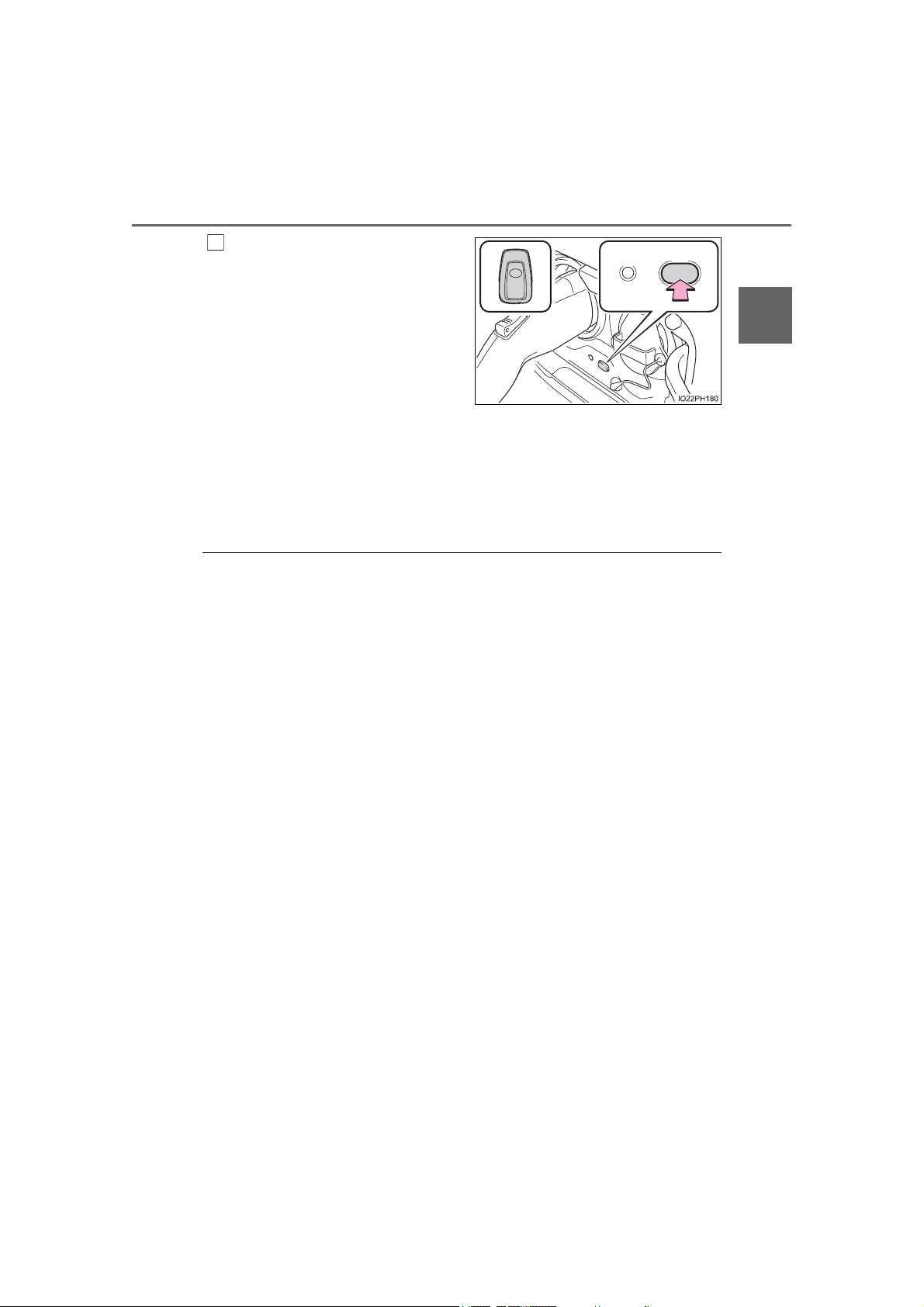

Vehicles with smart lid & con-
nector locking system:
Press the rear edge of the
charging port lid (the position
shown in the illustration) with
the doors unlocked.
Push and take your hand away
to slightly open the charging port
lid. Then open the lid fully by
hand.
While the doors are locked, only the charging port lid can be unlocked
by carrying an electronic key and pressing the charging port lid.
Opening and closing the charging port lid

PRIUS PRIME_QG_OM47C92U_(U)
7
1. Charging operation
1
Charging operation
■Closing the charging port lid
Close the charging port lid and
press the rear edge of the
charging port lid (the position
shown in the illustration).
Vehicles with smart lid & con-
nector locking system:
• When the doors are locked
with the smart key system,
wireless remote control or
door lock switch, the charging
port lid is also locked.
• If the charging port lid is
closed with the doors locked,
the charging port lid locks.

8
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
When the charging cable is con-
nected to the charging inlet, the
user is informed of the charging
status of the hybrid battery (trac-
tion battery) by the statuses of 3
indicators (turned off, illuminated
or flashing).

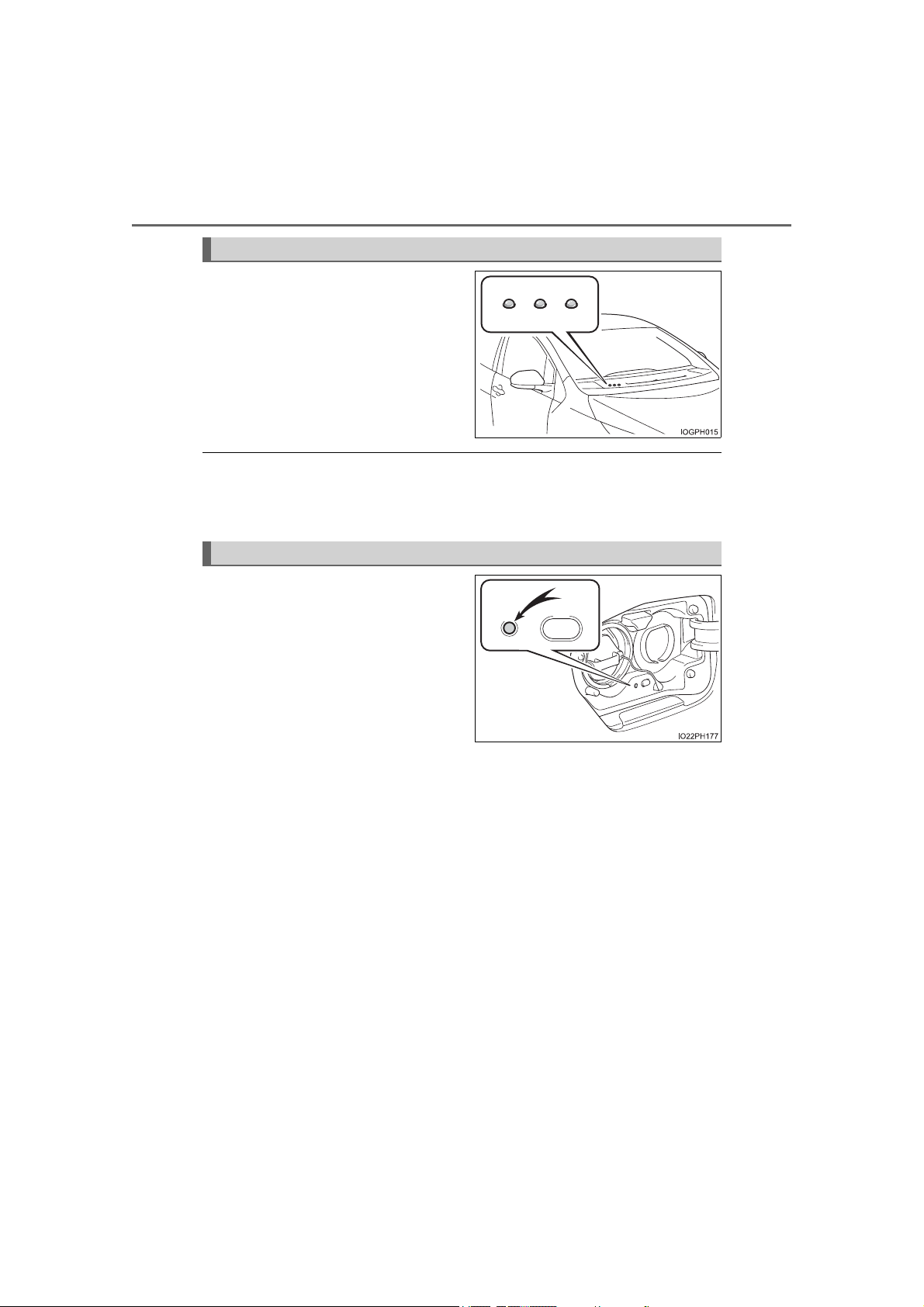

■When the hybrid battery (traction battery) is fully charged
When the charging cable is connected, all 3 hybrid battery (traction battery)
status indicators illuminate to inform the user that the hybrid battery (traction
battery) is fully charged.
The illumination/flashing pattern
changes to inform the user of the
charging status.
Hybrid battery (traction battery) status indicator
Charging indicator

9
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
1
Charging operation
How to charge
This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause fire
or electric shock, possibly leading to death or serious injury.
●The charging operation is designed to operate at 12A continuously
for the charge duration (up to 5 hours 10 minutes).
●Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the explanation
below. Charging is intended to be carried out by licensed drivers only
who properly understand the charging procedure.
●Charging should not be carried out by children.
●When charging with a charging equipment, follow the procedures
for using each equipment.
●When charging using a public charging facility, check the setting of
the charging timer function.
• When the charge schedule is registered, temporarily turn off the
function or turn “Charge Now” on.
• When the charge schedule is set to ON, charging will not start
even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.
Charging precautions

10
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
Before charging, always check the following items.
●The parking brake is applied.
●The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interior lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The power switch is off.
The time required to charge the hybrid battery (traction battery) differs
according to the charging voltage and charging current.
*1: This is the maximum value.
*2: The time required for charging to complete depends on conditions such as
the remaining charge of the hybrid battery (traction battery) and the outside
temperature.
Confirm the following before charging
Estimated charging time
Connected power
source Charging station Home power source
Charging voltage AC 240 V AC 120 V
Charging current*116A 12A
Estimated charging
time*2Approximately 2 hours Approximately 5 hours 10 minutes

PRIUS PRIME_QG_OM47C92U_(U)
11
1. Charging operation
1
Charging operation
Prepare the charging cable.
Insert the charging cable into
the outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated.
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Open the charging port lid.
The charging inlet light will illumi-
nate.
Remove the charging inlet cap
and secure it as shown in the
illustration.
When charging
1
2
Charging inlet light
3
4

12
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
Remove the protective cap of
the charging connector and
secure it to the cable.
Insert the charging connector
into the charging inlet.
Align the guide position on the bot-
tom of the charging connector, and
push the charging connector
straight into the charging inlet as
far as possible.
Once a “click” sound is heard,
check that the charging connector
is securely locked.
Confirm that the charging indi-
cator is illuminated.
Charging will not start if the
charging indicator does not illumi-
nate when the charging connector
is inserted.
If the charging indicator is flashing,
the charge schedule is registered.
If the error warning indicator on the
CCID (Charging Circuit Interrupting
Device) flashes during charging,
refer to “OWNER’S MANUAL” and
follow the correction procedure.
5
6
7

PRIUS PRIME_QG_OM47C92U_(U)
13
1. Charging operation
1
Charging operation
Vehicles with smart lid & con-
nector locking system:
When you wish to lock the
charging connector, carry an
electronic key and press the
charging connector lock switch.
The charging connector will be
locked by the smart lid & connector
locking system. After the charging
connector is locked, the charging
connector cannot be unlocked by
pressing the charging connector
lock switch if the electronic key is
not in detection area of charging
port lid.
The charging indicator will turn off when charging is completed.
■During charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.
●Depending on radio wave conditions, interference may be heard on the
radio.
●The current charging condition and the estimated time until charging will
complete can be checked on the multi-information display or 11.6-inch dis-
play (if equipped).
●During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
8

14
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
Vehicles with smart lid & con-
nector locking system:
When the charging connector is
locked, carry an electronic key
and press the charging connec-
tor lock switch.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.
Pull the charging connector
towards you while pressing the
latch release button.
If the charging connector is discon-
nected during charging (while the
charging indicator is on), charging
will be interrupted.
Attach the charging connector cap.
Attach the charging inlet cap and close the charging port lid.
Remove the plug from the outlet when the charging equipment will
not be used for a prolonged period of time.
Hold the body of the plug when removing.
Make sure to put the cable away immediately after disconnecting.
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
■Safety function
If the latch release button is pressed, charging will not begin even if the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging, reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.
After charging
1
2
3
4
5

PRIUS PRIME_QG_OM47C92U_(U)
15
1. Charging operation
1
Charging operation
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
●Connect to a power source suitable for charging.
●Check that the charging inlet, charging cable, plug and outlet are free of
foreign matter.
●Only use outlets where the plug can be securely inserted.
●Do not charge if the charging cable is coiled or bundled.
●Wrapping 120 V charging cable while in-use is not recommended because
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
●Do not wash the vehicle while the charging cable is connected to the vehi-
cle and when the charging lid is open.
●Do not touch the terminals of the charging connector and charging inlet
with a sharp metal objects (needles etc.) or hands, or short them with for-
eign objects.
●When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use.
●Do not insert the plug if the outlet is submerged in water or snow.
●Follow these points when charging while it is raining or snowing.
• Check that no snow, water or ice has accumulated around the charging
connector terminals and the vehicle charging inlet. Tap snow, water or
ice gently from connector prior to inserting charging connector into the
vehicle’s charging inlet.
• Do not connect the plug if your hands are wet. Also, do not get the plug
or outlet wet.
●Do not charge the vehicle during a lightning storm.
●Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).
●Firmly insert the plug into the outlet.
●Do not use an extension cord and converting adaptor.

16
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
WARNING
■After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or outlet, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■Charging equipment
There is charging equipment under the rear seats. Make sure to observe
the following precautions regarding the charging equipment. Failure to
observe these precautions may result in death or serious injury such as
burns and electric shocks.
●The charging equipment is hot during charging. Do not touch the charging
equipment, as doing so may result in burns.
●Do not disassemble, repair or modify the charging equipment.
When the charging equipment needs to be repaired, consult your Toyota
dealer.
NOTICE
■When use the charging cable and related parts
To prevent damage to the charging cable and related parts, observe the fol-
lowing precautions.
●When interrupting or canceling charging, remove the charging connector
before removing the plug.
●Vehicles with smart lid & connector locking system: When removing the
charging cable, check that the charging connector is unlocked.
●Do not forcefully pull the connector cap and charging inlet cap.
●Do not apply a vibration to the charging connector while charging.
Charging may be stopped.
●Do not insert anything but the charging connector.
●When inserting the plug into or removing the plug from the outlet, make
sure to hold the body of the plug.
●Do not damage the charging inlet cap with a sharp object.
●Do not forcefully pull the charging cable that is caught or entangled.
If the cable is entangled, disentangle it before using.
●When charging from the external device, use the charging cable equipped
with the vehicle.
■When charging
Do not insert the plug into the charging inlet.
The charging inlet may be damaged.

PRIUS PRIME_QG_OM47C92U_(U)
17
1. Charging operation
1
Charging operation
NOTICE
■After charging
●After disconnecting the charging connector from the charging inlet, make
sure to put on the charging inlet cap and close the charging port lid.
If the charging inlet cap is not put on, water or foreign objects may enter
the charging inlet, which could lead to vehicle damage.
• Vehicles without smart lid & connector locking system: The charging
port lid does not have a lock. Take care not to press and open the door
accidentally.
• Vehicles with smart lid & connector locking system: If the charging port
lid is not locked, take care as it may open if unintentionally touched.
●After removing the plug from the outlet, keep it in a safe place free from
moisture and dust.
The charging cable or plug may be damaged if the cable is stepped on or
ridden over by the vehicle.
■Using private power generator
Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be insufficient, and
the error warning indicator on the CCID (Charging Circuit Interrupting
Device) of the charging cable may flash.
■Usable temperature range
●Do not charge if the outside temperature is -22F (-30C) or below, as it is
likely that charging will take longer, and equipment related to charging will
be damaged.
●Do not leave the vehicle or the charging cable in areas where the outside
temperature is lower than -40F (-40C). The vehicle or charging cable will
probably be damaged.
■Charging equipment
Due to the environment in which the power equipment is located, charging
may be unstable due to noise, the voltage may be insufficient, and the error
warning indicator on the CCID (Charging Circuit Interrupting Device) of the
charging cable may flash.

18
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation

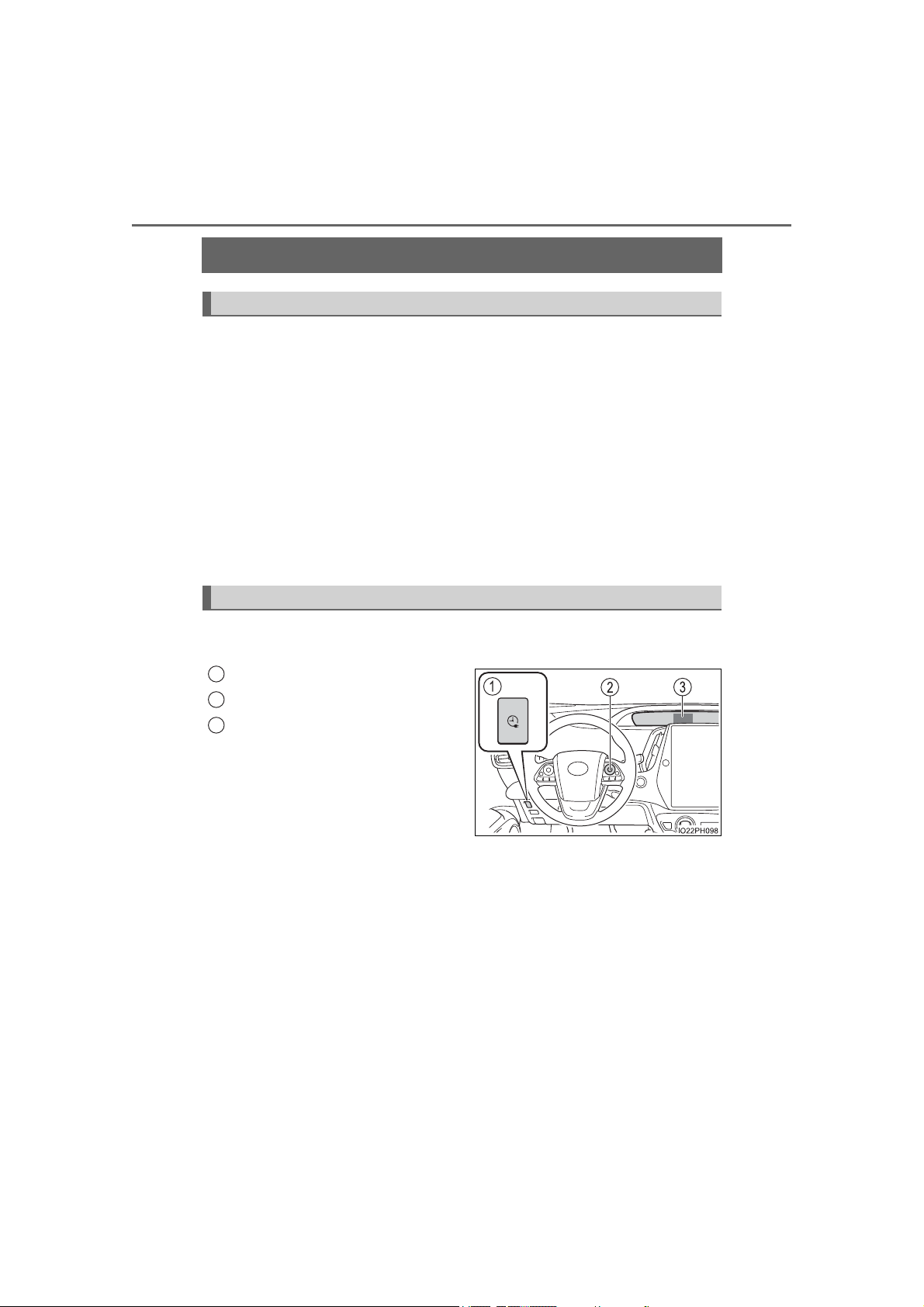

Using the charging timer function
Charging can be carried out at the desired time by registering the
charge schedule. When registering the charge schedule, the following
settings can be changed.
●Select the charging mode (“Start”/“Departure”)
●Repeated setting
●Air conditioning-linked setting (“Climate Prep”)
●Turning “Charge Now” on and off
●Changing “Next Charging Event”
For details of each settings, refer to “OWNER’S MANUAL”.
The charge schedule can be registered on the multi-information dis-
play or 11.6-inch display (if equipped).
When operating timer settings, use the charging timer switch and
meter control switches.
Charging timer switch
Meter control switches
Multi-information display
Charging timer function
Setting operations on multi-information display
1
2
3

PRIUS PRIME_QG_OM47C92U_(U)
19
1. Charging operation
1
Charging operation

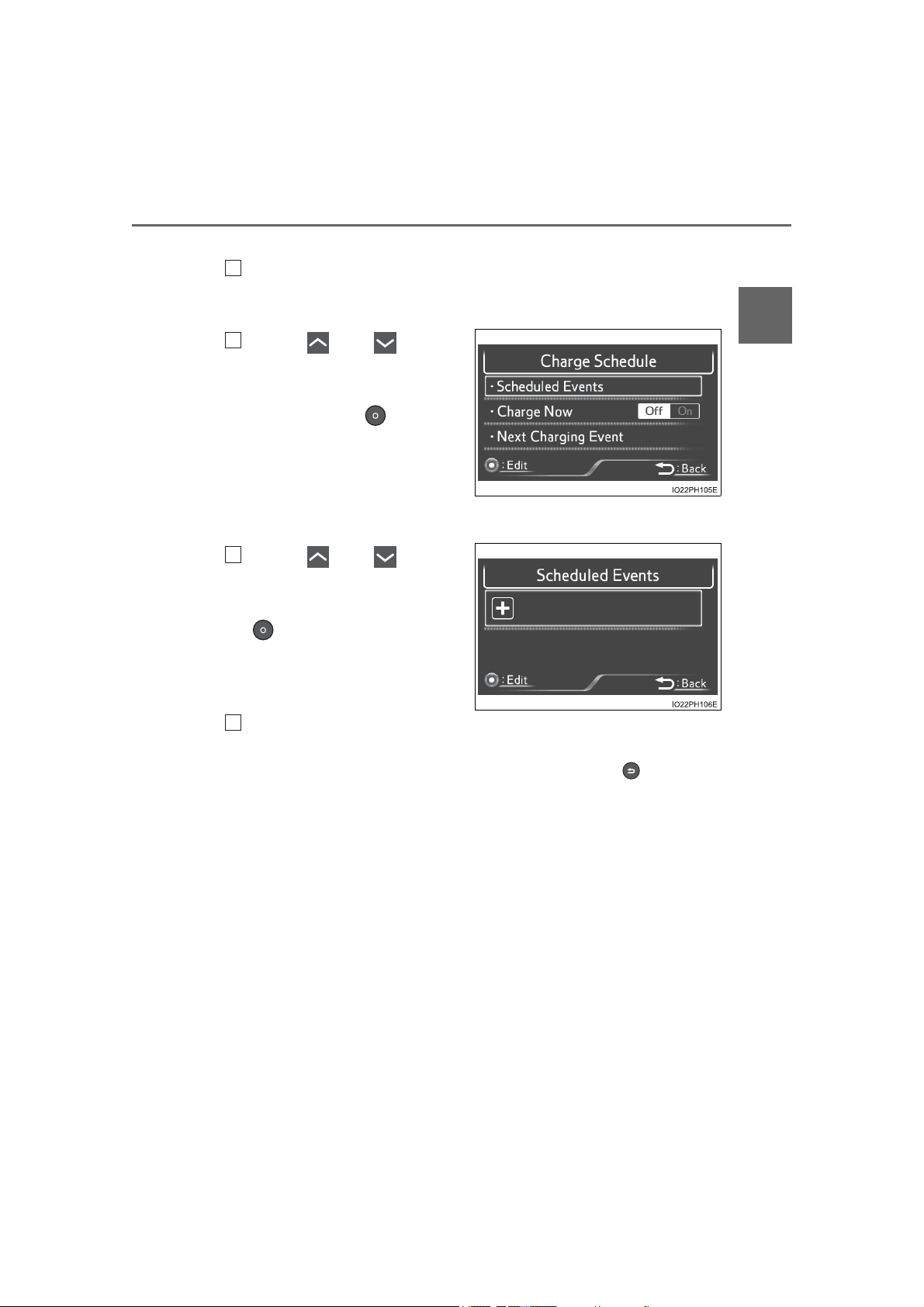

■Registering the charge schedule
Press the charging timer switch.
The “Charge Schedule” screen will display on the multi-information dis-
play.
Press or of the
meter control switches to
select “Scheduled Events”,
and then press .
The “Scheduled Events” screen
will display.
For information about setting of the items other than “Scheduled
Events”, refer to “OWNER’S MANUAL”.
Press or of the
meter control switches to
select “+”, and then press
.
The “Edit Charging Event”
screen will display.
Operate the meter control switches to select the item and change
the setting.
After changing the settings to the desired settings, press to return to
the previous screen.
After setting operations are complete, when the charging cable is con-
nected to the vehicle, charging will be carried out according to the
charging timer settings.
1
2
3
4

20
PRIUS PRIME_QG_OM47C92U_(U)
1. Charging operation
■Changing the registered charge schedules
The registered charge schedules can be turned on, off, deleted or
modified.
Press the charging timer switch.
The “Charge Schedule” screen will display on the multi-information dis-
play.
Press or of the
meter control switches to
select “Scheduled Events”,
and then press .
The “Scheduled Events” screen
is displayed, which displays a
list of the registered charge
schedule.
Press or of the
meter control switches to
select the item to change,
and then press .
The “Edit Charging Event”
screen will display.
Operate the meter control
switches to select the item
and change the setting.
1
2
3
4
