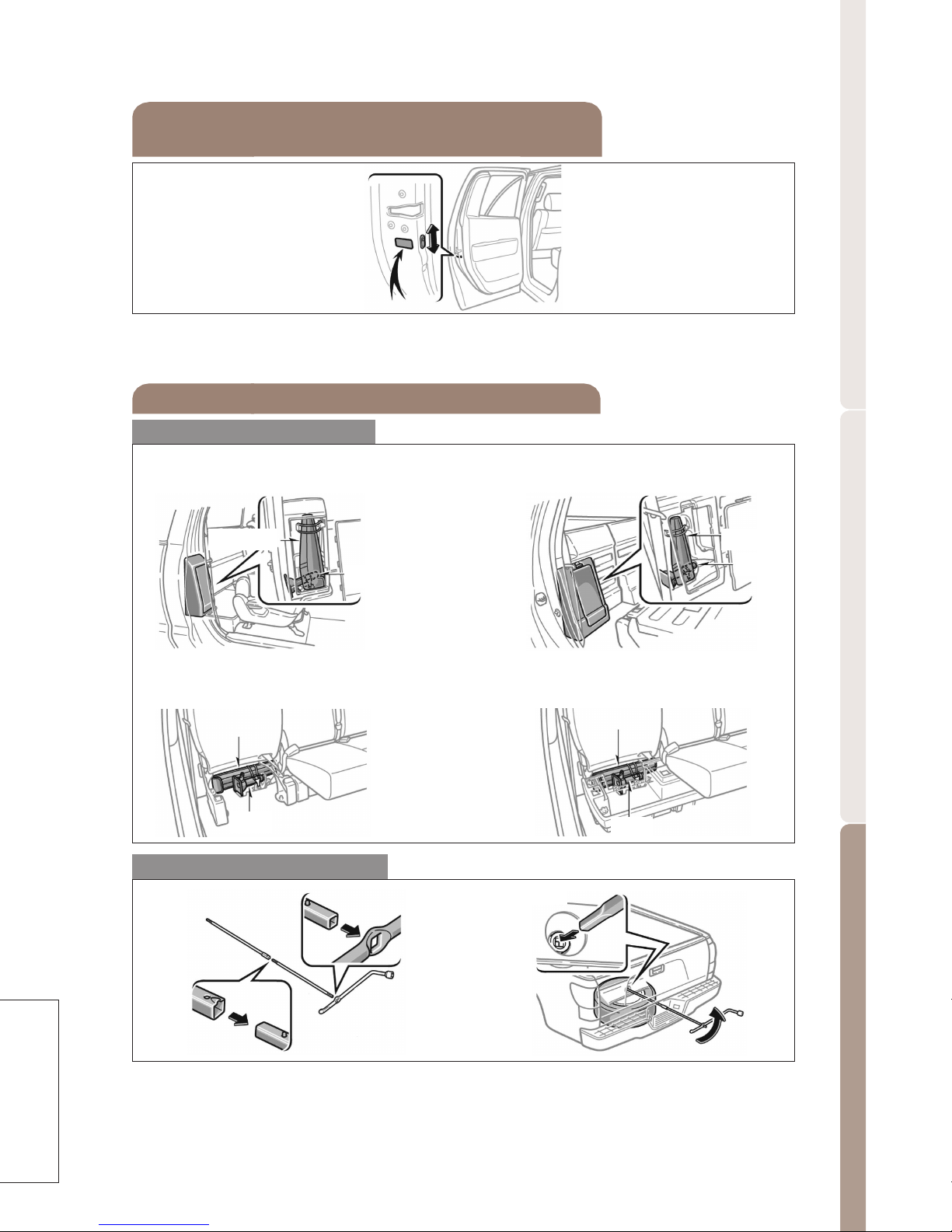

Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering screw.
(3) T
urn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Regular cab models
-behind the right seatback
Double cab models
-under the right rear seats
with storage box
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Double cab models
-under the right rear seats
without storage box
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
(double cab and Crew Max models)
Crew Max models
-behind the right rear seatback
Tool bag
Jack
This iGuide is not intended as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions,to help you avoid injuries, and
Notices,to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual.For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com.This user-friendly website makes learning
all about your new vehicle fun and easy.
(1) (2)
(3)

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
2008 Tundra Quick Reference Guide
Engine maintenance 8
Fuel tank door release and cap 7
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 6
Accessory meter 25
Air Conditioning/Heating 20-21
Audio 22-23
Automatic Transmission 9
Bottle holders 27
Cruise control 25
Cup holders 26
Door locks 10
Four-wheel drive 10
Garage door opener (HomeLink®)321
Lights1&turn signals 16
Mirrors-Power side view 10
Moonroof 12
Multi-information display218
Parking brake 26
Power outlets-12V DC 17
Power outlets-115V AC 17
Rear seat entertainment system 24
Seat adjustments-Front 12-13
Seat adjustments-Rear 13
Seat heaters 20
Seats-Folding 14-15
Seats-Head restraints 14
Telephone controls (Bluetooth®)24
Tilt and telescopic steering wheel 11
“TOW/HAUL” switch 11
“VSC OFF” button 27
Window-Rear 19
Windows-Power 19
Windshield wipers & washers 15
Doors-Child safety locks 29
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Tire Pressure Warning System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2 3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Instrument panel
Steering wheel audio controls1
Telephone controls1
Voice command button1,2
Headlight and turn signal controls
Wiper and washer controls
Multi-information display/Accessory meter control buttons
Intuitive parking assist button1
Emergency flasher button
Audio system or navigation system-integrated audio system1,2
Outside rearview mirror/Back window defogger button1
Front passenger seat belt reminder
Front passenger occupant classification indicator or front passenger
airbag ON/OFF indicator1
Seat heater controls1
Air Conditioning controls
12V DC Power outlet
AUX audio jack
Cigarette lighter/12V DC Power outlet
Bench seat
Steering wheel
controls (if equipped)
Separate seat with manual
Air Conditioning system
“TOW/HAUL” button1
Two-wheel/Four-wheel drive selector1
Power back window switch1
Tire Pressure Warning System reset
“VSC OFF” button
115V AC Power outlet ON/OFF switch1
Cruise control1
Engine switch
Accessory meter1
Theft deterrent system/Engine immobilizer indicator1
Intuitive parking assist indicator1
Front passenger airbag manual ON/OFF switch1(in glove box)
Instrument panel light control
Interior light/Personal light main switch
“RSCA OFF” switch
Cargo lamp switch
Power rearview mirror control1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual.”

4 5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Voltmeter
Oil pressure gauge
Engine coolant temperature
Trip meter reset knob
Odometer and two trip meters
Multi-information display
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
Without multi-information display
With multi-information display
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator
1For details, refer to “Service reminder indicators and warning buzzers,” Section 1-6, 2008
Owner’sManual.
2If this light flashes, refer to “Four-wheel drive system,” Section 1-7, 2008 Owner’s Manual.
3If this light flashes, refer to “Cruise control,” Section 1-7, 2008 Owner’s Manual.
4If this light flashes, refer to “Roll sensing of curtain shield airbags off switch,” Section 1-3,
2008 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
High/Low speed four-wheel drive indicator2
Slip indicator
Vehicle Stability Control “OFF” indicator/warning1
TOW/HAUL mode indicator
“AUTO LSD” indicator
Cruise control indicator3
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Low fuel level warning1
Open door warning1
Roll Sensing Curtain Airbags OFF indicator4
Airbag SRS warning1
Master warning1
Low windshield washer fluid level warning1

6 7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Keyless entry Fuel tank door release and cap
Hood release
Pull up latch and
raise hood
Pull
Panic button
NOTE: If a door is not opened within
30 seconds of unlocking, all doors
will relock for safety.
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Locking operation Unlocking operation
NOTE: Tighten until one click is
heard. If the cap is not sealed
properly, Check Engine “ ”
indicator may illuminate.
Pull
Turn
Store
Light control-Instrument panel
Brightness
control
-
+

8 9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW FEATURES/OPERATIONS
Automatic Transmission
*The engine switch must be set at ON and the brake pedal depressed to
shift from “Park.”
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
Column shift type:
+: Upshift (turn up and release)
-: Downshift (turn down and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Windshield washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6cylinder (1GR-FE) engine
4.7L 8 cylinder (2UZ-FE) engine
5.7L 8 cylinder (3UR-FE) engine
Floor shift type
Column shift type
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Park*
Reverse
Neutral
Drive
“S” mode
+(“S” mode)
-(“S” mode)

10 11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Turn
Turn
Mirrors-Power side view (if equipped)
Fold mirrors in
Return mirrors to
original position
Adjust
Select left or right
Key must be in the “ACC” or “ON” position.
Door locks (if equipped)
Lock
Unlock
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Tilt steering wheel Tilt and telescopic steering wheel
Tilt and telescopic (if equipped)
steering wheel
Angle
Length
Lock release lever
Lock release lever
Angle
Push the control switch, set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Angle
Control switch
Length
Control switch
“TOW/HAUL” switch (if equipped)
T
ow/Haul mode can be used when carrying heavy loads. As fuel economy
is reduced while in Tow/Haul mode, deactivating when driving without a
load is recommended.
Refer to the Owner‘s Manual for more details on this system before
attempting to use it.
Floor shift type
System ON/OFF
Column shift type
System
ON/OFF

12 13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Seat adjustments-Front
Manual seat
Separate seat
-Regular cab model
Separate seat
-Double cab and Crew Max models
Bench seat
-Regular cab model
Bench seat
-Double cab and Crew Max models
Position
Seatback angle and fold
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Position
Seatback angle
Seat cushion angle
Seat height
Lumbar support*
Seatback angle (side)
Seatback angle (center)
Leg support
Position, cushion angle and height
* If equipped
Power seat
Seat adjustments-Rear
(Crew Max models)

14 15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Seats-Folding
Front (regular cab model)
Rear (double cab model)
(1) Pull
(2) Pull
(2)
(3) Lift up
Pull
(2)
(1) Stow
(3) Pull and
fold down
Rear (Crew Max model)
Windshield wipers & washers
With intermittent wiper Without intermittent wiper
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Adjust interval
Pull to wash
and wipe
Single wipe
Slow
Fast
Seats-Head restraints
Front-Separate seat (type B)
Front-Separate seat (type A)
Lock release button Lock release button
(1)
(2)
Rear (double cab model)
Front-Bench seat
Lock release button
Lock release button
Rear (Crew Max model)
Lock release button
(1) Stow

16 17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Power outlets-12V DC (if equipped)
Separate seats
Bench seat
Instrument panel Under the seat cushion
of the front center seat
Back of the center console box
(Crew Max model)
Instrument panel Inside of the center console box
Back of the front center seat
(Crew Max model)
Key must be in the “ACC” or “ON” position to be used.
Power outlets-115V AC (if equipped)
ON/OFF switch
Back of the center
console box Back of the front
center seat
Push

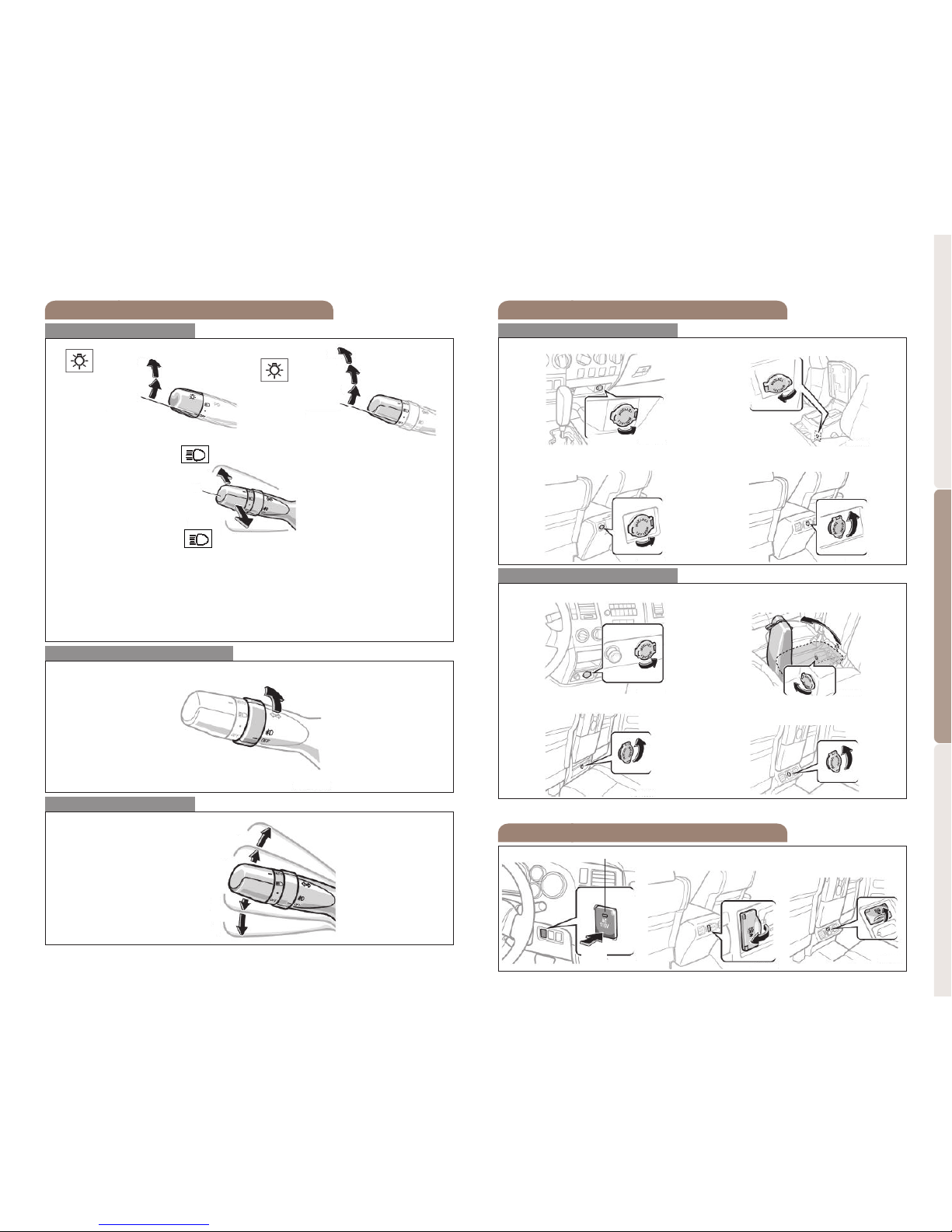

Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
*If equipped
-Daytime Running Light system (DRL)(if equipped) Automatically turns
on the turn signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Turn
Lane change
Lane change
Left turn
High beam
Auto*
Headlights
Parking lights
Back of the center
console box
Back of the front center seat

18 19
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Windows-Power (if equipped)
Regular cab model
Up
Down
Driver side
Window
lock switch
Up
Down
Double cab and Crew Max models
Up
Down
Driver side
Window
lock
switch
Up
Down
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop
window midway, lightly pull up on the switch.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT (US/M)
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING
Window-Rear
Close
Open
Crew Max model

20 21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Air Conditioning/Heating
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Temperature (driver side)
Air Conditioning ON/OFF
Airflow vent
Windshield airflow (fresh air only)
Temperature (front passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and
passenger.
Indicator OFF: Synchronize temperature settings for driver and
passenger.
Outside rearview mirror/Back window defogger
Fresh or recirculated cabin air
Climate control OFF
Automatic Air Conditioning
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce
window fogging.
Manual Air Conditioning
Fan speed
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Back window defogger*
Temperature (front passenger side)
Synchronize with driver side temperature setting
Airflow vent selector
Temperature (driver side)
Use for quick cooling. MAX A/C changes air intake to recirculate. It is
not possible to change intake to fresh, or to turn A/C OFF in this mode.
* If equipped
In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Seat heaters (if equipped)
Left front seat Right front seat
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 1-10 in the Owner’s Manual for
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
*HomeLink®is a registered trademark of Johnson Controls, Inc.

22 23
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

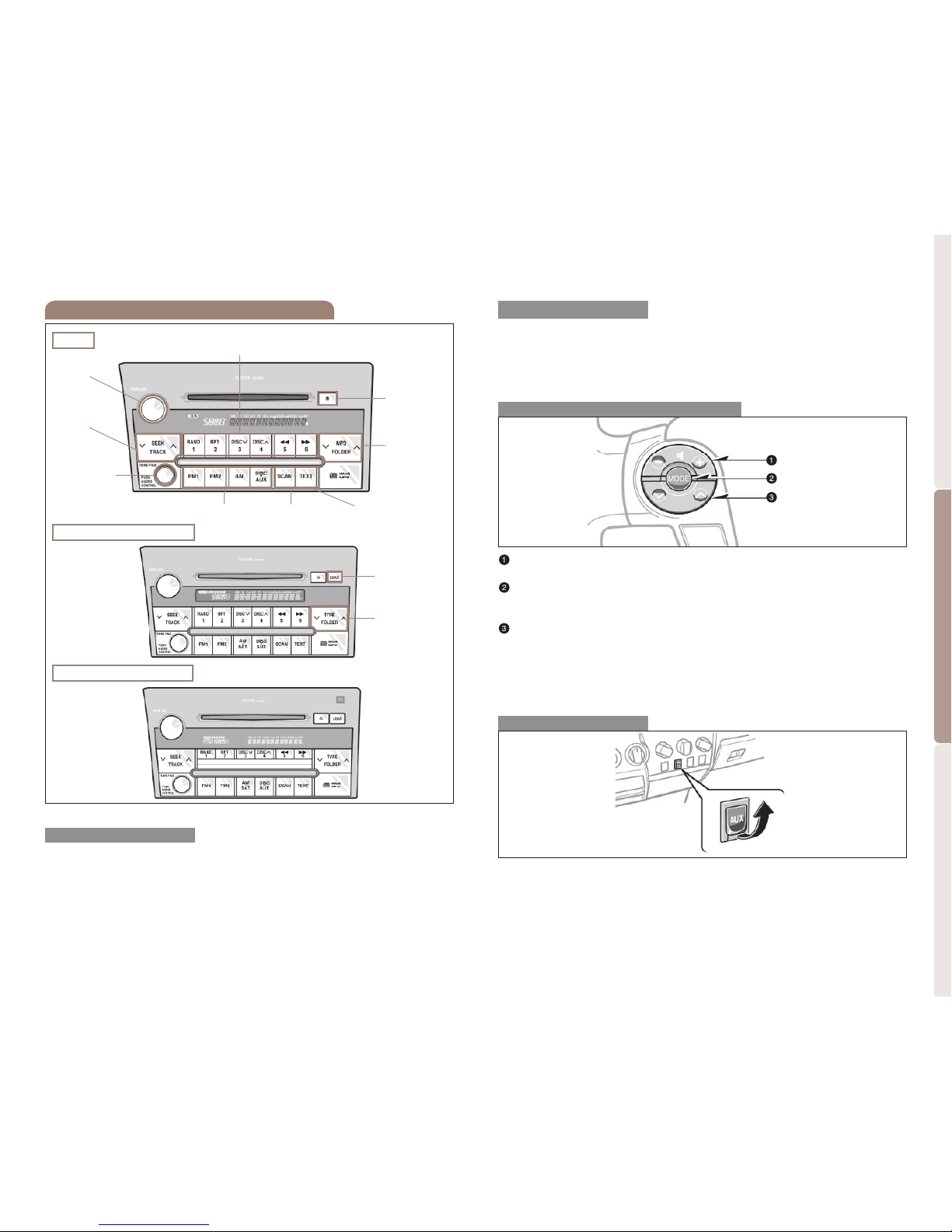

Type 2 additional functions
Type 3 (with JBL speakers)
Audio
Eject CD
Push to turn
ON/OFF
View CD
information
Push to adjust
tone, balance
&ASL*
Seek station/
CD track select
Station/CD
track scan
Mode
View MP3
folder and/or
Satellite Radio
category type
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Type 1
Push to skip
up/down
MP3 folder
“-+”
Volume control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
the audio system “OFF.”
“ ”
-In radio mode
Push to select a preset station; push and hold to seek the next strong
station.
-In CD mode
Push to skip up or down to the next/previous track.
>
>
Steering wheel switches (if equipped)
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) T
urn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system.
AUX audio jack
*Automatic Sound Leveling

25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
24
FEATURES/OPERATIONS
Rear seat entertainment system
(if equipped)
115V AC Power outlet ON/OFF switch
Front audio system
DVD player
DVD screen
Remote control
115V AC Power outlet
A/V input adapter
Bluetooth®technology allows you to place or receive calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free telephone system,” Section 1-8 in the Owner’s
Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Accessory meter (if equipped)
Outside temperature/cruise information display
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP US/M” button (if equipped) to customize unit
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
Separate seats
Bench seat

27
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
26
The “VSC OFF” button is used to switch between modes related to the
TRAC, VSC and Auto LSD functions.
Refer to Section 1-7 of the Owner’s Manual for more information.
Cup holders
Separate seat Bench seat
Front center seat
Center console
Back of the center console box
(double cab model)
Back of the front center seatback
(double cab model)
Rear seat
Crew Max model
Bottle holders
Instrument panel
Rear door
(Crew Max model)
Front door
Rear door
Parking brake
Set: Depress
Release: Depress again
FEATURES/OPERATIONS
“VSC OFF” button
“VSC OFF” button

28
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
b
aT
e
l
k
c
u
B
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Tire Pressure Warning System
If tire pressure becomes critically low on any of the tires (excluding spare),
indicator illuminates. Pushing “ SET” button should not turn off the light.
Correctly adjusting tire inflation will turn off the light after a few minutes.
After replacing/rotating tire or wheels, the system must be initialized.
Refer to the Owner’s Manual for more details.
Seat belts-Shoulder belt anchor
(double cab and Crew Max models)
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait several minutes to allow
initialization to complete.

29
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering screw.
(3) T
urn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Regular cab models
-behind the right seatback
Double cab models
-under the right rear seats
with storage box
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Double cab models
-under the right rear seats
without storage box
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
(double cab and Crew Max models)
Crew Max models
-behind the right rear seatback
Tool bag
Jack
This iGuide is not intended as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions,to help you avoid injuries, and
Notices,to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual.For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com.This user-friendly website makes learning
all about your new vehicle fun and easy.
(1) (2)
(3)

2008
Quick Reference Guide
MN 00505-QRG08-TUN
Printed in the USA 10/07
Customer Experience Center
1-800-331-4331
