Toyota AVALON User manual

’06 AVALON_U (L/O 0508)
1
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Center cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

’06 AVALON_U (L/O 0508)
2
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center cluster
5. Garage door opener switches
6. Auxiliary boxes
7. Front personal lights, interior light
and/or electric moon roof switches
8. Center vents
9. Glove box
10. Power door lock switches
11. Power window switches
12. Trunk opener main switch
13. Rear console box
14. Rear vents
15. Power outlets
16. Seat ventilator/heater switches
17. Cup holder
18. Automatic transmission selector lever
19. Hood lock release lever
20. Parking brake pedal
21. Window lock switch
22. Driving position memory switches
Instrument panel overview
View A

’06 AVALON_U (L/O 0508)
3
1. Instrument panel light control knob
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Speech command switch (See the
separate “Navigation System Owner’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view
mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls
11. Cigarette lighter and ashtray, auxiliary
box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner’s Manual.”)
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever
View B (with key cylinder- type ignition switch)

’06 AVALON_U (L/O 0508)
4
16. Glass breakage sensor
17. Trunk opener switch
18. Fuel filler door opener switch
19. Power rear view mirror control switches

’06 AVALON_U (L/O 0508)
5
1. Instrument panel light control knob
2. Headlight, turn signal and front fog
light switches
3. Audio remote control switches
4. Speech command switch (See the
separate “Navigation System Owner’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view
mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls
11. Cigarette lighter and ashtray, auxiliary
box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner’s Manual.”)
12. Ignition switch (engine switch)
13. Cruise control switch
14. Distance switch
15. Tilt steering lock release lever
View B (with smart key system)

’06 AVALON_U (L/O 0508)
6
16. Telescopic steering lock release lever
17. Glass breakage sensor
18. Rear electric sunshade switch
19. Trunk opener switch
20. Fuel filler door opener switch
21. Power rear view mirror control switches

’06 AVALON_U (L/O 0508)
7
1. Engine coolant temperature gauge
2. Service reminder indicators and
indicator lights
3. Tachometer
4. Speedometer
5. Fuel gauge
6. Low fuel level warning light
7. Trip meter reset knob
8. Odometer and two trip meters
9. Automatic transmission shift range
position display
10. Dynamic laser cruise control display
11. Dynamic laser cruise control master
warning light
Instrument cluster overview

’06 AVALON_U (L/O 0508)
8

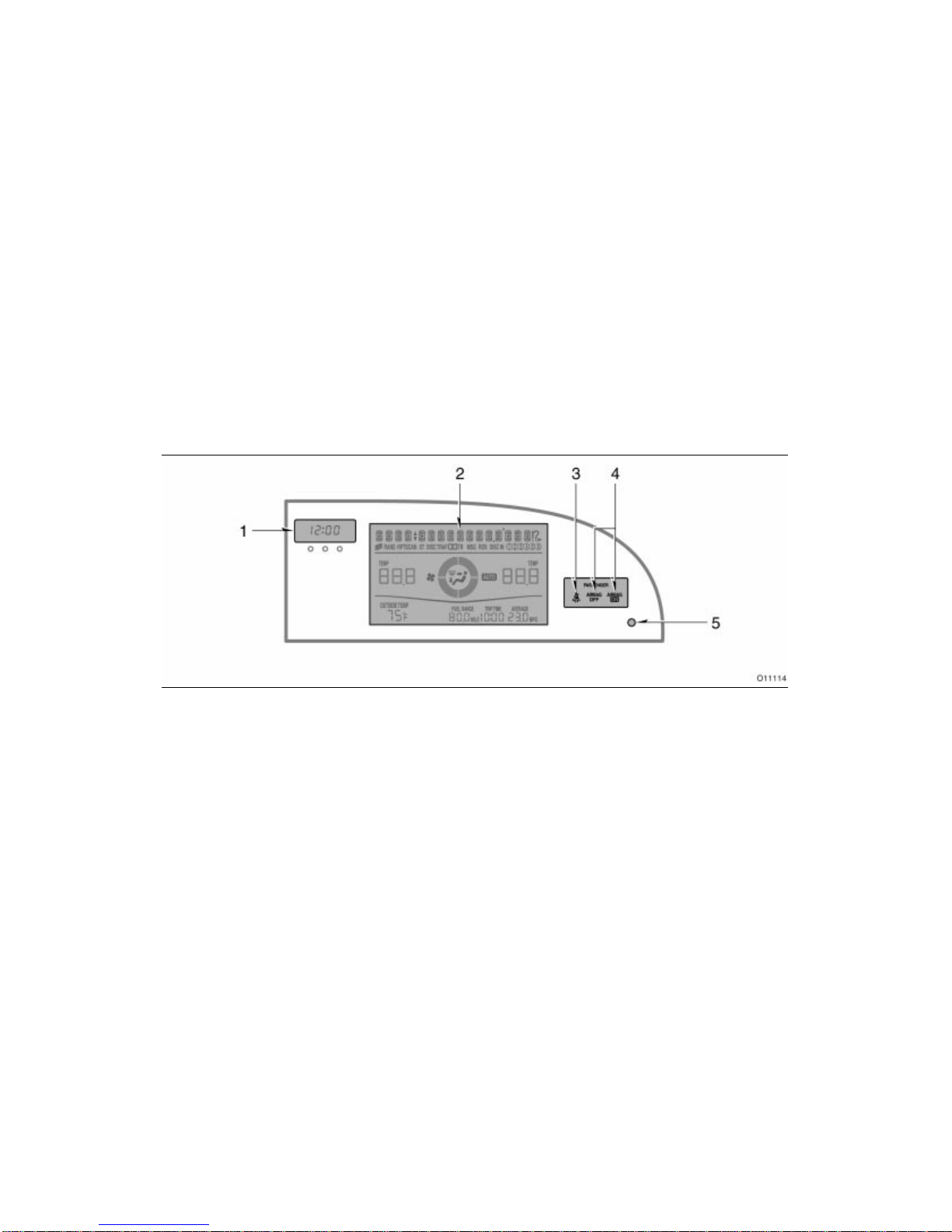

1. Clock
2. Center display∗1
3. Front passenger’s seat belt reminder
light∗2
4. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
5. Pattern selector knob (for center
display)
∗1: If your vehicle has equipped navigation system, see the separate “Navigation System Owner’s Manual”.
∗2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1-6.
Center cluster overview

’06 AVALON_U (L/O 0508)
9

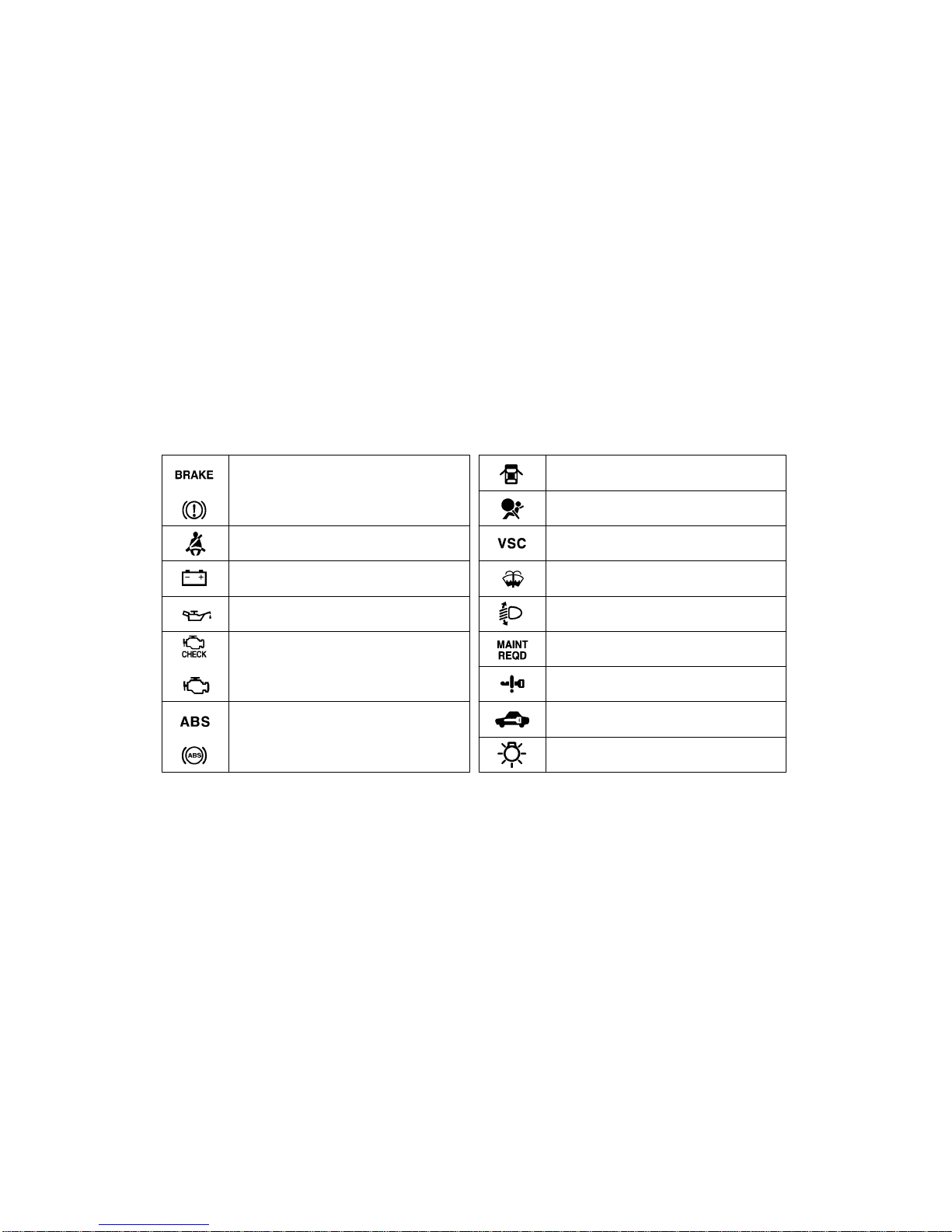

Brake system warning light∗1
Driver’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Anti- lock brake system warning light∗1 or
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Vehicle stability control system and traction
control system warning light∗1
or
Automatic headlight leveling system warning
light∗1
Engine oil replacement reminder light∗1
Engine immobilizer/theft deterrent system
indicator light
Smart key system warning light∗1
Headlight low beam indicator light
Indicator symbols on the instrument panel

’06 AVALON_U (L/O 0508)
10
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 145 in Section 1- 6.
∗2: If this light flashes, see “Cruise control” on page 169 in
Section 1- 7.
∗3: If this light flashes, see “Dynamic laser cruise control” on
page 172 in Section 1- 7.

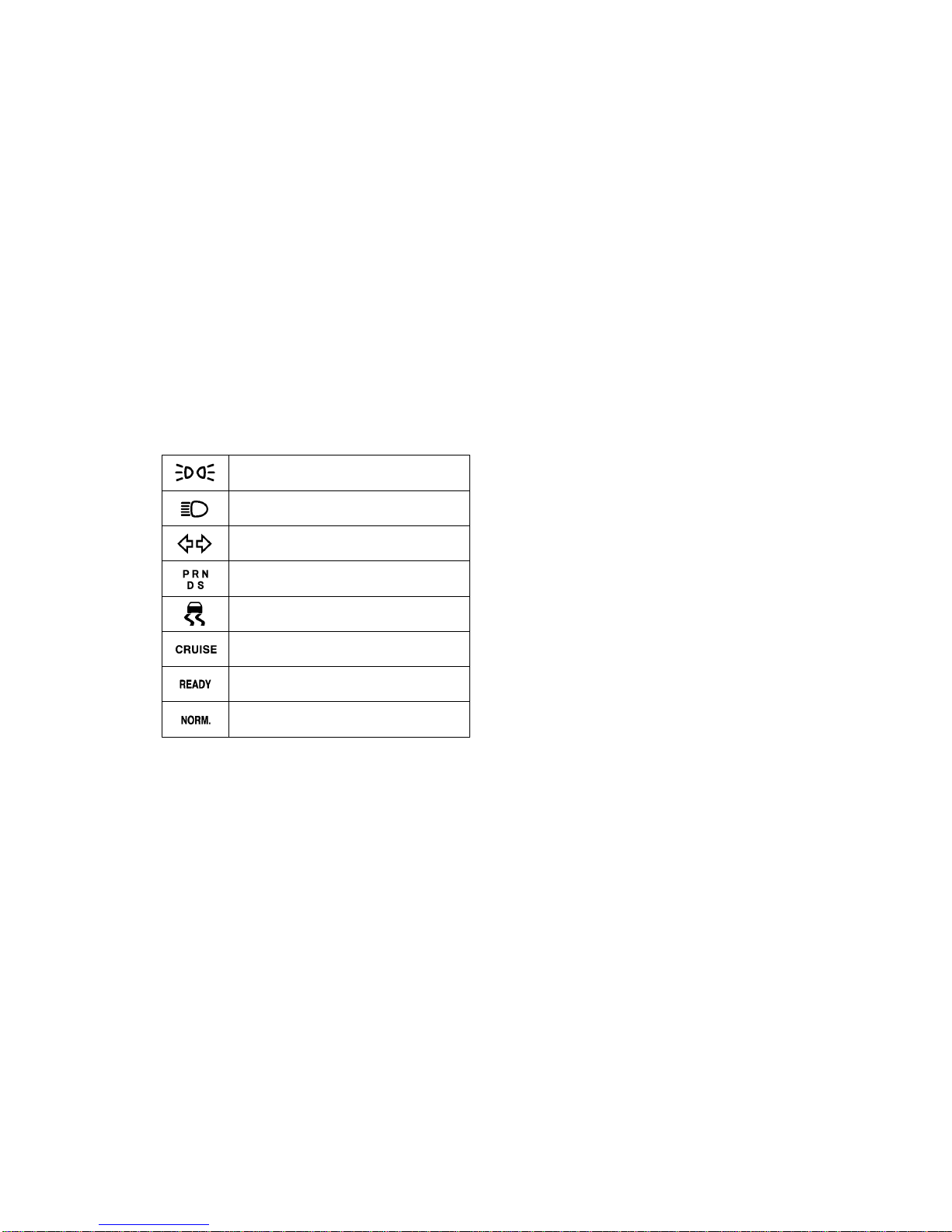

Turn signal indicator lights
Slip indicator/traction control system off light
Cruise control indicator light∗2or dynamic laser
cruise control indicator light∗3
Automatic transmission indicator lights
Headlight high beam indicator light
Tail light indicator light
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light

’06 AVALON_U (L/O 0508)
11
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Smart key system 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

’06 AVALON_U (L/O 0508)
12

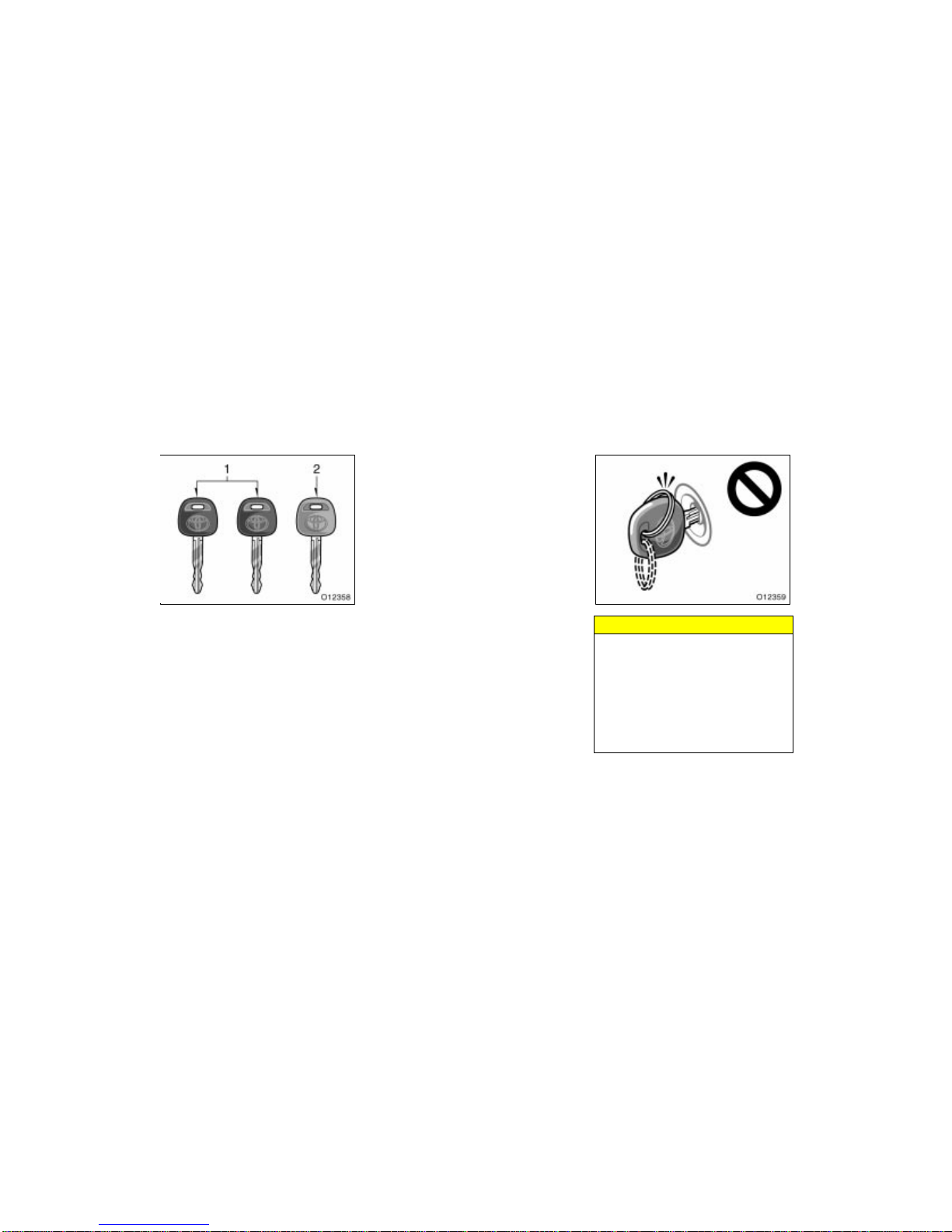

Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built- in transponder chip.
2. Sub key (gray)—This key will not work
in the locks of the glove box and the
door located behind the rear seat arm-
rest.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the trunk or
glove box when using valet parking, leave
the sub key with the attendant.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys (with key cylinder- type
ignition switch)

’06 AVALON_U (L/O 0508)
13
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.

’06 AVALON_U (L/O 0508)
14

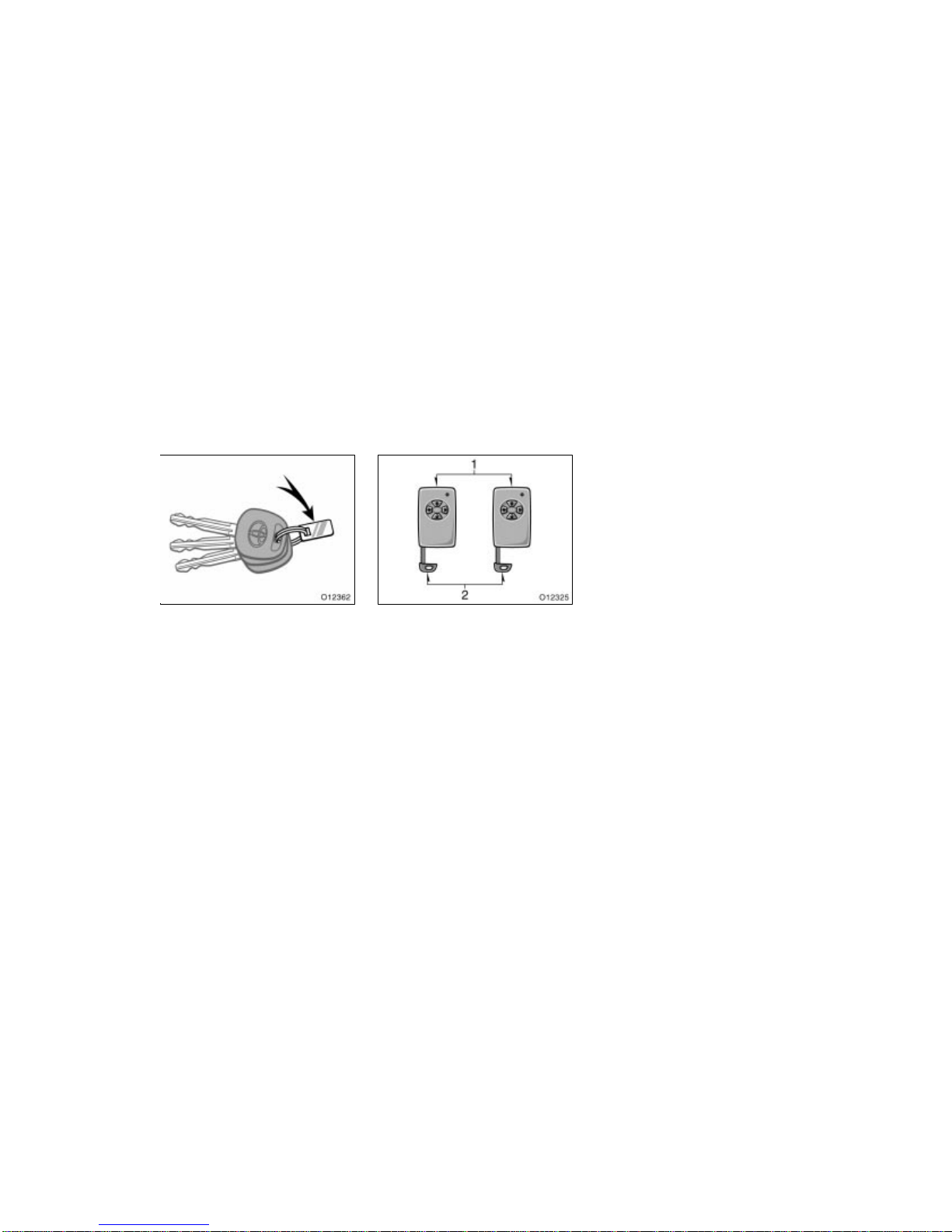

KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
The key consists of an electronic key
and a mechanical key. The mechanical
key is for emergency use. If the elec-
tronic key does not operate, you can
open the driver’s door using the me-
chanical key.
1. Electronic keys—These keys can lock
or unlock all the doors and can open
the trunk by using the wireless remote
control function or entry function of the
smart key system.
2. Mechanical keys—These keys can lock
or unlock the driver’s door, the glove
box and the door located behind the
rear seat armrest.
Spare keys should not be left in the
cabin. In the event that a spare key is
left in the cabin, the smart key system
will remain actuated even after the
doors have been locked. Under these
circumstances, the trunk can be opened
even after the driver has exited and
locked the vehicle, increasing the dan-
ger of theft. (Refer to “OPENING
TRUNK WITH SMART KEY SYSTEM” on
page 44 in this Section.)
To protect items locked in the trunk or the
glove box when using valet parking, lock
the trunk opener switch and leave the
electronic key with the attendant. Keep the
mechanical key with you. For details about
locking the trunk opener switch, see
“—Luggage security system” on page 45
in this Section.
A transponder chip for engine immobilizer
system has been placed in the electronic
keys. These chips are needed to enable
the system to function correctly, so be
careful not to lose these keys.
Keys (with smart key system)

’06 AVALON_U (L/O 0508)
15
NOTICE
When using a electronic key contain-
ing a transponder chip, observe the
following precautions:
 Do not affix any material that cuts
off electromagnetic waves (such as
a metal seal) on the electronic key.
 Do not knock the electronic key
hard against other objects.
 Do not leave the electronic key ex-
posed to high temperatures for a
long period, such as on the dash-
board or hood under direct sun-
light.
 Do not put the electronic key in
water or wash it in an ultrasonic
washer.
 Do not keep the electronic key to-
gether with the products emitting
electromagnetic waves such as a
cellular phone.
USING A MECHANICAL KEY
When you use the mechanical key push
the release button and take out the me-
chanical key as shown. Be sure to put the
mechanical key back when not it use.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’06 AVALON_U (L/O 0508)
16
The engine immobilizer system is a
theft prevention system using an elec-
tronic code. The transponder chip in
the key has an electronic code and
transmits the code to the vehicle. Only
when the electronic code in the chip
corresponds to the register ID code for
the vehicle, the engine immobilizer sys-
tem will be canceled and the engine
will start.
The engine immobilizer system is automat-
ically set when:
Vehicles with key cylinder- type ignition
switch—The key is removed from the igni-
tion switch.
Vehicles with smart key system—The igni-
tion switch is turned off.
The indicator light will start flashing to
show that the system is set.
If any of the following indicator conditions
occur, contact your Toyota dealer.
The indicator light remains on.
The indicator light does not start flash-
ing under the following situations.
Vehicles with key cylinder- type ignition
switch—When the key is removed from
the ignition switch.
Vehicles with smart key system—When
the ignition switch is turned off.
The indicator light flashes inconsistent-
ly.
The engine immobilizer system is automat-
ically canceled when:
Vehicles with key cylinder- type ignition
switch—
You insert the key to the ignition switch.
Vehicles with smart key system—
You enter the vehicle carrying a key with
smart key system and press the “ENGINE
START STOP” switch (engine switch).
Even if the key battery is discharged, the
engine can be started. See “Smart key
system” on page 27 in this Section.
When the system is canceled, the indica-
tor light will go off.
Engine immobilizer system

’06 AVALON_U (L/O 0508)
17
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key (vehicles with key cylin-
der- type ignition switch) or electronic key
(vehicles with smart key system). Howev-
er, there is a limit to the number of addi-
tional keys your Toyota dealer can make
for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
For vehicles sold in U.S.A.
FCC ID: MOZRI- 21BTY
FCC ID: NI4TMIMB- 1
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS- 210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

’06 AVALON_U (L/O 0508)
18
Vehicles with key cylinder- type ignition
switch
Vehicles with smart key system
1. Lock switch
2. Unlock switch
3. Alarm switch
4. Trunk opener switch
5. Indicator light (vehicles with smart key
system only)
The wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
Vehicles with smart key system only—
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage the key.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
Wireless remote control—

’06 AVALON_U (L/O 0508)
19
You can use up to 4 wireless remote con-
trol transmitters (for vehicles with key cyl-
inder- type ignition switch) or 7 wireless
remote control transmitters (for vehicles
with smart key system) for the same ve-
hicle. Contact your Toyota dealer for de-
tailed information.
If the wireless remote control transmitter
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the transmitter is dimmed or
does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on pages 23 or 25 in this Sec-
tion.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 326 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

’06 AVALON_U (L/O 0508)
20
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

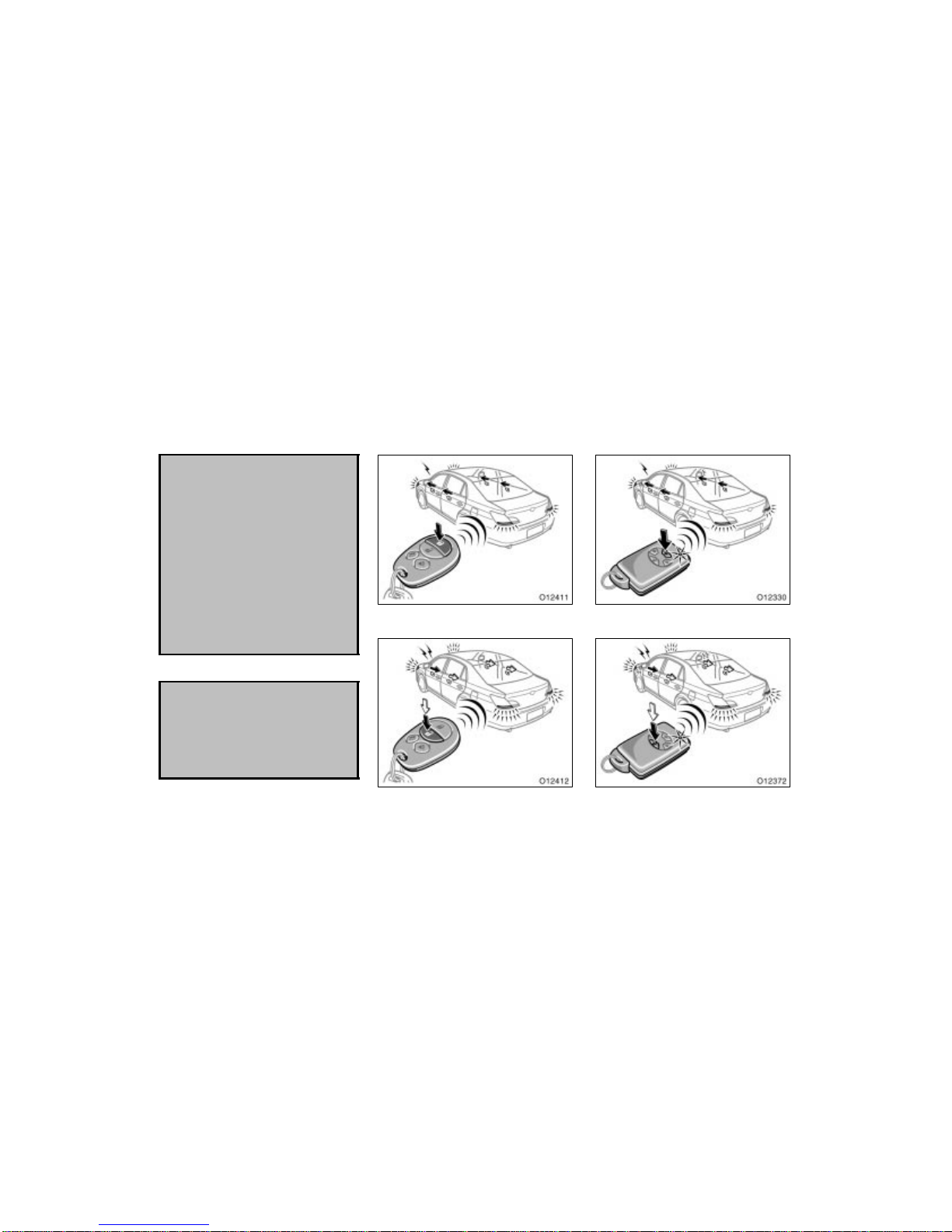

Locking operation (vehicles with key cyl-
inder- type ignition switch)
Unlocking operation (vehicles with key
cylinder- type ignition switch)
Locking operation (vehicles with smart
key system)
Unlocking operation (vehicles with smart
key system)
—Locking and unlocking
doors
