TP-Link Archer T600U Plus User manual

REV1.0.0 1910012636
User Guide
AC600 High Gain Wireless Dual Band USB Adapter
Archer T600U Plus

Contents
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Chapter 1. Get to Know About Your Adapter . . . . . . . . . . . . . . . . . . . . .2
1. 1. Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. 2. LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 2. Connect to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Chapter 3. Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3. 1. Install Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. 2. Join a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3. 3. Uninstall Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Chapter 4. Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4. 1. Install Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4. 2. Join a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4. 2. 1. TP-Link Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4. 2. 2. WPS (Wi-Fi Protected Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4. 3. Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
4. 4. Uninstall Driver and Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Appendix: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

1
About This Guide
This guide is a complement to Quick Installation Guide. The Quick Installation
Guide instructs you on quick installation, and this guide provides the product
overview and detailed instructions for each steps.
When using this guide, please notice that features available of the adapter may
vary by model and software version. All images, steps, and descriptions in this
guide are only examples and may not reflect your actual experience.
Conventions
In this guide, the following conventions are used:
Convention Description
Teal Contents to be emphasized and texts on the web page are in teal, including
the menus, items, buttons, etc.
Note: Ignoring this type of note might result in a malfunction or damage to the
device.
Tips: Indicates important information that helps you make better use of your
device.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11
specifications. Actual wireless data throughput and wireless coverage are not guaranteed and
will vary as a result of 1) environmental factors, including building materials, physical objects,
and obstacles, 2) network conditions, including local interference, volume and density of traffic,
product location, network complexity, and network overhead, and 3) AP limitations, including
rated performance, location, connection quality, and AP condition.
*To ensure compatibility, you may need to update the adapter’s drivers after an OS update.
You can find our latest drivers in the download center at https://www.tp-link.com/en/download-
center.
More Info
• The latest software and utility can be found at https://www.tp-link.com/
download-center.
• The Quick Installation Guide (QIG) can be found where you find this guide or
inside the package of the product.
• Specifications can be found on the product page at https://www.tp-link.com.
• A community is provided for you to discuss our products at https://community.
tp-link.com.
• Our Technical Support contact information can be found at the Contact
Technical Support page at https://www.tp-link.com/support.

Chapter 1
Get to Know About Your
Adapter
This chapter introduces what the adapter can do and shows its appearance.
This chapter contains the following sections:
• Product Overview
• LED Status

3
Chapter 1 Get to Know about Your Adapter
1. 1. Product Overview
TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for
smooth HD video, voice streaming and online gaming.
• 256QAM support increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps,
200 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, ensure you
fully enjoy fast AC Wi-Fi
• A 5dBi high-gain antenna greatly enhances the reception and transmission
signal strength of the USB adapter
• Utilizes 802.11ac standard and is backward compatible with 802.11a/b/g/n
• Supports 64/128 bit WEP, WPA-PSK/WPA2-PSK
• Supports Windows and Mac
1. 2. LED Status
You can check the adapter’s working status by following the LED Explanation
table.
Status Indication
Off The driver is not installed.
The adapter is not detected.
On The driver has been installed successfully.
Tips:
If the LED is off, try these troubleshooting tips:
1. Check if the adapter is recognized and enabled or not. Refer to Troubleshooting-T2 for detailed
instructions.
2. Remove and reinsert the adapter.
3. Reinstall the software, if necessary.

Chapter 2
Connect to a Computer
This chapter introduces how to connect the adapter to your computer.

5
Chapter 2 Connect to a Computer
Before you start using your adapter, insert the adapter into a USB port on your
computer directly.
* The image is for demonstration only.
After connecting your adapter to the computer, please follow the instructions in
the appropriate chapter for your operating system: Windows, Mac OS X.

Chapter 3
Windows
This chapter introduces how to install your adapter’s driver, use your adapter
to join a wireless network, and uninstall your adapter in a Windows system.
The adapter is equipped with a Setup Wizard, which can guide you through the
installation process.
This chapter includes the following sections:
• Install Driver
• Join a Wireless Network
• Uninstall Driver

7
Chapter 3 Windows
3. 1. Install Driver
1. Insert the resource CD into your CD drive and run the Autorun.exe from the
pop-up Autoplay window.
Note:
1. You can also download the driver or check the new release at https://www.tp-link.com/download-
center.
2. In some operating systems, the CD screen will pop up automatically. Otherwise, run the CD manually.
2. Select Archer T600U Plus and follow the instructions to complete the
installation.
Note:
If you can’t install the driver successfully, disable the antivirus software and firewall, then try again.
3. When the following screen appears, the driver has been installed successfully.

8
Chapter 3 Windows
3. 2. Join a Wireless Network
You can join a wireless network via Windows built-in wireless utility. Follow the
instructions below to use your computer system’s built-in wireless utility:
1. Click , or (Network icon) on the taskbar. Select the Wi-Fi network you
want to join, and click Connect. Enter the network password when prompted.
2. When the network icon changes to or , it indicates a successful network
connection.
3. 3. Uninstall Driver
The software uninstallation steps vary a bit from different systems. Please follow
the appropriate instructions for your Windows operating system: Windows
8/8.1/10, Windows XP/7.
• Windows 8/8.1/10
Go to Start menu to find the TP-Link application. Click
Uninstall TP-Link Archer
T600U Plus Driver, then follow the on-screen instructions to complete the
uninstallation.
• Windows XP/7
Go to Start > All Programs > TP-Link > Uninstall
TP-Link Archer T600U Plus
Driver. Follow the on-screen instructions to complete the uninstallation.

Chapter 4
Mac OS X
This chapter introduces how to install your adapter’s driver and utility, use your
adapter to join a wireless network, manage your adapter and uninstall your
adapter in Mac OS X.
This chapter includes the following sections:
• Install Driver and Utility
• Join a Wireless Network
• Management
• Uninstall Driver and Utility

10
Chapter 4 Mac OS X
4. 1. Install Driver and Utility
We take the steps in Mac OS X 10.10 as an example - the steps may vary slightly
from other versions of Mac OS.
1. Download the driver and utility at https://www.tp-link.com/download-center.
Note:
The CD is included in the package. If your computer has a CD drive, you can also run the included CD to
install the driver and utility.
2. Double click to unzip the downloaded folder and run the Install.pkg.
3. The Install TP-Link Wireless USB Adapter Utility and Driver Wizard window will
appear. Click Continue and follow the instructions to complete the installation.

11
Chapter 4 Mac OS X
4. When the following screen appears, the driver and utility have been installed
successfully. Click Restart to finish the installation.
5. After restarting the computer, the TP-Link Utility icon will appear on the
menu bar in the upper-right corner of the screen. To use the utility to join a Wi-
Fi network with your adapter, refer to Join a Wireless Network.
Note:
If the TP-Link Utility icon does not appear on the menu bar, make sure the USB wireless network
adapter is connected properly and its LED is on.

12
Chapter 4 Mac OS X
4. 2. Join a Wireless Network
There are two options of using the adapter to join a Wi-Fi network.
Option 1: TP-Link Utility
TP-Link Utility lets you easily connect the adapter to a Wi-Fi network and manage
the adapter.
Option 2: WPS (Wi-Fi Protected Setup)
WPS (Wi-Fi Protected Setup) is a network security standard for easily adding
computers and other devices to a home network. Use this method if your
wireless router or access point supports WPS.
4. 2. 1. TP-Link Utility
Option 1
Click the TP-Link Utility icon on the menu bar, and choose a Wi-Fi network
from the list. Enter the password when prompted.
When you are connected to the internet, the network icon will change to .
Option 2
1. Click the TP-Link Utility icon on the menu bar, and then click Open
Wireless Utility at the bottom of the network list.
2. Select the network you want to join from the list and enter the password when
prompted. Click Join.

13
Chapter 4 Mac OS X
Note:
If your Wi-Fi network is not displayed in the list, you can try to join it by WPS or by clicking Join Other on the
above screen, and then follow the on-screen instructions to join the network.
4. 2. 2. WPS (Wi-Fi Protected Setup)
WPS can be activated via PBC (Push Button Configuration) and PIN code on the
TP-Link Utility. Please refer to PBC or PIN below.
• PBC
1. Press the WPS/QSS button on your router or AP.
2. Within 2 minutes, click the TP-Link Utility icon on the menu bar, and then
click WPS at the bottom of the network list.

14
Chapter 4 Mac OS X
3. Click PBC.
4. The following screen indicates a successful connection by WPS. Click OK.
• PIN
1. Click the TP-Link Utility icon on the menu bar, and then click WPS at the
bottom of the network list.

15
Chapter 4 Mac OS X
2. Click PIN.
3. Within 2 minutes, log in to the web management page of your router or AP. Go
to its WPS page, enter the PIN of the adapter in the corresponding field and
click Connect.
4. The following screen indicates a successful connection by WPS. Click OK.

16
Chapter 4 Mac OS X
4. 3. Management
TP-Link Utility provides you with an easy way to manage various connection
settings of your Wi-Fi network.
1. Click the TP-Link Utility icon on the menu bar, and then click Open
Wireless Utility at the bottom of the network list.
2. TP-Link Utility will pop up. Click the Profiles button to open the Profiles screen.
3. The Profiles screen lets you manage different Wi-Fi connection settings as
profiles so that you can connect to your network easily.

17
Chapter 4 Mac OS X
Preferred Networks displays the networks that you once connected to. The
networks’ status and information are displayed in the table.
• To join a Wi-Fi network
If you want to join a Wi-Fi network that is listed on the profile screen, select the
profile and click Apply in the bottom right corner.
• To manage an existing profile
If you want to change the wireless settings of an existing profile, select it and
then you can edit its Security and Password. If you want to delete a profile, select
it and click Remove.
4. 4. Uninstall Driver and Utility

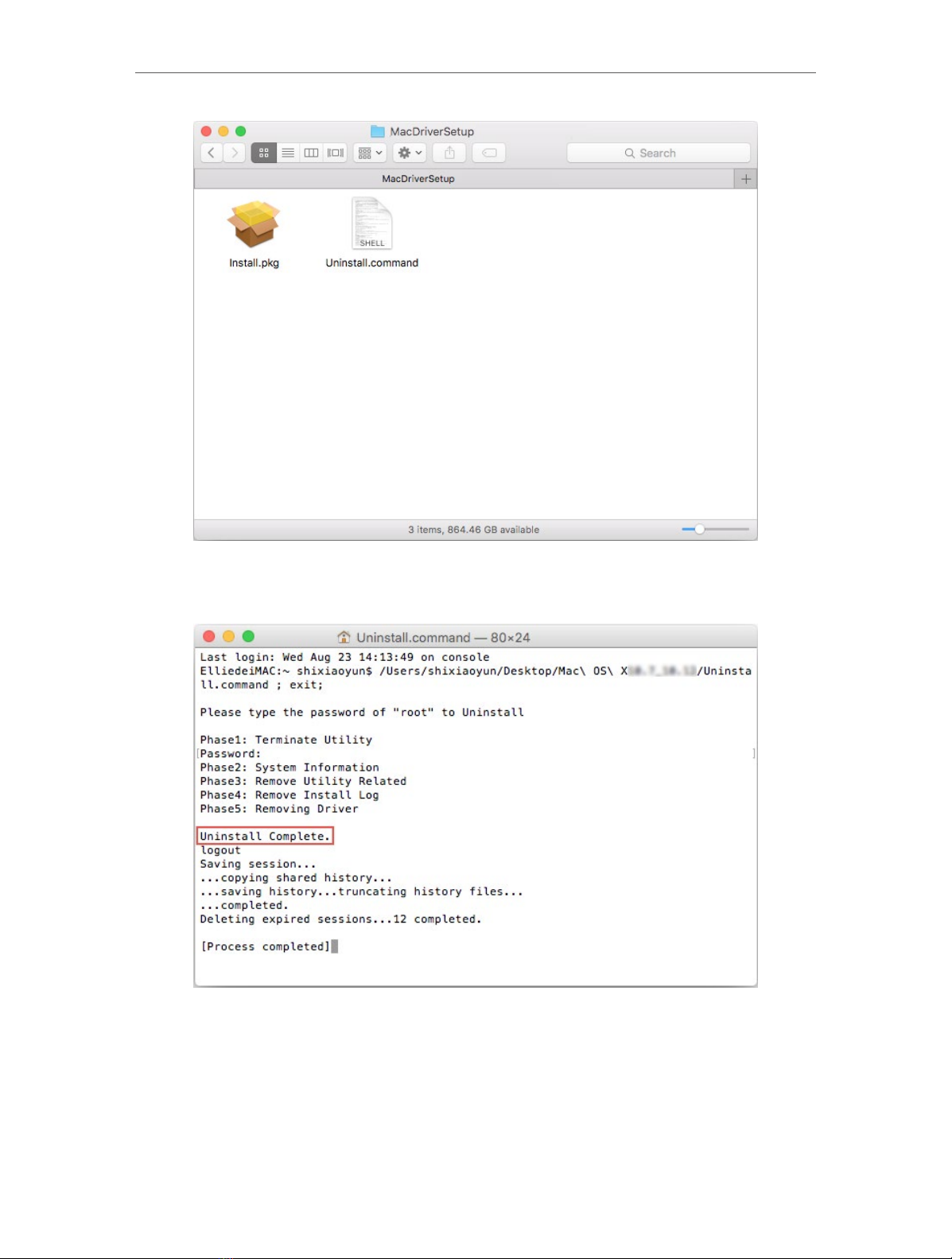

1. Double click Uninstall.command in the downloaded folder.

18
Chapter 4 Mac OS X
2. Enter the password of you computer and when the “Uninstall Complete”
message appears, the uninstallation is complete.
