TP-Link TL-SC3130 User manual

TL-SC3130
2-Way Audio Surveillance Camera
REV: 2.0.1
1910010357

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
¾Reorient or relocate the receiving antenna.
¾Increase the separation between the equipment and receiver.
¾Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
¾Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.

CONTENTS
Package Contents.........................................................................................................................1
Chapter 1 Minimum System Requirements...............................................................................2
Chapter 2 Physical Overview .....................................................................................................3
2.1 Front View................................................................................................................................... 3
2.2 Bottom view ................................................................................................................................ 3
Chapter 3 Using IP Camera via Web Browser...........................................................................4
3.1 Windows Web Browser .............................................................................................................. 4
3.2 Mac Web Browser ...................................................................................................................... 5
Chapter 4 Using IP Camera via Mobile Phone ..........................................................................9
4.1 3G Streaming Mobile View Mode ............................................................................................... 9
4.2 3G Web Brower Mobile View Mode...........................................................................................11
4.3 2.5G WAP Browser Snapshot Mode ........................................................................................ 13
4.4 2.5G Web Browser Snapshot Mode ......................................................................................... 13
4.5 Mobile View on Windows Mobile 6 Smart Phone..................................................................... 13
Chapter 5 Configuration of Main Menu ...................................................................................17
5.1 Live View .................................................................................................................................. 17
5.1.1 Snapshot............................................................................................................................ 17
5.1.2 Zoom in / out the image via the monitor window............................................................... 18
5.1.3 Video play buttons ............................................................................................................. 18
5.1.4 Audio buttons..................................................................................................................... 19
5.2 Setting ...................................................................................................................................... 19
5.3 Client Setting ............................................................................................................................ 19
5.3.1 Mode.................................................................................................................................. 20
5.3.2 View Size........................................................................................................................... 20
5.3.3 Protocol.............................................................................................................................. 21
5.3.4 Video Buffer ....................................................................................................................... 21
5.4 Image Setup ............................................................................................................................. 21
5.4.1 Brightness.......................................................................................................................... 21
5.4.2 Contrast ............................................................................................................................. 21
5.4.3 Saturation .......................................................................................................................... 22
5.4.4 Hue .................................................................................................................................... 22
5.4.5 Default ............................................................................................................................... 22
Chapter 6 Setting-Basic............................................................................................................23
6.1 System...................................................................................................................................... 23
6.1.1 Information......................................................................................................................... 23
6.1.2 Date / Time ........................................................................................................................ 24
6.1.3 Initialize.............................................................................................................................. 25
6.2 Camera..................................................................................................................................... 26
6.2.1 General.............................................................................................................................. 26

6.2.2 MPEG4 .............................................................................................................................. 27
6.2.3 MJPEG .............................................................................................................................. 30
6.3 Network .................................................................................................................................... 30
6.3.1 Information......................................................................................................................... 31
6.3.2 PPPoE (Point-to-Point Protocol over Ethernet)................................................................. 33
6.3.3 DDNS (Dynamic DNS) ...................................................................................................... 35
6.3.4 UPnP (Universal Plug and Play) ....................................................................................... 38
6.3.5 Bonjour .............................................................................................................................. 39
6.3.6 IP Notification..................................................................................................................... 40
6.3.7 Messenger......................................................................................................................... 42
6.4 Security..................................................................................................................................... 47
6.4.1 Account.............................................................................................................................. 47
6.4.2 HTTPS............................................................................................................................... 48
Chapter 7 Setting-Advance ......................................................................................................51
7.1 FTP Client................................................................................................................................. 51
7.1.1 General.............................................................................................................................. 52
7.1.2 Alarm sending.................................................................................................................... 52
7.1.3 Periodical sending ............................................................................................................. 55
7.2 SMTP........................................................................................................................................ 56
7.2.1 General.............................................................................................................................. 57
7.2.2 Alarm sending.................................................................................................................... 59
7.2.3 Periodical sending ............................................................................................................. 61
7.3 HTTP event............................................................................................................................... 63
7.3.1 General.............................................................................................................................. 64
7.3.2 Alarm sending.................................................................................................................... 64
7.4 Schedule................................................................................................................................... 67
7.4.1 Setting................................................................................................................................ 68
7.5 Motion Detection....................................................................................................................... 68
7.5.1 Setting................................................................................................................................ 69
7.6 System Log............................................................................................................................... 69
7.6.1 Setting................................................................................................................................ 70
Chapter 8 Appendix ..................................................................................................................71
Chapter 9 FAQ ...........................................................................................................................75

1
Package Contents
The follow items should be found in your package:
¾TL-SC3130 2-Way Audio Surveillance Camera
¾Power Adapter
¾Mounting Bracket with three screws, a Lock Ring, a Brace and a Base Plate
¾RJ45 Cable
¾Quick Installation Guide
¾Resource CD, including:
zThis User Guide
zOther helpful information
)Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.

2
Chapter 1 Minimum System Requirements
We strongly recommend your computers follow our minimum requirements in order to use this
IP-Camera normally. If your computer doesn’t meet these requirements below, it might cause
some problems.
Item Requirements
CPU Pentium 4 1600MHz (or equivalent AMD)
Graphic Card 64 MB RAM graphic cards(or equivalent on-board graphic cards)
RAM 512 MB
Operating System
Windows 98, Windows ME (Please see )Note)
Windows2000, 2003, XP, Vista, Mac OS X Leopard
Web Browser Internet Explore 6 or above
)Note:
1. If you are using Windows 98 or Windows ME, please install IP Installer before using WEB UI
to ensure the system runs normally.
2. If you can't view the record video file, please install Xvid codec while installing Intelligent IP
Installer. (For Windows 98, ME or 2000 server, the codec might not work properly. You’ll need
to download Xvid codec 1.0 from the Internet.)
3. Please always update the latest Windows component. (Net Framework, Windows Media
Player, Enhance ActiveX Security)

3
Chapter 2 Physical Overview
2.1 Front View
Focus Adjustment Ring:Adjust the focus ring to get a clear image.
Network LED Indicator:It lights up when the IP Camera is well connected to the network. It
flashes when there are data being transmitted.
Power LED Indicator: It lights up when the IP Camera is powered on.
Built-in Microphone: The location where the voice from your partner comes out.
2.2 Bottom view
Power Connector: The power connector is where you connect the power adapter.
Reset: To successfully restore the camera to factory defaults, please keep the device powered on,
then press and hold the Reset Button for at least 10 seconds. The CPU of the camera starts to
work completely 1 minute after you release the Reset button.
Audio Out (Speaker): The Audio Out (Speaker) port is where the speaker is connected.
LAN (Network Connector): Through this port, you can connect the IP Camera to your computer
or the other Ethernet network devices.

4
Chapter 3 Using IP Camera via Web Browser
3.1 Windows Web Browser
1. Launch your web browser, and enter the IP address (the default value is 192.168.1.10) of the
IP camera in the Location / Address field of your browser.
)Note:
If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web
URL . For example, you can enter “http://192.168.1.10/index2.htm” as your web URL to view the
video without setting page.
2. Enter the default User name “admin” and password “admin” in the login window as shown
below.
)Note:
The default User name “admin” and Password “admin” are set at the factory for the administrator.
You can change them in the Account Menu. (Please check “SETTING →BASIC →Security →
Account”)
3. The web-based management page will display on your screen. On the leftmost column of the
web-based management page are Setting, Client Setting, and Image Setup. For more
details, you can refer to Section 5.2 Setting, Section 5.3 Client Setting and Section 5.4
Image Setup.

5
3.2 Mac Web Browser
1. Click the Safari icon on the screen as the figure below shown, and enter the IP address (the
default value is 192.168.1.10) of the IP camera in the Location / Address field of your browser.
)Note:
If you only want to view the video without setting page, enter “http://<IP>/index2.htm” as your web
URL. For example, you can enter “http://192.168.1.10/index2.htm” as your web URL to view the
video without setting page.

6

7
2. Enter the default User name “admin” and password “admin” in the dialog box as shown below.
)Note:
The default Name “admin” and Password “admin” are set at the factory for the administrator. You
can change them in the Account Menu. (Please check “SETTING →BASIC →Security →
Account”)

8
3. The web-based management page will be display on your screen. In the leftmost column of
the web-based management page are Setting, Client Setting, and Image Setup. For more
details, you can refer to Section 5.2、Section 5.3 and Section 5.4.

9
Chapter 4 Using IP Camera via Mobile Phone

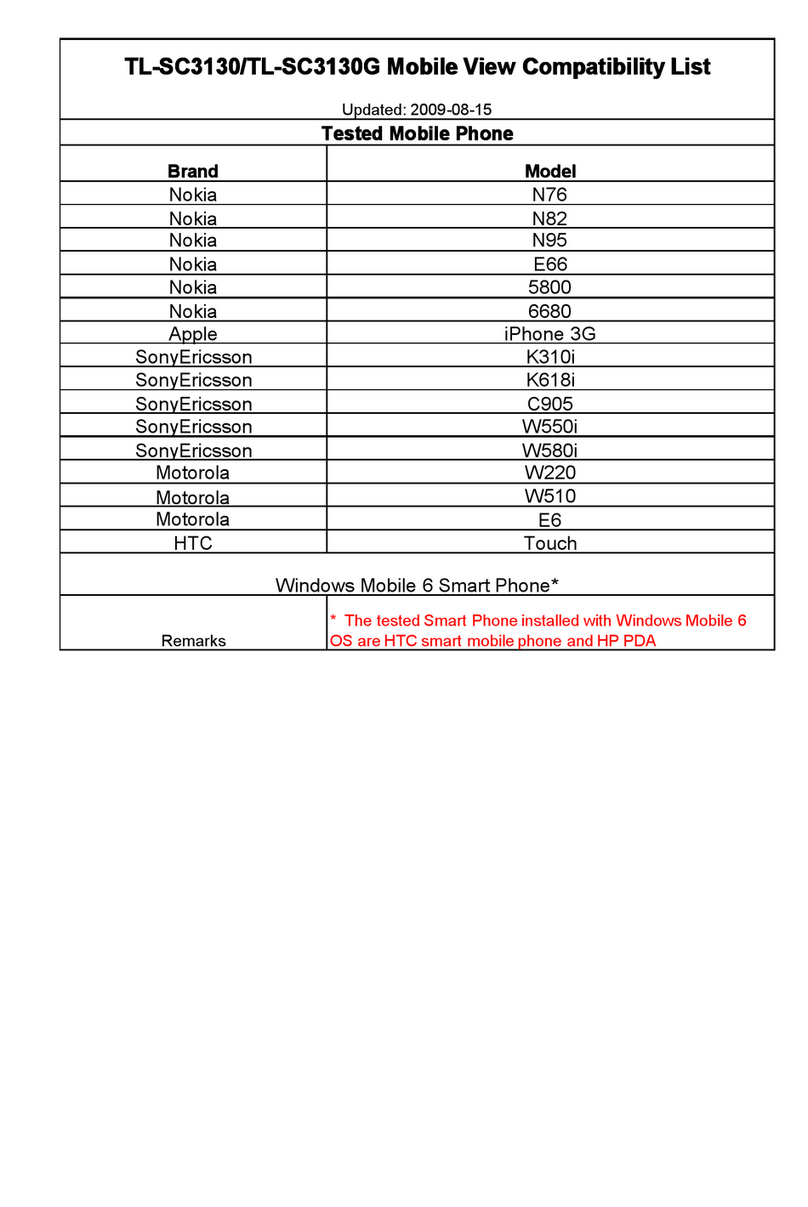

You can use TP-LINK Web User Interface via mobile phones. To use IP cameras via mobile
phones, please make sure your RTSP is set to “On” (Default is “On”). To change the settings of IP
cameras, Please check “Settings →Basic →Camera →General.” Up to the 15th August, it has
been tested that you can use TP-LINK Web User Interface via mobile phones supporting the
mobile view modes shown in the table below.
Tested Mobile Phone Tested Mobile View Mode
Brand Model
3G
Streaming
Mobile View
3G Web Brower
Mobile View
2.5G WAP
browser
Snapshot
2.5G Web
browser
Snapshot
Nokia N76 ●●
Nokia N82 ●
Nokia N95 ●●
Nokia E66 ●●
Nokia 5800 ●●
Nokia 6680 ●●
Apple iPhone 3G ●
SonyEricsson K310i ●
SonyEricsson K618i ●
SonyEricsson C905 ●
SonyEricsson W550i ●
SonyEricsson W580i ●
Motorola W220 ●
Motorola W510 ●
Motorola E6 ●
HTC Touch
●
Windows Mobile 6 Smart
Phone ▲■●
▲Please install Platform4 Player on your phone first.
■Please install Opera Mobile 9.5 on your phone first.
●Please use Real Player and other RSTP streaming media player embedded to view the video
in this mode.
●Please use the normal embedded browser in the phone to view the video in this mode.
)Note:
You can have the latest supporting phones information on our website www.tp-link.com.
4.1 3G Streaming Mobile View Mode
For 3G Streaming Mobile View Mode, please type “rtsp://<IP>:<PORT>/video.3gp ” into your 3G
Streaming Link. <IP> is the Public IP address of your IP camera (the default value is
192.168.1.10); <PORT> is the RTSP port of your IP camera (Default value is 554). For Example:
rtsp://192.168.1.10:554/video.3gp

10
)Note:
You can also use RTSP clients (RealPlayer, VLC, QuickTime Player etc) to view RTSP streaming,
just type in “rtsp://<IP>:<PORT>/video.3gp” as the Player URL.
Below is an example of viewing the camera in 3G streaming mode on NOKIA N76:
1. Click Function and select Gallery.
2. Click the Streaming links.
3. Click Option and add a New link
4. Type the New link Name and Web address. (The address is Public IP or domain name), Ex:
rtsp://tl-sc3130.dyndns.org/video.3gp

11
5. Open with Real-Player and click Yes to connect.
4.2 3G Web Brower Mobile View Mode
For 3G Web Browser Mobile View Mode, please type “http://<IP>” into your 3G Mobile’s Web
Browser. <IP> is the Public IP address of your IP camera (the default value is 192.168.1.10); For
Example: rtsp://192.168.1.10:554/video.3gp
Below is an example of viewing the camera in 3G Web Browser Mobile View Mode on iPhone 3G:
1. Select Safari function
2. Enter IP address in your web link

12
3. Enter name and password. Default
values are both admin. Then click Log
in
4. The TP-LINK User Interface and live
image will show up in the middle of the
screen.
)Note:
It will show continuous snapshots not a real
time video streaming. Therefore, the recording
feature is disabled.

13
4.3 2.5G WAP Browser Snapshot Mode
For 2.5G WAP Browser Snapshot Mode, please type “ <IP>/mobile.wml ” into your 2.5G WAP
Browser. <IP> is the Public IP address of your IP camera.
4.4 2.5G Web Browser Snapshot Mode
For 2.5GWeb Browser Snapshot Mode, please type “ <IP>/mobile.htm ” into your 2.5G Web
Browser. <IP> is the Public IP address of your IP camera.
)Note:
Through 2.5G WAP or Web browser, you can only get the snapshot of the camera, not the video.
4.5 Mobile View on Windows Mobile 6 Smart Phone
The tested Smart Phones installed with Windows Mobile 6 OS are HTC smart mobile phone and
HP PDA. Below is the example, and the Platform4 Player and Opera Mobile 9.5 can be
downloaded from our website www.tp-link.com.
To use IP Camera via HP PDA, please take the following steps:
1. For HP iPDA HSTNH-L05C-WL, you need to install the free software Platform4 Player first.
Click the program Platform4 Player.
2. Click the setting and type rtsp link in Open Url field. Ex: rtsp://tl-sc3130.dyndns.org/video.3gp

14
3. Click Setting I and select protocol with TCP.
4. Click Setting II and select System Settings.
5. Click OK and connect to IP Camera.

15
To use IP Camera via Opera Mobile with Windows Mobile Smart Phone, please take the following
steps:
1. Download the ”Opera Mobile 9.5.cab“ and copy to Windows Mobile 6 Smart Phone.
2. Click the “Windows Explorer” to find the download cab file.
3. Click the cab file to install the Opera Mobile 9.5.
4. Click Programs to find the Opera 9.5 icon.
