TQC Sheen AB6015 User manual

Camera tool
(AB6015)
Operating Instructions (V1 0121)
IMPORTANT! Before taking this instrument
in use we strongly advise you to read this
manual carefully.

TQC Sheen will grant a warranty for a period of 12 months for stand & LinQ,
the Camera is covered by the manufacturers Warranty from the date of
delivery in respect of any evidence of faulty workmanship and materials.
Should a delivered consignment prove to be contrary to contract upon
inspection, the customer shall grant TQC Sheen the opportunity hereunder
of removing the fault, or else the customer may demand replacement.
Because of size and weight of the instrument TQC Sheen will strive to give
remote support.
Should the supply or delivery of any improvement or replacement not prove
possible, the customer may choose between having the purchase price
reduced or in demanding the contract of sale to be rescinded (conversion).
Damage resulting from natural wear and tear, mechanical or chemical
damage, an act of God or non compliance with the operating instructions
shall be excluded from the warranty as well as mechanical interference by
the customer or by third parties with Scrub Abrasion and Washability Tester
and related equipment without TQC Sheen’s written permission. No liability
will be accepted for defects, damage or injury caused due to use not carried
out in accordance with the manufacturer’s user instructions.
To claim warranty, the rejected product has to be sent to TQC Sheen
together with the original invoice, any exchange before the product has
been returned to TQC Sheen is not possible. TQC Sheen reserve the right to
repair, exchange or supply an equivalent substitute. TQC Sheen is not liable
for handling or transport costs. Warranty on the purchase price is limited, all
liability for consequential damages or changes in technology is expelled.
This product complies to
- Machinery Directive 2006/42 / EC
- Low Voltage Directive 2006/95 / EC
- EMC Directive 2004/108 / EC
This product is RoHS 2 compliant (2011/65/EU)
WARRANTY

3 |
1 General 4
1.1 Importance of operating manual
1.2 User-responsibility
1.3 Responsibility of personnel
1.4 Dangers
1.5 Copyright
1.6 Manufacturer’s/Supplier’s address
2 Safety Instructions 5
2.1 Meaning of Symbols
2.2 Availability of Safety Information
2.3 Dangers from Electrical Energy
2.4 Modifications to the Equipment
3 Transport and Storage 6
3.1 Packing
3.2 User: Check on Receipt
3.3 Reporting Transport Damage and
Documentation
3.4 Storage and Protective Measures when not in use
4 Instrument Data 7
4.1 Name / Article
4.2 Scope of Supply
4.3 Technical Data: camera Tool, LinQ and Software
5 Instrument Controls and Functions 8
5.1 Instrument Layout
6 Instrument Preperations 9
6.1 Installation
6.2 Software instalation on computer
6.3 LinQ connecting with the computer
6.4 LinQ connecting to WBT
6.5 Connecting camera tool to Computer
6.6 Starting the Instrument
7 Software Installation 10
7.1 Software instalation on computer
7.2 Software instalation on computer
7.3 Camera Settings
7.4 Analyze the video
8 Care and Maintenance 11
8.1 Disposal of Materials
8.2 Customer Service
9 Disclaimer 11
INDEX

| 4
1.1 Importance of operating manual
This manual is written in order to become familiar with all the functions and
possible applications of the instrument. It contains important instructions
about how to use the instrument safely and economically; according to
the purpose designated. Following these instructions is not only essential
to avoid risks. It also reduces repair costs and down-time and increases the
products reliability and service-life.
Anyone who works with the instrument shall follow the instructions in this
manual, particularly the safety related instructions. Additionally local rules
and regulations relating to environmental safety and accident prevention
should be observed. It is mandatory that users have read and understand
this manual prior to first operation of the Scrub Abrasion and Washability
Tester.
1.2 User-responsibility
The user should
a) Only allow persons to work with the instrument who are
familiar with the general instructions on how to work safely and
to prevent accidents. The use of the instrument should have been
instructed duly.
b) Regularly check the safety-awareness of personnel at work.
1.3 Responsibility of personnel
Before commencing work anyone appointed to work with the instrument
should pay attention to the general regulations relating to working safety
and accident prevention. The safety chapter and the warnings in this manual
should have been read and understood; acknowledged as evidenced by
their signature as can be placed in the Operator Qualification list Annex C.
1.4 Dangers
This instrument has been designed and constructed in accordance with
state-of-the-art technology and the acknowledged safety regulations.
Nevertheless, working with the instrument could cause danger to the
life and health of the operator or to others, or damage to the instrument
or other property. Therefore the instrument should only be used for its
designated purpose, and in a perfect technical condition. Any defect that
could have a negative effect on safety should be repaired and recorded.
1.5 Copyright
The copyright of this operating manual remains with TQC Sheen. This
operating manual is intended solely for the user and his personnel. Its
instructions and guidelines may not be duplicated, circulated or otherwise
passed on to others, neither fully, nor partly. Infringement of these
restrictions may lead to legal action may be taken if this restrictions are
infringed upon.
1.6 Manufacturer’s/Supplier’s address
Industrial Physics (TQC Sheen)
Molenbaan 19
2908 LL Capelle aan den IJssel
The Netherlands
T [phone]
F [phone]
1 GENERAL

5 |
2.1 Meaning of Symbols
The following symbols for dangers are used in this instruction manual.
2.2 Availability of Safety Information
The instruction manual should be kept in proximity to where the instrument
operates and should be visible and accessible at any time of operation.
In addition to the information contained in the instruction manual, general
and local regulations for accident prevention and environmental protection
shall be kept available and observed. Always ensure all guidelines in respect
of safety and dangers on the instrument are in readable condition.
In case of danger the instrument has to be switched off by means of the on /
off switch at the left back side of the instrument or by unplugging the mains
power, then the danger should be eliminated.
2.3 Dangers from Electrical Energy
• Work on the electrical supply may only be done by a qualified electrician.
• The electrical equipment of the instrument must be checked regularly.
Loose connections and cables damaged by heat must be corrected
immediately.
• Always make sure the instrument’s power is turned off while adjusting any
electrical component.
Make sure that no paint or other liquids are spilled on the
electronics
2.4 Modications to the Equipment
• Any modifications or additions or alterations to the instrument may solely
be made with permission from the manufacturer otherwise the warranty
will be void.
• Instruments which are not in fault-free condition must immediately be
switched off
• Only use replacement parts from the original supplier. Parts used from
other sources aren’t guaranteed to take the loading and meet the safety
requirements.
Possible immediate
danger to the life or
health of personnel.
If this guideline is not noted
it can lead to severe danger
to health, up to fatal injury.
A dangerous situation
could be caused.
Non observance of this
guideline can lead to injury
or to damage to equipment.
Special tips and
particular information.
Guidelines to make optimal
use of the instrument.
2 SAFETY INSTRUCTIONS

| 6
3.1 Packing
• Please take note of pictorial symbols on the packing.
• Check for transport damages. If the packaging is damaged only accept it
with a written approval of the transporter that the package was damaged.
3.2 User: Check on Receipt
• Check packing for damage
• After unpacking check complete supply.
3.3 Reporting Transport Damage and Documentation
• Any damage should be documented as accurately as possible (possibly
photographed) and reported to the relevant insurers or, in the case of sales
“delivered to customers works”, to the supplier.
3.4 Storage and Protective Measures when not in use
• The instrument must be stored in a dry place at a temperature
between 10 - 40˚C / 50 - 104˚F.
• If packing is damaged upon receipt immediately inform the forwarder and
make a note on the packing list and have it signed by the forwarder. Ideally
make some pictures of the damage as well.
• Store instrument in the original packing if possible.
3 TRANSPORT AND STORAGE

7 |
4 INSTRUMENT DATA
1x Stand 2x Allen Keys
2x Hex screw
Standard supplied
4.3 Technical Data Camera tool
Camera Tool
min. height 360 mm / 14.17 inch
max. height 480 mm / 18.89 inch
weight 1,6 kg
complete length 415 mm / 16.53 inch
width 150 mm / 5.90 inch
camera hight 20 mm / 0.78 inch
Sensor OmniVision’s 5.04 MPix CMOS
Resolution 15.0 fps at full resolution
(2592 x 1944 pixels)
Focus variable
pixel size 1.4 µm
Colour colour reproduction
LinQ
Power supply Not necessary
Software
Operation System Windows 10
4.1 Name / Article
AB6015 Camera Tool
4.2 Scope of Supply
1x Camera
1x Base Plate
1x LinQ 1x Ethernet kabel 1x USB Kabel A to B 1x Software 1x Manual
1x Micro USB Cable

| 8

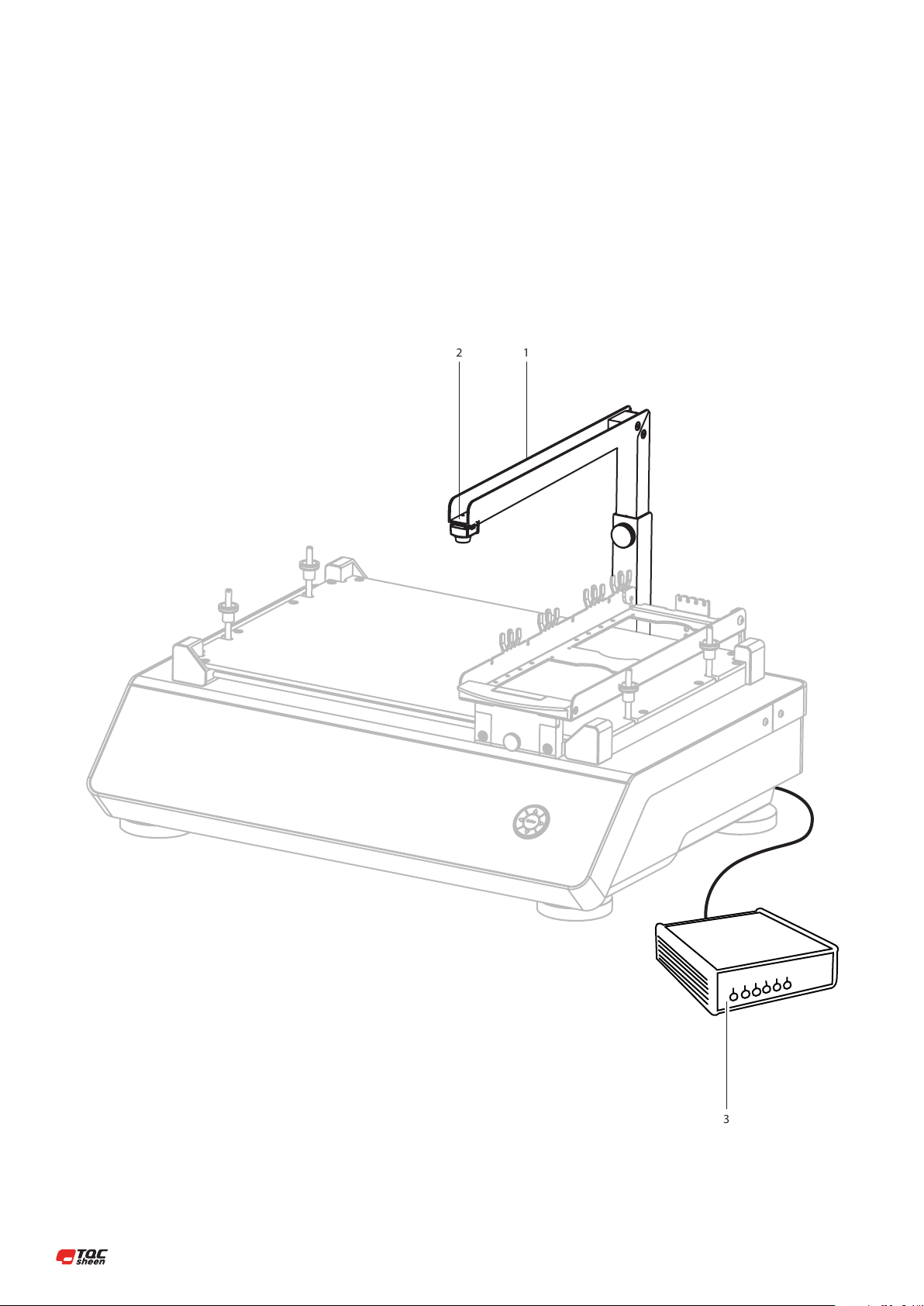

5 INSTRUMENT LAYOUT AND FUNCTIONS
Stand
Camera tool
LinQ
1
2
3
12
5.1 Instrument Layout
3

9 |
6 INSTRUMENT PREPARATIONS
Install the software
This screen will be displayed after turning
on the instrument.
Press OK for 5 sec.
1
6 7
6.1 Installation
Connect the Ethernet-cable to the LinQ port
at the back of the TQC BUS on the device.
4Place the Tool Holders first, then place the
Tools.
5
Install the software2
6.2 Software instalation on computer
TQC
WTB- CA...
Connect the LinQ with the USB A to
B-cable to the USB-A port at the back of the
Computerl.
3
This screen will be displayed after
connecting.
8
6.5 Connecting camera tool to Computer
6.3 LinQ connecting with the computer
6.4 LinQ connecting to WBT
6.6 Starting the Instrument

7 SOFTWARE INSTALLATION
Software download1
7.1 Software instalation on computer
TQC
WTB- CA...
Open Software and add the parameters on
Manual Run. Press Enter. The device will run
the defined Setup.
2
Open Camera Settings and Select the
Camera. Press Start Button to continue.
4
7.3 Camera Settings
To Analyze the Video, open Analyze and
choose the Slide Show. Here you can Select
the Run and Play the Video .
5
7.4 Analyze the video
On File Properties it is possible to define the
position.
3

11 |
• Though robust in design, this instrument is precision-machined.
Never drop it or knock it over.
• Always clean the instrument after use.
• Clean the instrument using a soft dry cloth. Never clean the instrument
by any mechanical means such as a wire brush or abrasive paper. This may
cause, just like the use of aggressive cleaning agents, permanent damage.
• Do not use compressed air to clean the instrument.
• Never bend or exert extreme forces on the tool carrier
• Generally the TQC Sheen Scrub Abrasion and Washability Tester does not
require any maintenance.
Make sure that no paint or other liquids are spilled on the
electronics or left in the tubing.
8.1 Disposal of Materials
Disposal of materials used in the operation of the instrument or for auxiliary
functions and exchanged items should be dealt with safety and in a manner
that will not harm the environment. Follow the local regulations.
8.2 Customer Service
Customer service is provided on request by
Industrial Physics (TQC Sheen)
Molenbaan 19 , 2908LL Capelle aan den IJssel - The Netherlands,
T [phone], F [phone] or by local representatives.
8 CARE AND MAINTENANCE
The right of technical modifications is reserved.
The information given in this manual is not intended to be exhaustive and
any person using the product for any purpose other than that specifically
recommended in this manual without first obtaining written confirmation
from us as to the suitability of the product for the intended purpose does
so at his own risk. Whilst we endeavor to ensure that all advice we give
about the product (whether in this manual or otherwise) is correct we have
no control over either the quality or condition of the product or the many
factors affecting the use and application of the product. Therefore, unless
we specifically agree in writing to do so, we do not accept any liability
whatsoever or howsoever arising for the performance of the product or for
any loss or damage (other than death or personal injury resulting from our
negligence) arising out of the use of the product. The information contained
in this manual is liable to modification from time to time in the light of
experience and our policy of continuous product development.
9 DISCLAIMER
