Traction Hobby Founder II Off-Road Performance User manual

1/8th SCALE ELECTRIC
PERFORM ANCE
OFF-ROAD

1
II
f o u n d e r II
To prevent serious personal injury and/or property damage, operate all remotely controlled models in a
responsible manner as outlined herein.
CHOOSE THE RIGHT PLACE TO OPERATE YOUR R/C MODEL.
INSPECT YOUR MODEL BEFORE OPERATION.
AFTER OPERATION OF YOUR R/C MODEL.
Do not run on public streets or highways. This could cause serious accidents, personal injuries, and/or damage.
Never run R/C models near people or animals.
To avoid injury, do not run in confined spaces.
Do not run where loud noises can disturb others, such as hospitals and residential areas.
Never run indoors. There is high risk of fire and/or damage.
Make sure that screws and nut are properly tightened. It is also a good idea to use removable thread lock wherever metal
screws go into metal, especially for engine mounts and the engine pilot shaft.
Always use fresh batteries for your transmitter and for your receiver to avoid losing control of the model.
Always test the brakes and throttle before starting your engine to avoid losing control of the model.
Make sure no one else is using the same radio frequency as you are using.
Turn off receiver first, then turn off transmitter, this will prevent runaways.
Be careful when handling batteries, they will be hot after running.
Replace any batteries that have been dented or have frayed wires, short circuits can cause fire.
Be sure to keep your R/C model clean of excess dirt and grease, this will increase the life.
CAUTIONS
Equipment needed
Supplied Tools and Equipment
6 or 7-cell NiMH battery/2s-3s LiPo battery
Battery Maximum Size :155mm×52mm×32mm
AA battery ×4
Charger
1.5mm "L"wrench 2.0mm "L"wrench 2.5mm "L"wrench 4-way wrench

2
II
f o u n d e r II
Chassis top view
Receiver Connection
Steering Servo
2 Speed Shifting Servo Front Diff Lock Servo
Rear Diff Lock Servo
2WD/4WD Shifting Servo
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
Receiver
BATTERY
Brushed Motor
CH1: Steering Servo
CH2: Brushed ESC
CH3: 2WD/4WD Shifting Servo
CH4: 2 Speed Shifting Servo
CH5: Front Diff Lock Servo
CH6: Rear Diff Lock Servo

3
II
f o u n d e r II
Radio Maintenance
Bind/VCC
LED
Antenna CH 1-6
Receiver
Battery
Compartment
Button
(Channel 3)
Throttle/Brake
(Channel 2)
Steering
D/R
Power Switch
BACK/Exit
BIND
LED Indicator
LCD
Channel 5
NaviKey
(Rotate to “Select”, press to
“Confirm”)
3 Position Switch
(Channel 4)
Steering Trim
(Channel 1)
Throttle Trim
(Channel 2)
Steering Wheel
(Channel 1)
Channel 6
Antenna
Transmitter

4
II
f o u n d e r II
Servo Function Maintenance(CH3-CH6)
This product’s standard version is RTR. It has been adjusted and ready to run. Ifyou accidentally reset the transmitter, change another new THT6 or servos, please
read the following guide carefully!
1. Press the Navikey to enter the function menu, then rotate the Navikey to select EPA. Press the Navikey again to enter the function. The channel
name and number will begin to flash.
2. Rotate the Navikey to select the AUX Channel 4 and press the Navikey to confirm the selection.
3. Move the CH4 channel control, the system will display L.F.U (Left, Front, Up) or R.B.D (Right, Back, Down) depending on the selection. Press
the Navikey again to confirm.
4. Rotate the Navikey to change the both side endpoint position to 40% and press the Navikey to confirm.
5. Plug the 2-speed servo cable into the receiver s Channel 4 Please notice the place of anode and cathode then adjusting the EPA’ . , “ ”.
. Increase the .F.U (Left, Front, Up) EPA gradually of the CH4, pay attention to the state of the 2-speed servo increase to be shown as “Chart.1”,6 L
the red mount is as close as possible to the gearbox and the servo has no “Zizizi” sound, else decrease the value. Then pull the throttle trigger,
if the red mount’s position has no change. Move the CH4 channel control of TH-GT5 to shift the servo direction, the position of the servo arm is
shown as “Chart.2”, increase the .B.D ( ght, ck, wn) EPA gradually of the CH4 option then pull throttle trigger a little. Repeat the step till R Ri Ba Do
the servo has no “Zizizi” sound, else decrease the value. Finally check the 2-speed shifting function.

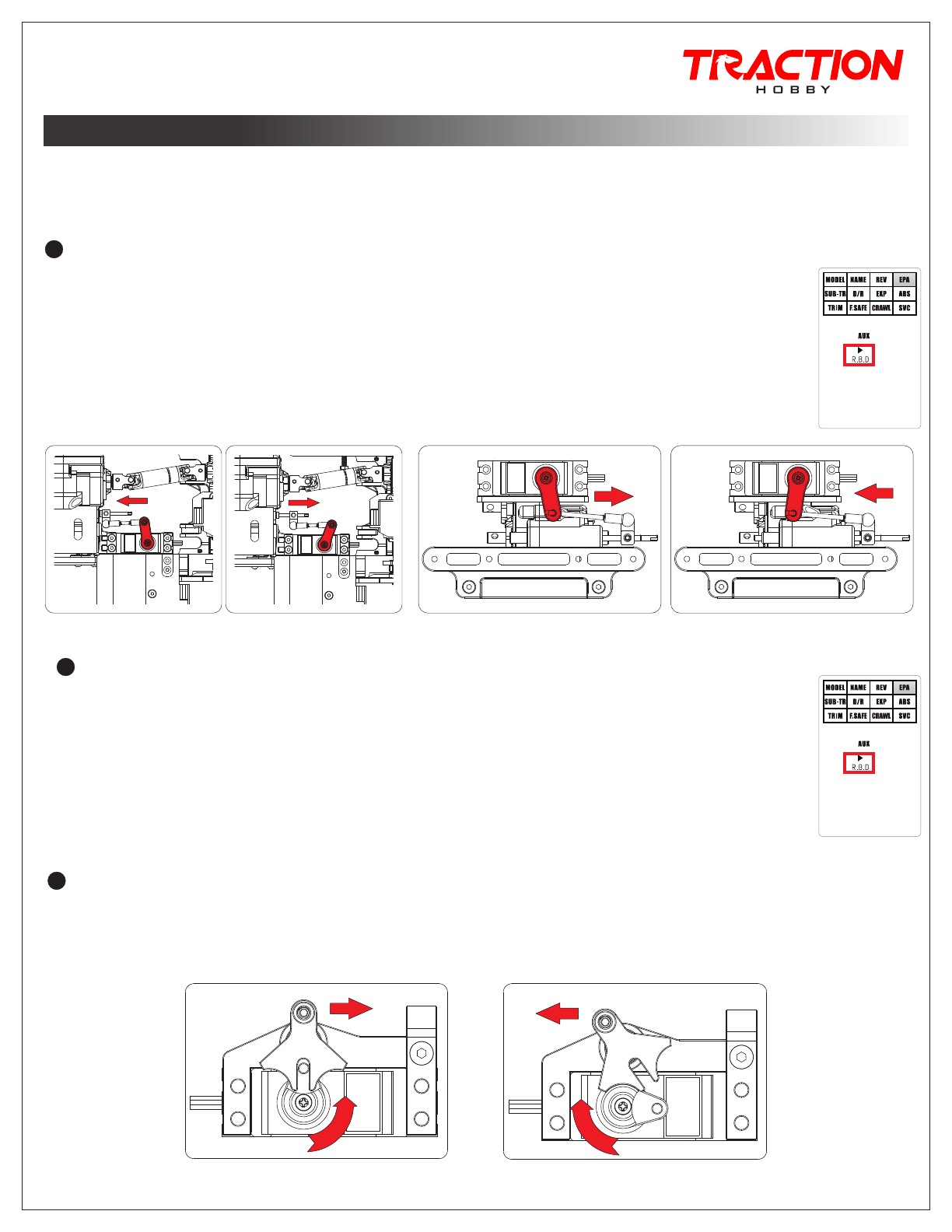

2 Speed Shifting Servo Setting
Before setting, make sure you have already setup the CH1(Steering) and CH2(Throttle), and no other servos connected to the CH3-CH6.
Make sure the car is power on, throttle servo and steering servo is active, overhead the 4 wheels to make the wheels off the ground.
440%
1. Press the Navikey to enter the function menu, then rotate the Navikey to select EPA. Press the Navikey again to enter the function. The channel
name and number will begin to flash.
2. Rotate the Navikey to select Channel and press the Navikey to confirm the selection.the AUX 3
3. , he system will display L.F.U (Ieft, front, up) or R.B.D (right, back, down) depending on the selection. Press the Navikey Press the CH3 button t
again to confirm.
4. Rotate the Navikey to change the endpoint position % and press the Navikey to confirm.both side to 20
5. Plug the corresponding servo cable into the receiver’s Channel 3. Please notice the place of anode and cathode, then adjusting the “EPA”.
6. Increase the L.F.U (Left, Front, Up) EPA gradually of the CH3, pay attention to the state of the shift servo, increase to be shown as “Chart.3”,
the red mount is as far away from the gearbox as possible and the servo has no “Zizizi” sound, else decrease the value. Then pull the throttle
trigger, if the red mount’s position has no change and the front wheels don’t turn, press the CH3 button to shift the servo direction, the position of
the servo arm is shown as “Chart.4”, increase the .B.D ( ght, ck, wn) EPA gradually of the CH3, then pull throttle trigger a little. Repeat the R Ri Ba Do
step till the servo has no “Zizizi” sound. Finally check the 2WD/4WD shifting function.
2WD/4WD Shifting Servo Setting
Front and Rear Diff Lock Setting
320%
Chart.1 low speed servo state Chart.2 high speed servo state Chart.3 2WD servo state Chart.4 4WD servo state
Chart.6 Diff unlock servo state
Chart.5 Diff lock servo state
1. Plug the corresponding servo cables into the receiver’s Channel 5 and Channel 6. Please notice the place of anode and cathode, then adjusting the “EPA”.
2. Pull back the toggle switch, the diff locks, the state is shown as “Chart.5”, check if the wheels turn by hand. If the wheels turn, maybe the cable is too tight, loose the
set screw to adjusting the cable till the diff locks, then tighten the set screw.
3. Push the toggle switch, the diff unlocks, the state is shown as “Chart.6”, check if the wheels turn by hand. If the wheels not turn, check if the cable is too tight, then
check if both ends of the cable are plugged into the corresponding groove.

5
II
f o u n d e r II
THJ329
M 28mm3×
THJ327
M 20mm3×
THJ212
M 14mm3×
THJ212
M 14mm3×
THJ056
THJ239
(A/B/C)
A：120.2mm
B：126.8mm
C：125.7mm
STEERING LINK
(A/B/C)
PANHARD BAR
A：120.2mm
B：126.8mm
C：125.7mm
AA
BB
CC
(A/B/C)
A：194mm
B：207mm
C：204mm
DRAG LINK
AB
C
Portal Axle Steering System Maintenance
These three installation states setup are based on
90mm shock
If you setup ‘C’ state, you must install
a 4.6mm spacer (packed in the parts bag)
For ‘B’ and ‘C’ state, you should replace the linkages
(packed in the parts bag)
‘A’ state is standard state, ‘B’ and ‘C’ states are setup
with Ackermann steering

6
II
f o u n d e r II
Front Assembly
THJ301
THJ259
THJ259
THJ259
THJ259
THJ259
THJ259
THJ297
THJ407
THJ297
THJ058
THJ058
THJ058
THJ058
THJ058
THJ058
THJ058
THJ058
THJ250
THJ058
THJ259
THJ056
THJ259
THJ259
THJ259
THJ300
THJ299
THJ212
THJ212
THJ333
THJ207
THJ277
THJ312
THJ305
THJ237
THJ237
THJ315
THJ277
THJ274
THJ274
THJ333
THJ058
THJ058
THJ058
THJ329
THJ337
THJ278
THJ344
THJ337
THJ250
THJ084
THJ274
THJ338
THJ338
THJ339
THJ339
THJ339
THJ084
THJ084
THJ259
THJ334
THO026
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO026
THJ334
THJ239
THJ239
THJ239
THJ239
L/R
THJ038
THJ343
THJ343
THJ325
THJ038
THJ325
THJ038
THJ343
THJ343
THJ401
THJ401
THJ399
THJ399
THJ400
THJ400 THJ397
THJ398
THJ396
THJ391
THJ391
THJ325
THJ084
THJ038
THJ325
THJ314
THJ237
THJ040
THJ333
THJ084
THJ084
THJ276
THJ086
THJ341
THJ279
THJ246
THJ318
THJ280
THO006
THJ309
THJ276

7
II
f o u n d e r II
THJ252
THJ252
THJ326
THJ334
THJ074
THJ354
THJ324
THJ253
THJ026
THJ075
THJ242
THJ335
THJ340
THJ255
THJ252
THJ252
THJ252
THJ335
THJ335
THJ367
THJ367
THJ237
THJ237
THJ350
THJ350
THJ333
THJ333
THJ256
THJ256
THJ350
THJ302
THJ302
THJ293
THJ293 THJ255 THJ212
THJ212
THJ360
THJ340
THJ007
THJ237
THJ084
THJ084
THJ084
THJ353
THJ353
THJ353
THJ284
THJ316
THJ320
THJ320
THO011
THJ258
THO003
THO014
THO012
THO004
THO011
THO013
THJ288
THJ084
THJ083
THJ083
THJ313
THJ313
THJ317
THJ310
THJ310
THJ291
THJ292
THJ286 THJ083
THJ083
THJ083
THJ084
THJ304
THJ344
THJ344
THJ343
THJ352
THJ207
THJ359
THJ358
THJ260
THJ303
THJ260
THJ084
THJ290
THJ083
THJ346
THJ342

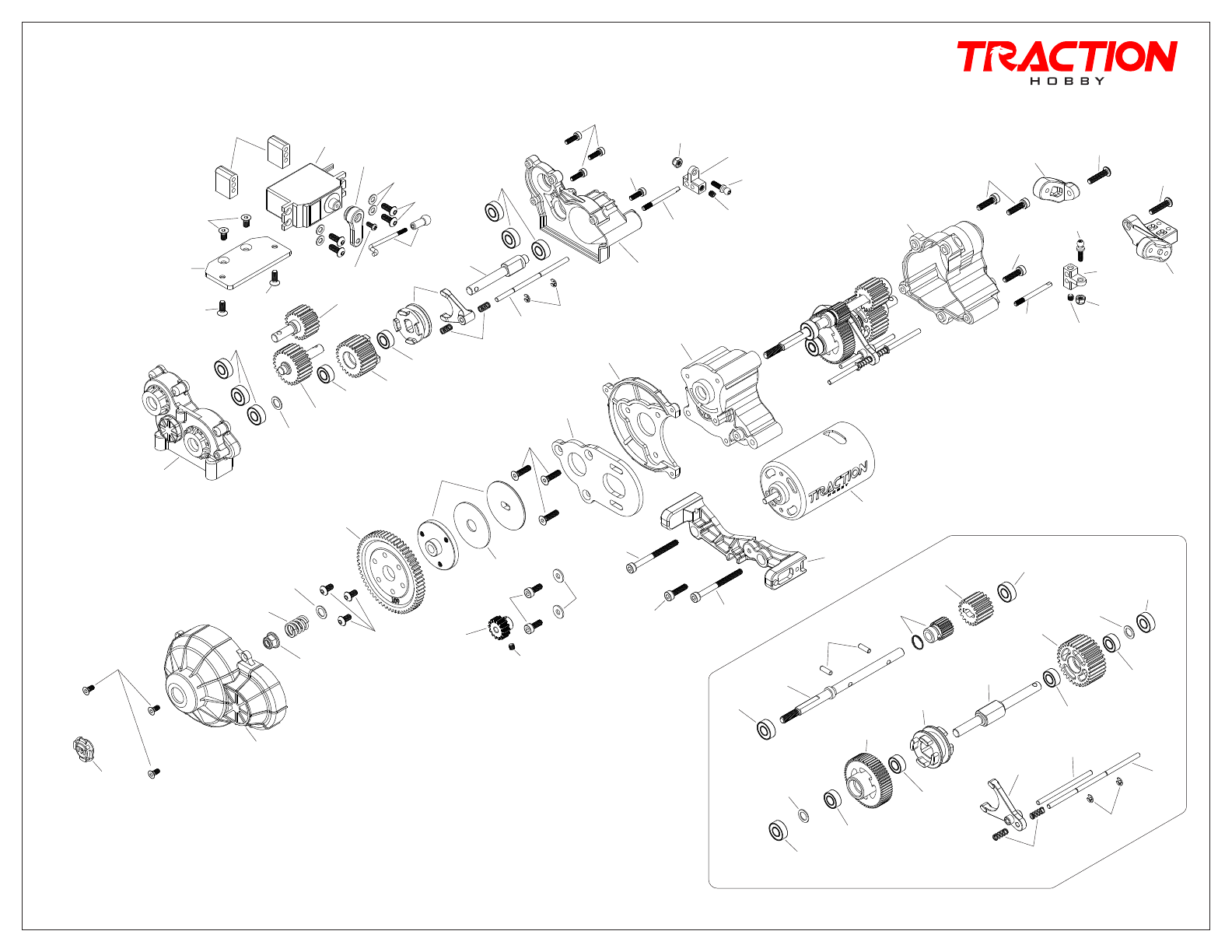

Transmission Assembly

8
II
f o u n d e r II
THJ322
THJ322
THJ346
THJ346
THJ080
THJ264
THJ269
THJ269
THJ269
THJ268
THJ361
THJ345
THJ344
THJ344
THJ344
THJ308
THJ308
THJ344
THJ344
THJ344
THJ345
THJ345
THJ345
THJ344
THJ345
THJ345
THJ347
THJ347
THJ207
THJ262
THJ263
THJ268
THJ359
THJ321
THJ350
THJ237
THJ321
THJ406
THJ406
THJ321
THJ311
THJ352
THJ212
THJ213
THJ324
THJ348
THJ348
THJ348
THJ222
THJ222
THJ222
THJ222
THJ030
THJ062
THJ062
THJ241
THJ263
THJ262
THJ062
THJ068
THJ068
THJ068
THJ241
THJ351
THJ324
THJ358
THJ359
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ207
THJ207
THJ207
THJ209
THJ209
THJ209
THJ209
THJ209
THJ326
THJ302
THJ207
THJ240
THJ325
THJ325
THJ325
THJ266
THJ260
THJ260
THJ358
THJ266
THJ267
THJ267
THJ212
THJ212
THJ212
THJ212
THJ266
THJ266 THJ267
THJ267
THJ326
THJ326
THJ381
THJ381
THJ344
THJ307
THJ240
THJ240
THJ268
THJ307
THJ344
THJ207
THJ251
THO015
THJ207
THJ319
THJ349
THJ264
THJ264
THJ324
THJ387
THJ387
THJ387
THJ327
THJ327
THJ244
THJ244
THJ264
THJ324
THJ324
THJ324
THJ324
THJ324
THJ324
THO027
THO027
THO027
THO027
THO034
THO034
THO034
THO034
THO027
THO027
THO027
THO027
THJ325
THJ325
THJ242
THJ261 THJ344
THJ255
THJ325
THJ242
THJ095
THO025
Chassis Assembly
THJ359
THJ321
THJ350
THJ237
THJ321
THJ321
THJ311
THJ352
THJ212
THJ213
THJ324
THJ324
THJ358
THJ260

9
II
f o u n d e r II
THJ277
THJ277
THJ278
THJ344
THJ337
THJ337
THJ084
THJ084
THJ084
THJ324
THJ324
THJ334
THJ334
THJ324
THJ324
THJ084
THJ084
THJ084
THJ084
THJ084
THJ339
THJ334
THJ334
THJ339
THJ338
THJ239
THJ239
THJ250
THJ250
THO026
THO026
THO026
THJ239
THJ239
THJ058
THJ058
THJ058
THJ058
THJ058
THJ058
THJ259
THJ259
THJ399
THJ399
THJ314
THJ314
THJ040
THJ040
THJ237
THJ237
THJ333
THJ333
THJ399
THJ399
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025
THO025 THJ237
THJ306
THJ237
THJ315
THJ312
THJ207
THJ259
THJ259
THJ259
THJ340
THJ259
THJ259
THJ259
THJ297
THJ297
THJ298
THJ298
THJ058
THJ338
THJ084
THJ275
THJ275
THJ333
THJ333
Rear Assembly
Shock Assembly
THJ070
THJ049
THJ295
THJ055
THJ243
THJ243
THJ050
THJ051
THJ052
THJ259
THJ296
THJ070
THJ070
THJ054
THJ054

10
II
f o u n d e r II

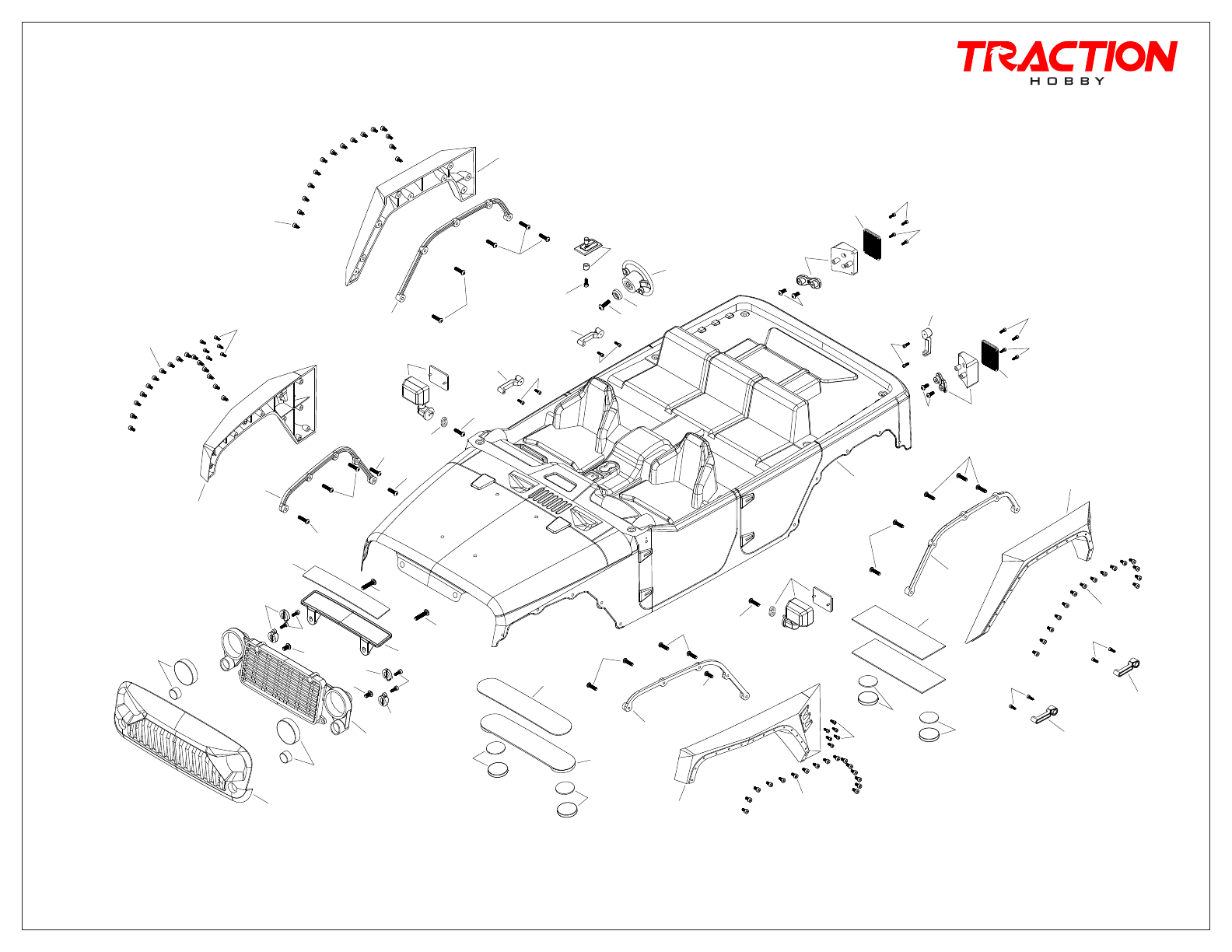

Body Assembly
THO029
THO032
THO032
THO032
THO032
THJ065
THJ308
THJ308
THJ308
THJ308
THJ267
THJ365
THJ365
THJ063
THJ063
THJ270
THJ365
THJ212
THJ212
THJ063
THJ218
THJ218
THJ204
THJ209
THJ064
THJ065
THJ062
THJ062
THJ064
THJ369
THJ064 THO031
THO031
THO031
THO031
THO031
THO028
THO028
THO028
THO028
THJ064
THJ065
THJ204
THJ204
THJ204
THJ204
THJ203
THJ203
THJ204
THJ204
THJ204
THJ204
THJ204
THJ066
THJ405
THJ405
THJ405
THJ405
THJ402
THJ402
THJ403
THJ403
THJ403
THJ403
THJ403
THJ403
THJ403
THJ403
THJ403
THJ066
THJ067
THJ067
THJ204
THJ322
THJ322
THJ218
THJ324
THJ324

11
II
f o u n d e r II
Roll-cage Assembly
THJ324
THJ270
THJ391 THJ391
THO031
THJ369
THJ218
THJ204
THJ204
THJ204
THJ202
THJ202
THJ212
THJ212 THJ204
THJ204
THJ218
THJ063
THJ063
THJ063
THJ209
THJ213
THJ213
THJ213
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ209
THJ064
THJ064
THJ064
THJ064
THJ064
THJ064
THJ064
THJ064
THJ064
THJ062
THJ062
THJ213
THJ403
THJ403
THJ403
THJ403
THJ404
THJ404
THJ333
THJ333
THJ202
THJ202
THJ213
THJ213
THJ213
THJ207
THJ207
THJ207
THJ207
THJ065
THJ065
THJ062
THJ063
THJ062
THJ369
THO102 THO102
THO033
THO033
THO033
THO033
THO033
THO033
THO102
THJ323

12
II
f o u n d e r II
Modular Assembly
THJ327
THJ327
THJ326
THJ326
THJ069
THJ092
THJ090
THJ089
THJ221
THJ088 THJ091
THJ241
THJ219
THJ069
THJ327
THJ244
THJ244
THJ039
THJ039
THJ244
THJ244
THJ039
THJ039
THJ239
THJ239
THJ327
THJ213
THJ338
THJ338
THJ240
THJ240
194 mm
STEERING LINK
DRAG LINK
PANHARD BAR
UPPER LINK
LOWER LINK
120.2 mm
120.2 mm
131.7 mm
138.2 mm

13
II
f o u n d e r II
THJ007 Pinion gear 14T(1pc)
THJ026 Slipper plate(1pc)
THJ038 King pin bushing(1pc)
THJ039 Drive shaft(2pcs)
THJ040 Hex hub 12mm(2pcs)
THJ058 Ball 7mm(5pcs)
THJ074 Slipper spring(1pc)
THJ075 Slipper pad(1pc)
THJ078 Brushed ESC 60A(1pc)
THJ080 Velcro strap 20×200mm(1pc)
THJ083 Bearing 5×10×4(1pc)
THJ084 Bearing 5×11×4(3pcs)
THJ086 Bearing 10×15×4(1pc)
THJ095 Servo 20kg(1pc)
THJ202 M2×10 Button head screw(black)(10pcs)
THJ203 M2.5×6 Button head screw(black)(10pcs)
THJ204 M2.5×10 Button head screw(black)(10pcs)
THJ207 M3×8 Button head screw(black)(10pcs)
THJ209 M3×10 Button head screw(black)(10pcs)
THJ212 M3×14 Button head screw(black)(10pcs)
THJ213 M3×16 Button head screw(black)(10pcs)
THJ218 M2×6 Cap head screw(black)(10pcs)
THJ237 M3×3 Set screw(black)(10pcs)
THJ239 M3 Nylon nut(black)(10pcs)
THJ240 MNF30(10pcs)
THJ241 MNF40(10pcs)
THJ242 Washer 3.2×8×1mm(silver)(10pcs)
THJ243 E-clip 2.5mm(silver)(10pcs)
THJ244 M4×2.5×12mm screw shaft(10pcs)
THJ246 Differential Pads(10pcs)
THJ247 C Hub carrier set(1pc)
THJ249 Rear axle lock-out(1pc)
THJ250 Linkage seat(1pc)
THJ251 Frame brace plate(1pc)
THJ252 2 speed gear box set(1pc)
THJ253 60T Spur gear slipper set(1pc)
THJ255 2 speed gear box brace(1pc)
THJ256 Transfer box set(1pc)
THJ259 Linkage ball set(2pcs)
THJ260 Servo arm set(1pc)
THJ261 Servo arm(1pc)
THJ262 Front bumper set(1pc)
THJ263 Rear bumper set(1pc)
THJ264 Side plates set(1pc)
THJ266 Shock hoops set(1pc)
THJ267 Body mount set(1pc)
THJ268 ESC dust cover(1pc)
THJ269 Battery mount plate set
THJ270 Body decoration set
THJ274 Solid axle set front(1pc)
THJ275 Solid axle set rear(1pc)
THJ276 Bearing seat(2pcs)
THJ277 Differential lock set(2pcs)
THJ278 12T Bevel gear set(2pcs)
THJ279 36T Bevel gear(2pcs)
THJ280 Diff gear set(2pcs)
THJ282 Straight axle Shaft(2pcs)
THJ284 Gear-Box First Shaft(1pc)
THJ285 Motor mount plate(1pc)
THJ286 Gear-Box Second Shaft(1pc)
THJ288 18T Spur gear(1pc)
THJ290 Transfer case rear output shaft(1pc)
THJ291 Shift link set(1pc)
THJ292 Transfer box clutch link set(1pc)
THJ293 Connecting seat(1pc)
THJ295 Ball 5.5mm(1pc)
THJ296 Ball 5.8mm(5pcs)
THJ297 Down threaded stainless steel link(2pcs)
THJ298 Up threaded stainless steel link(2pcs)
THJ299 Front threaded stainless steel link(1pc)
THJ300 Steering threaded Stainless steel link(1pc)
THJ301 Servo threaded Stainless steel link(1pc)
THJ302 Gearbox turnbuckle set(1pc)
THJ303 Transfer case turnbuckle set(1pc)
THJ304 Servo mount plate(1pc)
THJ305 Front cable set(1pc)
THJ306 Rear cable set(1pc)
THJ307 Chassis rail set(1pc)
THJ308 Magnet set(1pc)
THJ309 Bearing 15×21×4mm(1pc)
THJ310 E-clip 2mm(1pc)
THJ338 M3×20 Cap head screw(black)(10pcs)
THJ337 M3×16 Cap head screw(black)(10pcs)
THJ336 M3×14 Cap head screw(black)(10pcs)
THJ335 M3×12 Cap head screw(black)(10pcs)
THJ334 M3×8 Cap head screw(black)(10pcs)
THJ333 M2.5×8 Cap head screw(black)(10pcs)
THJ312 Spring D2.6×12.7mm(1pc)
THJ311 Bearing 5×8×2.5mm(1pc)
THJ313 Spring(1pc)
THJ314 Pin 2.0×11mm(10pcs)
THJ315 Pin 2.0×21mm(10pcs)
THJ319 Antenna pipe set(1pc)
THJ318 Pin 3×23mm(10pcs)
THJ317 Pin 2.5×43mm(5pcs)
THJ316 Pin 2.5×8mm(10pcs)
THJ321 Self-lock device of diff lock(1pc)
THJ322 M2.5×8 Button head screw (black)(10pcs)
THJ320 First gear set(1pc)
THJ323 M3×4 Button head screw (black)(10pcs)
THJ324 M3×6 Button head screw (black)(10pcs)
THJ325 M3×12 Button head screw(black)(10pcs)
THJ326 M3×18 Button head screw(black)(10pcs)
THJ327 M3×20 Button head screw(black)(10pcs)
THJ328 M3×22 Button head screw(black)(10pcs)
THJ329 M3×28 Button head screw(black)(10pcs)
THJ339 M3×22 Cap head screw(black)(10pcs)
THJ340 M3×35 Cap head screw(black)(10pcs)
THJ341 M2×12 Flat head screw(black)(10pcs)
THJ342 M2.5×6 Flat head screw(black)(10pcs)
THJ343 M3×6 Flat head screw(black)(10pcs)
THJ344 M3×8 Flat head screw(black)(10pcs)
THJ345 M3×10 Flat head screw(black)(10pcs)
THJ346 M3×12 Flat head screw(black)(10pcs)
THJ347 M3×14 Flat head screw(black)(10pcs)
THJ348 M4×25 Flat head screw(black)(10pcs)
THJ349 M3×5 Set Screw(black)(10pcs)
THJ350 M2.5 Nylon Nut(black)(10pcs)
THJ352 Washer 3×7×0.5mm(10pcs)
THJ353 Washer 5×8×0.5mm(10pcs)
THJ354 Washer 5×9×0.8mm(10pcs)
THJ356 Washer 15×17×0.2mm(10pcs)
THJ358 M2.2×8 Tp.Binder Head Screw(black)(10pcs)
THJ359 TH2503 servo(4pcs)
THJ360 550 Motor 28T(1pc)
THJ361 Dust proof set(1pc)
THJ365 Double side tape kit(1pc)
THJ367 Gearshift pin(1pc)
THJ369 Clear body set(1pc)
THJ391 M2.5×4 Button head screw(black)(10pcs)
THJ396 Bearing 12×18×4(4pcs)
THJ397 Bearing 5×9×3(4pcs)
THJ398 E-clip 7mm(10pcs)
THJ399 M2.5×10 Cap head screw(black)(10pcs)
THJ400 M2.5×12 Cap head screw(black)(10pcs)
THJ401 M3×10 Cap head screw(black)(10pcs)
THJ402 M1.6×4 Cap head screw(silver)(10pcs)
THJ403 M1.6×5 Cap head screw(black)(10pcs)
THJ404 M1.6×16 Cap head screw(black)(10pcs)
THJ405 M2×4 Cap head screw(silver)(10pcs)
THJ406 Antenna set(1pc)
THJ407 Up threaded stainless steel link for FOUNDER II(2pcs)
THO003 Transfer case steel gear(20T)
THO004 Transfer case steel gear(25T)
THO006 Aluminum differential housing(1pc)
THO012 2WD/4WD Shifting fork and synchronizer(1pc)
THO013 Synchronizer gear (32T) for 2-Speed 2nd gear(1pc)
THO014 Synchronizer gear(25T) for 2WD/4WD Shifting(1pc)
THO015 Transfer case short drive shaft set(1pc)
THO025 Portal axle system(1pc)
THO026 90mm shock(4pcs)
THO027 Blade side frame(1pc)
THO028 Armor wheel lintel(1pc)
THO029 Angry face(1pc)
THO031 Wiper(1pc)
THO032 Lamp cover(1pc)
THO033 Standby tank rack(1pc)
THO034 Mudguard(1pc)
THO102 Window sheet(1pc)
THE001 TH-GT5 Transmitter(6channels)(1pc)
Parts List
