RTR ROCK REY User manual

Before operating this vehicle, please read all printed materials thoroughly.
Horizon Hobby is not responsible for inadvertent errors in this manual.
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION
MANUALE DI ISTRUZIONI
1/10 RTR ROCK RACER

EN
2
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
Age Recommendation: Not for children under 14 years. This is not a toy.
CONTENTS
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in dam-
age to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and
responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with
incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and mainte-
nance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS Always purchase from a Horizon Hobby, LLC authorized dealer to ensure authentic high-quality Spektrum product. Horizon
Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products
or products claiming compatibility with DSM or Spektrum.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC.
For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury.
REGISTER YOUR LOSI PRODUCT ONLINE
Register your vehicle now and be the first to find out about the latest option parts, product
updates and more. Click on the Support tab at WWW.LOSI.COM and follow the product
registration link to stay connected.
COMPONENTS
• Losi®Rock Rey™ RTR: 1/10-Scale 4WD Rock Racer (LOS03009T1/T2)
• Spektrum™ DX2E 2.4GHz Transmitter (SPM2330)
• Spektrum™ 4-Channel AVC®Surface Receiver (SPMSRS4220)
• Spektrum™ 12KG 23T Waterproof Metal Gear Servo (SPMS612HV)
• Dynamite®Fuze™ 130A Sensorless Brushless Waterproof ESC (DYN4955)
• Dynamite®Fuze™ 550 Brushless Motor 2800Kv 6-Pole (DYNS1614)
• 4 AA batteries (for transmitter)
TABLE OF CONTENTS
CONTENTS.................................................................................................................2
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS.........................3
QUICK START.............................................................................................................3
CHARGING THE BATTERY.........................................................................................3
INSTALLING THE BATTERY........................................................................................4
SPEKTRUM DX2E RADIO SYSTEM...........................................................................4
SRS4220 AVC TECHNOLOGY RECEIVER ................................................................4
INSTALLING THE TRANSMITTER BATTERIES...........................................................4
STABILITY ASSIST RECEIVER....................................................................................5
DRIVING PRECAUTIONS...........................................................................................5
POWERING ON THE VEHICLE...................................................................................5
BEFORE RUNNING YOUR VEHICLE ..........................................................................5
AVC SENSITIVITY ......................................................................................................5
DISABLING AVC TECHNOLOGY................................................................................6
PERFORMING A CONTROL DIRECTION TEST..........................................................6
RUN TIME...................................................................................................................6
CHANING THE TRAVEL ADJUST SETTINGS..............................................................6
DYNAMITE FUZE 130A SENSORLESS BRUSHLESS ESC .........................................6
DYNAMITE FUZE 2800KV BRUSHLESS MOTOR......................................................8
TROUBLESHOOTING GUIDE .....................................................................................8
LIMITED WARRANTY ................................................................................................9
WARRANTY AND SERVICE CONTACT INFORMATION ..........................................10
FCC STATEMENT ................................................................................................10
IC INFORMATION...............................................................................................10
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION................................10
REPLACEMENT PARTS ......................................................................................35–36
OPTIONAL PARTS....................................................................................................36

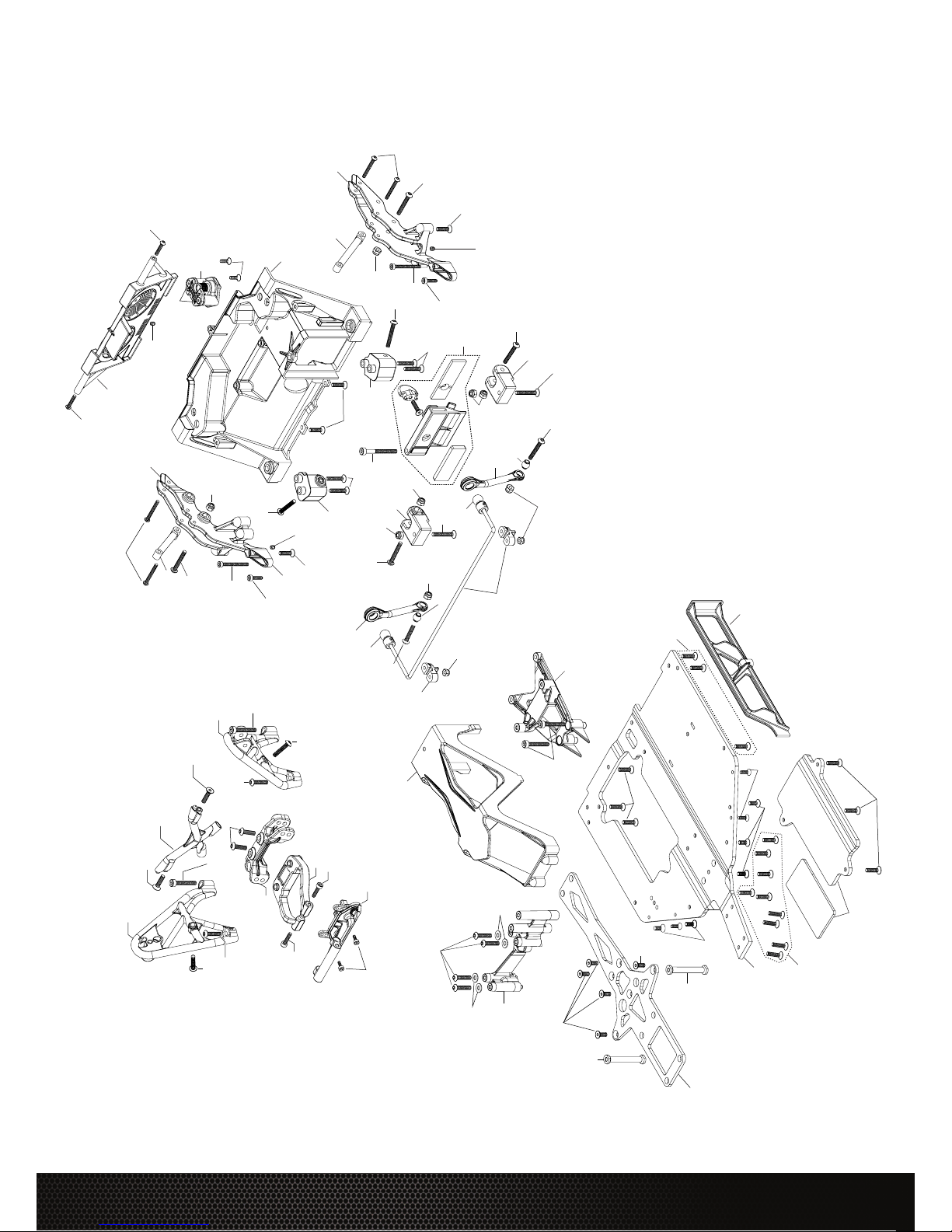

EXPLODED VIEWS.............................................................................................37–41
As the user of this product, you are solely responsible for operating in a manner that does not
endanger yourself and others or result in damage to the product or property of others.
This model is controlled by a radio signal subject to interference from many sources outside
your control. This interference can cause momentary loss of control, so it is advisable to
always keep a safe distance in all directions around your model as this margin will help avoid
collisions or injury.
• Never operate your model with low transmitter batteries.
• Always operate your model in open spaces away from full-size vehicles, traffic and people.
• Never operate the model in the street or in populated areas for any reason.
• Carefully follow the directions and warnings for this and any optional support equipment
(chargers, rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts and anything electrical out of the reach of children.
• Never lick or place any portion of the model in your mouth as it could cause serious injury
or even death.
• Exercise caution when using tools and sharp instruments.
• Take care during maintenance as some parts may have sharp edges.
• Immediately after using your model, do NOT touch equipment such as the motor,
electronic speed control and battery, because they generate high temperatures. You may
burn yourself seriously touching them.
• Do not put fingers or any objects inside rotating and moving parts, as this may cause
damage or serious injury.
• Always turn on your transmitter before you turn on the receiver in the car.Always turn off
the receiver before turning your transmitter off.
• Keep the wheels of the model off the ground when checking the operation of the radio
equipment.
SAFETY PRECAUTIONS AND WARNINGS
2ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

3
EN
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
Your new Horizon Hobby vehicle has been designed and built with a combination of
waterproof and water-resistant components to allow you to operate the product in many
“wet conditions,” including puddles, creeks, wet grass, snow and even rain.
While the entire vehicle is highly water-resistant, it is not completely waterproof and your
vehicle should NOT be treated like a submarine. The various electronic components used in the
vehicle, such as the Electronic Speed Control (ESC), servo(s) and receiver are waterproof, how-
ever, most of the mechanical components are water-resistant and should not be submerged.
Metal parts, including the bearings, hinge pins, screws and nuts, as well as the contacts
in the electrical cables, will be susceptible to corrosion if additional maintenance is not
performed after running in wet conditions. To maximize the long-term performance of your
vehicle and to keep the warranty intact, the procedures described in the “Wet Conditions
Maintenance” section below must be performed regularly if you choose to run in wet
conditions. If you are not willing to perform the additional care and maintenance
required, then you should not operate the vehicle in those conditions.
CAUTION: Failure to exercise caution while using this product and
complying with the following precautions could result in product malfunction
and/or void the warranty.
GENERAL PRECAUTIONS
• Read through the wet conditions maintenance procedures and make sure that you
have all the tools you will need to properly maintain your vehicle.
• Not all batteries can be used in wet conditions. Consult the battery manufacturer before
use. Caution should be taken when using Li-Po batteries in wet conditions.
• Most transmitters are not water-resistant. Consult your transmitter’s manual or the
manufacturer before operation.
• Never operate your transmitter or vehicle where lightning may be present.
• Do not operate your vehicle where it could come in contact with salt water (ocean
water or water on salt-covered roads), contaminated or polluted water. Salt water
is very conductive and highly corrosive, so use caution.
• Even minimal water contact can reduce the life of your motor if it has not been certified
as water-resistant or waterproof. If the motor becomes excessively wet, apply very light
throttle until the water is mostly removed from the motor. Running a wet motor at high
speeds may rapidly damage the motor.
• Driving in wet conditions can reduce the life of the motor. The additional resistance of
operating in water causes excess strain. Alter the gear ratio by using a smaller pinion or
larger spur gear. This will increase torque (and motor life) when running in mud, deeper
puddles, or any wet conditions that will increase the load on the motor for an extended
period of time.
WET CONDITIONS MAINTENANCE
• Drain any water that has collected in the tires by spinning them at high speed. With the
body removed, place the vehicle upside down and pull full throttle for a few short bursts
until the water has been removed.
CAUTION: Always keep hands, fingers, tools and any loose or hanging objects
away from rotating parts when performing the above drying technique.
• Remove the battery pack(s) and dry the contacts. If you have an air compressor or a can
of compressed air, blow out any water that may be inside the recessed connector housing.
• Remove the tires/wheels from the vehicle and gently rinse the mud and dirt off with a
garden hose. Avoid rinsing the bearings and transmission.
NOTICE: Never use a pressure washer to clean your vehicle.
• Use an air compressor or a can of compressed air to dry the vehicle and help remove
any water that may have gotten into small crevices or corners.
• Spray the bearings, drive train, fasteners and other metal parts with a water-displacing
light oil. Do not spray the motor.
• Let the vehicle air dry before you store it. Water (and oil) may continue
to drip for a few hours.
• Increase the frequency of disassembly, inspection and lubrication of the following:
- Front and rear axle hub assembly bearings.
- All transmission cases, gears and differentials.
- Motor—clean with an aerosol motor cleaner and re-oil the bushings
with lightweight motor oil.
WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS
QUICK START
Please read the entire manual to gain a full understanding of the Rock Rey vehicle, fine-tuning the setup and performing maintenance.
1. Read the safety precautions found in this manual.
2. Charge a battery for the vehicle. Refer to the included charging warnings
and instructions for battery charging information.
3. Install the AA batteries in the transmitter. Only use alkaline
or rechargeable batteries.
4. Install the fully charged battery in the vehicle.
5. Power ON the transmitter and then the vehicle. Wait 5 seconds for the ESC to
initialize. Always power the transmitter ON before the vehicle and power it OFF
after the vehicle has been powered OFF.
6. Check the steering and throttle control directions. Verify that the servos
are moving in the correct direction.
7. Drive your vehicle.
8. Perform any necessary maintenance.
Choose a battery designed to work with the Dynamite®Fuze™ 130A Sensorless BL Waterproof
ESC. We recommend the Dynamite®7.4 5000mAh 2S 30C LiPo: Hardcase with EC3™
connector (DYN9005EC) or Dynamite 11.1 5000mAh 3S 50C LiPo Hardcase with EC3 connector
(DYNB3803EC). Choose a charger designed to charge 2S and/or 3S Li-Po batteries. We
recommend the Dynamite®Prophet™ Sport Li-Po 35W AC Battery Charger (DYNC2005CA).
Refer to your battery and charger manuals for usage, safety, and charging information.
CHARGING THE BATTERY
3
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

EN
4
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL

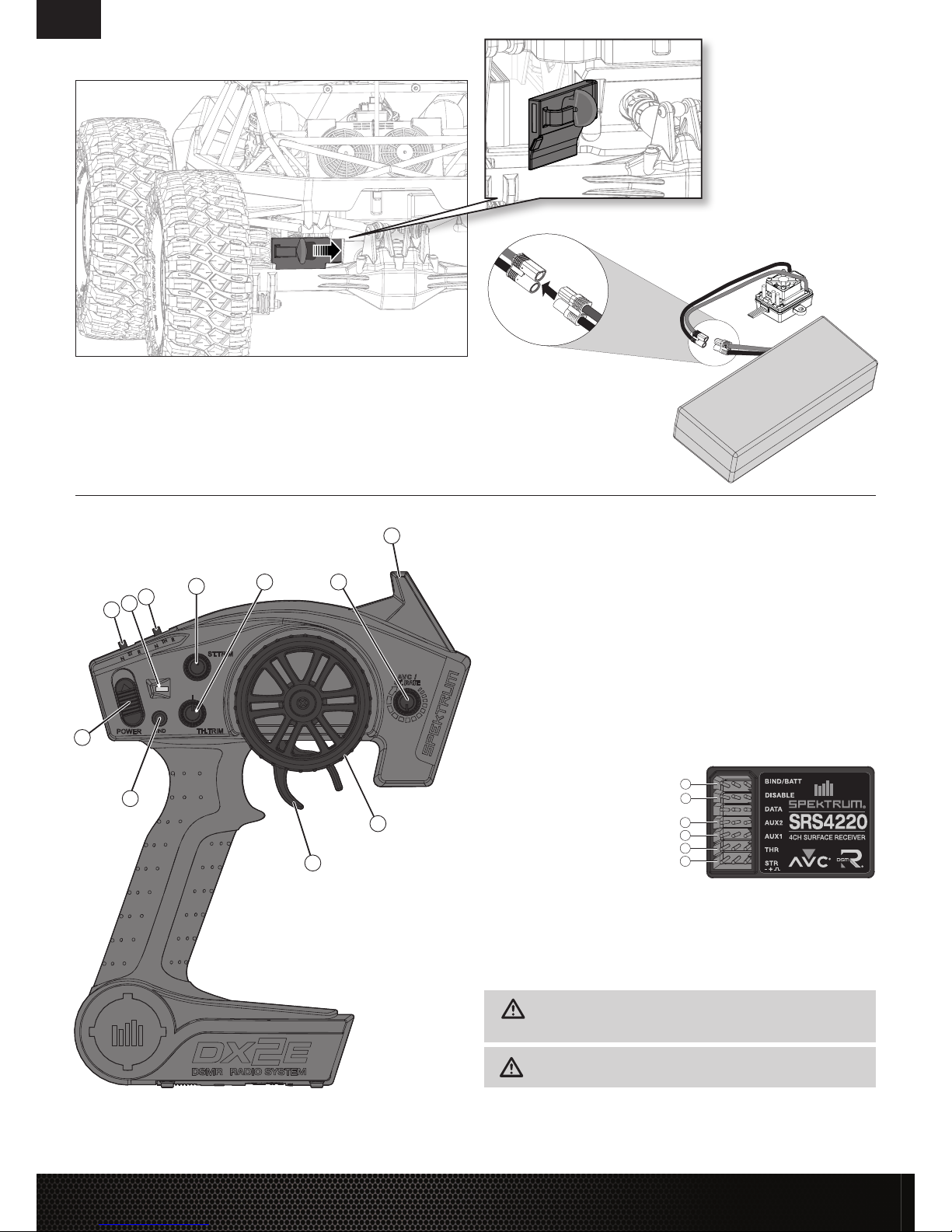

INSTALLING THE BATTERY
1. Ensure the ESC is powered OFF.
2. Slide the lever to the right to release the battery door.
3. Install the fully charged battery in the vehicle.
4. Connect the battery to the ESC.
5. Close the battery door and slide the battery door lever to the left to secure it.
6. Power ON the transmitter, then the vehicle.
SPEKTRUM DX2E RADIO SYSTEM 1. Steering Wheel Controls direction (left/right) of the model
2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model
3. BIND Button Puts the transmitter into Bind Mode
4. ON/OFF Switch Turns the power ON/OFF for the transmitter
5. ST. REV Reverses the function of the steering when the wheel is turned left or right
6. Indicator Lights
-Solid green light—indicates adequate battery power
-Flashing green light—indicates the battery voltage is critically low. Replace batteries
7. TH. REV Reverses the function of the speed control when pulled back or pushed forward
8. ST Trim Adjusts the steering center point
9. TH Trim Adjusts the throttle neutral point
10. ST Rate Adjusts the sensitivity of AVC
11. Antenna Transmits the signal to the model
SRS4220 AVC TECHNOLOGY RECEIVER
12. BIND
13. DISABLE
14. AUX 2
15. AUX 1
16. THR
17. STR
INSTALLING THE TRANSMITTER BATTERIES
1. Push in the battery cover a small amount to release the retaining tab, then remove the cover.
2. Install 4 AA batteries, taking care to align the battery polarity to the diagram in the
transmitter’s battery case.
3. Carefully reinstall the battery cover by aligning the tabs with the slots on the transmitter.
CAUTION: If using rechargeable batteries, charge only rechargeable batteries.
Charging non-rechargeable batteries may cause the batteries to burst, resulting
in injury to persons and/or damage to property.
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to national regulations.
For more information on the transmitter, go to www.horizonhobby.com and click
on the support tab for the Spektrum DX2E to download the instruction manual.
13
14
15
16
17
12
1
2
11
4
10
78
56
3
9
4ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

5
EN
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
DRIVING PRECAUTIONS
• Maintain sight of the vehicle at all times.
• Routinely inspect the vehicle for loose wheel hardware.
• Routinely inspect the steering assembly for any loose hardware. Driving the vehicle
off-road can cause fasteners to loosen over time.
• Do not drive the vehicle in tall grass. Doing so can damage the vehicle or electronics.
• Stop driving the vehicle when you notice a lack of power. Driving the vehicle when
the battery is discharged can cause the receiver to power off. If the receiver loses power,
you will lose control of the vehicle. Damage due to an over-discharged Li-Po battery is
not covered under warranty.
CAUTION: Do not discharge a Li-Po battery below 3V per cell. Batteries dis-
charged to a voltage lower than the lowest approved voltage may become dam-
aged, resulting in loss of performance and potential fire when batteries are charged.
• Do not apply forward or reverse throttle if the vehicle is stuck.
Applying throttle in this instance can damage the motor or ESC.
• After driving the vehicle, allow the electronics to cool before driving the vehicle again.
IMPORTANT: Keep wires away from all moving parts.
POWERING ON THE VEHICLE
1. Center the ST TRIM and TH TRIM dials on the transmitter.
2. Power on the transmitter.
3. Remove the body from the vehicle.
4. Connect a fully charged battery pack to the ESC.
5. Power on the ESC.
IMPORTANT: The vehicle MUST remain on a flat, level surface and motionless for at least 5
seconds.
6. Re-install the body on the vehicle.
BEFORE RUNNING YOUR VEHICLE
1. Check for free suspension movement.All suspension arms and steering components
should move freely. Any binds will cause the vehicle to handle poorly.
2. Charge a battery pack.Always charge the battery pack as per the battery and/or
charger manufacturers’ instructions.
3. Set the transmitter steering trim. Follow the instructions to set the steering trim/subtrim
so that the vehicle drives straight with no input to the steering.
4. Perform a Control Direction Test.
AVC®SENSITIVITY
The ST RATE dial adjusts the sensitivity, or stability, value in the re-
ceiver. If you increase the sensitivity, the AVC®system becomes more
sensitive to the vehicle drifting left or right. You would use maximum
sensitivity during high speed driving or drag racing, when you want
the vehicle to stay in a straight line. As the sensitivity value increases,
the amount of steering travel decreases.
Turn the ST RATE knob counter-clockwise to reduce the sensitivity.
Turn the ST RATE knob clockwise to increase the sensitivity.
STABILITY ASSIST RECEIVER
AVC®– ACTIVE VEHICLE CONTROL™
The Spektrum receiver features Active Vehicle Control™(AVC®) technology that responds
similar to traction control in full-scale vehicles. In addition to traction control,AVC technology
also increases steering stability during high speed driving or while driving over rough terrain.
As you increase the AVC sensitivity, the system increases steering stability and traction control,
similar to reducing the amount of steering rate in a computer transmitter. Reducing the sen-
sitivity value increases the amount of steering control from the transmitter.The receiver also
enables you to quickly turn AVC on or off if you participate in organized racing.
IMPORTANT: You must use digital servos with the AVC receiver. Do not use analog servos as
they willl reduce the performance of the system and may cause overheating.
CALIBRATING THE RECEIVER
1. With the vehicle on a flat, level surface, insert the Bind Plug in the BIND port on the
receiver.
2. Connect a fully charged battery pack to the ESC.
3. Power on the ESC. The orange LED flashes, indicating the receiver is in bind mode.
4. Center the ST TRIM and TH TRIM dials on the transmitter.
5. Press and hold the BIND button while powering on the transmitter.
6. Release the BIND button when the orange LED slowly flashes.The transmitter and receiver
are linked when the orange LED is solid.
7. Pull the transmitter trigger to Full Throttle.
8. Push the transmitter trigger to Full Brake, then return the trigger to center.
9. Turn the transmitter steering wheel to Full Right.
10. Turn the transmitter steering wheel to Full Left, then return the steering wheel to center.
The orange LED flashes once.
11. Remove the Bind Plug, then power off the receiver to save the settings.
12. Power off the transmitter.
5
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN
FORWARD BRAKE/REVERSE

EN
6
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN
TEN-SCBE RTR, AVC: 1:10 4WD SCBE • INSTRUCTION MANUAL
DISABLING AVC®TECHNOLOGY
If you participate in organized racing, you may be required to turn AVC off. To turn AVC off:
1. Insert a Bind Plug in the BIND port on the receiver.
2. Insert a second Bing Plug in the DISABLE port on the receiver.
3. Connect a fully charged battery pack to the ESC.
4. Power on the ESC. The orange LED flashes, indicating the receiver is in bind mode.
5. Center the ST TRIM and TH TRIM dials on the transmitter.
6. Press and hold the BIND button while powering on the transmitter.
7. Release the BIND button when the orange LED slowly flashes.The transmitter and receiver
are linked when the orange LED is solid.
8. Pull the transmitter trigger to Full Throttle.
9. Push the transmitter trigger to Full Brake, then return the trigger to center.
10. Turn the transmitter steering wheel to Full Right.
11. Turn the transmitter steering wheel to Full Left, then return the steering wheel to center.
The orange LED flashes once.
12. Remove the Bind Plug from the BIND port only, then power off the receiver to save the
settings. The receiver will continuously blink to indicate AVC is disabled.
13. Power off the transmitter.
IMPORTANT: You must calibrate the receiver each time it is placed in bind mode.To activate
AVC, see the steps in "Calibrating the Receiver."
RUN TIME
The largest factor in run time is the capacity of the battery pack. A larger mAh rating
increases the amount of run time experienced.
The condition of a battery pack is also an important factor in both run time and speed.
The battery connectors may become hot during driving. Batteries will lose performance
and capacity over time.
Driving the vehicle from a stop to full speed repeatedly will damage the batteries
and electronics over time. Sudden acceleration will also lead to shorter run times.
TO IMPROVE RUN TIMES
• Keep your vehicle clean and well maintained.
• Allow more airflow to the ESC and motor.
• Change the gearing to a lower ratio. A lower ratio decreases the operating temperature
of the electronics. Use a smaller pinion gear or larger spur gear to lower the gear ratio.
• Use a battery pack with a higher mAh rating.
• Use the optimum charger to charge battery packs (Visit your local hobby dealer for
more information).

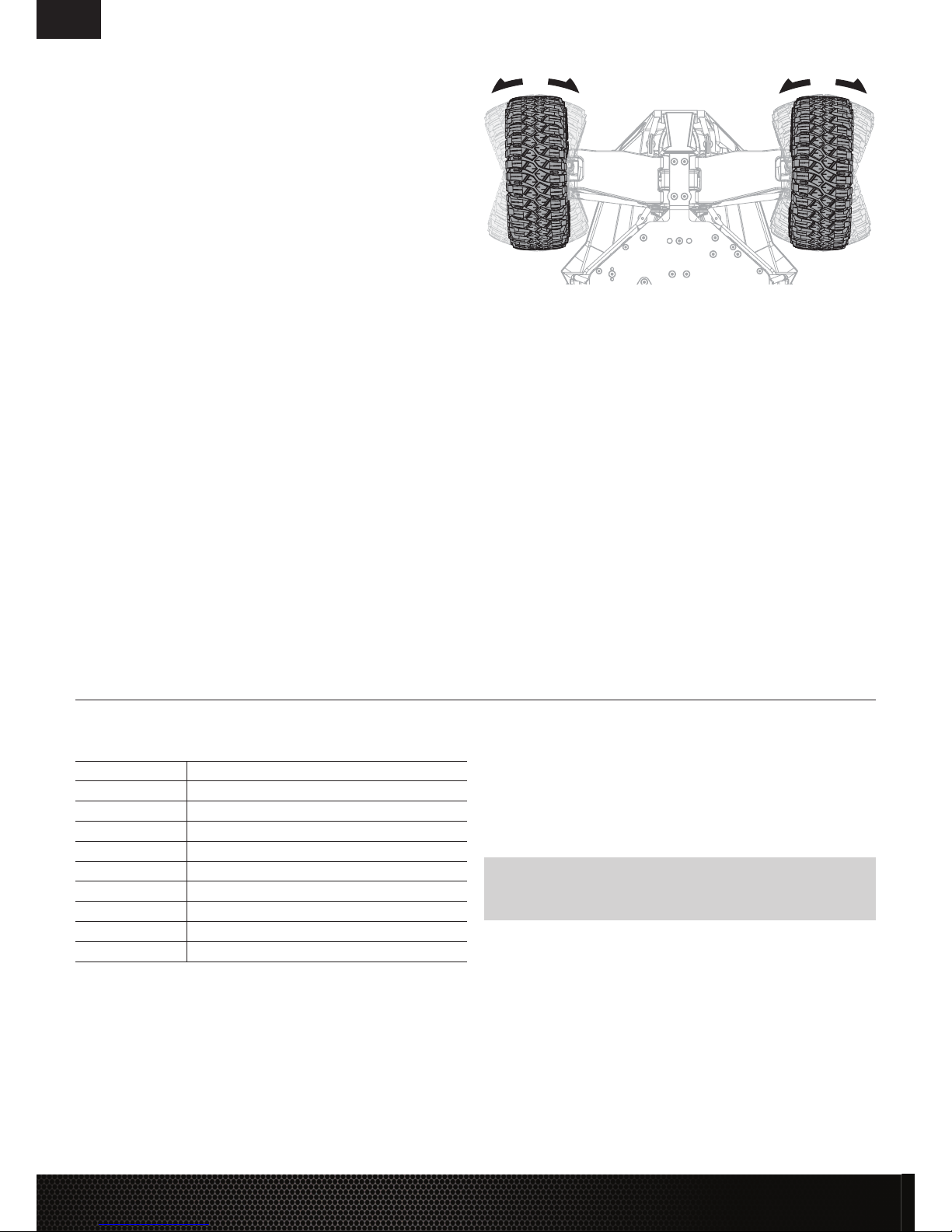

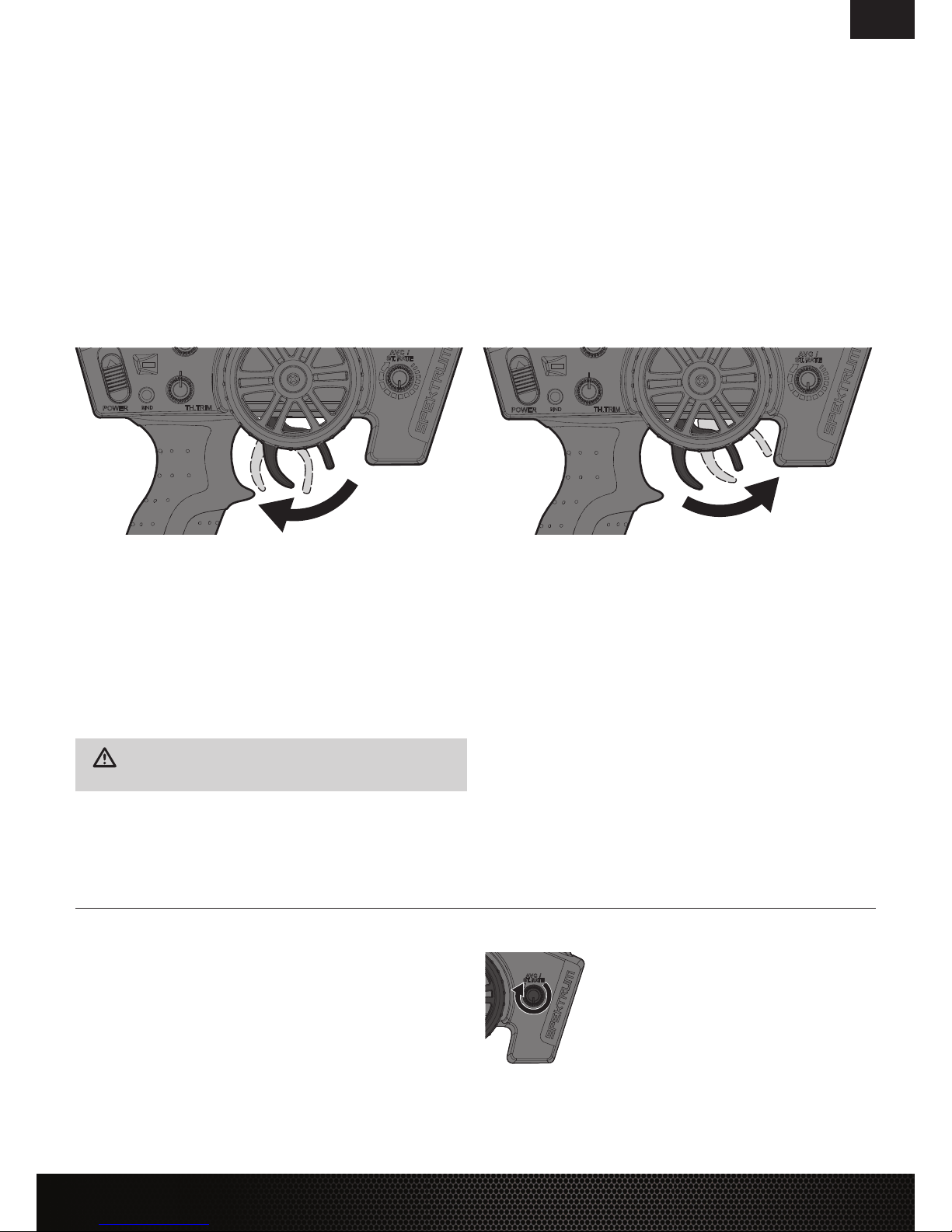

PERFORMING A CONTROL DIRECTION TEST
Perform a control test with the vehicle wheels off the ground. If the wheels rotate after the
vehicle is powered ON, adjust the TH Trim knob until they stop. To make the wheels move
forward, pull the trigger. To reverse them, wait for the wheels to stop, then push the trigger.
When moving forward, the wheels should maintain a straight line without any steering wheel
input. If not, adjust the ST Trim knob, so the wheels maintain a straight line without having to
turn the steering wheel.
CHANGING THE TRAVEL ADJUST SETTINGS
1. Hold the trigger in the full brake position and turn the steering wheel to Full Right while
powering on the transmitter. The LED flashes rapidly, indicating the programming mode is
active.
2. Throttle End Point: Continue holding full throttle. Turn the TH TRIM knob to adjust
the full throttle end point.
3. Brake End Point: Hold the trigger in the full brake position. Turn the TH TRIM knob
to adjust the full brake end point. Return the trigger to the center position.
4. Left Steering End Point: Hold the steering wheel in the full left position. Turn
the ST TRIM knob to adjust the left end point.
5. Right Steering End Point: Hold the steering wheel in the full right position. Turn the ST
TRIM knob to adjust the right end point. Return the steering wheel to the center position.
6. Power off the transmitter to save the travel adjust settings.
The minimum Travel is 75%, and the Maximum travel is 150%.
IMPORTANT: If the travel is changed on the DX2E, you must rebind and calibrate
the receiver.
SPECIFICATIONS
Type Sensorless
Constant/Peak 130A/760A
Resistance 0.0004 Ohm
Function Forward/Brake–Forward/Brake Reverse
Operation Proportional forward, proportional reverse with braking delay
Input Voltage 7.4V–14.8V (The motor in this vehicle will not support 14.8V.)
BEC Output 6V/3A
Overload Protection Thermal
Dimensions (LxWxH) 53.5mm x 36mm x 36mm
Weight 79 g
ESC LED STATUS
• No ESC LEDs will glow when there is no throttle input from the transmitter.
• The red ESC LED glows when there is any throttle input from the transmitter.
AUDIBLE WARNING TONES
1. Input Voltage: The ESC checks the input voltage when it is powered ON. If a voltage
problem is detected, the ESC continuously sounds 2 beeps with a 1 second pause
(xx-xx-xx). Power OFF the ESC and ensure the connections are secure and that
the battery power is not too low for safe operation.
2. Radio Connection: The ESC checks radio signal input when it is powered ON.
If a problem is detected, the ESC continuously sounds 1 beep with a 2 second pause
(x--x--x). Power OFF the ESC and ensure the radio system is operating correctly.
DYNAMITE®FUZE™ 130A SENSORLESS BRUSHLESS ESC
For sensorless brushless motors:
1. Connect the ESC terminal A (typically designated by a blue wire) to the motor’s terminal
A (red wire on a Dynamite®Fuze™ sensorless motor). This may also be changed in
Programming Item 12, Motor Rotation, without changing wire connections.
2. Connect the ESC terminal B (typically designated by a yellow wire) to the motor’s terminal
B (blue wire on a Dynamite®Fuze™ sensorless motor).
3. Connect the ESC terminal C (typically designated by an orange wire) to the motor’s
terminal C (black wire on a Dynamite®Fuze™ sensorless motor).
NOTICE: Always disconnect the battery from the ESC when you have finished operating
your vehicle. The ESC’s switch only controls power to the receiver and servos. The ESC
will continue to draw current when connected to the battery, resulting in possible dam-
age to the battery through over discharge.
ESC CALIBRATION PROCEDURE
Ensure proper ESC function by calibrating the ESC to your transmitter inputs.
1. Power OFF the ESC.
2. Ensure your transmitter is powered ON, the throttle is not reversed, the throttle trim is
neutral and the throttle travel range is at 100%. Disable any special functions such as
ABS, etc.
3. Press the SET button while powering ON the ESC. Release the button as soon as the red
LED starts to flash.
4. Calibrate the throttle points by pressing the SET button once after each step.
- Neutral (1 flash)—leave the throttle at rest, untouched
- Full throttle (2 flashes)—pull the throttle fully back
- Full brake/reverse (3 flashes)—push the throttle fully forward
Tip: If the motor turns in the wrong direction, reverse the connection of any 2 outside
motor wires. The center wire must remain in the center and cannot be moved to another
motor tab.
6ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

7
EN
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
DESCRIPTIONS
1. Running Mode
-Forward Only with Brake
Intended for competition use, this mode allows only forward and brake controls.
-Forward/Reverse with Brake
This mode is the basic all-around mode, allowing forward, reverse and brake controls.
To engage reverse while moving forward, apply the brake until the vehicle has come to
a complete stop, release brake, then apply the brake again. While braking or in reverse,
engaging the throttle will result in the vehicle immediately accelerating forward.
2. Drag Brake Force
Adjusts the amount of brake automatically applied when the throttle is returned to the
neutral position.This simulates the engine braking effect of a full-scale vehicle, allowing
improved turn-in and your vehicle’s general response to controls.
3. Low Voltage Cutoff
This function helps to prevent battery over-discharge. The ESC continuously monitors the
battery’s voltage. If the voltage falls below the voltage threshold for 2 seconds, the output
power shuts off and the red LED flashes twice repeatedly.
The cutoff threshold calculation is based on individual Li-Po cell voltage. For Ni-MH batteries,
if the voltage battery pack is higher than 9.0V, it will be treated as a 3-cell Li-Po battery
pack; if it is lower than 9.0V, it will be treated as a 2-cell Li-Po battery pack. Example: for a
8.0V Ni-MH battery pack used with a 2.6V/cell threshold, it will be treated as a 2-cell Li-Po
battery pack and the low-voltage cut-off threshold will be 5.2V (2.6x2=5.2).
4. Start Mode (Punch)
Sets the initial throttle punch when the car accelerates. Level 1 gives
a very soft initial acceleration and level 4 gives a stronger initial acceleration.
5. Max Brake Force
Adjusts the maximum braking force. A higher value provides stronger braking,
but can also cause the wheels to lock, resulting in loss of control of the car.
6. Max Reverse Force
This parameter adjusts the maximum power when travelling in reverse.
7. Initial Brake Force (minimum brake)
Adjusts the minimum amount of braking power when the brakes engage. The default
value is equal to the drag brake value. A high value can lock the wheels when the brake
is used.
8. Neutral Range
Adjusts the throttle sensitivity around the neutral point.A higher value results in the
throttle having to be moved more for the vehicle to move forward, backward or brake.
9. Timing
Adjusts the motor drive current timing. More timing gives more performance, but can
lower efficiency and cause damage to the motor and/or ESC by overload or overheating.
NOTICE: Always ensure the motor timing is set correctly. Failure to set the motor
timing correctly can result in damage to the motor and ESC. Refer to the manufacturer
instructions for recommended timing settings.
The Following Programmable Items require the optional Digital ESC Program Box:
10. and 11. Available Items are subject to firmware updates to the ESC and the optional
digital program box.
12. Motor Rotation
Allows you to make this change in the ESC so no wires need to be changed between the
ESC and the motor.
13. Li-Po Cells
Allows the ESC to automatically detect or manually set the number of cells in your Li-Po
battery back.
PROGRAMMABLE ITEMS
Basic Items
PROGRAMMABLE VALUE Default Settings
1 2 3 4 5 6 7 8 9
1 Running Mode Forward w/ brake Forward/Reverse w/ brake Forward/Reverse
2 Drag Brake Force 0% 5% 10% 20% 40% 60% 80% 100%
3 Low Voltage Cutoff non-protection 2.6V/Cell 2.8V/Cell 3.0V/Cell 3.2V/Cell 3.4V/Cell
4 Start Mode Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Level 7 Level 8 Level 9
PROGRAMMABLE ITEMS
Advanced Items
PROGRAMMABLE VALUE Default Settings
1 2 3 4 5 6 7 8 9
5 Max Brake Force 25% 50% 75% 100% disable
6 Max Reverse Force 25% 50% 75% 100%
7 Initial Brake Force = Drag Brake Force 0% 20% 40%
8 Neutral Range 6% (Narrow) 9% (Normal) 12% (Wide)
9 Timing 0.00º 3.75º 7.50º 11.25º 15.00º 18.75º 22.50º 26.25º
10 Reserved Item
11 Reserved Item
12 Motor Rotation Counterclockwise Clockwise
13 Li-Po Cells Auto Calculate 2 Cells 3 Cells 4 Cells 5 Cells 6 Cells
ESC FUNCTIONS AND MODES
The ESC includes programming options so you can adjust the way your vehicle performs.
Refer to the included settings table to adjust the ESC for your driving conditions.
ESC PROGRAMMING PROCEDURE
Programming is accomplished using the SET button on the ON/OFF switch or Digital Program
Box (DYNS3005).
1. Connect a fully charged battery to the ESC.
2. Power ON the ESC using the ESC switch.
3. Hold the SET button for 1 second until the green LED blinks, then release the SET button
to enter programming mode.
4. Press and release the SET button as needed to get to the desired menu option (the Green
LED will blink corresponding to the menu item number). Programming menu items 1
through 9 are accessible using the SET button on the ESC. Programming menu items 10 and
above are only accessible using the optional ESC programming card. Programming of menu
items 10 and 11 is only possible after firmware updates to the ESC programming card.
5. When at the desired menu item, hold the SET button for 3 seconds until the red LED blinks.
6. Press the SET button to move among the settings based on how many times the red LED
blinks (Refer to the table for more information).
7. Save the setting by holding the SET button for 3 seconds.
8. Power OFF the ESC switch and repeat the instructions above to change other settings.
Tip: If desired, the ESC programming can be returned to default settings
by powering ON the ESC and holding the SET button for 5 seconds.
7
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

EN
8
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN
PRECAUTIONS
• Never touch moving parts.
• Never disassemble while the batteries are installed.
• Always let parts cool before touching.
GEARING
Your vehicle has been equipped with the optimal gearing for the stock platform. It offers
an ideal balance between speed, power and efficiency. If you customize your vehicle with
optional batteries or motors, you might need to change the pinion or spur gear.
DYNAMITE®FUZE™ 2800KV BRUSHLESS MOTOR
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
Vehicle does not operate Battery not charged or plugged in Charge battery/plug in
ESC switch not “On” Turn on ESC switch
Transmitter not “On” or low battery Turn on/replace batteries
Motor runs but wheels
do not rotate
Pinion not meshing with spur gear Adjust pinion/spur mesh
Pinion spinning on motor shaft Tighten pinion gear setscrew on motor shaft flat spot
Transmission gears stripped Replace transmission gears
Drive pin broken Check and replace drive pin
Steering does not work Servo plug not in receiver properly Make sure the steering servo plug is connected to the receiver steering channel, noting proper polarity
Servo gears or motor damaged Replace or repair servo
Will not turn one direction Servo gears damaged Replace or repair servo
Motor does not run Motor wire solder joint is damaged Resolder the motor wire with the proper equipment
Motor wire broken Repair or replace as needed
ESC damaged Contact Horizon Hobby Product Support
ESC gets hot Motor over-geared Use smaller pinion or larger spur gear
Driveline bound up Check wheels and transmission for binding
Poor run time and/or sluggish
acceleration
Battery pack not fully charged Recharge battery
Charger not allowing full charge Try another charger
Driveline bound up Check wheels, transmission for binding
Poor range and/or glitching Transmitter batteries low Check and replace
Vehicle battery low Recharge battery
Loose plugs or wires Check all wire connections and plugs
8ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN
Installing a pinion gear with fewer teeth or a spur gear with more teeth provides more torque
but reduced top speed. A pinion gear with more teeth or a spur gear with fewer teeth will
reduce torque and increase top speed. Take care when installing larger pinion gears as this
can “overgear” the vehicle and overheat the motor and ESC. When testing gearing options,
check the temperature of the motor and speed control to ensure you are operating within the
appropriate temperature range. If the motor or ESC are too hot, change to a lower pinion gear
and/or higher spur gear combination.

9
EN
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
LIMITED WARRANTY
What this Warranty Covers
Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased
(the “Product”) will be free from defects in materials and workmanship at the date of
purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due
to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use,
installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv)
attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product
not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable
technical regulations or (vii) use that violates any applicable laws, rules, or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY
OR REPRESENTATION,AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.THE PURCHASER
ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY
MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon
will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be
defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty
claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase
is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY,
REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT,
NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability
of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon
has no control over use, setup, final assembly, modification or misuse, no liability shall be
assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly,
the user accepts all resulting liability. If you as the purchaser or user are not prepared to
accept the liability associated with the use of the Product, purchaser is advised to return the
Product immediately in new and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to conflict of law principals). This
warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Horizon reserves the right to change or modify this warranty at any time without
notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty support or service.
Once assembly, setup or use of the Product has been started, you must contact your local
distributor or Horizon directly. This will enable Horizon to better answer your questions and
service you in the event that you may need any assistance. For questions or assistance, please
visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll
free telephone number referenced in the Warranty and Service Contact Information section to
speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the country you live
and use the Product in, please use the Horizon Online Service Request submission process
found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA)
number. Pack the Product securely using a shipping carton. Please note that original boxes
may be included, but are not designed to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels,
as Horizon is not responsible for merchandise until it arrives and is accepted at our facility.
An Online Service Request is available at http://www.horizonhobby.com/content/_service-
center_render-service-center. If you do not have internet access, please contact Horizon
Product Support to obtain a RMA number along with instructions for submitting your product
for service. When calling Horizon, you will be asked to provide your complete name, street
address, email address and phone number where you can be reached during business hours.
When sending product into Horizon, please include your RMA number, a list of the included
items, and a brief summary of the problem.A copy of your original sales receipt must be
included for warranty consideration. Be sure your name, address, and RMA number are clearly
written on the outside of the shipping carton.
NOTICE: Do not ship Li-Po batteries to Horizon. If you have any issue with a
Li-Po battery, please contact the appropriate Horizon Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original sales receipt verifying
the proof-of-purchase date. Provided warranty conditions have been met, your Product
will be serviced or replaced free of charge. Service or replacement decisions are at the sole
discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be completed and
payment will be required without notification or estimate of the expense unless
the expense exceeds 50% of the retail purchase cost. By submitting the item for
service you are agreeing to payment of the service without notification. Service estimates are
available upon request.You must include this request with your item submitted for service.
Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you
will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as
Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for
service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.
horizonhobby.com/content/_service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in the country of
use and ownership. If received, a non-compliant Product will not be serviced.
Further, the sender will be responsible for arranging return shipment of
the un-serviced Product, through a carrier of the sender’s choice and at the
sender’s expense. Horizon will hold non-compliant Product for a period of 60
days from notification, after which it will be discarded.
10/15
9
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

EN
10
ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN
Country of Purchase Horizon Hobby Contact Information Address
United States of America Horizon Service Center
(Repairs and Repair Requests)
servicecenter.horizonhobby.com/RequestForm/ 4105 Filedstone Rd.
Champaign, Illinois 61822 USA
Horizon Product Support
(Product Technical Assistance)
[e-mail]
877-504-0233
Sales [e-mail]
800-338-4639
United Kingdom Service/Parts/Sales:
Horizon Hobby Limited
[e-mail]
[phone]
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS, United Kingdom
Germany Horizon Technischer Service [e-mail]
[phone]
Christian-Junge-Straße 1
25337 Elmshorn, Germany
Sales: Horizon Hobby GmbH
France Service/Parts/Sales:
Horizon Hobby SAS
[e-mail]
[phone]
11 Rue Georges Charpak
77127 Lieusaint, France
Warranty and Service Contact Information
FCC Statement
FCC ID: BRWDASRX12 This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may
cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This product contains a radio transmitter with wireless technology which has been tested and
found to be compliant with the applicable regulations governing a radio transmitter in the
2.400GHz to 2.4835GHz frequency range.
IC Information
IC ID: 6157 A-AMRX12 This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product
is in compliance with the essential requirements and other relevant provisions of the
R&TTE and EMC Directive.
A copy of the EU Declaration of Conformity is available online at:
http://www.horizonhobby.com/content/support-render-compliance.
Instructions for disposal of WEEE by users in the
European Union
This product must not be disposed of with other waste. Instead, it is the user’s
responsibility to dispose of their waste equipment by handing it over to a designated
collections point for the recycling of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will help to conserve
natural resources and ensure that it is recycled in a manner that protects human health and
the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or where you
purchased the product.
10 ROCK REY ROCK RACER: 1:10 RTR, AVC • INSTRUCTION MANUAL
EN

35
IT
ROCK REY ROCK RACER: 1:10 RTR, AVC • MANUALE DI ISTRUZIONI 35
ROCK REY ROCK RACER: 1:10 RTR, AVC
Replacement Parts // Teileliste // Liste des pièces de rechange // Elenco dei ricambi
Part # English Deutsch Français Italiano
DYN4955 Fuze 130A Sensorless Bl WP ESC: 4WD SCT 1/8 Fuze 130A Sensorlose Bl WP ESC: 4WD SCT 1/8 Contrôleur Dynamite Fuze Brushless 130A étanche ESC Fuze WP BL sensorless 130 A: 4WD SCT 1/8
DYNS1614 Fuze 550 BL 6-Pole Motor 2800kv Fuze 550 BL 6-poliger Motor 2800kv Moteur Dynamite Fuze Brushless 550 2800Kv 6 pôles Motore BL Fuze 550 6 poli 2800 Kv
LOS230013 Body Button Base & Top (22): Baja Rey Body Button unten und oben (22): Baja Rey Baja Ray - Vis, rondelles et bouchons (22) Viti, rondelle e cappucci di protezione (22): Baja Ray
LOS230027 Roll Cage, Sides, L & R: Rock Rey Überrollbügelteile links und rechts: Baja Rey Baja Rey - Faces latérales gauche et droite
de l’arceau cage
Parti laterali roll cage D&S: Baja Rey
LOS230028 Roll Cage, Roof, Front: Rock Rey Überrollkäfig, Dach,Vorderseite: Rock Rey Rock Rey - Cage, toit, avant Roll cage, tetto, anteriore: Rock Rey
LOS230029 RR Tower Sup, X-Bar, Mud Guards: Rock Rey RR Tower Sup, X-Balken, Schmutzfänger: Rock Rey Rock Rey - Tour de suspension arrière, barre X,
pare choc
Torretta sospensione posteriore, barra a X,
parafanghi: Rock Rey
LOS230030 Body, Painted, Blue: Rock Rey Karosserie, lackiert, blau: Rock Rey Rock Rey - Carrosserie, peinte, bleu Carrozzeria, verniciata, blu: Rock Rey
LOS230031 Body, Painted,Yellow: Rock Rey Karosserie, lackiert, gelb: Rock Rey Rock Rey - Carrosserie, peinte, jaune Carrozzeria, verniciata, giallo: Rock Rey
LOS230032 Interior Panel, Painted: Rock Rey Innenpanel, lackiert: Rock Rey Rock Rey - Panneau de carrosserie intérieur, peinte Pannello carrozzeria interno, verniciato: Rock Rey
LOS231005 Rear Bulkhead, Fan Panel, Mudguards: Baja Rey Lüfterpanel, Schmutzfänger: Baja Rey Baja Rey - Cloison arrière, ventilateur et bavettes Paratia post., fan panel, parafango: Baja Rey
LOS231006 Battery Tray, Door, Lock, 2S Spacer: Baja Rey Akkuhalter und Klappe, 2S Distanzstück: Baja Rey Baja Rey - Support batterie, trappe, verrou et
cales 2S
Vano batteria, portello, chiusura, distanziale
2S: Baja Rey
LOS231007 FR Upper Arm/Shock Mount, RR Chassis Brace:
Baja Rey
Stoßdämpferbefestigung hinten mit Chassishalter:
Baja Rey
Baja Rey - Triangle supérieur/fixation
d’amortisseur avant, renfort arrière de châssis
Braccetto superiore ant. / supporto
ammortizz., trapezio post.: Baja Rey
LOS231008 Servo Mount, Steering Servo Set Plastic: Baja Rey Servohalter: Baja Rey Baja Rey - Support servo,servo de direction plastique Supporto servo, set servo sterzo in plastica:
Baja Rey
LOS231010 Chassis Plate & Motor Cover Plate: Baja Rey Chassisplatte und Motorabdeckung: Baja Rey Baja Rey - Platine de châssis et couvercle moteur Piastra telaio & piastra copertura motore: Baja Rey
LOS231011 Center Chassis Brace & Standoffs: Baja Rey Chassishalter und Distanzstücke: Baja Rey Baja Rey - Renfort central de châssis et entretoises Montanti telaio centrali con distanziali: Baja Rey
LOS231012 Motor Mount: Baja Rey Motorhalter: Baja Rey Baja Rey - Support moteur Supporto motore: Baja Rey
LOS231013 Steering Hardware Set: Baja Rey Zubehörset Lenkung: Baja Ray Baja Rey - Set d’accessoires de direction Set hardware sterzo: Baja Rey
LOS231021 FR Bumper/Skid Plate & Suppport: Rock Rey FR-Stoßdämpfer/Gleitplatte und -träger: Rock Rey Rock Rey - Pare choc avant/protection et support Paraurti anteriore/piastra proteggitelaio e
supporto: Rock Rey
LOS231022 Front Shock Tower, Brace, Cmbr Link Mnt: Rock Rey Stoßdämpferbrücke vorne, Halterung, Cmbr Verb.-
Mnt: Rock Rey
Rock Rey - Support d’amortisseurs av, protection et
support biellette de carrossage
Torretta ammortizzatore anteriore, trapezio,
supporto camber link: Rock Rey
LOS232001 Axle Housing Set, Rear: Baja Rey Achsgehäuseset hinten: Baja Rey Baja Rey - Carter de pont arrière Set alloggiamento asse posteriore: Baja Rey
LOS232002 Center Transmission Housing: Baja Rey Achsgehäuse mitte: Baja Rey Baja Rey - Boitier de transmission centrale Scatola trasmissione centrale: Baja Rey
LOS232003 Front Gear Box/Bulkhead: Baja Rey Getriebegehäuse mit Halter: Baja Rey Baja Rey - Set de carters de transmission avant/Cellule Scatola ingranaggio anteriore / paratia: Baja Rey
LOS232004 HD Diff Housing & Internals: Baja Rey Differentialgehäuse mit Einsätzen: Baja Rey Baja Rey - Corps de différentiel renforcé et
éléments internes
Scatola diff. HD ed parti interne: Baja Rey
LOS232005 Rear Driveshaft Set: Baja Rey Antriebswelle hinten: Baja Rey Baja Rey - Tiges de cardans arrière Set trasmissione posteriore: Baja Rey
LOS232006 Hex, Rotor, Caliper & Pin Set (4): Baja Rey Scheibenbremse mit Bremssattel Vorne/Hinten:
Baja Rey
Baja Rey - Hexagone, rotor, mâchoires et
goupilles
Set esagone, rotore, spessore e perno: Baja Rey
LOS232007 Center Transmission Gear Set: Baja Rey Getriebeset Mitte: Baja Rey Baja Rey - Set de pignons de transmission centrale Set ingranaggio trasmissione centrale: Baja Rey
LOS232010 Center Drive Shaft: Baja Rey Antriebswelle Mitte: Baja Rey Baja Rey - Cardan central Albero di trasmissione centrale: Baja Rey
LOS232011 Rear Diff Locker: Baja Rey Differentialsperre hinten: Baja Rey Baja Rey - Verrou de diff arrière Diff. locker posteriore: Baja Rey
LOS232012 Center Outdrive Set: Baja Rey Antriebsklaue mitte: Baja Rey Baja Rey - Set de noix de cardans centraux Set trascintore centrale: Baja Rey
LOS232014 Rear Axle Shaft Set: Baja Rey Hinterachsewellenset: Baja Rey Baja Rey - Axe de roues arrière Set semiasse posteriore: Baja Rey
LOS232019 42T Ring & 12T Pinion Gear: Baja Rey/Rock Rey Stirnrad 42 Zähne & 12 er Ritzel: Baja Rey/Rock Rey Baja Rey/Rock Rey - Anneau 42T et Pignon 12T
avant/arrière
42T ingranaggio & 12T pignone ant./post.: Baja
Rey/Rock Rey
LOS232020 FrontAxle Set: Rock Rey VorderesAchsenset: Rock Rey Rock Rey - Axe de roues avant Set asse anteriore: Rock Rey
LOS232021 Front Sliders: Rock Rey Vordere Schieber: Rock Rey Rock Rey - Sliders avant Steli forcella anteriore: Rock Rey
LOS232022 Front Outdrive Shaft: Rock Rey Vordere Flexwelle: Rock Rey Rock Rey - Axe de transmission avant Albero trascinatore anteriore: Rock Rey
LOS233001 Shock Ends,Tops, Piston: Baja Rey Stoßdämpferendteile, Kolben: Baja Rey Baja Rey - Chapes d’amortisseurs, bouchons
supérieurs et pistons
Terminali, tappi, pistoni ammortizz.: Baja Rey
LOS233002 FR/RR Shock Body & Collar Set: Baja Rey Stoßdämpfergehäuse, Distanzringe v/h: Baja Rey Baja Rey - Corps d’amortisseurs avant/arrière
avec bague
Corpo ammortizz. ant./post & collarino
LOS233003 FR/RR Shock Shaft Set & Hardware: Baja Rey Dämpfer Kolbenstange mit Zubehör: Baja Rey Baja Rey - Tiges d’amortisseurs avant/arrière
avec visserie
Stelo ammortizz. ant./post e hardware: Baja Rey
LOS233004 FR/RR Shock Seal & Limiter Set: Baja Rey Stoßdämpferdichtung und Begrenzer: Baja Rey Baja Rey - Joint d’amortisseurs avant/arrière
avec limiteur
Set guarnizione ammortizz. ant./post. e limita-
tore: Baja Rey
LOS233005 Front and Rear Spring Set: Baja Rey Dämpferfedern v/h: Baja Rey Baja Rey - Ressort avant/arrière Set molle ant./post.: Baja Rey
LOS234002 Shock Tower, Upper/Track Rod Mnts, Rear: Baja Rey Dämpferbrücke hinten: Baja Rey Baja Rey - Support d’amortisseurs, tirants Torretta ammortizz., supporti tirante sterzo
superiore post.: Baja Rey
LOS234003 Trailing Arm, Steering,Upper, Drag Link St: Baja Rey Lenkgestänge: Baja Rey Baja Rey - Tringlerie de direction supérieure Braccetto longitudinale, sterzo, superiore, tirante
sterzo: Baja Rey
LOS234006 Front & Rear Sway Bar Links: Baja Rey Querlenkerverbinder vorne: Baja Rey Baja Rey - Tringlerie barre anti-roulis avant/arrière Collegamenti barra antitorsione ant./post.: Baja Rey
LOS234007 Front Hinge Pins & Brace Set: Baja Rey Qiuerlenkerstifte und Halter: Baja Rey Baja Rey - Renfort de cellule avant Perni braccetti ant. e set piastrine
LOS234011 Front SuspensionArm Set: Rock Rey Vorderradaufhängungsarm Set: Rock Rey Rock Rey - Bras de suspension avant Set braccetti sospensione anteriore: Rock Rey
LOS234012 Caster Block Set: Rock Rey Radblockset: Rock Rey Rock Rey - Etriers porte fusées Set caster block: Rock Rey
LOS234013 Steering Spindle Set: Rock Rey Lenkspindelset: Rock Rey Rock Rey - Fusées Fusello sterzo: Rock Rey
LOS234014 Camber & Steering Link Set: Rock Rey Radsturz- und Lenkgliedset: Rock Rey Rock Rey - Rotules de carrossage et direction Set campanatura e collegamenti sterzo: Rock Rey
LOS234015 FR/RR Shock Body & Collar Set: Rock Rey FR/RR Stoßdämpfer & Collar Set: Rock Rey Rock Rey - Corps d’amortisseurs avant/arrière avec
bague
Set corpo ammortizzatore ant./post. e collarino:
Rock Rey
LOS235001 Cap Head Screws, M2 x 6mm (10) Zylinderkopfschraube, M2 x 6mm (10) Vis BTR, M2 x 6mm (10) Viti testa a brugola, M2 x 6mm (10)
LOS235002 Cap Head Screws, M2.5 x 10mm (10) Zylinderkopfschraube, M2.5 x 10mm (10) Vis BTR, M2,5 x 10mm (10) Viti testa a brugola, M2,5 x 10mm (10)
LOS235003 Cap Head Screws, M3 x 6mm (10) Zylinderkopfschraube, M3 x 6mm (10) Vis BTR, M3 x 6mm (10) Viti testa a brugola, M3 x 6mm (10)
LOS235004 Cap Head Screws, M3 x 25mm (10) Zylinderkopfschraube, M3 x 25mm (10) Vis BTR, M3 x 25mm (10) Viti testa a brugola, M3 x 25mm (10)
LOS235005 Button Head Screws, M2.5 x 6mm (10) TLR Rundkopfschraube, M2.5 x 6mm (10) Vis à tête bombée, M2,5 x 6mm (10) Viti testa tonda, M2,5 x 6mm (10)
LOS235006 Button Head Screws, M2.5 x 20mm (10) TLR Rundkopfschraube, M2.5 x 20mm (10) Vis à tête bombée, M2,5 x 20mm (10) Viti testa tonda, M2,5 x 20mm (10)
LOS235007 Button Head Screws, M4 x 12mm (10) TLR Rundkopfschraube, M4 x 12mm (10) Vis à tête bombée, M4 x 12mm (10) Viti testa tonda, M4 x 12mm (10)
LOS235008 Flat Head Screws, M2.5 x 5mm (10) Flachkopfschraube, M2.5 x 5mm (10) Vis FHC, M2,5 x 5mm (10) Viti a testa piatta, M2,5 x 5mm (10)

IT
36
ROCK REY ROCK RACER: 1:10 RTR, AVC • MANUALE DI ISTRUZIONI
36 ROCK REY ROCK RACER: 1:10 RTR, AVC
Part # English Deutsch Français Italiano
DYN9005EC Reaction 7.4V 5000mAh 2S 30C LiPo Hardcase: EC3 Reaction 7,4V 5000 mAh 2S 30C LiPo,
Hardcasemit: EC3
Batterie Reaction Li-Po 2S 7,4V 5000mA 30C,
boîtier rigide, prise EC3
Batteria LiPo hardcase Reaction 30C 2S 7,4V 5000
mAh: EC3
DYNB3803EC Reaction 11.1V 5000mAh 3S 50C LiPo, Hardcase:
EC3
Reaction 11,1 V 5000 mAh 3S 50C LiPo,
Hardcasemit: EC3
Batterie Reaction Li-Po 3S 11,1V 5000mA 50C,
boîtier rigide, prise EC3
Batteria LiPo hardcase Reaction 50C 3S 11,1V
5000 mAh: EC3
DYNC2005CA Prophet Sport LiPo 35W AC Charger Prophet Sport LiPo 35 W AC-Ladegerät Chargeur Prophet Sport AC Li-Po 35W Caricabatteria AC LiPo Prophet Sport 35 W
LOS330002 Body Set, Clear: Rock Rey Karosserie Set: Rock Rey Rock Rey - Carrosserie, transparente Set carrozzeria trasparente
LOS331001 Aluminum Steering Servo Mount: Baja Rey Aluminium Lenkservo Montage: Baja Rey Baja Rey - Support de servo de direction aluminium Supporto servocomando sterzo alluminio: Baja Rey
LOS331002 Aluminum Bellcrank Servo Saver Set: Baja Rey Aluminium Umlenkhebel-Servo Sparset:
Baja Rey
Baja Rey - Sauve servo levier aluminium Set salvaservo squadrette alluminio: Baja Rey
LOS331004 Aluminum Rear Upper Link & Space Set:
Baja Rey
Aluminium hinteres oberes Glied- und
Abstandsset: Baja Rey
Baja Rey - Tirant supérieur arrière et entretoise
aluminium
Set collegamento e distanziale superiore posteriore
alluminio: Baja Rey
LOS331005 Aluminum Servo Arm, 23T: Baja Rey Servoarm,Aluminium, 23T: Baja Rey Baja Rey - Palonnier de servo, alu, 23T Squadretta servo, alluminio, 23T: Baja Rey
LOS331006 Aluminum Servo Arm, 24T: Baja Rey Servoarm,Aluminium, 24T: Baja Rey Baja Rey - Palonnier de servo, alu, 24T Squadretta servo, alluminio, 24T: Baja Rey
LOS331007 Aluminum Servo Arm, 25T: Baja Rey Servoarm,Aluminium, 25T: Baja Rey Baja Rey - Palonnier de servo, alu, 25T Squadretta servo, alluminio, 25T: Baja Rey
LOS332001 AL Lightened Hex Adapter Set, 12mm x 6mm:
Baja Rey
AL erleuchtetes Hex-Adapterset,
12 mm x 6 mm: Baja Rey
Baja Rey - Hexagones aluminium, 12mm x 6mm Adattatore esagonale allum. alleggerito, 12 mm x
6 mm: Baja Rey
LOS334002 AL Axle Housing Upper Track Rod Mount:
Baja Rey
AL Achsgehäuse Obere Spurstangen-Montage:
Baja Rey
Baja Rey - Carter de pont supérieur aluminium
Track Rod Mount
Supporto tirante sterzo superiore allum.
alloggiamento asse: Baja Rey
LOS334003 AL Upper/Lower Blkhd Track Rod Mount St:
Baja Rey
AL Blkhd Spurstangen-Montage oben/unten
St: Baja Rey
Baja Rey - Cellule supérieure/inférieure aluminium
Track Rod Mount
Supporto tirante sterzo allum. paratia sup./inf.:
Baja Rey
LOS334004 Aluminum Rear Shock Tower Set: Baja Rey Heck Stoßdämpferbrücke Aluminium: Baja Rey Baja Rey - Support d’amortisseurs arrière en alu Torre ammortizzatore posteriore, allum: Baja Rey
LOS334006 Aluminum Lower Rear Trailing Arm Set: Baja Rey Aluminium Hinterachsträgerset unten: Baja Rey Baja Rey - Bras arrière inférieur aluminium Braccetto longitudinale inf. alluminio: Baja Rey
LOSA3570 1.0 Module Pitch Pinion, 10T: 8E, SCTE 1.0 Modul Getrieberad, 10T: 8E, SCTE 8E, SCTE - Pignon module 1.0, 10T Pignone 10T modulo 1: 8E, SCTE
LOSA3571 1.0 Module Pitch Pinion, 11T: 8E, SCTE 1.0 Modul Getrieberad, 11T: 8E, SCTE 8E, SCTE - Pignon module 1.0, 11T Pignone 11T modulo 1: 8E, SCTE
TLR76000 Tire Glue, Standard Reifenkleber, Standard Colle à pneus, standard Colla pneumatici, standard
TLR76004 TLR Lok, Threadlock, Blue TLR Lok, Schraubensicherung, Blau Frein filet TLR Lok, bleu Frenafiletti blu TLR Lok
Optional Parts // Optionale Bauteile // Pièces optionnelles // Pezzi opzionali
Replacement Parts // Teileliste // Liste des pièces de rechange // Elenco dei ricambi
Part # English Deutsch Français Italiano
LOS235009 Flat Head Screws, M2.5 x 8mm (10) Flachkopfschraube, M2.5 x 8mm (10) Vis FHC, M2,5 x 8mm (10) Viti a testa piatta, M2,5 x 8mm (10)
LOS235010 Flat Head Screws, M2.5 x 12mm (10) Flachkopfschraube, M2.5 x 12mm (10) Vis FHC, M2,5 x 12mm (10) Viti a testa piatta, M2,5 x 12mm (10)
LOS235011 Set Screws, M3 x 3mm Cup Point (10) Ringschneide Gewindestift, M3 x 3 (10) Vis à tête creuse auto-taraudeuses M3 x 3 (10) Set viti a grano M3 x 3 mm (10)
LOS235012 Set Screws, M4 x 4mm Cup Point (10) Ringschneide Gewindestift, M4 x 4 (10) Vis à tête creuse auto-taraudeuses M4 x 4 (10) Set viti a grano M4 x 4 mm (10)
LOS235013 Flat Nut, M3 x 0.5 x 5mm (10) Flachmutter, M3 x 0.5 x 5mm (10) Écrou plat, M3 x 0,5 x 5mm (10) Dado piatto, M3 x 0,5 x 5mm (10)
LOS235014 Lock Nut, M2 x 0.4 x 4mm (10) Muttern Nylock angeflanscht, M2 x 0.4 x 4mm (10) Écrou auto-freiné M2 x 0,4 x 4mm (10) Dadi autobloccanti M2 x 0,4 x 4 mm (10)
LOS235015 Lock Nut, Flanged M5 x 0.8 Serrated (10) Muttern Nylock angeflanscht gezackt, M5 x 0.8 (10) Écrou auto-freiné épaulé strié M5 x 0,8mm (10) Dadi a colletto dentato M5 x 0,8 (10)
LOS235023 Hinge Pin Screws, FR (10): Rock Rey Scharnierstiftschrauben, FR (10): Rock Rey Rock Rey -Vis de cellule avant (10) Viti perni cerniere ant. (10): Rock Rey
LOS239001 Fluorescent Yellow Decal Sheet: Rock Rey Aufkleberbogen/Fluor Gelb: Rock Rey Rock Rey - Planche de décoration jaune fluo Decalcomanie giallo fluorescente: Rock Rey
LOS239002 Electric Blue Decal Sheet: Rock Rey Aufkleberbogen/Blau: Rock Rey Rock Rey - Planche de décoration bleue électrique Decalcomanie blu elettrico: Rock Rey
LOS330001 LED Roof Light Bar Set: Baja Rey LED-Leuchtbalkenset, Dach: Baja Rey Baja Rey - Rampe lumineuse DEL toit Barra luci LED tetto: Baja Rey
LOS43012 Maxxis Creepy Crawler LT Mounted 2.35" x 5.75" - 2.2 Maxxis Creepy Crawler LT montiert Pneus montés Maxxis Creepy Crawler LT Maxxis Creepy Crawler LT montato
LOS43013 Maxxis Creepy Crawler LT Tire 2.35" x 5.75" - 2.2" Maxxis Creepy Crawler LT Reifen Pneus Maxxis Creepy Crawler LT Pneumatico Maxxis Creepy Crawler LT
LOS43014 Wheels 2.2" (4): Rock Rey Räder 2.2" (4): Rock Rey Rock Rey - Roues 2,2" (4) Ruote 2,2" (4): Rock Rey
LOSA6250 Set Screws, 4mm & 5mm (6) Madenschraube, 4mm & 5mm (6) Vis STHC, 4mm & 5mm (6) Grano, 4mm & 5mm (6)
LOSA6937 5 x 10mm Shielded Ball Bearing (2) 5x10mm Kugellager mit Staubschutzscheibe (2) Roulements épaulés 5 x 10mm (2) Cuscinetto a sfera schermato 5 x 10 mm (2)
LOSA6940 6 x 12mm Sealed Ball Bearing (4) 6 x 12mm Kugellager mit Gummiabdeckung (4) Roulements étanches 6 x 12mm (4) Cuscinetto a sfera sigillato 6 x 12 mm (2)
LOSA6956 12 x 18 x 4mm Ball Bearing (2) 12 x 18 x 4mm Kugellager (2) Roulements 12 x 18 x 4mm (2) Cuscinetto a sfera 12 x 18 x 4 mm (2)
LOSA6957 10 x 15 x 4mm BB (2) with Nylon Retainer 10 x 15 x 4mm Kugellager (2) with Nylon Retainer Roulements 10 x 15 x 4mm flasque nylon (2) Cuscinetto a sfera 10 x 15 x 4 mm con fermo di
nylon (2)
LOSB3008 3 x 6 x 2.5mm Ball Bearing (2) 3 x 6 x 2.5mm Kugellager (2) Roulements 3 x 6 x 2,5mm (2) Cuscinetto a sfera 3 x 6 x 2,5 mm (2)
SPMS612HV 12KG Servo,WP, Metal, 23T 12KG WP-Metall-Servo 23T Servo 12kg à pignons métal, étanche, 23T Servo 12 kg, resistente all’acqua, metallo, 23T
SPMSRS4220 SRS4220 DSMR AVC Surface Rx SRS4220 DSMR AVC Sender Récepteur SRS4220 DSMR AVC Radio AVC DSMR SRS4220
TLR5903 Button Head Screws, M3 x 10mm (10) Halbrundschraube, M3 x 10mm (10) Vis à tête bombée, M3 x 10mm (10) Viti a testa tonda, M3 x 10mm (10)
TLR5904 Button Head Screws, M3 x 12mm (10) Halbrundschraube, M3 x 12mm (10) Vis à tête bombée, M3 x 12mm (10) Viti a testa tonda, M3 x 12mm (10)
TLR5909 Button Head Screws, M3 x 16mm (10) Halbrundschraube, M3 x 16mm (10) Vis à tête bombée, M3 x 16mm (10) Viti a testa tonda, M3 x 16mm (10)
TLR5910 Button Head Screws, M3 x 14mm (10) Halbrundschraube, M3 x 14mm (10) Vis à tête bombée, M3 x 14mm (10) Viti a testa tonda, M3 x 14mm (10)
TLR5911 Button Head Screws, M3 x 20mm (10) Halbrundschraube, M3 x 20mm (10) Vis à tête bombée, M3 x 20mm (10) Viti a testa tonda, M3 x 20mm (10)
TLR5913 Button Head Screws, M2.5 x 12mm (10) Halbrundschraube, M2.5 x 12mm (10) Vis BHC, M2,5 x 12mm (10) Viti a testa tonda, M2,5 x 12mm (10)
TLR5934 Cap Head Screws, M3 x 16mm (10) Sechskantschraube, M3 x 16mm (10) Vis CHC M3 x 16mm (10) Viti a testa piatta M3 x 16mm (10)
TLR5961 Flathead Screws, M3 x 8mm (10) Flachkopfschraube, M3 x 8mm (10) Vis FHC, M3 x 8mm (10) Viti a testa piatta, M3 x 8mm (10)
TLR5963 Flathead Screws, M3 x 12mm (10) Flachkopfschraube, M3 x 12mm (10) Vis FHC, M3 x 12mm (10) Viti a testa piatta, M3 x 12mm (10)
TLR5964 Flathead Screws, M3 x 16mm (10) Flachkopfschraube, M3 x 16mm (10) Vis FHC, M3 x 16mm (10) Viti a testa piatta, M3 x 16mm (10)
TLR5965 Flathead Screws, M3 x 20mm (10) Flachkopfschraube, M3 x 20mm (10) Vis FHC, M3 x 20mm (10) Viti a testa piatta, M3 x 20mm (10)
TLR5965 Flathead Screws, M3 x 20mm (10) Flachkopfschraube, M3 x 20mm (10) Vis FHC, M3 x 20mm (10) Viti a testa piatta, M3 x 20mm (10)
TLR6312 Locknut, M2.5 x .45 x 5mm (6) Muttern Nylock angeflanscht, M2.5 x .45 x 5mm (6) Ecrou auto-freiné M2,5 x 0,45 x 5mm (6) Dadi autobloccanti, M2,5 x .45 x 5 mm (6)
TLR6313 Locknut, M3 x .5 x 5.5mm (10) Muttern Nylock angeflanscht, M3 x 0.5 x 5.5mm (10) Ecrou auto-freiné M3 x 0,5 x 5,5mm (10) Dadi autobloccanti, M3 x .5 x 5,5 mm (10)
TLR6352 Washers, M3 (10) TLR U-Scheibe, M3 (10) Rondelles M3 (10) Rondelle, M3 (10)
TLR74006 Silicone Shock Oil, 30wt, 2oz Silikon-Stoßdämpferöl, 30 wt, 60 ml (2 oz) Huile silicone d’amortisseur, 30wt, 60 ml Olio al silicone per ammortizzatore, 30wt, 2oz
VTR246001 Screw Pin, Clip Post (10): Glamis Uno Stiftschraube (10) GLU Supports de clips avec goupilles (10): GLU Perni viti clip (10): GLU

37
IT
37
ROCK REY ROCK RACER: 1:10 RTR, AVC
EXPLODED VIEW
EXPLOSIONSZEICHNUNG
VUE ÉCLATÉE DES PIÈCES
VISTA ESPLOSA DELLE PARTI
LOS230030/
LOS230031
LOS230032
TLR5913
LOS230028
LOS230027
LOS230030/
LOS230031
LOS230028
LOS230030/
LOS230031
LOS230027
LOS230029
LOS230029
LOS230029
LOS230029
LOS230029
LOS230030/
LOS230031
LOS230029
LOS230030/
LOS230031
LOS230029
LOS43012
LOS230013
LOS235006
LOS235006
LOS235006
LOS235006
LOS235006
LOS235006
LOS235006LOS235006
TLR5913
TLR5913
TLR5909
TLR5909
LOS330001
LOS235006

IT
38
ROCK REY ROCK RACER: 1:10 RTR, AVC • MANUALE DI ISTRUZIONI
38 ROCK REY ROCK RACER: 1:10 RTR, AVC
EXPLODED VIEW EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DES PIÈCES VISTA ESPLOSA DELLE PARTI
SPMSR4220
SPMS612HV
TLR5904
TLR6352
DYN4955
TLR5904
TLR6352
LOS232012
LOSA6956
LOS232004
LOS232007
LOSA6956
DYNS1614
LOS231012
LOS232002
LOS232012
LOS235003
LOSA6937
LOSA3572
LOS232007
LOS232007
LOS232002
LOS232004
TLR6313
LOSA6250
TLR5909
LOSA6937
LOS231008
LOS231008
LOSB3008
LOS235013
LOS234007
LOS231008
LOS231008
LOS231008
LOS235005 LOS234008
TLR5910
TLR5910
TLR6352
TLR6352
LOS234008
LOS231008
TLR6313
LOSB3008
LOS231013
LOSB3008
LOS231013
LOS231008
LOS231013
TLR6313
TLR6313
LOS231013
LOS231008
TLR6352
TLR5910

39
IT
39
ROCK REY ROCK RACER: 1:10 RTR, AVC
EXPLODED VIEW EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DES PIÈCES VISTA ESPLOSA DELLE PARTI
LOS232006
VTR246001
LOS233006
LOS232009
LOSA6940
LOS234011
LOS234013
TLR6313
LOS235023
LOS234011
LOS235023
LOS234013
LOS234008
LOS234014
LOS234014
TLR5911
LOS234008
TLR6313
LOS235001
LOS234013
LOS232009
TLR5909
LOS234005
LOS235005
LOS235001
TLR6532
LOS234012
TLR5911
LOS235008
LOS232020
LOS232021
LOS232021
LOS235005
VTR235015
VTR235015
LOS232010
LOS232012
LOSA6937
LOS232019
VTR246001
LOS232003
LOS232003
TLR5965 TLR5934
LOS234007
LOS234007
LOS234007
LOS235001
TLR5965
TLR5934
LOS232022
LOSA6957
LOS232022
VTR246001
LOS235001
LOS232008
LOS232004
VTR246001
LOS234007
LOSA6957
LOS235014
LOS235001
LOS232004
LOS233005
LOS233004
LOS233003
LOS233001
LOS233001
LOS233002
LOS233001
LOS233004
LOS233001
LOS234008
LOS233004
LOS234008
LOS233001
LOS233002
TLR6312
LOS233003
LOS233001

IT
40
ROCK REY ROCK RACER: 1:10 RTR, AVC • MANUALE DI ISTRUZIONI
40 ROCK REY ROCK RACER: 1:10 RTR, AVC
CHASSIS EXPLODED VIEW CHASSIS EXPLOSIONSZEICHNUNG VUE ÉCLATÉE DU CHÂSSIS VISTA ESPLOSA DEL TELAIO
LOS231006
LOS231010
LOS231005
LOS231005
LOS234002
TLR5911
LOS235006
TLR6313
TLR5904
TLR5913
LOS235011
TLR5904 LOS235011
LOS230012
LOS235009
LOS231005
LOS235009
TLR5913
LOS235002
LOS232005
TLR5911
LOS235002
LOS232005
LOS230012
TLR6313
TLR5911
LOS234002
LOS234002
TLR5911
TLR5911
TLR5963
LOS234002
LOS234002
LOS234002
LOS235011
LOS231006
TLR5965
TLR5965
TLR5965
LOS235004
LOS234002
TLR5965
TLR6313
TLR6313
TLR6313
TLR5909
LOS234006
LOS234006
TLR6313
TLR6313
LOS235006
TLR5911
LOS234006
LOS234006
LOS234006
LOS234006
TLR5909
LOS234006
LOS234006
TLR6313
LOB234004
TLR5963
TLR5935
TLR5963
TLR5663
LOS235009
TLR5963
TLR5961
LOS231006
LOS235009
LOS231010
TLR5910
TLR6352
TLR6352
TLR5961
TLR5961
LOS231011
LOS231011
LOS231008
LOS231011
TLR5934
LOS235001 LOS231021
LOS231022
LOS231021
LOS231022
TLR5963
LOS231022
TLR5910
LOS231022
LOS235002
LOS235002
TLR5963
TLR5910 TLR5934
TLR5903
TLR5911
TLR5911

41
IT
41
ROCK REY ROCK RACER: 1:10 RTR, AVC
REAR EXPLODED VIEW HECK EXPLOSIONSZEICHNUNG VUE ÉCLATÉE ARRIÈRE VISTA ESPLOSA DELLA PARTE POSTERIORE
TLR5909
LOS232001
TLR5911
LOS234008
LOS232001
LOS234008
TLR5911
TLR5904
LOS232014
LOS232014
LOS232014
LOS232014
VTR246001
LOS232005
LOS234008
LOS234003
TLR5911
LOS234003
LOS232001
LOS232019
LOSA6937
LOS234003
TLR6313
LOS234008
LOS234008
LOS232019
LOSA6957
VTR246001
LOS232001
LOSA6940
LOSA6940
TLR5964
LOS232006
LOS232014
LOS234003
LOS234008
TLR5911
LOS234008
LOSA6937
LOS232006
LOS232006
LOS232004
LOSA6957
LOS232001
LOSA6940
LOS232006
LOS232006
LOS232014
LOS232006
TLR5964
TLR5964
LOSA6940
TLR6313
LOS234008
TLR6313
LOS232004
TLR5943
TLR5943
TLR5964
LOS232011
LOS232004
LOS231006
LOS231010
LOS231005
LOS231005
LOS234002
TLR5911
LOS235006
TLR6313
TLR5904
TLR5913
LOS235011
TLR5904 LOS235011
LOS230012
LOS235009
LOS231005
LOS235009
TLR5913
LOS235002
LOS232005
TLR5911
LOS235002
LOS232005
LOS230012
TLR6313
TLR5911
LOS234002
LOS234002
TLR5911
TLR5911
TLR5963
LOS234002
LOS234002
LOS234002
LOS235011
LOS231006
TLR5965
TLR5965
TLR5965
LOS235004
LOS234002
TLR5965
TLR6313
TLR6313
TLR6313
TLR5909
LOS234006
LOS234006
TLR6313
TLR6313
LOS235006
TLR5911
LOS234006
LOS234006
LOS234006
LOS234006
TLR5909
LOS234006
LOS234006
TLR6313
LOB234004
TLR5963
TLR5935
TLR5963
TLR5663
LOS235009
TLR5963
TLR5961
LOS231006
LOS235009
LOS231010
TLR5910
TLR6352
TLR6352
TLR5961
TLR5961
LOS231011
LOS231011
LOS231008
LOS231011
TLR5934
LOS235001 LOS231021
LOS231022
LOS231021
LOS231022
TLR5963
LOS231022
TLR5910
LOS231022
LOS235002
LOS235002
TLR5963
TLR5910 TLR5934
TLR5903
TLR5911
TLR5911
LOS233005
LOS233001
LOS234008
LOS233001
TLR5911
LOS233002
LOS233001
LOS233002
LOS233004
LOS233001
TLR6312
LOS233003
LOS233004
LOS233001
LOS234008
TLR6313
LOS233002
LOS233004
LOS233004

42
ROCK REY ROCK RACER: 1:10 RTR, AVC
Notes

43
ROCK REY ROCK RACER: 1:10 RTR, AVC
Notes

© 2016 Horizon Hobby, LLC.
Losi, Rock Rey, DSM, DSM2, DSMR, AVC, Active Vehicle Control, EC3, Dynamite, Fuze, Prophet , Reaction and the Horizon Hobby logo
are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann
Industries, Inc. US 9,320,977. Other patents pending.
Created 10/16 51556 | LOS03009T1/T2
WWW.LOSI.COM
