TradeQuip 1019T User manual

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au
OWNER’S MANUAL
PRODUCT CODE: 1019T
500kg ENGINE SUPPORT BAR
Maximum
Capacity
Max. Width
Min. Width
Carton
Weight
500kg
1600mm
1020mm
1030 x 200 x 80mm
16kg

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 2
WARNING
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
WARNING
The instructions and warnings contained in this manual should be read and understood before
using or operating this equipment. Do not allow anyone to use or operate this equipment until
they have read this manual and have developed a thorough understanding of how this
equipment works. Failure to observe any of the instructions contained in the manual could
result in severe personal injury to the user or bystanders, or cause damage to the equipment
and property. Keep this manual in a convenient and safe place for future reference.
Whilst every effort has been made to ensure accuracy of information contained in this manual,
the TQB Brands Pty Ltd policy of continuous improvement determines the right to make
modifications without prior warning.
CONTENT
WARNING ................................................................................................................. 2
CONTENT .................................................................................................................. 2
SAFETY INSTRUCTIONS ............................................................................................. 3
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE .......................................... 4
PARTS DIAGRAM ...................................................................................................... 6
PARTS LIST ................................................................................................................ 6
WARRANTY .............................................................................................................. 7

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 3
SAFETY INSTRUCTIONS
SAFETY OPERATING INSTRUCTIONS
ü Before using the Engine Support Bar ensure it is in sound condition, and good working
order.
ü Replace or repair damaged parts. Use recommended parts only. Non-authorised parts
may be dangerous and will invalidate the warranty.
ü Keep the Engine Support Bar clean for best and safest performance.
ü Locate the engine support bar in an adequate working area for its function, keep area
clean and tidy and free from unrelated materials, and ensure there is adequate
lighting.
ü Maintain correct balance and footing. Ensure the floor is not slippery and wear non-
slip shoes.
ü Ensure all non-essential persons keep a safe distance whilst the Engine Support Bar is
in use.
ü Lock all knobs securely in position before fixing a load, and ensure the load is centred
across the Engine Support Bar.
ü Always ensure the Engine Support Bar and the load is stable.
û DO NOT operate unit if damaged.
û DO NOT allow untrained persons to operate the Engine Support Bar.
û DO NOT exceed the rated capacity of 500kg.
DANGER: DO NOT work under an engine mounted on the engine support bar.

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 4
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE
1. FEATURES
The 1019T 500kg Engine Support Bar accepts a wide variety of engines and transmissions.
This engine support bar comes with everything needed to perform work on your engine or
transmission, including a steel beam, standing brackets, adjusting screw, rubber-moulded
cushion, steel chain with handles, hooks and hardware. The rubber padded support legs
prevent slips as well as damage to paint. The engine support is designed only to support
the engine so that parts or mechanisms underneath the engine, which normally have
limited access, can be reached.
2. BEFORE USE
Prior to each use conduct a visual inspection by checking for abnormal conditions, such as
cracked joints and damaged, loose, or missing parts.
3. OPERATING INSTRUCTIONS
1. Refer to the vehicle owner’s manual of the engine to be lifted to determine the
lifting points.
2. Park the car on a flat surface, apply the parking brakes and chock the wheels.
3. Never try to move a running or hot engine. Allow sufficient time for the engine to
cool down entirely before beginning any operations.
4. Loosen Spreader Knobs (2) and adjust Standing Block (1) and Bracket (8), to locate
rubber cushions over the gutter lips adjacent to the fenders of the car.
5. Centre the Engine Support Bar assembly over the engine and tighten the Spreader
Knobs (2)
6. Attach the Chain (9) to the engine at the appropriate lifting points, then loop the
Chain securely to the flange on the bottom of the Adjustable Screw Hook (5).
7. Turn the Screw Hook Handle (4) clockwise until the Chain is taut and the engine is
held securely.
8. Loosen engine mounts. Turn the Screw Hook Handle (4) at 1/4 clockwise turns until
the entire engine’s weight is supported by the chains. Continue to loosen and
disconnect the engine mounts.
9. Never work on the engine while it is supported only by the Engine Support Bar.
Moving the engine whilst it is suspended only by the Engine Support Bar can cause
the Engine Support Bar to fail or shift, resulting in serious personal injury and/or
property damage.
10. To prevent accidents, lower and reconnect the engine when finished working. The
Engine Support Bar is not intended to be used as a long-term suspension device.
11. Clean, then store the tool indoors out of children’s reach.
12. Always use a good quality under bonnet work light that illuminates the work area.

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 5
4. STORAGE
This Engine Support Bar should always be stored in a dry location on a level surface.
5. MAINTENANCE
Replace or repair damaged parts. Use recommended parts only. Non-authorised parts
may be dangerous and will invalidate the warranty.
Keep the Engine Support Bar clean for best and safest performance.
6. SERVICE & REPAIR
Any Engine Support Bar found damaged in any way, or found to be worn or operates
abnormally should be removed from service until repaired by an authorised service agent.
Owners and / or operators should be aware that repair of this product may require
specialised equipment and knowledge. Only authorised parts, labels and decals shall be
used on this equipment. Annual inspection of the engine stand is recommended and can
be made by an authorised repair facility to ensure that your equipment is in optimum
condition and that the equipment has the correct decals and safety labels specified by the
manufacturer.

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 6

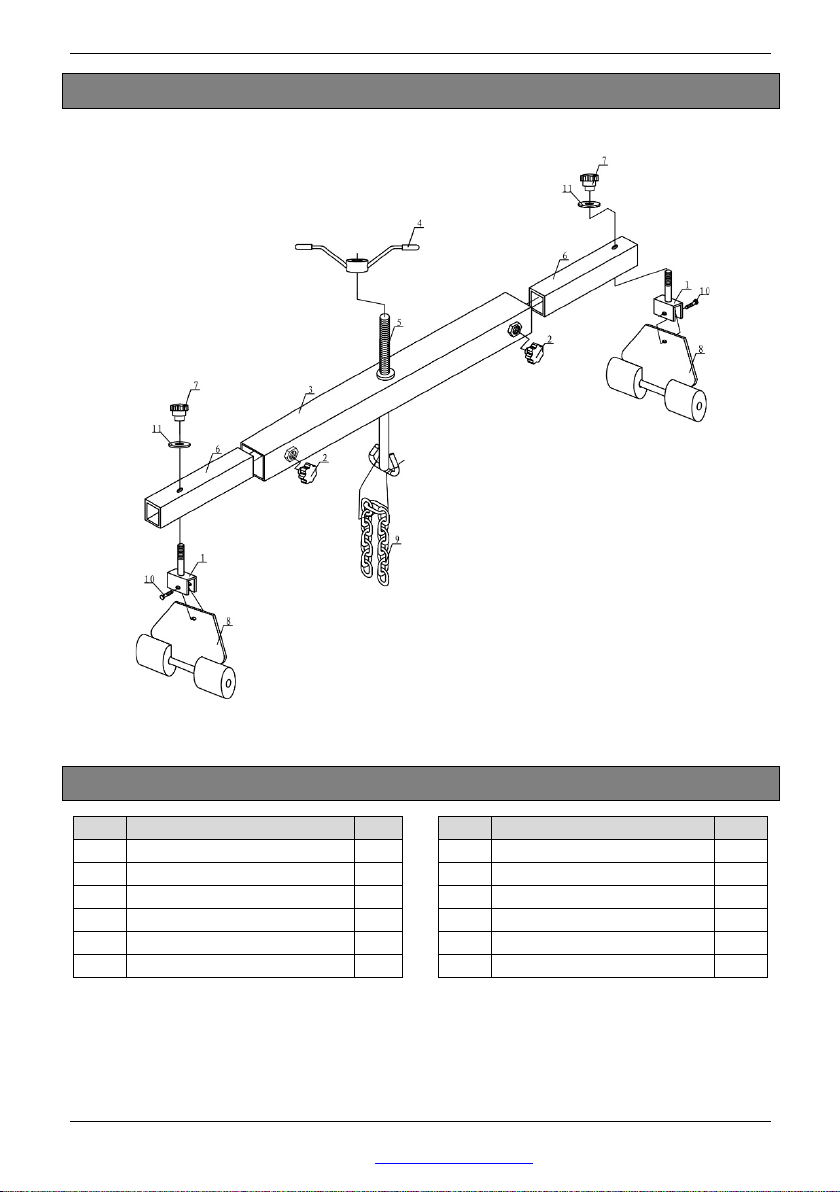

PARTS DIAGRAM
PARTS LIST
Part
Description
Qty
Part
Description
Qty
1
Standing Block
2
7
Standing Block Knob
2
2
Spreader Knob
2
8
Standing Bracket
2
3
Main Beam
1
9
Chain
1
4
Screw Hook Handle
1
10
Bolt M12 x 25
2
5
Adjustable Screw Hook
1
11
Washer
2
6
Extension Tube
2

Jul-19 Product Code: 1019T
Made in China to TQB Brands Pty Ltd specifications.
Visit us at www.tqbbrands.com.au Page | 7
WARRANTY
TradeQuip products have been carefully tested and inspected before shipment and are
guaranteed to be free from defective materials and workmanship for a period of 12 months
from the date of purchase except where tools are hired out when the guarantee period is ninety
days from the date of purchase.
Should the machine develop any fault, please return the complete tool to your nearest
authorised warranty repair agent or contact TQB Brands Pty Ltd Warranty team –
[e-mail].
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee does not apply to normal
wear and tear, nor does it cover any damage caused by misuse, careless or unsafe handling,
alterations, accident, or repairs attempted or made by any personnel other than the authorised
TQB Brands Pty Ltd repair agent.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your TQB Brands Pty Ltd guarantee is not effective unless you can produce upon request a dated
receipt or invoice to verify your proof of purchase within the 12month period.
Consumer Guarantee
Our goods come with a guarantee that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
