tradetec TLEEC360 User manual

Martec Pty Ltd
6 Austool Pl | Ingleburn, NSW 2565
P: 02 8778 7500
F: 02 8778 7555
E: customer[email protected]
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Tradetec Ceiling LED Emergency Exit Light - Model: TLEEC360
Ver 1. 07.08.2017 Page 1.
Cover
Body
Baery
A
B
Remove the product from the box and inspect it for any damage. If you believe the product to be damaged or otherwise unsound, DO NOT install the product.
Please pack it back into its box and return it to the place of purchase for replacement. If the product is sasfactory, proceed with the installaon.
INSTALLATION AND MOUNTING
Remove the cover using a flat blade screwdriver, release the clip by pushing in and down. The top cover can then be removed by sliding it away from the
screwdriver. The cover MUST BE mounted prior to aaching to the body.
Mount cover and connect wiring to terminals. Assemble the product by sliding the body into place.
Warranty
Voltage (V) 220-240V
12 month replacement
Frequency (Hz) 50Hz
Max Ambient Temp 40⁰C
Class 2
Duration 90 / 120 min
IP Rating IP20
Emergency Classification C0=E2.5 C90: E2.0 (3Hr)
Average Power Consumption 2.2W (maintained)
Mounting Type Rod / surface / suspended or wall mounted
Terminal Block
24M
Li-ion
Wiring
Viewing Distance
Battery Type
Battery Voltage 3.7V
Charging Time 16 hours
Charger Type Variable
Max Power Consumption 3.5W (maintained)

REPLACING THE BATTERY
Access the baery by removing the product cover. Disconnect and remove baery. Replace baery as previously installed. Baery can be connected in one
direcon only, do not force. Allow a minimum 24 hours charging me before carrying out any discharge tests as per the requirements in AS/NZS 2293.
BATTERY LIFE
To maintain the economic life of this product it is required that the baery be discharged and recharged at least once
every 6 months. The baery life can be reduced if the baery is not discharged as per the requirements of AS/NZS 2293
or an equivalent standard. Increasing the number of duraon tests above that as defined in AS/NZS 2293 or an equivalent
standard can have a posive effect on the baery performance as long as 12 discharge cycles per year is not exceeded.
The recharging device will operate normally aer removal of short circuit fault.
208 mm
350 mm 73 mm
Martec Pty Ltd
6 Austool Pl | Ingleburn, NSW 2565
P: 02 8778 7500
F: 02 8778 7555
E: customer[email protected]
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Tradetec Ceiling LED Emergency Exit Light - Model: TLEEC360
COMPLIANCE
The Emergency Exit has been tested to comply
with relevant Australian/New Zealand standards.
• AS/NZS 60598.2.1:2014
• AS/NZS 60598.1.2011
• Approval No. GMA-501968
• AS 2293

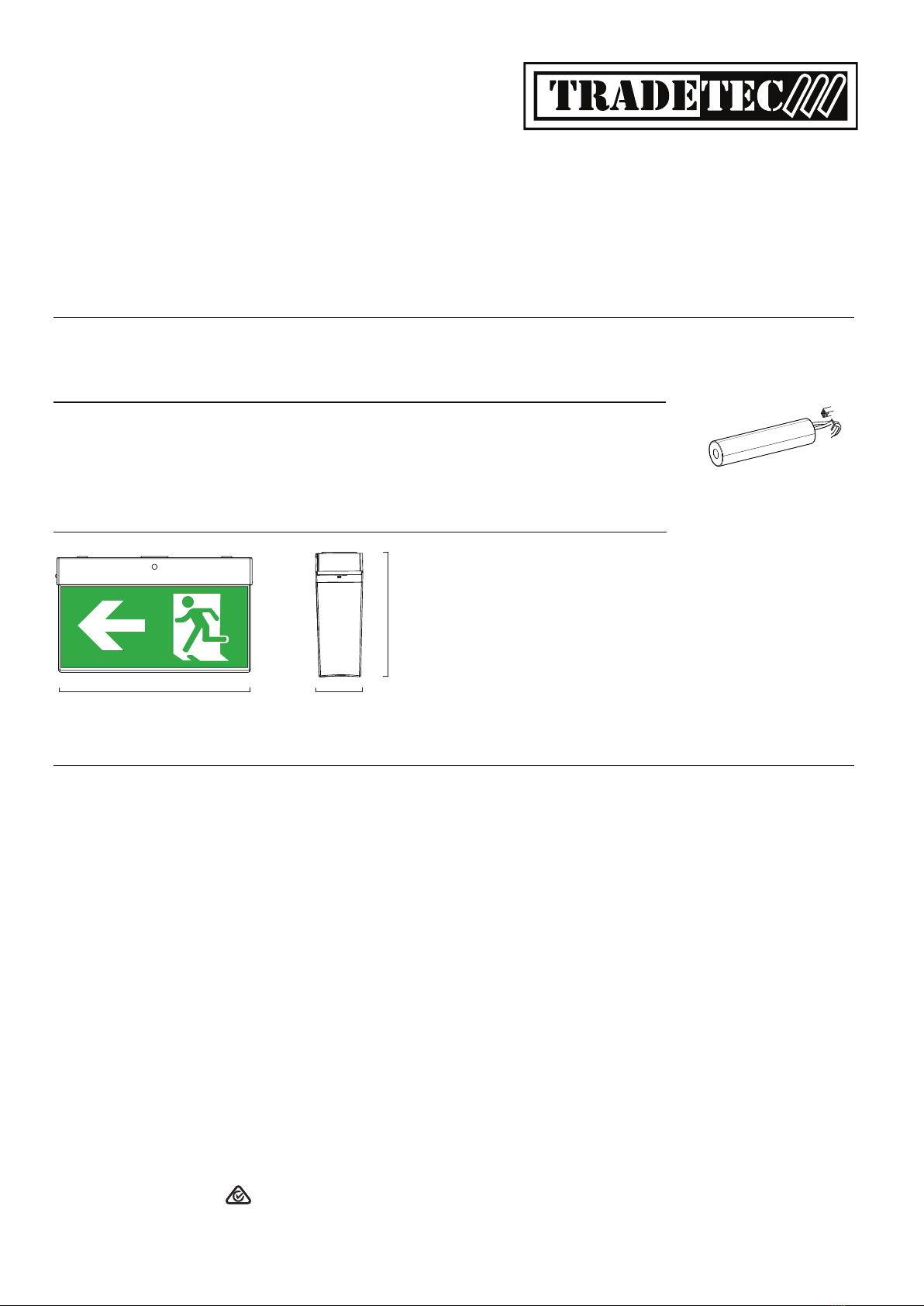

DIMENSIONS
SAFETY WARNINGS
1. This product must only be installed by a licensed electrician.
2. Before commencing installaon turn off and isolate the electrical supply.
3. Risk of accidental contact with live parts. Do not energise with product open or disassembled.
4. Supply voltages within product. Isolate supply voltages before opening or serving or servicing.
5. This luminaire is not intended for use in high-risk task area lighng.
6. Mains supply and baery circuit separated by reinforced insulaon.
7. The only user serviceable/replaceable part is the baery pack.
8. Do not aempt to service other parts of the fing as this will void the warranty.
9. As the installer, it is your responsibility to ensure you comply to all relevant building and safety codes for eg. the BCA, AS3000. Refer to applicaon standards
for the relevant rules.
1 x Li-ion baery
Page 2.
