Trane 4MXW6-A User manual

$SULO 20100669842$(1
Inverter Multi-split
Multi Split
9,000 to 34,000 BTU/Hr
4MXW6-A 4TXW6-A

Warnings and Cautions
© Trane All rights reserved
Warnings and Cautions. Notice that warnings and cautions appear at appropriate intervals
throughout this manual. Warnings are provided to alert installing contractors to potential
hazards that could result in personal injury or death, while cautions are designed to alert
personnel to conditions that could result in equipment damage.
Your personal safety and the proper operation of this machine depend upon the strict
observance of these precautions.
WARNING
Ground Required!
Follow proper local electrical code on requirements for grounding. Failure to follow
code could result in death or serious injury.
WARNING
This information is intended for use by individuals possessing adequate backgrounds
of electrical and mechanical experience. Any attempt to repair a central air
conditioning product may result in death, personal injury or property damage. The
manufacturer or seller cannot be responsible for the interpretation of this information,
nor can it assume any liability in connection with its use.
WARNING
R410A Refrigerant under Higher Pressure than R22!
The units described in this manual use R410A refrigerant which operates at 50 to 70%
higher pressures than R-22. Use only R-410A approved service equipment. Refrigerant
cylinders are painted with "pink" color to indicate the type of refrigerant and may
contain a "dip" tube to allow for charging of liquid refrigerant into the system. For
specific handling concerns with R-410A, please contact your local Trane representative.
Failure to use R-410A approved service equipment could result in standard equipment
exploding under R-410A higher pressure which could result in death or serious injury.
Attention:Warnings and Cautions appear at appropriate sections throughout this
literature. Read these carefully.
WARNING:Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, could
result in minor or moderate injury. It may also be used to alert against unsafe practices.
NOTICE:Indicates a situation that could result in equipment or property-damage only
accidents.
MS-SVU42A-EN

Warnings and Cautions
3
NOTICE
Use PVE Oil with R-410A Mini-Split Units!
All R-410A mini-splits use a PVE oil (Polyvinyl Ether Oil) that readily absorbs moisture
from the atmosphere. To limit this “hygroscopic” action, the system should remain
sealed whenever possible. If a system has been open to the atmosphere for more than
4 hours, the compressor oil must be replaced. Never break a vacuum with air and
always change the driers when opening the system for component replacement. For
specific handling concerns with PVE oil, contact your local Trane representative.
USE ONLY THE FACTORY RECOMMENDED - DAFNE HERMETIC OIL FV50S - for
servicing these units.
Failure to follow these recommendations could result in equipment damage.
Important!
Environmental Concerns
Scientific research has shown that certain man-made chemicals can affect the earth’s naturally
occurring stratospheric ozone layer when released to the atmosphere. In particular, several of
the identified chemicals that may affect the ozone layer are refrigerants that contain Chlorine,
Fluorine and Carbon (CFCs) and those containing Hydrogen, Chlorine, Fluorine and Carbon
(HCFCs). Not all refrigerants containing these compounds have the same potential impact to the
environment. Trane advocates the responsible handling of all refrigerants—including industry
replacements for CFCs such as HCFCs and HFCs.
Responsible Refrigerant Practices
Trane believes that responsible refrigerant practices are important to the environment, our
customers, and the air conditioning industry. All technicians who handle refrigerants must be
certified. The Federal Clean Air Act (Section 608) sets forth the requirements for handling,
reclaiming, recovering and recycling of certain refrigerants and the equipment that is used in
these service procedures. In addition, some states or municipalities may have additional
requirements that must also be adhered to for responsible management of refrigerants. Know
the applicable laws and follow them.
MS-SVU42A-EN

4
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Model Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Typical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Control Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Names and functions of wireless remote control . . . . . . . . . . . . . . . . . . . . . . . 9
General operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Optional operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Explanation of special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

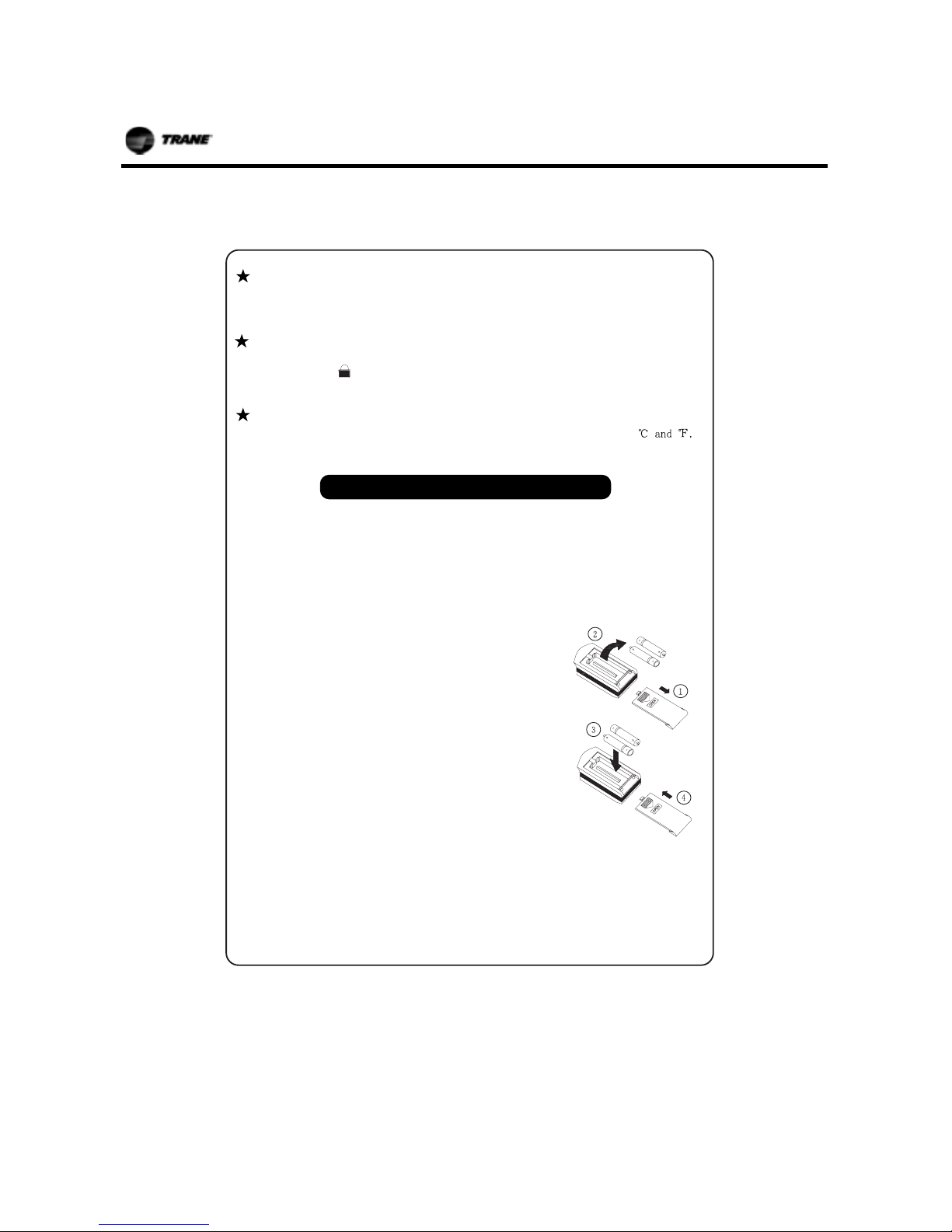

Changing batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Cleaning the air filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

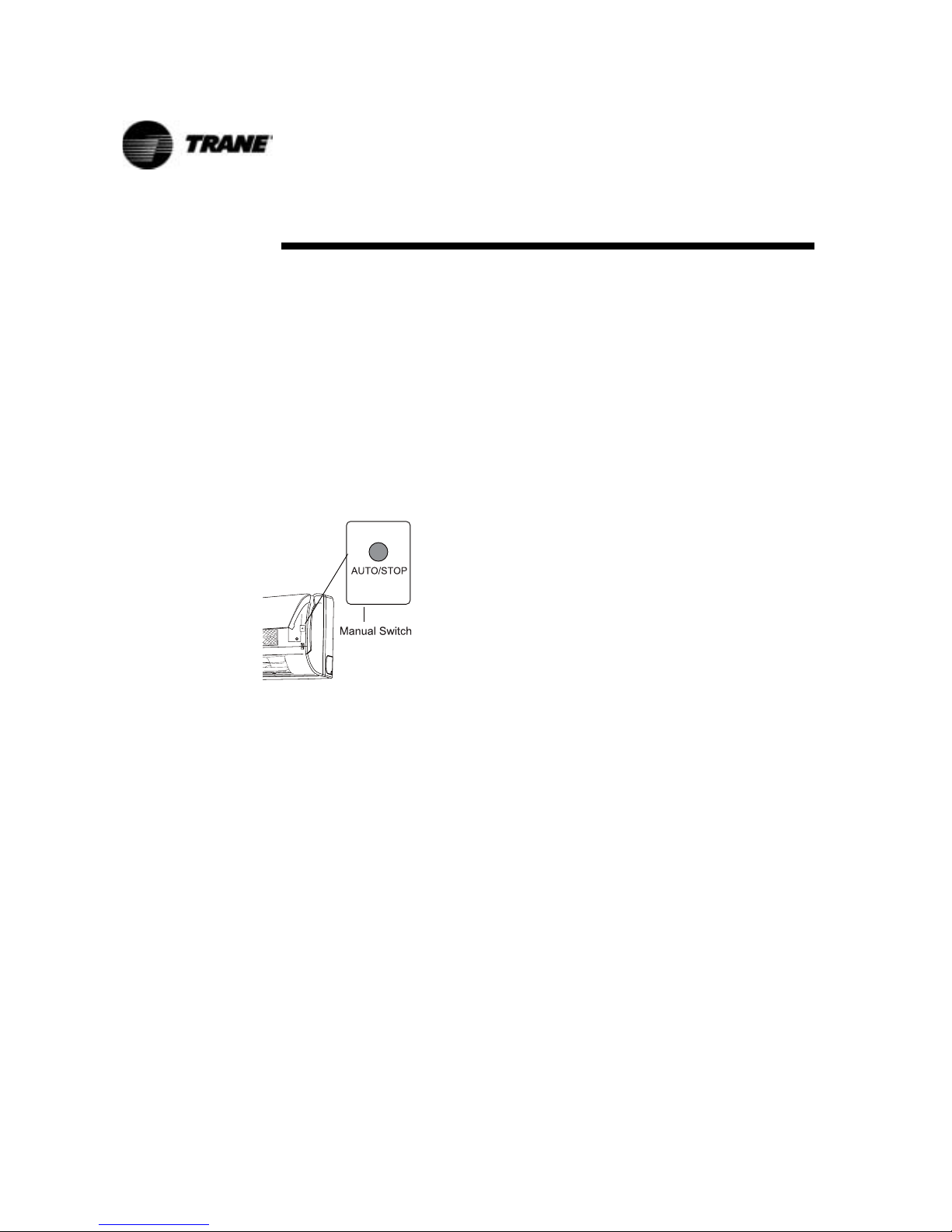

Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Working principle of cooling mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Working principle of heating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents
MS-SVU42A-EN
6
8
8
19
8

5
This Owner’s Manual is given as a guide to good practices in the operation of a wall mounted
split system. However it does not contain all the service procedures for this unit, as these
procedures must be performed by a qualified service technician, through the maintenance
contract with a reputable service company.
Read these operation tely before using the air conditioning.
Warranty
Warranty is based on the general terms and conditions by country. The warranty is void if the
equipment is modified or repaired without the written approval of The Trane Company, if the
operating limits are exceeded or if the control system or the electrical wiring is modified.
Damage due to inappropriate installation, lack of knowledge or failure to comply with the
manufacturer’s instructions, is not covered by the warranty obligation.
If the installation does not conform to the rules described in Installation Manual, it may entail
cancellation of warranty and liabilities by The Trane Company.
Reception
On arrival, inspect the unit before signing the delivery note. Specify any damage of the unit on
the delivery note, and send a registered letter of protest to the last carrier of the goods within 72
hours of delivery. Notify the dealer at the same time.
The unit should be totally inspected within 7 days of delivery. If any concealed damage is
discovered, send a registered letter of protest to the carrier within 7 days of delivery and notify
the local dealer.
About the Unit
These units are assembled, pressure tested, dehydrated, charged and run tested before shipment.
Refrigerant
The refrigerant provided by the manufacturer complies with all the requirements for our units.
When using a recycled or reprocessed refrigerant, we recommend its qualities be as good as
those of a new refrigerant. It is necessary to have the refrigerant tested by a qualified laboratory.
Failure to do so could void the warranty.
Important
These instructions do not cover all variations in systems, nor do they provide for every possible
contingency to be met in connection with installation. Should further information be desired or
should particular problems arise which are not covered sufficiently in this manual, the matter
should be referred to your authorized Trane dealer.
General Information
MS-SVU42A-EN
instruction comple


Model Numbers
6+]
,QGRRU8QLWV 2XWGRRU8QLW
High Efficiency Inverter Multi-split, R-410A
Heat pump
4MXW6509B1
4MXW6512B1
4MXW6518B1
4TXM6518A1
4TXM6524A1
4TXM6528A1
MS-SVU42A-EN

7
The followings are general recommendations that are necessary to follow to obtain maximum
performance from your air conditioner:
• Don’t leave windows and doors open for a long time while operating the air conditioner. It
can decrease the air conditioning capacity.
• Don’t put a space heater near the air conditioner, it can decrease the air conditioner capacity.
•Whent
he air conditioner will not be used for a long time, turn off the power supply.
NOTICE
Air Flow Restriction!
Ensure no restriction of air flow to or from the unit or system. Failure to do so could
result in poor performance or cause equipment damage.
WARNING
Safety Recommendations!
The followings are safety recommendations that if not followed could result in death or
serious injury:
If a burning smell or smoke occurs, please turn off the power supply and contact your
Trane dealer. The unit may be damaged, and may cause electric shock or fire.
Do not use flammable sprays near the air conditioner. They can cause a fire or
explosion.
Don't attempt to repair the air conditioner by yourself. Incorrect repair could lead to an
electric shock or fire, so repairs should only be made by qualified Trane technicians.
The power supply must be of proper amperage and conform with local codes.
Please don't cut or damage the power cords and control cords. Electric shock or fire
could result. If they are damaged, please ask the qualified personnel to change them.
Do not operate the unit without the filters installed. Otherwise, dirt may enter the unit
and cause damage. Filters should be removed and cleaned periodically to assure
maximum efficiency.
Recommendations
MS-SVU42A-EN

8
Typical installation
1DPHVDQGIXQFWLRQVRIHDFKSDUW
MS-SVU42A-EN
Ł
Ł
ņ
Ń
ł
Ņ
ń
Ň
ņ
Ņ
ł
ň
ń
Ň
Ń
ň
,QGRRUXQLW
$LULQ
$LURXW
Front panel
Filter
Guide louver

Wall pipe

Bind tape

Connection wire

Drainage pipe
Remote control

9
Remote Control Operation

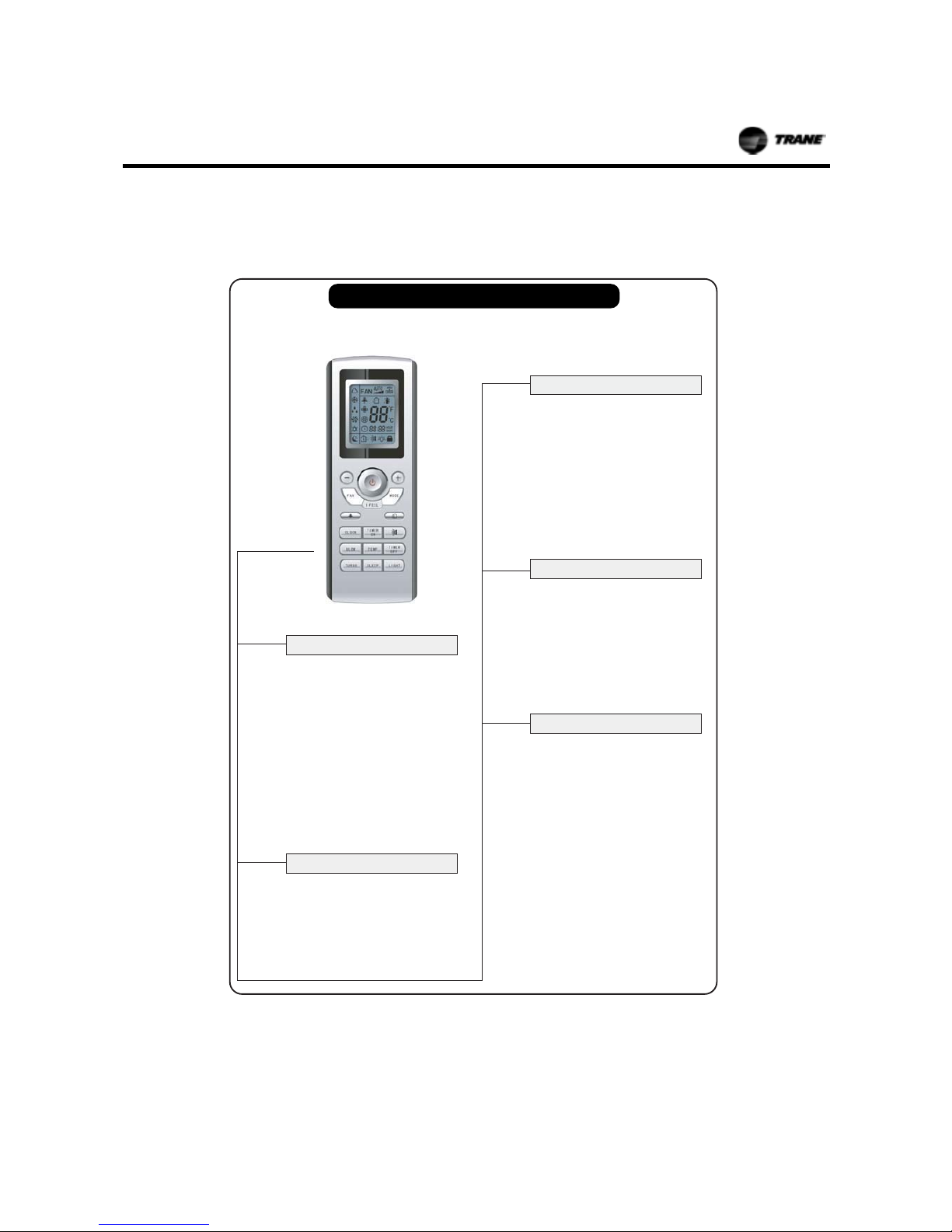

Name and function of wireless remote control
ON/OFF Button
Remote control
Signal transmitter
AUTO
COOL
DRY
FAN
(Only for cooling and heating unit.)
Don't drop or throw the remote control.Don't let any liquid in the remote control or
Note: Be sure that there are no obstructions between receiver and remote controller;
put the remote control directly under the sunlight or any place where is very hot.
ƽPress this button to switch between modes
(Auto,Cool,Dry,Fan and Heat) as shown below.
MODE Button
MODE
Auto mode is default while power on.
Under Auto mode,the temperature will not
be displayed; Under Heat mode, the
ƽPress this button, Sleep On and Sleep
Off can be selected. After powered on,
SLEEP Button
SLEEP
Sleep Off is defaulted. After the unit is
turned off, the Sleep function is canceled.
After Sleep function set up, the signal of
Sleep will display. In this mode, the time of
timer can be adjusted. Under Fan and Auto
modes, this function is not available.
ƽ
FAN Button
FAN
CLOCK Button
CLOCK
ƽUse this button to set up and select
temperature options: temperature setting
TEMP Button
TEMP
(displays the room temperature selected),
indoor ambient temperature (actual room
temperature).
ƽPress this button, the unit will be turned on,
press it once more, the unit will be turned
off. When turning on or turning off the unit,
the Timer, Sleep function will be canceled,
HEAT
initial value is 28ć;Under other
modes, the initial value is 25ć
R)
82
R)
77
Middle fan
Low fan
High fan
but the clock time will be saved.
ƽPress this button to set up the clock time.
Once the signal and display begin to
blink, the time can be adjusted by pressing
MS-SVU42A-EN
Press this button to choose between Auto,
Low, Middle, or High speed. Auto fan speed
is default on power up. Under Blow mode,
Low fan speed only can be set up.
+ or - button. (Press + or - button continuously
to change timing value quickly),the setting time
range is from 0.5 to 24 hr.;press this key once
again to fix the time,then remote controller will
send out the signal immediately and hour on/offI
will stop flickering.If no button is pushed for 5
seconds while the display is still flashing, the
timer setting will not be saved. Press the clock
button once to exit the timer setting.

10
Remote Control Operation
䘹᥻఼৘ᣝ䬂ⱘৡ⿄ঞ԰⫼
MS-SVU42A-EN
Remote control
ƽIn the cool or dry mode, pressing the button
once will activate the " blow " function ( see
BLOW Button
BLOW
be active. Press the button a second time
and "DRY" will be concealed and the blow
function is canceled. If operating the ON/
OFF button and changing the mode from
COOL to DRY, the status of BLOW will
stay in the original position. This function is
not available under the AUTO, FAN or
HEAT mode.
ƽIn Cool or Heat mode, use this button to
activate the Turbo function. When the signal
TURBO Button
TURBO
is displayed, the unit will run at the highest
fan speed to rapidly cool or heat the room to
the preset temperature as quickly as possible.
Turbo mode is automatically cancelled if the
ƽWhen unit is powered on, Light On is
defaulted. Use this button to switch
LIGHT Button
LIGHT
between Light On and Light Off.
+ Button
+
ƽUse this button to decrease the temperature
setting. Depress the button continuously
- Button
-
for two seconds to decrease the setting
rapidly. Release the button to send the
setting to the unit, and the will be
continuously dispalyed. Temperature range
ć
R)
for Celsius degree setting is 16-30; for
Fahrenheit degree setting is 61-86.
This temperature adjustment is not available
in the AUTO mode.

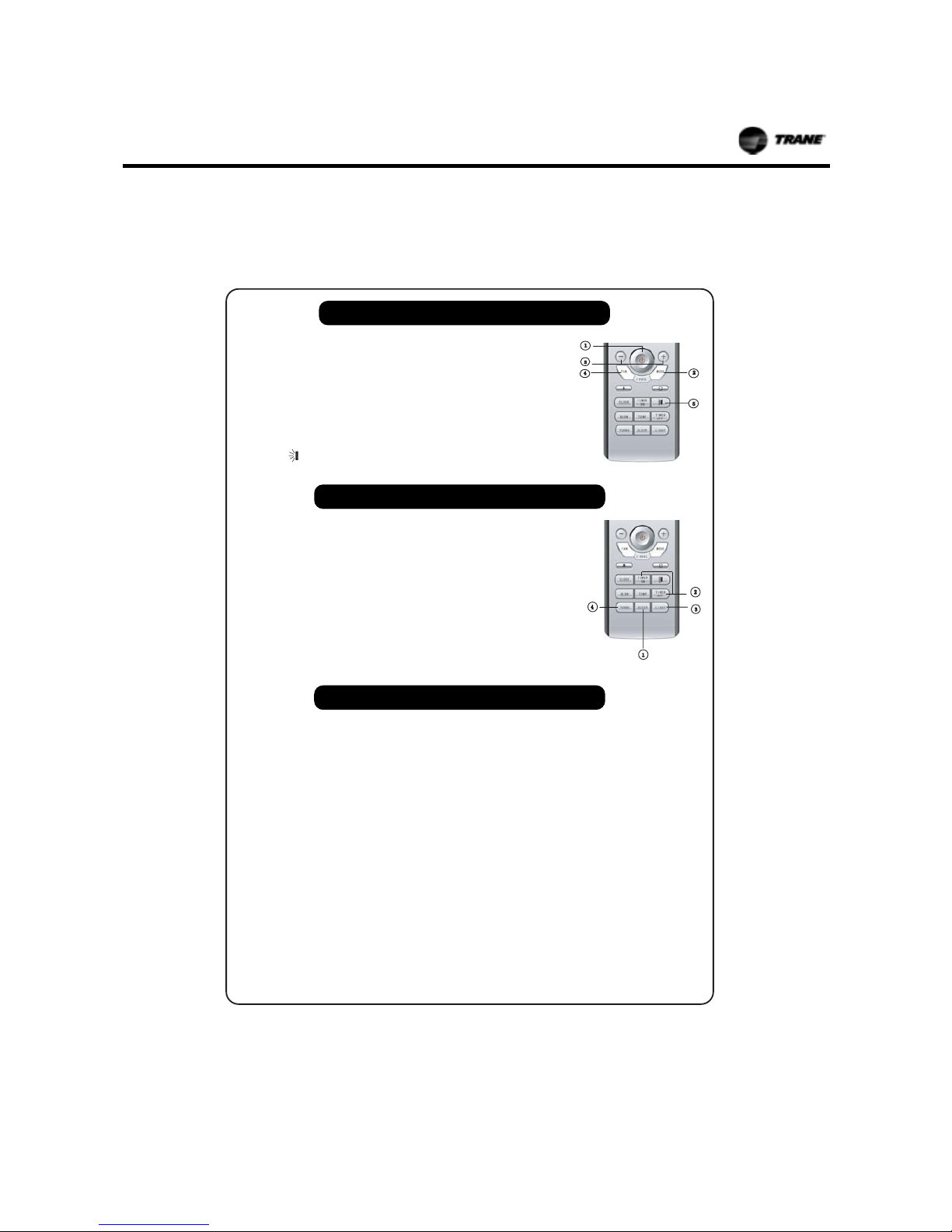

Names and functions of wireless remote control
page 12 ): Press the button once and "DRY"
will be displayed and the blow function will
ƽUse this button to increase the
temperature setting. Depress the button
c
ontinuously for two seconds to increase
the setting rapidly. Release the button to
send the seting to the unit, and the
will be continuously displayed. Temperature
ć˄˅
for Fahrenheit degree setting is 61-86.
T
his temperature adjustment is no
available in the AUTO mode.
range for Celsius degree setting is 16-30;
with your system. Some buttons may be de-activated.
Notice: This is a general use remote controller, and not all features may be included
mode or fan speed is changed.
.
