Trane Hyperion AM8A0A24V21CA Series Service manual

© 2011 Trane
NOTICE: Since the manufacturer has a policy of continuous product and product data improvement, it reserves the right to change design and specifications without notice.
IMPORTANT --- This document contains a wiring diagram and service information. This is customer property and is to remain with this unit.
Please return to service information pack upon completion of work.
Air Handler - Convertible
Models:Series 8 Air Handlers 2-5 Ton
HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING
WARNING:
HyperionFieldReferenceDataTAM8
For use with BAYEV or BAYW series heaters ONLY
▲
WARNING
!
SAFETY HAZARD! This information is intended for use
by individuals possessing adequate backgrounds of electrical and
mechanical experience. Any attempt to repair a central air condition-
ing product may result in personal injury and/or property damage.
The manufacture or seller cannot be responsible for the interpreta-
tion of this information, nor can it assume any liability in connection
with its use.
PRESSURIZED REFRIGERANT! SYSTEM CONTAINS
OIL AND REFRIGERANT UNDER HIGH PRESSURE. RECOVER
REFRIGERANT TO RELIEVE PRESSURE BEFORE OPENING THE
SYSTEM.
DO NOT USE NON-APPROVED REFRIGERANTS OR REFRIGERANT
SUBSTITUTES OR REFRIGERANT ADDITIVES.
▲
WARNING
!
LIVE ELECTRICAL COMPONENTS! During instal-
lation, testing, servicing, and troubleshooting of this product, it may
be necessary to work with live electrical components. Failure to fol-
low all electrical safety precautions when exposed to live electrical
components could result in death or serious injury.
▲
WARNING
!
Note: This unit is certified to UL 1995.
The interior cabinet wall meets the following:
- UL94-5VA Flame Class Listed
- UL723 Steiner Tunnel Listed for 25/50 Flame/
Smoke
- UL746C Listed for Exposure to Ultraviolet Light,
Water Exposure and Immersion
NOTE: This unit as shipped is ONLY compatible with
Trane and American Standard communicating thermostats
and outdoor units. (24VAC thermostats cannot be used)
With the addition of a BAYCC24VK01 accessory, this unit
can be compatible with a 24VAC single or multistage heat
pump or air conditioner.
Table of Contents
Product Specifications. .................................................................................................... 2
Wiring Diagram................................................................................................................ 3
Sequence of Operation.................................................................................................... 4
Control Layout - Refrigerant Dip Switch .......................................................................... 6
Airflow Performance......................................................................................................... 7
Heater Attribute Data..................................................................................................... 13
Control Layout - LEDs.................................................................................................... 16
Alert Codes.................................................................................................................... 22
EEV Test Procedures..................................................................................................... 23
EVC Thermal Resistance and Voltage Table. ................................................................ 24
AFC Supply Air Temperature Sensor Table.................................................................... 25
Display Assembly Menus............................................................................................... 26
Troubleshooting. ............................................................................................................ 32
*AM8A0A24V21CA, *AM8A0B30V21CA
*AM8A0C36V31CA, *AM8A0C42V31CA
*AM8A0C48V41CA, *AM8A0C60V51CA
* May be "A" or "T"

TAM82
PRODUCT SPECIFICATIONS
MODEL
RATED VOLTS/PH/HZ.
RATINGS 1
INDOOR COIL — Type
Rows — F.P.I.
Face Area (sq. ft.)
Tube Size (in.)
Refrigerant Control
Drain Conn. Size (in.) 2
DUCT CONNECTIONS
INDOOR FAN — Type
Diameter-Width (In.)
No. Used
Drive - No. Speeds
CFM vs. in. w.g.
No. Motors — H.P.
Motor Speed RPM
Volts/Ph/Hz
F.L. Amps
FILTER
Filter Furnished?
Type Recommended
No.-Size-Thickness
REFRIGERANT
Ref. Line Connections
Coupling or Conn. Size — in. Gas
Coupling or Conn. Size — in. Liq.
DIMENSIONS
Crated (In.)
Uncrated
WEIGHT
Shipping (Lbs.) / Net (Lbs.)
*AM8A0A24V21CA
200-230/1/60
See O.D. Specifications
Plate Fin
3 - 14
3.67
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 8
1
Direct - Variable
See Fan Performance Table
1 - 1/2
Variable ECM
208-230/1/60
3.0
No
Throwaway
1 - 16 X 20 - 1 in.
R-410A
Brazed
3/4
3/8
H x W x D
51 x 20 x 24.5
49.9 x 17.5 x 21.8
126/116
*AM8A0B30V21CA
200-230/1/60
See O.D. Specifications
Plate Fin
3 - 14
5.04
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 10
1
Direct - Variable
See Fan Performance Table
1 - 1/2
Variable ECM
208-230/1/60
3.0
No
Throwaway
1 - 20 X 20 - 1 in.
R-410A
Brazed
3/4
3/8
H x W x D
56.8 x 23.5 x 24.5
55.7 x 21.3 x 21.8
150/138
*AM8A0C36V31CA
200-230/1/60
See O.D. Specifications
Plate Fin
3 - 14
5.50
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 10
1
Direct - Variable
See Fan Performance Table
1 - 1/2
Variable ECM
208-230/1/60
3.0
No
Throwaway
1 - 22 X 20 - 1 in.
R-410A
Brazed
7/8
3/8
H x W x D
58 x 25.5 x 24.5
56.9 x 23.5 x 21.8
157/146
PRODUCT SPECIFICATIONS
MODEL
RATED VOLTS/PH/HZ.
RATINGS 1
INDOOR COIL — Type
Rows — F.P.I.
Face Area (sq. ft.)
Tube Size (in.)
Refrigerant Control
Drain Conn. Size (in.) 2
DUCT CONNECTIONS
INDOOR FAN — Type
Diameter-Width (In.)
No. Used
Drive - No. Speeds
CFM vs. in. w.g.
No. Motors — H.P.
Motor Speed RPM
Volts/Ph/Hz
F.L. Amps
FILTER
Filter Furnished?
Type Recommended
No.-Size-Thickness
REFRIGERANT
Ref. Line Connections
Coupling or Conn. Size — in. Gas
Coupling or Conn. Size — in. Liq.
DIMENSIONS
Crated (In.)
Uncrated
WEIGHT
Shipping (Lbs.) / Net (Lbs.)
*AM8A0C42V31CA
200-230/1/60
See O.D. Specifications
Plate Fin
4 - 14
5.04
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 10
1
Direct - Variable
See Fan Performance Table
1 - 1/2
Variable ECM
208-230/1/60
3.0
No
Throwaway
1 - 22 X 20 - 1 in.
R-410A
Brazed
7/8
3/8
H x W x D
58 x 25.5 x 24.5
56.9 x 23.5 x 21.8
162/150
*AM8A0C48V41CA
200-230/1/60
See O.D. Specifications
Plate Fin
4 - 14
5.96
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 10
1
Direct - Variable
See Fan Performance Table
1 - 3/4
Variable ECM
208-230/1/60
4.2
No
Throwaway
1 - 22 X 20 - 1 in.
R-410A
Brazed
7/8
3/8
H x W x D
62.8 x 25.5 x 24.5
61.7 x 23.5 x 21.8
174/162
*AM8A0C60V51CA
200-230/1/60
See O.D. Specifications
Plate Fin
4 - 14
5.96
3/8
EEV
3/4 NPT
See Outline Drawing
Centrifugal
11 X 10
1
Direct - Variable
See Fan Performance Table
1 - 1
Variable ECM
208-230/1/60
5.5
No
Throwaway
1 - 22 X 20 - 1 in.
R-410A
Brazed
7/8
3/8
H x W x D
62.8 x 25.5 x 24.5
61.7 x 23.5 x 21.8
175/163
* May be "A" or "T"
1These Air Handlers are AHRI certified with various Split System Air Conditioners and Heat Pumps (AHRI STANDARD 210/240).
23/4" Male Plastic Pipe (Ref.: ASTM 1785-76)

TAM83

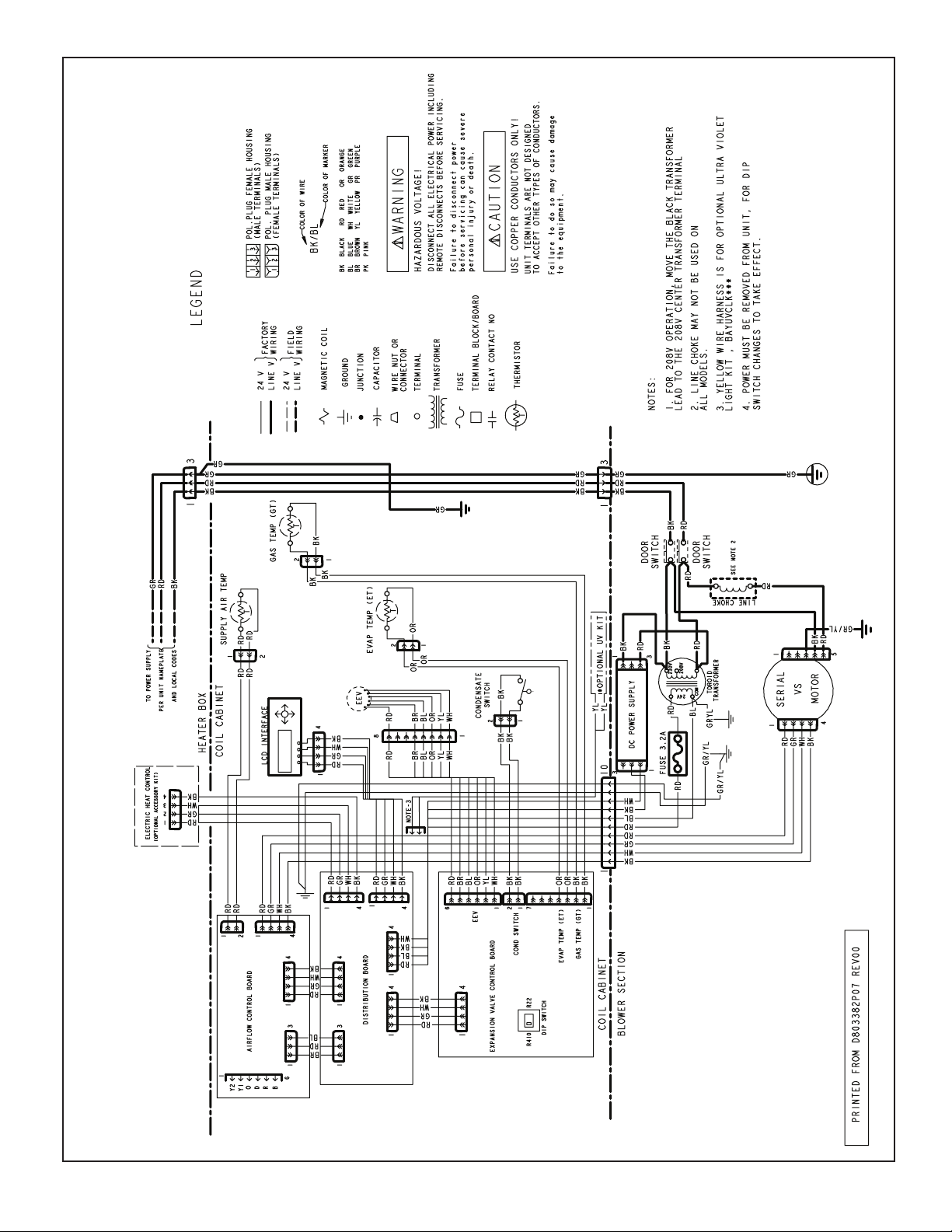

WIRING DIAGRAM FOR *AM8 AIR HANDLERS
5. ET WIRING MAY BE BROWN OR ORANGE.

TAM84
SEQUENCE OF OPERATION FOR *AM8
2. The EVC will receive input from the two tempera-
ture sensors and start to control 1st stage super-
heat.
3. When a request for 2nd stage cooling is received,
the AFC sends a command to the serial com-
municating blower motor to run at 100 % cooling
airflow.
4. The EVC will now control superheat for 2nd stage.
5. When a request for cooling is removed, the AFC will
turn off the blower motor after any user selected
fan-off delays have expired.
NOTE: Delay profiles from the thermostat may change
blower motor timing and actual airflow demand
Heatpump (compressor only)
1. When a request for 1st stage heat is received, the
AFC sends a command to the serial communi-
cating blower motor to run at 1st stage heating
airflow.
2. Humidifier contacts close
3. The EVC will drive the EEV to the heating position
and refrigerant will flow in the reverse cycle.
4. When a request for 2nd stage mechanical heat is
received, the AFC sends a command to the serial
communicating blower motor to run at 100 % heat-
ing airflow.
5. When a request for heatpump is removed, the hu-
midifier contacts open and the AFC will turn off the
blower motor after any user selected fan-off delays
have expired.
NOTE: Delay profiles from the thermostat may change
blower motor timing and actual airflow demand
Electric Heat
1. When a request for electric heat is received, the
AFC communicates to the EHC how much de-
mand for auxiliary heat is being requested
2. The EHC determines the number of elements that
will be used for this request and sends a message
to the AFC for proper airflow. (The EHC deter-
mines the amount of heat available per stage by
either factory programming or by the kw jumper
position)
3. The AFC sends a command to the serial communi-
cating blower motor to run proper airflow and close
the blower interlock relay on the EHC.
4. Humidifier contacts close.
5. As demand from the thermostat increases, the EHC
will communicate to the AFC the required airflow
when energizing additional relays.
AM8 Sequence of Operation
Abbreviations
• AFC = Airow Control
• EVC = Expansion Valve Control
• EEV = Electronic Expansion Valve
• EHC = Electric Heat Control
• HHC= Hydronic Heat Control
This unit as shipped is ONLY compatible with Trane
and American Standard communicating thermo-
stats and OD units. (24VAC thermostats cannot be
used)
With the addition of a BAYCC24VK01 accessory, this
unit can be compatible with a 24VAC single or
multistage heat pump or air conditioner.
The installing and servicing technician should have an
understanding of the sequence of operation to be
able to properly setup and diagnose functions of
the air handler.
See unit, auxiliary heat, and field wiring diagrams
for additional information.
Continuous Fan
IMPORTANT: If the indoor air exceeds 60% relative
humidity or simply feels uncomfortably humid, it is
recommended that the indoor fan only be used in
the AUTO mode.
1. When a fan request is received from the ther-
mostat, the AFC sends a command to the serial
communicating blower motor to run. Airflow can be
adjusted through the thermostat
2. Humidity Control – When enabled in the thermo-
stat, this feature will disable any blower off delays
and disable continuous fan mode when the humid-
ity is above the dehumidification setpoint. This will
help prevent coil condensation from being evapo-
rated back into the air stream.
Cooling mode
1. When a request for 1st stage cooling is received,
the AFC sends a command to the serial commu-
nicating blower motor to run at 1st stage cooling
airflow. (Delay profiles from the thermostat may
change blower motor timing and actual airflow
demand)

TAM85
NOTE: The EHC has “lead-lag or rotating” logic built in
that energizes the electric heat relays based upon
cycle counts. To verify operation of all heating
elements, switch thermostat to Emergency Heat
and raise the setpoint of the thermostat at least 5
degrees above the actual room temperature.
Hydronic Heat
1. When the request for hydronic heat is received, the
AFC communicates to the HHC how much auxil-
iary heat is being requested
2. The HHC will close the K1 relay contacts that en-
able the boiler or circulating pump to start.
3. The HHC sends a signal to the AFC when the inlet
water temperature reaches 100 degrees for a
maximum of 60 seconds, and then determines the
amount of airflow needed for the heat demand.
4. The AFC sends a command to the serial communi-
cating blower motor to run at the requested CFM.
5. Humidifier contacts close.
6. As demand from the thermostat increases, the
HHC will communicate to the AFC matching air-
flow requirements.
Defrost
1. The OD unit will initiate defrost and send a mes-
sage to the AFC.
2. The AFC will communicate to the EVC that the OD
is in defrost and the EVC will start to control the
correct superheat.
3. Electric or hydronic heat will be energized to help
temper the air. (Auxiliary heat options for defrost
can be adjusted through the Display Assembly
Configuration Menu)
Optional Condensate Switch
1. An optional OEM Condensate Switch can be in-
stalled within the unit. This switch is only available
through the National Distribution Center or Global
Parts.
2. OEM Condensate Switch contacts are Normally
Open and will close when water level inside the
unit rises. A closed switch will de-energize the OD
unit.
3. The OEM Condensate Switch is only operational
during the cooling mode and is not operational
during heating or defrost modes.
Note: Standard aftermarket condensate switches
(Normally Closed) can be wired in series with the
“External Switch” contacts on the AFC.
Important: The switch action must be selected in the
Configuration Menu section of the Display Assem-
bly to either “Disable Cool” or “Disable All”.
Freeze Protection
1. The EVC control has the ability to sense when the
indoor coil is beginning to ice. If this event should
occur, the AFC will send a message to de-energize
the OD unit.
2. The indoor blower motor will continue running to aid
in defrosting the coil.
3. After 5 minutes, the OD will be turned back on.
(*CONT900 and the 1st release of the *ZONE950
will disable the indoor blower motor and OD unit for
30 minutes)
Unit Test Mode
Unit Test Mode will exit if any demand is given to the
unit.
To enter Unit Test Mode:
1. Set System Switch on comfort control to Off
2. Scroll to the Control Menu on the Display Assembly
3. Scroll down to the Unit Test selection and push the
“Enter” key
Sequence of Unit Test Mode (OD unit is not ener-
gized during the Unit Test Mode)
1. EVC drives the EEV motor to the 1st stage position
for 5 seconds
2. EVC drives the EEV motor to the 2nd stage position
for 5 seconds
3. AFC energizes the blower at 50% and then contin-
ues to ramp until it reaches 100% cooling airflow.
4. Humidifier contacts close when the blower starts
5. EHC energizes the circuit relay(s) for 5 seconds
each in 5 second intervals.
6. All relays de-energize and the blower shuts off five
seconds after the last bank of heat is energized.
7. HHC energizes its K1 relay that interfaces with
the boiler system or circulating pump. The blower
continues to run for 30 seconds and then K1 relay
contacts open and the blower shuts off.
If an error occurs during the Unit Test Mode, the Fault
LED will flash a code and continue the test.

TAM86
Airflow Control (AFC)
Unit Test Button
Fault Reporting
Control boards in this unit store active and historical
faults. Each control board will report active faults
continuously and will report the last four faults
stored after a power cycle of the unit. See Fault
Table section for list of fault codes
The active and historical faults can also be accessed
through the Alert Menu in the Display Assembly.
Clearing Fault History
Option 1:
a) Scroll to the Alert Menu in the Display Assembly
b) Scroll to the Alert History section.
c) Scroll to the Clear History selection and push the
Enter key. At the “Are You Sure” question, push the
Enter again.
Option 2:
a) Press and hold the Unit Test Button for 10-12 sec-
onds.
b) Release the Unit Test button and “wait” 5 seconds.
c) Cycle 230VAC power to the unit. (the blower panel
can be removed to achieve this)
Refrigerant Switch SW1
•Set the system refrigerant to either R-410A or R-22
using the Refrigerant Switch located on the Expan-
sion Valve Control board (EVC) in the Control Pocket.
•Factory default is R-410A.
•Note: The power must be shut off and then re-applied
in order for the EVC to recognize the change.
SW1 Dip
Switch
Electronic Expansion Valve Control (EVC)
Control Layout - Refrigerant Dip Switch
TEST
J11
J6
24 VAC
J2
J4
13.8 VDC
CLEAR HISTORY? ↕
YES <ENTER>

TAM87
*AM8A0A24 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
1.5 tons
290
CFM/ton
CFM
Watts
419 / 554
22 / 40
431 / 412
50 / 48
408 / NA
77 / NA
339 / NA 102 / NA
279 / NA 133 / NA
290
CFM/ton
CFM
Watts
416
22
425
49
400
76
329 101
291 134
350
CFM/ton
CFM
Watts
534 / 638
37 / 56
555 / 541
70 / 67
548 / 373
102 / 73
514 / NA 131 / NA
439 / NA 154 / NA
350
CFM/ton
CFM
Watts
532
37
550
69
542 101
507 129
434 152
400
CFM/ton
CFM
Watts
617 / 705
52 / 71
639 / 626
88 / 85
636 / 513
123 / 96
612 / 325 155 / 101
559 / NA 181 / NA
430
CFM/ton
CFM
Watts
660
62
680
99
679 136
658 169
614 197
450
CFM/ton
CFM
Watts
692 / 770
69 / 89
714 / 703 108 / 105
714 / 613 146 / 119
694 / 494 181 / 128
653 / NA 209 / NA
450
CFM/ton
CFM
Watts
690
69
710 108
709 145
690 180
650 208
2 tons †
290
CFM/ton
CFM
Watts
595 / 688
48 / 67
617 / 605
83 / 80
614 / 481
117 / 90
588 / 241
149 / 95
531 / NA 174 / NA
290
CFM/ton
CFM
Watts
593
48
613
82
608 116
582 147
527 172
350
CFM/ton
CFM
Watts
716 / 792
75 / 96
737 / 727 115 / 112
738 / 643 154 / 127
720 / 534 190 / 137
681 / 383 219 / 145
350
CFM/ton
CFM
Watts
714
75
734 115
734 153
716 189
679 218
400 †
CFM/ton
CFM
Watts
809 / 877 103 / 125
829 / 821 147 / 144
832 / 751 190 / 161
818 / 666 228 / 174
787 / 561 261 / 183
430 †
CFM/ton
CFM
Watts
862 122
881 168
884 213
874 254
849 290
450
CFM/ton
CFM
Watts
900 / 964 136 / 161
920 / 913 185 / 182
924 / 852 231 / 200
913 / 777 274 / 214
888 / 689 310 / 225
450
CFM/ton
CFM
Watts
899 136
917 184
921 231
912 273
889 310
2.5 tons
290
CFM/ton
CFM
Watts
740 / 829
81 / 108
761 / 769 123 / 125
762 / 692 163 / 141
745 / 596 199 / 153
709 / 473 229 / 162
290
CFM/ton
CFM
Watts
738
81
757 122
758 162
742 198
707 229
350
CFM/ton
CFM
Watts
878 / 957 127 / 158
897 / 907 175 / 178
901 / 845 220 / 196
890 / 770 262 / 211
863 / 680 297 / 221
350
CFM/ton
CFM
Watts
876 127
895 174
898 220
888 261
864 297
400
CFM/ton
CFM
Watts
993 / 1070
178 / 215
1012 / 1023
231 / 236
1017 / 967
281 / 255
1009 / 901
327 / 270
989 / 821 367 / 280
430
CFM/ton
CFM
Watts
1064
215
1083
272
1089
326
1084
375
1066
418
450
CFM/ton
CFM
Watts
1115 / 1193
244 / 290
1133 / 1148
304 / 312
1139 / 1095
359 / 330
1132 / 1034
409 / 345
1113 / 961
451 / 354
450
CFM/ton
CFM
Watts
1115
244
1133
304
1139
360
1133
410
1116
453
3 tons
290
CFM/ton
CFM
Watts
873 / 953 125 / 156
893 / 902 173 / 176
896 / 840 218 / 194
885 / 764 259 / 209
858 / 674 295 / 219
290
CFM/ton
CFM
Watts
871 125
890 172
894 217
883 259
859 295
350
CFM/ton
CFM
Watts
1041 / 1118
202 / 242
1059 / 1072
257 / 264
1065 / 1018
310 / 282
1058 / 953
358 / 297
1039 / 877
399 / 307
350
CFM/ton
CFM
Watts
1040
202
1058
257
1064
310
1059
358
1041
401
400
CFM/ton
CFM
Watts
1194 / 1271
295 / 347
1210 / 1227
358 / 368
1214 / 1175
415 / 386
1205 / 1115
465 / 399
1154 / 1046
485 / 408
430
CFM/ton
CFM
Watts
1291
368
1302
432
1300
487
1220
478
1138
470
450
CFM/ton
CFM
Watts
1355 / 1421
422 / 476
1360 / 1373
483 / 491
1284 / 1284
476 / 476
1203 / 1203
469 / 469
1120 / 1120
464 / 464
450
CFM/ton
CFM
Watts
1355
422
1360
483
1286
476
1208
468
1128
462
NOTES: 1. * Models start with "A" or "T" 2. † Factory Setting 3. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower.
4. Torque mode will reduce airflow when static is above approximately 0.3” water column. 5. All heating modes default to Constant CFM. 6. Cooling airflow values are with wet coil, no filter
NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.
AM8A0A24 Minimum Heating Airflow Settings
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1A
A
BAYEVAC08BK1A
A
BAYEVAC08LG1A
A
BAYEVAC10BK1A
A
BAYEVAC10LG1A
A
BAYEVAC10LG3AA BAYEVBC15BK1A
A
BAYEVCB15LG3A
A
BAYEVBC20BK1A
A
*AM8A0A24V21SAA 638/713 638/900 675/900 600/713 -- -- --
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
MINIMUM HEATER AIRFLOW CFM - HEATER MATRI
X

TAM88
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1A
A
BAYEVAC08BK1A
A
BAYEVAC08LG1A
A
BAYEVAC10BK1A
A
BAYEVAC10LG1A
A
BAYEVAC10LG3AA BAYEVBC15BK1A
A
BAYEVCB15LG3A
A
BAYEVBC20BK1A
A
*AM8A0B30V21SAA 723/808 723/1020 765/1020 680/808 765/1063 850/1105 --
MINIMUM HEATER AIRFLOW CFM - HEATER MATRI
X
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.
AM8A0B30 Minimum Heating Airflow Settings
*AM8A0B30 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
1.5 tons
290
CFM/ton
CFM
Watts
490 / 587
21 / 30
438 / 406
44 / 42
388 / NA
69 / NA
338 / NA
97 / NA
279 / NA 130 / NA
290
CFM/ton
CFM
Watts
485
21
437
44
393
69
350
97
301 130
350
CFM/ton
CFM
Watts
578 / 672
29 / 39
546 / 523
56 / 54
515 / 270
85 / 60
484 / NA 115 / NA
449 / NA 146 / NA
350
CFM/ton
CFM
Watts
574
29
545
56
517
85
489 115
458 146
400
CFM/ton
CFM
Watts
646 / 738
37 / 48
626 / 607
67 / 65
605 / 413
99 / 72
582 / NA 132 / NA
554 / NA 164 / NA
430
CFM/ton
CFM
Watts
683
42
669
75
653 108
636 143
614 177
450
CFM/ton
CFM
Watts
712 / 803
45 / 59
700 / 683
80 / 77
686 / 520
115 / 86
669 / 231
151 / 91
647 / NA 186 / NA
450
CFM/ton
CFM
Watts
709
45
698
80
685 115
669 151
649 186
2 tons †
290
CFM/ton
CFM
Watts
628 / 721
35 / 46
605 / 585
64 / 62
582 / 380
95 / 69
557 / NA 127 / NA
528 / NA 159 / NA
290
CFM/ton
CFM
Watts
625
35
604
64
582
95
560 127
533 160
350
CFM/ton
CFM
Watts
734 / 824
49 / 62
724 / 708
84 / 81
712 / 552
121 / 91
696 / 299
157 / 94
676 / NA 193 / NA
350
CFM/ton
CFM
Watts
731
49
722
84
710 120
696 157
678 193
400 †
CFM/ton
CFM
Watts
819 / 908
63 / 79
818 / 803 103 / 100
812 / 668 145 / 112
803 / 463 186 / 115
788 / NA 226 / NA
430 †
CFM/ton
CFM
Watts
868
73
871 116
869 161
864 205
853 248
450
CFM/ton
CFM
Watts
904 / 993
80 / 99
910 / 896 126 / 122
911 / 775 173 / 136
907 / 621 219 / 141
895 / 394 264 / 138
450
CFM/ton
CFM
Watts
902
80
908 126
908 172
905 219
895 263
2.5 tons
290
CFM/ton
CFM
Watts
755 / 870
52 / 71
748 / 760
89 / 91
737 / 617 126 / 102
723 / 409 164 / 105
704 / NA 201 / NA
290
CFM/ton
CFM
Watts
753
52
746
88
736 126
723 164
706 201
350
CFM/ton
CFM
Watts
883 / 996
75 / 100
887 / 899 120 / 123
886 / 778 165 / 137
881 / 625 211 / 142
869 / 401 254 / 139
350
CFM/ton
CFM
Watts
881
75
884 120
884 165
879 210
869 254
400
CFM/ton
CFM
Watts
991 / 1107
101 / 131
1004 / 1016
153 / 156
1010 / 908
206 / 173
1010 / 777
258 / 180
1001 / 609
307 / 177
430
CFM/ton
CFM
Watts
1057
119
1074
176
1084
234
1087
290
1078
342
450
CFM/ton
CFM
Watts
1106 / 1226
133 / 172
1126 / 1141
194 / 199
1139 / 1041
256 / 218
1141 / 925
314 / 227
1128 / 784
366 / 226
450
CFM/ton
CFM
Watts
1104
133
1125
194
1136
255
1139
314
1128
366
3 tons
290
CFM/ton
CFM
Watts
879 / 992
74 / 99
882 / 894 119 / 121
881 / 773 164 / 136
875 / 619 209 / 140
863 / 391 252 / 138
290
CFM/ton
CFM
Watts
877
74
880 118
879 164
874 208
863 252
350
CFM/ton
CFM
Watts
1036 / 1153
113 / 146
1052 / 1065
168 / 172
1061 / 960
224 / 189
1063 / 836
279 / 197
1053 / 681
330 / 195
350
CFM/ton
CFM
Watts
1034
112
1049
168
1058
224
1061
279
1053
330
400
CFM/ton
CFM
Watts
1179 / 1304
158 / 203
1202 / 1221
224 / 231
1217 / 1126
291 / 251
1217 / 1016
352 / 261
1196 / 886
403 / 261
430
CFM/ton
CFM
Watts
1271
193
1298
267
1309
337
1300
398
1271
446
450
CFM/ton
CFM
Watts
1338 / 1471
222 / 282
1365 / 1391
300 / 311
1369 / 1302
370 / 333
1350 / 1201
427 / 345
1311 / 1086
471 / 347
450
CFM/ton
CFM
Watts
1338
221
1363
299
1368
369
1350
427
1314
472
NOTES: 1. * Models start with "A" or "T" 2. † Factory Setting 3. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower.
4. Torque mode will reduce airflow when static is above approximately 0.35” water column. 5. All heating modes default to Constant CFM. 6. Cooling airflow values are with wet coil, no filter

TAM89
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1A
A
BAYEVAC08BK1A
A
BAYEVAC08LG1A
A
BAYEVAC10BK1A
A
BAYEVAC10LG1A
A
BAYEVAC10LG3AA BAYEVBC15BK1A
A
BAYEVCB15LG3A
A
BAYEVBC20BK1A
A
*AM8A0C36V31SAA 876/979 876/1236 927/1236 824/979 927/1288 1030/1339 1236/1442
MINIMUM HEATER AIRFLOW CFM - HEATER MATRI
X
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
AM8A0C36 Minimum Heating Airflow Settings
NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.
*AM8A0C36 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
2 tons
290
CFM/ton
CFM
Watts
610 / 758
30 / 47
573 / 573
57 / 58
556 / 321
86 / 62
553 / NA 119 / NA
556 / NA 153 / NA
290
CFM/ton
CFM
Watts
607
31
574
58
557
87
551 119
551 153
370
CFM/ton
CFM
Watts
759 / 858
47 / 63
744 / 706
81 / 77
739 / 530
118 / 85
740 / 297
156 / 90
741 / NA 195 / NA
350
CFM/ton
CFM
Watts
721
44
705
77
697 111
695
14
695 185
400
CFM/ton
CFM
Watts
812 / 974
54 / 85
803 / 846
92 / 103
802 / 707 132 / 115
803 / 554 172 / 122
805 / 374 213 / 128
420
CFM/ton
CFM
Watts
847
62
843 102
843 144
844 186
845 277
450
CFM/ton
CFM
Watts
900 / 1024
69 / 96
899 / 903 112 / 116
902 / 774 156 / 129
906 / 636 201 / 137
909 / 485 245 / 142
450
CFM/ton
CFM
Watts
900
72
900 115
903 159
906 204
908 248
2.5 tons
290
CFM/ton
CFM
Watts
746 / 903
45 / 71
729 / 761
79 / 86
723 / 602
115 / 96
723 / 413 153 / 101
725 / 30
191 / 156
290
CFM/ton
CFM
Watts
744
47
730
81
724 117
722 154
723 192
370
CFM/ton
CFM
Watts
922 /1026
73 / 97
923 / 905 117 / 116
927 / 776 163 / 130
931 / 639 209 / 138
935 / 488 254 / 143
350
CFM/ton
CFM
Watts
878
68
876 110
878 153
880 196
882 239
400
CFM/ton
CFM
Watts
988 / 1175
86 / 137
944 / 1070
134 / 160
1001 / 961
184 / 177
1008 / 848
234 / 189
1011 / 731
282 / 196
420
CFM/ton
CFM
Watts
1033
101
1046
152
1052
205
1060
257
1062
307
450
CFM/ton
CFM
Watts
1100 / 1243
112 / 159
1114 / 1143
168 / 183
1127 / 1040
225 / 202
1136 / 933
281 / 215
1138 / 823
334 / 222
450
CFM/ton
CFM
Watts
1102
119
1116
175
1128
232
1137
288
1138
340
3 tons †
290
CFM/ton
CFM
Watts
874 / 1022
64 / 96
871 / 900 105 / 115
872 / 771 148 / 128
876 / 632 192 / 136
879 / 480 235 / 141
290
CFM/ton
CFM
Watts
873
67
871 108
873 151
875 195
877 238
370 †
CFM/ton
CFM
Watts
1087 / 1175
109 / 137
1099 / 1070
163 / 160
1112 / 961
220 / 177
1120 / 848
275 / 189
1123 / 731
328 / 196
350
CFM/ton
CFM
Watts
1033
101
1043
152
1052
205
1060
257
1062
307
400
CFM/ton
CFM
Watts
1170 / 1373
132 / 207
1188 / 1280
192 / 233
1202 / 1185
253 / 254
1212 / 1086
313 / 269
1213 / 984
369 / 278
420 †
CFM/ton
CFM
Watts
1231
158
1253
224
1270
289
1277
351
1270
405
450
CFM/ton
CFM
Watts
1322 / 1465
181 / 247
1344 / 1377
251 / 275
1360 / 1284
321 / 296
1364 / 1189
386 / 312
1352 / 1091
441 / 321
450
CFM/ton
CFM
Watts
1324
192
1349
264
1365
334
1365
397
1348
448
3.5 tons
290
CFM/ton
CFM
Watts
1006 / 1144
90 / 128
1009 / 1037
138 / 150
1016 / 925
193 / 167
1024 / 808
244 / 178
1028 / 687
293 / 184
290
CFM/ton
CFM
Watts
1002
93
1005
141
1017
197
1024
248
1026
292
370
CFM/ton
CFM
Watts
1266 / 1338
170 / 193
1290 / 1244
238 / 219
1306 / 1146
306 / 239
1311 / 1046
369 / 254
1301 / 942
422 / 262
350
CFM/ton
CFM
Watts
1199
148
1215
209
1230
272
1239
333
1236
388
400
CFM/ton
CFM
Watts
1378 / 1591
213 / 310
1404 /1505
289 / 338
1416 / 1416
360 / 361
1410 / 1324
422 / 377
1386 / 1228
471 / 386
420
CFM/ton
CFM
Watts
1452
246
1480
327
1484
395
1468
456
1394
476
450
CFM/ton
CFM
Watts
1575 / 1691
307 / 367
1585 / 1607
385 / 396
1572 / 1519
451 / 419
1499 / 1429
477 / 434
1379 / 1334
470 / 443
450
CFM/ton
CFM
Watts
1573
306
1584
385
1573
451
1505
476
1383
469
NOTES: 1. * Models start with "A" or "T" 2. † Factory Setting 3. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower.
4. Torque mode will reduce airflow when static is above approximately 0.35” water column. 5. All heating modes default to Constant CFM. 6. Cooling airflow values are with wet coil, no filter

TAM810
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1A
A
BAYEVAC08BK1A
A
BAYEVAC08LG1A
A
BAYEVAC10BK1A
A
BAYEVAC10LG1A
A
BAYEVAC10LG3AA BAYEVBC15BK1A
A
BAYEVCB15LG3A
A
BAYEVBC20BK1A
A
*AM8A0C42V31SAA 978/1093 978/1380 1035/1380 920/1093 1035/1438 1150/1495 1380/1610
MINIMUM HEATER AIRFLOW CFM - HEATER MATRI
X
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
AM8A0C42 Minimum Heating Airflow Settings NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.
*AM8A0C42 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
2.5 tons
290
CFM/ton
CFM
Watts
747 / 905
48 / 77
743 / 764
87 / 94
742 / 591 127 / 102
741 / 342 168 / 106
739 / NA 207 / NA
290
CFM/ton
CFM
Watts
744
51
741
90
740 130
738 170
734 209
370
CFM/ton
CFM
Watts
937 / 1072
80 / 118
942 / 956 129 / 139
946 / 823 179 / 151
947 / 655 227 / 155
944 / 458 273 / 155
350
CFM/ton
CFM
Watts
889
76
892 123
894 169
894 215
890 259
400
CFM/ton
CFM
Watts
1006 / 1136
95 / 138
1014 / 1027
148 / 159
1020 / 903
201 / 173
1022 / 760
253 / 178
1019 / 586
302 / 177
400
CFM/ton
CFM
Watts
1006
103
1016
156
1018
209
1019
160
1016
308
450
CFM/ton
CFM
Watts
1122 / 1247
125 / 176
1135 / 1146
185 / 200
1143 / 1035
245 / 216
1146 / 911
303 / 224
1142 / 768
357 / 223
450
CFM/ton
CFM
Watts
1124
136
1135
196
1142
256
1144
313
1140
366
3 tons
290
CFM/ton
CFM
Watts
885 / 1026
70 / 106
889 / 904 116 / 125
891 / 763 163 / 136
892 / 590 209 / 139
889 / 341 254 / 143
290
CFM/ton
CFM
Watts
884
75
887 121
889 168
889 214
885 257
370
CFM/ton
CFM
Watts
1108 / 1233
121 / 171
1120 / 1132
181 / 195
1128 / 1019
240 / 210
1131 / 893
297 / 218
1128 / 747
350 / 217
350
CFM/ton
CFM
Watts
1053
115
1062
171
1067
227
1069
280
1066
330
400
CFM/ton
CFM
Watts
1194 / 1316
147 / 204
1208 / 1220
212 / 229
1218 / 1115
276 / 246
1221 / 999
337 / 255
1215 / 868
393 / 256
400
CFM/ton
CFM
Watts
1196
160
1209
225
1218
289
1219
349
1212
403
450
CFM/ton
CFM
Watts
1343 / 1463
200 / 272
1361 / 1374
275 / 300
1371 / 1279
348 / 320
1368 / 1175
413 / 331
1352 / 1061
469 / 334
450
CFM/ton
CFM
Watts
1347
220
1363
295
1371
367
1366
430
1342
480
3.5 tons †
290
CFM/ton
CFM
Watts
1020 / 1149
99 / 142
1028 / 1041
152 / 164
1034 / 919
206 / 178
1037 / 779
259 / 183
1034 / 609
308 / 182
290
CFM/ton
CFM
Watts
1020
107
1028
160
1033
214
1173
327
1031
315
370 †
CFM/ton
CFM
Watts
1287 / 1408
179 / 245
1304 / 1317
250 / 272
1314 / 1218
320 / 291
1315 / 1110
384 / 301
1304 / 981
441 / 303
350
CFM/ton
CFM
Watts
1220
169
1234
236
1243
301
1244
362
1236
417
400
CFM/ton
CFM
Watts
1395 / 1514
221 / 299
1413 / 1427
300 / 328
1421 / 1334
374 / 348
1415 / 1233
440 / 361
1369 / 1124
480 / 364
400 †
CFM/ton
CFM
Watts
1440
244
1416
322
1421
395
1411
458
1355
475
450
CFM/ton
CFM
Watts
1584 / 1687
313 / 405
1593 / 1605
399 / 435
1576 / 1518
467 / 458
1474 / 1425
477 / 472
1350 / 1326
468 / 477
450
CFM/ton
CFM
Watts
1589
347
1592
428
1545
474
1434
473
1315
463
4 tons
290
CFM/ton
CFM
Watts
1156 / 1302
135 / 197
1169 / 1205
197 / 222
1178 / 1098
259 / 239
1181 / 981
319 / 248
1174 / 848
383 / 249
290
CFM/ton
CFM
Watts
1157
147
1169
209
1177
271
1179
330
1174
383
370
CFM/ton
CFM
Watts
1487 / 1618
288 / 359
1500 / 1534
369 / 389
1496 / 1445
441 / 411
1445 / 1350
481 / 425
1319 / 1248
470 / 429
350
CFM/ton
CFM
Watts
1400
244
1416
322
1421
395
1411
458
1335
475
400
CFM/ton
CFM
Watts
1616 / 1728
363 / 433
1614 / 1646
443 / 464
1543 / 1543
475 / 475
1423 / 1423
472 / 472
1301 / 1301
463 / 463
400
CFM/ton
CFM
Watts
1615
363
1615
444
1545
474
1431
471
1313
462
450
CFM/ton
CFM
Watts
1711 / 1711
432 / 432
1621 / 1621
456 / 456
1514 / 1514
465 / 465
1393 / 1393
460 / 460
1273 / 1273
453 / 453
450
CFM/ton
CFM
Watts
1716
430
1629
453
1528
462
1411
458
1297
452
NOTES: 1. * Models start with "A" or "T" 2. † Factory Setting 3. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower.
4. Torque mode will reduce airflow when static is above approximately 0.35” water column. 5. All heating modes default to Constant CFM. 6. Cooling airflow values are with wet coil, no filter

TAM811
*AM8A0C48 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
3 tons
290
CFM/ton
CFM
Watts
894 / 1018
69 / 91
900 / 897 114 / 114
896 / 767 157 / 130
886 / 622 195 / 137
871 / 445
229 /
290
CFM/ton
CFM
Watts
893
72
900 118
893 159
883 197
864 230
350
CFM/ton
CFM
Watts
1067 / 1180
106 / 132
1073 / 1078
158 / 160
1072 / 972
208 / 180
1065 / 859
252 / 192
1053 / 738
292 / 194
350
CFM/ton
CFM
Watts
1068
112
1073
164
1070
213
1062
257
1049
295
400
CFM/ton
CFM
Watts
1205 /1314
145 / 176
1212 / 1222
203 / 206
1213 / 1128
259 / 229
1208 / 1029
309 / 244
1199 / 926
354 / 249
400
CFM/ton
CFM
Watts
1207
154
1212
212
1212
266
1206
315
1196
359
450
CFM/ton
CFM
Watts
1343 / 1451
193 / 232
1352 / 1367
259 / 264
1355 / 1280
320 / 289
1353 / 1190
377 / 305
1346 / 1098
427 / 313
450
CFM/ton
CFM
Watts
1344
206
1352
270
1354
331
1352
387
1344
436
3.5 tons
290
CFM/ton
CFM
Watts
1034 / 1149
98 / 123
1041 / 1044
149 / 150
1038 / 934
197 / 170
1031 / 817
240 / 181
1018 / 690
279 / 182
290
CFM/ton
CFM
Watts
1034
103
1040
154
1037
202
1028
244
1014
281
350
CFM/ton
CFM
Watts
1228 / 1336
152 / 185
1235 / 1246
212 / 215
1236 / 1153
268 / 238
1232 / 1056
319 / 253
1224 / 955
365 / 259
350
CFM/ton
CFM
Watts
1229
162
1235
221
1236
276
1230
326
1220
371
400
CFM/ton
CFM
Watts
1389 / 1498
212 253
1399 / 1415
280 / 286
1403 / 1331
343 / 311
1401 / 1244
402 / 328
1395 / 1154
455 / 336
400
CFM/ton
CFM
Watts
1392
226
1400
293
1403
356
1400
413
1394
465
450
CFM/ton
CFM
Watts
1558 / 1669
290 / 343
1570 / 1592
367 / 377
1575 / 1514
439 / 404
1575 / 1434
505 / 422
1568 / 1351
563 / 432
450
CFM/ton
CFM
Watts
1561
310
1572
386
1576
457
1574
521
1567
577
4 tons †
290
CFM/ton
CFM
Watts
1168 / 1298
133 / 170
1175 / 1205
191 / 200
1175 / 1109
244 / 223
1170 / 1010
293 / 237
1160 / 905
336 / 242
290
CFM/ton
CFM
Watts
1168
141
1176
198
1174
251
1168
299
1157
341
350 †
CFM/ton
CFM
Watts
1389 / 1517
212 / 262
1399 / 1436
280 / 295
1403 / 1352
343 / 321
1401 / 1266
402 / 338
1395 / 1177
455 / 346
350
CFM/ton
CFM
Watts
1392
226
1400
293
1403
356
1400
413
1394
465
400
CFM/ton
CFM
Watts
1583 / 1714
303 / 370
1595 / 1639
382 / 546
1601 / 1562
455 / 431
1600 / 1483
521 / 450
1593 / 1401
580 / 459
400 †
CFM/ton
CFM
Watts
1586
325
1597
402
1601
474
1599
538
1591
595
450
CFM/ton
CFM
Watts
1790 / 1918
429 / 511
1800 / 1848
515 / 546
1808 / 1775
594 / 573
1793 / 1701
663 / 592
1698 / 1625
660 / 601
450
CFM/ton
CFM
Watts
1794
459
1801
544
1800
620
1766
665
1667
655
4.5 tons**
290
CFM/ton
CFM
Watts
1301 / 1429
177 / 222
1310 / 1344
241 / 253
1312 / 1256
300 / 278
1309 / 1165
355 / 294
1302 / 1071
404 / 302
290
CFM/ton
CFM
Watts
1302
189
1310
252
1311
310
1309
355
1301
403
350
CFM/ton
CFM
Watts
1558 / 1688
290 / 354
1570 / 1613
367 / 389
1575 / 1535
439 / 415
1575 / 1455
505 / 434
1568 / 1373
563 / 444
350
CFM/ton
CFM
Watts
1557
290
1570
367
1575
439
1575
505
1569
563
400
CFM/ton
CFM
Watts
1790 / 1918
429 / 511
1800 / 1848
515 / 546
1801 / 1775
594 / 573
1793 / 1701
663 / 592
1698 / 1625
660 / 601
400
CFM/ton
CFM
Watts
1789
428
1799
515
1801
594
1794
663
1701
659
450
CFM/ton
CFM
Watts
2018 / 2018
605 / 605
1973 / 1973
656 / 656
1857 / 1857
645 / 645
1749 / 1749
637 / 637
1651 / 1651
631 / 631
450
CFM/ton
CFM
Watts
2018
605
1975
656
1863
643
1757
634
1660
628
1. * Models start with "A" or "T" 2. † Factory Setting 3. ** Not an actual OD size 4. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower. 5. Torque mode will reduce airflow when static is above approximately 0.4” water column.
6. If the air handler is applied in downflow or horizontal configurations, the airflow should not exceed 2000 CFM. Airflow above 2000 CFM could result in water blow-off. 7. All heating modes default to Constant CFM. 8. Cooling airflow values are with wet coil, no filter
MODEL NO.
BAYEVAC05BK1A
A
BAYEVAC05LG1AA
BAYEVAC08BK1A
A
BAYEVAC08LG1AA
BAYEVAC10BK1A
A
BAYEVAC10LG1AA BAYEVAC10LG3AA BAYEVBC15BK1AA BAYEVCB15LG3AA BAYEVBC20BK1AA BAYEVCC25BK1AA
*AM8A0C48V41SA
A
1063/1188 1063/1500 1125/1500 1000/1188 1125/1563 1250/1625 1500/1750 1625/1813
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
MINIMUM HEATER AIRFLOW CFM - HEATER MATRIX
AM8A0C48 Minimum Heating Airflow Settings NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.

TAM812
*AM8A0C60 AIRFLOW PERFORMANCE
CONSTANT CFM MODE / CONSTANT TORQUE MODE
OUTDOOR
MULTIPLIER
(TONS)
COOLING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE (Constant CFM / Constant Torque) HEATING
AIRFLOW
SETTING
Airflow
Power
EXTERNAL STATIC PRESSURE
0.1 0.3 0.5 0.7 0.9 0.1 0.3 0.5 0.7 0.9
3.5 tons
290
CFM/ton
CFM
Watts
1040 / 1151
94 / 119
1068 / 1056
151 / 148
1075 / 941
203 / 168
1066 / 799
247 / 175
1046 / 607
283 / 165
290
CFM/ton
CFM
Watts
1039
95
1065
151
1071
203
1063
247
1045
283
370
CFM/ton
CFM
Watts
1312 / 1343
171 / 178
1332 / 1264
236 / 210
1336 / 1174
296 / 235
1329 / 1068
349 / 250
1314 / 945
392 / 251
350
CFM/ton
CFM
Watts
1247
150
1266
213
1270
270
1263
321
1248
363
400
CFM/ton
CFM
Watts
1408 / 1496
206 / 238
1425 / 1426
274 / 273
1429 / 1346
337 / 301
1423 / 1256
393 / 319
1410 / 1154
440 / 325
400
CFM/ton
CFM
Watts
1407
206
1423
274
1426
337
1421
392
1409
439
450
CFM/ton
CFM
Watts
1565 / 1650
274 / 312
1579 / 1585
348 / 348
1584 / 1512
416 / 378
1580 / 1432
477 / 398
1569 / 1343
529 / 407
450
CFM/ton
CFM
Watts
1564
274
1578
348
1582
416
1578
476
1569
529
4 tons
290
CFM/ton
CFM
Watts
1186 / 1304
131 / 164
1208 / 1223
192 / 196
1213 / 1128
248 / 220
1206 / 1018
297 / 234
1189 / 887
337 / 233
290
CFM/ton
CFM
Watts
1185
131
1206
192
1210
248
1203
297
1187
337
370
CFM/ton
CFM
Watts
1480 / 1514
235 / 245
1495 / 1444
306 / 280
1499 / 1365
372 / 308
1495 / 1277
430 / 327
1482 / 1177
479 / 334
350
CFM/ton
CFM
Watts
1407
206
1423
274
1426
337
1421
392
1409
439
400
CFM/ton
CFM
Watts
1587 / 1689
285 / 332
1602 / 1625
360 / 369
1606 / 1554
429 / 399
1602 / 1475
490 / 420
1592 / 1399
543 / 430
400
CFM/ton
CFM
Watts
1587
285
1600
360
1604
428
1601
490
1592
543
450
CFM/ton
CFM
Watts
1770 / 1873
386 / 443
1784 / 1813
468 / 481
1789 / 1747
543 / 512
1788 / 1675
612 / 534
1782 / 1597
671 / 546
450
CFM/ton
CFM
Watts
1770
385
1783
467
1788
543
1788
611
1782
671
4.5 tons **†
290
CFM/ton
CFM
Watts
1322 / 1431
174 / 211
1340 / 1358
240 / 245
1345 / 1274
300 / 271
1338 / 1179
353 / 288
1323 / 1069
397 / 292
290
CFM/ton
CFM
Watts
1321
174
1338
240
1342
300
1336
352
1322
396
370 †
CFM/ton
CFM
Watts
1646 / 1667
315 / 320
1660 / 1602
392 / 357
1665 / 1530
463 / 386
1662 / 1451
527 / 407
1653 / 1363
582 / 417
350
CFM/ton
CFM
Watts
1564
274
1578
348
1582
416
1578
476
1569
529
400
CFM/ton
CFM
Watts
1770 / 1873
386 / 443
1784 / 1813
468 / 481
1789 / 1747
543 / 512
1788 / 1675
612 / 534
1781 / 1597
671 / 546
400 †
CFM/ton
CFM
Watts
1770
385
1783
467
1788
543
1788
611
1782
671
450
CFM/ton
CFM
Watts
1989 2099
535 / 612
2004 / 2042
627 / 650
2012 / 1980
712 / 681
2013 / 1913
788 / 703
2009 / 1842
855 / 716
450
CFM/ton
CFM
Watts
1989
534
2003
626
2011
711
2014
788
2011
856
5 tons
290
CFM/ton
CFM
Watts
1452 / 1557
224 / 265
1469 / 1489
294 / 301
1473 / 1413
358 / 329
1468 / 1327
415 / 348
1455 / 1231
463 / 356
290
CFM/ton
CFM
Watts
1452
224
1467
294
1471
358
1466
415
1454
463
370
CFM/ton
CFM
Watts
1817 / 1826
415 / 451
1831 / 1765
499 / 451
1837 / 1698
576 / 481
1837 / 1624
647 / 503
1831 / 1544
708 / 515
350
CFM/ton
CFM
Watts
1723
357
1736
437
1741
511
1740
578
1734
636
400
CFM/ton
CFM
Watts
1964 / 2073
516 / 590
1978 / 2015
607 / 629
1986 / 1953
690 / 660
1987 / 1886
766 / 682
1983 / 1814
832 / 695
400
CFM/ton
CFM
Watts
1964
515
1978
606
1985
690
1988
766
1985
833
450
CFM/ton
CFM
Watts
2231 / 2347
741 / 842
2245 / 2292
842 / 879
2252 / 2233
934 / 908
2252 / 2171
1015 / 930
2185 / 2104
1024 / 941
450
CFM/ton
CFM
Watts
2232
741
2245
842
2252
934
2252 1016
2186 1023
1. * Models start with "A" or "T" 2. † Factory Setting 3. ** Not an actual OD size 4. Status LED will blink once per 100 CFM requested. In torque mode, actual airflow may be lower. 5. Torque mode will reduce airflow when static is above approximately 0.4" water column.
6. If the air handler is applied in downflow or horizontal configurations, the airflow should not exceed 2000 CFM. Airflow above 2000 CFM could result in water blow-off. 7. All heating modes default to Constant CFM. 8. Cooling airflow values are with wet coil, no filter
MODEL NO.
BAYEVAC05BK1AA
BAYEVAC05LG1AA
BAYEVAC08BK1AA
BAYEVAC08LG1AA
BAYEVAC10BK1AA
BAYEVAC10LG1AA BAYEVAC10LG3AA BAYEVBC15BK1AA BAYEVCB15LG3AA BAYEVBC20BK1AA BAYEVCC25BK1AA
*AM8A0C60V51SA
A
1063/1188 1063/1500 1125/1500 1000/1188 1125/1563 1250/1625 1500/1750 1625/1813
WITHOUT HEAT PUMP / WITH HP
SEE AIR HANDLER NAMEPLATE
MINIMUM HEATER AIRFLOW CFM - HEATER MATRIX
AM8A0C60 Minimum Heating Airflow Settings NOTE: Minimum auxiliary heating airflow is automatically configured by the air handler model and the auxiliary heater model number. This is not field adjustable.

TAM813
kW BTUH kW BTUH
No Heater 0 - - 3.0** 4 15 - - 3.0** 4 15
BAYEVAC05++1 1 4.80 16400 20.0 29 30 3.60 12300 17.3 25 25
BAYEVAC08++1 1 7.68 26200 32.0 44 45 5.76 19700 27.7 38 40
BAYEVAC10++1 1 9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 32 35 7.20 24600 20.0 28 30
Heater Model No. Capacity Minimum
Circuit
Ampacity
Maximum
Overload
Protection
240 Volt
Heater
A
mps per
Circuit
No. of
Circuits
208 Volt
Capacity Heater
Amps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Heater Attribute Data
*AM8A0A24V21SA
Note: * May be "A" or "T"
Note: ** Motor Amps
kW BTUH kW BTUH
No Heater 0 - - 3.0** 4 15 - - 3.0** 4 15
BAYEVAC05++1 1 4.80 16400 20.0 29 30 3.60 12300 17.3 25 25
BAYEVAC08++1 1 7.68 26200 32.0 44 45 5.76 19700 27.7 38 40
BAYEVAC10++1 1 9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 32 35 7.20 24600 20.0 28 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 47 50 10.80 36900 30.0 41 45
9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
2
Heater
Amps per
Circuit
Heater Attribute Data
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
*AM8A0B30V21SA
Heater Model No. No. of
Circuits
240 Volt
Note: * May be "A" or "T"
Note: ** Motor Amps
1MCA and MOP for circuit 1 contains the motor amps
208 Volt
Capacity Heater
A
mps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Capacity
kW BTUH kW BTUH
No Heater 0 - - 3.0** 4 15 - - 3.0** 4 15
BAYEVAC05++1 1 4.80 16400 20.0 29 30 3.60 12300 17.3 25 25
BAYEVAC08++1 1 7.68 26200 32.0 44 45 5.76 19700 27.7 38 40
BAYEVAC10++1 1 9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 32 35 7.20 24600 20.0 28 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 47 50 10.80 36900 30.0 41 45
9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
2
2
*AM8A0C36V31SA
Heater Model No. No. of
Circuits
240 Volt 208 Volt
Capacity Heater
A
mps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Maximum
Overload
Protection
Capacity Heater
Amps per
Circuit
Minimum
Circuit
Ampacity
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
BAYEVBC20BK1 - Circuit 1 1
BAYEVBC20BK1 - Circuit 2
Heater Attribute Data
Note: * May be "A" or "T"
Note: ** Motor Amps
1MCA and MOP for circuit 1 contains the motor amps
AM8 HEATER ATTRIBUTE DATA

TAM814
kW BTUH kW BTUH
No Heater 0 - - 3.0** 4 15 - - 3.0** 4 15
BAYEVAC05++1 1 4.80 16400 20.0 29 30 3.60 12300 17.3 25 25
BAYEVAC08++1 1 7.68 26200 32.0 44 45 5.76 19700 27.7 38 40
BAYEVAC10++1 1 9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 32 35 7.20 24600 20.0 28 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 47 50 10.80 36900 30.0 41 45
9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
9.60 32800 40.0 54 60 7.20 24600 34.6 47 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
2
BAYEVBC20BK1 - Circuit 1 1
BAYEVBC20BK1 - Circuit 2 2
Capacity Heater
A
mps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Capacity Heater
Amps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
208 Volt
Heater Attribute Data
*AM8A0C42V31SA
Heater Model No. No. of
Circuits
240 Volt
Note: * May be "A" or "T"
Note: ** Motor Amps
1MCA and MOP for circuit 1 contains the motor amps
Notes:
1. See Product Data or Air Handler nameplate for approved combinations of Air Handlers and Heaters
2. Heater model numbers may have additional suffix digits.
kW BTUH kW BTUH
No Heater 0 - - 4.2** 5 15 - - 4.2** 5 15
BAYEVAC05++1 1 4.80 16400 20.0 30 30 3.60 12300 17.3 27 30
BAYEVAC08++1 1 7.68 26200 32.0 45 45 5.76 19700 27.7 40 40
BAYEVAC10++1 1 9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 34 35 7.20 24600 20.0 30 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 48 50 10.80 36900 30.0 42 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
Heater Attribute Data
*AM8A0C48V41SA
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Capacity Heater
Amps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
Heater Model No. No. of
Circuits
240 Volt 208 Volt
Capacity Heater
A
mps per
Circuit
BAYEVCC25BK1 - Circuit 1 1
BAYEVCC25BK1 - Circuit 2
BAYEVCC25BK1 - Circuit 3
Note: * May be "A" or "T"
Note: ** Motor Amps
1MCA and MOP for circuit 1 contains the motor amps
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
BAYEVBC20BK1 - Circuit 1 1
BAYEVBC20BK1 - Circuit 2
2
2
3
kW BTUH kW BTUH
No Heater 0 - - 5.5** 7 15 - - 5.5** 7 15
BAYEVAC05++1 1 4.80 16400 20.0 30 30 3.60 12300 17.3 27 30
BAYEVAC08++1 1 7.68 26200 32.0 45 45 5.76 19700 27.7 40 40
BAYEVAC10++1 1 9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
BAYEVAC10LG3 1-3 PH 9.60 32800 23.1 34 35 7.20 24600 20.0 30 30
BAYEVBC15LG3 1-3 PH 14.40 42000 34.6 48 50 10.80 36900 30.0 42 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
9.60 32800 40.0 55 60 7.20 24600 34.6 49 50
9.60 32800 40.0 50 50 7.20 24600 34.6 43 45
4.80 16400 20.0 25 25 3.60 12300 17.3 22 25
Heater Attribute Data
*AM8A0C60V51SA
Capacity Heater
A
mps per
Circuit
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
BAYEVCC25BK1 - Circuit 1 1
BAYEVCC25BK1 - Circuit 2
BAYEVCC25BK1 - Circuit 3
Note: * May be "A" or "T"
Note: ** Motor Amps
1MCA and MOP for circuit 1 contains the motor amps
Minimum
Circuit
Ampacity
Maximum
Overload
Protection
BAYEVBC15BK1 - Circuit 1 1
BAYEVBC15BK1 - Circuit 2
BAYEVBC20BK1 - Circuit 1 1
BAYEVBC20BK1 - Circuit 2
Heater Model No. No. of
Circuits
240 Volt 208 Volt
Capacity Heater
Amps per
Circuit
2
3
2
AM8 HEATER ATTRIBUTE DATA

TAM815
DISTANCE FROM BELLY BAND TO SHAFT FACE OF MOTOR FOR MINIMUM VIBRATION
WHEEL
BLOWER HOUSING
BELLY BAND
MOTOR
A
A is determined per chart
Wheel is centered in
Blower Housing
MODEL DIM "A"
*AM8A0A24V21CA 2-3/8
*AM8A0B30V21CA 2-3/8
*AM8A0C36V31CA 2-3/8
*AM8A0C42V31CA 2-3/8
*AM8A0C48V41CA 2-3/8
*AM8A0C60V51CA 2-3/8
* May be "A" or" T"
SUBCOOLING ADJUSTMENT
Indoor Unit Model No. Outdoor Unit Model No. Subcooling
*AM8A0B30V21CA 4A6H6024E, 4TWX6024E 9°
*AM8A0C36V31CA 4A6H6036E, 4TWX6036E 10°
*AM8A0C48V41CA 4A6H6048E, 4TWX6048E 8°
*AM8A0B30V21CA 4A7A6024E, 4TTX6024E 8°
*AM8A0C36V31CA 4A7A6036E, 4TTX6036E 8°
*AM8A0C48V41CA 4A7A6048E, 4TTX6048E 8°
*AM8A0B30V21CA 4TWZ0024A, 4A6Z0024A 9°
*AM8A0C36V31CA 4TWZ0036A, 4A6Z0036A 10°
*AM8A0C48V41CA 4TWZ0048A, 4A6Z0048A 12°
*AM8A0B30V21CA 4TTZ0024A, 4A7Z0024A 9°
*AM8A0C36V31CA 4TTZ0036A, 4A7Z0036A 11°
*AM8A0C48V41CA 4TTZ0048A, 4A7Z0048A 13°
* May be “A” or “T”
All other matches must be charged per the nameplate charging instructions.

TAM816
Air Handler Control Panel - LEDs
Airflow Control (AFC)
Distribution Board
Electronic Expansion Valve Control (EVC)
SW1
R410A / R22
TEST
CLOSE
OPEN
J4
OPEN TEST CLOSE
J3
J6
J1
To EEV Stator
To Internal Condensate Switch (Optional)
GT Sensor
See Table
ET Sensor
J7 - Motor
J10
STATUS LED
FAULT LED
UNIT LED
FAULT
UNIT
STATUS
STATUS LED
WIRE TIE
FAULT LED
UNIT LED
BM LED
COMM LED
TEST
Unit Test
HUM
J11
J6
24 VAC
J2
J4
13.8 VDC
J8
J9 - EHC/HHC
24 VAC
From Transformer From DC Power Supply
13.8 VDC
13.8 VDC
J8
J5
J2
13.8 VDC
FAULT
UNIT
STATUS
Y1
O
D R
B
Y2
J10 - Display Assembly
COMM
BM

TAM817
AFC BM LED
Solid ON
AFC COMM LED
Device count
Description
Number of communicating devices*
Description
Normal operation
AFC STATUS LED Description
ON SOLID Power up and during last 4 fault history sequence
1 Flash (per second) Stand-by or idle
Multiple Flash CFM demand - 1 flash per 100 cfm
AFC STATUS CODES (GREEN LED)
AFC FAULT CODES (RED LED)
AFC UNIT LED (BLUE LED)
AFC COMM LED (AMBER LED)
AFC BM (Bit Master) LED (GREEN LED)
UnitLED
1Flash
Rapid
Off
SOLIDON
Description
Normal(1flashevery4seconds)
CommunicationBusyError(2flashespersecond)
NoPower
CommunicationscannotbeestablishedwiththeAFC
Airflow Control (AFC)
Distribution
Board
Electronic Expansion Valve Control (EVC)
SW1
R410A / R22
TEST
CLOSE
OPEN
J4
OPEN
TEST
CLOSE
J3
J6
J1
To EEV Stator
To Internal
Condensate
Switch (Optional)
GT Sensor
See Table
ET Sensor
J7 - Motor
J10
STATUS
LED
FAULT
LED
UNIT
LED
FAULT
UNIT
STATUS
STATUS
LED
WIRE
TIE
FAULT
LED
UNIT
LED
BM LED
COMM LED
TEST
Unit Test
HUM
J11
J6
24 VAC
J2
J4
13.8 VDC
J8
J9 - EHC/HHC
24 VAC
From Transformer From DC Power Supply
13.8 VDC
13.8 VDC
J8
J5
J2
13.8 VDC
FAULT
UNIT
STATUS
Y1
O
D
R
B
Y2
J10 - Display Assembly
COMM
BM
* Examples: communicating thermostat, communicating air cleaner, etc.
AFC Fault
LED Description
OFF No Fault
SolidOn Internal control failure
124VAC fuse blown
2PM Data Corrupt or Missing / Motor Mismatch
3Communication error 3
4Blower communication error (Status LED will be ON solid)
5Internal communication error (refer to Unit LED on EVC, EHC, HHC) (1)(2)
6Indoor coil air sensor error
8Twinning erro
r
11 EVC has detected a fault condition (refer to Fault LED on EVC)
12 EHC / HHC has detected a fault condition (refer to Fault LED on EHC / HHC)
1) If Unit LED on AFC is flashing 2 times/second, AFC is causing the error.
2) Unit LED on suspect control will flash 2 times/second on the suspect control.
3) Error is associated with the ComfortLink TMII or AccuLinkTM communcating bus.
All LED's will be off if power is not applied.
NOTES:

TAM818
EVC FAULT CODES (RED LED)
EVC STATUS CODES (GREEN LED)
EVC UNIT LED (BLUE LED)
EVC STATUS LED (Non Heat Pump Systems)
Flash
1 Cool mode selected / No active call
2 Active call for 1st stage cooling
3
A
ctive call for 2nd stage cooling (1)
(1) Single stage OD systems will report 2nd stage flash codes
EVC STATUS LED (Heat Pump Systems)
Flash
1 Cool mode selected / No active call
2 Active call for 1st stage cooling or defrost
3 Active call for 2nd stage cooling or defrost (1)
4 Heat mode selected or Thermostat system switch off
5 Active call for 1st stage heating
6
A
ctive call for 2nd stage heating (1)
(1) Single stage OD systems will report 2nd stage flash codes
NOTE:
NOTE:
UnitLED
1Flash
Rapid
Off
SOLIDON
Description
Normal(1flashevery4seconds)
CommunicationBusyError(2flashespersecond)
NoPower
CommunicationscannotbeestablishedwiththeAFC
EVC
SW1
R410A / R22
TEST
CLOSE
OPEN
J4
OPEN
TEST
CLOSE
STATUS
LED
FAULT
LED
UNIT
LED
J11
FAULT
UNIT
STATUS
EVC
Fault LED Description
OFF Standb
y
1 Stepper Motor or wiring harness has an open circuit or intermittent short
2Control has detected an internal failure (Verify EEV motor resistance and harness wiring)
3Saturated Gas Sensor input out of range (Verify resistance, 5VDC output from control) (1)
4 Evaporator Gas Sensor input out of range (Verify resistance, 5VDC output from control) (1)
5Stepper Motor Coil is shorted (2)
6Valve is not responding to a change in position. (Possible stuck valve)
7High superheat (Low charge or restriction)
10 Low superheat (Check airflow, possible stuck valve) (3)
11 Condensate drain switch activated for 100 seconds (Check condensate switch and drain) (2)
13 Indoor frost protection activated (Check refrigerant charge and airflow) (2)
14 Internal communication fault (All operation is terminated) (Cycle power & check wire terminations)
15 Configuration fault (All operation is terminated) (Cycle power & check if PM error is present)
16 Outdoor status fault (All operation is terminated)
1) EEV will try to go to a safe position, cooling attempt allowed
2) K1 relay opens on EVC, Yo disabled
3) Cooling attempt allowed, 5 consecutive Y calls with same condition disables Yo
NOTES:

TAM819
20KW
15KW 10KW
8KW
5KW
PARK
TRANEU.S .INC.
FAULT
STATUS
UNIT
T8
T7
T6
13.8V
DATA A
DATAB
GND
+5V
+13.8V
GND
25KW
R73
R72
R71
R70
MOV1
D23
D22
R69
R66
JP1
C13
R65
R64
R63
R62
R61
R60
R19
R18
D8
D7
T11
T9
R56 R55 R54
R53
R52
R51
R50
R49
R48
R47
R46
R45
R44
R37
R36
R30
R29
D20
D1
9
D17
D16
D15
D14
D12
D11
D10
D9
C11
C9
P3
AUX PGC PGD
VSS
VDD
MCLR
1
P1
X1
U1
T2
T1
R43
R41
R39
R27
R26
R38
R33
R32
R35
R34
R28
R31
D6
D5
D3
D2
D1
C10
C5
C7
C6
C4
C3
C8
C2
C1
P2
K6
U3
U2
U4
R5
R10R15
R20R25
U5 U6 U7
U8 U9
R40
T5
T4
T3
T10
T12
R14
R13
R9
R8
R7
R6
R4
R3
R2
R1
R17
R16
R12
R11
R23
R22
R21
R24
K1 K2 K3 K4
K5
R57
R58
R59
C12
D4
D21
R67
R68
D24 D25
STATUS
LED
FAULT
LED
UNIT
LED
EHC STATUS CODES (GREEN LED)
EHC UNIT LED (BLUE LED)
EHC FAULT CODES (RED LED)
EHC F
au
lt
LED Description
OFF Nofault
1 Internalcommunicationerror
2 Heatrelaystuckopen
3 Heatrelaystuckclosed
4 Non‐cyclinglimit(NTCO)orelementopen
5 Cyclinglimit(CTCO)open
6Configurationerror(1)
8 Blowerinterlockrelaystuckopenorstuckclosed
1) Confirm heater model and kw jumper match
NOTES:
EHC STATUS LED
1
2
3
4
55 heater relays energized
Standby mode STATUS LED will flash 1 time per second
On a call for heat, STATUS LED will flash per the table above every 4 seconds
NOTES
Description
1 heater relay energized or stand by (see note)
2 heater relays energized
3 heater relays energized
4 heater relays energized
UnitLED
1Flash
Rapid
Off
SOLIDON
Description
Normal(1flashevery4seconds)
CommunicationBusyError(2flashespersecond)
NoPower
CommunicationscannotbeestablishedwiththeAFC

TAM820
HHC
Fault LED Description
OFF Nofault
1 Internalcommunicationerror
2 Watertempisat38Forlower
3 Watertempsensorisshorted
4 Watertempsensorisopen
5Configurationerror(1)
6 Heatdemanderror
1) Confirm heater model and dip switch configuration
NOTES:
HHC STATUS CODES (GREEN LED)
HHC FAULT CODES (RED LED)
HHC UNIT LED (BLUE LED)
UNIT
STATUS
FAULT
GND
13.8VDC
+5V
.
TRANEU.S.INC.
UNIT
STATUS
FAULT
13.8V
DATA A
DATA B
GND
Pb
D18
D16
D14
D12
D15
D17
R48
R47
R46
R45R44
MOV1
1SW1
K1
AUX
PGC
PGD
VSS
VDD
MCLR
.
P3
C16
1
P4
X1
U3
U2
U1
R39
R37
R36
R35
R34
R33
R32
R31R30
R29
R28
R27
R26
R25
R24
R23
R22
R20
R19
R18
R17
R16
R15
R14
R13
R12
R11
R10
R9
R8
R7
R6
R5
R4
R3
R2
R1
Q1
P6
P5
P1
D13
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
C13
C12
C11
C9
C8
C7
C6
C5
C4
C3
C2
C1
C14
R40
R41
C10
C15
C17
R42
R43
HHC STATUS LED
1 per second
2 per second
Description
Standby or idle (see note)
Heating demand is present
UnitLED
1Flash
Rapid
Off NoPower
Description
Normal(1flashevery4seconds)
CommunicationBusyError(2flashespersecond)
SOLIDON CommunicationscannotbeestablishedwiththeAFC
